LightPro IN1029 - Projector INFOCUS - Free user manual and instructions

Product Type	Projector
Brand	InFocus
Model	LightPro IN1029
Display Technology	LCD
Native Resolution	WUXGA (1920 x 1200)
Power Supply	AC 100-240 V, 50/60 Hz
Keystone Correction	Yes, vertical and horizontal (H/V Keystone)
Digital Zoom	Yes (D. Zoom +/-)
Image Modes	Dynamic, Standard, Cinema, Blackboard (Green), Colorboard, User
Security	Keyboard lock and PIN code
Inputs	VGA, HDMI 1, HDMI 2, Composite Video, USB-A (Memory Viewer), USB-B (USB Display), LAN, RS-232
Audio Output	Yes, headphone jack (AUDIO OUT)
Built-in Speaker	Yes, mono
Network Control	Yes, via web browser and Wake On LAN
USB Display	Yes, PC connection via USB-B
Memory Viewer	Yes, file playback from USB flash drive
Menu Languages	26 languages (including French, English, German, Spanish, etc.)
Included Accessories	AC power cord, remote control (without batteries), quick start guide, VGA cable
Maintenance	Filter cleaning and lamp replacement

Frequently Asked Questions - LightPro IN1029 INFOCUS

How to turn on the projector?

Plug in the AC power cord, then press the POWER button on the control panel or remote control. The indicator turns green. If a PIN code is set, enter it.

How to adjust keystone correction?

Press the KEYSTONE button on the remote control. Use the ▲▼◀▶ arrows to correct vertical/horizontal distortion, corner correction, or curved correction.

How to use digital zoom?

Press D.ZOOM+ or D.ZOOM- on the remote control to enlarge or reduce the image. Use the arrows to move around the zoomed image. Press another key to exit.

How to change the image mode?

Press the IMAGE button on the remote control to cycle through modes: Dynamic, Standard, Cinema, Blackboard, Colorboard, or User. You can also do this via the Color Setting menu.

How to protect the projector with a PIN code?

Go to menu Settings > Extended > Security. Enable PIN code and enter a 3-digit number. Confirm. The projector will ask for this code every time it is turned on.

How to clean the filter?

Turn off the projector and unplug it. Remove the filter (see diagram in the manual). Clean it with a vacuum cleaner or water (let it dry completely). Replace and reset the filter counter via the Extended menu.

How to replace the lamp?

Turn off the projector, unplug it, and wait for it to cool down. Open the lamp compartment (located under the projector). Disconnect the old lamp, remove it, and insert the new one. Close and reset the lamp counter via the Extended menu.

What to do if the screen remains black?

Check the cable connections and ensure the input source is correct. Press the INPUT button to select the source. Make sure the projector is not in standby or that the lens cap is not closed. If the POWER light blinks red, refer to the Troubleshooting section.

How to connect a computer via USB?

Use a USB-A to USB-B cable (or USB-C to USB-B if necessary). Connect the USB-B port of the projector to the PC. In the INPUT menu, select USB Display. The PC screen will then be displayed.

How to use the Memory Viewer function?

Insert a USB flash drive into the USB-A port of the projector. Select Memory Viewer as the input source in the INPUT menu. Use the arrows to browse files (images, videos, etc.) and press OK to display them.

USER MANUAL LightPro IN1029 INFOCUS

Line drawing of a projector with ventilation grilles and a circular vent (no text or symbols)

OUTPUT VISA VIDEO HORN AUTO MENU ON KEYTIME DRAGON PULSE PATTERN SCROLL LAMP WRITE SPG 3.20AM VOLUME TIME

Copyright © 2021 InFocus

Copyright © 2020 by InFocus Corporation

https://infocus.com/support/contact/

Closed caption....61

Verrouillage 61

Iris....62

Son....62

Réglages HDMI 63

Étendre....64

Langue....64

Réglages auto....65

Trapèze 65

Logo 70

Sécurité 72

Contacter InFocus....122

Technical diagram of a projector with labeled ports and internal structure, showing internal components and connection points.

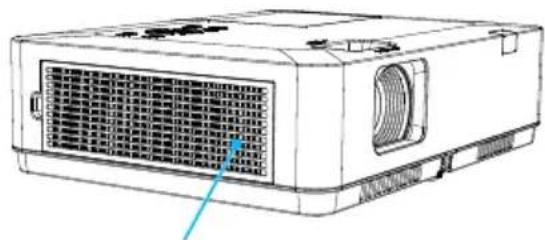

Entrée d'air

Line drawing of a projector unit with ventilation grilles and ventilation ducts (no text or symbols)

Diagram of a projector with a hand using a screen and a red prohibition symbol indicating no protection.

Diagram of a projector with a red prohibition symbol indicating no protection, showing mechanical components and label text.

Line drawing of a projector with a hand holding the lens and a warning symbol (no text or labels)

FCC

Note

Diagram of a projector with labeled parts including internal components and numbered labels 1 through 6.

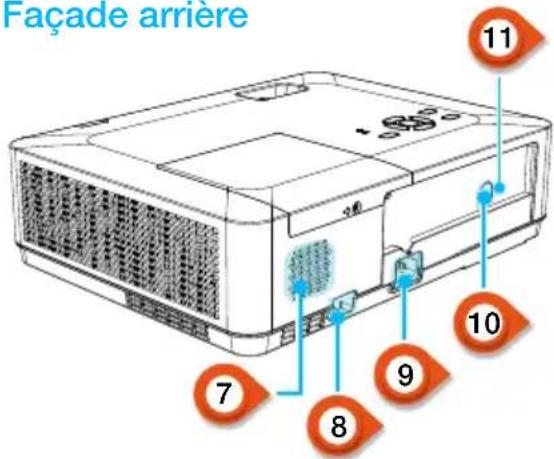

Façade arrière

• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046

Terminaux

1 2 HDMI COMPUTER IN RS-232C VIDEO IN SERVICE 6 5

1 Port HDMI

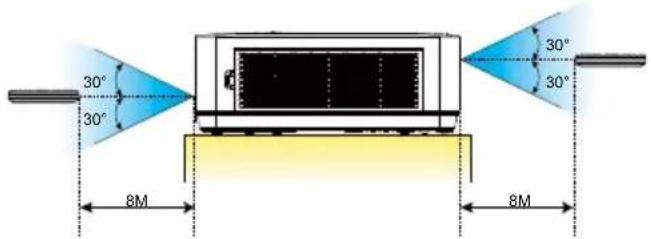

8M 30° 30° 30° 30° 8M

30° 30° 8M 30° 30° 8M

IN1024, IN1034, IN1044

Taille d’écran			Distance de projection
			Standard 4:3 Compatible 16:9
Taille d’écran (pouce)	Largeur (m)	Hauteur (m)	Large	Télé Large	Télé
30” 0.6100.457 0.8	121.347 0.8	85 1.467
60” 1.2190.9141.63	2.702 1.7	76 2.944
80” 1.6261.2192.17	3.610 2.3	73 3.933
100” 2.032 1.524	2.728 4.523	2.972 4.927
150” 3.048 2.2864	1146.8204.4	827.430
200” 4.0643.048 5	514 9.1416	0089.959
250” 5.080 3.810	6.92911.486	7.549 12.513
300” 6.0964.572 8	358 13.855	9.10615.094

IN1026

Taille d’écran			Distance de projection
			Standard 4:3 Compatible 16:9
Taille d’écran (pouce)	Largeur (m)	Hauteur (m)	Large	Télé Large	Télé
30” 0.6460.4040.94	2 1.137	0.969 1.169
60” 1.2920.8081.91	0 2.299	1.963 2.363
80” 1.723 1.077 2	554 3.073	2.626 3.159
100” 2.154 1.346	3.199 3.848	3.289 3.956
150” 3.231 2.0194	811 5.785	4.946 5.946
200” 4.308 2.6926	423 7.721	6.602 7.937
250” 5.385 3.365	8.035 9.658	8.259 9.927
300”	6.462	4.039	9.647	11.595	9.916	11.917

IN1046, IN1039, IN1059

Taille d’écran			Distance de projection
			Standard 4:3 Compatible 16:9
Taille d’écran (pouce)	Largeur (m)	Hauteur (m)	Large	Télé Large	Télé
30” 0.6460.4040.81	2 1.347 0	835 1.384
60” 1.2920.8081.63	0 2.702 1	675 2.777
80” 1.723 1.077 2	178 3.610	2.239 3.711
100” 2.154 1.346	2.728 4.523	2.804 4.648
150” 3.231 2.0194	114 6.820	4.228 7.009
200” 4.308 2.6925	520 9.150	5.673 9.405
250” 5.385 3.365	6.936 11.49	8 7.129 11.817
300” 6.4624.039 8	367 13.869	8.599 14.255

IN1036, IN1029, IN1049

Taille d’écran			Distance de projection
			Standard 4:3 Compatible 16:9
Taille d’écran (pouce)	Largeur (m)	Hauteur (m)	Large	Télé Large	Télé
30” 0.6460.4040.87	2 1.053 0.	896 1.082
60” 1.2920.8081.76	9 2.129 1.	818 2.188
80” 1.723 1.077 2	365 2.845	2.431 2.924
100” 2.154 1.346	2.962 3.563	3.044 3.662
150” 3.231 2.0194	455 5.356	4.578 5.505
200” 4.308 2.6925	947 7.149	6.113 7.348
250” 5.385 3.365	7.440 8.943	7.647 9.191
300” 6.4624.039 8	932 10.736	9.181 11.035

Technical line drawing of a projector with a screw inserted, showing internal components and mounting bracket (no text or symbols)

Figure (1)

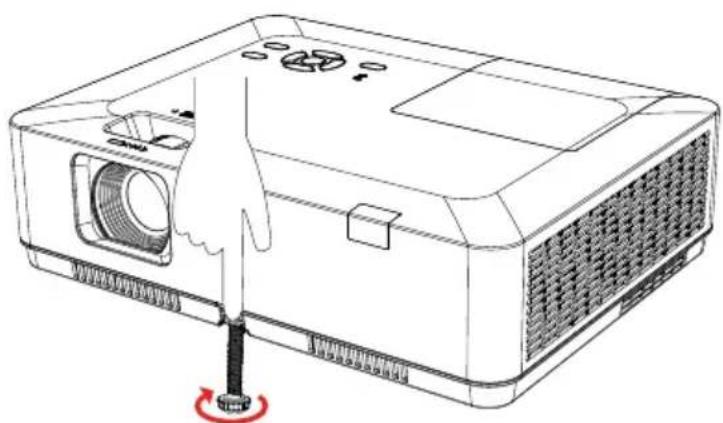

Line drawing of a projector with a hand inserting a screwdriver into the base (no text or symbols)

Figure (2)

Line drawing of a desktop computer setup with monitor, keyboard, and tower (no text or symbols)

• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046

• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046

• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046

• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046

Line drawing of a projector with a cable inserted, showing ventilation grille and power outlet (no text or symbols)

Éteindre?

Illustration of a projector with a blue lens and two side-view landscape photos showing mountains at sunset (no text or symbols)

PAS D'IMAGE
