LightPro IN1026 - Projector INFOCUS - Free user manual and instructions
Find the device manual for free LightPro IN1026 INFOCUS in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | DLP projector |
| Brand | InFocus |
| Model | LightPro IN1026 |
| Native resolution | WXGA (1280 x 800) |
| Supported resolutions | Up to WUXGA (1920 x 1200) |
| Display technology | LCD, 1.07 billion colors |
| Keystone correction | Vertical and horizontal, angle correction, curved correction |
| Digital zoom | Yes, via remote control (D.Zoom + and -) |
| Focus and zoom | Manual (focus ring and zoom ring) |
| Speaker | Built-in |
| Input sources | VGA, HDMI (x2), composite video, USB-A, USB-B, LAN, RS-232C |
| Network functions | Web browser control, Wake on LAN |
| USB Display | Yes (via USB-B for PC, or USB-A for USB flash drive) |
| Memory Viewer | Yes (file playback from USB device) |
| Multilingual menu | 26 languages including French, English, German, etc. |
| Security | PIN code (password protection), Kensington lock, keyboard lock |
| Power supply | AC 100–240 V, 50/60 Hz (automatic adjustment) |
| Standby consumption | ECO mode: limited network functions; Normal mode: standby with active network |
| Maintenance | Filter cleaning, lamp replacement (consumable lamp) |
| Lens cleaning | Soft cloth, do not use liquid |
| Spare parts | Lamp, filter, remote control (AAA batteries not included) |
| Included accessories | AC power cord, remote control (without batteries), VGA cable, quick start guide |
| Operating temperature | 0–40 °C (according to safety standards) |
Frequently Asked Questions - LightPro IN1026 INFOCUS
How to connect a computer to the projector?
Use a VGA cable (included) by connecting the COMPUTER IN port of the projector to the VGA output of the computer. You can also use an HDMI cable (not included) on one of the HDMI 1 or HDMI 2 ports. Make sure the projector is on and select the corresponding source via the INPUT button.
How to correct a distorted image (keystone)?
Press the KEYSTONE button on the remote control. Use the directional arrows to adjust the vertical/horizontal keystone correction, angle correction, or curved correction. You can also enable automatic correction by pressing AUTO.
How to replace the projector lamp?
Turn off the projector and unplug the power cord. Let it cool for 45 minutes. Remove the lamp cover by unscrewing the screws, disconnect the lamp connector, then remove the old lamp. Insert the new lamp in the correct orientation, reconnect the connector, replace the cover and screw it. Reset the lamp counter in the Settings menu.
How to clean the air filter?
Turn off the projector and unplug it. Remove the filter located on the side (identified on the bottom). Clean it with a vacuum cleaner or soapy water (let it dry completely). Put the filter back in place. After cleaning, reset the filter counter in the Settings menu > Filter Counter.
I forgot my security PIN code. What should I do?
The PIN code is set by the user. If forgotten, contact InFocus customer service or an authorized repair center. Always keep the PIN code in a safe place. By default, the PIN code is not activated; you can disable it in Settings > Security.
How to use the USB Display function?
Connect your computer to the USB-B port of the projector using a USB-A to USB-B cable (not included). Select the USB Display source in the INPUT menu. Your PC screen will then be projected. Note: some settings (freeze, aspect) are unavailable in this mode.
How to project photos from a USB flash drive?
Insert the USB flash drive into the USB-A port of the projector. Select the Memory Viewer source in the INPUT menu. Use the arrows to navigate among files. You can configure the slideshow in the Memory Viewer menu (sort order, rotation, transition effect).
How to control the projector via a network?
Connect the projector to your network via the LAN port (RJ45 cable). In the Settings menu > Network, configure the IP address (DHCP or manual). From a web browser, enter the projector's IP to access the control interface. You can also use Wake on LAN in Network standby mode.
How to adjust volume or mute?
Use the Volume +/– buttons on the remote control. To mute, press MUTE. You can also access the Settings menu > Audio to adjust volume or enable/disable mute.
What to do if the projector does not turn on?
Check that the power cord is properly connected and that the power outlet is live. If the POWER indicator stays red, press the POWER button. If the indicator blinks red, the projector is overheating: ensure the air inlets are not blocked and let it cool. Refer to the Troubleshooting section of the manual for other cases.
User questions about LightPro IN1026 INFOCUS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Projector in PDF format for free! Find your manual LightPro IN1026 - INFOCUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LightPro IN1026 by INFOCUS.
USER MANUAL LightPro IN1026 INFOCUS
Copyright © 2020 by InFocus Corporation
https://infocus.com/support/contact/
Closed caption....61
Verrouillage 61
Iris....62
Son....62
Réglages HDMI 63
Étendre....64
Langue....64
Réglages auto....65
Trapèze 65
Logo 70
Sécurité 72
Contacter InFocus....122


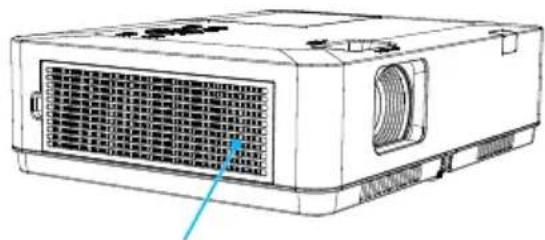

Technical diagram of a projector with labeled ports and internal structure, showing internal components and connection points.Entrée d'air
Diagram of a projector with a hand using a screen, showing no label or symbols on the device.text_image
Diagram of a projector with a red prohibition symbol indicating no protection, showing mechanical components and label text.natural_image
Line drawing of a projector with a hand holding the lens and a warning symbol (no text or labels)FCC
Note


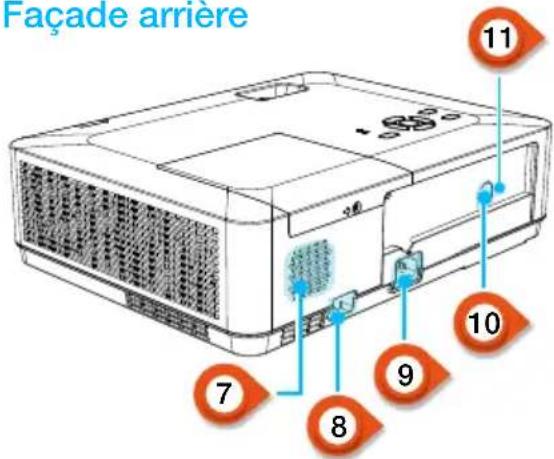

Diagram of a projector with labeled parts including front panel, screen, and indicator lightsFaçade arrière
• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
Terminaux


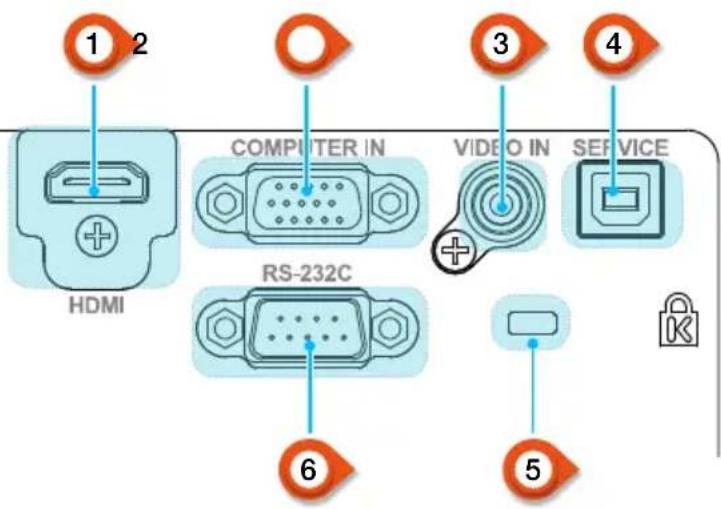

1 2 HDMI COMPUTER IN RS-232C VIDEO IN SERVICE 6 51 Port HDMI


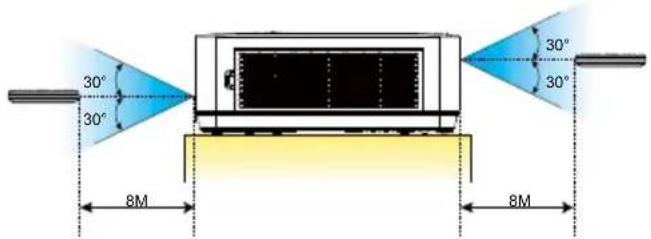

8M 30° 30° 30° 30° 8M
| Taille d’écran | Distance de projection | |||||
| Standard 4:3 Compatible 16:9 | ||||||
| Taille d’écran (pouce) | Largeur (m) | Hauteur (m) | Large | Télé Large | Télé | |
| 30” 0.6100.457 0.8 | 121.347 0.8 | 85 1.467 | ||||
| 60” 1.2190.9141.63 | 2.702 1.7 | 76 2.944 | ||||
| 80” 1.6261.2192.17 | 3.610 2.3 | 73 3.933 | ||||
| 100” 2.032 1.524 | 2.728 4.523 | 2.972 4.927 | ||||
| 150” 3.048 2.2864 | 1146.8204.4 | 827.430 | ||||
| 200” 4.0643.048 5 | 514 9.1416 | 0089.959 | ||||
| 250” 5.080 3.810 | 6.92911.486 | 7.549 12.513 | ||||
| 300” 6.0964.572 8 | 358 13.855 | 9.10615.094 | ||||
IN1026
| Taille d’écran | Distance de projection | |||||
| Standard 4:3 Compatible 16:9 | ||||||
| Taille d’écran (pouce) | Largeur (m) | Hauteur (m) | Large | Télé Large | Télé | |
| 30” 0.6460.4040.94 | 2 1.137 | 0.969 1.169 | ||||
| 60” 1.2920.8081.91 | 0 2.299 | 1.963 2.363 | ||||
| 80” 1.723 1.077 2 | 554 3.073 | 2.626 3.159 | ||||
| 100” 2.154 1.346 | 3.199 3.848 | 3.289 3.956 | ||||
| 150” 3.231 2.0194 | 811 5.785 | 4.946 5.946 | ||||
| 200” 4.308 2.6926 | 423 7.721 | 6.602 7.937 | ||||
| 250” 5.385 3.365 | 8.035 9.658 | 8.259 9.927 | ||||
| 300” | 6.462 | 4.039 | 9.647 | 11.595 | 9.916 | 11.917 |
IN1046, IN1039, IN1059
| Taille d’écran | Distance de projection | |||||
| Standard 4:3 Compatible 16:9 | ||||||
| Taille d’écran (pouce) | Largeur (m) | Hauteur (m) | Large | Télé Large | Télé | |
| 30” 0.6460.4040.81 | 2 1.347 0 | 835 1.384 | ||||
| 60” 1.2920.8081.63 | 0 2.702 1 | 675 2.777 | ||||
| 80” 1.723 1.077 2 | 178 3.610 | 2.239 3.711 | ||||
| 100” 2.154 1.346 | 2.728 4.523 | 2.804 4.648 | ||||
| 150” 3.231 2.0194 | 114 6.820 | 4.228 7.009 | ||||
| 200” 4.308 2.6925 | 520 9.150 | 5.673 9.405 | ||||
| 250” 5.385 3.365 | 6.936 11.49 | 8 7.129 11.817 | ||||
| 300” 6.4624.039 8 | 367 13.869 | 8.599 14.255 | ||||
IN1036, IN1029, IN1049
| Taille d’écran | Distance de projection | |||||
| Standard 4:3 Compatible 16:9 | ||||||
| Taille d’écran (pouce) | Largeur (m) | Hauteur (m) | Large | Télé Large | Télé | |
| 30” 0.6460.4040.87 | 2 1.053 0. | 896 1.082 | ||||
| 60” 1.2920.8081.76 | 9 2.129 1. | 818 2.188 | ||||
| 80” 1.723 1.077 2 | 365 2.845 | 2.431 2.924 | ||||
| 100” 2.154 1.346 | 2.962 3.563 | 3.044 3.662 | ||||
| 150” 3.231 2.0194 | 455 5.356 | 4.578 5.505 | ||||
| 200” 4.308 2.6925 | 947 7.149 | 6.113 7.348 | ||||
| 250” 5.385 3.365 | 7.440 8.943 | 7.647 9.191 | ||||
| 300” 6.4624.039 8 | 932 10.736 | 9.181 11.035 | ||||


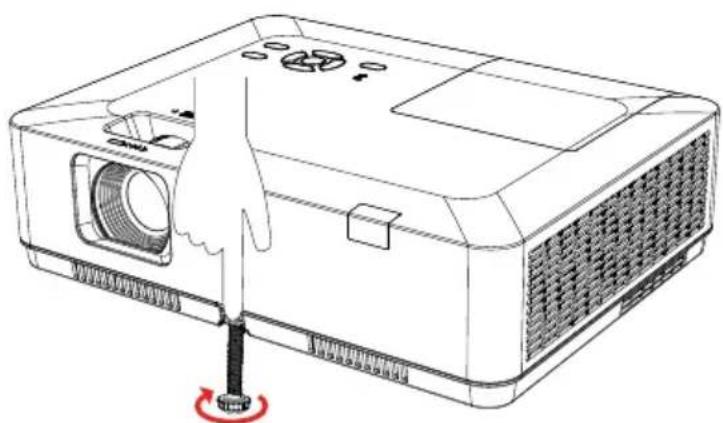

Line drawing of a projector with a hand inserting a screwdriver into the base (no text or symbols)Figure (2)
• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
• Pour les modèles IN1029, IN1039, IN1049, IN1059, IN1024, IN1034, IN1044, IN1026, IN1036, IN1046
