USER MANUAL WFG 47 VESTFROST

Front view of a black stainless steel refrigerator with horizontal glass panels and ventilation grilles (no visible text or symbols)

Compact Wine cabinet WFG46 - WFG47

GB Instructions for use

Keep ventilation openings in the appliance's cabinet or in the built-in structure clear of obstruction.

WARNING:

Do not use other mechanical devices or other means to accelerate the defrosting process than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant circuit.

WARNING:

Do not use electrical appliances inside the storage compartment, unless they are of a type recommended by the manufacturer.

Warning symbol of a flame inside a triangle (no text or numbers)

WARNING:

Danger: Risk of fire or explosion if flammable refrigerant is used. To be repaired only by trained personnel.

WARNING:

When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Always keep the keys in a separate place and out of reach of children.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Before servicing or cleaning the appliance, unplug the appliance from the mains or disconnect the electrical power supply.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

• Frost formation on the interior evaporator wall and upper parts is a natural phenomenon. Therefore, the appliance should be defrosted during normal cleaning or maintenance.
• Please note that changes to the appliance construction will cancel all warranty and product liability.
• This appliance is intended to be used exclusively for the storage of bottles or cans.
• This appliance is intended to be used in household and similar applications.
• Do not store explosives, such as aerosol cans with flammable propellants in the unit.

CLASS 1 LED PRODUCT

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• catering and similar retail and non-retail applications.

Contents

Warning 2

Savings in energy consumption in the use .4

Before use ....5

Technical data....5

Get to know your wine cooler 6

Installation and start-up 7

Operation and function ......9

Change of hinge side ....11

Defrosting, cleaning, and maintenance ....12

Fault finding....13

Warranty, spare parts and service....14

Disposal....15

CE Declaration of conformity......page A

Savings in energy consumption in the use

The energy consumption reduces ..

1)..the lower the ambient temperature is.
2)..the warmer thermostat set point is.
3)..the lower the number and the shorter the length of the door openings is.

Before use Technical data

Before operating your new appliance, please read the following instructions carefully as they contain important information on safety, installation, operation and maintenance. Keep the instructions for future reference. On receipt, check to ensure that the appliance has not been damaged during transport. Transport damage should be reported to the local distributor before the wine cooler is put into use.

Remove the packaging. Clean the inside of the cabinet using warm water with a mild detergent. Rinse with clean water and dry thoroughly (see cleaning instructions). Use a soft cloth. If the appliance has been laid down during transport, or if it has been stored in cold surroundings (colder than +5°C), it must stabilise in an upright position for at least one hour before being switched on.

Wiring and connections in power supply systems must be all applicable (local and national) electrical codes. Consult these codes lengths and sizes prior to cabinet installation.

This device complies with relevant EU directives including Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU

The socket should be freely accessible.

Connect the appliance only to 220/240 V / 50Hz alternating current via a correctly installed earthed socket.

The socket must be fused with a 10-13 A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply.

Information regarding voltage, current or power are given on the rating plate

The power cord may be replaced by a technician only.

The rating plate provides various technical information as well as type and serial number.

Replaceable light source by a professional

Replaceable control gear by a professional

Diagram showing two rectangular blocks with bidirectional arrows and a circular icon containing a person wearing a device.

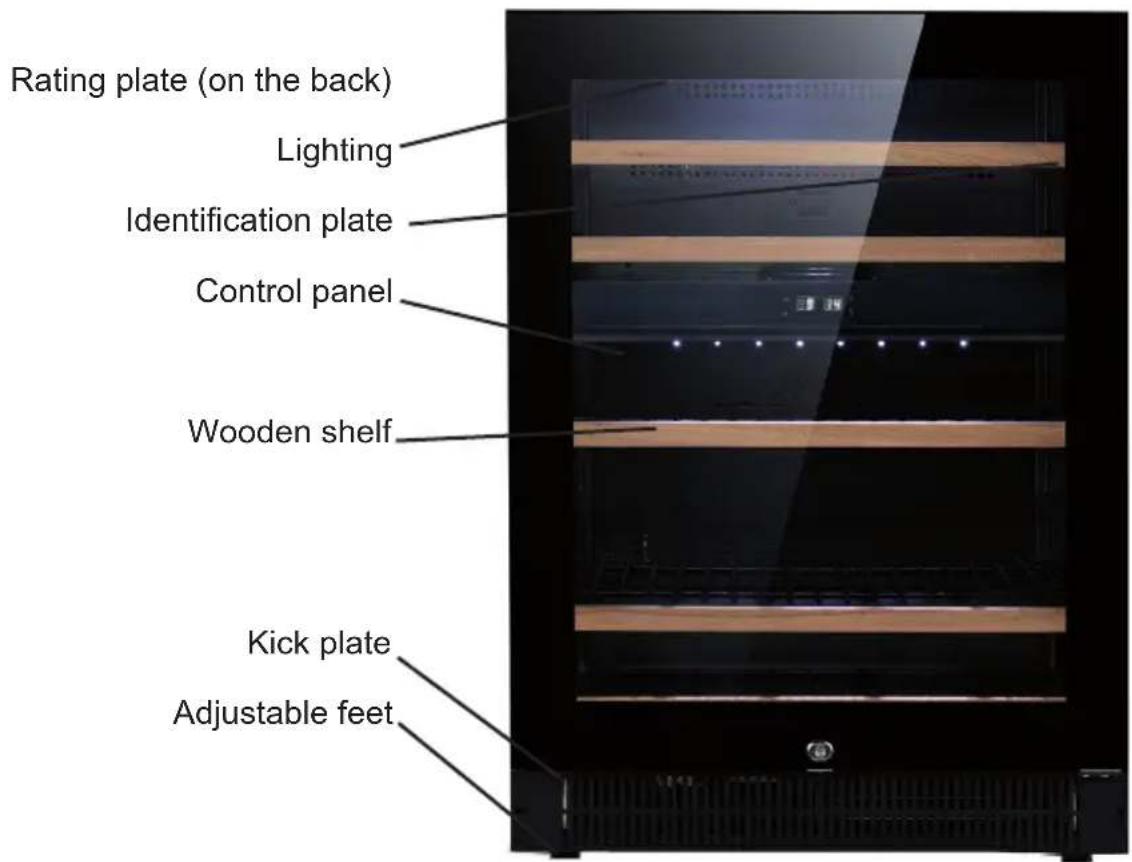

Get to know your wine cooler

Rating plate (on the back) Lighting Identification plate Control panel Wooden shelf Kick plate Adjustable feet

fig.1

Installation and start-up

Placement

For safety and operational reasons, the appliance must not be installed outdoors.

The appliance should be placed on a level surface in a dry, well ventilated room (max. 75% relative air humidity). Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight.

Installation

The surface on which the appliance is to be placed must be level. Do not use a frame or similar. It is important that the appliance be absolutely level. It can be levelled by screwing the adjustable feet at the front of the appliance up or down (fig. 2).

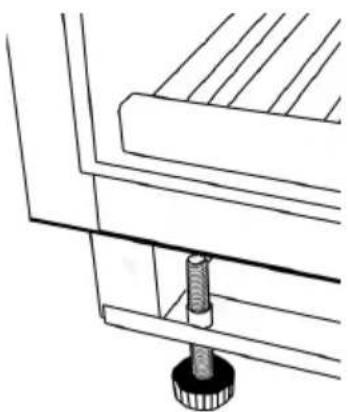

Use a spirit level to check that the appliance is absolutely level sideways.

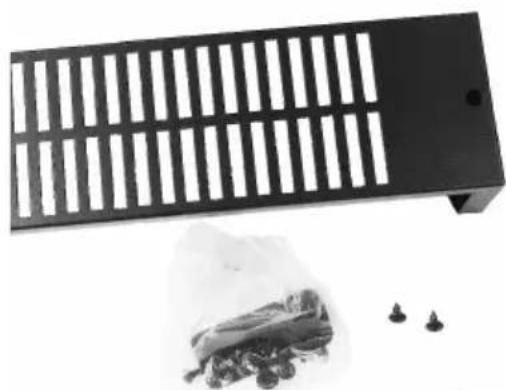

Along with your new cabinet is a replaceable kick plate which can be fixed with the two screws. These two screws are located in the accessories.Hinge side requires a 5 mm space.

NOTE: The kick plate should not be installed if the unit installed behind a kitchen shelf.

Technical line drawing of a mechanical assembly with a bolt and bracket (no text or symbols)

fig. 2

Room temperature

The climate class is stated on the rating plate.

Note: The appliance operates best at room temperatures between 10° to 32°C

The climate class is shared on the name-plate. This specifies the optimum room temperature.

Climate class Optimum room temperature

SN +10 °C to +32 °C

N +16 °C to +32 °C

ST +16 °C to +38 °C

T +16 °C to +43 °C

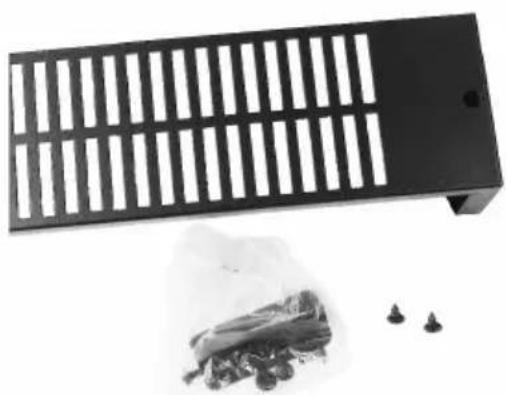

Black rectangular metal grate with slatted edges and a white plastic bag containing small black objects (no text or symbols visible)

fig. 3

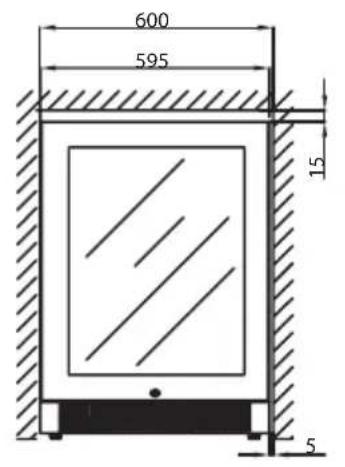

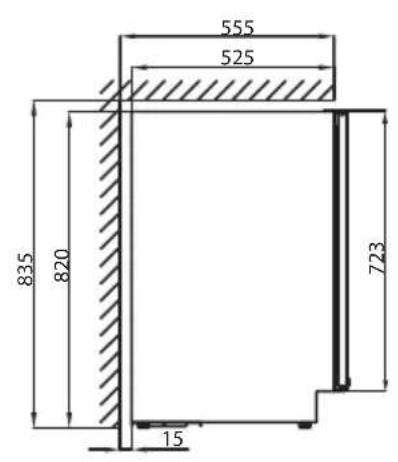

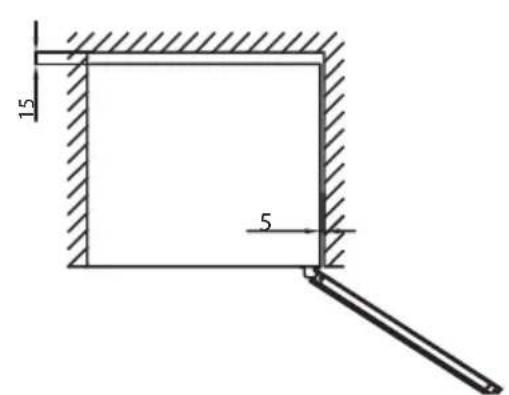

If needed there is a kit in the accessories bag, for fixing the cabinet up against a table top.

600 595 15 5

555 525 835 820 723 15

15 5

fig. 4

Operation and function

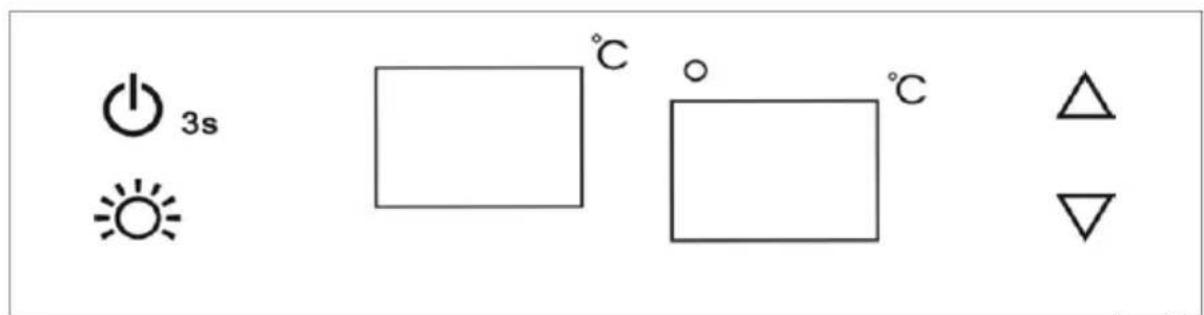

3s °C °C △ ▽

fig. 5

To control the inner light on/off.

Indicator light illuminates to signify the cooling mode is currently in operation.

3s

To control this appliance, turn on/off (press and hold this button for 3 seconds)

Press once the "UP" button, the ature will raise 1°C

Press once the "DOWN" button, the feature will lower 1^ C

Flashing indication = Set Temperature. Steady indication = Cabinet Temperature.

Setting the Temperature Controls

This model is dual zone.

The temperature in the upper compartment is adjustable from 5-10 °C.

The temperature in the lower compartment is adjustable from 10-18 °C.

When the system enter the set up temperature. Each press once the or button, the temperature setting will increase or lower 1°C, When the temperature setting reach the upper limit 18°C and lower limit 5°C, the temperature setting will not increase or lower.

Alarms

If the temperature is higher than 23^ C, The “HI” is shown in display, the alarm will sound after one hour and the reason must be controlled. If the temperature is lower than 0^ C the “LO” is shown in display, and the buzzer alarm and the malfunction indicator light at the same time.

Power interruption

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

LED light

In order to reduce energy consumption, the LED light will automatically switch off after 10 minutes.

If you want the LED light to remain on continuously, this is possible. Please press and hold the "LIGHT" bottom for 5 seconds, the display will show "LP". After 4 seconds the display will revert back to normal and the light will remain on until manually switched off.

If you want to revert and conserve energy (recommended), please press and hold the "LIGHT" button for 5 seconds, the display will show "LF". After 4 seconds, the display will revert to normal, and the light will automatically switch off after 10 minutes.

(If the wine cooler equipped with the door switch. The light will be on when door open and the light turn off when door closed).

NOTE:

If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.

When you use the wine cooler for the first time or restart the wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine cooler is running for a few hours everything will be back to normal.

Change of hinge side

The door can be changed from right-hinged to left-hinged and vice versa as follows:

fig. 6.1

Technical diagram showing labeled components of a window or enclosure assembly with numbered parts and directional arrows.

fig. 6.2

Technical diagram showing labeled components of a door frame assembly with numbered parts and directional arrow

Technical diagram showing structural components with numbered labels ⑤ and ⑥, likely from an engineering or mechanical drawing.

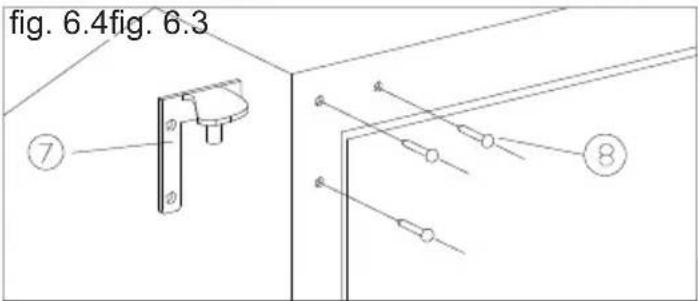

fig. 6.4fig. 6.3 ⑦ ⑧

fig. 6.5 9

Ensure that the cabinet is not connected to the mains and place the cabinet on the back. SUPPORT THE DOOR!

1. Lower hinge (right)

2. Screws 3. Door hinge

3. Door 5. Top hinge (right)

4. Hinge screws

5. Top hinge (left) 8. Hole cover 9. Lower hinge (left)

6. Door fittings

7. Screws

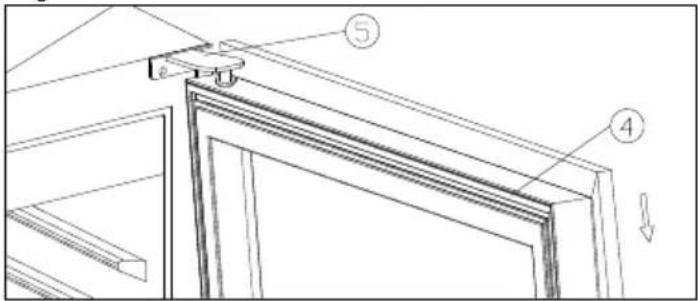

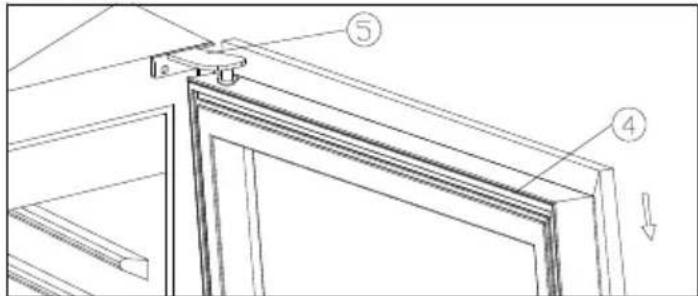

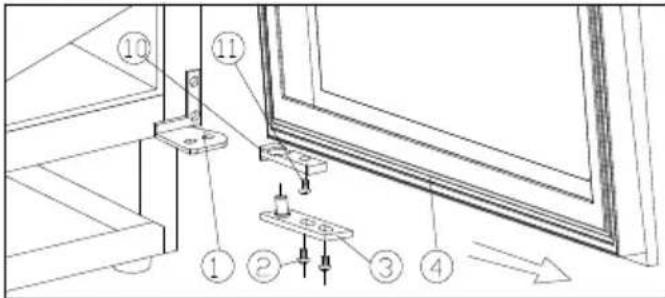

8. Open the door to a 90 degrees angle, take out the 2 screws (2) from lower door hing (3), remove the door (4), Remove the door hing (3) from the door, (Fig. 6.1).

9. Unscrew the screws (11) from the door fittings (10), and relocate it at the opposite side of the door (fig. 6.1)

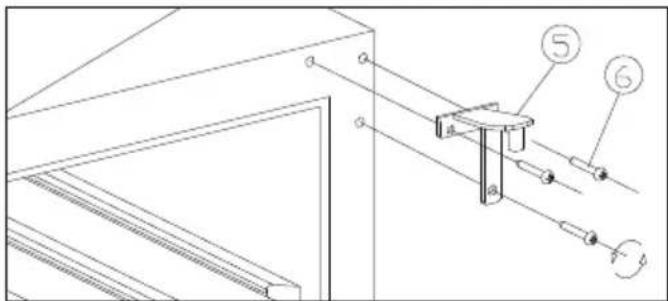

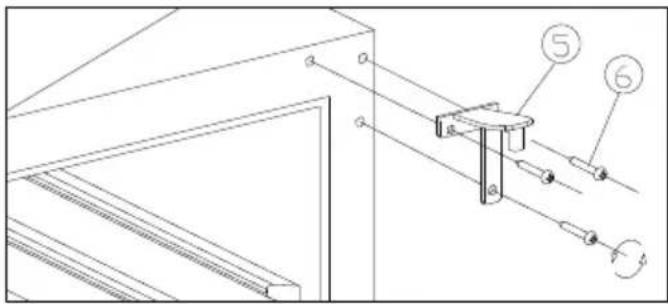

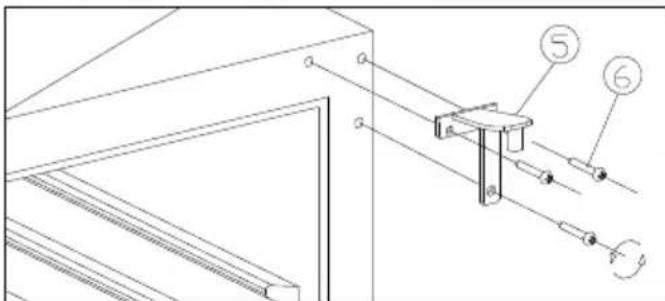

10. Unscrew the 3 hinge screws (6) from the top hinge (5) and remove it (fig. 6.3).

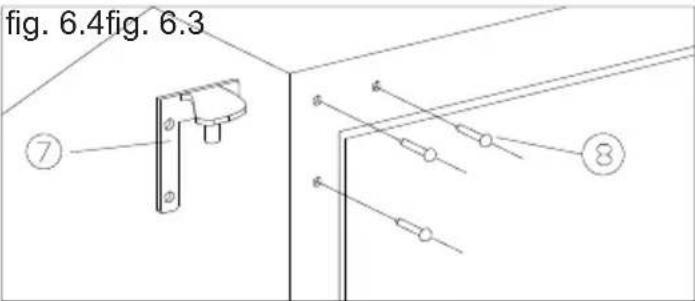

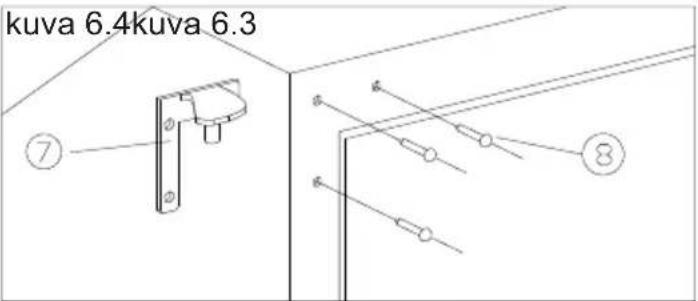

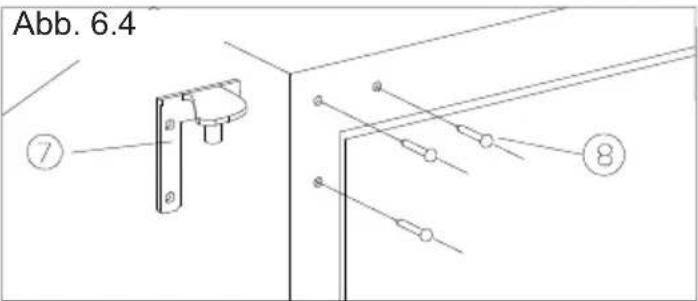

11. Remove hole covers (8) and mount the spare top hinge (7) at the opposite side of the cabinet with the 3 screws (fig. 6.4).

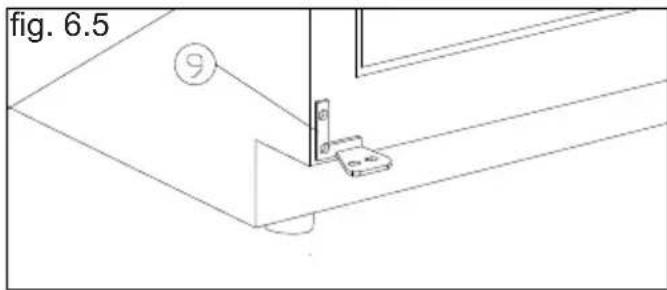

12. Mount the spare lower hinge (9) (fig. 6.5).
13. Mount and align the door.
14. Insert the hole covers to cover the holes (8).

Defrosting, cleaning, and maintenance

Automatic defrosting

The wine cooler is defrosted automatically. Defrost water runs through a pipe and is collected in a tray above the compressor where the heat generated by the compressor causes it to evaporate.

Cleaning

Before cleaning the appliance, unplug it from the main supply. The cabinet is best cleaned using warm water (max. 65°C) with a little mild detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly. Never use sharp or pointed implements. Avoid unnecessary cleaning of the wooden shelves, as these are made of untreated natural material. Cleaning agents may discolour the shelves.

The sealing strip around the door must be cleaned regularly to prevent discolouration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal.

Dust collecting on the condenser underneath the cabinet, on the compressor and in the compressor compartment is best removed using a vacuum cleaner.

Replacing the lighting

Light-emitting diodes designed to last the entire service life of the appliance are used. If it, however, becomes necessary to replace the light source, please call for service.

Removing the shelves

Push the shelf all the way back and tip it. It is now possible to remove the shelf.

Fault finding

Fault Possible cause	Remedy
The appliance is not running	The appliance is switched off.Power failure; the fuse is blown; the appliance is not plugged in correctly.	Press the on/off switch.Check that power is connected. Reset the fuse.
Water collects in the bottom of the cabinet.	The defrost water pipe is blocked.	Clean the defrost water channel and the drain hole on the rear wall of the cabinet.
Vibration or bothersome noise.	The appliance is not level.The appliance is resting against other kitchen elements.Containers or bottles inside the cabinet are rattling against one another.	Level the appliance using a spirit level.Move the appliance away from the kitchen elements or appliances it is in contact with.Move containers and/or bottles apart.
Compressor runs continuously.	High room temperature. Ensure adequate ventilation.
Wine cooler is not cold enough	Check the temperature setting.The door is opened too often.The door is not completely closed.The door gasket does not seal properly.	Set the desired temperature.Keep the door closed for an extended period of time.Close the door.Align the door.

Warranty, spare parts and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation or mains connection. Fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations are not covered by the warranty.

Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. (see the fault finding list) If your request for assistance is unwarranted, e.g. if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

Spare parts

When ordering spare parts, please state the model and production numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers.

VESTFROST Wine cellar MODEL:0-5703003@030803 SPECIFICATIONS REV. NO. DATE: 2014-06-29 ISSN BY: 100000000000000000000000000000000000000000000000000000000000000000000 BUILT-IN OR FREE STANDING INSTALLING

fig. 7

Note: Always use approved service centres when your appliance is to be repaired or replaced!

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2012/19/EU and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union.

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol:

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Warnung

WARNUNG:

Warning symbol of a flame inside a triangle (no text or numbers)

WARNUNG:

Diagram showing two identical rectangular blocks connected by bidirectional arrows, with a circular icon containing a person wearing a helmet above them.

Technische Daten

Technical line drawing of a mechanical assembly with a knob and base (no text or symbols)

Abb. 2

Raumtemperatur

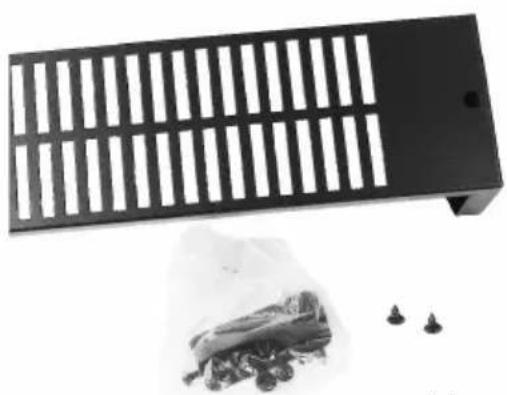

Black rectangular metal grate with vertical slats and a small pile of black objects (no text or symbols visible)

Abb. 3

3s °C °C △ ▽

Abb. 5

Technical diagram showing labeled components of a window or panel assembly with numbered parts and directional arrow

Abb. 6.2

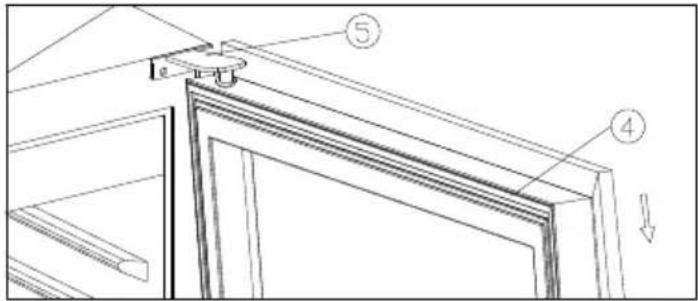

Technical diagram showing labeled components of a door frame assembly with numbered parts and directional arrow

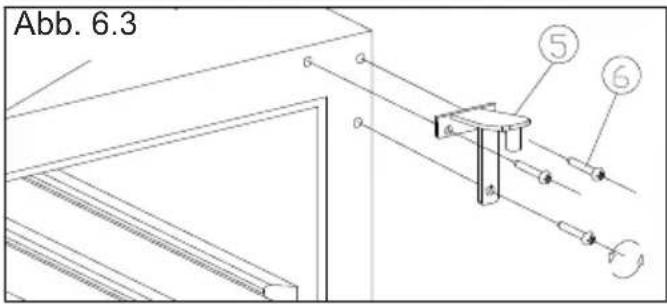

Abb. 6.3 ⑤ ⑥

Abb. 6.4 ⑦ ⑧

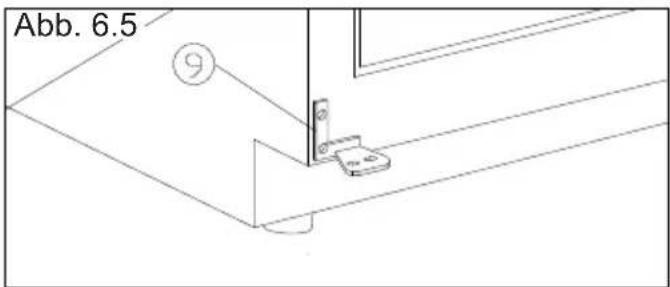

Abb. 6.5 9

VESTFROST Wine cellar WINDL0-5703003@9030803 FALKEVEL TO OR KETES SISUERG, DENMARK BUILT-IN OR FREE STANDING INSTALLING

Abb.7

Warning symbol of a flame inside a triangle (no text or numbers)

AVERTISSEMENT:

PRODUCT LED DE CLASSE 1

Diagram showing two rectangular blocks with 230V AC power connections and a magnified circular icon depicting a mechanical or electrical component.

Technical line drawing of a mechanical assembly with a central knob and base plate (no text or symbols)

fig. 2

Black rectangular metal grate with slatted edges and a white bag containing small black objects (no text or symbols visible)

fig. 3

3s °C °C △ ▽

fig. 5

Technical diagram showing labeled mechanical components and assembly steps in a window frame

fig. 6.2

Technical diagram showing a door frame assembly with labeled parts and directional arrow

Technical diagram showing a structural assembly with labeled components 5 and 6, likely for engineering or mechanical design.

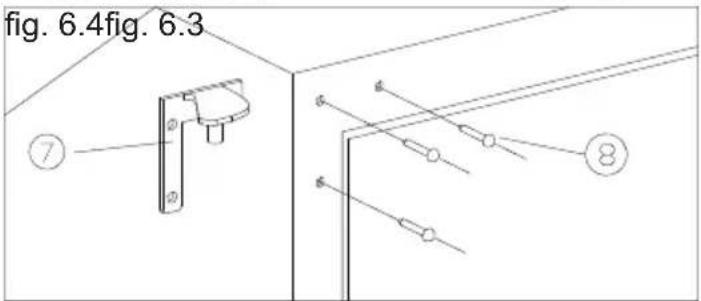

fig. 6.4fig. 6.3 ⑦ ⑧

Technical line drawing of a door with a handle and door lock, no text or symbols present

Warning symbol of a flame inside a triangle (no text or numbers)

ADVARSEL:

KLASSE 1 LED PRODUKT

Technical line drawing of a mechanical assembly with a knob and base (no text or symbols)

fig. 2

Black rectangular device with vertical slats and a white plastic bag containing a small animal, no visible text or symbols.

fig. 3

3s °C °C △ ▽

fig. 5

Kontrollere det indvendige lys - on / off

Technical diagram showing numbered components of a window assembly with labeled parts 1 through 4

fig. 6.2

Technical diagram showing a window frame assembly with labeled components and directional arrows

Technical diagram showing a structural assembly with labeled components 5 and 6, including parts of a frame and support structure.

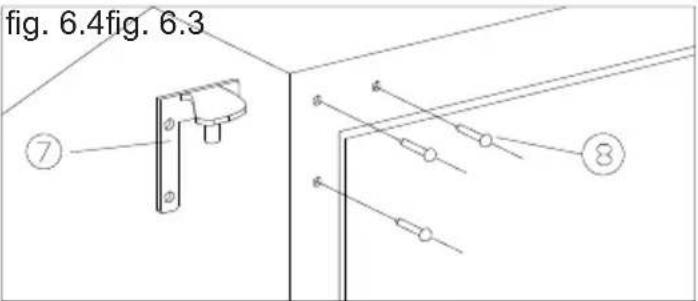

fig. 6.4fig. 6.3 ⑦ ⑧

fig. 6.5

Warning sign depicting a flame symbol in a triangular shape

ADVARSEL:

Diagram showing two rectangular blocks with a magnified inset of a person wearing a hat, connected by arrows indicating bidirectional interaction or transformation.

Pure mechanical assembly diagram showing a lever and base mount without any text or symbols

fig. 2

Black rectangular device with vertical slats and a white plastic bag containing small black objects (no text or symbols visible)

fig. 3

3s °C °C △ ▽

fig. 5

Technical diagram showing numbered components of a window assembly with labeled parts 1 through 4

fig. 6.2

Technical diagram showing a window frame assembly with labeled components and directional arrows

Technical diagram showing a structural assembly with labeled components 5 and 6, including parts of a frame and support structure.

fig. 6.4fig. 6.3 ⑦ ⑧

fig. 6.5

Kontroller at skapet ikke er koblet til strømnettet, og legg det ned på ryggen. STÖTT DÖREN UNDER MONTE-RINGEN!

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

WARNING:

Diagram showing two rectangular blocks with 230V AC power connections and a magnified circular icon depicting a mechanical component.

Technical line drawing of a mechanical assembly with a knob and base plate (no text or symbols)

fig. 2

Black rectangular metal grate with slatted edges and a small pile of black objects below (no text or symbols visible)

fig. 3

3s °C °C △ ▽

fig. 5

Technical diagram showing numbered components of a mechanical assembly or mounting bracket with labeled parts 1 through 11.

fig. 6.2

Technical diagram showing a window frame assembly with labeled components and directional arrow

Technical diagram showing a structural assembly with labeled components 5 and 6, including parts of a frame and support structure.

fig. 6.4fig. 6.3 ⑦ ⑧

fig. 6.5

Warning sign depicting a flame symbol in a triangular shape

VAROITUS:

Diagram showing two rectangular blocks with bidirectional arrows and a circular icon containing a person wearing a hat, alongside a 730V battery symbol.

Technical line drawing of a mechanical assembly with a knob and base (no text or symbols)

Kuva 2

Black rectangular metal grate with slatted edges and a white plastic bag containing small black objects (no text or symbols visible)

Kuva 3

3s °C °C △ ▽

kuva 5

Technical diagram showing numbered components of a window or fixture assembly with numbered parts and directional arrow

Kuva 6.2

Technical diagram showing a window frame assembly with labeled components and directional arrow

Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

DECLARATION OF CONFORMITY

Made in Denmark by A/S Vestfrost

Falkevej 12, 6705 Esbjerg ∅, Denmark and Sp. Møllevej 100, 6705 Esbjerg ∅, Denmark Telephone [phone] Telephone [phone]

The undersigned declare that the product is in conformity with the relevant statutory requirements and the applicable parts of harmonized European standards:

Low Voltage Directive 2014/35/EU EN 60335-1:2012+A11+A13+A1+A14+A2 EN 60335-2-24:2010+A1+A2+A11 EN 62233:2008

Electromagnetic Compatibility Directive 2014/30/EU EN 61000-3-3: 2013 EN 61000-3-2: 2014 EN 55014-1: 2017+A11 EN 55014-2: 1997+A1+A2+AC

Ecodesign Directive 2009/125/EC Eco design of household refrigerating appliances 2019/2019

Restriction of Hazardous Substances Directive (RoHS) 2011/65/EU

A/S VESTFROST

2021.10.19

Appliance Certification Manager

Jørgen Dyrholm

name

Esbjerg Denmark

VESTFROST SOLUTIONS

A/S Vestriost

Falkevej 12

DK-6705 Esbjerg ∅, Denmark

Tel: [phone] · Fax: [phone]

signature

Esbjerg Denmark

GB Reserving the right to alter specifications without prior notice.
