Product type	Turntable with CD player, FM radio, USB port
Brand	Fenton
Model	RP150
Power supply	220-240 V~, 50 Hz
Dimensions (approx.)	420 x 360 x 140 mm
Weight (approx.)	4.5 kg
Main functions	Vinyl playback (33/45 RPM), CD audio, FM radio, USB MP3, auxiliary input
Recording	Vinyl to USB, CD to USB
Turntable speeds	33⅓ RPM, 45 RPM (with adaptor)
Auto stop	Yes, switchable (AUTO STOP ON/OFF switch)
Connections	RCA output (L/R), AUX input (3.5mm jack), headphone jack (3.5mm jack), USB port (type A)
Display	LED, mode and settings indicators
Playback modes	Repeat, programming (up to 20 tracks for CD/USB)
FM radio	Automatic station search and memory, FM wire antenna
Auto standby	After 15 min without playback (except radio)
USB compatibility	Up to 32 GB, MP3 files
Maintenance and cleaning	Use a dry, soft cloth. Clean the needle with a soft brush.
Safety	Do not open the housing, avoid moisture, unplug during storms
Spare parts and repairability	Use only original parts. Have it repaired by a qualified technician.
General information	Operating temperature: 5°C to 35°C. Indoor use only.

Frequently Asked Questions - RP150 Fenton

How to play a vinyl record on the Fenton RP150 turntable?

Unlock the tonearm, remove the stylus guard, place the record on the platter, select the speed (33 or 45 RPM) using the switch, then gently place the stylus on the record. The turntable will start rotating automatically. You can adjust the auto stop with the AUTO STOP switch.

How to record a vinyl to a USB flash drive?

Insert a USB flash drive (max 32 GB) into the USB port, start vinyl playback, then press the REC button. Recording starts and stops by pressing REC again. Files are saved in MP3 format.

How to listen to FM radio?

Press MODE until FM is displayed. Press and hold PLAY (2 seconds) to start automatic station search. Use PREV and NEXT to switch between stored stations. You can improve reception by extending the FM antenna at the back.

How to program a CD playback?

In CD mode and stopped, press PROG. P01 is displayed. Select the track with PREV or NEXT, then press PROG again to confirm. Repeat up to 20 tracks. Start playback with PLAY.

How to adjust the volume?

Press and hold the VOL+ button to increase volume, or VOL- to decrease it. The adjustment is gradual and applies to all sources (vinyl, CD, radio, USB, AUX).

What to do if the vinyl record does not stop at the end?

Check the AUTO STOP switch next to the speed selector. If it is set to ON, the platter stops automatically after the last track. Some records may require switching to OFF for manual stop.

Can I connect headphones?

Yes, plug your headphone (3.5mm jack) into the headphone jack on the front. The sound from the speakers (if any) is then muted automatically. Volume is adjusted with the VOL buttons.

How to play MP3 files from a USB flash drive?

Insert the USB flash drive into the USB port. Press MODE until USB is displayed. Playback starts automatically. Use PLAY/PAUSE, STOP, PREV, NEXT and REPEAT as for a CD.

How to clean the stylus and turntable?

For the stylus, use a special soft brush or microfiber cloth, brushing gently from back to front. For the housing, use a dry, soft cloth. Never use chemicals or alcohol.

Why does the turntable turn off automatically?

The turntable goes into standby after approximately 15 minutes without playback in CD, USB, Phono, AUX IN or Bluetooth (if present) modes. To reactivate, press the Power button. This saves energy.

USER MANUAL RP150 Fenton

Wooden Fenton radio with open lid and gold case, no visible text or symbols on the device itself

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS

V1.1

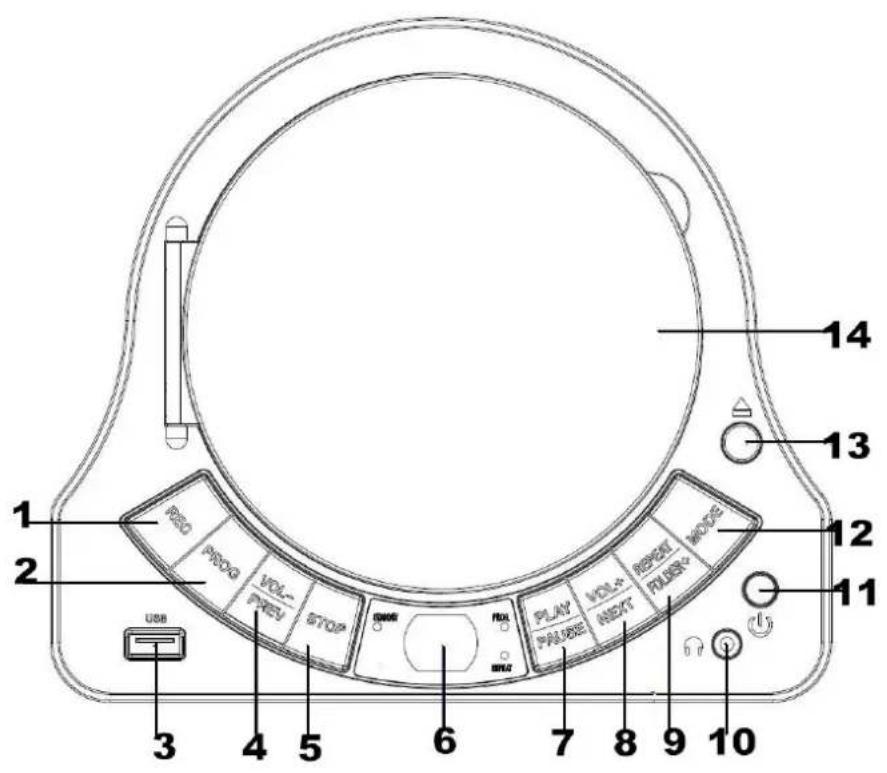

1 2 3 4 5 6 7 8 9 10 11 12 13 14 PRO PROG VOL- PREV STOP SWOK PLAY PASSOE VOL- NEXT RESET PANE+ MOVE USB

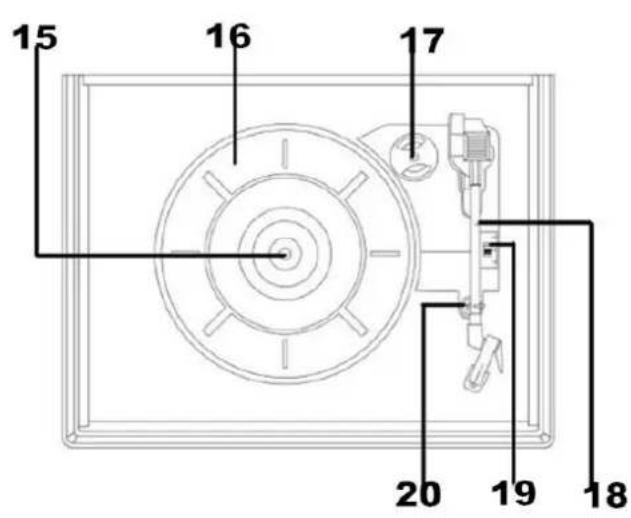

15 16 17 20 19 18

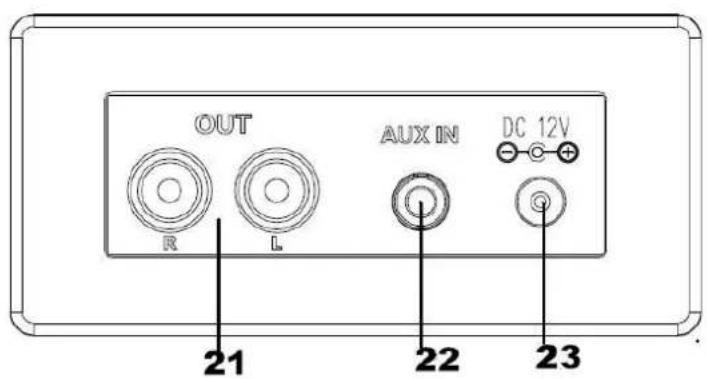

OUT R L AUX IN DC 12V 21 22 23

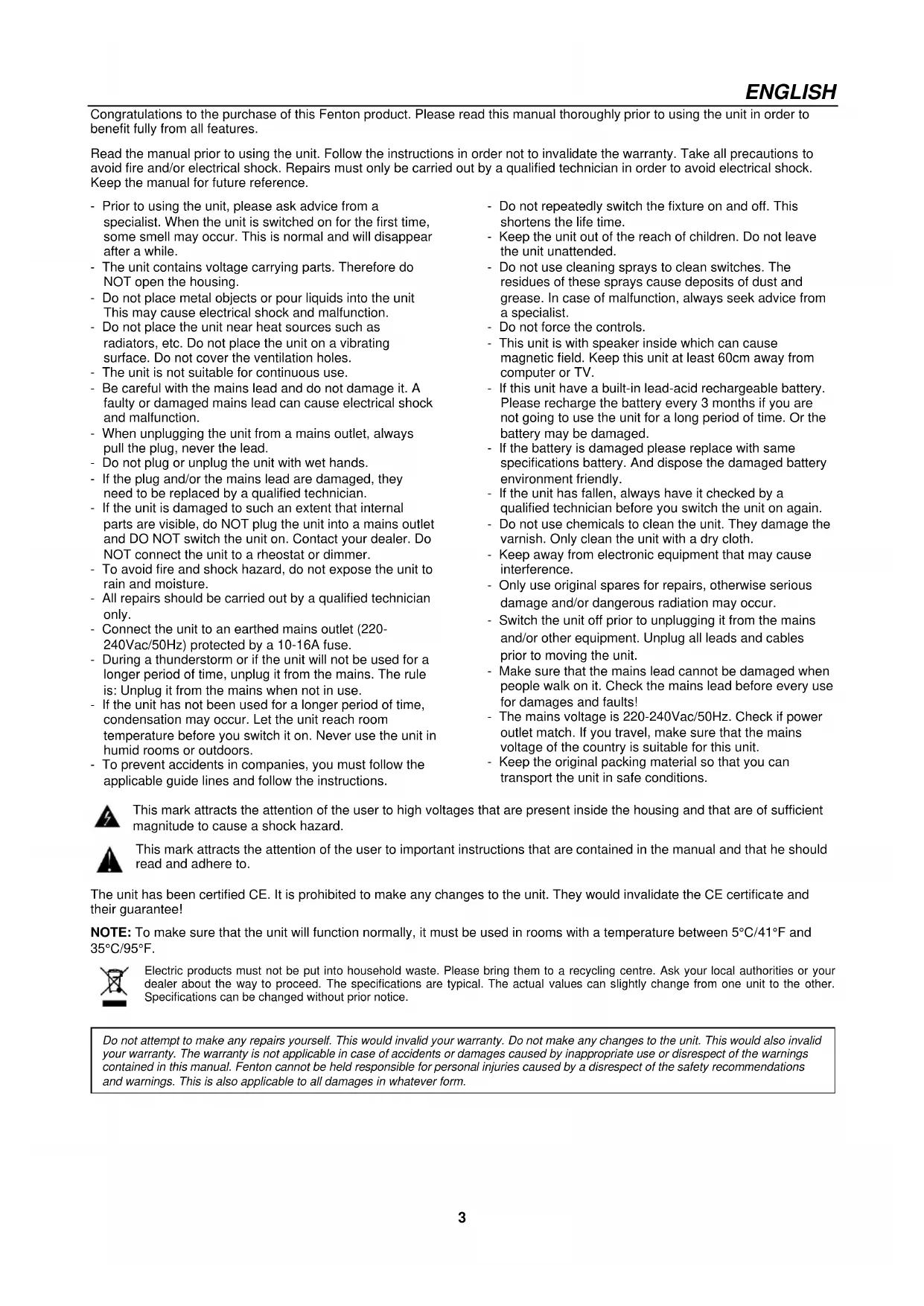

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this unit have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/ 41^ F and 35^ C/ 95^ F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

1. Record button	10. Headphone input	19. Speed switch
2. Program button	11. Power ON/OFF button	20. Tone arm lock
3. USB port	12. Mode button	21. RCA output port---connect the external speaker system with power amplifier built-in
4. Volume - / Previous button	13. CD door open button
5. Stop button	14. CD cover
6. LED display	15. Spindle
7. Play / Pause button	16. Platter	22. AUX Input port
8. Volume + / Next button	17. 45RPM adaptor	23. DC Input port
9. Repeat / Folder + button	18. Tone arm

OPERATION

Listen to FM radio

• Press "MODE" button till the letters FM display on the LED display.
• Press "PLAY" button for 2 seconds, the auto scan starts and the stations searched will be saved.
• Press "PREV" button or "NEXT" button to switch between the saved stations.
• FM reception can be improved by adjusting the FM Antenna on the rear.

Playing a CD

• To listen to an audio CD, press "MODE" button till the letters CD display on the LED display, press CD door "OPEN" button to open the CD door. Place the CD disk inside, press CD door back to close it, the disc will started playing once loaded.
  • To pause playback press the "PLAY/PAUSE" button, to continue playback press "PLAY/PAUSE" again.
• To stop playback press "STOP" button.
  • To increase the volume, press and hold "VOL+" button. To decrease the volume, press and hold "VOL-" button.
  • To skip backwards through tracks, press "PREV" button. To skip forwards through tracks press "NEXT" button.
• To repeat the current track playing press "REPEAT" button, to repeat the whole disc press "REPEAT" button again, to cancel repeat press "REPEAT" button again.
• At the "STOP" status, press the "PROG" button, the letters P01 will display on the LED display. Press "PREV" or "NEXT" button to select the next song you want to listen to, then press the "PROG" button, the letters P02 will display on the LED display. You can select next songs in this way. After selection, press "PLAY" button and you can listen to the songs selected.

Playing from USB drive

In order to playback some MP3 files, you will need to connect a USB memory stick(up to 32GB is supported). Insert a USB memory stick gently into USB port.

! IMPORTANT !

Never connect and disconnect USB devices quickly in succession as this may cause damage to both the record player and the memory device. Always ensure any important data has been backed up before use. Fenton take no responsibility for any loss of data.

• To play from a connected USB device, press the "MODE" button till the letters USB display on the LED display. After loaded, it will play from the first song.
  • To pause playback press the "PLAY/PAUSE" button, to continue playback press "PLAY/PAUSE" again.
• To stop playback press "STOP" button.
  • To increase the volume, press and hold "VOL+" button. To decrease the volume, press and hold "VOL-" button.
  • To skip backwards through tracks, press "PREV" button. To skip forwards through tracks press "NEXT" button.
• To repeat the current track playing press "REPEAT" button, to repeat all the music press "REPEAT" button again, to cancel repeat press "REPEAT" button again.
• At the "STOP" status, press the "PROG" button, the letters P01 will display on the LED display. Press "PREV" or "NEXT" button to select the next song you want to listen to, then press the "PROG" button, the letters P02 will display on the LED display. You can select next songs in this way. After selection, press "PLAY" button and you can listen to the songs selected.

Playing a vinyl record

• Before playing a record please unlatch the Tone Arm Lock and remove the cartridge protector from the cartridge/needle.
• To play a vinyl record, press "MODE" button till the letters PHONO display on the LED display. Place the record on the turntable platter, select the speed required using the speed switch, then gently place the needle on the record, the turntable will start spinning when the tone arm is in position.
• Besides the Speed selector, there is an "AUTO STOP ON/OFF" Switch. If the AUTO STOP ON/OFF Switch is turned ON, the record will stop automatically when finished. If Auto Stop Control is turned OFF, record will NOT stop automatically when finished.
• To increase the volume, press and hold "VOL+" button. To decrease the volume, press and hold "VOL-" button.

Listen to an external source

To listen to an external source, such as an MP3 player or smartphone, connect a suitable cable (3.5mm jack to 3.5mm jack, not included) to the AUX IN port, and press "MODE" button till the letters AU display on the LED display, then the playback starts. To increase the volume, press and hold "VOL+" button. To decrease the volume, press and hold "VOL-" button.

Recording from CD

• To record from a CD to USB, insert your USB memory device and start the CD playback.
- Press "REC" button and the letters REC will show in display, and the recording starts.
- Stop recording at any time by pressing "REC" button.

Recording from vinyl

- To record from vinyl records to USB, insert your USB memory device, then start the vinyl records playback. Then press "REC" button to start recording, and stop recording at any time by pressing "REC" button.

Enjoy music via headphone

Connect your headphone to the headphone socket to enjoy music via headphone.

Remark: at the modes CD, USB, Phono, AUX IN this record player will automatically enter into standby status if the playback is not going on for approx.15 minutes. You need to press the standby button to let it work.

Stylus: Ceramic Stereo cartridge with stylus

Speed: 3-speeds for 33 1/3, 45 and 78 RPM

Power supply: 12VDC / 1000mA

Dimesions: 350 x 435 x 235mm

Weight: 4kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Blue glossy circular logo with stylized white 't' shape (no text or symbols)

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer: TRONIOS BV

Regulatory Requirement: EN 55032:2015

EN 55020:2007+A11:2011

EN 61000-3-2:2014

EN 61000-3-3:2013

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.

Almelo,

10-04-2017

Name : M. Velders

Signature :

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Specifications and design are to change without prior notice..

www.tronios.com

Copyright © 2017 by TRONIOS the Netherlands
