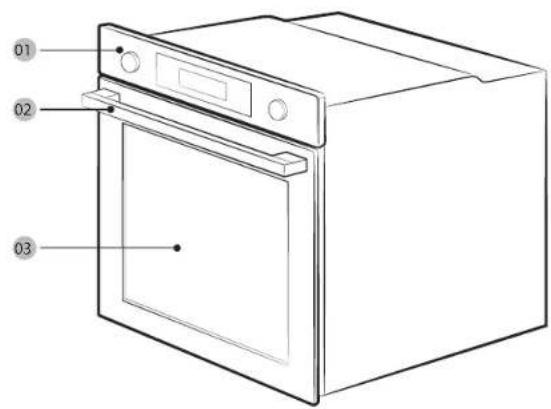

USER MANUAL NV7B41201AK SAMSUNG

Line drawing of a rectangular tray with ribbed pattern and two circular ends (no text or symbols)

Technical diagram of a microwave oven with labeled components and dimensions

Horno (mm)

A 560 G 503
B 166 H 481
C 383 I 21
D 45 J 549
E 596 K 579
F 595 L 559

A B C D E

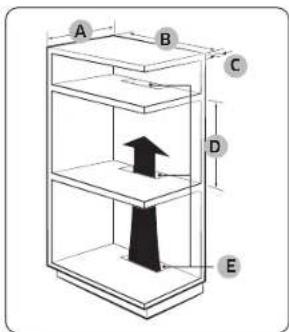

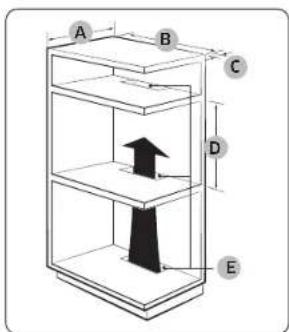

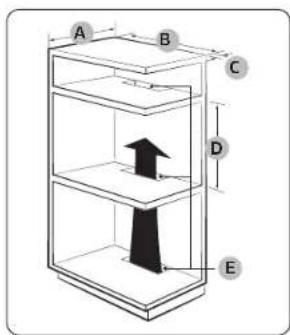

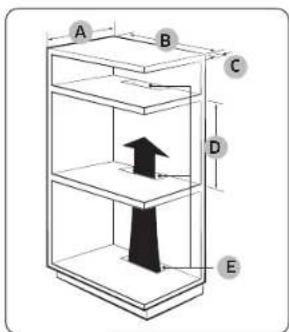

Armario empotrado (mm)

A Min. 550

B Min. 560

C Min. 50

D Min. 590 - Máx. 600

E Min. 460 x Min. 50

NOTA

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Diagram showing a circular object with a shaded region and labeled point A, intersected by diagonal lines (no text or symbols beyond label)

Technical diagram showing a mechanical assembly with labeled component B and directional arrow

Architectural line drawing of a window frame with a magnified inset showing internal components (no text or symbols)

Pure technical line drawing of a door or cabinet component without any text, numbers, or symbols

Diagram showing a hand holding a device with a magnified inset highlighting a small screen labeled 'A' and control buttons.

Desinstalación

Line drawing of a hand using a tool to apply paint on a surface (no text or symbols)

Bloqueo/desbloqueo

Pure technical line drawing of a mechanical component with no text or symbols

2:00 p.m. 3:00 p.m. 4:00 p.m. 5:00 p.m. 6:00 p.m.

Caso 2

2:00 p.m. 3:00 p.m. 4:00 p.m. 5:00 p.m. 6:00 p.m.

PRECAUCIÓN

Diagram showing two labeled cable or connector components with a circled 'X' and 'O' mark, likely indicating failure or failure.

Illustration of a hand pouring liquid into a tray inside a microwave oven (no text or symbols)

Illustration of a double-bone oven with two piles of food on the top (no text or symbols)

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Line drawing of a hand cleaning a tiled room with a cloth (no text or symbols)

Illustration of a hand cleaning a surface with a cloth (no text or symbols)

Diagram showing a hand holding a device inside a container, with no visible text or symbols

Diagram of a kitchen oven with directional arrows indicating motion (no text or symbols)

Illustration of a person seated in a chair with a magnified inset showing hand positioning (no text or symbols)

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical diagram of a mechanical assembly with a ruler and a flat plate, no visible text or symbols

Diagram of a rectangular frame with a central label '02' and an arrow, no readable text or symbols present.

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a door frame with a labeled component '01' (no other text or symbols)

01 Colector de agua

Diagram of a mechanical assembly with an inset showing a bracket and a close-up of a component (no text or symbols)

Diagram of a mechanical ladder inside a frame, showing rotational motion (no text or symbols)

Simple line drawing of a hand pressing down inside a circular opening (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Notas

Line drawing of a rectangular tray with ribbed pattern and two circular ends (no text or symbols)

Technical diagram of an oven with labeled parts A through L, showing dimensions for each part.

Forno (mm)

A 560 G 503
B 166 H 481
C 383 I 21
D 45 J 549
E 596 K 579
F 595 L 559

A B C D

Pure technical line drawing of a rectangular frame with a small circular component above it (no text or symbols)

Diagram showing a circular object with a shaded region and labeled point A, intersected by diagonal lines (no text or symbols beyond label)

Technical diagram showing a mechanical assembly with labeled component B and directional arrow indicating motion or force

Architectural line drawing of a window frame with a magnified inset showing internal components (no text or symbols)

Pure technical line drawing of a door or cabinet component without any text, numbers, or symbols

Diagram showing a hand holding a device with a magnified inset highlighting a screen and control panel labeled 'A'.

Line drawing of a hand using a tool to clean or paint the surface (no text or symbols)

Pure technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram showing two labeled cable or connector components with a circled 'X' and 'O' mark, likely indicating failure or failure.

1. Ligue o conector da sonda à tomada na parede do lado esquerdo. Certifique se de que o indicador da Sonda de carne aparece quando o conector da sonda estiver ligado.

Illustration of a hand pouring liquid into a tray inside a microwave oven (no text or symbols)

Illustration of a double-bone oven with two piles of food on the roof (no text or symbols)

Simple line drawing of a hand pouring liquid into a container (no text or symbols)

Hand cleaning a tiled room with a cloth (no text or symbols visible)

Illustration of a hand cleaning a surface with a cloth (no text or symbols)

Operações

ATENÇÃO

Diagram showing a hand pressing down on a mechanical component inside a container (no text or symbols)

Diagram of a kitchen appliance with a door and drawer, showing directional arrows indicating movement (no text or symbols)

Diagram of a car seatbelt mechanism showing rotation and movement (no text or labels)

Technical line drawing of a mechanical component with an inset magnified view (no text or symbols)

Technical diagram of a mechanical assembly with a ruler and a flat plate, no visible text or symbols

Diagram of a rectangular frame with a central label '02' and an arrow, no readable text or symbols present.

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a door frame with a labeled component '01' (no text or symbols beyond label)

01 Coletor de água

Diagram of a mechanical assembly with an inset showing a bracket and a close-up of a component (no text or symbols)

Diagram of a ladder-like structure with an arrow indicating rotational motion (no text or symbols)

Simple line drawing of a hand holding a small object inside a circular frame (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Notas
