USER MANUAL PAC 1045 MIELE

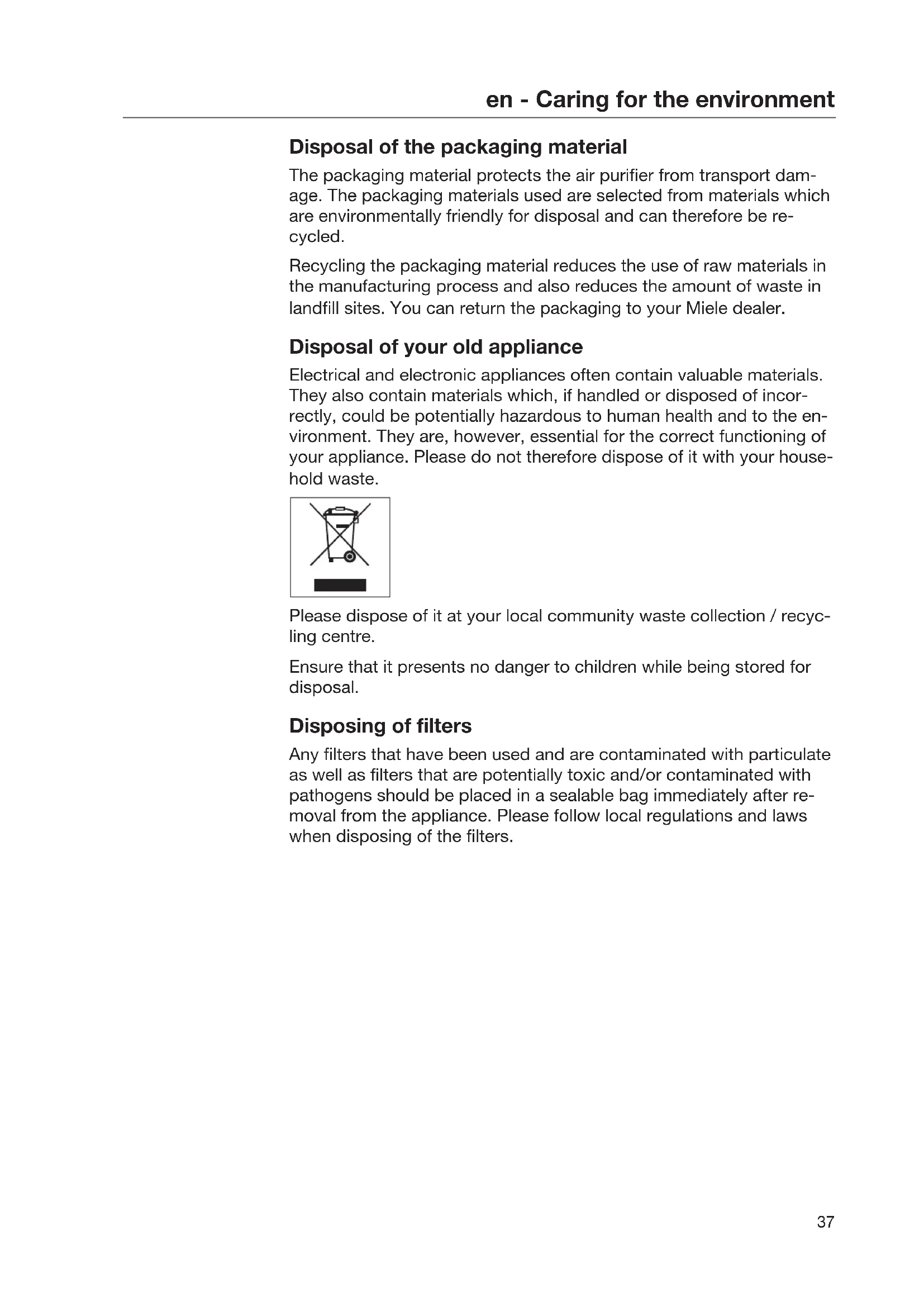

Disposal of the packaging material The packaging material protects the air purifier from transport dam- age. The packaging materials used are selected from materials which are environmentally friendly for disposal and can therefore be re- cycled. Recycling the packaging material reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. You can return the packaging to your Miele dealer. Disposal of your old appliance Electrical and electronic appliances often contain valuable materials. They also contain materials which, if handled or disposed of incor- rectly, could be potentially hazardous to human health and to the en- vironment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your house- hold waste. Please dispose of it at your local community waste collection / recyc- ling centre. Ensure that it presents no danger to children while being stored for disposal. Disposing of filters Any filters that have been used and are contaminated with particulate as well as filters that are potentially toxic and/or contaminated with pathogens should be placed in a sealable bag immediately after re- moval from the appliance. Please follow local regulations and laws when disposing of the filters.en - Caring for the environment

Disposing of old batteries In many cases, electrical and electronic appliances contain batteries which must not be disposed of with household waste after use. You are legally obliged to remove any old batteries which are not securely enclosed by the appliance and take them to a suitable collection point (e.g. retailer) where they can be handed in free of charge. Bat- teries may contain substances which can be hazardous to human health and the environment. If batteries containing lithium (Li-) are re- moved, the poles must be covered with adhesive tape, for example, in order to prevent an external short circuit. The labelling on the battery will provide further information. The bin symbol with a cross through it means that the batteries must not be disposed of in household waste. A bin with a cross through it which also has one or more chemical symbols on it indicates that the bat- tery contains lead (Pb), cadmium (Cd) and/or mercury (Hg). 3E&G+J Old batteries contain valuable raw materials which can be recycled. Disposing of batteries separately makes them easier to handle and recycle.en - Warning and Safety instructions

Please read the operating instructions before using the air purifier for the first time. They contain important information for your safety, as well as information on using and maintaining the air puri- fier. To avoid the risk of accidents or damage, it is essential to read the operating instructions carefully before using the appliance for the first time. If other persons are being shown how to operate the air purifier, they must be given and/or made aware of these important safety notes. Keep these operating instructions in a safe place and pass them on to any future owner. In order to ensure your personal safety and prevent damage from oc- curring or the air purifier from malfunctioning, it is essential to comply with the safety notes listed below. Failure to observe the instructions will invalidate any warranty or performance claims. Appropriate use The air purifier cleans atmospheric air in frequently used areas and workspaces. Particles such as pollen, dust, bacteria and viruses are filtered at a rate of up to 99.995%. The air purifier is intended for installation in a commercial environ- ment. The air purifier is not intended for outdoor use. Do not install the air purifier in areas where there is a risk of frost. The appliance components must be protected against direct sunlight, impact and vibrations, hose water and splash water. Only use the ap- pliance in indoor environments with ambient temperatures of 0–40°C. Only trained or qualified personnel may operate the air purifier. If the air purifier is used in a publicly accessible area (e.g. in schools, nurseries), the supervisor must ensure that it can be operated safely without risk of danger. This air purifier can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way by an authorised person. Children under 3 years of age must be kept away from the appli- ance unless they are constantly supervised. Children under 8 years of age may only switch the air purifier on or off if supervised. Children aged 8 and older may only use the air purifier without su- pervision if they have been shown how to use it in a safe manner. Children must be able to understand and recognise the possible dangers caused by incorrect operation.en - Warning and Safety instructions

The pre-filters must be vacuumed and/or dust must be removed from them on a regular basis or as required. Foreseeable misuse The air purifier must not be used outdoors. The air purifier must not be used to filter explosive gases, aggress- ive atmospheres (vapours) or liquid media. Do not lean on the air purifier. Otherwise, the air purifier may roll away or tip over, causing injury to yourself or others. Do not block the gap between the bottom of the appliance and the floor with plinth facings, deep pile carpet etc. The air purifier must not be used at a non-stationary installation site (e.g. on a ship). No objects may be placed inside the air purifier. The air intake vents and air outlet must remain unobstructed at all times and must not be covered by any objects. Do not set down or store other objects on the air purifier. Do not lean ladders or other objects against the air purifier as it may tip over. In order to prevent a filter or appliance fire, the appliance must not draw in any sources of danger such as aggressive gases, flammable media and/or ignition sources (e.g. glowing particles, sparks, smoul- dering embers, etc.). Do not operate the air purifier in humid areas at risk of explosion and/or areas with aggressive atmospheres. Do not make any alterations to the air purifier, unless authorised to do so by Miele. To ensure the correct performance of the air purifier and to prevent the risk of faults, it is important to carry out maintenance on a regular basis. Do not use a pressure washer or water jet to clean the air purifier. Contaminated filters must not be washed and reused. Cleaning with fluids that contain solvents presents a risk of fire. Contaminated filters must always be replaced with new ones. Never operate the air purifier without pre-filters or with damaged pre-filters. This could lead to malfunctions. Dust and fluff can clog the air channels and heater element, which could result in a fire. In this case, stop the air purifier immediately and replace the damaged fil- ters. Technical safety Before installing the air purifier, check it for visible signs of dam- age. Do not use a damaged air purifier.en - Warning and Safety instructions

Do not connect the air purifier to the power supply by an extension cable (fire hazard due to overheating). Repairs should only be undertaken by a Miele authorised techni- cian, otherwise any subsequent damage will not be covered by the warranty. Unauthorised repairs could result in unforeseen dangers for the user, for which Miele cannot accept liability. Faulty components may only be replaced by genuine Miele spare parts. Miele can only guarantee the safety standards of the appliance when Miele spare parts are used. In the event of a fault and for cleaning and maintenance purposes, the air purifier must be disconnected from the power supply. The air purifier is only disconnected from the power supply if - the plug has been removed from the socket or - the mains fuse is disconnected or - the screw-out fuse is removed (in countries where this is applic- able). See also “Installation – Electrical connection”. Follow the instructions in “Installation” and “Technical data”. The plug must be easily accessible so that the air purifier can be disconnected from the power supply. If the mains connection cable is faulty it must always be replaced by a Miele authorised technician to protect the user from danger. If the air purifier is damaged or if odours during operation indicate that components are charred, stop using the air purifier immediately. All filter inserts must be checked/maintained on a regular basis in accordance with applicable regulations and specifications. Failure to carry out maintenance will invalidate warranty and performance claims. Please ask Miele if you require information about maintenance intervals. Accessory parts may only be fitted when expressly approved by Miele. If other parts are used, warranty, performance and product li- ability claims will be invalidated. Permanently mounted appliance components must not be re- moved. Otherwise there is a danger of mechanical and/or electrical injury due to rotating and/or live components.en - Product description

Lockable access flap Protects the air purifier controls against unauthorised access.

Air intake vents On the left and right sides, rear and bottom of the plinth

Lid with air outlet vents

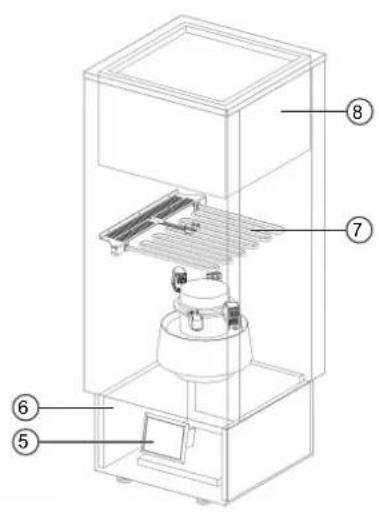

Control panel with display Operation with timed and manual control. The air quality is evalu- ated via the CO2 sensor.

Heater element for deactivating relevant pathogens With thermal sensor for temperature monitoring

Main filter (particulate pre-filterISO ePM2.5 60% (F7) and high-performance filterHEPAH14) With filtration efficiency of ≥99.995% for particles including vir- uses (e.g. coronavirus)en - Product description

1. The Miele air purifier draws in atmospheric air at the bottom via

the air intake vents in the plinth().

2. The pre-filters() filter coarse dust out of the air.

3. The air is conveyed upwards by the fan inside the air purifier and

is pushed through the main filter and the active charcoal fil- ter(). Up to 99.995% of particles are filtered out of the air during this process.

4. The cleaned air is released back into the room via the air outlet

vents() in the lid. The control panel() behind the lockable access flap is used to con- trol the various operating modes (e.g. Manual mode). The fan can be regulated according to the room size. It is also possible to operate the appliance based on specified times. After every use, air heated to 70°C flows through the bottom of the main filter() for 20minutes. All components are installed in a high-quality metal housing with acoustic and thermal insulation. The castors on the bottom of the air purifier make it easy to move around.en - Using the machine

Initial commissioning Before carrying out initial commissioning, it is important to check that the air purifier is installed in accordance with appropriate use guidelines. After installation, allow the air purifier to adjust to room temperature. Check the air purifier, the plug and the mains connection cable for damage. If there is any damage, the air purifier must not be used. Check the fuse rating of the socket before connecting the plug. Operating the air purifier The control panel for controlling the air purifier is located behind the lockable access flap on the front of the plinth. Check that the mains connection cable and the plug are intact. Insert the plug into the socket. Open the lockable access flap on the plinth of the air purifier and wait for the controls to complete the self-test. After the self-test, the Modemenu appears. Mode Use previous settingManual modeManual+time mode In the Modemenu, the operating mode can be selected using the and buttons. You can use the previous setting (in the factory de- fault settings, the previous setting is Manual mode) or select a differ- ent operating mode. To confirm the selected operating mode, hold down the and buttons for at least 3seconds. Depending on which operating mode you select, further selectable options (e.g. flow, clock control, room size) may be displayed. You can select these options or skip past them by pressing the and buttons briefly at the same time. The appliance will then switch to the Ready for operation operating status. When the appliance is ready for operation, it can be switched on via the button. If an operating mode with clock (timer) is selected, the appliance will switch on automatically at the set time. If you do not select a menu option within 60seconds, the previous setting will be adopted automatically and the appliance will switch to the Ready for operation operating status. After this step, the operating mode can only be changed in the Set- tingsmenu. Further selectable options relating to the operating modes may be available in the Settingsmenu. Tip: The previous setting can be selected more quickly in the Mode menu by simply pressing the button or by pressing the and buttons briefly at the same time.en - Using the machine

Control panel behind the lockable access flap

Green LED Flashes when starting/ready for use, lights up during operation.

Flashes in the event of a CO

warning, lights up when heating is active.

Red LED Flashes in the event of a fault. Overview of oper- ating modes Manual modeDuring operation, the fan speed can be changed individually between 20–100%in 5% increments via the and buttons.Optional initial flow can be switched on before normal operation.Manual+time mode Same as Manual mode but with additional clock function (timer) which can beused to set a switch-on time and switch-off time for each day.CO2 modeThe fan speed is automatically regulated according to the set room size. The needfor ventilation is indicated via an LED and a display message.Optional initial flow can be switched on before normal operation and a circulationfunction can be activated. CO2+time mode Same as CO2 mode but with additional clock function (timer) which can be used to set a switch-on time and switch-off time for each day. Overview of oper- ating statuses The following operating statuses are shown in the display: Ready for opera- tion The power supply has been connected and the appliance is ready for operation. Flow The fan runs at a set flow rate and duration to clean the air before the air purifierswitches to normal operation.Manual opera- tion Manual+timeoperationCO2 operationCO2+time oper-ationThe appliance is in normal operation.ThermoControlactiveRelevant pathogens are deactivated automatically by MieleThermoControl afterevery use.Fan run-onThe fan keeps running after MieleThermoControl in order to cool the filter.Intensive circ.activeThe fan runs at a higher speed for a short period in order to quickly circulate theair within the room.en - Using the machine

Setting the oper- ating mode/call- ing up the Set- tings menu You can change the set operating mode in any operating status by holding down the and buttons at the same time for at least 3seconds. You will then be prompted to enter the following access code:

User code In order to change a digit in the access code, the cursor must be placed under the relevant digit. The cursor position is changed by pressing and holding the or arrow button. To increase the value of the digit (+1), briefly press the button. To decrease the value of the digit (-1), briefly press the button. To move the cursor one position to the right, press the button for 3seconds. To move the cursor one position to the left, press the button for 3seconds. When all of the code digits are set correctly, confirm the entry by pressing and holding the and buttons at the same time for at least 3seconds. You are now in the Settingsmenu. Select the required operating mode by holding down the and buttons at the same time for at least 3seconds. Depending on which operating mode you select, further selectable options (e.g. Flow, clock control, Room size) may be displayed. You can select these options or skip past them by pressing the and buttons briefly at the same time. The appliance switches back to the previous operating status with the newly selected operating mode. If no actions are carried out in the Settingsmenu within 60seconds, the menu is exited automatically.en - Using the machine

Changing the op- erating status If you wish to change the operating status, you can switch between Ready for operation, Flow (if selected via option), Manual operation/ CO2 operation, ThermoControl active and Fan run-on at any time. Press the button repeatedly until you reach the desired operating status. Tip: If you wish to clean the filter manually via MieleThermoControl, press the button repeatedly until you reach the ThermoControl act- ive operating status. Relevant pathogens will then be deactivated in the filter by MieleThermoControl. After MieleThermoControl, the fan keeps running automatically in order to cool down the filter safely, after which the appliance switches back to the Ready for operation operating status. Displaying oper- ating values The operating values of the air purifier can be displayed via the Oper- ating values displaymenu. Press and hold the button for more than 3seconds.

The Operating values displaymenu is now displayed.

Press the or button briefly to scroll through the pages of the Operating values displaymenu. To exit the operating values display, briefly press the and but- tons at the same time (<1sec) or wait 10seconds. Deactivating the keypad lock If the display lighting is switched off, the keypad lock is activated. You can deactivate the keypad lock by holding down the and but- tons for at least 3seconds. If no buttons are pressed within 60seconds of deactivating the keypad lock, it will be reactivated again automatically.en - Using the machine

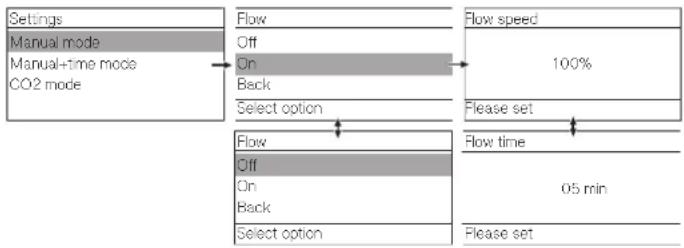

Settings Settings menu for “Manual mode”

Back Select option Flow speed Please set Off

Back Select option Flow Please set min Flow time

If settings are configured for the Flow, these settings will automat- ically be adopted for the other operating modes. Tip: If you do not wish to make any changes to the Flow, you can exit the Settings menu quickly by pressing the and buttons briefly at the same time. Settings menu for “Manual+time mode” If initial flow is switched on, the air purifier will start the running be- fore the actual switch-on time: if, for example, the switch-on time is set for 6:00am with 5minutes of initial flow time, the air purifier will start at 5:55am. After the switch-off time, MieleThermoControl is started with a run- ning time of 20minutes. This is followed by a 10-minute fan run-on phase.

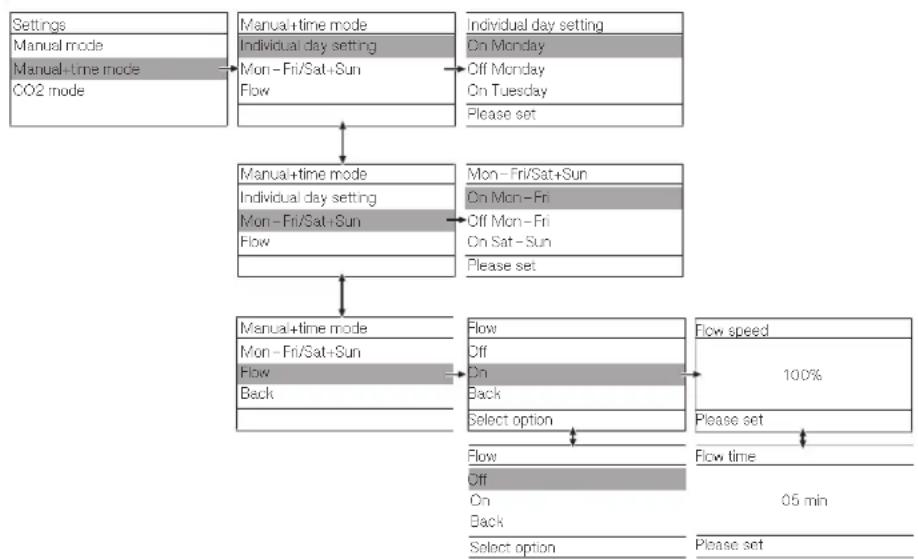

Settings Manual mode Manual+time mode CO2 mode Manual+time mode Manual+time mode Manual+time mode Individual day setting Individual day setting Individual day setting Mon–Fri/Sat+Sun Mon–Fri/Sat+Sun Mon–Fri/Sat+Sun Mon–Fri/Sat+Sun Flow Flow Flow Flow Flow On Monday Off Monday On Tuesday Please set Please set Please set Please set On Mon–Fri Off Mon–Fri On Sat–Sun Back Back Back Off Off

Flow time If settings are configured, these settings will automatically be adop- ted for the other operating modes. - If you do not wish to make any changes, you can exit the Settings menu quickly by pressing the and buttons briefly at the same time.en - Using the machine

- If you do not want to set a separate switch-on time and switch-off time for each day, you can set the times for the whole week quickly via Mon–Fri/Sat+Sun. If the switch-on time and switch-off time are set to 00:00, the appliance will not switch on on the selected day. Settings menu for “CO2 mode”

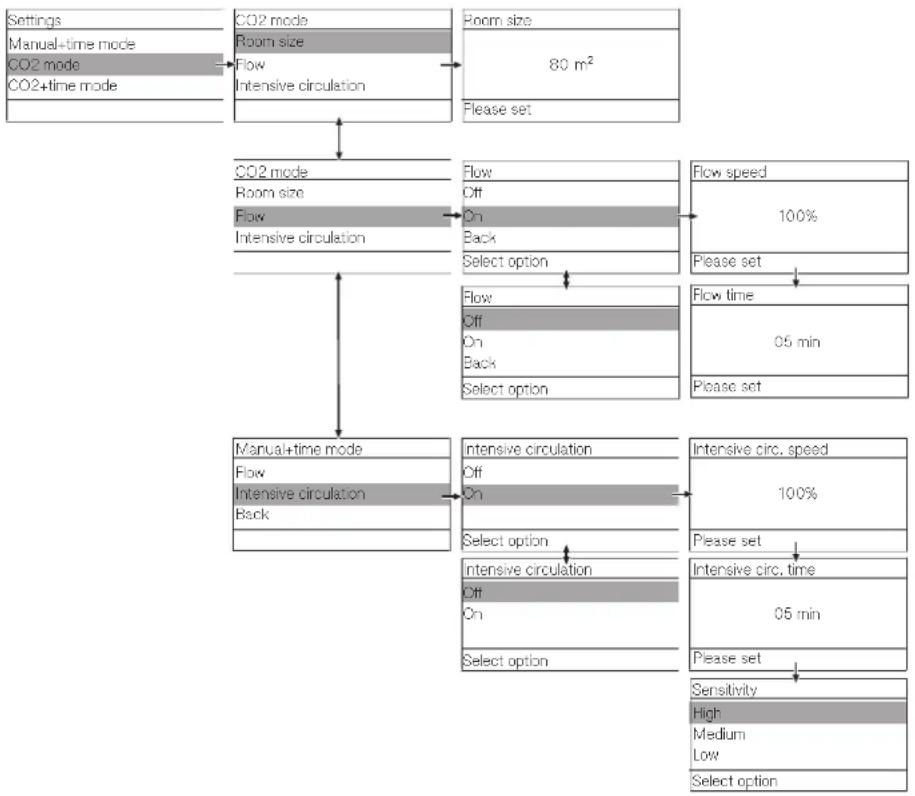

Settings Manual+time mode CO2 mode CO2+time mode CO2 mode CO2 mode Manual+time mode Flow Flow Flow Flow Flow Intensive circulation Intensive circulation Intensive circulation Intensive circulation Intensive circulation Room size Room size Room size Please set Please set Please set Please set Please set Off Off Off Off

The Sensitivity sub-menu is used to set the sensitivity with which the controls respond to open windows when activating intensive circula- tion. When High is selected, intensive circulation is activated more quickly. When Low is selected, it takes longer for intensive circula- tion to be activated when a window is open. If settings are configured, these settings will automatically be adop- ted for the other operating modes. Tip: If you do not wish to make any changes to the initial flow, you can exit the Settings menu quickly by pressing the and buttons briefly at the same time.en - Using the machine

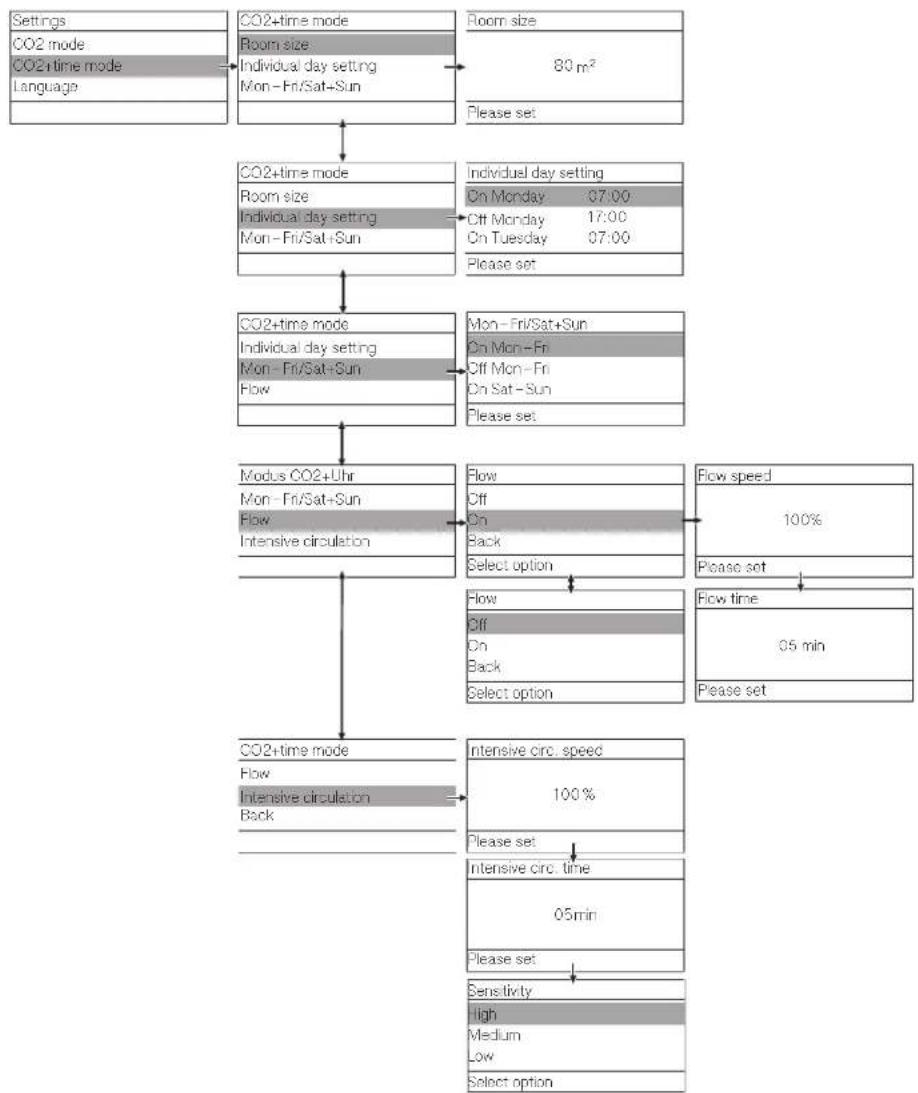

Settings menu for “CO2+time mode” If initial flow is switched on, the air purifier will start the running be- fore the actual switch-on time: if, for example, the switch-on time is set for 6:00am with 5minutes of initial flow time, the air purifier will start at 5:55am. After the switch-off time, MieleThermoControl is started with a run- ning time of 20minutes. This is followed by a 10-minute fan run-on phase.

Settings CO2 mode CO2+time mode CO2+time mode CO2+time mode CO2+time mode Modus CO2+Uhr CO2+time mode Language Room size Room size Room size Individual day setting Individual day setting Individual day setting Individual day setting Flow Flow Flow Flow Flow Off Off Mon–Fri/Sat+Sun Mon–Fri/Sat+Sun Mon–Fri/Sat+Sun Mon–Fri/Sat+Sun Mon–Fri/Sat+Sun

Back Back Back Select option Select option Select option Flow speed Please set Please set Please set Please set Please set Please set Please set Flow time Intensive circ. time On Monday Off Monday On Tuesday On Mon–Fri Off Mon–Fri On Sat–Sun Intensive circ. speed Sensitivity High Medium Low Intensive circulation Intensive circulation min

The Sensitivity sub-menu is used to set the sensitivity with which the controls respond to open windows when activating intensive circula- tion. When High is selected, intensive circulation is activated more quickly. When Low is selected, it takes longer for intensive circula- tion to be activated when a window is open. If settings are configured, these settings will automatically be adop- ted for the other operating modes.en - Using the machine

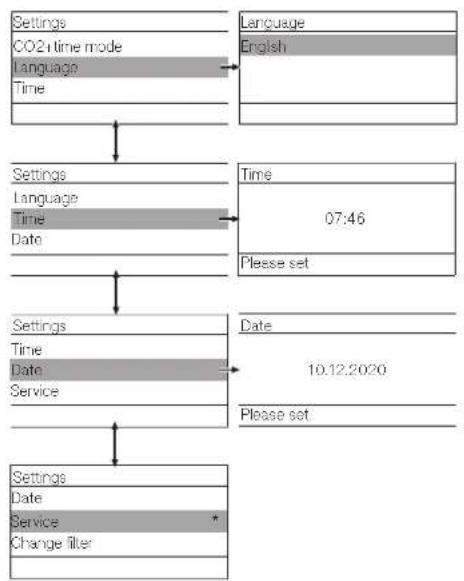

Tip: If you do not wish to make any changes to the initial flow, you can exit the Settings menu quickly by pressing the and buttons briefly at the same time. Settings menu for “Language/Time/ Date/Service”

07:46 Settings Settings Settings Settings CO2+time mode Language Time English Please set Language Language Time Time Time Please set Service Change filter Date Date Date Date Service

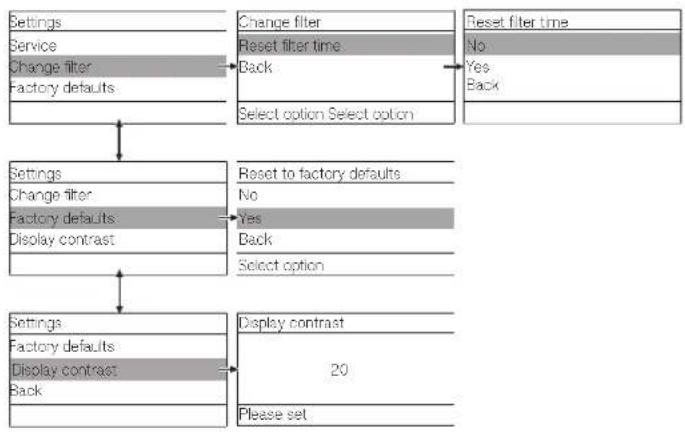

*For the Miele Customer Service Department only Settings menu for “Change filter/ Factory defaults/ Display contrast”

Transport and installation Only personnel who have received instruction from the supervisor may transport and install the air purifier. Risk of tipping during unsecured transport. There is a risk that the air purifier may tip over in the event of unse- cured transport with incorrect transport equipment or lifting equip- ment. The air purifier may only be transported by personnel who have re- ceived appropriate instruction. The air purifier must be installed upright on a firm and secure surface. The castors on the bottom of the air purifier can be used to move it around the room. When moving the air purifier, make sure that the surface is level and the air purifier is secured to prevent it tipping over. To prevent damage and accidents, always remove the plug from the socket before moving the air purifier. Risk of tripping if the appliance is moved without disconnecting the mains connection cable. If the air purifier is moved without disconnecting the mains connec- tion cable, there is a risk that someone will trip over the tensioned cable and sustain an injury. This may also damage the mains con- nection cable. Remove the plug from the socket before moving the air purifier. Risk of tipping if care is not taken when moving. Uneven floors or objects on the floor can cause the air purifier to tip over. When moving the air purifier, make sure that the surface is level and the air purifier is secured to prevent it tipping over. Always move the air purifier in a forward direction to ensure that it cannot tip towards you. Make sure you do not roll the appliance over the mains connection cable.en - Installation

Mounting the adjustable feet The air purifier is supplied with 4adjustable feet which can be mounted on the bottom of the plinth in order to stabilise the appli- ance. At least 2people are required to fit the adjustable feet. To fit the adjustable feet to the bottom of the air purifier, tilt the air purifier sideways or lay the appliance down completely. Make sure you do not lay the air purifier on the mains connection cable. Risk of crushing if the air purifier tips over. When tilting or laying down the air purifier, there is a risk that body parts will be crushed and/or trapped accidentally. Work to fit the adjustable feet must be carried out by at least 2people. Take great care when tilting the appliance. Screw the 4adjustable feet in a clockwise direction into the desig- nated holes on the bottom of the air purifier. Risk of trapping if care is not taken when fitting the feet. When fitting the adjustable feet, there is a risk that fingers will be trapped accidentally. Take care not to trap your fingers when fitting the adjustable feet.en - Installation

Screw the adjustable feet out far enough that the air purifier stands entirely on the feet when in its upright position (castors not in con- tact with the floor). Adjust the adjustable feet until the air purifier is level. Use a spirit level to ensure correct alignment. After the appliance has been aligned, screw the nuts on the ad- justable feet tightly to the base plate using an open spanner (17mm). Check the stability of the appliance once it has been in- stalled. Risk of tipping if the air purifier is moved with the adjustable feet attached. When the adjustable feet are attached, the castors on the air puri- fier can no longer be used to move it around. The air purifier must not be moved with the adjustable feet attached due to the risk of tipping. Remove the adjustable feet before moving the air purifier to a dif- ferent location. Wall bracket (optional) To provide extra protection against the air purifier tipping over, you can secure it to a wall using the bracket provided if necessary. Mounting the wall bracket (optional)en - Installation

Electrical connection The air purifier is supplied with a mains cable with moulded plug ready for connection to an earthed socket as standard. The socket must be easily accessible after the air purifier has been in- stalled. If the socket is not easily accessible, ensure that a suitable means of disconnection is provided on the installation side for each pole. Risk of fire from overheating. Connecting the air purifier to multi-socket adapters or extension cables can overload the cables. For safety reasons, do not use an extension cable or multi-socket adapter. The electrical installation must comply with VDE0100 requirements. For safety reasons, we recommend using a typeA residual current device (RCD) in the assigned electrical installation for connecting the air purifier. If the mains connection cable is damaged, it must only be replaced with a specific mains connection cable of the same type (available from the Miele Customer Service Department). For safety reasons, such replacement may only be carried out by a qualified specialist or the Miele Customer Service Department. These operating instructions and the data plate indicate the nominal power consumption and the appropriate fuse rating. Compare this in- formation with the data of the on-site electrical connection. If in any doubt, consult a qualified electrician. Do not connect the air purifier to a stand-alone inverter such as those used with an autonomous energy source, e.g. solar power. When the air purifier is switched on, power surges could result in an auto switch off. This could damage the electronic module.en - Cleaning and care

Filter saturation check The air exchange rate is based on the room size (air volume in the room) and how frequently this air volume is filtered per unit of time. The air exchange rate is set to 6 air changes in the factory default set- tings and after a filter replacement (with the appropriate room size, where the maximum room dimensions must not exceed the size equi- valent to the nominal capacity). Due to the constant filtering of the room air via the filter, the air exchange rate decreases over time. The filtration efficiency of the filter is not reduced. A reduced air exchange rate is identified in the air purifier via a differential pressure measure- ment. If the air exchange rate drops below 4 air changes, this is sig- nalled by the red LED lighting up and a warning message appearing. Miele recommends checking the saturation of the filter regularly by setting the fan setting to 100% for at least 20seconds in Manual mode. If the red LED lights up and the fault message F4029 warning ap- pears in the display when the fan setting is set to 100%, the filter is saturated. In order to maintain the air exchange rate of 6 air changes when the filter is saturated, the fan setting must be increased. The table below shows how much the fan setting needs to be increased when the fil- ter is saturated. The air purifier must be in Manual mode for this pur- pose. The filter is expected to reach saturation after approx. 1–2years (depending on site conditions, individual particle ingress and regular cleaning of the pre-filters). Miele therefore recommends regular main- tenance by the Miele Customer Service Department. Fan settings for PAC1045 Room size Flow rate for 6 airchanges*Fan setting for 6 airchanges (new filter)Fan setting (%) for 6 airchanges (filter saturated– red LED lights up at100%)10m² 156m³/h 30% 40%15m² 234m³/h 40% 55%20m² 312m³/h 50% 70%25m² 390m³/h 60% 85%30m² 468m³/h 70% 95%35m² 546m³/h 80% 100%40m² 624m³/h 85% 100%45m² 700m³/h 95% 100%*The specified flow rates are based on an average room height of 2.6m.en - Cleaning and care

Removing fluff and dust from the pre-filter The pre-filters in the plinth of the air purifier prevent dust and fluff from getting into the air filter during operation of the appliance. In or- der to optimise operation of the air filter, the soiling that accumulates in front of the pre-filter must be removed on a weekly basis or as re- quired. Remove the plug from the socket and ensure that the air purifier is de-energised. Clean the pre-filters through the air intake vents from the outside using a vacuum cleaner. Cleaning the housing Remove the plug from the socket and ensure that the air purifier is de-energised. If the appliance was in operation before it was unplugged, wait ap- prox. 10minutes to allow it to cool down fully. The housing may still be warm immediately after operation. When the air purifier housing has cooled down, clean it with a soft, damp cleaning cloth. Make sure that you do not touch any electrical components. Do not use solvent-based liquid cleaning agents and/or sprays. Filter replacement Risk of fire if washed filters are reused. Contaminated filters must not be cleaned with solvent-based fluids and then reused in the air purifier. Contaminated filters must always be replaced with new ones. When replacing filters, only use accessory parts approved by Miele. If other parts are used, warranty, performance and/or product liabil- ity claims will be invalidated. Wear suitable personal protective equipment (e.g. mask, gloves, goggles) when replacing the filters. Any filters that have been used and are contaminated with particulate as well as filters that are potentially toxic and/or contaminated with pathogens should be placed in a sealable bag immediately after re- moval from the appliance. Replacing the pre-filters The pre-filters mounted behind the air intake vents must be replaced roughly every 6–12 months. The pre-filters must be replaced if they are contaminated or if the suction power is too low. The pre-filters can be replaced via the service flap at the bottom of the air purifier.en - Cleaning and care

Remove the plug from the socket and ensure that the air purifier is de-energised. If the appliance was in operation before it was unplugged, wait ap- prox. 10minutes to allow it to cool down fully. The housing may still be warm immediately after operation. Remove the screws from the service flap on the rear of the air puri- fier. Remove the service flap and the pre-filter behind it.

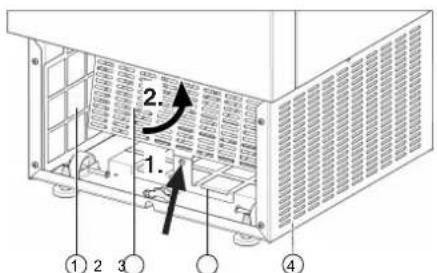

Pre-filter (left) with holding plate

Pre-filter (bottom) with holding plate

Pre-filter (right) with holding plate Remove the screw in the middle (1.) and fold the contact protection forwards (2.). Remove the screws from the holding plates of the pre-filters. Remove the used pre-filters and place them in a sealable bag.

Pre-filter (right) Insert the new pre-filters. The flame-scarfed (coloured) side of the pre-filters must face outwards (in the direction of the air intake vents). Screw the holding plates of the pre-filters back into place. Pull the contact protection downwards and screw it back into place. Close the service flap and retighten the screws.en - Cleaning and care

Replacing the main filter and active charcoal filter Miele recommends having the main filter and the active charcoal fil- ter replaced by the Miele Customer Service Department.

Active charcoal filter

Main filter (particulate pre-filterISO ePM2.5 60% (F7) and high- performance filterHEPAH14) Replacing the ex- haust filter mat (PAC1045/1080) An exhaust filter mat is fitted in front of the air outlet. The exhaust fil- ter mat must be replaced following a visual inspection and/or when damaged. Miele recommends having the exhaust filter mat replaced by the Miele Customer Service Department. Remove the plug from the socket and ensure that the air purifier is de-energised. If the appliance was in operation before it was unplugged, wait ap- prox. 10minutes to allow it to cool down fully. Risk of burns due to hot surfaces. The air purifier will still be hot immediately after operation. Allow the appliance to cool down fully. Remove the 4screws from the top of the appliance and remove the lid. Remove the exhaust filter mat under the lid and replace it with a new one. Place the lid back on the appliance and screw it into place. Replacing the act- ive charcoal filter (PAC1045/1080) An active charcoal filter is fitted above the main filter. The active charcoal filter must be replaced roughly every 6–12 months. Miele recommends having the active charcoal filter replaced by the Miele Customer Service Department. Remove the plug from the socket and ensure that the air purifier is de-energised (display is off). If the appliance was in operation before it was unplugged, wait ap- prox. 10minutes to allow it to cool down fully.en - Cleaning and care

Risk of burns due to hot surfaces. The air purifier will still be hot immediately after operation. Allow the appliance to cool down fully. Remove the 4screws from the top of the appliance and remove the lid. Remove the exhaust filter mat. Remove the active charcoal filter above the main filter and replace it with a new one. Insert the exhaust filter mat. Place the lid back on the appliance and screw it into place. Replacing the main filter The main filter (comprising particulate pre-filterISO ePM2.5 60% (F7) and high-performance filterHEPAH14) must be replaced roughly every 2years in order to optimise operation of the air puri- fier. Miele recommends having the main filter replaced by the Miele Customer Service Department in order to guarantee that the air puri- fier is properly sealed afterwards. The main filter is monitored via a differential pressure switch. The main filter must be replaced when a defined level of saturation is reached. The saturation level is shown on the display. Please note that the displayed saturation level only applies with a fan speed of 100%. Remove the plug from the socket and ensure that the air purifier is de-energised (display is off). If the appliance was in operation before it was unplugged, wait ap- prox. 10minutes to allow it to cool down fully. Risk of burns due to hot surfaces. The air purifier will still be hot immediately after operation. Allow the air purifier to cool down fully. Remove the 4screws from the top of the appliance and remove the lid. Remove the active charcoal filter and the exhaust filter mat. Remove the main filter by lifting it vertically upwards by the lugs. Place the used main filter in a sealable bag and dispose of the filter in line with local regulations. Place a new main filter in the appliance with the seal facing down- wards. Once it has been fitted, the filter must rest entirely on the fil- ter holding plate. Place the active charcoal filter and the exhaust filter mat back in the original position. Place the lid back on the appliance and screw it into place.en - Cleaning and care

Before switching on the air purifier, check that the lid is screwed tight. Resetting the filter life After changing the main filter, the filter life must be reset manually in the settings menu. Select the Change filter option in the Settings menu. Select the Reset filter time option in the Change filter sub-menu. Select the Yesoption and confirm by holding down the and buttons at the same time for at least 3seconds. The main filter life is reset to the default value.en - Problem solving guide

Problem solving guide Most faults can be resolved by yourself. The following guide may help you to find the reason for a fault, and to correct it. However, please note: Danger due to incorrect repairs. Incorrect repairs can cause considerable danger to users. Repair work to electrical appliances should only be carried out by an authorised techni- cian. Contact in case of malfunction In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or Miele Service. Contact information for Miele Service can be found at the end of this document. Please quote the model and serial number of your appliance when contacting Miele Ser- vice. This information can be found on the data plate.en - Problem solving guide

Troubleshooting Problem Cause and remedy The air purifier will not start or has failed. An on-site fuse or a residual current device has tripped. Have all on-site fuses and residual current devices checked by a qualified electrician. The mains connection cable is damaged. Remove the plug from the socket immediately. Have the mains connection cable replaced by a qualified electri- cian. The fan motor is overloaded or has overheated. The motor protection device has switched off the fan motor. Remove the plug from the socket. Allow the appliance to cool down for 10minutes. Check the condition of the filters. Replace soiled filters with new ones. Check whether the fault occurs again. If the fault occurs again, have the fan checked by the Miele Customer Ser- vice Department or a qualified electrician. The required air volume is not reached. The set fan speed or room size is too low. Check the speed setting or the set room size. The intake vents or the air outlet is/are covered. Remove deposits/objects from the intake vents or the air outlet. Remove dust/fluff from the intake vents using a vacuum cleaner. The filters are soiled. Have the MieleCustomer Service Department replace the filters. The air purifier is making unusual noises, vibrating or getting warm. The intake vents and/or the air outlet is/are covered. Remove deposits/objects from the intake vents or the air outlet. The fan impeller is rubbing or is imbalanced. Contact the Miele Customer Service Department. The air purifier does not respond when a button is pressed and the display lighting is switched off. The automatic keypad lock is active. Deactivate the keypad lock by holding down the and buttons for at least 3seconds. The saturation level of the main filter is not displayed correctly. The displayed saturation level only applies when a speed of 100% is set in Manual mode. Check the saturation level of the main filter by setting the fan speed to 100%.en - Problem solving guide

Problem Cause and remedy After an interruption to the power supply, the air puri- fier loses data that has been set (e.g. time, timer values). The button battery on the controls is flat. Contact the Miele Customer Service Department. You can keep using the air purifier until the battery is re- placed by the Miele Customer Service Department. Re- set the lost data via the Settings menu. The yellow LED flashes and the message F2066 warning is shown on the display. The CO2 limit has been reached or exceeded. This message can be hidden temporarily by pressing the and buttons briefly at the same time (<1sec). Ventilate the room in order to introduce fresh air and re- duce the CO2 value. If the message persists after the room has been thoroughly ventilated multiple times, con- tact the Miele Customer Service Department. The red LED flashes and the message F476 Thermo- Control is shown on the display. The temperature of the heater element is not increasing as expected. Disconnect the air purifier from the power supply. Allow the appliance to cool down for 10minutes and check whether the fault occurs again. If the fault occurs again, contact the Miele Customer Service Department. The red LED flashes and the message F4029 warn- ing is shown on the display. Filters are heavily soiled or the air intake vents are covered. Disconnect the air purifier from the power supply. Check whether the air intake vents are clear and clean the air intake vents using a vacuum cleaner. Put the air purifier back into operation. If the fault occurs again, contact the Miele Customer Service Department or replace the pre- filters and/or the main filter. In order to temporarily achieve the original air throughput, the air throughput rate can be manually increased until the filter is replaced (e.g. by changing the room size from 60m² to 80m² in the Settings menu or by manually increasing the fan speed). This message can be hidden temporarily by pressing the and buttons briefly at the same time (<1sec). The red LED flashes and the message F2081 warning is shown on the display. The main filter no longer works and must be replaced. Contact the Miele Customer Service Department or re- place the main filter (see “Cleaning and care – Filter re- placement”). In order to temporarily achieve the original air throughput when the main filter has stopped working, the air throughput rate can be manually increased until the filter is replaced (e.g. by changing the room size from 60m² to 80m² in the Settings menu or by manually in- creasing the fan speed). This message can be hidden temporarily by pressing the and buttons briefly at the same time (<1sec).en - Problem solving guide

Problem Cause and remedy The red LED flashes and the message F1 fault is shown on the display. The internal thermal sensor is defective. Contact the Miele Customer Service Department. This message can be hidden temporarily by pressing the and buttons briefly at the same time (<1sec).en - Technical data

Model PAC1045 PAC1080 PAC1200 Supply voltage 230 V 230 V 230 V Fuse rating (on site) 16 A ≥ 10 A 16 A ≥ 10 A 16 A ≥ 10 A Motor 780 W 780 W 1300 W Heating 1300 W 1300 W 1800 W Power rating (total) 1350 W 1350 W 1850 W Air filter rating Can be regulated up to ap- prox. 740m³/h Can be regulated up to ap- prox. 1300 m³/h Can be regulated up to ap- prox. 3000m³/h Dimensions (lengthxwidthxheight) 500 x 500 x 1270 mm 500 x 500 x 1270 mm 670 x 670 x 1420 mm Net weight 77 kg 77 kg 118 kg Maximum floor load 760 N 760 N 1160 N A-rated emission sound pressure level Lpa in accordance with ENISO11204/11203 < 70 dB re 20 μPa < 70 dB re 20 μPa < 73,5 dB re 20 μPa *All values are approximate and depend on the installation and room conditions. Complies with Machinery Directive 2006/42/ECfr - Table des matières
