USER MANUAL UVL6048JSS JENN-AIR

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don't follow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: follow instructions. instructions. DANGER WARNING4

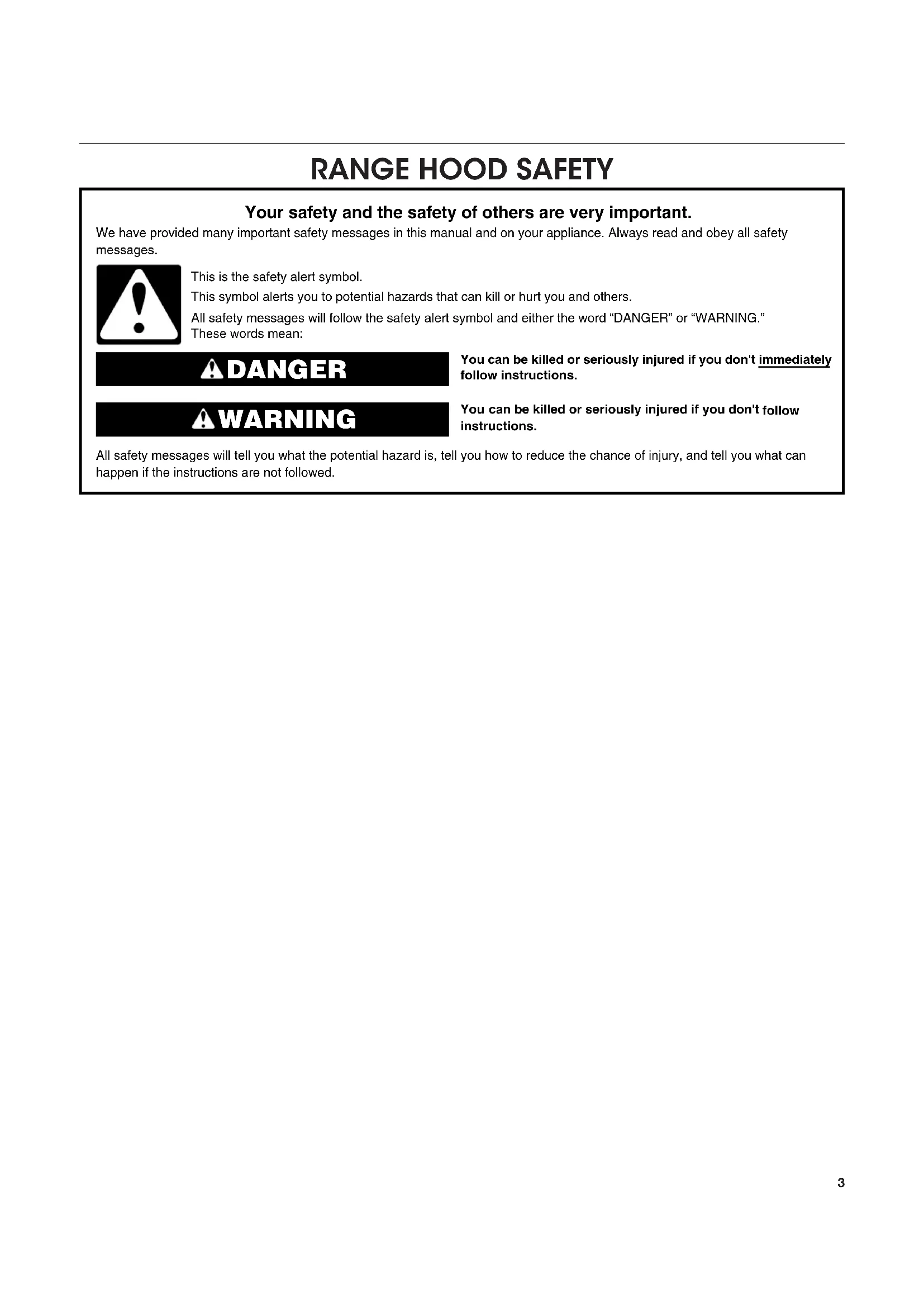

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive Materials And Vapors. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device. Ducted fans must always be vented to the outdoors.5

TORX and T20 are registered trademarks of Acument Intellectual Properties, LLC. INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed ■ Level ■ Drill ■ 1

" (3 cm) drill bit ■ 1/8" (3 mm) drill bit ■ Pencil ■ Wire stripper or utility knife ■ Tape measure or ruler ■ Pliers ■ Caulking gun and weatherproof caulking compound ■ Vent clamps ■ Jigsaw or keyhole saw ■ Flat-blade screwdriver ■ Metal snips ■ Phillips screwdriver Parts needed ■ Home power supply cable ■ 1 - 1/2" (13 mm) UL listed or CSA approved strain relief ■ 3 UL listed wire connectors ■ 1 wall or roof cap ■ Metal vent system ■ Blower motor system - internal or external (see “Blower Motor System” in the “Accessories” section). Parts supplied Remove parts from packages. Check that all parts are included. ■ 3 metal grease lters ■ Hood liner with halogen lamps installed. ■ 1 - 10" (25.4 cm) square to 10" (25.4 cm) round duct transition with damper. ■ 4 - 5 x 45 mm mounting screws ■ 4 - 4.2 x 8 mm screws ■ T-20

adapter Location Requirements IMPORTANT: Observe all governing codes and ordinances. Have a qualied technician install the hood liner. It is the installer’s responsibility to comply with installation clearances specied on the model/serial rating plate. The model/serial rating plate is located behind the left lter on the rear wall of the hood liner. The hood liner location should be away from strong draft areas, such as windows, doors, and strong heating vents. Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. The hood liner must be surrounded by a custom built enclosure with hood support capable of supporting 75 lb (34 kg). Grounded electrical outlet is required. See the “Electrical Requirements” section. All openings in ceiling and wall where canopy hood will be installed must be sealed. For Mobile Home Installations The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes. Cabinet Dimensions IMPORTANT: Minimum distance “X”: 24" (61 cm) from electric cooking surfaces. Minimum distance “X”: 30" (76.2 cm) from gas cooking surfaces. Suggested maximum distance “X”: 36" (91.4 cm). “X” bottom of canopy to cooking surface36" (91.4 cm) for 36" models48" (121.9 cm) for 48" modelsHood support must becapable of supporting75 lb (34 kg)22" (55.9 cm) Hood liner depth6 Product Dimensions Venting Requirements ■ Vent system must terminate to the outdoors. ■ Do not terminate the vent system in an attic or other enclosed area. ■ Do not use 4" (10.2 cm) laundry-type wall caps. ■ Use metal vent only. Rigid metal vent is recommended. ■ Plastic or metal foil vent is not recommended. ■ The length of vent system and number of elbows should be kept to a minimum to provide efcient performance. For the most efcient and quiet operation: ■ Use no more than three 90° elbows. ■ Make sure there is a minimum of 24" (61.0 cm) of straight vent between the elbows if more than one elbow is used. ■ Do not install two elbows together. ■ Use clamps to seal all joints in the vent system. ■ Use caulking to seal exterior wall or roof opening around the cap. ■ The size of the vent should be uniform. Cold Weather Installations An additional back draft damper should be installed to minimize backward cold air ow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house. Makeup Air Local building codes may require the use of makeup air systems when using ventilation systems greater than specied CFM of air movement. The specied CFM varies from locale to locale. Consult your HVAC professional for specic requirements in your area. Venting Methods Typical Internal Blower Motor System Venting Installations A 10" (25.4 cm) round vent system is needed for installation (notincluded). The hood exhaust opening is 10" (25.4 cm) round. NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

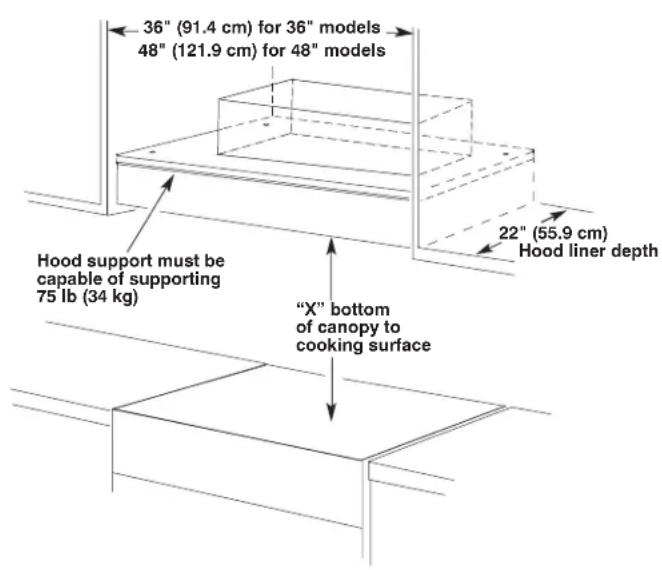

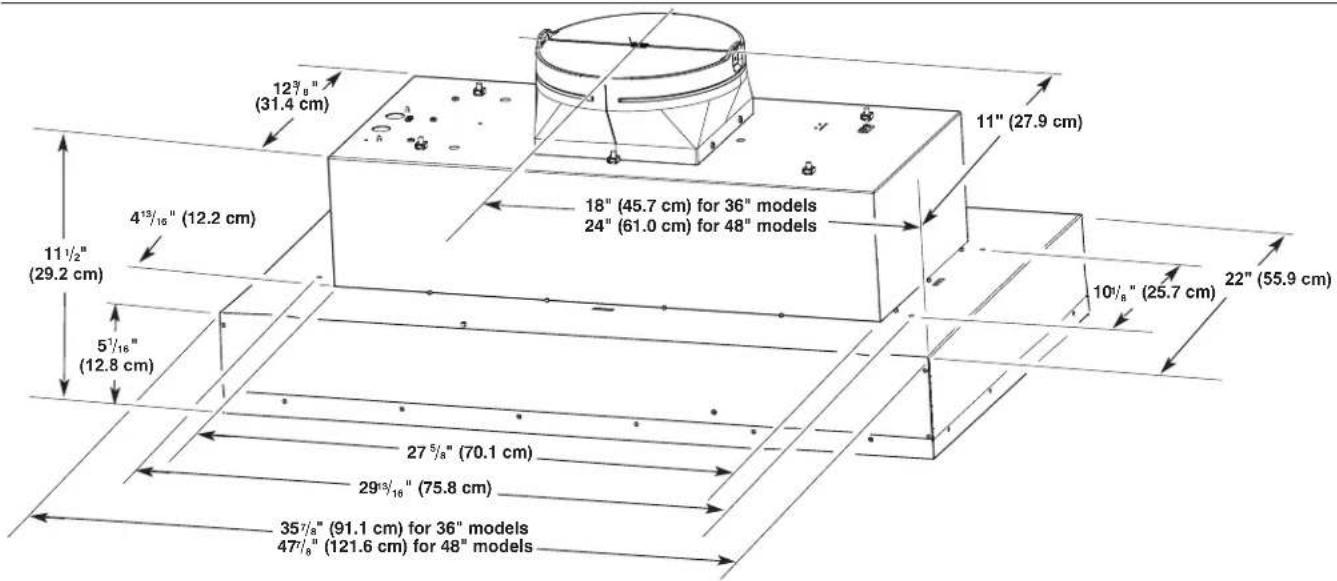

" (91.1 cm) for 36" models

" (121.6 cm) for 48" models

" (12.8 cm)22" (55.9 cm)11" (27.9 cm)18" (45.7 cm) for 36" models24" (61.0 cm) for 48" models

A. 10" (25.4 cm) round vent B. Roof cap A. 10" (25.4 cm) round vent B. Wall cap Roof Venting Wall Venting7 Typical In-line Blower Motor System Venting Installations Calculating Vent System Length To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system. Vent Piece Equivalent Length 45° elbow 2.5" (0.8 m) 90° elbow 2.5" (0.8 m) The maximum equivalent vent lengths are: 10" (25.4 cm) round vents - 60' (18.3 m) Example vent system The following example falls within the maximum recommended vent length.

1 - 90° elbow = 5.0" (1.5 m)

1 - wall cap = 0.0" (0.0 m)

8" (2.4 m) straight = 8.0" (2.4 m) Length of system = 13.0" (3.9 m) Electrical Requirements Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine that the ground path is adequate. A copy of the above code standards can be obtained from: ■ A 120 V, 60 Hz, AC only, 15 A, fused electrical circuit is required. ■ If the house has aluminum wiring, follow the procedure below: Connect the aluminum wiring using special connectors and/or tools designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices. ■ Wire sizes and connections must conform with the rating of the appliance as specied on the model/serial rating plate. The model/serial plate is located behind the lter on the rear wall of the range hood. ■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

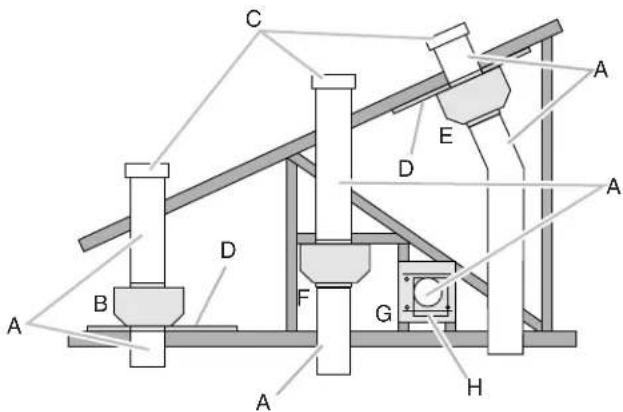

A. 10" (25.4 cm) round vent B. Mount on top of ceiling joists C. Roof caps D. Plywood (optional for some installations) E. Mount on underside of roof rafters F. Mount from cross-members tied to trusses G. Duct horizontal; mount to cross-members tied to trusses H. Wall cap 90 elbo

6 ft (1.8 m) 2 ft (0.6 m) Wall cap National Fire Protection Association One Batterymarch Park Quincy, MA 02269 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-55758 INSTALLATION INSTRUCTIONS Prepare Location ■ It is recommended that the vent system be installed before hood is installed. ■ Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent. ■ Hood liner is to be installed 24" (61.0 cm) minimum for electric cooking surfaces, 30" (76.2 cm) minimum for gas cooking surfaces, to a suggested maximum of 36" (91.4 cm) above the cooking surface. ■ Check that all installation parts have been removed from the shipping carton.

1. Disconnect power.

2. Determine which venting method to use: roof or wall

3. Select a at surface for assembling the range hood. Place

covering over that surface.

4. Using two or more people, lift hood liner onto covered

5. Remove the lters. See the “Range Hood Care” section.

Hood Liner Support Preparation

1. Mark the locations for the four 1/8" (3 mm) diameter holes on

the hood support as shown.

2. Using a 1/8" (3 mm) drill bit, drill the four holes.

3. Mark the cutout for the rectangular clearance hole for the

upper hood liner housing as shown.

4. Using a jigsaw or keyhole saw, cut out the rectangular

clearance hole for the upper hood liner housing. Complete Preparation

1. Determine and make all necessary cuts in the wall or roof for

the vent system. Install the vent system before installing the range hood. See the “Venting Requirements” section.

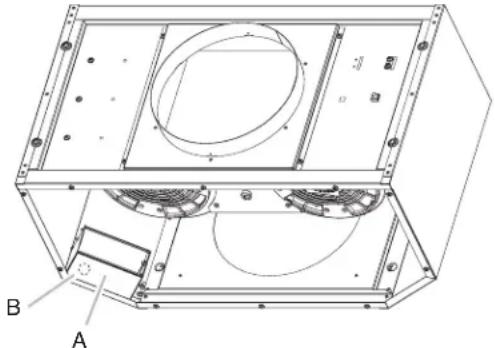

2. Determine the location where the power supply cable will be

run through the wall.

" (3.2 cm) hole at this location.

4. Pull enough power supply cable through the wall to allow for

easy connection to the terminal box.

5. Install the 10" (25.4 cm) square x 10" (25.4 cm) round vent

transition with damper to top of the range hood liner using four 4.2 x 8 mm screws.

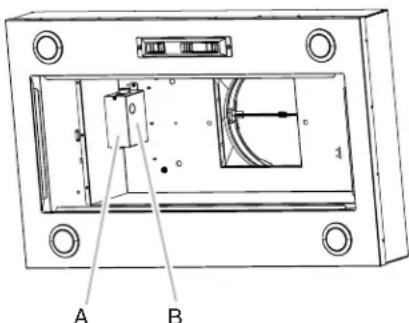

6. Remove terminal box cover and set aside.

7. Remove knockout from the top of the vent hood and install a

UL listed or CSA approved 1/2" (13 mm) strain relief.

8. Place the range hood near its mounting position and run the

power supply cable through the strain relief into terminal box (enough to make connection).

9. Tighten the strain relief screws.

NOTE: Your range hood requires you to purchase either an internal type or an in-line (external type) blower motor system. For internal blower systems, there are blower motor mounting parts in the blower motor installation packet that must be added to the range hood prior to mounting the range hood to the wall. See the “Install Range Hood Internal Blower Motor” section and the instructions supplied with the blower motor. WARNING Excessive Weight Hazard Use two or more people to move and install range hood. Failure to do so can result in back or other injury.

" (75.8 cm)G. 1/8" (3 mm) hole diameter

" (11.4 cm)D. 13" (33.0 cm)E. 14" (35.5 cm)F. 28" (71.1 cm)G. Hood support9 Install Range Hood Liner The hood liner attaches to the hood support using four mounting screws and washers. NOTE: Hood support must be capable of supporting 75 lb (34kg).

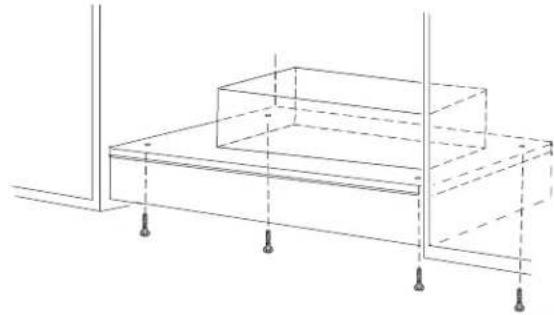

1. Using two or more people, lift the hood liner into place.

2. Install the hood liner using four 5 x 45 mm screws to the

hood support and tighten securely. Install Hood Liner Internal Blower Motor NOTE: Your hood liner requires you to purchase either an internal type or an in-line (external type) blower motor system. See “Blower Motor System” in the “Accessories” section. The internal blower system can be mounted for top venting or rear venting. For top venting, the mounting bracket and spring clip that come with the blower system will mount to the top panel of the hood liner. For rear venting, the mounting bracket and spring clip that come with the blower system will mount to the rear panel of the hood liner. Prepare the Internal Blower System IMPORTANT: Perform steps 1-4 before mounting the hood liner.

1. Remove grease lters from hood liner. See the “Range Hood

Care” section in the Use and Care Guide.

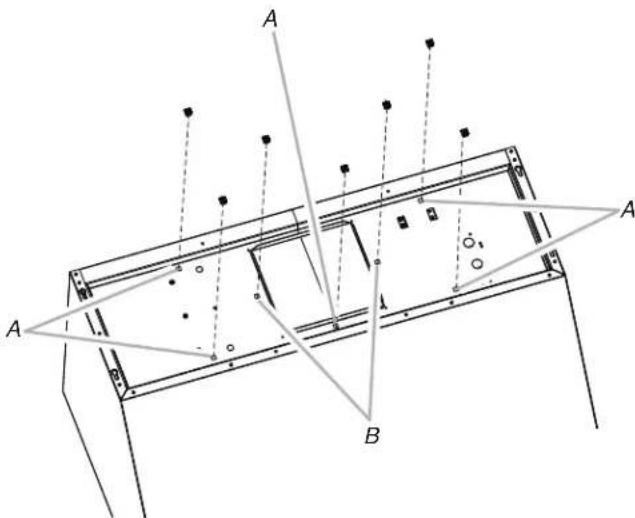

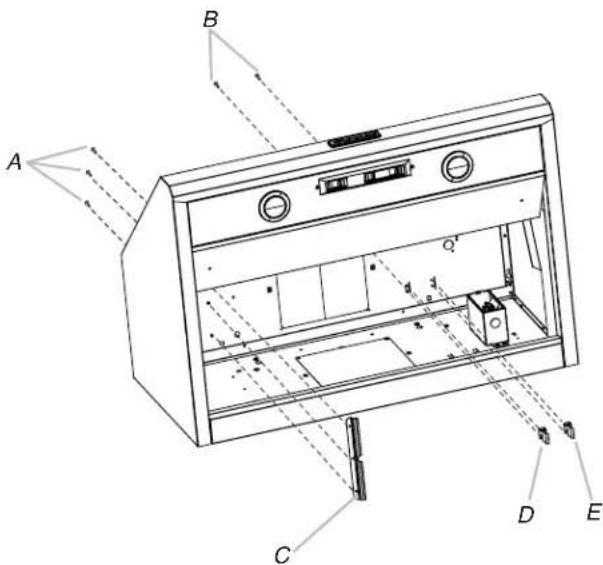

2. Install the motor support bracket using three 4.2 x 8 mm

screws. Screw bracket to the inside top or back (alternate location on some models), toward the left side of the hood liner.

3. Install motor spring clip using two 4.2 x 8 mm screws. Screw

spring clip to the inside top or back (alternate location on some models) of the hood liner at the proper location for the selected motor system. Slide the mounting tab of the spring clip through the slot in the panel and secure with the screws. Use the inside set of mounting holes for the single motor system. Use the outside set of mounting holes for the dual motor system.

4. Install the 6 mm nuts to the outside top or outside back

(alternate location on some models) of the hood liner at the proper location for the selected motor system. ■ Two 6 mm nuts are required for the single motor system. Clip nuts into the small square notches located at the left and right end of the square vent opening. ■ Five 6 mm nuts are required for the dual motor system. Clip nuts into the small square notches, one located in the front of the square vent opening and the other four located at the left and right ends of the square vent opening.

5. Mount hood liner. See the “Install Range Hood Liner”

A. 4.2 x 8 mm screws (3) for motor support bracket B. 4.2 x 8 mm screws (2) for motor spring clip C. Motor support bracket D. Motor spring clip (single motor assembly location) E. Motor spring clip (dual motor assembly location) A. Clip nut (6 mm) locations for dual motor assembly (quantity 5) B. Clip nut (6 mm) locations for single motor assembly (quantity 2)

hood liner canopy with the wiring connection to the left for the single motor system and to the front or top for the dual motor system. Single Blower Motor Assembly Dual Blower Motor Assembly

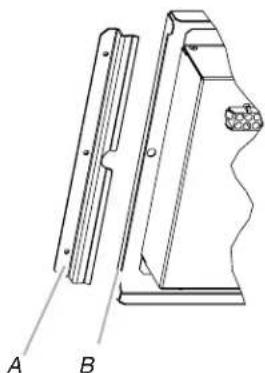

2. Slide the left mounting plate ange under the motor

3. Run the power supply wires and connector from the range

hood through the hole in the right end of the motor mounting plate.

4. Push the right end of the motor mounting plate up and snap

it into the spring tab. NOTE: The spring tab should be outside the slot in the mounting plate.

5. Align mounting holes in motor mounting plate with motor

mounting clip nuts and install 6 x 16 mm screws and 6.4 mm lock washers (quantity two for single motor; quantity ve for dual motor).

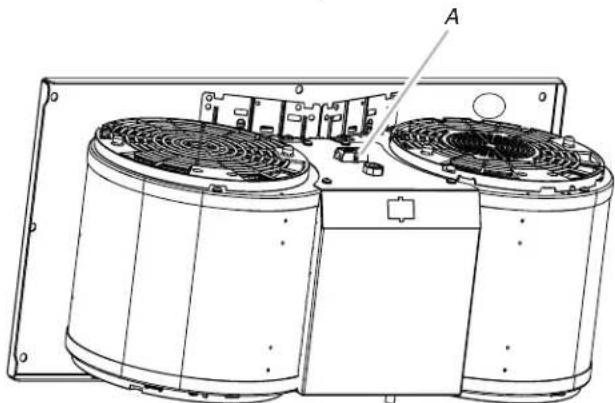

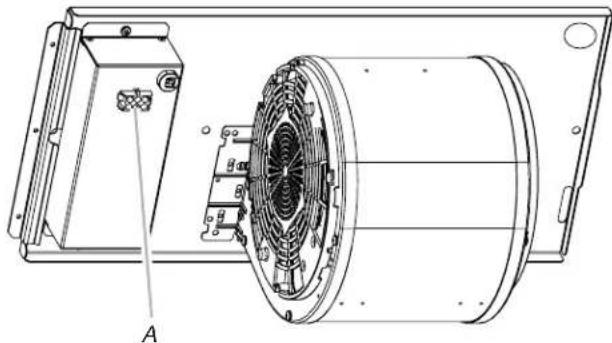

A. Wiring connection

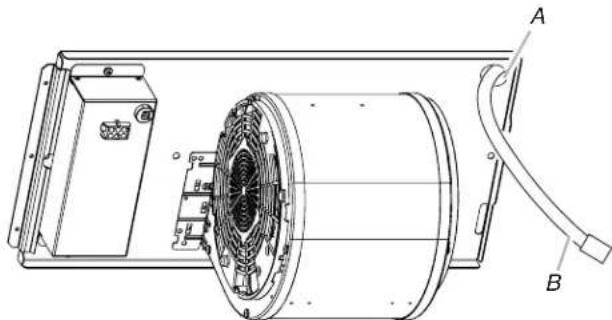

A. Wiring connection

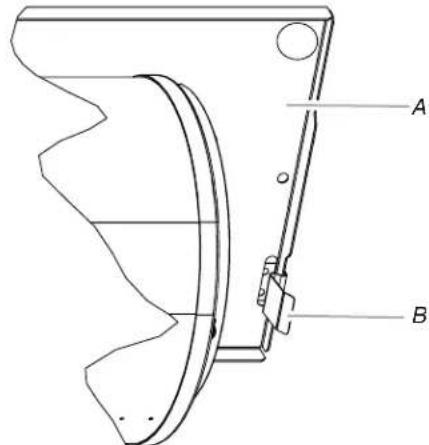

A. Motor mounting bracket B. Mounting plate left ange

A. Motor mounting plate hole B. Power supply wires and connector

A. Motor mounting plate B. Spring clip

A. Screw with lock washer B. Mounting hole in motor mounting plate C. Clip nut (6 mm)

A. Wiring box connector B. Power supply connector from range hood11

3. Run the power supply wires and connector from the range

hood through the hole in the right end of the motor mounting plate.

4. Push the right end of the motor mounting plate up and snap

it into the spring tab. NOTE: The spring tab should be outside the slot in the mounting plate.

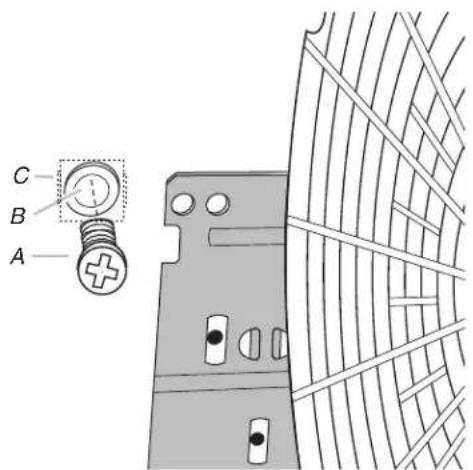

5. Align mounting holes in motor mounting plate with motor

mounting clip nuts and install 6 x 16 mm screws and 6.4 mm lock washers (quantity two for single motor; quantity ve for dual motor).

A. Motor mounting plate holeB. Power supply wires and connector

A. Motor mounting plateB. Spring clip

A. Screw with lock washerB. Mounting hole in motor mounting plateC. Clip nut (6 mm)

A. Wiring box connectorB. Power supply connector from range hood

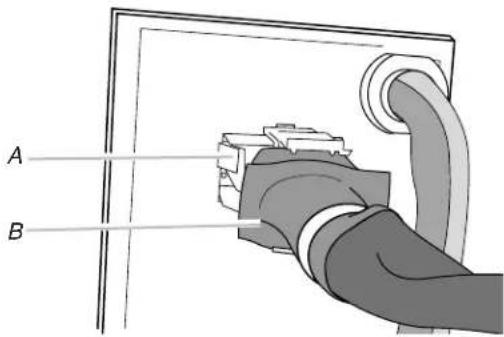

6. Attach power cord connector from the range hood to

connector on wiring box.

7. Go to the “Make Electrical Power Supply Connection to

Hood Liner” section. Install Hood Liner In-Line (External Type) Blower Motor NOTE: Your hood liner requires you to purchase either an internal type or an in-line (external type) blower motor system. See “Blower Motor System” in the “Accessories” section. Prepare for Mounting the In-Line Blower System The in-line blower system must be fastened to a secure structure of the roof, ceiling, wall, oor, or new or existing frame construction. The four holes on either the inlet (bottom) side or the outlet (top) side of the blower must be used to mount the in- line blower system to the structure. NOTE: The mounting hole locations must span the studs. Additional stud framing may be required. Plywood may be used to span open areas between ceiling joists or roof rafters to aid installation. This structure must be strong enough to support the weight of the in-line blower system (50 lb [22.6 kg] minimum). Prepare the In-line Blower System

1. Using two or more people, move the in-line blower motor

system to the mounting location.

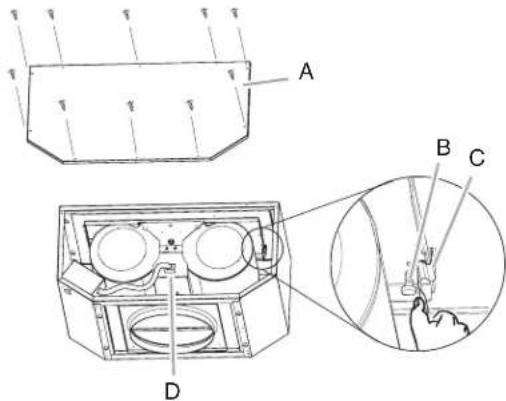

2. Remove the 10 screws from the front cover of the in-line

blower motor housing and set them aside.

3. Remove the front cover of the in-line blower motor housing

and set it aside. NOTE: To make the blower motor housing easier to mount, the blower motor assembly can be removed. If you do not want to remove the blower motor assembly, proceed to “Install In-line Blower System” in this section.

4. Disconnect the motor electrical plug from the blower motor

5. Remove the screws that secure the blower motor assembly

to the in-line blower housing and set them aside.

6. Pull the spring clip to release the blower motor assembly.

Remove the blower motor assembly from the housing and place it on a covered surface. Install In-line Blower System NOTE: The blower motor housing can be mounted using four holes from either the inlet side or the outlet side of the blower.

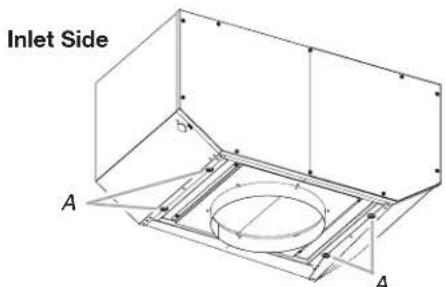

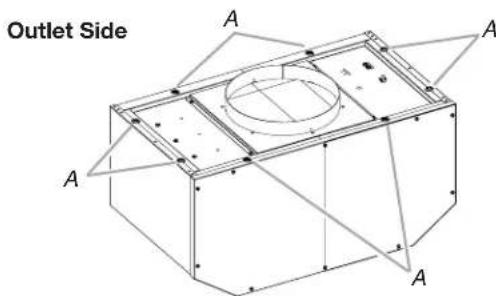

1. Position the in-line blower motor housing in its mounting

location and mark the four mounting hole locations.

2. Drill four mounting pilot holes using a 3/16" (5 mm) drill bit.

3. Attach the in-line blower motor housing to the mounting

location with four 6 x 80 mm mounting screws and washers.

4. If it is removed, reinstall the blower motor assembly and

secure it with the screws previously removed.

5. If it is removed, reattach the motor electrical plug to the

connector on the blower motor assembly. WARNING Excessive Weight Hazard Use two or more people to move and install in-line blower motor system. Failure to do so can result in back or other injury.

A. Front coverB. Blower mounting screwsC. Spring clipD. Bottom housing mounting holesE. Motor electrical plug

1. Determine and make all necessary cuts for the vent system.

IMPORTANT: When cutting or drilling into the ceiling or wall, do not damage electrical wiring or other hidden utilities.

2. Determine the location where the 1/2" (13 mm) wiring

conduit will be routed through the ceiling or wall between the in-line blower and the hood liner.

" (3.2 cm) hole at this location.

4. Locate the electrical terminal boxes in the in-line blower

housing and hood liner. Remove the terminal box covers and set the covers and screws aside.

5. Remove the electrical knockout from the in-line blower

housing and hood liner to prepare for the installation of the UL Listed or CSA approved 1/2" (13 mm) wiring conduit and conduit connector.

6. With the hood liner mounted (see the “Install Hood Liner”

section), run the 1/2" (13 mm) wiring conduit between the inline blower motor housing and the hood liner. Pull enough 1/2" (13 mm) wiring conduit to allow for easy connection to the terminal boxes in the in-line blower housing and hood liner.

7. Run the six 18 AWG wires through the 1/2" (13 mm) wiring

conduit and conduit connectors and into the terminal boxes on the in-line blower housing and hood liner. Leave enough wire length in each terminal box to make the wiring connections.

8. Install the conduit connectors and conduit to the in-line

blower housing and hood liner electrical terminal boxes.

9. Connect the vent system to the hood liner and in-line blower

system and seal all joints with clamps. Make Electrical Connections for In-Line Blower Motor System Electrical Connection Inside In-line Blower System

1. Disconnect power.

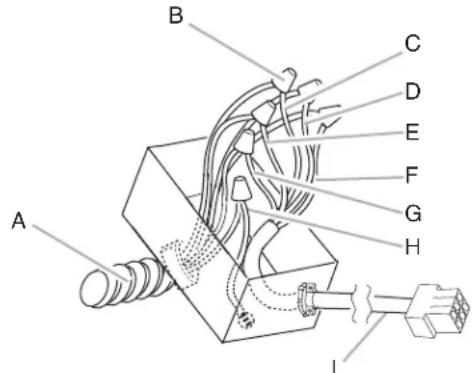

2. Connect the wires from the wiring conduit to the wires from

the motor electrical plug cable inside the in-line blower housing terminal box.

3. Use UL listed wire connectors and connect the black wires

4. Use UL listed wire connectors and connect the white wires

5. Use UL listed wire connectors and connect the red wires

6. Use UL listed wire connectors and connect the blue wires (F)

7. Use UL listed wire connectors and connect the gray wires (G)

A. UL Listed or CSA approved 1/2" (13 mm) wiring conduit B. UL Listed wire connectors C. Black wires D. White wires E. Red wires F. Blue wires G. Gray wires H. Green (or yellow/green) and green/yellow wires

I. Motor electrical plug

cableoperating. WARNING Electrical Shock Hazard Electrically ground blower. Connect ground wire to green and yellow ground wire in terminal box. Failure to do so can result in death or electrical shock. WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.13 Make Electrical Connections for In-Line Blower Motor System Electrical Connection Inside In-line Blower System

1. Disconnect power.

2. Connect the wires from the wiring conduit to the wires from

the motor electrical plug cable inside the in-line blower housing terminal box.

3. Use UL listed wire connectors and connect the black wires

4. Use UL listed wire connectors and connect the white wires

5. Use UL listed wire connectors and connect the red wires

6. Use UL listed wire connectors and connect the blue wires (F)

7. Use UL listed wire connectors and connect the gray wires (G)

A. UL Listed or CSA approved 1/2" (13 mm) wiring conduit B. UL Listed wire connectors C. Black wires D. White wires E. Red wires F. Blue wires G. Gray wires H. Green (or yellow/green) and green/yellow wires

I. Motor electrical plug

cableoperating. WARNING Electrical Shock Hazard Electrically ground blower. Connect ground wire to green and yellow ground wire in terminal box. Failure to do so can result in death or electrical shock.

8. Connect the green (or yellow/green) ground wire to the

green/yellow ground wire (H) in the terminal box using UL listed wire connectors.

9. Reinstall the in-line blower terminal box cover and screw.

10. Reinstall the front cover of the in-line blower housing and

secure it with 10 mounting screws. Electrical Connection Inside Hood Liner Between In- line Blower System and Hood Liner

1. With the hood liner mounted (see the “Install Hood Liner”

section), locate the wiring cable connector inside the hood liner.

2. Connect the 6-wire connector assembly supplied with the

in-line blower motor system to the mating cable connector from the hood liner.

3. Locate the terminal box inside the hood liner and install a

1/2" (13 mm) UL listed or CSA approved strain relief (see “Complete Preparation” in the “Prepare Location” section).

4. Run the wire ends from the 6-wire connector assembly

through the 1/2" (13 mm) strain relief, leaving enough wire length to make the wiring connections. Tighten the strain relief screws.

5. Connect the wires from the 6-wire connector assembly to the

wires from the wiring conduit inside the hood liner terminal box.

6. Connect the same color wires to each other (black to black,

white to white, etc.) using UL listed wire connectors. NOTE: Connect the green (or green/yellow) ground wire from the wiring conduit to the green (or bare) ground wire from the home power supply using UL listed wire connectors (see the “Make Electrical Power Supply Connection to Hood Liner” section).

7. Go to the “Make Electrical Power Supply Connection to

Hood Liner” section. Make Electrical Power Supply Connection to Hood Liner

1. Disconnect power.

2. Locate terminal box inside of the hood liner.

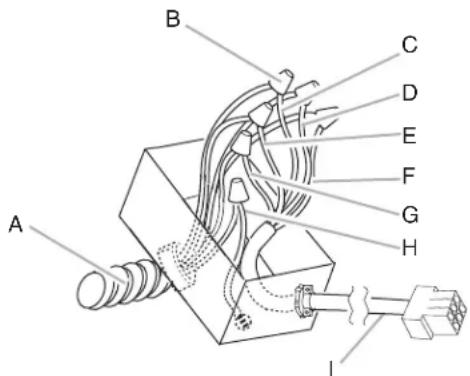

I. 6-wire connector assembly

A. Terminal box cover B. Terminal box WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.14

3. Use UL listed wire connectors and connect black wires (B)

4. Use UL listed wire connectors and connect white wires (A)

together. NOTE: When using an in-line blower motor system, the green (or green/yellow) ground wire in the conduit from the in-line blower motor system is to be connected with the green (or bare) wire of the home power supply cable and with the green/yellow wire (D) in the terminal box.

5. Connect green (or bare) ground wire from home power

supply to the green/yellow ground wire (D) in terminal box using UL listed wire connectors.

6. Install terminal box cover.

7. Check that all light bulbs are secure in their sockets.

Complete Installation and Check Operation

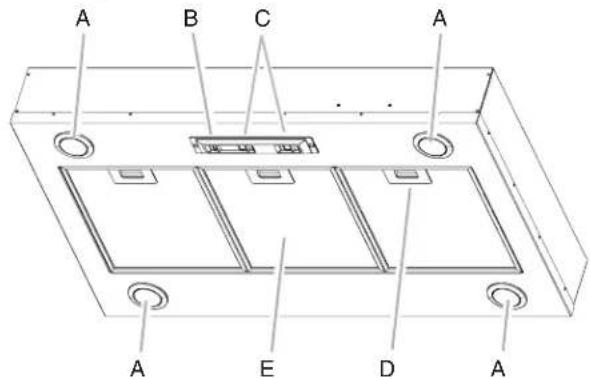

1. Install grease lters. See the “Range Hood Care” section.

2. Check operation of the range hood blower and lights. See

the “Range Hood Use” section.

3. If the range hood does not operate, check to see whether a

circuit breaker has tripped or a household fuse has blown. Disconnect power supply and check that the wiring is correct. NOTE: To get the most efcient use from your new hood liner, read the “Range Hood Use” section. WARNING Electrical Shock Hazard Electrically ground blower. Connect ground wire to green and yellow ground wire in terminal box. Failure to do so can result in death or electrical shock.

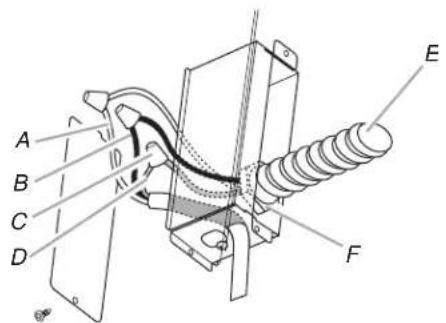

A. White wires B. Black wires C. UL listed wire connectors D. Green, bare or yellow/green wires E. Home power supply F. UL listed or CSA approved 1/2" (13 mm) strain relief15

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen. The hood controls are located on the underside of the range hood. Range Hood Controls Operating the Light

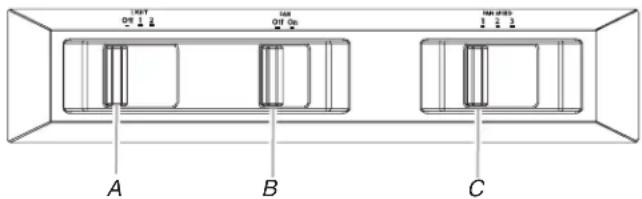

1. Move the light switch to the “1” position to turn range hood

light to night light setting.

2. Move the light switch to the “2” position to turn range hood

light to full light setting.

3. Move the light switch to the “Off” position to turn range hood

light off. IMPORTANT: Flicker and visual uctuation can be present every time the lamp switch is activated. The duration of the icker will depend on the manner and velocity that the light switch changes position. Operating the Fan

1. Move the fan switch to the on position to turn the fan on. The

fan will begin operating at the speed set on the fan speed switch.

2. Move the fan switch to the off position to turn the fan off.

Auto on Fan The range hood is equipped with a sensor to automatically turn on the fan when excessive heat is detected in the control area. When the fan switch is in the off position, this sensor will turn the fan to high speed when necessary. When the heat decreases, the fan will turn off. When the fan switch is in the on position, the heat sensor is not active, and the range hood functions normally. Adjusting the Fan The fan has three speed controls. Move the fan speed switch to “1” position for low speed, “2” position for medium speed, or “3” position for high speed. Thermal Protector The range hood is equipped with a thermal protector to avoid overheating conditions. If the range hood shuts off while in use, move fan slider switch to off to turn off the range hood. Wait approximately 60 minutes, then move slider to on to restart the range hood.

Cleaning IMPORTANT: Clean the hood and grease lters frequently according to the following instructions. Replace grease lters before operating hood. Exterior Surfaces: To avoid damage to the exterior surface, do not use steel wool or soap-lled scouring pads. Always wipe dry to avoid water marks. Cleaning Method: ■ Liquid detergent soap and water or all-purpose cleanser. ■ Wipe with damp soft cloth or nonabrasive sponge, then rinse with clean water and wipe dry. Metal Grease Filter:

1. Remove each lter by pulling the spring release handle and

then pulling down the lter.

2. Wash metal lters as needed in dishwasher or hot detergent

3. Reinstall the lter by making sure the spring release handles

are toward the front. Insert aluminum lter into upper track.

4. Push in spring-release handle.

5. Push up on metal lter and release handle to latch into place.

6. Repeat steps 1-5 for the other lter.

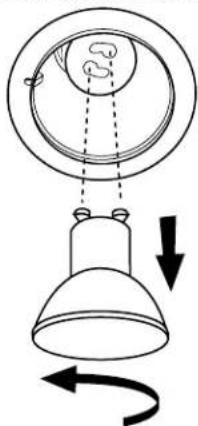

Replacing a Halogen Lamp Turn off the range hood and allow the halogen lamp to cool. To avoid damage or decreasing the life of the new lamp, do not touch lamp with bare ngers. Replace lamp, using tissue or wearing cotton gloves to handle lamp. If new lamps do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power.

2. Push up on the lens and turn it counterclockwise.

3. Remove the lamp and replace it with a 120 V, 50 W

maximum halogen lamp with a GU10 base. Turn it clockwise to lock it into place.

4. Repeat steps 2-3 for the other lamp if needed.

Fan speedFan speedFan speedOn Off On Off Off

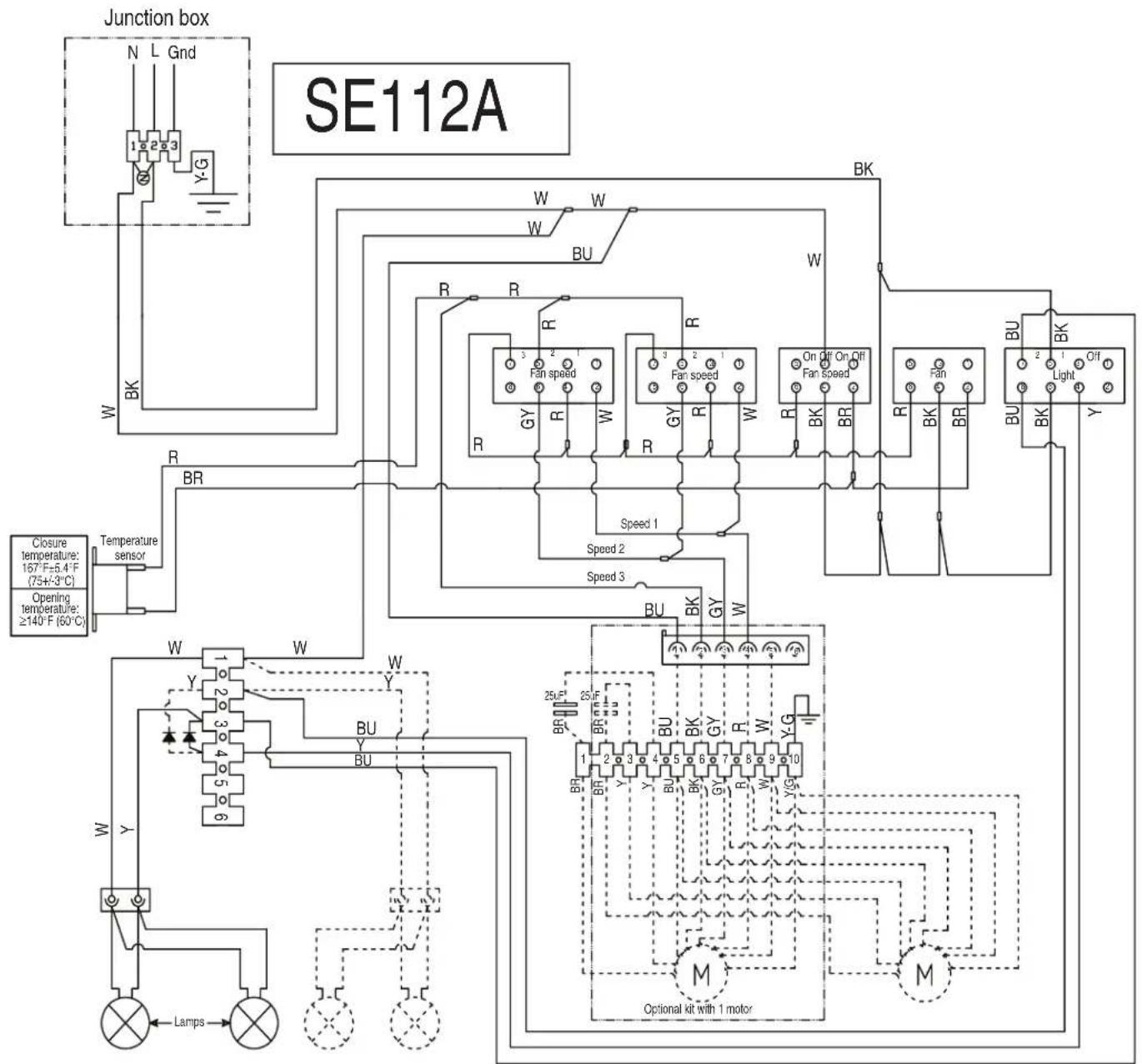

LampsOptional kit with 1 motor Motor Resistance (Ohms) Switch operation with button “1-2-3” Position Connection Action Switch operation with button “ON-OFF” Position Connection Action Position Connection Action Switch operation with button “Light” Motor Characteristics Blue-Red: 18Blue-Gray: 14.3Blue-White: 21.6 (minimum)Room Temp: 73.4°F (23°C)Blue-Black: 9.8 (maximum)

When calling for assistance or service, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specied parts. Factory specied parts will t right and work right because they are made with the same precision used to build every new appliance. To locate factory specied replacement parts in your area, call us or your nearest designated service center. In the U.S.A. Ifyou have any problems or questions, call the KitchenAid Customer eXperience Center at 1-800-422-1230. Our consultants provide assistance with: ■ Scheduling of service. KitchenAid appliances designated service technicians are trained to fulll the product warranty and provide after-warranty service anywhere in the United States. ■ Features and specications on our full line of appliances. ■ Referrals to local KitchenAid appliance dealers. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). For further assistance: If you need further assistance, you can write to KitchenAid with any questions or concerns at: KitchenAid Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Ifyou have any problems or questions, call the KitchenAid Customer eXperience Center at 1-800-807-6777. Our consultants provide assistance with: ■ Scheduling of service. KitchenAid appliances designated service technicians are trained to fulll the product warranty and provide after-warranty service anywhere in Canada. ■ Features and specications on our full line of appliances. ■ Referrals to local KitchenAid appliance dealers. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. For further assistance: If you need further assistance, you can write to KitchenAid with any questions or concerns at: KitchenAid Brand Home Appliances Customer eXperience Center

ASSISTANCE OU SERVICE
