Brand	Küppersbusch
Model	DW6340.0E
Product type	Decorative extractor hood
Width (mm)	598 - 1198 (depending on model)
Depth (mm)	470
Minimum height above cooking surface (mm)	650
Height of telescopic chimney (mm)	260 - 1000 (adjustable)
Air outlet diameter (mm)	120 or 150
Power supply	220-240 V ~ 50/60 Hz
Electrical class	Class I (with earth connection)
Maximum motor power (W)	280
Lighting	LED (separate switch)
Number of speeds	4 (including one timed 6 minutes)
Grease filters	Self-supporting metal, dishwasher-safe
Charcoal filter	Active, replaceable (not washable)
Grease filters cleaning frequency	Every 2 months
Charcoal filter replacement frequency	Every 4 months
Extraction / recirculation function	Both possible (depending on configuration)
Safety	Automatic switch-off in case of overheating, bipolar switch required
Approximate weight (kg)	20

Frequently Asked Questions - DW6340.0E Küppersbusch

What is the minimum distance between the hood and the hob?

The minimum safety distance is 650 mm. Also check your hob's instructions as some may require a larger distance.

How to clean the grease filters?

The metal grease filters can be washed in the dishwasher or by hand with a mild detergent. They should be cleaned every 2 months (or more often with heavy use). Let them dry before reinstalling.

When should the charcoal filter be replaced?

The active charcoal filter is neither washable nor renewable. It must be replaced every 4 months (or more often with heavy use). To purchase a replacement filter, contact customer service.

Can I use the hood in recirculation mode?

Yes, the hood can operate in recirculation mode (filter version) provided you install an active charcoal filter and follow the installation instructions for the upper air outlet.

What to do if the hood does not turn on?

First check the power supply and circuit breaker. Ensure the power cable is properly connected inside the hood (accessible after removing filters). If the problem persists, contact an authorized technician.

Is the hood compatible with a gas hob?

Yes, but sufficient room ventilation is necessary to prevent backflow of combustion gases. Negative pressure must not exceed 0.04 mbar. Respect the minimum distances.

How to install the hood in extraction mode?

Connect the air outlet (ø 120 or 150 mm) to an external exhaust duct using rigid or flexible tubing. Use the supplied connector and secure with hose clamps (not supplied). Ensure the smoke path is as short as possible.

What is the sound power level of the hood?

The sound level varies with speed. At speed 1, it is approximately 45 dB(A), and at speed 4, it can reach 65 dB(A). For quiet operation, use low speeds.

Where can I buy spare parts?

Contact Küppersbusch after-sales service or an authorized dealer. Grease and charcoal filters, LED bulbs, and power cord are available.

How to replace the LED lighting?

The LED lighting is integrated and must be replaced by a qualified technician. Contact customer service. Do not attempt to repair it yourself.

USER MANUAL DW6340.0E Küppersbusch

Simple line drawing of a vertical rectangular structure mounted on a base (no text or symbols)

Instructions Manual

RECOMMENDATIONS AND SUGGESTIONS 4

CHARACTERISTICS 7

INSTALLATION....8

USE 11

MAINTENANCE 12

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS.... 13

CARACTERISTIQUES.... 16

INSTALLATION....17

UTILISATION 20

ENTRETIEN 21

INHALTSVERZEICHNIS

DE

The Instructions for Use apply to several versions of this appliance.

Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.
  Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

Illustration of a greenhouse with a pot and smokestack, crossed by a green X-shaped line against a light green background (no text or symbols)

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

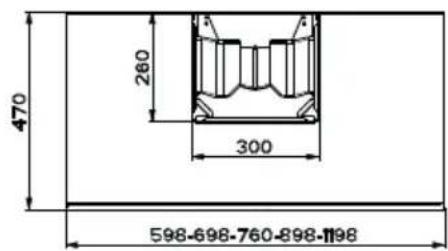

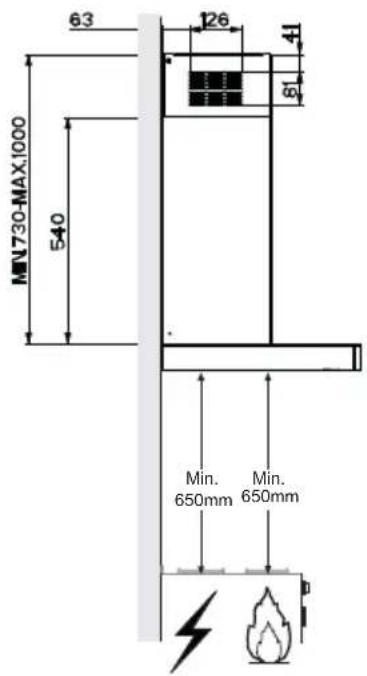

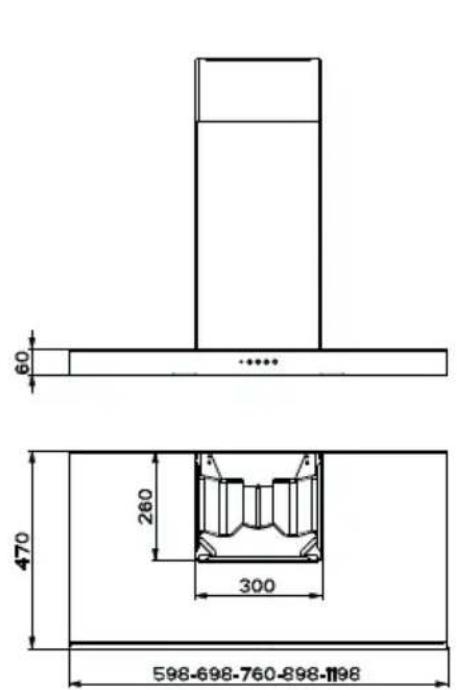

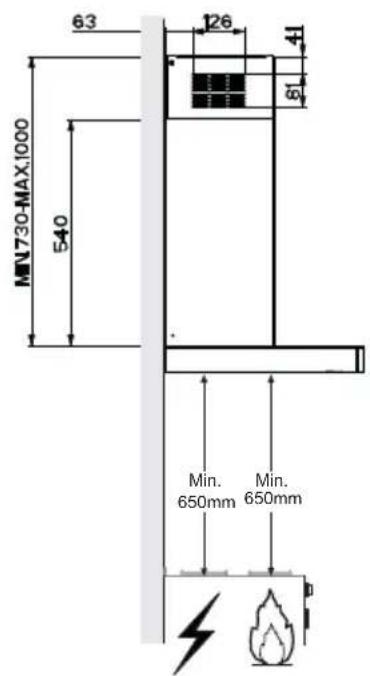

Dimensions

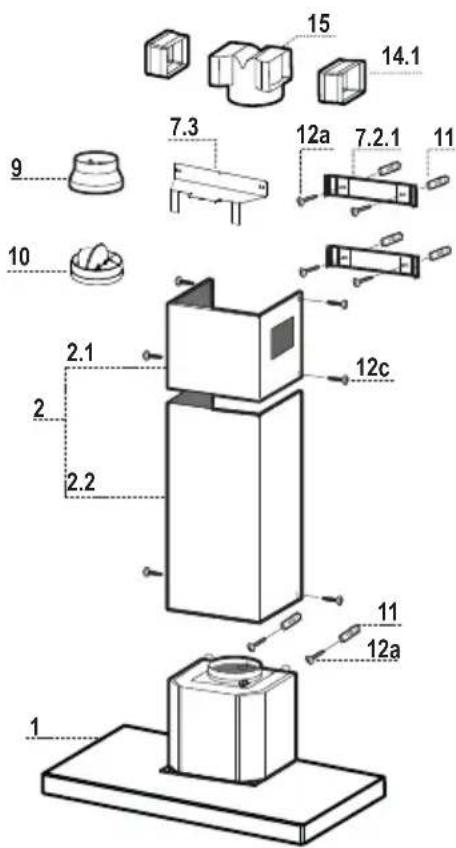

Components

Ref.	Q.ty	Product	Components
1	1	Hood	Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic	Chimney comprising:
2.1		1	Upper Section
2.2		1	Lower Section
9	1	Reducer	Flange ø 150-120 mm
10	1	Damper ø 150
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection

Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
7.3	1	Air Outlet Connection Support
11		6 Wall Plugs
12a		6 Screws 4,2 x 44,4
12c		6 Screws 2,9 x 9,5
Q.ty	Documentation
		1 Instruction Manual

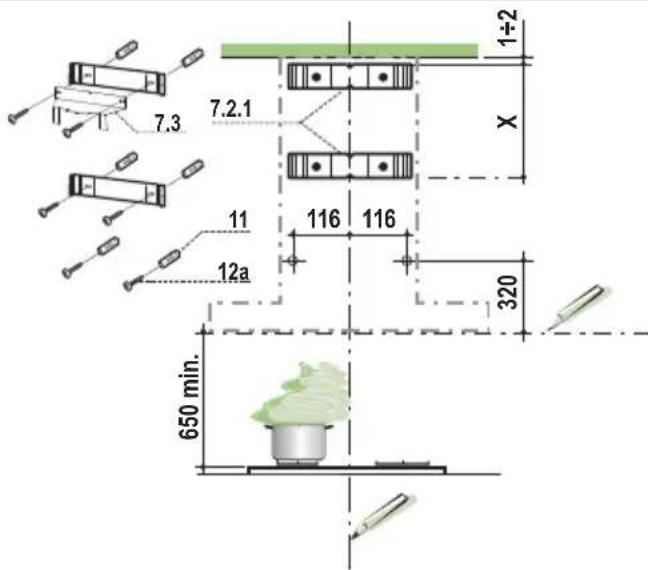

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2 screws 12a (4,2 x 44,4) supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
  • Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm, the choice of which is left to the installer.

To install a 0 150 pipe

• To install the dumper 10
- Fix the pipe in position using sufficient pipe clamps (not supplied).

To install a 0 120 pipe

• To install a ø 120 mm air exhaust connection, insert the reducer flange 9 on the dumper 10.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

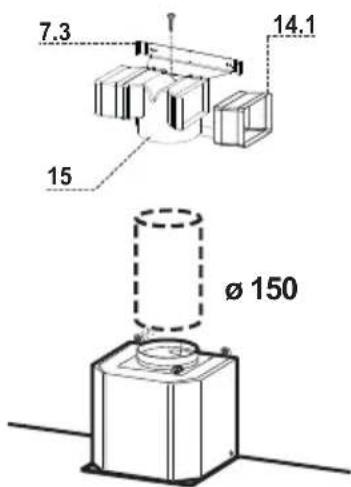

RECIRCULATION VERSION AIR OUTLET

• Insert the connection extension pieces laterally 14.1 in connection 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with a screw.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe ∅ 150 mm, the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

- Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with a highlighted section and directional arrow (no text or symbols)

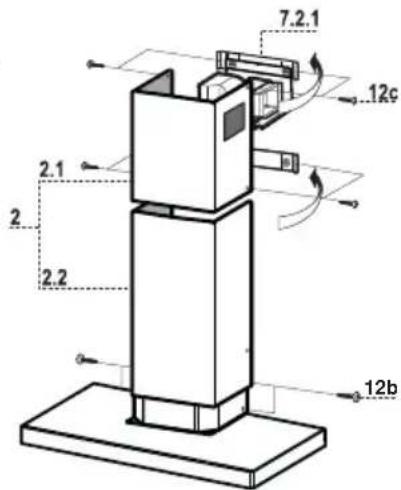

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets by using the 4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body by using the 2 screws 12c (2,9 x 9,5) supplied.

Control panel

T1T2T3T4L

BUTTON

FUNCTIONS

T1 Motor Turns the Motor off.

T2 Speed Turns the Motor on at Speed one. Button lights up continuously.

T3 Speed Turns the Motor on at Speed two. Button lights up continuously.

T4 Speed When pressed briefly, turns the Motor on at Speed three. Button lights up continuously.

Pressed for 2 Seconds. Button flashes.

Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.

L Light Turns the Lighting System on and off. Button lights up continuously.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Hand holding a smartphone with a green arrow pointing to the screen (no text or symbols visible)

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
  • Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.

Illustration of a hand pressing a component on a green surface, with a green arrow indicating direction (no text or symbols)

Lighting unit

- For replacement contact technical support ("To purchase contact technical support").

Illustration of a chemical experiment setup with a conical flask, thermometer, and test tube (no text or symbols)

Diagram of a pipe connection with a 2° angle indicator, showing structural components without any text or symbols.

Illustration of a greenhouse with a container and two plants, crossed by a green X (no text or symbols)

Diagram showing a mechanical component with an inset view of a device's internal structure (no text or symbols)

Montage Cheminée

Cheminée supérieure

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Filtre anti-odeur (Version filtrante)

REPLACEMENT FILTRE AU CHARBON ACTIF

Illustration of a hand pressing down on a mechanical component with a green arrow indicating direction (no text or symbols)

Éclairage

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Technical diagram showing a pipe connection to a brick wall with a 2° angle标注 (no text or symbols present)

Illustration of a greenhouse with a stove and a crossed green ribbon, no text or symbols present

Pure technical line drawing of a T-shaped structure with dimension标注 (no text or symbols)

Komponenten

Diagram showing a mechanical component with an inset view of a device's internal structure (no text or symbols)

Kaminmontage

Oberer Kaminteil

TASTE
FUNKTIONEN

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Geruchsfilter (Umluftversion)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating direction (no text or symbols)

Beleuchtung

LED-Strahler

Illustration of a kitchen with a smokestack emitting vapor, a control panel, and a green X-shaped warning symbol (no text or labels)

Illustration of a greenhouse with a pot and smokestack, crossed by a green ribbon (no text or symbols)

Pure technical line drawing of a T-shaped structure with dimension标注 (no text or symbols)

Componentes

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

TECLA FUNCIONES

Hand holding a tablet device with a green arrow indicating left touch (no text or symbols)

Illustration of a hand pressing a component on a green surface, with a green arrow indicating direction (no text or symbols)

Iluminación

Illustration of a kitchen range hood with a green X-shaped exhaust plume and a control panel (no text or symbols)

Technical diagram showing a pipe connection with a 2° angle标注 (no text or symbols present)

Illustration of a cooking setup with a pot and steam rising, crossed by a green ribbon (no text or symbols)

Pure technical line drawing of a T-shaped structure with dimension标注 (no text or symbols)

Εξαρτήματα

Diagram showing a mechanical component with a magnified inset highlighting a green arrow (no text or symbols present)

ΠΛΗΚΤΡΟ ΛΕΙΤΟΥΡΓΙΕΣ

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating direction (no text or symbols)

Φωτισμός

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Illustration of a cooking setup with a pot and fire, crossed by a green X (no text or symbols)

Diagram showing a mechanical component with an inset view of a device's internal structure (no text or symbols)

Установка дымохода

Верхний дымоход

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating direction (no text or symbols)

Освещение
