SF400F11 - Smoke detector ELRO - Free user manual and instructions

Product type	Connected smoke detector
Brand	Elro
Model	SF400F11
Detection technology	Photovoltaic (optical)
Power supply	Lithium battery 3V (non-removable)
Battery life	Up to 10 years
Connectivity	RF 868 MHz (ELRO Connects protocol)
RF range	≥ 100 m in open field
Dimensions	100 mm diameter, 40 mm height
Weight	Approximately 150 g
Operating temperature	-10 °C to +50 °C
Operating humidity	< 95 % RH (non-condensing)
Main functions	Smoke detection, built-in sound alarm, smartphone notification via ELRO Connects app
Alarm sound level	85 dB at 3 meters
Maintenance and cleaning	Dust the exterior with a dry cloth; vacuum the detection openings every 6 months
Safety	Compliant with standard EN 14604; periodic automatic test
Spare parts and repairability	Battery not replaceable by user; detector to be replaced at end of life (10 years)
General information	Requires ELRO K1 connector for Wi-Fi connection and app

Frequently Asked Questions - SF400F11 ELRO

How to install the SF400F11 smoke detector?

Attach the detector to the ceiling using the provided bracket. Make sure it is at least 30 cm from walls and away from drafts. Follow the ELRO Connects app instructions to pair it with the K1 connector.

Can I use the detector without the K1 connector?

No, the SF400F11 requires the K1 connector to communicate with the app and other ELRO Connects devices. Without the K1, the detector works only as a standalone detector (local alarm).

How to test the smoke detector?

Press the test button on the detector. The alarm should sound. You can also start a test via the ELRO Connects app. Test the detector at least once a month.

What is the battery life?

The built-in lithium battery has a lifespan of approximately 10 years. The detector will alert you with beeps when the battery is low. At the end of its life, replace the entire detector.

What to do if the detector emits intermittent beeps?

Intermittent beeps usually indicate a low battery or malfunction. Check the app for the error message. If the battery is low, replace the detector. If it's a false alarm, clean the detector and make sure it is not in a humid or dusty area.

How to connect the detector to the ELRO Connects app?

Make sure the K1 connector is installed and connected to your 2.4 GHz Wi-Fi network. Open the app, go to the 'Equipment' tab, press '+' and follow the instructions. Quickly press the detector button 3 times to pair it.

Can the detector be used in a kitchen or bathroom?

Avoid installing the detector in areas prone to steam or cooking fumes, as this may cause false alarms. Ideally, place it at least 3 meters from sources of steam or smoke.

How to temporarily disable the alarm in case of false alert?

To disable an unwanted alarm, you can press the mute button on the detector (if available) or via the app. See the manual for the exact procedure.

What to do if the detector does not connect to the K1?

Check that the K1 is powered on and that the 2.4 GHz Wi-Fi is active. Reset the detector by holding the button for 10 seconds until the LED flashes, then try pairing again.

Is the detector compatible with other brands of home automation systems?

No, the SF400F11 uses the proprietary ELRO Connects protocol and is only compatible with K1 connectors and the ELRO Connects app. It does not work with Zigbee, Z-Wave, or other systems.

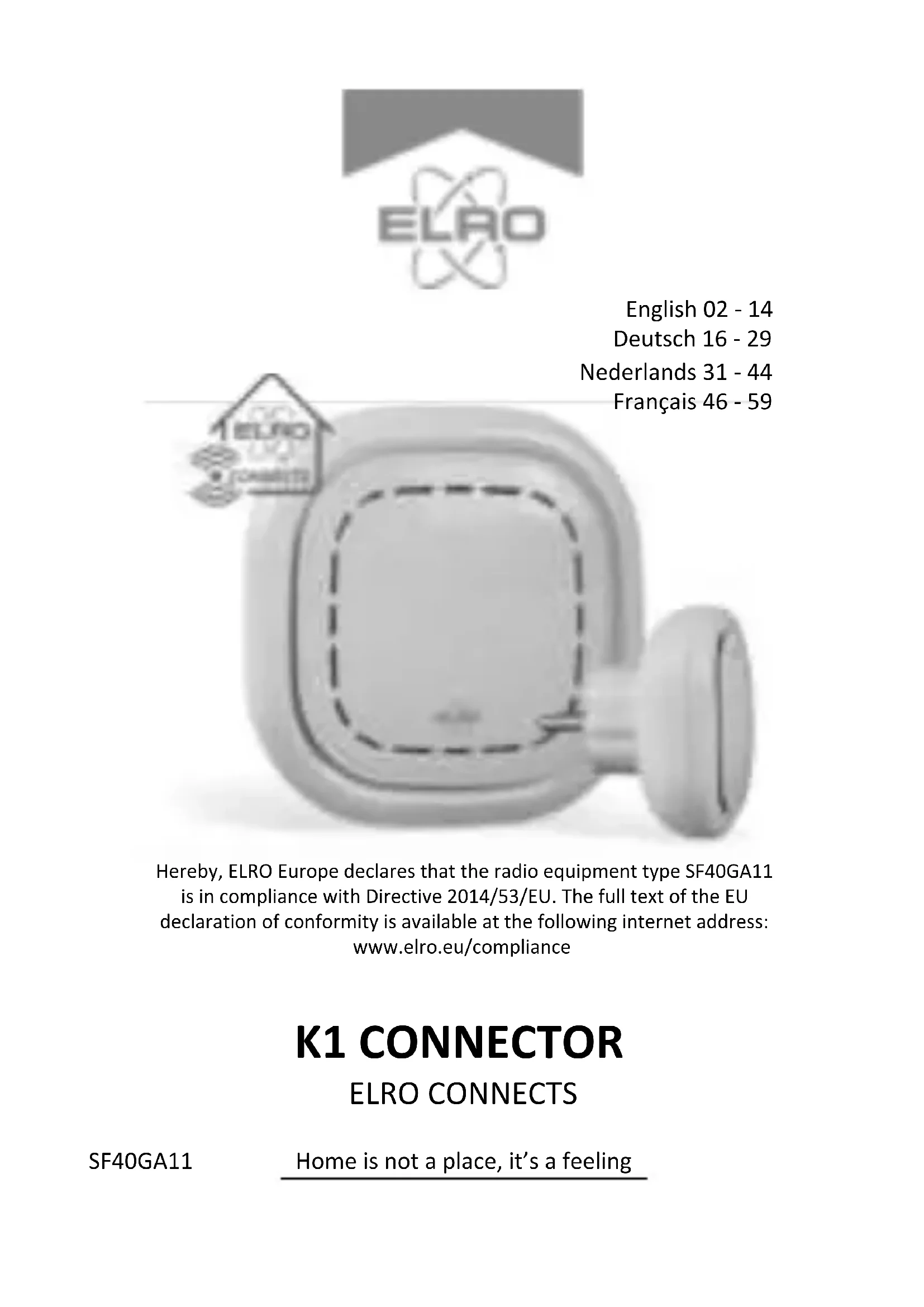

USER MANUAL SF400F11 ELRO

Hereby, ELRO Europe declares that the radio equipment type SF40GA11 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.elro.eu/compliance

K1 CONNECTOR

ELRO CONNECTS

SF40GA11

Home is not a place, it's a feeling

EXPLANATION

The ELRO K1 Connector is the heart of your ELRO Connects system. It connects all your ELRO Connects products to the free ELRO Connects App. With the ELRO Connects App you gain full control of your home, making it a more comfortable and safe environment for you and your family. ELRO Connects is a plug & play system, developed for anyone to use and enjoy.

3 step installation

1. Download the ELRO Connects App

Download the “ELRO Connects” app from the Apple App Store or Google Play Store. To enjoy all the functions of the ELRO Connects system, make sure to allow the app to send push notifications and use your current location.

2. Register an Account

When opening the app for the first time, the login screen will pop-up. Please press 'Create an account' (1) on the bottom right corner of the app.

Mobile app interface screenshot showing a login form with a teal login icon and a blue banner below it.

Enter your e-mail address (2). To verify your e-mail address, please press ‘Get code’ (3). Now a pop-up will appear in which you need to fill in a graphic verification code (4). (Be aware of capital and lower case letters!)

After you've entered the graphic's verification code, you'll receive an e-mail from the ELRO Connects App.

The verification code you received in your e-mail needs to be filled in left to the "Get code" button (3).

Next, type in the password (5) you need to use at least 8 digits, a mix of upper/lower case letters and numbers and/or special characters. Re-enter the password in the field underneath and press ‘Create an account’. You can check the password by pressing on the eye symbol! The login screen will appear and you can login to the app by using your email and created password.

C:\Users\open F B E OK OK

Scanned screenshot of a mobile app interface with Chinese text and a circular button, likely for user verification or login.

3. Connect the K1 Connector to the app

Once you have logged into the app, you are taken to the network configuration. Plug in the K1 connector into a power outlet and wait for the LED indicator to turn green.

Next, press the K1 Connector's button (1) for at least 3 seconds until the LED flashes blue. (2) Press 'Next'.

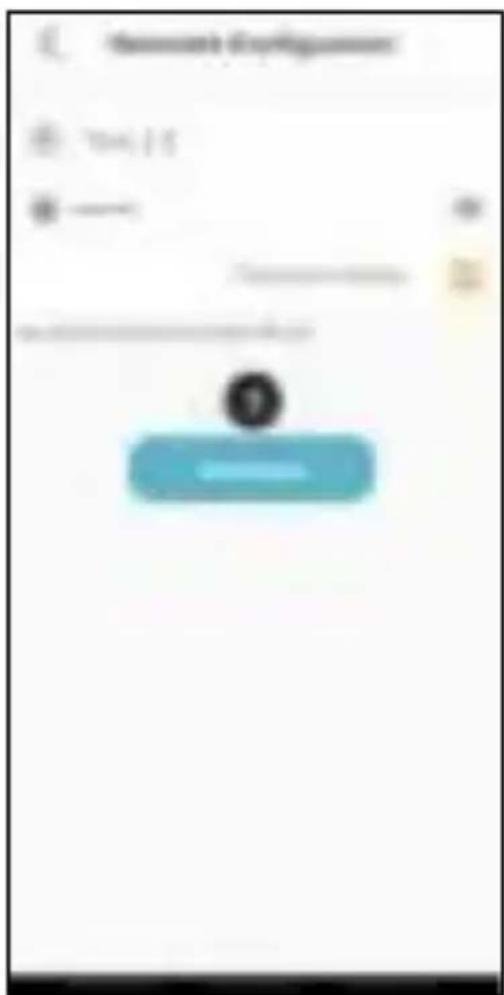

In the next screen, type in your Wi-Fi network password (3) and press 'Configure'. The connector will now connect with your Wi-Fi network. This will take approximately 1 minute. You'll be informed whether the connection was successful or not.

Make sure that you use a 2.4GHz Wi-Fi signal. This means that this cannot be a Wi-Fi signal that exists of both 2.4GHz and 5GHz signals. We recommend that you turn of the 5GHz signal when installing the K1. After the installation you can turn this signal back on again.

Intelligent pass commands Please check your password for all, please return your password. You can access your password to your account. Description: Please check your password for all, please return your password. You can access your password to your account. E: 0.0000

Configure your computer OK Cancel

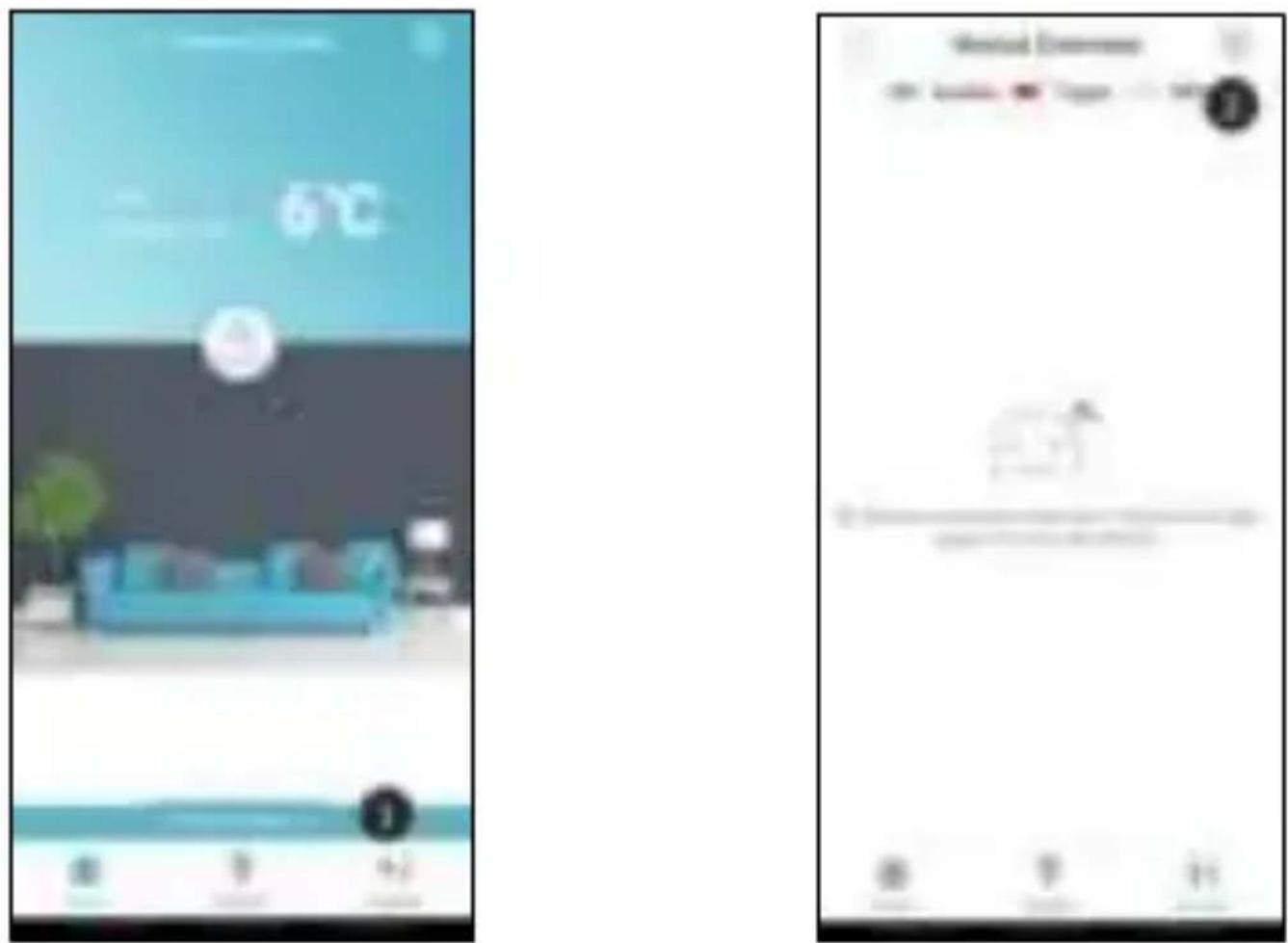

Connect ELRO Connects products to the app

Connecting the different ELRO Connects products to your app is very easy and will take you very little time. First, go to the Device List by tapping the ‘Devices’ (1) at the bottom right corner of your Home screen. Next, tap the ‘+’ in the upper right corner (2).

Quickly press the button on your ELRO Connects device 3 times (3). When the connection with the ELRO Connects device is successful the LED of the K1 Connector will quickly blink 10 times and you'll receive a notice in the app.

Please note! The ELRO Connects Water Detector (FW3801R) doesn't have a button, use a screwdriver to touch both sensors 3 times in success.

Congratulations!

You successfully connected an ELRO Connects product to your app. You can now name the product and use it in your app to control with your smartphone, use in scenes etc.

Scenes

Your ELRO Connects app has 3 pre-installed operation modes “Home, “Away” and “Sleep”. You can switch between these operation modes by tapping the button in the middle of your Home screen and select the desired mode.

Scanned document page with Chinese text and a small image of various icons, likely related to product or service.

Home

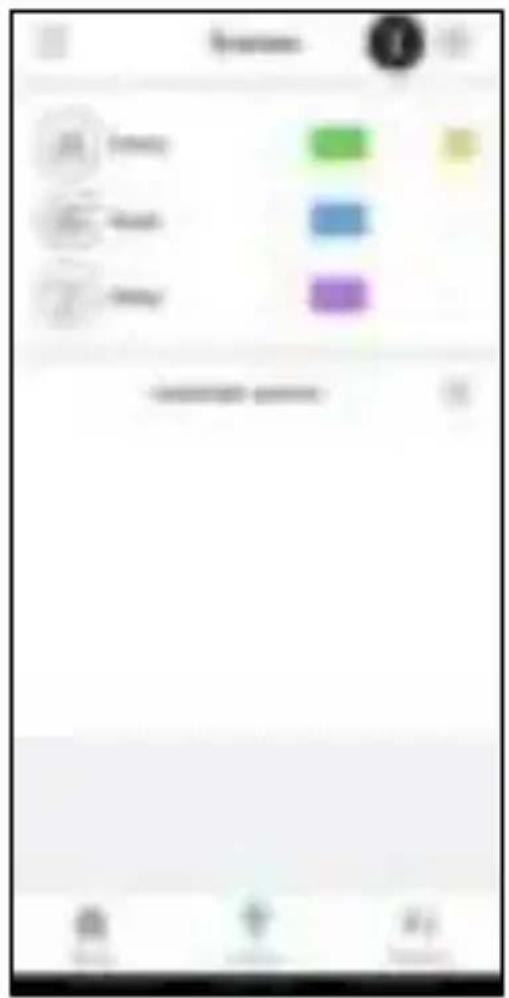

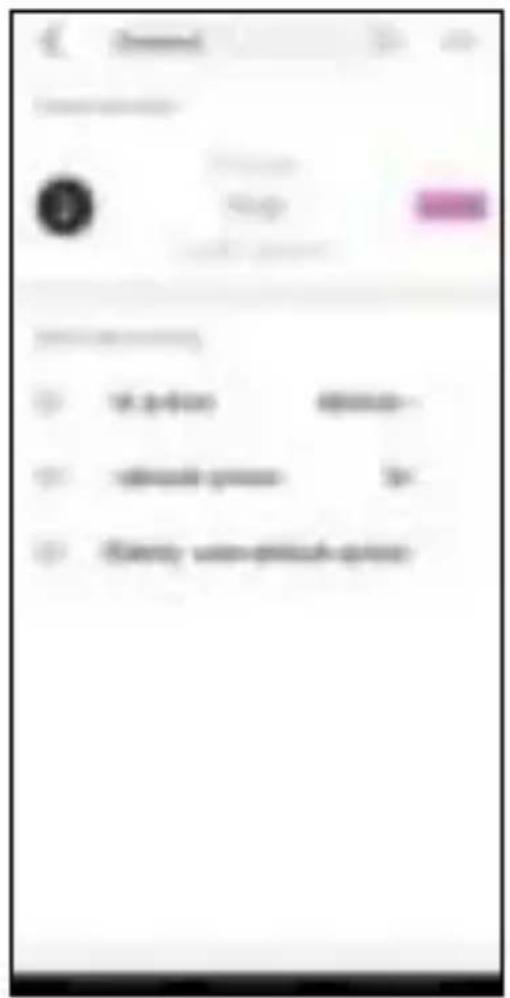

Creating scenes

Press the "Scenes" button at the bottom of the start screen. Here you can set up various scenes for your ELRO Connects system. It is possible to add various automatic actions to these scenes to automate everything. To create a scene, simply press the "+" (1) in the scene overview. A screen will appear where you can add conditions and link them to an action that needs to be executed (2). You can also use the following menu items to set up your own automatic actions. It is possible to modify a scene by pressing one of the scenes.

Mobile app interface screenshot showing a color selection panel with numbered radio buttons and a color palette.

Mobile app interface screenshot showing a list of options with checkboxes and buttons, including 'OK', 'Cancel', and 'Finish'.

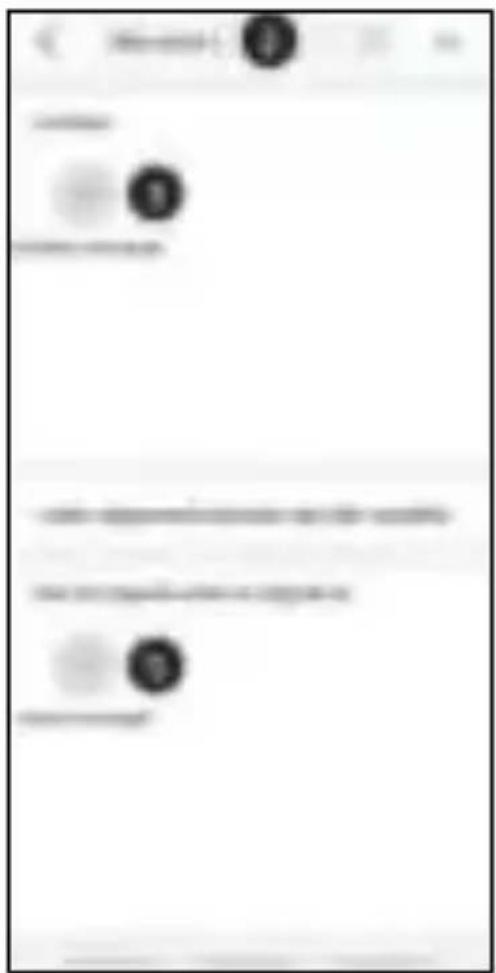

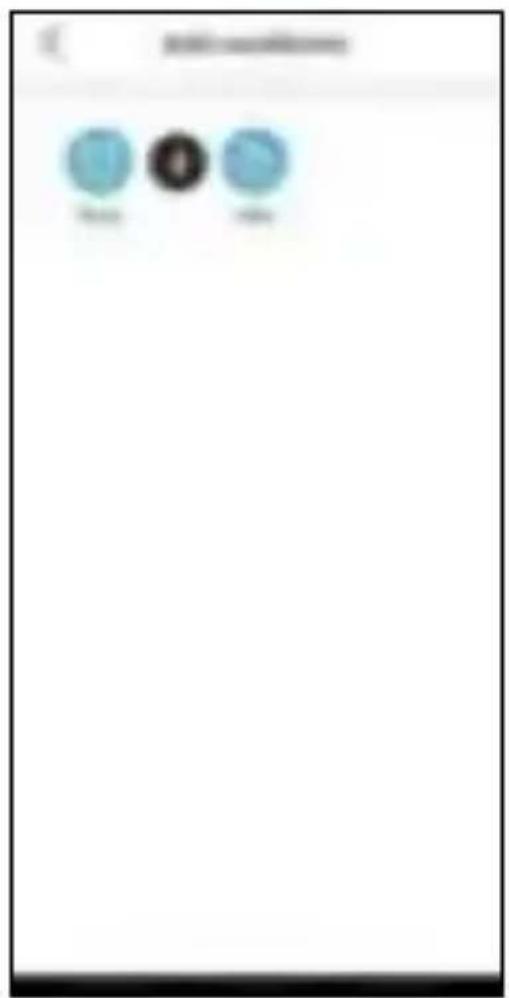

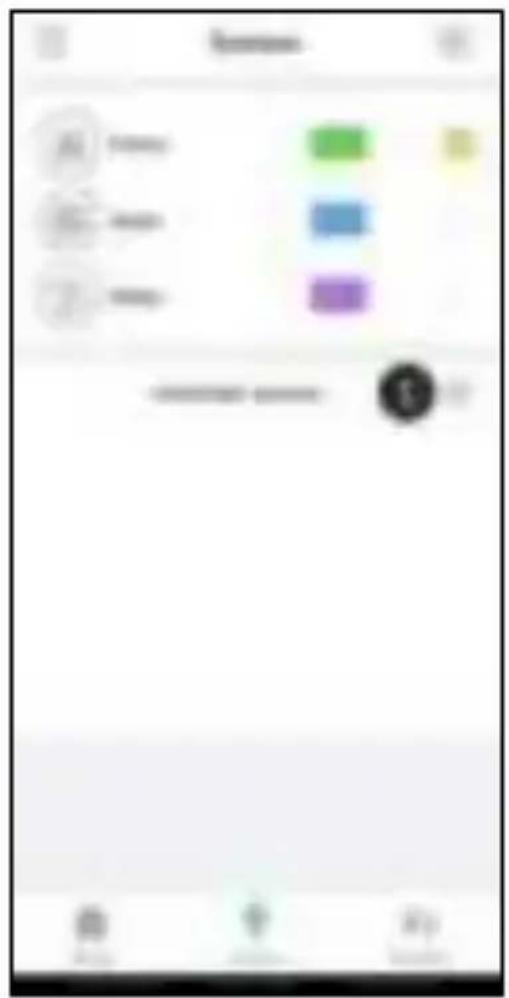

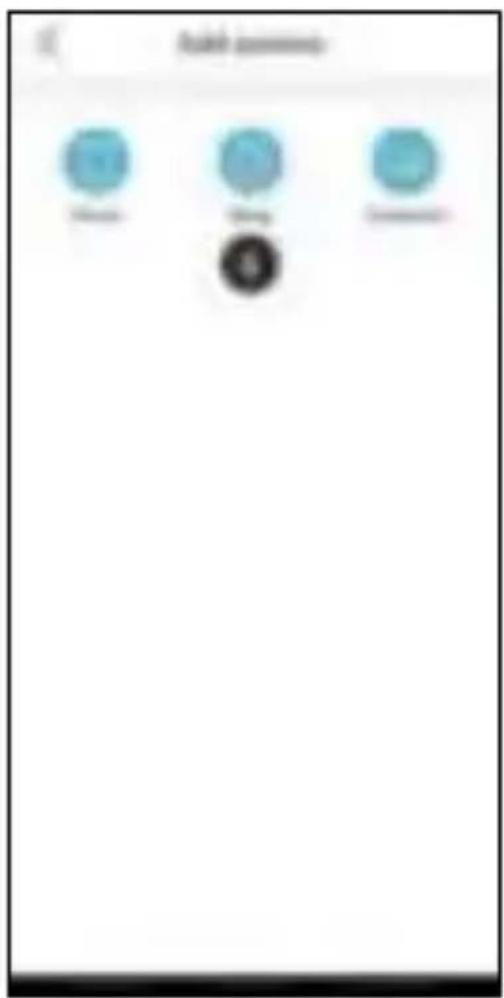

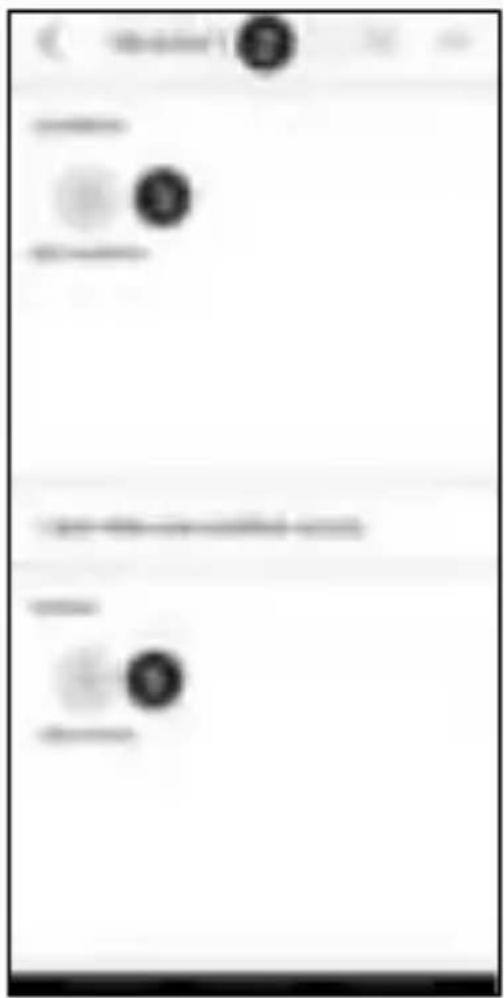

Automatic actions

So it is possible to set an automatic action on a scene. You can assign one or more conditions to an automatic action. If one or more of these conditions are met, the automatic action will be executed. For example, it is possible to have a plug switch on when a door is opened. By following the steps below you can easily create automatic actions yourself. In the scene overview, press the plus sign to create an automatic actions (1). You can then give a name to the automatic action (2). Add the conditions that will trigger the automatic action (3). This can be a timer or a button press, for example (4). Then determine which action should be performed when one or more of the conditions are met (5). The list of actions will grow as different products are added to your system (6).

Please note! When only using fire protection products, it is not necessary to create automatic actions. There are also a number of standard automatic actions for intrusion protection. You therefore do not need to set these up yourself either.

Mobile app interface screenshot showing a color selection panel with numbered radio buttons and a highlighted button labeled 'E'

Scanned document with numbered bullet points and horizontal lines, likely a form or interface element

Mobile app interface screenshot showing two circular buttons labeled 'OK' and 'Cancel' with a small 'F' icon in the center.

Add buttons Add buttons 0

Timers

On the home screen, press the "Scenes" button at the bottom of the home screen. To set a timer, press the clock in the top left corner of your screen. You will then see an overview of all your set timers. By pressing the plus sign you can set a time when a scene will start automatically. For example, you can set the "Sleep mode" to be activated at 23:00 every day.

New! New! New!

Scanned document fragment showing fragmented text and symbols, possibly from a form or report with partial table structure visible.

Explanation of the app

Below is an overview of all the app's functions with explanations.

1. Connector list: Here you can find all the connectors which are connected to the account. You can also delete a connector and change the name of one.
2. Scene switching: Switch between the different scenes of the system.
3. Alarm history: previous alarms are stored here.
4. Home page, scene overview and device list. Home page, scene overview and device list.
5. Change Password: Change the password for the account.
6. Configure your connector: add a second connector to the app.
7. Location settings: here you can turn the location facilities on or off.
8. Emergency number: Add an emergency number. This can be used as a shortcut. Simply call this number in case of emergency. This number is not automatically called by the app.

6°C 100 D

Scanned document with numbered bullet points and partial text, likely a form or report section

1. Frequently asked questions: navigate to our FAQ page.
2. About: here you will find the app version, the connector version, the customer service details and the privacy terms.
3. Synchronize: Synchronize the device list to get the latest status of the devices.
4. Standby: The device is online and working.
5. Trigger : The device is activated.
6. Offline : The device is offline.

Forgot your password?

If you have forgotten your password you can set a new one by pressing 'Forgot password' at the bottom left of the login screen. Then follow the same steps as when creating an account. At email address, enter the email address of your current account.

Reset

You can reset the connector by following the steps below:

1. Remove the K1 Connector from your app by going to the connector list at the top of the home screen.
   a. For iPhone, drag the connector line to the left and press delete.
   b. For Android, press the booklet and then press delete.
2. Plug the connector into the wall outlet and wait 5 seconds.
3. Press the K1 button 3 times.

Service Customer BUY CHANGE BUY BUY

1. Hold down the button on the connector until you see a purple light.
2. The connector will briefly alarm.
3. The connector is now reset.

Troubleshooting

If the installation fails or you encounter some other problem, please refer to this troubleshooting. It contains a number of tips and tricks that might help you further.

Installation K1

When installing the K1 system, we recommend that you pay attention to the following points.

• Make sure your phone is connected to the 2.4GHz Wi-Fi signal.
• Make sure your Wi-Fi password/name does not contain any spaces.
• The Wi-Fi name should be entered automatically during the network configuration. Is this not the case? Then you need to enable the location services on your phone and in the app's settings. Also, all permissions need to be accepted.
• Are you sure that the password for the Wi-Fi is correct? By clicking on the eye on the right, you can see the password you have entered.
• Make sure the connector flashes blue when you go through the network configuration.
• If all of the above does not appear to be the cause of the problem, then you are probably dealing with a combined WiFi band. In other words, a WiFi band that offers both 2.4Ghz and 5Ghz (in some cases, a combined WiFi band is still displayed as a 2.4Ghz WiFi). We recommend that you check the router settings to see which frequencies are offered for the relevant SSID. Before installing the system, temporarily disable the 5GHz signal and go through the installation. After installing the K1 connector, you can turn the 5GHz signal on again. If that doesn't work, you can also create a separate wifi band with a unique name and password on

2.4Ghz only. I can imagine that this is complex, we therefore advise you to contact your telecom provider for the correct settings to set up a separate 2.4Ghz WiFi band in this case, they will be able to help you the quickest and best.

FAQ

Q Can I connect a second device to my system?

A It is possible to link several phones to one connector. You can do this simply by logging in with your account on multiple devices.

Q How many devices can be connected to the connector?

A Up to 127 devices can be connected to the connector.

Q Can I add multiple connectors to one account?

A This is certainly possible. You can add various connectors by pressing the top right of the home screen. Then you have to press 'Configure your connector'. Each connector has its own set of scenes and devices and are therefore not connected to each other.

Q What is the wireless range of the system?

A All components have a range of 100m in an open space without any obstacles or interfering signals. All accessories should be located within reach of each other, as the system is not a mesh network.

Store these instructions in a safe place for future usage

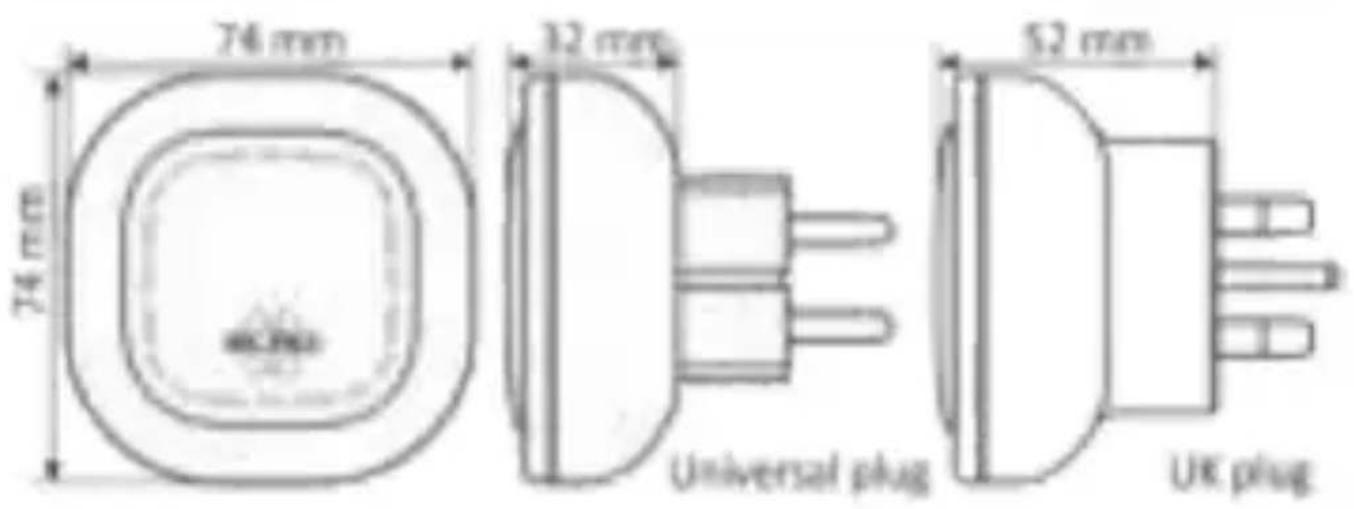

74 mm 74 mm 32 mm Universal plug 52 mm UK plug

Disposal of the device The adjacent symbol of a crossed-out wheelie bin means that this device is subject to Directive 2012/19/EU. This directive states that this device may not be disposed of in normal household waste at the end of its usable life, but must be handed over to specially set-up collection locations, recycling depots or disposal companies. This disposal is free of charge for the user. Protect the environment and dispose of this device properly. You can obtain further information from your local disposal company or the city or local authority.

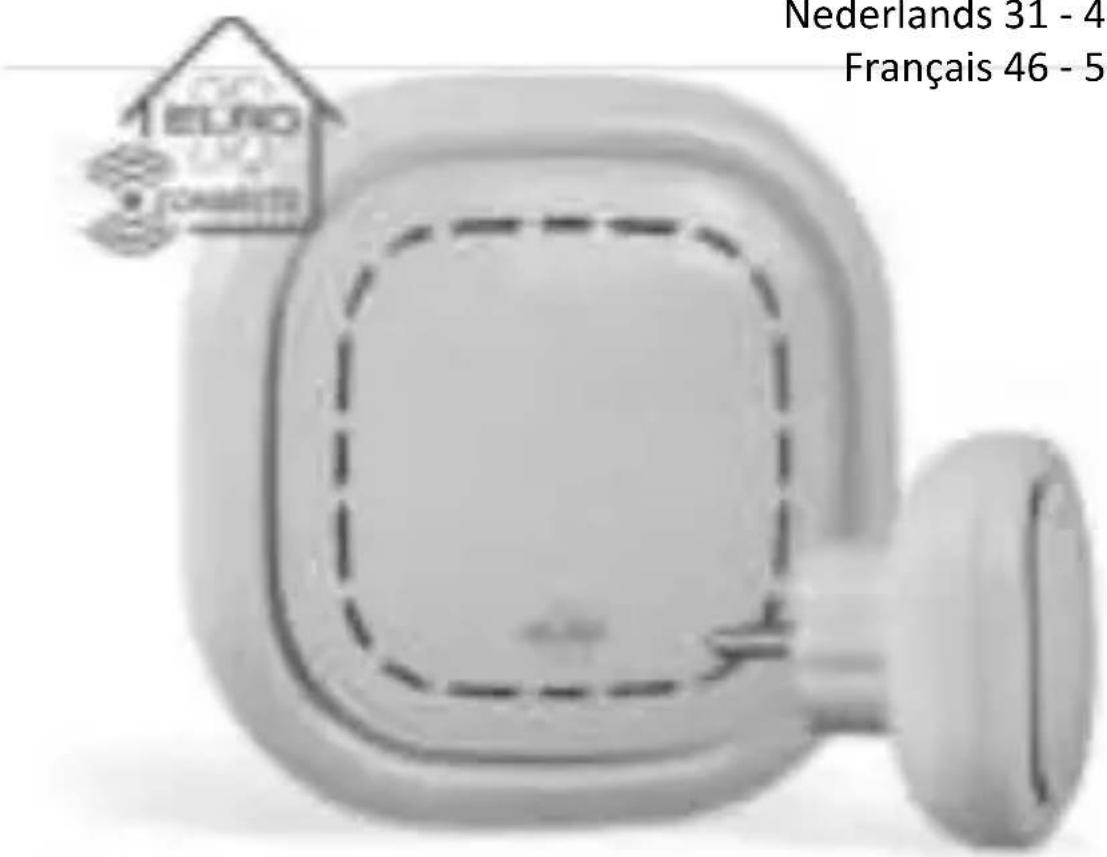

SPECIFICATIONS SF40GA11 K1 Connector

Power Input : AC 240V, 50/60Hz

Power consumption : ≤ 1W (Standby)

Max. transmission power : 10dBm

Networking : WiFi | 802.11n/g/b, WPA/WPA2

: RF | 868MHz

Wireless distance : WiFi | Refer to Router for instructions

: RF | ≥ 100 m

Environment : -10^ +50^ < 95% RH (Non-condensate)

ELRO Europe | www.elro.eu

Postbus 9607 – Box E800

1006 GC Amsterdam - The Netherlands

CE ✓ GUARANTEE V3

ELRO

Deutsch 16 - 29

Nederlands 31 - 44

Français 46 - 59

Home is not a place, it's a feeling

ERKLÄRUNG

Mobile app interface screenshot showing a login or login page with a blue login icon and input fields.

Scanned document with three vertically aligned bullet points labeled F, D, and B, likely part of a form or checklist.

Scanned screenshot of a mobile app interface with Chinese text and a circular icon, likely for app download or verification.

Medical Consultation Consulting patients with patients who are in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get in place to get out

Network Configurations 是: 76.25 是: — —

7°C E B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Scanned document page with Chinese text, a small icon, and a circular button labeled 'B' in the top right corner.

Scanned document page with Chinese text and three labeled images of a person holding a device.

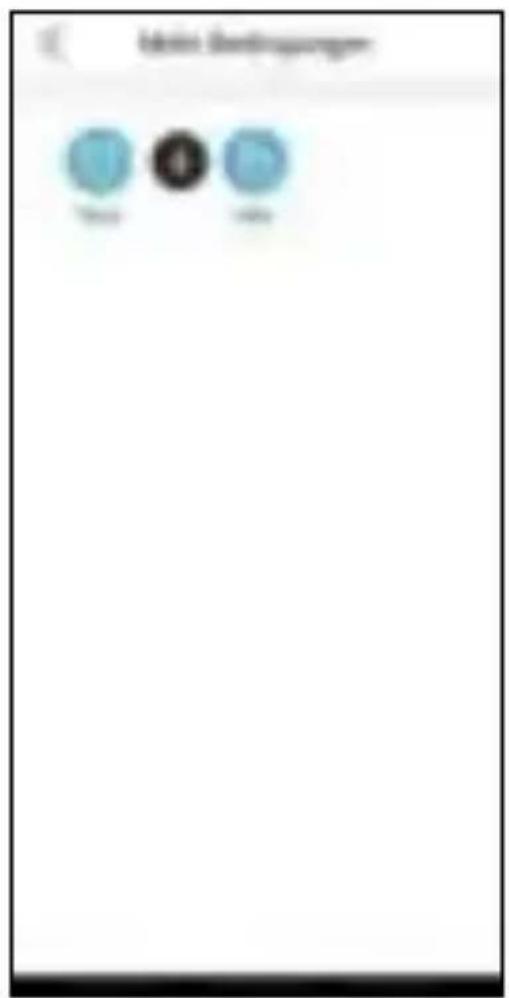

Gratulation!

Screenshot of a mobile app interface showing a list of user accounts with color-coded buttons and a dropdown bar.

Mobile app interface screenshot showing a list of options with checkboxes and buttons, including 'Top 10' and 'New Print'.

You are 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027 2028 2029 2030 You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are You are

Scanned document with numbered bullet points and partially visible text blocks, likely a form or interface element.

Scanned document page with faint text and a small icon, likely a form or template with Chinese characters.

Scanned document with fragmented text and a header-like title, likely from a financial or statistical report.

Erläuterung der App

Scanned document with numbered bullet points and horizontal lines, likely a form or checklist section

Scanned document page with numbered bullet points and a central diagram, likely a form or interface design.

Home is not a place, it's a feeling

UITLEG

Scanned document page with a small icon, text fields, and a blue banner with a white letter '一' (three)

Scanned document with placeholder text and numbered items, likely a form or checklist section

Scanned screenshot of a mobile app interface with Chinese text and a circular icon, likely for scanning to access or access.

Mobile phone app interface screenshot showing a hand holding a device with status bar and description text in Chinese.

Mobile app interface screenshot showing a login panel with input fields and a highlighted button

Mobile phone status bar with green circular indicators and a 'OK' button, likely for app download or confirmation.

Product catalog page with product images and descriptive text below

Thuis

Scène aanmaken

Mobile app interface screenshot showing a color selection panel with sliders and checkboxes, including 'Red', 'Green', 'Blue', and 'Purple' options.

Screenshot of a software interface with menu options and buttons, showing options like 'call for configuration' and 'create the function'.

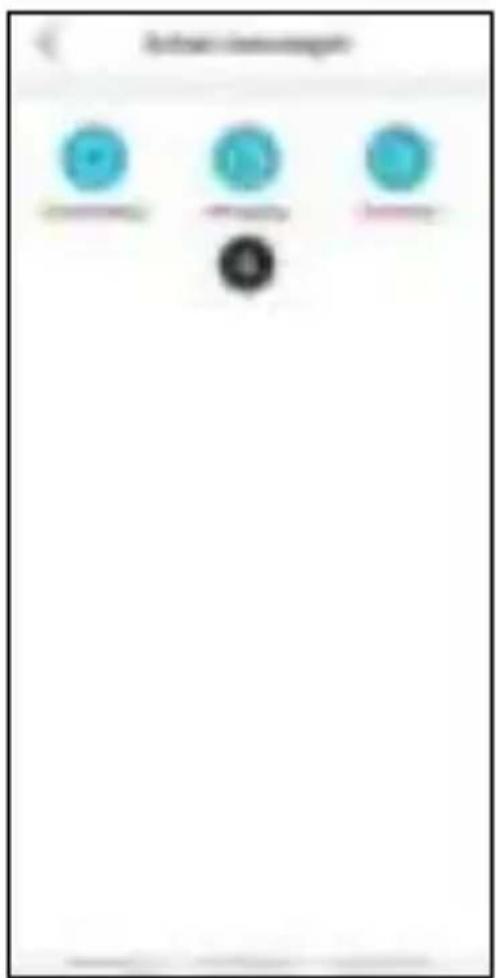

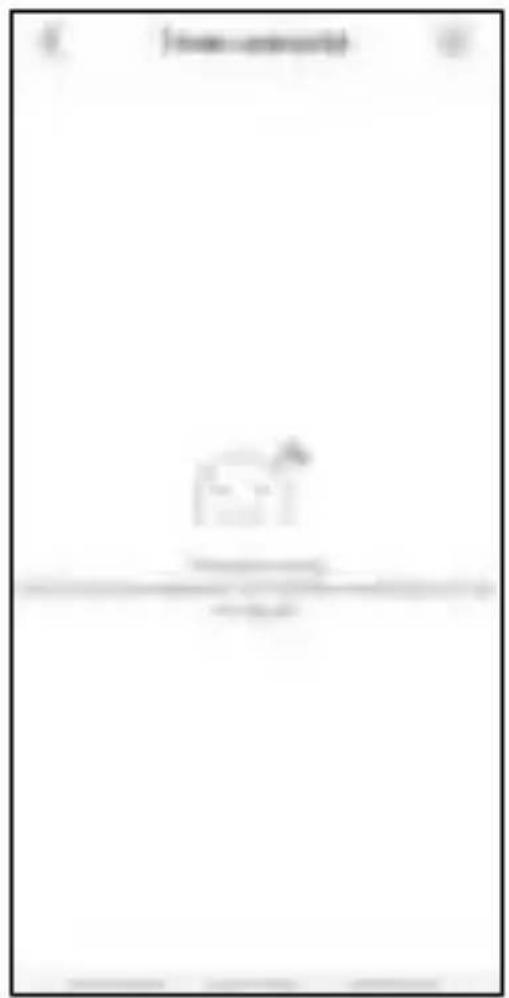

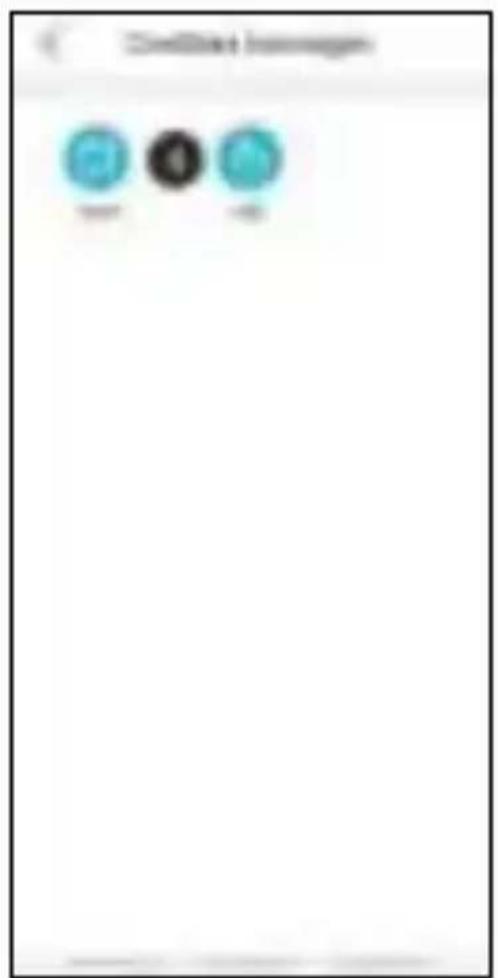

Automatische acties

Mobile app interface screenshot showing a color selection panel with radio buttons and a slider

Scanned document with two numbered bullet points and horizontal lines, likely a form or interface element.

Cronbach Technologies OK Cancel

Mobile app interface screenshot showing three circular buttons with Chinese labels and a black button labeled 'B' at the bottom.

Scanned document page with faint text and a small icon, likely a form or template with Chinese characters.

Scanned document with partially visible text and faint red circular markers, likely a form or diagram.

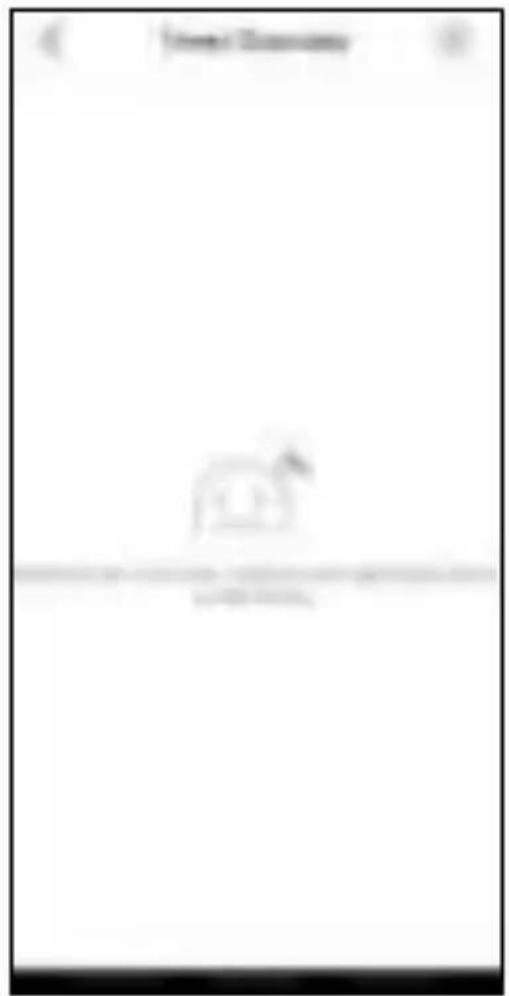

Timers

Cropped image showing a vertical list of numbers (1 to 17) with circular markers, likely part of a document or form.

Scanned document with Chinese text and a small diagram showing three labeled circular icons above a horizontal bar chart.

Home is not a place, it's a feeling

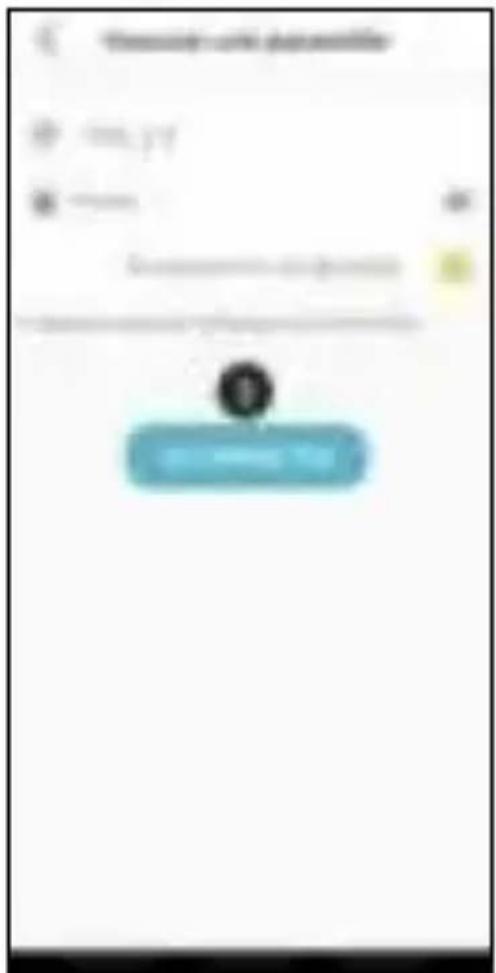

EXPLICATION

Mobile app login interface with a teal login icon and navigation buttons

Scanned screenshot of a mobile app interface with Chinese text and a circular icon labeled '0'

Medical or diagnostic procedure image showing a hand holding a U-shaped tube with a circular marker and Chinese instructions for patient screening.

Scanned screenshot of a web form interface with input fields and a highlighted button

Scanned document page with Chinese text and a grid of product images, likely related to health care services.

Domicile

Créer une scène

Mobile app interface screenshot showing a list of numbered options with colored blocks, likely for user selection or configuration.

Scanned screenshot of a mobile app interface with Chinese text fields and buttons, including options like 'Download', 'Send to', and 'Send to the website'.

You can make you better?

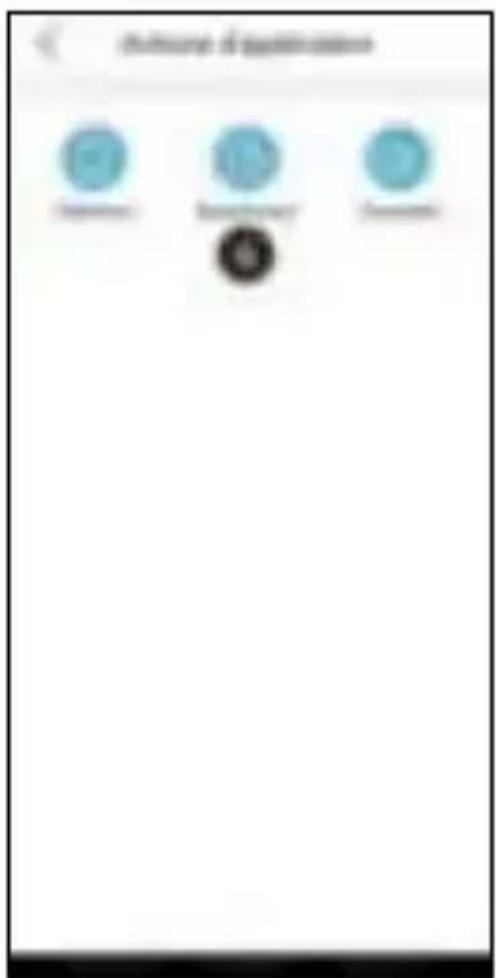

Add to your right

OK

Scanned document with placeholder text and numbered circular icons, likely a form or interface element

Condition - Recognition

Mobile app interface screenshot showing three circular icons with Chinese labels and a black button labeled 'OK'

Minuteries

Scanned document page with Chinese text, including a small icon and a form titled 'Formal - 100%'.

Scanned document with numbered bullet points and horizontal lines, likely a form or checklist section

Mobile app interface screenshot showing status bar, navigation buttons, and a small icon with Chinese characters

CE ✓ GUARANTEE V3
