Conga Rockstar 100 Vital - Vacuum Cleaner CECOTEC - Free user manual and instructions

USER MANUAL Conga Rockstar 100 Vital CECOTEC

1. Parts and components / 04

5. Cleaning and maintenance / 19

8. Disposal of old electrical appliances / 20

9. Technical support service and warraty / 21

2. Vacuuming tube release button

4. Suction base with brush

6. Handle and battery

8. Suction base release button

12. 2-in-1 accessory

13. Brush for furniture

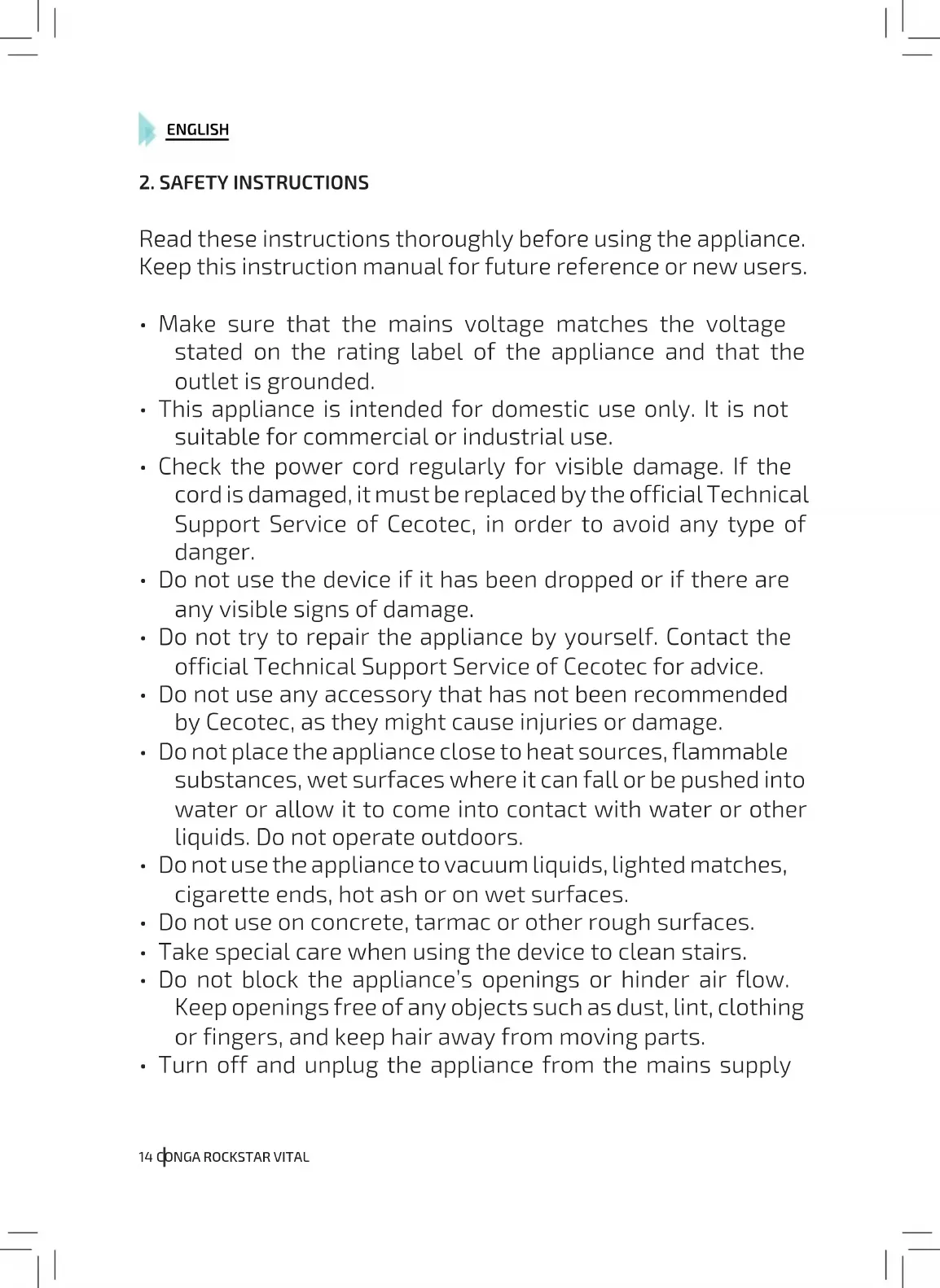

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the outlet is grounded.

• This appliance is intended for domestic use only. It is not suitable for commercial or industrial use.

• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec, in order to avoid any type of danger.

• Do not use the device if it has been dropped or if there are any visible signs of damage.

• Do not try to repair the appliance by yourself. Contact the official Technical Support Service of Cecotec for advice.

• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.

• Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids. Do not operate outdoors.

• Do not use the appliance to vacuum liquids, lighted matches, cigarette ends, hot ash or on wet surfaces.

• Do not use on concrete, tarmac or other rough surfaces.

• Take special care when using the device to clean stairs.

• Do not block the appliance’s openings or hinder air flow. Keep openings free of any objects such as dust, lint, clothing or fingers, and keep hair away from moving parts.

• Turn off and unplug the appliance from the mains supplyENGLISH

15CONGA ROCKSTAR VITAL

when it is not going to be used for a long period of time, before cleaning or repairing, before attaching components and before removing the battery.

• Never modify the charger in any way.

• Do not use any battery that has not been provided with the original product or by Cecotec.

• Do not carry the battery by the cord or coil the cord around the battery to store it.

• Pull from the plug, not the cord, to disconnect it from the outlet.

• Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid, nor expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

• The appliance is not intended to be used by children under the age of 12. It can be used by children over the age of 12, as long as they are given continuous supervision.

• This appliance is not intended to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety, and understand the hazards involved.

• Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.ENGLISH

16 CONGA ROCKSTAR VITAL

Battery instructions

• This appliance includes Li-ion batteries, do not incinerate or expose them to high temperatures, as they may explode.

• Leaks from the battery or battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.

• Avoid contact between the battery and small metallic objects such as paper clips, coins, keys, nails or screws.ENGLISH

1. Take the product out of the box.

2. Check for any visible damage, if any is observed, contact as soon as possible the Technical

Support Service of Cecotec for advice or reparation.

PRODUCT ASSEMBLY Note: The product includes 2 screws to assemble the wall bracket.

1. Install the battery in the vacuum cleaner’s main body by aligning it with the guides on the

main body and sliding it down.

2. Introduce the vacuuming tube in the main body until a click is heard, indicating it is

3. Attach the suction base with the brush to the other end of the vacuuming tube.

main body and sliding it down.main body and sliding it down. Introduce the vacuuming tube in the main body until a click is heard, indicating it is Introduce the vacuuming tube in the main body until a click is heard, indicating it isENGLISH

18 CONGA ROCKSTAR VITAL

4. Use the power switch on the handle to turn the device on or off.

5. Press the trigger on the handle to activate the desired power level.

HANDHELD VACUUM CLEANER

Select the desired accessory according to the area or object that is going to be cleaned and insert it directly in the main body. DUST TANK Rotate the dust tank and remove it from the main body. BATTERY CHARGING The battery indicator will turn on red when battery is low. When this happens, connect the power adapter to the battery and to the power supply.ENGLISH

• Do not use abrasive scouring pads, powders or cleaners to clean the product.

• Use a soft, dampened and clean cloth to clean the product’s outer housing.

• Do not let water enter into the vacuum cleaner.

• Keep the appliance in a cool, dry place and out of reach from children.

• Do not immerse the device in water and do not clean any of its parts in the dishwasher. FILTER MAINTENANCE

1. Rotate the dust tank and remove it from the main body.

2. Take out the mesh filter, the sponge filter and filter case.

3. Wash all the filters and the case.

4. Dry the mesh filter, sponge filter and filter case carefully one by one before assembling

them back. Note: all filters can be washed with warm water, do not use detergents. Take out the mesh filter, the sponge filter and filter case. Wash all the filters and the case. Rotate the dust tank and remove it from the main body. Take out the mesh filter, the sponge filter and filter case. Take out the mesh filter, the sponge filter and filter case. all filters can be washed with warm water, do not use detergents. Wash all the filters and the case. Dry the mesh filter, sponge filter and filter case carefully one by one before assembling Wash all the filters and the case.ENGLISH

Model: Conga RockStar Vital Battery: 25,9 V, 2500 mAh Product reference: 05450 Voltage and frequency: 100-240 V~, 50/60 Hz Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. PROBLEM SOLUTION The device is not vacuuming properly • Empty the dust tank.

• Make sure the dust tank is correctly fitted.

• Clean the filter. The device stops or does not turn on • Charge the battery.

• Clean the brush. Battery does not charge • Check the connections.

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual. The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.

• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.

• Faults deriving from the normal wear and tear of its parts, due to use. The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].FRANÇAIS
