Product type	Built-in combined microwave oven
Brand	Haier
Model	HWO45NB6B0B1
Power supply	220-240 V, 50 Hz
Microwave power	900 W
Grill power	1500 W
Hot air power	1300 W
Maximum total power	3200 W
Microwave frequency	2150 MHz
Cooking functions	Microwave, Grill, Hot air, Turbo grill, Grill+microwave combi, Microwave+hot air combi, Time defrost, Weight defrost
Control panel	Multifunction display with scrolling text, +/- keys, back, lock
Child safety	Key lock by 5-second long press
Cleaning	Clean with an alkaline solution and a soft cloth; avoid acidic, chlorinated or abrasive products
Included accessories	Flat grill (grill plate)
Installation	Built-in, under worktop or in column; installation by a qualified professional
Electrical connection	Power cable with plug, mandatory grounding
Rating plate	On the oven chassis
Recommended cable type	H05V2V2-F 3x1.5 mm² or equivalent

Frequently Asked Questions - HWO45NB6B0B1 HAIER

How to clean my Haier HWO45NB6B0B1 oven?

To clean your oven, first unplug the appliance. Use a very hot alkaline solution and a soft cloth. Avoid acidic (vinegar, lemon), chlorinated or abrasive products that may damage painted surfaces. Clean the door seal regularly to ensure a good seal.

Can I use aluminum foil in the oven?

Avoid placing aluminum foil directly on the bottom of the oven for cooking, as the heat from the lower heating element can cause overheating and fire risk. You can use it to cover food on the rack, but never in contact with the bottom.

How to lock the control panel?

To activate child lock, press and hold the lock key (key 10) for 5 seconds. An indicator appears on the display. To deactivate, repeat the same operation.

What is the maximum microwave power?

The maximum microwave power is 900 W. You can adjust the power in steps (130 W, 300 W, 430 W, etc.) as needed.

How to defrost food by weight?

Select the Weight defrost function on the panel. Choose the food type (bread, vegetables, meat, fish) and enter the weight (from 100 g to 1500 g depending on type). The oven automatically adjusts time and power.

What to do if smoke comes out of the oven?

If you see smoke, turn off or unplug the appliance immediately and keep the door closed to smother flames. Do not open the door. After cooling, clean the oven thoroughly.

Can I heat hard-boiled eggs in the microwave?

No, never heat whole hard-boiled eggs or eggs in shell in the microwave, as they may explode even after cooking. For poached eggs, pierce the yolk before cooking.

How to install my built-in oven?

Installation must be carried out by a qualified professional. The oven is placed in a heat-resistant cabinet, centered in the opening. Use the screws and bushes provided to fix it. Follow the built-in dimensions indicated in the manual.

Which utensils to use in the microwave?

Use only microwave-safe utensils: glass, ceramic, microwave-safe plastic without metal. Avoid metal, aluminum foil (unless indicated), and enameled dishes that may cause arcing.

How to solve uneven cooking problem?

Make sure the oven is preheated before putting food in. Avoid overloading the rack or letting dishes touch each other or the walls. Check that utensils are an appropriate size and do not block hot air circulation.

USER MANUAL HWO45NB6B0B1 HAIER

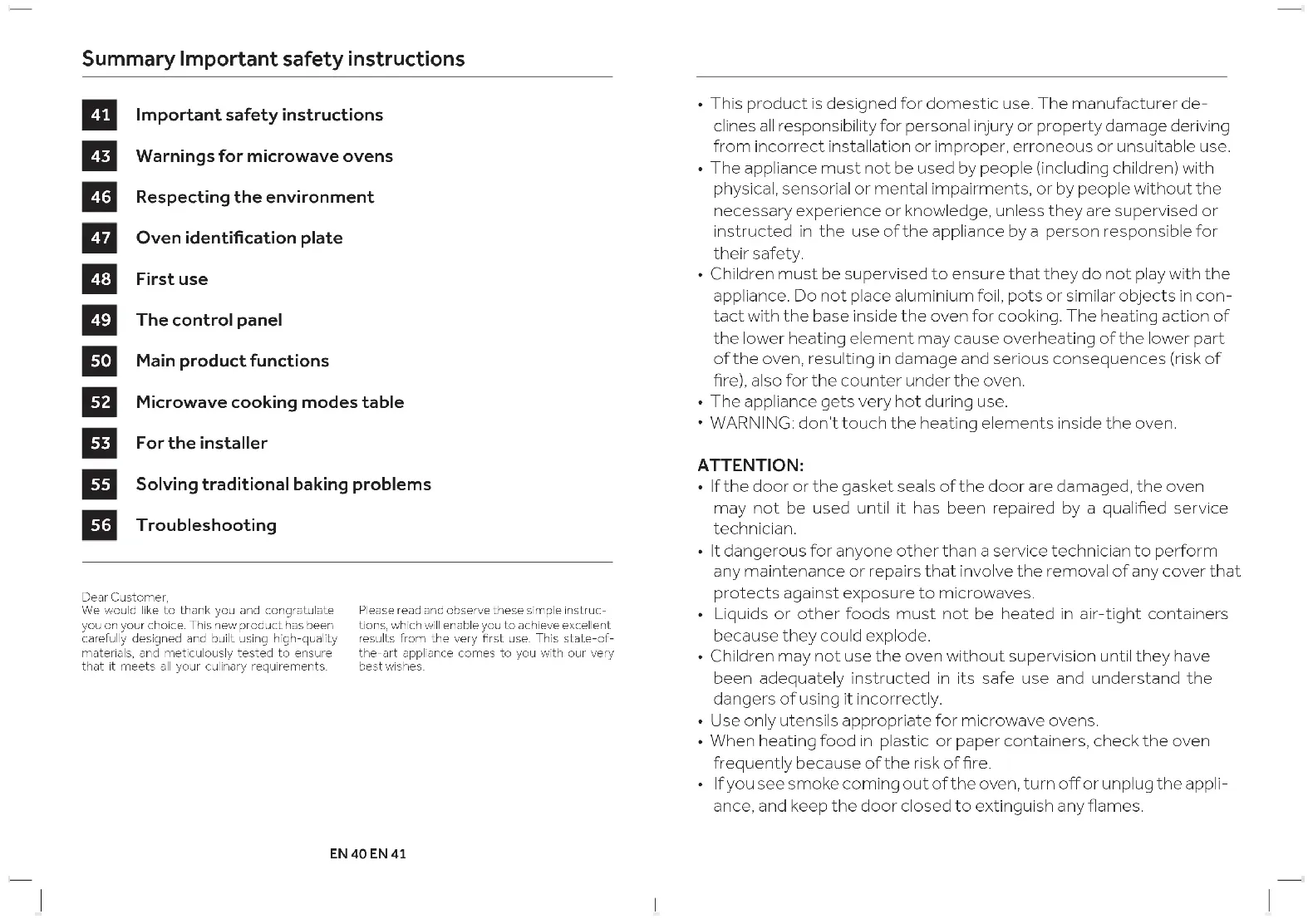

Summary Important safety instructions

41 Important safety instructions
43Warnings for microwave ovens
46 Respecting the environment
47 Oven identification plate
48 First use
49 The control panel
50 Main product functions
52 Microwave cooking modes table
53 For the installer
55 Solving traditional baking problems
56 Troubleshooting

Dear Customer,

We would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using high-quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first use. This state-of-the-art appliance comes to you with our very best wishes.

• This product is designed for domestic use. The manufacturer declines all responsibility for personal injury or property damage deriving from incorrect installation or improper, erroneous or unsuitable use.
• The appliance must not be used by people (including children) with physical, sensorial or mental impairments, or by people without the necessary experience or knowledge, unless they are supervised or instructed in the use of the appliance by a person responsible for their safety.
• Children must be supervised to ensure that they do not play with the appliance. Do not place aluminium foil, pots or similar objects in contact with the base inside the oven for cooking. The heating action of the lower heating element may cause overheating of the lower part of the oven, resulting in damage and serious consequences (risk of fire), also for the counter under the oven.
  The appliance gets very hot during use.
  WARNING: don't touch the heating elements inside the oven.

ATTENTION:

If the door or the gasket seals of the door are damaged, the oven may not be used until it has been repaired by a qualified service technician.
- It dangerous for anyone other than a service technician to perform any maintenance or repairs that involve the removal of any cover that protects against exposure to microwaves.
- Liquids or other foods must not be heated in air-tight containers because they could explode.
Children may not use the oven without supervision until they have been adequately instructed in its safe use and understand the dangers of using it incorrectly.
- Use only utensils appropriate for microwave ovens.
- When heating food in plastic or paper containers, check the oven frequently because of the risk of fire.
- If you see smoke coming out of the oven, turn off or unplug the appliance, and keep the door closed to extinguish any flames.

• Heating beverages in the microwave oven may cause a delayed boil-over, so be careful when handling the container.
• The contents of baby bottles and baby food in jars must be stirred or shaken, and their temperature must be checked before feeding to avoid scalding.

ATTENTION:

• Eggs in the shell and whole hard-boiled eggs must not be heated in microwave ovens because they could explode, even after heating in the microwave has ended.
• A detailed explanation of how to clean the gasket seals of the doors of the oven cavity and adjacent parts.
• The oven must be cleaned periodically and all food residues must be removed.
• Failure to keep the oven clean could cause deterioration of the surfaces, which could reduce the lifespan of the appliance and cause dangerous conditions.
• Do not use rough abrasives or sharp metal scrapers to clean the glass door of the oven, as they could scratch the surface and cause the glass to shatter.
• Do not use steam cleaners to clean the appliance.

Warnings for microwave ovens

FOOD PREPARATION

Danger of fire

Use the microwave function only for preparation of food to be eaten. Any other use may be dangerous or cause damage. For example, heating slippers or pillows filled with grain or cereals could cause these items to catch fire, even after several hours.

POTS AND PANS

Danger of injury

Porcelain and ceramic crockery may have small holes in the handles and cover. There could be cavities hidden behind these holes. If water gets into these cavities, the crockery could break. Do not use crockery that is unsuitable for microwave ovens.

Danger of burns

The heat of the food can heat the dish. Always use a pot-holder to remove dishes and accessories from the cooking chamber.

Never set values that are too high for the microwave power or the cooking time. The food could catch fire and damage the appliance. Follow the rules in these instructions.

PACKAGING

Danger of fire

Never heat food in thermal packaging. Food in containers made of plastic, paper or other inflammable materials must be watched constantly.

Danger of burns

Airtight packaging can explode. Follow the instructions shown on the package. Always use a pot-holder to remove dishes.

BEVERAGES

Danger of burns

When heating liquids, boiling may be delayed. This means that the boiling temperature has been reached without forming the typical little steam bubbles. Even a slight knock could cause liquid to overflow suddenly or splash. When heating liquids, always put a spoon in the container to prevent delayed boiling.

Danger of explosion

Never heat beverages or other types of food in covered containers.

Never heat alcoholic beverages excessively.

BABY FOOD

Danger of burns

Never heat baby food in a covered container. Always remove the cover or nipple.

When finished heating, always shake or stir carefully to ensure that heat is evenly distributed.

Test the temperature before giving the food to the baby.

FOODS WITH SKIN OR PEEL

Danger of burns

Never cook eggs in the shell.

Never heat hard-boiled eggs, as they could explode even after the microwave is turned off. The same applies to shellfish and crustaceans.

When frying eggs, pierce the yolk first. In the case of foods with a hard peel or skin like apples, tomatoes, potatoes or sausage, the peel or skin could explode. Pierce the peel or skin before cooking.

DRYINGFOODS

Danger of fire

Never dry food in the microwave.

FOODS WITH LOW WATER CONTENT

Danger of fire

Never defrost or heat foods with low water content, such as bread, for too long or at an excessive power level.

OIL

Danger of fire

Never use the microwave to heat oil alone.

CAUSES OF DAMAGE

Juice leaking from fruit

When preparing desserts containing very juicy fruit, do not overfill the baking dish. Fruit juice overflowing the baking dish can leave indelible stains.

Technical breakdown

Never use enamelled baking dishes in the microwave as they could cause a technical breakdown.

Cooling with the door of the appliance open

The cooking chamber must only be cooled with the door closed. Check that nothing is stuck on the door of the appliance.

Even if the door is only ajar, nearby cabinets could be damaged over time.

Very dirty gasket seal

If the gasket seal is very dirty, the door of the appliance will not close correctly during operation. The surfaces of nearby cabinets could be damaged. Always keep the gasket seal clean.

Using the door of the appliance as a support surface

Do not rest or lean on the open door of the appliance and do not put dishes or accessories on it.

Using the microwave without food inside

Only turn on the microwave after you have put the food in the cooking compartment. Without food inside, the appliance can become overloaded. The only exceptions allowed are brief tests of dishes (in this regard, refer to the warnings about pots and pans).

Moist foods

Do not leave moist foods in the cooking compartment for extended periods of lime.

Respecting the environment Oven identification plate

The documentation for this appliance is printed on paper bleached without chlorine or recycled paper to contribute to protecting the environment.

The packaging was designed to prevent damage to the environment; these are ecological products that can be re-used or recycled. Recycling the packing saves raw materials and reduces the volume of industrial and domestic waste.

THE PACKING MATERIAL IS 100% recyclable and marked with the recycling symbol. Disposc of incompliance with local laws. The packing material (i.plastic bags, polystyrene parts, etc.) must be kept out of the reach of children as it is potentially dangerous.

THIS APP/ANCE is marked in compliance with European Directive 2007/95/EC - Waste Electrical and Electronic Equipment (WEEE). By mixing sure that this product is disposed of correctly, the user contributes to preventing potential negative consequences for the environment and health.

THE SYMBOL on the product or accompanying documentation indicates that this product must not be treated as domestic waste, but must be delivered to a suitable collection point for the recycling of electrical and electronic equipment.

DISPOSAL MUST BE MADE IN compliance with local laws on waste disposal.

FOR ADDITIONAL INFORMATION regarding the treatment, recovery and recycling of this product, contact the local office of competence, domestic waste collection service or the store where the product was purchased.

BEFORE SCRAPPING, make it unusable by cutting the electrical cord.

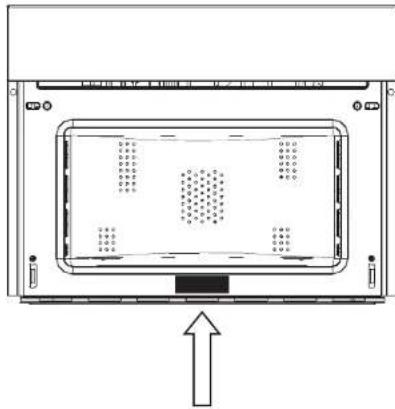

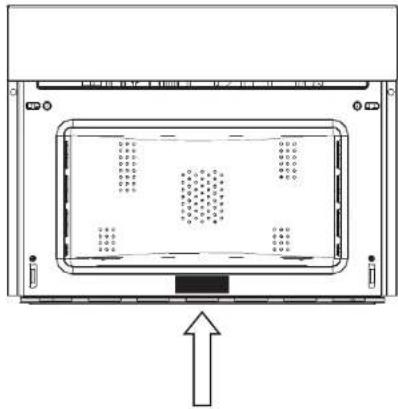

SERIAL TAG LOCATION:

SERVICE DATA RECORD
Model Number
Serial Number
Date of Installation or Occupancy

First use The control panel

• The oven should be thoroughly cleaned with soap and water, and carefully rinsed.
• Heat the oven for about 30 minutes at the maximum temperature; this eliminates all the residual manufacturing oils that could cause unpleasant odours during cooking.
• Use the circular plus fan function without accessories in the oven. Before using the accessories for the first time, clean them carefully with a very hot alkaline washing solution and a soft cloth.

ASSEMBLING AND DISASSEMBLING THE FLAT GRILL

To remove the flat grill, pull the grill towards you until it stops and then lift, by pulling upwards, until it comes fully out. To put the flat grill back in, insert it at a 45^ degree angle and then position it horizontally and push it all the way in to the end of the grill track. If the flat grill has a drip-pen (trey), to remove it, lift slightly and slide it towards you. To insert it again, slide it back until it is correctly seated.

IMPORTANT. As a safety precaution, before cleaning the oven, always disconnect the plug from the outlet or remove the appliance's power cord. In addition, avoid using acid or alkaline substances such as lemon, vinegar, salt, tomatoes, etc. Avoid using products containing chlorine, acids or abrasives, especially for cleaning the painted walls.

EN48EN49

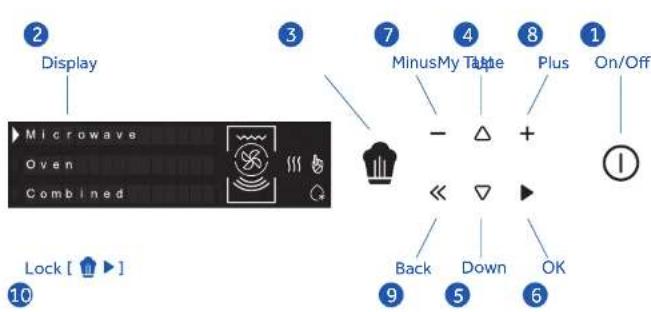

1. Turn on/off the oven.
   2 Multifunction display with scrolling text.
   3 Access your latest settings or saved recipes (this only works from the first screen).
   5 Use the arrows to scroll vertically through the menu and choose from the available options: Microwave, Oven, Combined, Settings.
   6 Confirm your choice and start cooking.

7 - 8 Use the + and - symbols to increase and decrease the temperature, power and time values, and in some cases activate and deactivate functions (e.g. preheating).

9 Back to previous screen.

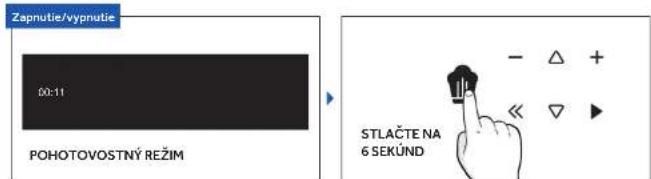

10 Lock: hold together for 5 seconds to activate and deactivate.
* Pre-heating and delay-start functions are located in the options menu, below the temperature and time settings.

DEMO MODE

Main product functions

OVEN COOKING

Symbol Description Suggestions
	Multi-level Pre-set: 165°C Range: 50-230°C	IDEAL FOR: pastries, biscuits, cakes, stuffed and braised dishes. Use this function to cook different foods at the same time on one or more shelf positions. Heat is distributed better and penetrates food better, thus reducing both pre-heating and cooking times. Aromas are not mixed. Allow about 10 minutes extra when cooking different foods together.
	Grill Pre-set: 230°C Range: 50-230°C	IDEAL FOR: grilled meat, fish, vegetables. This function only uses the top heating element and the grill loves can be adjusted. Use with the oven closed. Do not place white meats too close to the grill
	Multi-level + Grill Pre-set: 210°C Range: 50-230°C	IDEAL FOR: gratings and crispy food. This function combines the benefits of multi-level cooking with the capacity to evenly cook multi-layer recipes and thicker pieces of food, grilling to lightly crisp the external surface.
	Grill + Fan Pre-set: 165°C Range: 50-230°C	IDEAL FOR: whole pieces of meat (roasts) The top heating element is used with the fan to circulate the air inside the oven. Ideal for cooking thicker food items and whole pieces of meat, such as roast pork, poultry, etc. • Turn the food halfway through cooking. WARNING: • Make sure that the food is not too close to the grill. • Pre-heating is necessary for red meats but not for white meats.

COMBINED COOKING

Symbol	Description Suggestions
	Microwave Grill	Use this function to cook meals quickly and at the same time give the meal a brown crust, for gratin. The microwave and the grill operate together. I use microwave as cooking and the grill is roasting.
	Microwave + Convection + Fan	IDEAL FOR: roasts, stuffed and baked dishes. This function combines the microwave and convection functions, which means instead of just heating the inside of the food, it also buns and cooks the outside of your food. This function can help you cook baked dishes quickly. WARNING: • Always place food on the grill so that the air can circulate well around it.

MICROWAVE COOKING

Symbol Description Suggestions
	Microwave	Use the microwave function to cook and reheat vegetables, pota- toes, rice, fish and meat.
	Timed Defrost Use	This function to quickly defrost food by the specified time.
	Weight Defrost	Use this function to quickly defrost different types of food (i.e. bread, vegetable, meat, fish) by setting the weight.

Microwave cooking modes table

Symbol Description Set			Weight Watt Temperature
			Min.	Preset Max.	Max.	Preset Max.	Min.	Preset Max.
	Microwave Grill	150 W	50 W	200°C
		300 W	300 W
		450 W	450 W
	Microwave + Convection + Fan	150 W	50 W	50°C	100°C	200°C
		300 W	300 W
		450 W	450 W
	Microwave						150 W	900 W	300 W
	Timed Defrost							150 W
	Weight Defrost	Bread	100 g	500 g	600 g			150 W
		Vogc-tabe	100 g	500 g	1000 g	50 W
		Mant	100 g	500 g	1500 g	50 W
		Fish 1	100 g	500 g	500 g		150 W

For the installer

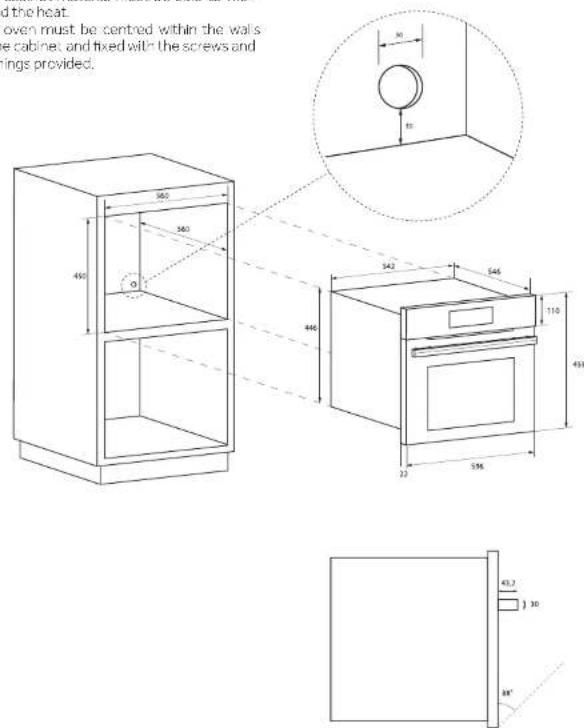

INSTALLING THE OVEN IN THE COUNTER

The oven must be installed under a cooker too, in a column or combined with the corresponding food-warmer drawer.
- The dimensions of the space must be those shown in the figure.
The cabinet material must be able to withstand the heat.
The oven must be centred within the walls of the cabinet and fixed with the screws and bushings provided.

TECHNICAL DATA
Power supply	220-740V, 50Hz
Maximum absorbed power	3200 W
Microwave power	900 W
Gnll	1500 W
Hot air	1500 W
Microwave frequency	2150 MHz

TYPE AND MINIMUM DIAMETER OF THE CABLES
	SASO
H05R7-F 3.5 mm² H05R7-F 3.5x2.5 mm²
H05VV F 3.5 mm² H05VV F 3x2.5 mm²
H05R7-F 3.5 mm² H05R7-F 3x2.5 mm²
H-05V2V2 F 3x1.5 mm² H05V2V2 F 3x2.5 mm²

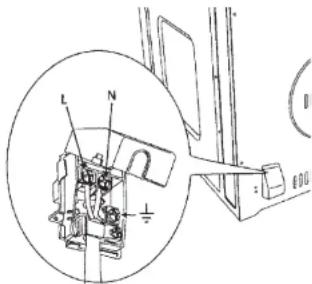

ELECTRICAL CONNECTION

Before connecting the appliance to the mains, make sure that:

the characteristics of the electrical system satisfy what is shown on the serial number plate applied to the front of the oven:

the electrical system has an effective earth connection conforming to standards and current law.

The earth connection is required by law. The cable must not, at any point, reach a temperature greater than 50^ above the ambient temperature.

This oven must be connected to the power supply by a supply cord fitted with an appropriately rated plug compatible with the socket in the final sub-circuit of the wiring powering the oven.

If a fixed appliance does not have a power cord and plug, or another device that ensures disconnection from the mains with a contact opening distance that allows for complete disconnection under the conditions of excessive voltage category III, such disconnection devices must be provided by the mains power supply and must conform to the installation rules.

The omnipolar socket or switch must be easy to reach when the appliance is installed.

NOTE: The manufacturer declines all liability if the usual accident prevention standards and the above instructions are not followed.

Solving traditional baking problems

Poor results can occur with either Bake or Convection Bake for many reasons other than malfunctioning of the oven. Check the chart below for the causes of the most common problems. Since the size, shape and material of baking

utensils directly affect baking results. the best solution may be to replace old baking utensils that have darkened and warped with age and use.

BAKING PROBLEM	CAUSE
Food brownuns unevenly	• Oven not preheated • Aluminium foil on oven rack or oven bottom • Baking utensil too large for recipe • Pans touching each other or oven walls.
Food too brown on bottom	• Oven not preheated • Using glass, dull or darkened metal pans • Incorrect rack position • Pans touching each other or oven walls.
Food is dry or has shrunk excessively	• Oven temperature too low • Oven not preheated • Oven door opened frequently • Tightly sealed with aluminium foil • Pan size too small
Food is baking or roasting too slowly	• Oven temperature too low • Oven not preheated • Oven door opened frequently • Tightly sealed with aluminium foil • Pan size too small
Pies do not brown on bottom or have a soggy crust	• Baking Utms not long enough • Using shiny stove pans • Incorrect rack position • Oven temperature is too low
Cakes are pale, flat, and may not be done inside	• Oven temperature too low • Incorrect baking time • Cake locted too soon • Oven door opened too often • Pan size may be too large
Cakes are high in the middle and cracked on the top	• Baking temperature too high • Baking Utms too long • Pans touching each other or oven walls • Incorrect rack position • Pan size too small
Pie crust edges are too brown	• Oven temperature too high • Edges of crust too thin

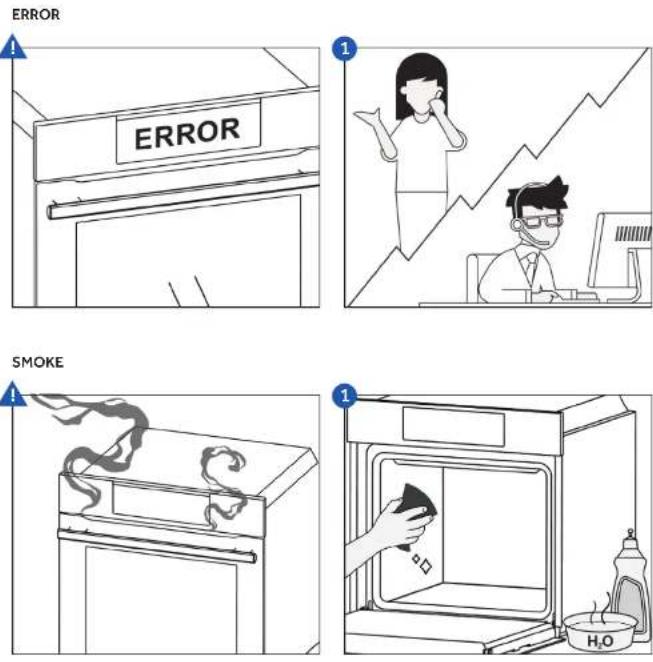

Troubleshooting

INSTALLATION DU FOUR DANS LE MEUBLE

OBALOY MATERIAL 100% recylovatelyn by a zonacny recyklaynym symbol

Likouke v.suade miesmmyi zakonmi. Obalovy material (plastov vrocka, polystyrenova hasti ed.) se musu ochovast mmo cosahu duit, protoze je potenciela nebespezny.

TENTO SPOITRE 16e jc aenacn oedy coue eukoskej smrncie 2002/66 ES c odparde x elektrichyg che aenictionch yzianl (OTZI) Ustenim sa,Je tento vynotok je spdne zilkovocny, pouzivat prispieva × predachizanu potencialny negotiybrnym dosledkom na Vizintre prostridire a zdvrhe.

SYMBOL na ywoku alebo v soryeodnej dumentaci udava, zse tymy dovbokm sa nosmic zaobchodrata akos domovym odopam, ale je petrebne ho odinesta VHedne zberme miesto narecykdiu elektrickiy a elektronickiy zaradeni.

LIKVIDACU, JE POETRESNE YKONAVAT v. solide s mestiymr zikorni o kiviciacic acapd.

DALSIE INFORMACIE tykice se spracovianes, zhodnocovania a recykace toto vryobko ziskete od prskusnoho misneho uradu. suzyb zberu domovéno odoacu alebo skaci, v ktorom bol yvrobok zaupeny.

PRED ZOSRO IOVAM no urobi nepouzitomi nypreezani eniektricka Kaba

UMIESTNENIE SERIOVEJ ZNACKY:

ZÁZNAM SERVISNHYUDAJOV
Čislom modeu
Seriové Čisló
Dáatum instalaçde alebatčinnostu

Prévoužitie Ovladaci panel

Riu je potebre dokledne wyldt mydol a vodov a opetme opiatchnj.
Ruru zhohejvare orbizi 30 minut primalnej tepito; tym ai emi nuji stevyk zkyskovye vrobnie oleje, ktoré by mohil sposobit nepleternny zapach podac varenia.
- Poultite fenukui kruhveo ventilator plus, ale bez pris ulerstva v rune. Pred prym poufit m prisusenssta ho starostivo odistte veli horidem alkalkykm umyvacim Rozokom amakkou hancrikou.

MONTAZ A DEMONTAZ PLOCHEHO GRILU

Ach icheste ccssantn plocy gnl, sobamire fo smerom k sepe, az kym se na zesastal, apotom o hz dviin t poctahnutn ahar, az kym saupine neythane. Ax chocce vlozt plocy gnl soat, vozteho the pod 49-stupovn yhul am o pctom o humostnto horizonta z aztadne ho az na konie grlu. Ak m plocha mirezkaniz okepevcu panvuc 123soblki, miernc ju vytahnto a posunite smerom k sepe. Akju cnchete 7novu vlozt, posuhie ju spat, az kym nubute spravniye usadana.

DOLZIT: Ako bepneostnne opatrenne precis enim rury vdy opodite ziaikru zo zaukyi aiebo opodite napajckel spotrebica. Oxrem toha sa vmybaje pouzvariu kysich alebo zasadychtakol, akoe jcitron, oot, sol paradjaky atd. Nepouzvaje vrykob obasnujce chor, kyseliyn alebo abraziva, najma ne stiene natrech tsien.

1 Zapnite/vypniteru.
2 Multifunkcny dispej s posu vanim textu.
3 Pristup k najnovsim nastaveniam alebo ulozenym receptom (funguje tolen z prvej obrazovky).
5 Pomocou stipok prechadzajte vertikalnu ponuku a vyberte si z dostupnych moznosti:
Mikrovlnna rura, rura, kombinovana, nastavenie.
6 Potvrde svovybera zacnite varit.

7-8 Pomocy symbolov + a-zySte a zniTe hodnoty teplovi, ykonnosti a cAs a v niektorych priadoch zapnete a vypnete funkce (napr. prodhrileanie).

9 Spat na predchadzajucu obrazovku.
10 Uzamknutie: drzte spolu 5 sekund pre zapnutie a vypnutie.
Funkle predhrievania aoneskorenia sartu sa nachdazju v ponuke moznosti, pod nastavenim teploy a casu.

REZIMUKAZKY
