2470056 - Hand blender RUSSELL HOBBS - Free user manual and instructions

Brand	Russell Hobbs
Model	2470056
Appliance Type	Immersion blender
Power	700 W (estimated)
Number of speeds	2 (low and high)
Measuring cup capacity	600 ml (estimated)
Chopper capacity	500 ml max
Included accessories	Beater, whisk with support, chopper with container and lid, measuring cup
Blade material	Stainless steel (estimated)
Cable length	1.2 m (estimated)
Weight	0.8 kg (estimated)
Dimensions (L x W x H)	40 x 7 x 7 cm (estimated)
Power supply	220-240 V ~ 50/60 Hz (estimated)
Main use	Mixing, whisking, chopping, emulsifying
Maximum continuous use time (beater/chopper)	30 seconds, then cool for 2 minutes
Maximum continuous use time (whisk)	5 minutes, then cool for 2 minutes
Dishwasher safe	Yes for whisk, chopper, container, measuring cup; no for whisk support and container lid
Safety device	Stop by releasing push buttons; do not immerse handle
Intended use	Household use only

Frequently Asked Questions - 2470056 RUSSELL HOBBS

How to use the beater for blending?

Attach the beater to the handle, plug in the appliance, then press the top button for low speed or the bottom button for high speed. Keep pressed during use; release to turn off. Do not exceed 30 seconds of continuous use.

Can I chop raw meat with the chopper?

No, the manual advises against chopping raw meat. Use the chopper for softer foods like onions, herbs, or cheese. Do not crush ice either.

How long can I use the beater continuously?

The beater should not be used for more than 30 seconds continuously. After that, let the motor cool down for at least 2 minutes before reusing.

How to clean the beater blades?

Unplug the appliance. Clean the blade end in warm soapy water using a nylon brush to avoid cutting yourself. Do not handle the blades directly.

Can I put the parts in the dishwasher?

Yes, the whisk, chopper, container and measuring cup are dishwasher safe. However, the whisk support and container lid should be cleaned by hand with a damp cloth and kept dry.

What to do if the appliance does not work?

Check that the appliance is properly plugged in and the outlet works. Make sure the accessories are correctly attached. If the problem persists, unplug the appliance and contact after-sales service.

Can I blend hot liquids?

Yes, but first remove the pot from the heat source and let it cool slightly. Do not leave the blender in the pot as the hot bottom could damage it. Do not immerse the blade in boiling oil.

How to attach the whisk?

Push the whisk into the whisk support base until it clicks. To remove, pull on the support base. Do not immerse the whisk beyond the support base.

Can the chopper crush ice?

No, the manual prohibits crushing ice with the chopper. Use the chopper only for soft or semi-hard ingredients. For ice, use a suitable appliance.

Can I use this appliance to make mayonnaise?

Yes, the beater is perfect for making mayonnaise, milkshakes, mousses and fruit juices. Mix the ingredients directly in the bowl or pot. Use an appropriate speed depending on the quantity.

USER MANUAL 2470056 RUSSELL HOBBS

Black-and-white product photo of a Russell Hobbs blender with a whisk and a small stand, no visible text or symbols on the main objects.

Russell Hobbs

A BRITISH ICON SINCE 1952

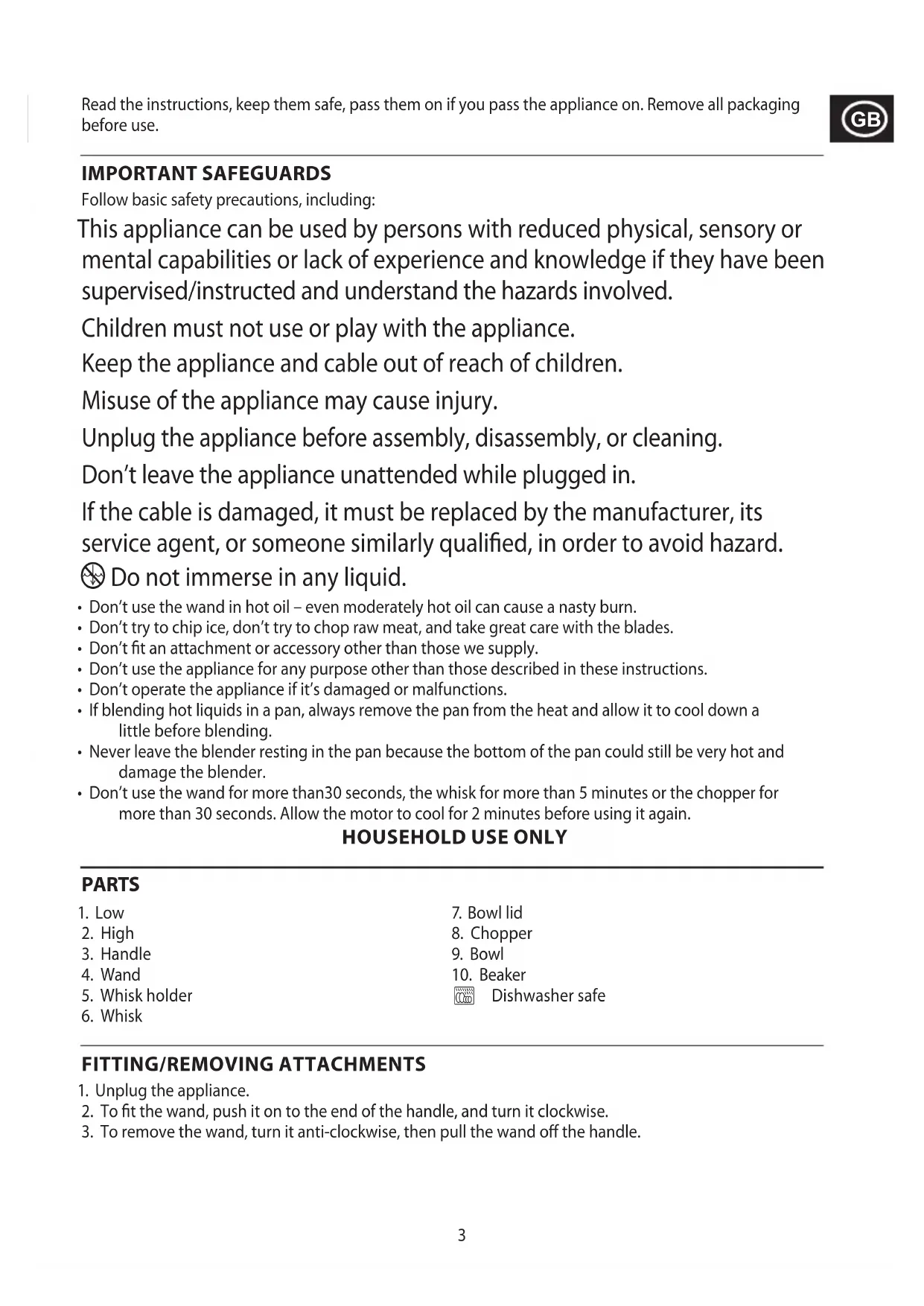

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children must not use or play with the appliance.

Keep the appliance and cable out of reach of children.

Misuse of the appliance may cause injury.

Unplug the appliance before assembly, disassembly, or cleaning.

Don't leave the appliance unattended while plugged in.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, in order to avoid hazard.

Do not immerse in any liquid.

• Don't use the wand in hot oil – even moderately hot oil can cause a nasty burn.
• Don't try to chip ice, don't try to chop raw meat, and take great care with the blades.
• Don't fit an attachment or accessory other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't operate the appliance if it's damaged or malfunctions.
• If blending hot liquids in a pan, always remove the pan from the heat and allow it to cool down a little before blending.
• Never leave the blender resting in the pan because the bottom of the pan could still be very hot and damage the blender.
• Don't use the wand for more than 30 seconds, the whisk for more than 5 minutes or the chopper for more than 30 seconds. Allow the motor to cool for 2 minutes before using it again.

HOUSEHOLD USE ONLY

PARTS

1. Low

2. High

3. Handle

4. Wand

5. Whisk holder

6. Whisk

7. Bowl lid

8. Chopper

9. Bowl

10. Beaker

Dishwasher safe

FITTING/REMOVING ATTACHMENTS

1. Unplug the appliance.
2. To fit the wand, push it on to the end of the handle, and turn it clockwise.
3. To remove the wand, turn it anti-clockwise, then pull the wand off the handle.

USING

1. Put the plug into the power socket.
2. Press the top button for low speed, release it to switch off.
3. Press the bottom button for high speed, release it to switch off.
4. Generally, large quantities, thick mixes, and a high ratio of solids to liquids require longer timings and slower speeds.
5. Smaller quantities, thinner mixes, and more liquids than solids require shorter timings and higher speeds.

THE WAND

• Generally, the wand can do anything a normal blender can do, but faster, and with less washing up – make mayonnaise, milkshakes, smoothies, or fruit drinks. You can blend, pulp or purée ingredients in the pan or bowl you're going to cook them in.
• Whatever container you use, make sure it's on a stable, flat surface, and support it with your free hand, to prevent it wandering over the work surface.
• When using it in hot liquids, don't let the blade break the surface at an angle, as you might spray liquid outside the bowl/pan/container.
• Don't switch on till the blade is inside the food container.
• Switch off before lifting the blade from the food container.

THE WHISK

1. Push the whisk into the bottom of the whisk holder.
2. To remove the whisk, simply pull it out of the bottom of the whisk holder.
3. Don't immerse the whisk past the bottom of the whisk holder.

THE CHOPPER

You can use the chopper as a mini food processor.

1. Hold the plastic part of the chopper – keep your fingers well clear of the blade.
2. Lower it into the bowl, over the spindle in the bottom of the bowl.
3. Add the ingredients – don't fill the bowl above the 500 mlmark.
4. Fit the bowl lid – the top of the chopper fits into the drive in the underside of the lid.
5. Fit the handle to the top of the bowl lid.
6. Use the chopper in bursts of a few seconds, otherwise you risk overdoing it.
7. Unplug the handle, then remove the handle from the lid.
8. Lift the lid gently from the bowl – take care that any drips fall into the bowl.
9. Lift the chopper only by the plastic part.

CARE AND MAINTENANCE

1. Switch the appliance off, and unplug it.
2. Take great care with the blades – don't handle them directly, use a nylon washing-up brush.
3. Wipe the handle surfaces with a soft damp cloth.
4. Clean the blade end of the wand in hot soapy water, with a nylon brush.
5. Wash the whisk, chopper and bowl in warm soapy water.
6. Wipe the whisk holder and bowl lid with a damp cloth. Try to keep them dry, as they contain the gearboxes for the whisk and bowl.
   You can wash these parts in a dishwasher.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

APPLICARE E RIMUOVERE GLI ACCESSORI

APENAS PARA USO DOMÉSTICO

PEÇAS

BEHANDLING OG VEDLIKEHOLD
