2432056 - Coffee machine RUSSELL HOBBS - Free user manual and instructions

Product type	Drip coffee maker
Brand	Russell Hobbs
Model	2432056
Water tank capacity	1.5 L (12 large cups of 125 ml or 18 small cups of 83 ml)
Coffee type	Ground coffee
Filter type	Paper filter size #4 (not included)
Timer function	Yes, with programmable 24h clock
Auto shut-off	Yes, after 40 minutes
Strong brew function	Yes (1-4 button for small batches or stronger coffee)
Anti-drip valve	Yes
Carafe	Glass with lid
Warming plate	Yes, keeps warm
Power	900 W (estimated)
Voltage	220-240 V, 50/60 Hz
Material	Plastic and glass
Maintenance	Removable parts dishwasher-safe (top rack)
Descaling	CL indicator after 60 cycles, descaling required
Safety instructions	Hot surface, do not immerse, children 8+ years
Included accessories	Carafe, filter holder

Frequently Asked Questions - 2432056 RUSSELL HOBBS

How do I set the clock on my Russell Hobbs 2432056 coffee maker?

Plug in the appliance, then use the h (hours) and min (minutes) buttons to set the time in 24-hour format. The clock retains its settings as long as the appliance remains plugged in.

How do I program the timer so that coffee is ready at a specific time?

After setting the clock, press the ⏻ button, set the start time with the h and min buttons, then press the ⚫p button. The ⏱ icon appears and the timer is activated.

What does the "1-4" function do on my coffee maker?

The 1-4 button allows for a stronger coffee or brewing smaller amounts. It slows down the brewing process to extract more flavor.

How do I stop the machine during brewing?

Press the STOP button to interrupt the brewing cycle at any time.

Can I remove the carafe before the cycle ends without coffee overflowing?

Yes, the anti-drip valve prevents dripping. Replace the carafe within 20 seconds to avoid filter overflow.

When should I descale the machine?

The screen shows a flashing CL after 60 brewing cycles. Use a descaler suitable for plastics and follow the product instructions.

Can I wash the parts in the dishwasher?

Yes, the carafe and filter holder can be washed on the top rack of the dishwasher.

Why is my coffee not hot enough?

The warming plate keeps the coffee hot for about 40 minutes. If the machine is off, press the min button to reactivate it.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, an authorized technician, or a qualified person to avoid any hazard.

How many cups can I brew with this machine?

The tank can hold up to 1.5 L of water, which is 12 large cups (125 ml) or 18 small cups (83 ml). Adjust the amount of ground coffee: 6 g per large cup, 4 g per small cup.

USER MANUAL 2432056 RUSSELL HOBBS

Exterior view of a modern office building (no signage)

Labeled diagram of a coffee maker with numbered parts and safety symbols

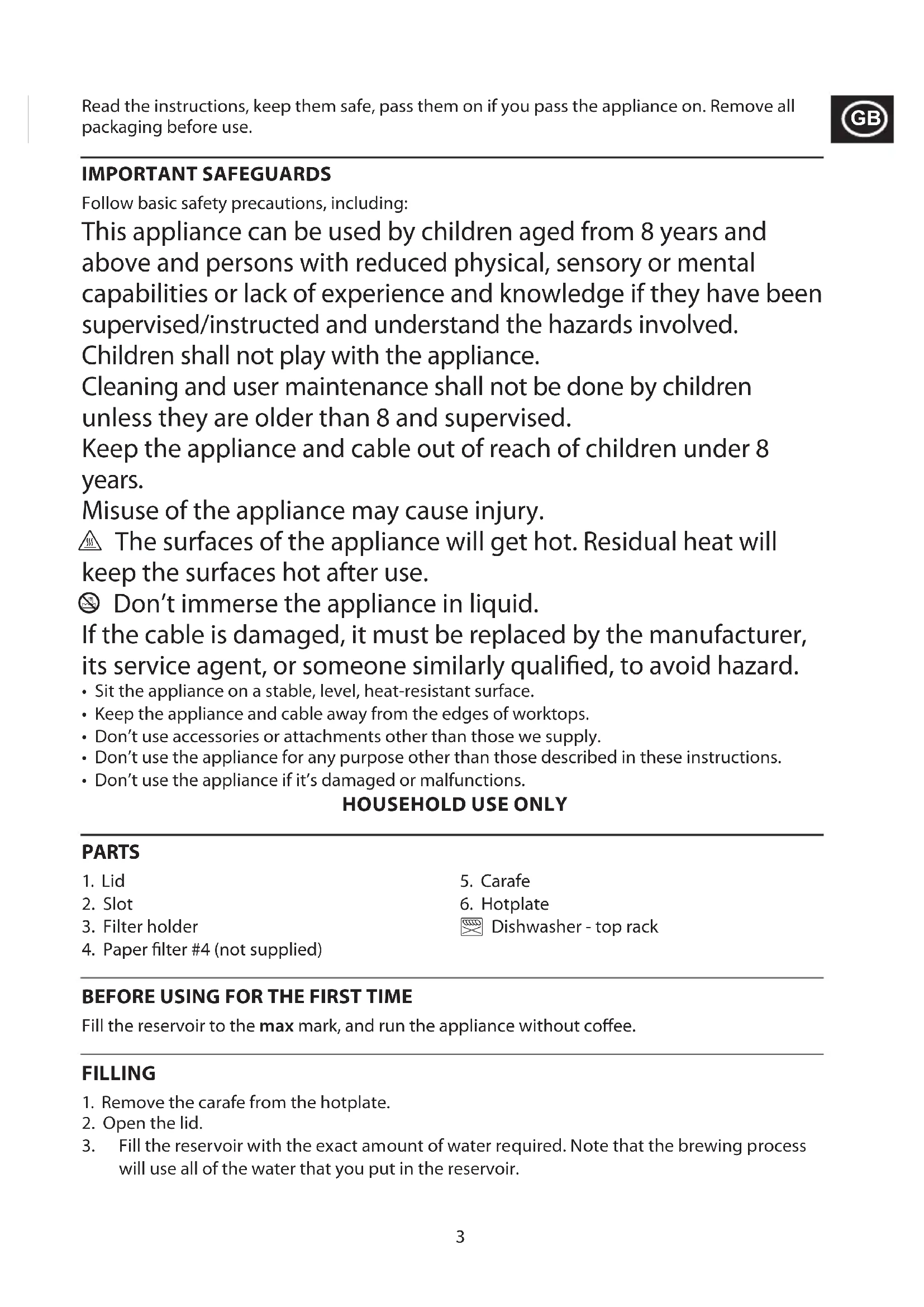

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use.
Don't immerse the appliance in liquid.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

• Sit the appliance on a stable, level, heat-resistant surface.
• Keep the appliance and cable away from the edges of worktops.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

HOUSEHOLD USE ONLY

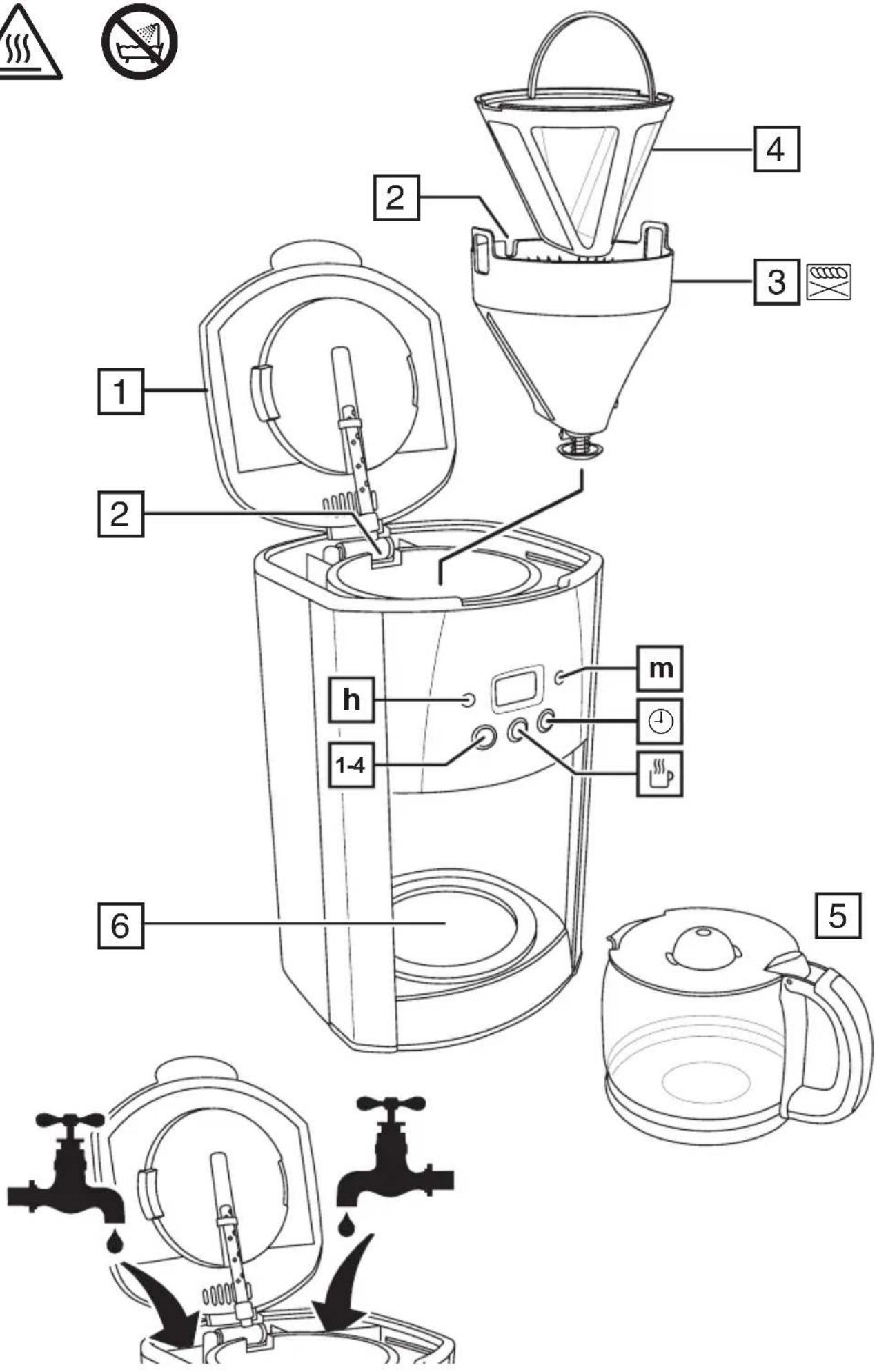

PARTS

1. Lid
2. Slot
3. Filter holder

4. Paper filter #4 (not supplied)

5. Carafe

6. Hotplate

Dishwasher - top rack

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

FILLING

1. Remove the carafe from the hotplate.
2. Open the lid.

3. Fill the reservoir with the exact amount of water required. Note that the brewing process will use all of the water that you put in the reservoir.

4. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.

5. Put a #4 paper filter into the filter holder.
6. The reservoir is calibrated to give 12 large cups (at 125ml per cup) and 18 small cups (at 83ml per cup). For each large cup, add 6g of ground filter coffee and for each small cup add 4g.
7. Close the lid.
8. Replace the carafe on the hotplate.

SET THE CLOCK

It isn't necessary to set the clock to use your coffee maker but you will need to set it if you want to use the timer functions.

1. Put the plug into the power socket.
2. Use the h and min buttons to set the correct time in 24 hour format.
3. The clock will retain its settings until the coffee maker is unplugged.

COFFEE STRENGTH

Pressing the 1-4 button will make the brewed coffee slightly stronger. You can also use it if you are only brewing a partial carafe of coffee (i.e. not completely filling the reservoir). Your coffee maker will then alter the brewing process so your coffee will have about the same strength as it would if you had made a full carafe.

MAKING COFFEE

Note: If you want to use the coffee strength feature press the 1-4 button before pressing the 📋p button. The 1-4 button will light up.

1. Press the 🎨 button – the 🔺 icon will appear on the display. The 🎨 button will light up.
2. Shortly afterwards, coffee will start to drip into the carafe.
3. If you want to stop the coffee maker while it's brewing, press the 📋 button.
4. Once brewed, the hotplate will keep the carafe warm for up to 40 minutes.

USING THE TIMER

Note: Make sure the clock is set to the correct time. Use the h and min buttons.

1. Set the timer to the time you want to start brewing.

a) Press the ⏻ button.
b) Use the h and min buttons to set the time you want brewing to start.

If you don't press either the h or min buttons within 5 seconds, the coffee maker will revert to "normal", and the current time will show. Press the ⏻ button to start again.

1. When the time is programmed, press the 🎨 button. The ⏻ button will light up and the ⏱ icon will appear on the display. Your coffee maker is now set to make coffee at the selected time.
2. If you want to use the coffee strength feature when using the timer, press the 1-4 button now. The 1-4 button will light up.

• If you want to cancel the timer before brewing has started, press the 📋 button.

- If you want to stop the coffee maker while it's brewing, press the 📋 button.

KEEP WARM/AUTO SHUT-OFF

1. Your coffee maker will keep the coffee warm for about 40 minutes.
2. 40 minutes after brewing your coffee maker will shut down and the time of day will be displayed.
3. To wake the appliance, press the min button.

A QUICK CUP

If you want a quick cup of coffee before the brewing cycle has finished:

1. You can remove the carafe at any time. The non-drip valve will prevent coffee dripping on to the hotplate.
2. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.
3. When you replace the carafe on the hotplate the non-drip valve opens to let any remaining coffee through.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
5. Hand wash the carafe and filter holder.
6. Replace the filter holder. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
7. Close the lid, and press down to lock it.

You may wash these parts in the top rack of a dishwasher.

DESCALING

• After 60 brewing cycles, the display will show CL, to indicate that the appliance needs descaling.
- To turn this function off, press the 1-4 and ⏻ buttons together, and hold them for 3 seconds.
- Use a proprietary brand of descaler suitable for use in plastic-bodied products. Follow the instructions on the package of descaler.
- Products returned under guarantee with faults due to scale will be subject to a repair charge.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
