MXAS2060 - Vacuum Cleaner Mx Onda - Free user manual and instructions

Product type	Bagless vacuum cleaner
Brand	Mx Onda
Model	MXAS2060
Power supply	220-240 V ~ 50 Hz
Maximum power	800 W (ERP II)
Suction power	164 W
Suction capacity	19.8 kPa
Airflow	24 litres/sec
Container capacity	2.5 litres
Dimensions (L x W x H)	429 x 293 x 355 mm
Weight (without accessories)	4.5 kg
Cable length	4.5 meters
Noise level	79 dB
Filtration system	Multi-cyclonic + post-motor HEPA
Number of filtration stages	3 (pre-filter, particulate filter, HEPA)
Suction type	Bagless
Wheels	360° swivel front wheel, wheels with rubber protection
Included accessories	Floor nozzle (2 positions), combination nozzle (crevice + brush), upholstery nozzle, telescopic tube
Safety	Thermal protector, automatic shut-off in case of overheating
Compliance	RoHS, directives 2014/30/EU (EMC) and 2014/35/EU (LVD)
After-sales service	MX ONDA, S.A., Madrid, tel. [phone], email [e-mail]

Frequently Asked Questions - MXAS2060 Mx Onda

How to empty the dust container of the MXAS2060 vacuum cleaner?

To empty the dust container, unplug the vacuum cleaner, press the release button (L) and pull the container upward. Open the lid release clip, empty the contents, then remove the particulate filter to wash it. Let it dry before reassembling.

How to clean the post-motor HEPA filter?

The HEPA filter is located at the rear of the vacuum cleaner. Open the cover by pressing the tabs, remove the filter, wash it with plenty of water and let it dry completely in open air. Never use a hairdryer or radiator. Reinsert it by applying light pressure until it clicks.

What to do if the vacuum cleaner suddenly stops?

This may be due to motor overheating. Unplug the vacuum cleaner, check if the thermal protector has tripped. Clean the container, filters, and blocked accessories. Wait for the motor to cool down before restarting.

Can I use accessories not recommended by the manufacturer?

No, it is not recommended to use accessories not recommended by MX ONDA. This could damage the appliance and void the warranty.

Is the cable retractable?

Yes, the vacuum cleaner is equipped with a cable winder. After use, unplug the plug and press the H button until the cable is wound. Hold the plug during winding to avoid sudden movements.

What types of floors are suitable for the brush?

The floor brush (E) has two positions: for hard floors (terrazzo, tiles) and for carpets. Use the foot lever to change the position according to the floor covering.

How to reduce suction on delicate fabrics?

Use the suction flow regulator located on the handle (C). Slide it forward or backward to reduce suction when cleaning curtains, upholstery, etc.

Can the vacuum cleaner pick up liquids?

No, this vacuum cleaner is designed only for dry cleaning. Never vacuum liquids, as this could damage the motor and create a risk of electric shock.

How often should the filters be cleaned?

The particulate filter should be cleaned regularly (after each container emptying if necessary). The HEPA filter should be cleaned at least every 6 months to maintain performance.

Where can I find MX ONDA technical service?

You can contact the official technical service at [phone] or by email [e-mail]. Address: MX ONDA, S.A., Île de Java, 37, 28034 Madrid, Spain.

USER MANUAL MXAS2060 Mx Onda

Illustration showing four different types of household items: a vacuum cleaner, a medical device with a cross mark, a fire extinguisher with a cross mark, and a smoking cigarette.

Technical diagram of a vacuum cleaner with labeled parts from manufacturers A through L

Line drawing of a vacuum cleaner device (no text or symbols)

Hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Two black plastic electrical connectors or connectors, one with a side tab and the other with a handle (no text or symbols visible)

Line drawing of a vacuum cleaner with handle and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with hands adjusting components (no text or symbols)

Line drawing of a vacuum cleaner device with no visible text or symbols

Fig. 4

Simple line drawing of a trash bin with a handle and arrow indicating left motion (no text or symbols)

Fig. 5

Simple line drawing of a trash bin with an open lid and a horizontal arrow indicating direction (no text or symbols)

Fig. 6

Simple oval-shaped object with a black border, no text or symbols visible

Fig. 7

MANUAL DE INSTRUÇÕES

Mx Onda

MULTI-CICLONE ASPIRADOR SEM SACO COM FILTRO HEPA

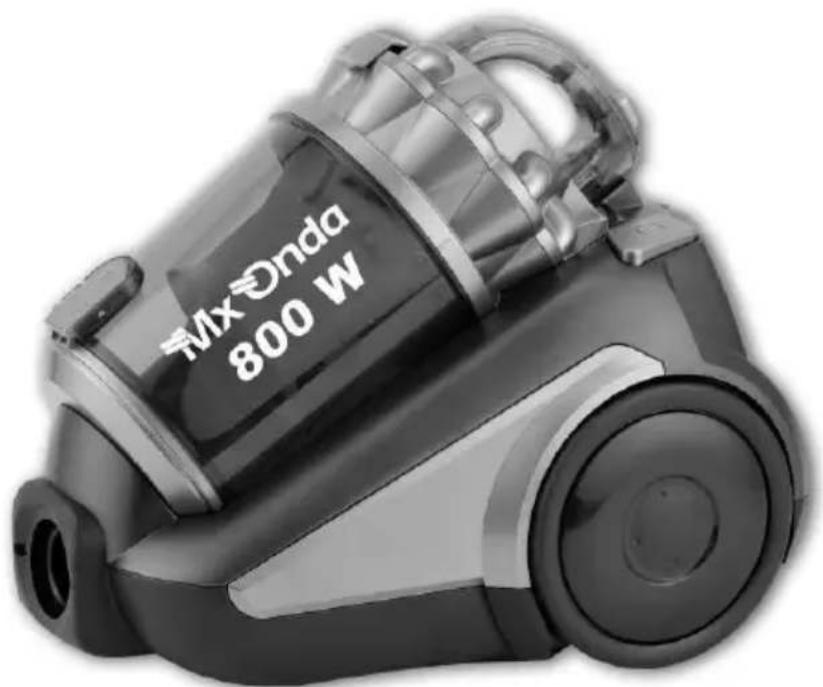

MODELO: MX-AS2060 ERP II

MIX Ønda 800 W

ENERG Y UA ENERGY - ENEVEGA IE IA Mx Onda MX-AS2060 A++ A++ A+ A B C D A ENERGA-ENERGY-ENERGA ENERGA ENERGY-ENERGY-ENERG 27.2 kWh/annum 79dB ABCDEFG ABCDEFG ABCDEFG 665/2013 - II

CE

ANTES DO SEU USO LEIA ATENTAMENTE ESTE MANUAL

Illustration showing four different behaviors of a vacuum cleaner: cleaning, using a device, removing a plug into a pot, and emitting exhaust.

Technical diagram of a vacuum cleaner with labeled parts from manufacturers A through K

A. Punho

B. Mangueira flexivel

Line drawing of a vacuum cleaner device with handle and mounting bracket (no text or symbols)

Hand holding a cylindrical device with directional arrows indicating motion or force (no text or symbols)

Two black plastic electrical connectors shown against a white background (no text or symbols visible)

3D rendering of a black vacuum cleaner with a curved handle and arrow indicator (no text or symbols)

Alavanca seleção

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Technical line drawing of an electric motor with a hand adjusting the shaft (no text or symbols)

Line drawing of a mechanical device with a handle and arrow indicator (no text or symbols)

Fig. 4

Simple line drawing of a trash bin with a handle and arrow indicating left motion (no text or symbols)

Fig. 5

Simple line drawing of a trash bin with an open lid and a horizontal arrow indicating direction (no text or symbols)

Fig. 6

Simple oval-shaped object with a black border, no text or symbols visible

Fig. 7

MANUEL D'INSTRUCTIONS

Mx Onda

ASPIRATEUR MULTI-CYCLONIQUE SANS SAC AVEC FILTRE HEPA APRÈS MOTEUR

MODÈLE: MX-AS2060

ERP II

MIX Ønda 800 W

ENERG Y UA ENERGY - ENEVEGA IE IA Mx Onda MX-AS2060 A++ A++ A+ A B C D A ENERGA-ENERGY-ENERGA ENERGA ENERGY-ENERGY-ENERG 27.2 kWh/annum 79dB ABCDEFG ABCDEFG ABCDEFG 665/2013 - II

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

ATTENTION

Illustration showing four different behaviors of a vacuum cleaner: cleaning, heating, using a tool, and smoking.

Technical diagram of a vacuum cleaner with labeled parts from manufacturers A through L

Line drawing of a vacuum cleaner device (no text or symbols)

Hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols visible)

Choix d'accessoires

Two black plastic electrical connectors with no visible text or symbols

Utiliser la brosse de sol

3D rendering of a black vacuum cleaner with a gray arrow indicating motion (no text or symbols)

Levier de sélection

Line drawing of a vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Line drawing of a vacuum cleaner device with no visible text or symbols

Fig. 4

Simple line drawing of a trash bin with a handle and arrow indicating left motion (no text or symbols)

Fig. 5

Simple line drawing of a trash bin with an open lid and a horizontal arrow indicating direction (no text or symbols)

Fig. 6

Circular object with a black ring and white interior, resembling a dome or lens (no text or symbols visible)

Fig. 7

Illustration showing four different behaviors of a vacuum cleaner: cleaning, working on a device, using a tool, and emitting smoke.

Technical diagram of a vacuum cleaner with labeled parts from manufacturers A through J

Line drawing of a vacuum cleaner device (no text or symbols)

Hand holding a cylindrical object with directional arrows indicating motion or force (no text or symbols)

Two black plastic electrical connectors with threaded tips, shown against a white background (no text or symbols visible)

Usando la spazzola da pavimento

3D rendering of a black vacuum cleaner with a gray arrow indicating motion (no text or symbols)

Leva di selezione

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Technical line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Fig. 4

Simple line drawing of a trash bin with a handle and arrow indicating left motion (no text or symbols)

Fig. 5

Simple line drawing of a trash bin with an open lid and a horizontal arrow indicating direction (no text or symbols)

Fig. 6

Circular object with a white center and black border, resembling a dome or lens (no text or symbols visible)

Fig. 7

Illustration of a vacuum cleaner next to a cleaning board (no text or symbols)

Simple line drawing of a device with a cross mark and cable, no text or symbols present

Abstract line drawing of crossed tools including a hammer, screwdriver, and pliers (no text or symbols)

Illustration of a cigarette emitting smoke with a crossed-out tube (no text or symbols)

Technical diagram of a vacuum cleaner with labeled parts from manufacturers A through J

Line drawing of a vacuum cleaner device with attached clamps and handle (no text or symbols)

Hand holding a cylindrical object with arrows indicating direction (no text or symbols visible)

Auswahl an zubehör

Two black plastic electrical connectors with no visible text or symbols

Mit der bodenbürste

3D rendering of a black vacuum cleaner with a gray arrow indicating motion (no text or symbols)

Wählhebel

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Ansaugvolumenströme regler

Technical line drawing of a mechanical assembly with hands adjusting parts (no text or symbols)

Line drawing of a vacuum cleaner device with no visible text or symbols

Fig. 4

Simple line drawing of a trash bin with a handle and arrow indicating left motion (no text or symbols)

Fig. 5

Simple line drawing of a trash bin with an open lid and a horizontal arrow indicating direction (no text or symbols)

Fig. 6

Circular object with a white center and black border, resembling a dome or lens (no text or symbols visible)

Fig. 7

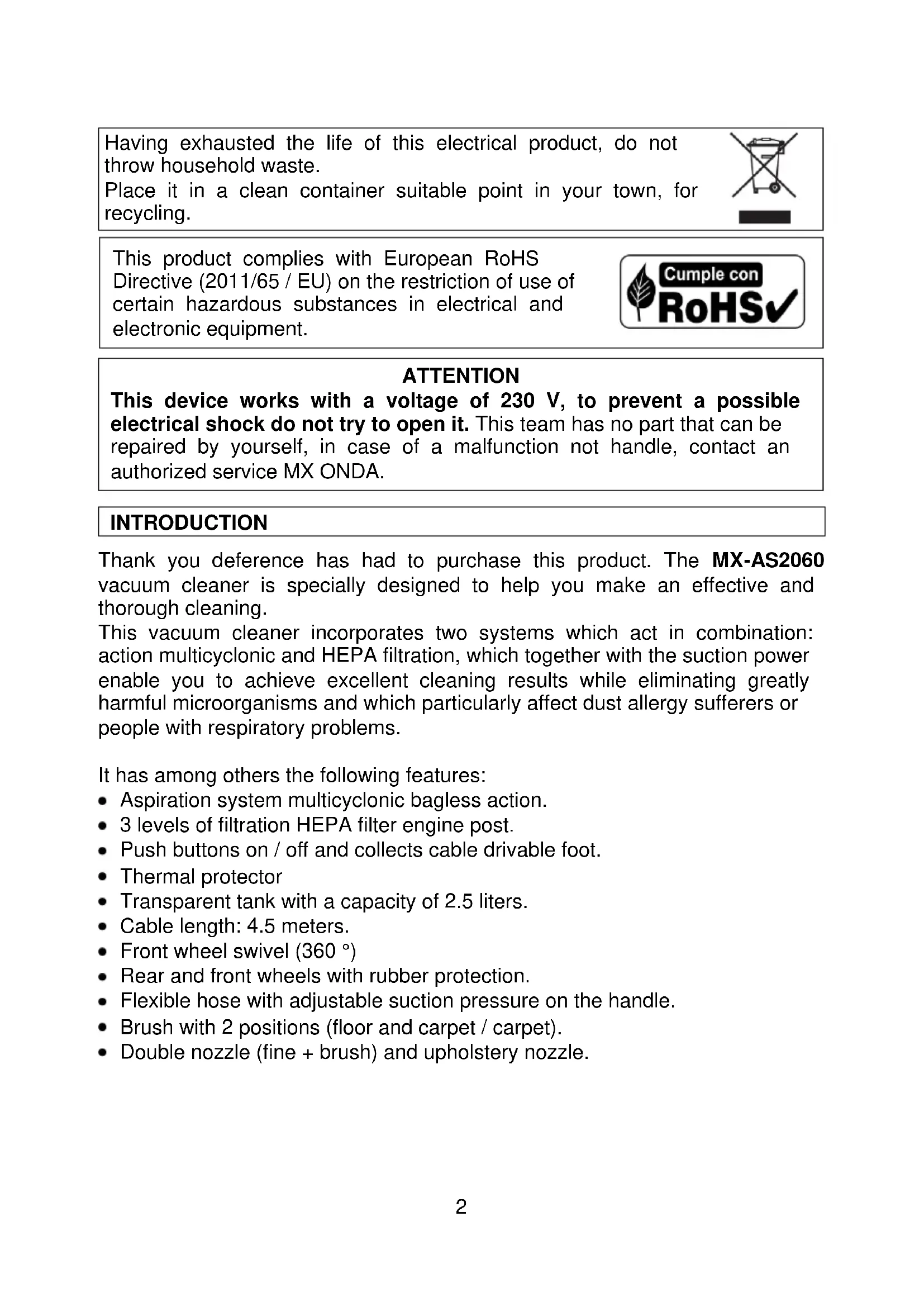

Having exhausted the life of this electrical product, do not throw household waste.

Place it in a clean container suitable point in your town, for recycling.

This product complies with European RoHS Directive (2011/65 / EU) on the restriction of use of certain hazardous substances in electrical and electronic equipment.

Cumple con RoHS✓

ATTENTION

This device works with a voltage of 230 V, to prevent a possible electrical shock do not try to open it. This team has no part that can be repaired by yourself, in case of a malfunction not handle, contact an authorized service MX ONDA.

INTRODUCTION

Thank you deference has had to purchase this product. The MX-AS2060 vacuum cleaner is specially designed to help you make an effective and thorough cleaning.

This vacuum cleaner incorporates two systems which act in combination: action multicyclonic and HEPA filtration, which together with the suction power enable you to achieve excellent cleaning results while eliminating greatly harmful microorganisms and which particularly affect dust allergy sufferers or people with respiratory problems.

It has among others the following features:

• Aspiration system multicyclonic bagless action.
  • 3 levels of filtration HEPA filter engine post.
• Push buttons on / off and collects cable drivable foot.
• Thermal protector
• Transparent tank with a capacity of 2.5 liters.
• Cable length: 4.5 meters.
• Front wheel swivel (360 °)
• Rear and front wheels with rubber protection.
• Flexible hose with adjustable suction pressure on the handle.
• Brush with 2 positions (floor and carpet / carpet).
• Double nozzle (fine + brush) and upholstery nozzle.

BEFORE CONNECTING THE VACUUM CLEANER

• Read these instructions and save them for later use carefully.
• Check that the voltage of your outlet is 220 - 240 V \~ 50 Hz.
• Do not use the device for aspiration of liquids.
• Do not operate the vacuum cleaner without which the filters are correctly positioned and accessories thereof.
• If you require the use of an extension cord, use only an extension cord that is in good condition and is suitable for the power of the appliance.
• To protect against risk of electric shock and personal injury, do not put cord, plug or base unit in water or any other liquid.
• After removing the packaging, check that the appliance is not damaged. If in doubt do not use it and contact the technical support staff.
• Packaging materials such as plastic bags, Styrofoam, etc., should not be left within reach of children as they are a potential source of danger.
• The manufacturer is not liable for damages resulting from improper, incorrect or careless use of the appliance.

SECURITY MEASURES

When using electrical appliances, should always be followed basic safety measures to reduce the risk of fire, electric shock and / or bodily injury. These security measures include the following:

• Children should not play with this device.
- Cleaning and maintenance by the user can not be done by children unless they are older than 8 years and are supervised.
- Never touch the vacuum cleaner, cord or plug with wet or damp hands.
- This device can not be used by children (under the age of 8 years) or persons with or without experience and knowledge reduced physical, sensory or mental capabilities, unless they have received appropriate on using the appliance instructions and be supervised by an adult.

- This appliance is designed only for domestic use, not professional. MX ONDA not accepts any responsibility and the guarantee will not apply in case of misuse or failure to follow instructions.

- To disconnect the vacuum cleaner from the mains pull the plug from the socket. You do never pull on the cable.

- If you are using the cleaner for periods longer than 30 minutes, to avoid overheating, the network cable must be fully unwound (up to the red mark on cable).

- Unplug the vacuum cleaner, provided that: not in use, before putting on or taking off parts, filters or an accessory, when a power outage occurs, or "skip" a fuse or automatic and before proceeding to clean itself of maintenance.

- Do not use not recommended by the manufacturer.

- Never use this appliance outdoors, should pay special attention when performing cleaning stairs, there is a risk of a possible fall by the user, or the suction causing damage to it.

- Do not block the air outlet of the engine or the suction port. And never aspire liquids, flammable materials, needles, nails, screws, glass, lit cigarettes, etc.

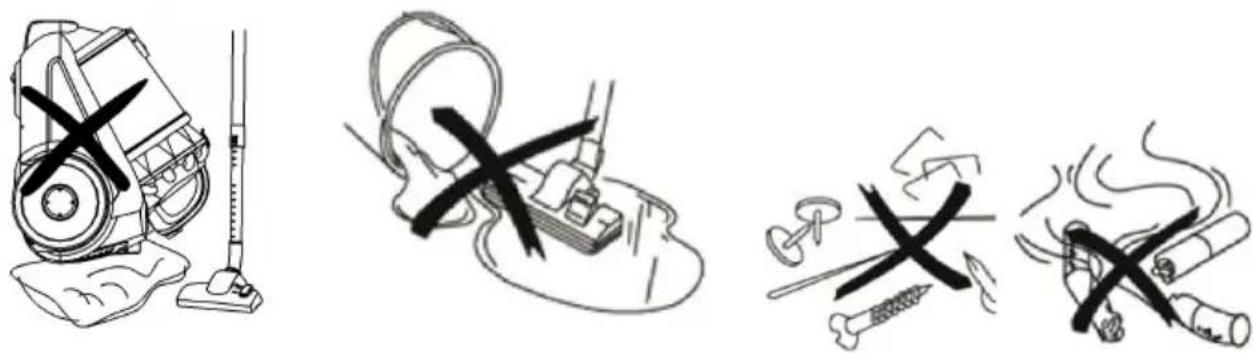

Illustration showing four different behaviors of a vacuum cleaner: cleaning, working on a device, using a device with a cross mark, and emitting exhaust.

- Keep the vacuum cleaner away from heat sources.

- Stay away from flammable products with the vacuum cleaner is turn on.

- While the vacuum cleaner is connected not neglect their vigilance and keep out of reach of children.

• After his store use where children do not have access.

- Use the vacuum cleaner horizontally, never vertically.

- No water or other liquids enter inside the tank.

- In case of failure, anomalies, the plug, the cord or other parts are considered impaired, turn off the power and do not attempt to repair it yourself. Contact our Customer Service nearest MX ONDA.

FILTER SYSTEM

The vacuum cleaner has been designed with a multi-filtration system. The multi-filtration system consisting of:

1- Main filter (multi-cyclone) consisting of several stages.
3- HEPA filter (post motor).

2- Particle filter: Air from the main filter (multi-cyclone) passes through a filter consisting of several layers of felt of different densities.

With this filter system in several phases and a total of 3 levels of filtering is achieved, bringing the total absorption of particles of all types are guaranteed, including the destruction by contact of bacteria and mites.

MULTICYCLONIC ACTION SYSTEM

It is a filtration method by which dust particles and air are separated inside the tank due to centrifugal force.

In the first step the coarser particles are separated by cyclonic action in the second stage the medium sized particles are retained by multiple cyclonic action in the third stage and the finer particles are removed by the particulate filter.

HEPA FILTER SYSTEM (POSTMOTOR)

The filtering system HEPA (High Efficiency Particulate Arresting - detection of high efficiency particulate air) is specially designed to retain the highest level of microscopic particles, ensuring the capture 99.99% of harmful particles.

Thanks to the bactericidal display system incorporating the HEPA also trap and destroy also contact mites, bacteria, pollen and spores.

CONTROLS AND ELEMENTS

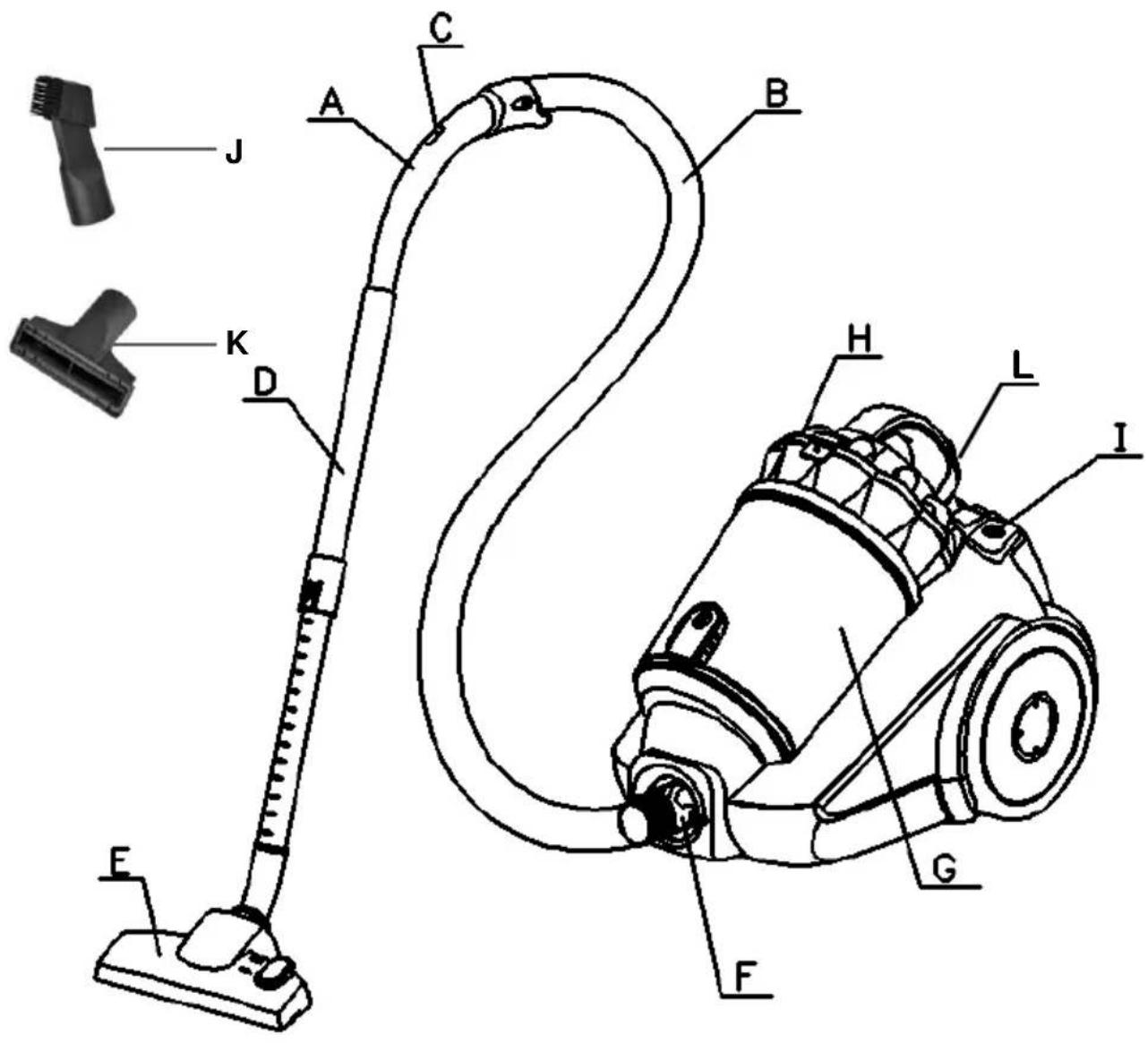

Technical diagram of a vacuum cleaner with labeled parts A through L, showing internal components and part labels.

A. Handle
B. Flexible hose
C. Suction flow regulator
D. Telescopic tuve
E. Brush floor / carpet
F. Hose connector

G. Dustbin

H. Cord rewind button

I. Power switch
J. Narrow nozzle and small brush
K. Upholstery nozzle
L. Extraction dustbin button

USING THE VACUUM CLEANER

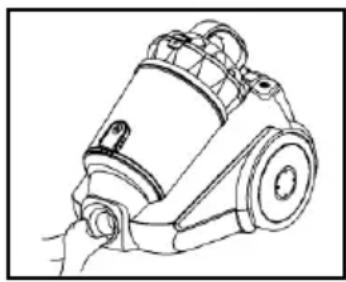

Inserting the flexible hose

Take the hose through the F nozzle and insert it into the hole of the suction inlet, check that the nozzle is correctly fitted.

To remove the hose, press the button of the nozzle F and without releasing it pull it outwards.

Line drawing of a vacuum cleaner device (no text or symbols)

Telescopic tube insertion

This vacuum cleaner as an accessory incorporates a telescoping extension tube D. If you need to use it, proceed as follows:

• Hold the hose by the handle A and insert the nozzle of the same in the wider end of the extension tube D until they are fully engaged.
• To adjust the length of the extension tube D, press the button extension without releasing remove the inner tube to the desired length.
• Stop pressing the button extension and the inner tube will be retained.

Hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols visible)

Choice of accessories

• You use the right accessory according to the type of cleaning you. be incurred. According to their needs or not use extension tube D.
• For cleaning window frames, gaps or inaccessible sites, use the fine nozzle or brush J, and for other cleaning for example; upholstery can use the special nozzle K.

Two black plastic electrical connectors with no visible text or symbols

Using the floor brush

• For cleaning floors stoneware, plate, flooring, etc. use the floor brush E, with the lever in position " [icon]".
• If floors are carpeted or are carpeted press the pedal lever, placing it in the " 🔍 " position, so that the brush is hidden and thus facilitate the aspiration of the tissue.
• To return back to the position Brush press the pedal lever to the position " 🔍".

3D rendering of a black vacuum cleaner with a gray arrow indicating motion (no text or symbols)

Selector lever

Note: To avoid static electricity that can be generated by rubbing on carpets, etc., try not to suck long particles very fine dust and will avoid the possible accumulation of static electricity on the extension tube.

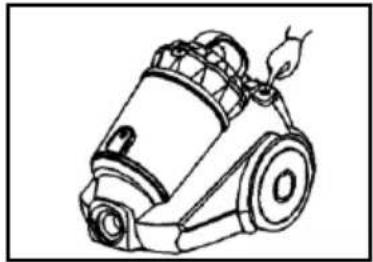

Turn on the vacuum cleaner

Pull the plug and the supply cable will unrolling. The total cable length is 4.5 meters. When you see a mark appear red pull cautiously and very soft to avoid damaging the cord or cable system itself collects as this indication warns you of the last 10 cm.

• To turn on the vacuum cleaner press switch on / off "①".
• When the unit is running, proceed to the work of cleaning.

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Suction flow regulator

The suction flow regulator C is located in the handle of the flexible hose. Use the slider to reduce the flow of suction for cleaning upholstery, curtains, etc.

• Slide the regulator C forward or backward to adjust the degree of vacuum according to the type of cleaning to be done.
• The maximum degree of suction is obtained when the regulator is in the position C which completely covers the hole regulation.

Turn off the vacuum cleaner

Once finished using, press the switch on / off "①" to turn off the vacuum cleaner. Then unplug the cable from the power supply and press the button includes cable H "D-" until the end of coiled wire.

Technical line drawing of an electric motor with a hand adjusting the shaft (no text or symbols)

Note: Before pressing the rewind button H to hide the cable, hold the plug, since the wound, it moves very quickly and could hit to you. Or some object.

CLEANING AND MAINTENANCE

For best results during the cleaning process will always be necessary that both the dustbin and all the filters are perfectly clean. If applicable to the work of the cleaner use and these elements are dirty, the suction power will decrease considerably. You should never operate the vacuum cleaner without all the filters are correctly placed in position and completely clean, otherwise dirt particles can penetrate inside the vacuum causing engine damage.

Warning: Before cleaning or handling of the vacuum cleaner make sure it is unplugged from the mains supply.

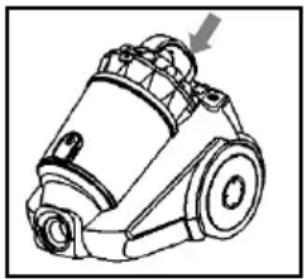

Dustbin cleaning

• Unplug the vacuum cleaner from the mains, then hold the tank by the handle, press the tank removal button (L) and pull it upwards (Fig. 4).
• To empty the tank press the opening clip ( ☐ of the tank lid (Fig. 5) and it will open. Take care to place the container on top of the garbage can or a bag before opening the lid.
• Once the tank has been emptied, open the upper lid of the tank by slightly pulling the tab outwards (Fig. 6) and remove the particle filter (Fig. 7).

Line drawing of a vacuum cleaner device with no visible text or symbols

Fig. 4

Simple line drawing of a trash bin with a handle and an arrow indicating left motion (no text or symbols)

Fig. 5

Simple line drawing of a trash bin with an open lid and a horizontal arrow indicating direction (no text or symbols)

Fig. 6

Circular object with a black ring and white interior, resembling a dome or lens (no text or symbols visible)

Fig. 7

• Wash the particle filter with plenty of water, clean the inside of the tank with a slightly damp cloth. Never use abrasive products or products that contain solvents. Then dry the inside of the tank with a dry cloth. The particle filter must be left to dry on its own, do not use a hair dryer or heater as this will damage the filter.
• Once the tank and particle filter are clean and completely dry, place them as described below:

a. Close the lower lid of the reservoir, a "click" will indicate that it is properly closed.
b. Insert the particle filter into the passenger compartment located in the upper part of the tank so that the rubber ring of the particle filter fits correctly on the edge of the multi-cyclone filter, then press lightly with your fingers on the rubber ring to check that It is perfectly coupled. Finally, close the lid and a "click" will indicate that the lid is properly closed.
c. Attach the tank (fully assembled) to the main body of the vacuum cleaner, and then push the tank towards the vacuum cleaner, when you hear a "click" it will be the indication that the tank is correctly coupled to the main body of the vacuum cleaner.

Cleaning the HEPA filter (post motor)

The HEPA filter post motor is located in the rear of the vacuum cleaner. HEPA filter cleaning should be performed at least every 6 months for cleaning proceed as follows:

• Press down on the tabs to open the post cover HEPA filter engine and pull it out.
• Remove the HEPA filter and wash with water, then let it dry by itself. Do not dry with a hair dryer or heater.
• With the filter clean, dry place in its compartment and replace the cover into place, making a slight pressure on it, a "click" will indicate that it is properly attached.

Warning: Never connect the vacuum cleaner to the mains supply without being properly positioned in place all filters.

Cleaning and maintenance of the vacuum cleaner

• Check with some frequency the status of parts and accessories (filters, hose, nozzles, etc.), if necessary replace them with new ones.
• Clean the plastic surface with a damp cloth. Never use abrasive cleaners or containing solvents and do not immerse the cleaner in water or other liquid.
• When not using the vacuum cleaner, the power cable must remain collected.
• To carry the vacuum cleaner using the carrying handle.
• To store the vacuum cleaner, match the anchorage situated E back floor brush supported on the back of the cleaner.

THERMAL PROTECTOR

When the dustbin is full, clogged filters or attachment is stuck (hose, extension tube, mouthpiece, etc.), will hinder the passage of air and as a result the safety valve will open, to avoid overheating engine vacuumed the lack of ventilation.

If the safety valve while still open, it takes a long time (without solving the cause that caused the obstruction) and the vacuum on, the vacuum motor will overheat.

The vacuum cleaner has an internal protection (thermal switch) which can be reached to activate when the engine overheats, which motivate the automatic engine stop.

If this happens unplug the vacuum cleaner, fix the cause of engine overheating (dustbin cleaning, filters or unclogging the clogged accessory) and then wait until the engine cools.

TECHNICAL SPECIFICATIONS

Supply voltage 220-240 V \~ 50 Hz

Maximum power 800 W (ERP II)

Suction capacity 19,8 kpa

Air flow 24 liters / sec.

Suction Power 164 W

Dustbin capacity 2.5 liters

Noise level 79 dB

Cable length 4.5 m

Dimensions 429 x 293 x 355 mm (L, W, H)

Weight without accessories 4.5 kg

Specifications subject to change without notice.

This product complies with the European Directives 2014/30/EU (EMC – Electromagnetic Compatibility) and the 2014/35/EU (LVD – Low Voltage Directive) relative to Low Tension Security.

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

Telephone of information and Technical Service: [phone]

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

Icon of a person reading a book inside a circle (no text or symbols)

QR code image containing encoded data, no visible human-readable text

E-MAIL: [e-mail]

http://www.mxonda.es
