MXAS2058 - Vacuum Cleaner Mx Onda - Free user manual and instructions

Product type	Bagless stick vacuum
Brand	Mx Onda
Model	MXAS2058
Power supply	220-240 V ~ 50 Hz
Maximum power	600 W
Suction capacity	≥ 14 kPa
Airflow	≥ 17 L/s
Suction power	≥ 90 W
Tank capacity	0.6 L
Noise level	80 dB
Cable length	4.5 m
Dimensions (L x W x H)	1260 x 260 x 300 mm
Weight (without accessories)	2.14 kg
Filtration type	Cyclonic + HEPA H10 filter (3 levels)
Suction system	Cyclonic bagless
Thermal protector	Yes
Main brush	2 positions (hard floor/carpet)
Included accessories	Double nozzle (crevice + brush), 2 extension tubes, wall mount
Use	Stick vacuum or handheld
Safety	Automatic shutdown in case of overheating, motor protection
Maintenance	Water-washable filters, transparent tank
Compliance	European directives 2014/30/EC, 2014/35/EC, RoHS

Frequently Asked Questions - MXAS2058 Mx Onda

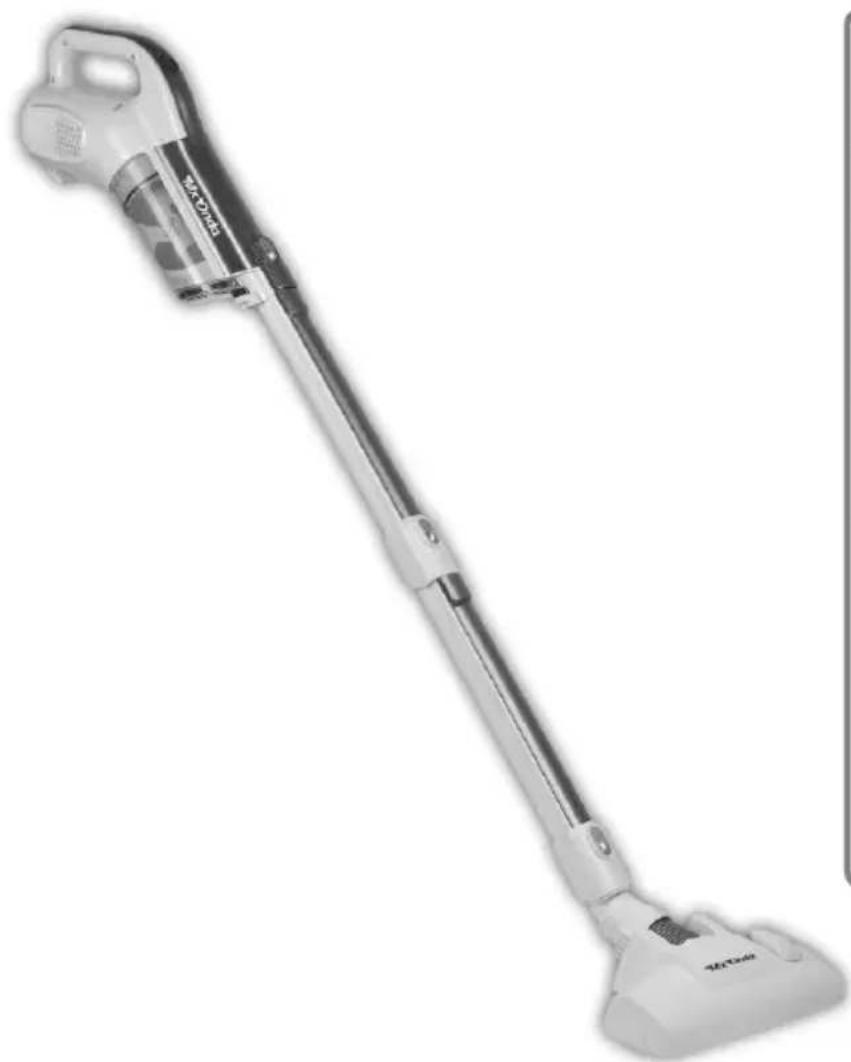

How to use the vacuum in stick mode?

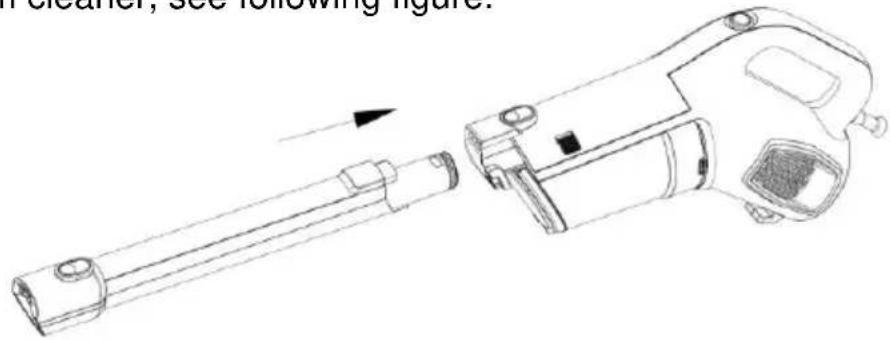

To use the vacuum in stick mode, attach the extension tubes to the main body, then the floor/carpet brush to the end. You can also remove the tubes for handheld use.

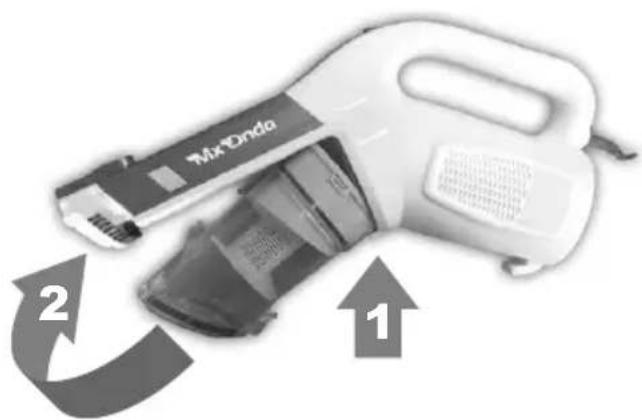

How to clean the filters?

Unplug the device. Remove the tank, then the cyclone filter, the particle filter and the HEPA filter. Wash them with clear water (no detergent) and let dry completely before putting them back. Never use the vacuum without filters.

What to do if the vacuum stops suddenly?

This may be due to motor overheating. Unplug the device, clean the tank and filters, and check that the accessories are not blocked. Wait for the motor to cool down before restarting.

What is the tank capacity?

The transparent tank has a capacity of 0.6 liter. It is recommended to empty it regularly to maintain good suction.

Can I vacuum liquids?

No, this vacuum is designed only for dry waste. Never vacuum liquids, as this could damage the motor and void the warranty.

How to replace the HEPA filter?

The HEPA filter is washable and does not require frequent replacement. However, if it is damaged or very dirty, order a compatible HEPA H10 filter. To change it, remove the old filter from the filter holder and insert the new one respecting the position.

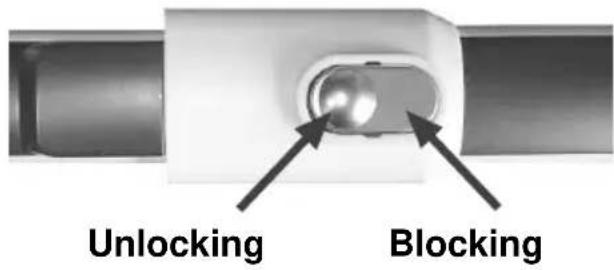

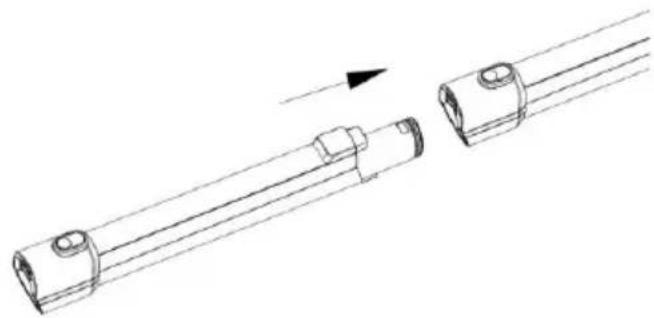

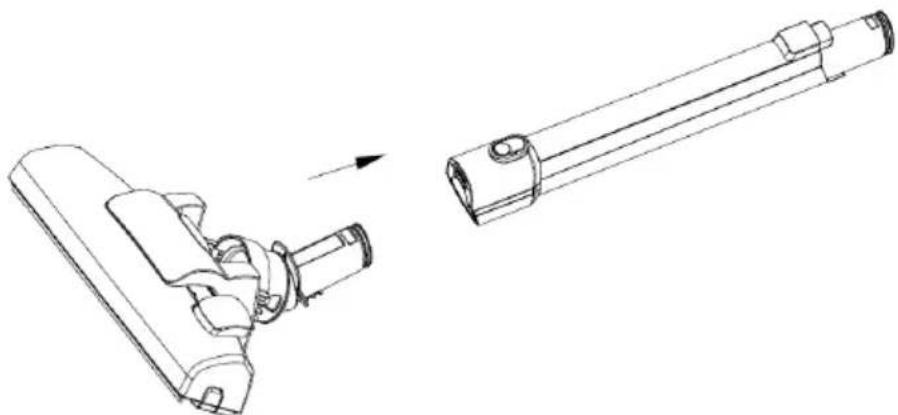

How to attach the extension tubes?

Insert the thin end of one tube into the thick end of the other until you hear a click. To separate them, press the round release button. Make sure the guides align with the grooves.

How to use the carpet brush?

The floor/carpet brush has a two-position selector. For carpets, push the lever with your foot to the carpet position (carpet icon). For hard floors, move the lever to the floor position (brush icon).

Where to find the wall mount?

The wall mount is included in the package. Fix it to the wall using suitable screws (not provided) to store the vacuum vertically after use.

How to contact customer service?

For any assistance, contact the official MX ONDA technical service by phone at [phone] or by email at [e-mail]. Keep the proof of purchase for warranty.

USER MANUAL MXAS2058 Mx Onda

Exterior view of a white vacuum cleaner with black handle and brand logo (no text or symbols on body)

ENERG Y IJA енергия - евергия IE IA Mx-Onda MX-AS2058 A+++ A+ A+ A B C D A+ A A A B C D ENERGIA - ENERGIA - ENERGIA ENERGIA - ENERGY - ENERGIE - ENERGIE 21.9 kWh/annum 80dB 665/2013 - II

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

Illustration showing four different types of workplace injuries: a tool, a helmet, a nail, and a cigarette.

A B C D E I H J E G F

Technical line drawing of a mechanical component with two views, showing assembly or assembly process (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating assembly (no text or symbols present)

Close-up of a white medical or laboratory device with a black arrow pointing to a component (no visible text or symbols)

White handheld flashlight with black strap and handle (no visible text or symbols)

White manual vacuum cleaner with a black handle and orange tip, no visible text or symbols on the device body.

Cepillo abatible

Technical line drawing of a mechanical component with cross-sectional view and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with exploded view and arrow indicating direction (no text or symbols)

MANUAL DE INSTRUÇÕES

Mx Onda

Exterior view of a white vacuum cleaner with black handle and model number V1004 (no text or symbols on body)

ENERG Y IJA енергия - евергия IE IA Mx-Onda MX-AS2058 A+++ A+ A+ A B C D A+ A A A B C D ENERGIA - ENERGIA - ENERGIA ENERGIA - ENERGY - ENERGIE - ENERGIE 21.9 kWh/annum 80dB 665/2013 - II

CE

ANTES DO SEU USO LEIA ATENTAMENTE ESTE MANUAL

Four black-and-white line drawings depicting different workplace safety behaviors: a tool, a helmet, a firecracker, and a cigarette flame (no text or symbols)

A B C D E I H J E G F

Line drawing of a hand tool with a cylindrical component and a separate view showing internal components (no text or symbols)

Technical line drawing of a mechanical component with two views, showing assembly or assembly process (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating assembly (no text or symbols present)

Uso da escova de piso / carpete

Close-up of a white handheld device with a black arrow pointing to its side (no visible text or symbols)

Alavanca de seleção

White handheld device with black handle and circular button (no visible text or symbols)

USO DO LIMPADOR DE VÁCUO DAS MÃOS

Exterior view of a white manual air cleaner with a black handle and orange tip, showing no text or symbols on the device itself.

Escova dobrável

Technical line drawing of a mechanical component with a threaded end and arrow indicating direction (no text or symbols)

- Em seguida, separe o conjunto do filtro de partículas + filtro HEPA do filtro de ciclone, figura a seguir:

Technical line drawing of a mechanical component with exploded view, showing internal assembly and transformation (no text or symbols)

White manual washing machine with 'Mix Ondo' label, showing internal components and directional arrows (no text beyond labels)

Limpeza do filtro do motor

Exterior view of a white vacuum cleaner with black handle and model number V1004 (no text or symbols on device body)

ENERG Y IJA енергия - евергия IE IA Mx-Onda MX-AS2058 A+++ A+ A+ A B C D A+ A A A B C D ENERGIA - ENERGIA - ENERGIA ENERGIA - ENERGY - ENERGIE - ENERGIE 21.9 kWh/annum 80dB 665/2013 - II

CE

VOR GEBRAUCH LESEN SIE DIESES HANDBUCH

Illustration showing four different types of medical or safety symbols: a tool, a cross symbol, a helmet, and a cigarette with a cross symbol.

A B C D E I H J E G F

Technical line drawing of a handheld device with a cylindrical shaft and handle, showing internal components (no text or symbols)

Technical line drawing of a mechanical component with two cylindrical parts and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating assembly (no text or symbols present)

White handheld air purifier device with a black threaded tube and arrow indicating upward motion (no text or symbols visible)

Auswahlhebel

White handheld electronic device with black handle and circular button (no visible text or symbols)

Close-up of a white manual vacuum cleaner with a black handle and orange tip, showing internal components and a pointing arrow (no text or symbols visible)

Klappbürste

Technical line drawing of a mechanical component with a threaded end and arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with exploded view, showing internal assembly and transformation (no text or symbols)

White manual washing machine with labeled parts and directional arrows indicating cycle (no text or symbols on device)

Motorfilter reinigen

MANUEL D'INSTRUCTIONS

Mx Onda

ASPIRATEUR À MAIN BALAI ET CYCLONE AVEC FILTRE HEPA (H10)

MODÉLE: MX-AS2058

Exterior view of a white vacuum cleaner with black handle and model number V1004 (no text or symbols on device body)

ENERG Y IJA енергия - евергия IE IA Mx-Onda MX-AS2058 A+++ A+ A+ A B C D A+ A A A B C D ENERGIA - ENERGIA - ENERGIA ENERGIA - ENERGY - ENERGIE - ENERGIE 21.9 kWh/annum 80dB 665/2013 - II

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

ATTENTION

Simple line drawing of a mechanical device with a cross mark, no text or symbols present

Simple line drawing of a person's head and shoulders with abstract lines, no text or symbols present

Abstract line drawing of crossed tools and a screw (no text or symbols)

Simple line drawing of a cigarette emitting smoke from a fuel can (no text or symbols)

A B C D E I H J E G F

Close-up of a mechanical component with a spherical knob and two arrows pointing to it (no text or symbols visible)

Technical line drawing of a mechanical component with two views, showing assembly or assembly process (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating assembly (no text or symbols present)

Close-up of a white handheld vacuum cleaner with a black arrow pointing to the nozzle (no visible text or symbols)

Levier de sélection

White cylindrical device with black base and circular button, no visible text or symbols

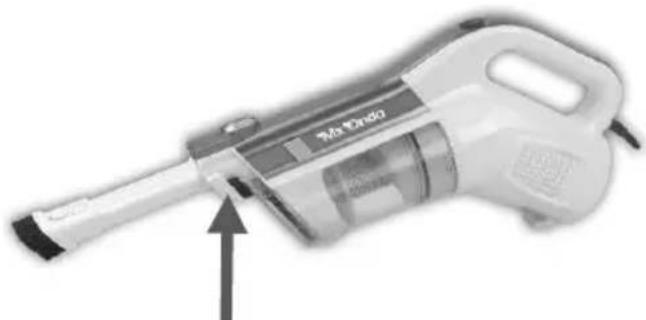

UTILISATION D'UN ASPIRATEUR À MAIN

White manual vacuum cleaner with attached trigger, showing internal components and a black arrow pointing to the handle (no visible text or symbols)

Brosse pliante

Technical line drawing of a mechanical component with cross-sectional view (no text or symbols)

Technical line drawing of a mechanical component with exploded view, showing internal assembly and transformation (no text or symbols)

White manual washing machine with labeled parts and directional arrows indicating cycle (no text or symbols on the device itself)

Exterior view of a white vacuum cleaner with black handle and brand logo (no text or symbols on body)

ENERG Y IJA енергия - евергия IE IA Mx-Onda MX-AS2058 A+++ A+ A+ A B C D A+ A A A B C D ENERGIA - ENERGIA - ENERGIA ENERGIA - ENERGY - ENERGIE - ENERGIE 21.9 kWh/annum ABCDEFG 80dB ABCDEFG ABCDEFG 665/2013 - II

CE

PRIMA DI UTILIZZARE IL MANUALE DI LEGGERE ATTENTAMENTE

ATTENZIONE

Four black-and-white line drawings depicting different workplace safety behaviors: a robotic arm, a person in a gear, a firecracker, and a fire with smoke (no text or symbols)

A B C D E H I J E F G

Technical line drawing of a handheld device with a cylindrical shaft and attached housing (no text or symbols)

Technical line drawing of a mechanical component with two views, one showing a shaft and the other a flanged end (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating assembly (no text or symbols present)

White handheld vacuum cleaner with a black arrow pointing to the nozzle (no visible text or symbols)

Leva di selezione

White cylindrical device with black base and handle, no visible text or symbols

UTILIZZO DEL DETERGENTE SOTTOVUOTO

Exterior view of a Mi Endo vacuum cleaner (no text or symbols visible)

Pennello pieghevole

Technical line drawing of a mechanical component with cross-sectional view and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with exploded view, showing internal assembly and transformation (no text or symbols)

White manual washing machine with labeled parts and directional arrows indicating cycle (no text or symbols on the device itself)

Exterior view of a white vacuum cleaner with black handle and brand logo (no text or symbols on body)

ENERG Y IJA енергия - евергия IE IA Mx-Onda MX-AS2058 A+++ A+ A+ A B C D A+ A A A B C D ENERGIA - ENERGIA - ENERGIA ENERGIA - ENERGY - ENERGIE - ENERGIE 21.9 kWh/annum 80dB 665/2013 - II

CE

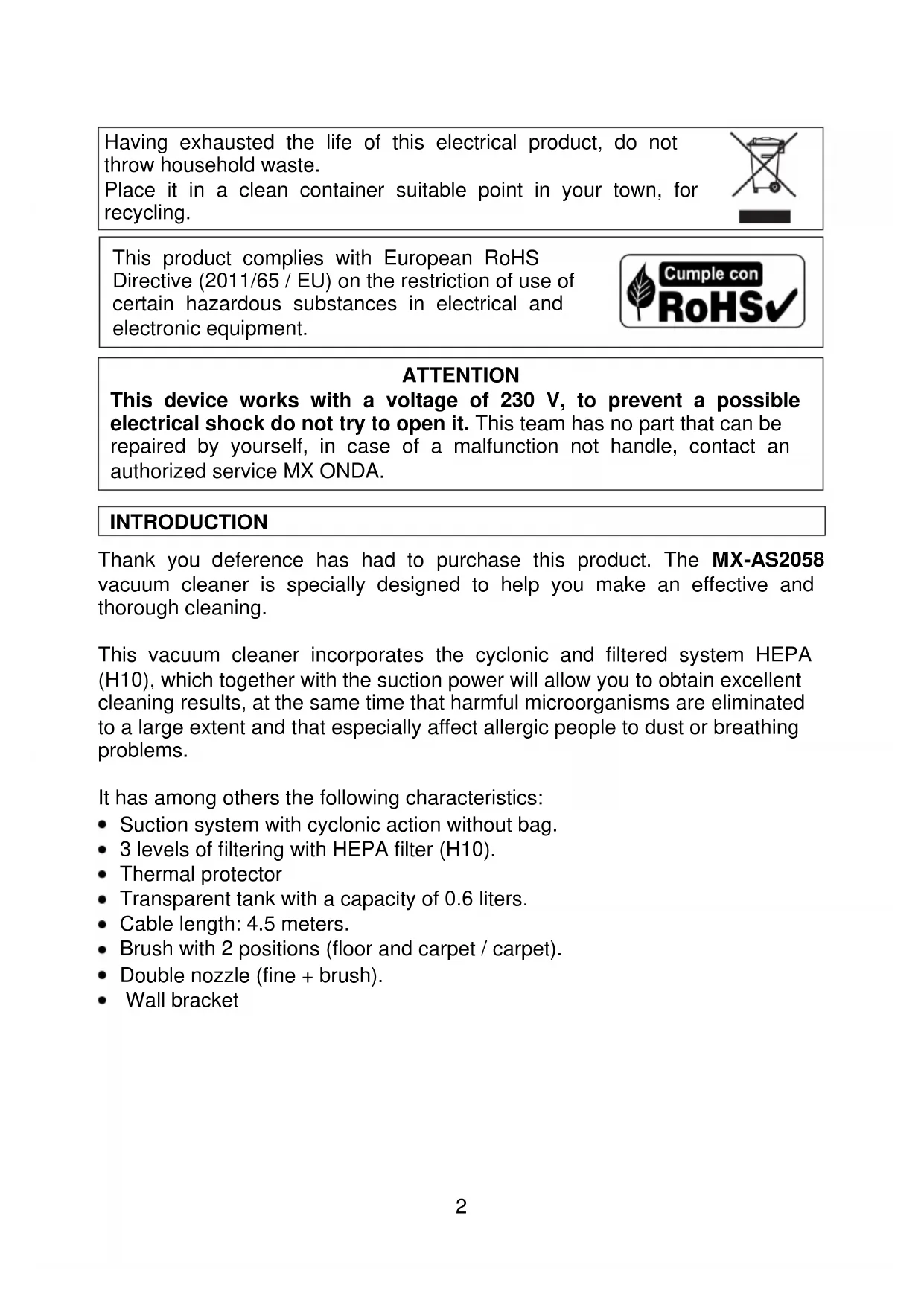

Having exhausted the life of this electrical product, do not throw household waste.

Place it in a clean container suitable point in your town, for recycling.

This product complies with European RoHS Directive (2011/65 / EU) on the restriction of use of certain hazardous substances in electrical and electronic equipment.

Cumple con RoHS✓

ATTENTION

This device works with a voltage of 230 V, to prevent a possible electrical shock do not try to open it. This team has no part that can be repaired by yourself, in case of a malfunction not handle, contact an authorized service MX ONDA.

INTRODUCTION

Thank you deference has had to purchase this product. The MX-AS2058 vacuum cleaner is specially designed to help you make an effective and thorough cleaning.

This vacuum cleaner incorporates the cyclonic and filtered system HEPA (H10), which together with the suction power will allow you to obtain excellent cleaning results, at the same time that harmful microorganisms are eliminated to a large extent and that especially affect allergic people to dust or breathing problems.

It has among others the following characteristics:

• Suction system with cyclonic action without bag.
  • 3 levels of filtering with HEPA filter (H10).
• Thermal protector
  • Transparent tank with a capacity of 0.6 liters.
• Cable length: 4.5 meters.
• Brush with 2 positions (floor and carpet / carpet).
  • Double nozzle (fine + brush).
• Wall bracket

BEFORE CONNECTING THE VACUUM CLEANER

• Read these instructions and save them for later use carefully.
• Check that the voltage of your outlet is 220 - 240 V \~ 50 Hz.
• Do not use the device for aspiration of liquids.
• Do not operate the vacuum cleaner without which the filters are correctly positioned and accessories thereof.
• If you require the use of an extension cord, use only an extension cord that is in good condition and is suitable for the power of the appliance.
• To protect against risk of electric shock and personal injury, do not put cord, plug or base unit in water or any other liquid.
• After removing the packaging, check that the appliance is not damaged. If in doubt do not use it and contact the technical support staff.
• Packaging materials such as plastic bags, Styrofoam, etc., should not be left within reach of children as they are a potential source of danger.
• The manufacturer is not liable for damages resulting from improper, incorrect or careless use of the appliance.

SECURITY MEASURES

When using electrical appliances, should always be followed basic safety measures to reduce the risk of fire, electric shock and / or bodily injury. These security measures include the following:

• Children should not play with this device.
- Cleaning and maintenance by the user can not be done by children unless they are older than 8 years and are supervised.
- Never touch the vacuum cleaner, cord or plug with wet or damp hands.
- This device can not be used by children (under the age of 8 years) or persons with or without experience and knowledge reduced physical, sensory or mental capabilities, unless they have received appropriate on using the appliance instructions and be supervised by an adult.

• This appliance is designed only for domestic use, not professional. MX ONDA not accepts any responsibility and the guarantee will not apply in case of misuse or failure to follow instructions.
• To disconnect the vacuum cleaner from the mains pull the plug from the socket. You do never pull on the cable.
• If you are using the cleaner for periods longer than 30 minutes, to avoid overheating, the network cable must be fully unwound (up to the red mark on cable).
• Unplug the vacuum cleaner, provided that: not in use, before putting on or taking off parts, filters or an accessory, when a power outage occurs, or "skip" a fuse or automatic and before proceeding to clean itself of maintenance.
• Do not use not recommended by the manufacturer.
• Never use this appliance outdoors, should pay special attention when performing cleaning stairs, there is a risk of a possible fall by the user, or the suction causing damage to it.
• Do not block the air outlet of the engine or the suction port. And never aspire liquids, flammable materials, needles, nails, screws, glass, lit cigarettes, etc.

Simple line drawing of a mechanical device with a cross mark, no text or symbols present

Simple line drawing of a person holding an object with a tool, no text or symbols present

Abstract line drawing of crossed tools including a hammer, screwdriver, and screw (no text or symbols)

Simple line drawing of a cigarette emitting smoke, crossed by a black X mark (no text or symbols)

• Keep the vacuum cleaner away from heat sources.
• Stay away from flammable products with the vacuum cleaner is turn on.
• While the vacuum cleaner is connected not neglect their vigilance and keep out of reach of children.
  • After his store use where children do not have access.
• Use the vacuum cleaner horizontally, never vertically.
• No water or other liquids enter inside the tank.

- In case of failure, anomalies, the plug, the cord or other parts are considered impaired, turn off the power and do not attempt to repair it yourself. Contact our Customer Service nearest MX ONDA.

FILTER SYSTEM

The vacuum cleaner has been designed with a multiple filtering system consisting of:

1- Main filter (cyclone), which separates the thickest particles.
2- Particle filter: The finest particles are retained by this filter.

3- HEPA filter (H10): Microscopic particles as well as how mites, basterias, pollen, etc. They are retained by this filter.

4- Finally there is the engine protection filter, which is located in the air inlet of the same.

With this system a multi-stage filtration is achieved and a total of 3 levels of filtering, which guarantees the total absorption of particles of all kinds, including the destruction by contact of bacteria and mites.

CYCLONIC ACTION SYSTEM

It is a filtration method whereby dust particles and air are separated inside the tank due to centrifugal force.

At this stage the thickest particles are separated by the cyclonic action.

HEPA FILTER SYSTEM (H10)

The HEPA (High Efficiency Particulate Arresting - high efficiency particle detection) filtering system is specially designed to retain the highest level of microscopic particles, guaranteeing the capture of 99.99% of harmful particles. Thanks to the bactericidal screen that incorporates the HEPA system, it also traps and destroys mites, bacteria, pollen and spores by contact.

CONTROLS AND ELEMENTS

A B C D E I H J E G F

A. Handle
B. On / off switch
C. Deposit eject button
D. Deposit
E. Extension tubes

F. Floor brush / carpet-carpet
G. Floor / carpet-carpet selector
H. Double nozzle (fine + brush)
I. Plug
J. Wall bracket

FAST ANCHORING SYSTEM

All vacuum cleaner accessories incorporate a quick anchor system that facilitates their insertion and removal.

• To join them, you have to match the thin end of an accessory with the thicker end of the other accessory, fitting them firmly until you hear a "click" and then pressing the smooth part of the lock / unlock button, to make sure they are properly coupled.
• To separate them, press the round part of the lock / unlock button and separate the accessories.

Unlocking Blocking

Note:

The fine ends for the coupling of the accessories have guides, which must be matched with the grooves located in the hole of the thicker ends of the accessories, otherwise the accessory will not be properly coupled.

USE OF THE BROOM VACUUM CLEANER

Extension tube placement

This vacuum cleaner incorporates two extension tubes E. If you need to use them, proceed as follows:

- To attach the extension tube to the main body of the vacuum cleaner, insert the finest part of the extension tube E into the main body of the vacuum cleaner, see following figure.

Line drawing of a hand tool with a separate view showing internal components (no text or symbols)

- To attach the second extension tube to the first extension tube, insert the finest part of the second extension tube into the thickest part of the first extension tube, see the following figure.

Technical line drawing of a mechanical component with two views, showing assembly or assembly process (no text or symbols)

- Finally, attach the floor brush / carpet carpet, to the thickest part of the second extension tube, see the following figure.

Technical line drawing of a mechanical component with an arrow indicating assembly (no text or symbols present)

Use of the floor brush / carpet carpet

- For cleaning terrazzo, platelet, floor, etc. floors. use the floor brush E, with the lever in the “ ” position.

- If the floors are carpeted or carpeted, press the lever with your foot, placing it in the “ ” position, so that the brush is hidden and thus facilitates aspiration on the fabric.

- To return to the brush position, press the lever with the foot towards the “ ” position.

WACO2 Selection lever

Note: To avoid static electricity that can be generated when rubbing on carpets, carpets, etc., be careful not to vacuum very fine dust particles for a long time, thus avoiding the possible accumulation of static electricity in the extension tube.

Use of double nozzle (fine + brush)

For cleaning window frames, gaps or poorly accessible sites, use the double nozzle (thin + brush) H.

For insertion and removal follow the same procedure as described for the floor brush / carpet carpet. If you wish to use the brush, slide it towards the end of the mouthpiece until you hear a “click”, indicating that it is correctly retained. To pick up the brush and leave the fine nozzle, press the round part of the lock / unlock button (quick anchor).

White handheld device with black handle and circular button, no visible text or symbols

USE OF HAND VACUUM CLEANER

This vacuum cleaner can be used as a handheld vacuum cleaner. In such a case it is not necessary to use any accessory since a folding brush is located on the main body of the vacuum cleaner. Or if you wish you can use the double nozzle (fine + brush) to access the gaps or poorly accessible sites.

White manual vacuum cleaner with a black handle and label 'SFA Erdo' on its body, shown with an arrow pointing to the handle (no other text or symbols visible)

Folding brush

Switching the vacuum on and off

To turn on the vacuum press the on / off switch B. Once the use is finished, press the on / off switch B to turn off the vacuum. Then unplug the power cord.

CLEANING AND MAINTENANCE

To obtain the best results during the cleaning process it will always be necessary that both the tank and all the filters are perfectly clean. If you proceed to the work of using the vacuum cleaner and these elements are dirty, the suction power will decrease considerably. Never operate the vacuum cleaner without all filters being correctly positioned and completely clean, otherwise dirt particles can penetrate inside the vacuum cleaner causing engine damage.

Attention: Before cleaning or manipulating the vacuum cleaner, make sure it is unplugged from the mains.

Dust cleaning

• Unplug the vacuum from the mains.
• Hold the tank and press the tank eject button C (Fig. 1).
• Press the opening clip of the tank lid and empty the tank.
• Once the tank has been emptied, remove the cyclone filter by pulling it outwards, as follows:

Technical line drawing of a mechanical component with cross-sectional view and directional arrow (no text or symbols)

- Then separate the particle filter + HEPA filter assembly from the cyclone filter, following figure:

Technical line drawing of a mechanical component with exploded view and arrow indicating direction (no text or symbols)

- Wash the reservoir, the cyclone filter, the particulate filter and the HEPA filter with plenty of water. Never use abrasive products or solvents. Then dry the tank and the cyclone filter with a dry cloth. The particulate filter as well as the HEPA filter must be left to dry on their own, do not use a hair dryer or heater as it will damage the filters.

- Once the tank and filters are clean and completely dry, place them as described below:

a. Close the bottom lid of the tank, a "click" will indicate that it is properly closed.
b. Insert the cyclone filter inside the tank.

Note: The cyclone filter has a position, which is determined by two tabs of different sizes, to place the tank in the correct position.

c. Insert the particulate filter into the HEPA filter holder.
d. Place the particle filter + HEPA filter assembly inside the cyclone filter.
e. and. The reservoir has a flange on the side opposite the suction inlet (square hole). To attach the tank to the main body of the vacuum cleaner, you must insert the tab of the tank into the hole of the support of the main body of the vacuum cleaner (step 1), then push the tank towards the main body of the vacuum cleaner until you hear a “click” (step 2) that it will be the indication that the tank is correctly coupled.

White Mix-Donda washing machine with circular arrows indicating cycle (no text or symbols on the device itself)

Engine filter cleaning

Between the tank and the main body of the vacuum cleaner there is a filter whose function is to prevent the possible particles entering the engine from entering the engine. To clean it gently pull it out (so as not to damage it) and wash it with plenty of water, do not use abrasive or solvent-containing products, then let it dry on its own.

To place it, you must match the four slots of the filter with the four tabs located on the main body of the vacuum cleaner.

Attention: Never connect the vacuum cleaner to the mains without all filters being correctly put in place.

Vacuum cleaning, maintenance and storage

• Check the condition of the parts and accessories (tubes, nozzles, filters, etc.) with some frequency, if necessary replace them.
• Clean the plastic surface with a slightly damp cloth. Never use abrasive or solvent-containing products and do not immerse the vacuum in water or any other liquid.
• To store the vacuum cleaner you can use the wall bracket.

THERMAL PROTECTOR

When the tank is full, the clogged filters or an accessory is clogged (extension tube, nozzle, etc.), it will hinder the passage of air if a prolonged time elapses (without solving the cause that caused the obstruction) and with the vacuum cleaner On, the vacuum motor will get too hot.

The vacuum cleaner has an internal protection (thermal switch) that can be activated when the engine is overheated, which will cause the motor to automatically stop.

If this happens, unplug the vacuum cleaner, solve the cause of the engine overheating (cleaning the tank, filters or unblocking the clogged accessory) and then wait until the engine cools.

TECHNICAL SPECIFICATIONS

Supply voltage 220-240 V \~ 50 Hz

Maximum power 600 W

Suction capacity ≥ 14 kpa

Air flow ≥ 17 liters / sec.

Suction Power ≥ 90 W

Dustbin capacity 0.6 liters

Noise level 80 dB

Cable length 4.5 m

Dimensions 1260 x 260 x 300 mm (L, W, H)

Weight without accessories 2.14 kg

Specifications subject to change without notice.

This product complies with the European Directives 2014/30/EC (EMC – Electromagnetic Compatibility) and the 2014/35/EC (LVD – Low Voltage Directive) relative to Low Tension Security.

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

Telephone of information and Technical Service: [phone]

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

Icon of a person reading a book inside a circle (no text or symbols)

Manual de instrucciones Instruction manual

QR code image containing encoded data, no visible human-readable text

E-MAIL: [e-mail]

http://www.mxonda.es
