USER MANUAL CM362BMX T-FAL

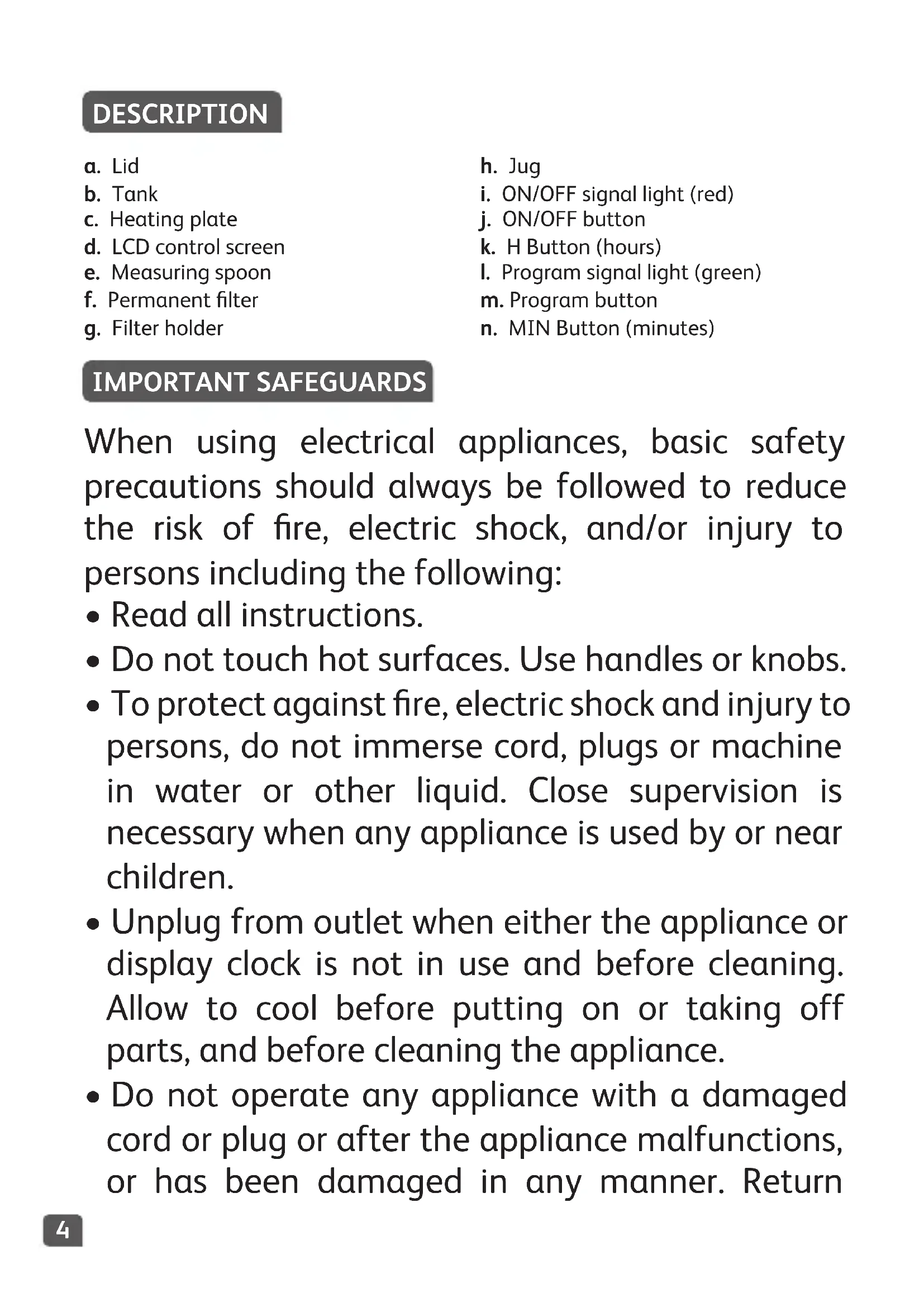

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

• Read all instructions.

• Do not touch hot surfaces. Use handles or knobs.

• To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid. Close supervision is necessary when any appliance is used by or near children.

• Unplug from outlet when either the appliance or display clock is not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return DESCRIPTION a. Lid b. Tank c. Heating plate d. LCD control screen e. Measuring spoon f. Permanent filter g. Filter holder h. Jug

i. ON/OFF signal light (red)

appliance to the nearest authorized service facility for examination, repair or adjustment.

• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• To disconnect, remove plug from wall outlet.

• Do not use appliance for other than intended use.

• The carafe is designed for use with this appliance. It must never be used on a range top.

• Do not place a hot carafe on a wet or cold surface.

• Do not use a cracked carafe or a carafe having a loose or weakened handle.

• Do not clean carafe with cleansers, steel wool pads, or other abrasive material.

• Scalding may occur if the lid is removed during the brewing cycles.

• The coffee-maker shall not be placed in a cabinet when in use.

• The heating element surface is subject to residual heat after use.

SAVE THESE INSTRUCTIONS6

CAUTION This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by your respective country’s Consumer Service department for the service center nearest you, or contact your respective country’s Consumer Service department. To reduce the risk of fire or electric shock, do not attempt to disassemble the machine. Repair should be done by an authorized Service Center only.

SHORT CORD INSTRUCTIONS

a Short power cord or a detachable power cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord accidentally. b Longer detachable power cords or extension cords are available and may be used if care is exercised in their use. c If a long detachable power cord or an extension cord is used:

1. The marked electrical rating of the

detachable power cord or extension cord should be at least as great as the electrical rating of the appliance.7

ADDITIONAL SAFETY INSTRUCTIONS

• This appliance is not intented for used by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Burns can occur from touching hot plate, hot water or steam. Exercise caution.

• All machines are subject to stringent quality control. Practical tests using machines taken at

2. If the appliance is of the grounded type, the

extension cord should be a grounding type 3-wire cord.

3. The longer cord should be arranged so that

it will not drape over the counter where it can be pulled on by children or tripped over accidentally.

4. The appliance have a polarized plug (one

blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.8 random are conducted and this may explain any slight marks or coffee residue showing prior to use.

• Do not pour liquids other than water and descaling solutions specified in this manual into the water tank.

• Protect the machine against humidity and freezing.

• Do not pour water into the appliance if it is still hot.

• Always place your coffee maker on a flat, stable, heat resistant work surface away from water splashes and any external sources of heat.

• Never place your carafe or your insulated pot in a microwave oven or on a stove top.

• Never put your hand inside the insulated pot.

• Do not use the carafe or the insulated pot without the lid.

• Do not use the thermal carafe if the glass inner part inside is broken. If the glass inner part of the carafe is broken, pieces of glass can transfer to your cup.

• In the interest of improving products, SEB reserves the right to change specifications without prior notice.9

• A short power supply cord is provided to reduce the hazards resulting from becoming entangled in or tripping over a long cord.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Your appliance is designed for domestic use only.

• It is not intended to be used in the following applications, and the guarantee will not apply for: – staff kitchen areas in shops, offices and other working environments – farm houses; – by clients in hotels, motels and – other residential type environments bed and breakfast type environments

• Details on how to clean surfaces in contact with food are given in chapter cleaning.

• Warning : avoid spillage on connector.10 USE Before using for the first time

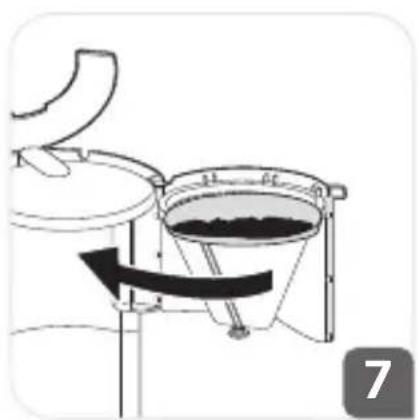

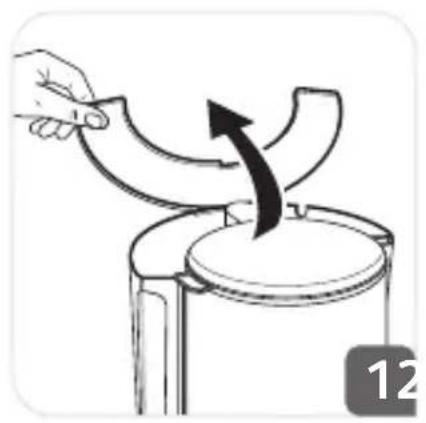

• Use your filter coffee maker without coffee the first time using the equivalent of a jug of water to rinse the circuits. Making coffee (Follow figures 1 to 8)

• Use only cold water.

• Do not exceed the maximum water level indicated on the tank.

• This coffee maker is equipped with a drip stop so that you can serve coffee before the cycle ends. Replace the jug immediately in order to avoid overflowing.

• Wait a few minutes before you make coffee a second time. Programming Setting the time

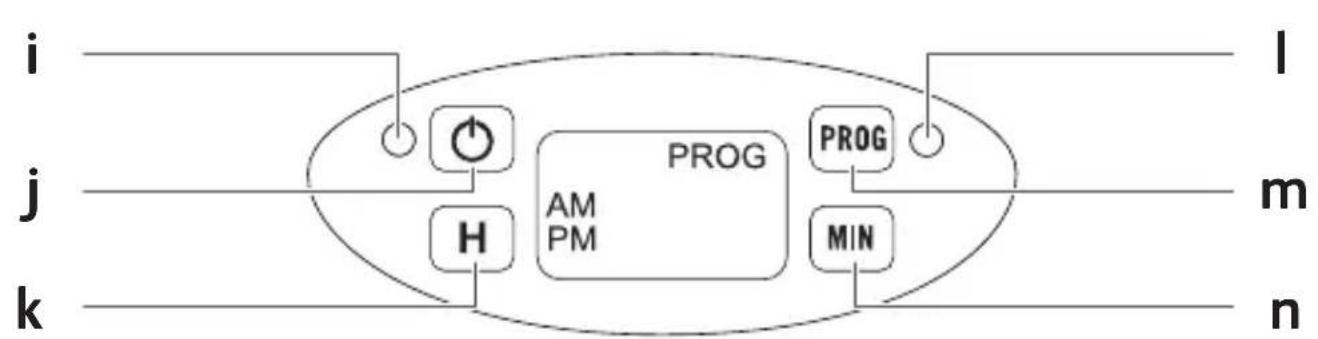

• Plug in the coffee maker. The LCD screen (d) will display AM 12:00 and flashes for a few seconds.

• Press the H Button in order to set the hour. You may do this repeatedly, or continually for faster hour progression.

• AM indicates morning hours and PM, afternoon and evening hours.

• Once you have set the hour, press the MINI button for minutes and follow the same procedure.

• Once the minutes are set, wait for the flashing to stop and the set time will be validated. Otherwise, press the (j) button once.

• The programming will have to be repeated in case of a blackout or if the coffee maker is unplugged.

• PLEASE NOTE: You can set or adjust the time at any moment. Hold the button down for a minimum of 3 seconds . Once the time flashes on the screen, you may adjust the time using the H and Min buttons. Program mode functioning

• In order to program your coffee maker, press the PROG button once.

• Set the hour and minutes according to the time you wish your coffee maker to start (please refer to “Programming”, above).

• Validate the set time by pressing the PROG button once more.11

• The screen will display the set time and the green light signal (l) will turn on.

• In order to display the current time again, briefly press the button.

• At the set time, the red light signal will turn on and the coffee maker will start.

WARNING: The set program is automatically deactivated at the end

of the coffee cycle; however, the set time is saved. Reactivate the set program every day by pressing on the PROG button. In order to set a different time, please refer to paragraph “Using the appliance in the Program Mode”. It is possible at all times:

• Turn your coffee maker ON or OFF by pressing the button.

• Cancel the programming by pressing the PROG button for 2 seconds. When you do so, the green light signal (l) will turn off.

• In order to reactivate the program on your coffee maker, press the PROG button once.

• To change the set time, press the PROG button once more. Manual functioning Follow figures 1 to 8.

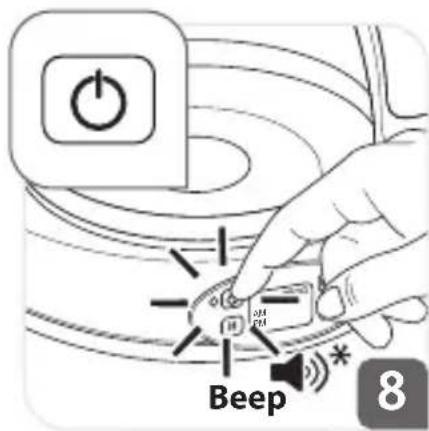

• Press the button. The red light signal will turn on and the coffee maker will start functioning.

• Press the button once more to stop functioning. PLEASE NOTE

• Whether you use your coffee maker manually or in the program mode, it will turn off automatically about 30 minutes after the end of each cycle.

• During those 30 minutes, your coffee will be kept warm, at the right temperature.

• When your coffee maker is switched on, it produces a single “beep” and produces two “beeps” when it is switched off (depending on model).12 CLEANING THINK OF THE ENVIRONMENT!

• To dispose of the used coffee grounds, remove the filter from the coffee maker.

• Unplug the coffee maker and let it cool down.

• Clean with a damp cloth or sponge.

• Do not clean the appliance while it is still hot.

• Never immerse the appliance in water or any other liquid.

• None of the coffee maker parts should be put in the dishwasher. Descaling

• Descale your coffee maker every month or every 40 cycles. You can use: – a packet of descaling agent diluted in two large cups of water. – or two large cups of commercially available white vinegar which can be purchased in hardware stores.

• Pour into the tank (b) and turn on the coffee maker (without coffee).

• Let the equivalent of one cup pour into the jug, then turn the coffee maker off.

• Allow the liquid to stand for one hour.

• Restart the coffee maker and let the rest of the liquid pass through to the jug.

• To rinse, run the coffee maker 2 or 3 more times with the equivalent of one glass jug of water. The guarantee does not cover coffee makers that malfunction or cease to operate because they have not been regularly descaled. Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point or at an approved service centre, where it will be disposed of properly. European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances are not thrown into the normal flow of municipal waste. Old appliances must be collected separately in order to optimize the recovery and recycling of materials they contain and reduce the impact on human health and the environment.
