USER MANUAL CFPWD15T FRIGIDAIRE
Use these instructions to mount pedestal under washer and dryer style to the right with mechanical style timers.
WHITE KIT COMPONENTS:
D 1 Left Front bracket.
E 1 Right Front bracket.
F 2 Rear brackets.
COMPOSANTS DU NÉCESS. BLANC :
C 14 #10 (16 x .500) screws.
COMPOSANTS DU NÉCESSAIRE DE VIS:
C 14 vis n° 10 (16 x .500).
PIEZAS DEL KIT (TORNILLOS):
C 14 tornillos n.° 10 (16 x .500).
C

Tools needed: / Outils nécessaires: / Herramientas necesarias:

Optional universal wrench available from dealer
OR OU O

Adjustable wrench
Clé à molette
Llave ajustable
OR OU O

9/16" or 14 mm box wrench
Phillips screwdriver
Tournevis Phillips
Destornillador Phillips
AND ET Y

Carpenter's level Niveau de charpentier Nivel de carpintero
Failure to disconnect from power source • before stacking could result in personal injury or even death.
Improper installation of dryer venting • could result in personal injury or damage to property.
To avoid back or other injury, have more than one person move or lift the washer or dryer.
Do not stack a dryer on top of washer • already installed on pedestal.
⚠ AVERTISSEMENT
English continued on page 2.
NOTE Due to higher center of gravity of appliance on pedestals, some side-to-side rocking is normal during operation. Vibration can be minimized by assuring appliance is installed properly, including being level and solid on all four (4) legs by following these directions.

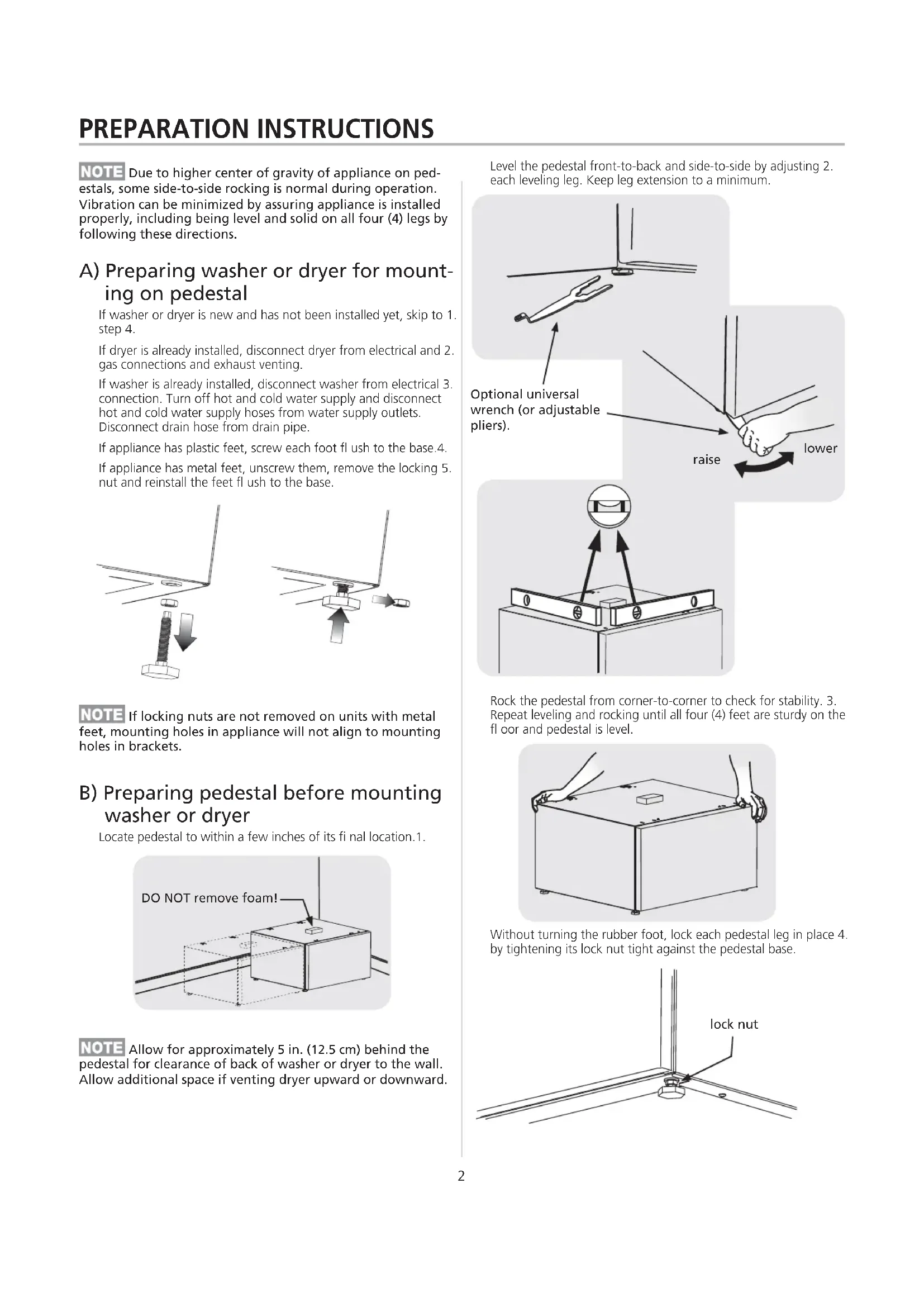

A) Preparing washer or dryer for mounting on pedestal
If washer or dryer is new and has not been installed yet, skip to 1. step 4.
If dryer is already installed, disconnect dryer from electrical and 2. gas connections and exhaust venting.
If washer is already installed, disconnect washer from electrical 3. connection. Turn off hot and cold water supply and disconnect hot and cold water supply hoses from water supply outlets. Disconnect drain hose from drain pipe.
If appliance has plastic feet, screw each foot fl ush to the base.4.
If appliance has metal feet, unscrew them, remove the locking 5. nut and reinstall the feet flush to the base.
B) Preparing pedestal before mounting washer or dryer

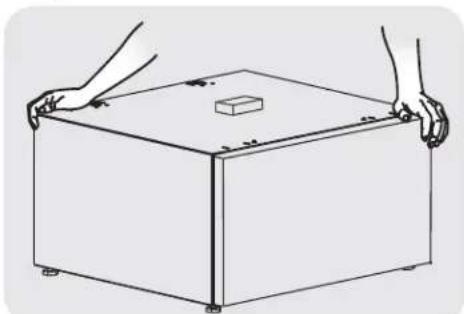

Locate pedestal to within a few inches of its final location.1.


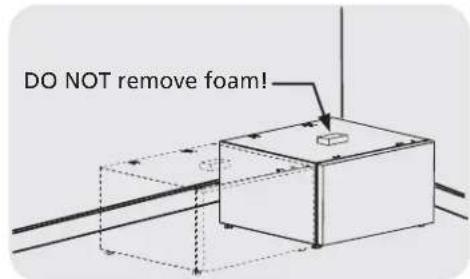

DO NOT remove foam!NOTE Allow for approximately 5 in. (12.5 cm) behind the pedestal for clearance of back of washer or dryer to the wall. Allow additional space if venting dryer upward or downward.

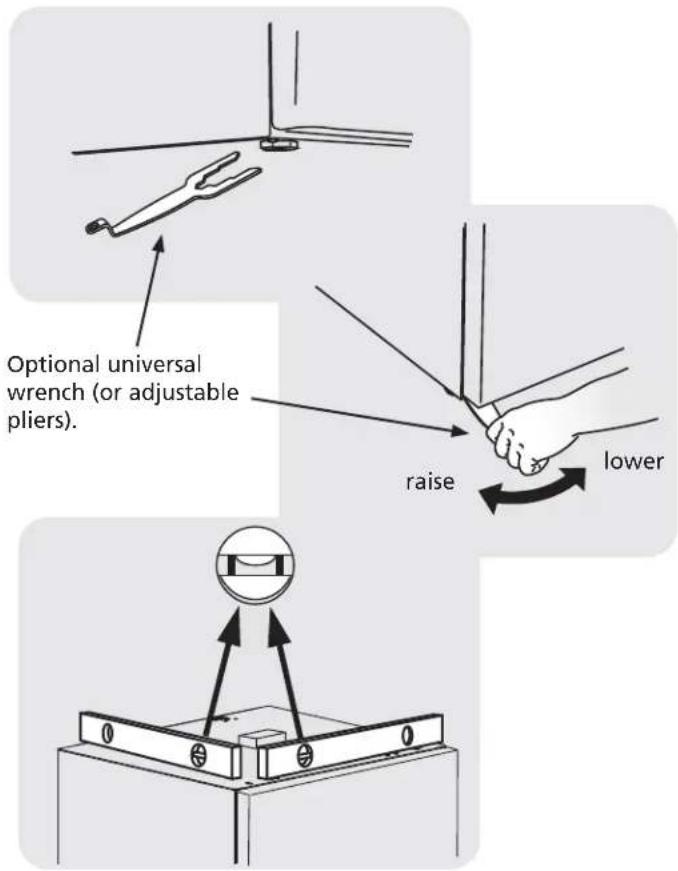

Level the pedestal front-to-back and side-to-side by adjusting 2. each leveling leg. Keep leg extension to a minimum.
C1) Attaching washer mounting hardware
Use the following instructions for mounting this type of washer 1. to the pedestal:


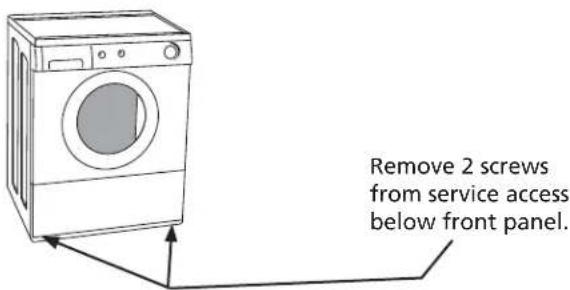

Remove 2 screws from service access below front panel.Remove lower service access panel.2.
Remove 2 lower screws from backsheet of washer. Save screws to 3 reinstall later.
Remove 2 screws from washer backsheet.

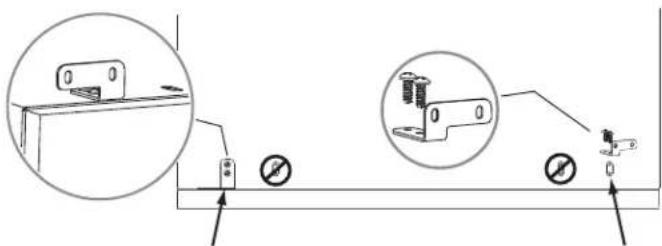

Attach each front clip to outer-most set of holes with 2 screws.4.


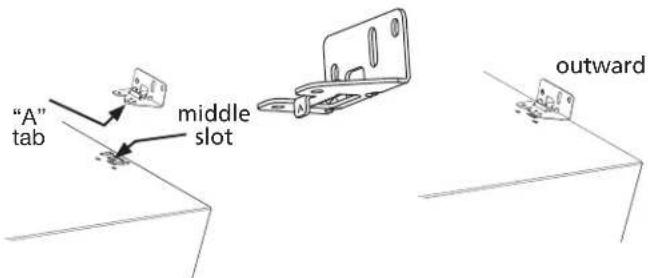

"A" tab middle slot outward- Install 2 screws through each rear bracket into aligning pedestal holes.


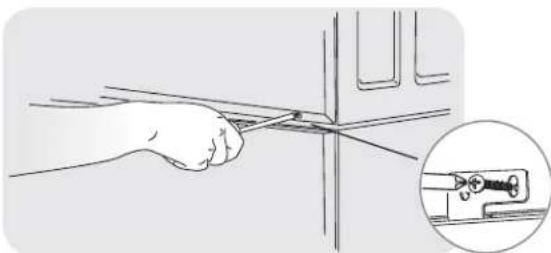

Line drawing of a mechanical component with a screwdriver inserted into a corner (no text or symbols)D1) Mounting washer
CAUTION - EXCESSIVE WEIGHT HAZARD - To avoid back or other injury, have more than one person move or lift the washer.
Using two or more persons, slightly tip the washer back and lift it 1. onto the pedestal. Still tipped, slide the washer back against the rear brackets and gently set down the front so the appliance is between the front and rear brackets.


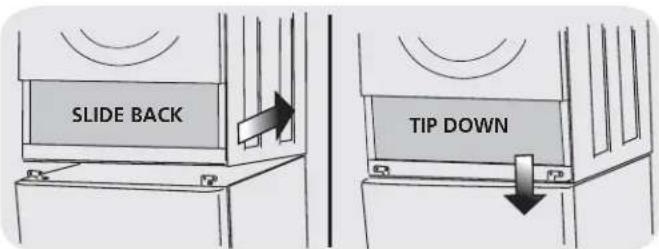

SLIDE BACK TIP DOWNAdjust the appliance side-to-side to align its mounting holes with 2. the pedestal's bracket holes.
Reinstall backsheet screws removed earlier through each rear 3. bracket into the base of the washer.
Reinstall the 2 screws removed earlier through the outer hole of each front bracket into the base of the washer.
Slide appliance/pedestal into place.1.
Check for levelness and rock all four (4) legs again. Repeat until 2. level and solid.
Refer to 3. Washer Installation Instructions for complete details on installing water, drain, or electrical.
C2) Attaching dryer mounting hardware D2) Mounting dryer
Use the following instructions for mounting this type of dryer to 1. the pedestal:


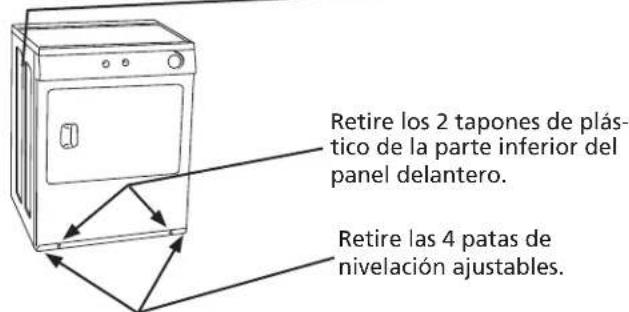

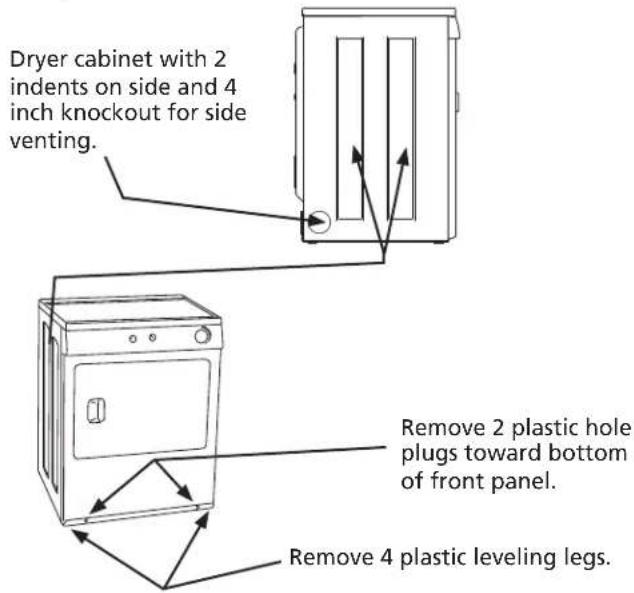

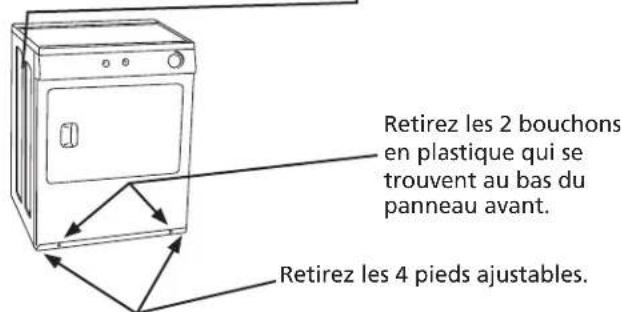

Dryer cabinet with 2 indents on side and 4 inch knockout for side venting. Remove 2 plastic hole plugs toward bottom of front panel. Remove 4 plastic leveling legs.Remove all 4 adjustable leveling legs from the appliance base 2. and save for future use.
Remove 2 plastic hole plugs toward bottom of front panel.3.

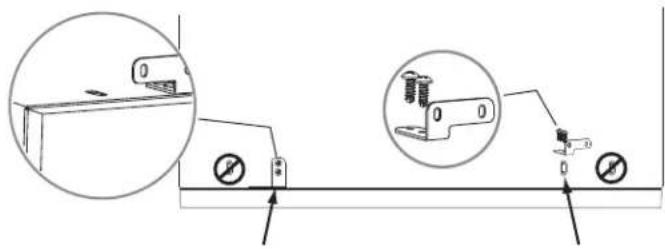

Attach each front clip to outer-most set of holes with 2 screws.4.


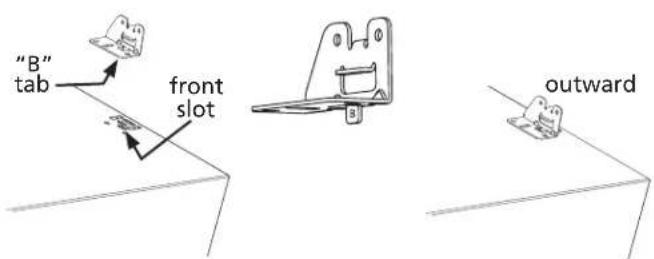

"B" tab front slot outward- Install 2 screws through each rear bracket into aligning pedestal holes.


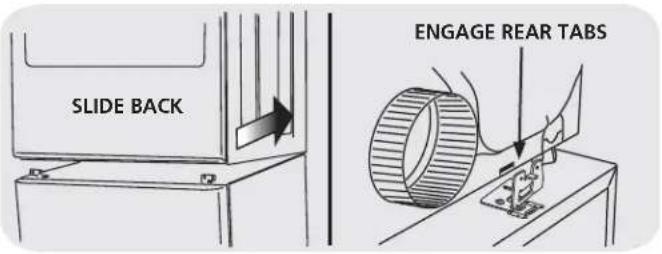

Using two or more persons, slightly tip the dryer back and lift it 1. onto the pedestal. Still tipped, slide the dryer back against the rear brackets so tabs on rear brackets engage the slots on the back of the dryer. Gently set down the front so the appliance is between the front and rear brackets.
Install a screw through the inner hole of each front bracket into 3. the base of the dryer.
E2) Installing or re-installing dryer
Slide appliance/pedestal into place.1.
Check for levelness and rock all four (4) legs again. Repeat until 2. level and solid.
Refer to 3. Dryer Installation Instructions for complete details on installing electrical, gas, or exhaust venting.
REMARQUE
Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)text_image
Technical diagram showing mechanical assembly with zoomed-in detail and force indicatorsnatural_image
Simple line drawing of a screwdriver inserted into a workpiece on a flat surface (no text or symbols)natural_image
Pure technical line drawing of a mechanical bracket or rail assembly without any text, numbers, or symbolsnatural_image
Illustration of a hand holding a tool near a vertical pipe or outlet, with an inset showing a close-up of the tool (no text or symbols present)natural_image
Pure diagram of a mechanical or electrical component with directional arrows, no text or symbols present
Line drawing of a sewing machine needle on a flat base (no text or symbols)natural_image
Illustration of a hand holding a tool near a vertical panel, with an inset showing a close-up of a device (no text or symbols present)natural_image
Diagram showing two mechanical assembly steps with arrows indicating motion (no text or symbols)natural_image
Line drawing of a cube with two hands holding it, one open and one closed (no text or symbols)natural_image
Line drawing of a front-loading washing machine with control panel and side-mounted buttons (no text or symbols)natural_image
Diagram of a computer monitor front panel with ventilation slots and directional arrows indicating orientation (no text or symbols)text_image
Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force directions.natural_image
Pure technical line drawing of a mechanical assembly without any text, numbers, or symbolsnatural_image
Pure technical line drawing of a mechanical assembly without any text, numbers, or symbolsnatural_image
Illustration of a hand using a tool to cut or install a component, with an inset showing a close-up of the component (no text or symbols present)natural_image
Simple line drawing of a rectangular device with internal vertical bars and directional arrows (no text or symbols)
Line drawing of a sewing machine needle and base (no text or symbols)natural_image
Illustration of a hand holding a tool near a vertical panel, with an inset showing a close-up of a device (no text or symbols present)Full One Year Warranty on Mechanical Parts
For one year from date of purchase, when this pedestal is installed with the listed washer or dryer (see owners manual for specific model) and operated according to the information in the Use and Care Guide, Operating Instructions and Installation Instructions, the supplier will repair or replace any of its mechanical parts if they are defective in workmanship or material. Keep your bill of sale. The date of the bill establishes the warranty period should parts be required. This written warranty gives you specific rights. You may also have other rights which vary from state to state.
Warranty Restriction
If the pedestal is used for any other purpose than private family use or used with any product that requires modification for installation, the warranty is null and void.
Warranty Parts
Warranty parts are available by contacting the supplier where the pedestal was purchased or refer to the Use and Care Guide that came with the washer or dryer that is installed on the pedestal for contact information.
PRODUCT RECORD
In the space below, record the date of purchase and model number of the product.
Model No.:
Date of Purchase:
Save these instructions and your sales receipt for future reference.
