X9 - Smartphone HONOR - Free user manual and instructions

Product type	Smartphone
Brand	Honor
Model	X9 (ANY-LX1 / ANY-LX2)
Power supply	Built-in non-removable battery
Connectivity	NFC, Bluetooth 2.4 GHz, Wi-Fi 2.4/5 GHz, GSM, WCDMA, LTE
Frequency bands (ANY-LX1)	GSM900/1800, WCDMA900/2100, LTE B1/3/7/8/20/28, Bluetooth 2.4 GHz, Wi-Fi 2.4/5 GHz (5150-5850 MHz), NFC 13.56 MHz
Frequency bands (ANY-LX2)	GSM900/1800, WCDMA900/2100, LTE B1/3/7/8/20/28/38/40/41, Bluetooth 2.4 GHz, Wi-Fi 2.4/5 GHz, NFC 13.56 MHz
Sensors	Fingerprint sensor (integrated into power button)
Ports	USB Type-C, headphone jack, SIM card slot
Main functions	Calls, SMS, 4G, Wi-Fi, Bluetooth, NFC, camera, GPS, Android apps
Operating system	Android (trademark of Google LLC)
Safety	Avoid excessive heat and direct sunlight; use approved accessories; keep at least 15 cm from a pacemaker; do not use while driving; follow airplane guidelines
Care and cleaning	Do not use in a dusty, humid, or dirty environment; clean with a soft, dry cloth
Operating temperature	0°C to 35°C
Storage temperature	-20°C to 45°C
SAR value (ANY-LX1)	Head: 0.84 W/kg; Body: 1.27 W/kg
SAR value (ANY-LX2)	Head: 1.15 W/kg; Body: 1.28 W/kg
Regulatory compliance	RED Directive 2014/53/EU
Recycling	Compliant with RoHS and battery directives; do not dispose of with household waste
Spare parts and repairability	Battery replaceable only by an authorized service center
General information	Trademarks: Android, Bluetooth, Wi-Fi are registered trademarks. Website: https://www.hihonor.com

Frequently Asked Questions - X9 HONOR

How to turn the Honor X9 on or off?

To turn on, press and hold the power button until the screen lights up. To turn off, press and hold the same button, then touch the power off option.

How to insert the SIM card into the Honor X9?

Use the provided ejector pin to open the card tray. Insert the SIM card with the notch first, following the orientation. Do not use cut or modified SIM cards.

How to force restart the Honor X9?

If the device is unresponsive, press and hold the power button for 10 seconds or more until it restarts.

What safety precautions should I follow?

Avoid excessive heat and direct sunlight. Use only approved accessories. Keep at least 15 cm away from a pacemaker. Do not use the device while driving or on an airplane without authorization.

What is the recommended distance from a pacemaker?

It is recommended to keep a minimum distance of 15 cm between the device and a pacemaker to avoid interference.

How to recycle my Honor X9?

In accordance with local regulations, do not dispose of the device with household waste. Take it to a designated collection point for electrical and electronic equipment.

Which LTE frequency bands are supported?

The ANY-LX1 model supports LTE bands 1/3/7/8/20/28; the ANY-LX2 additionally supports bands 38/40/41.

What is the SAR value of the Honor X9?

For ANY-LX1, SAR head: 0.84 W/kg, body: 1.27 W/kg. For ANY-LX2, SAR head: 1.15 W/kg, body: 1.28 W/kg.

How to clean my Honor X9?

Use a soft, dry cloth. Do not use the device in a dusty, humid, or dirty environment to avoid damaging internal circuits.

Where to find more information about my device?

Visit https://www.hihonor.com for device information, or https://www.hihonor.com/global/support/ for support contacts. You can also check Settings and search for keywords like 'Legal information'.

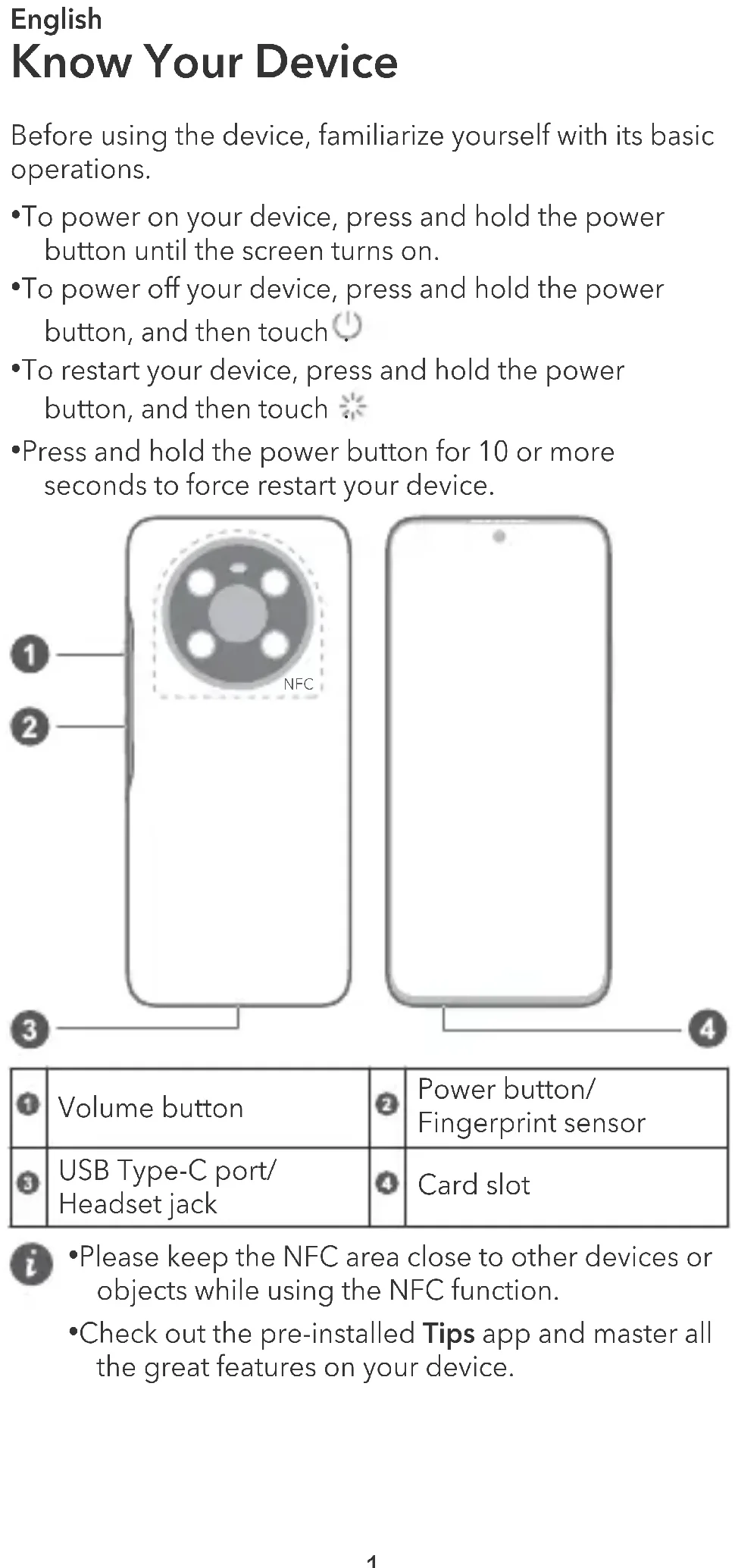

USER MANUAL X9 HONOR

Before using the device, familiarize yourself with its basic operations.

•To power on your device, press and hold the power button until the screen turns on.
•To power off your device, press and hold the power button, and then touch ⏻
•To restart your device, press and hold the power button, and then touch
- Press and hold the power button for 10 or more seconds to force restart your device.

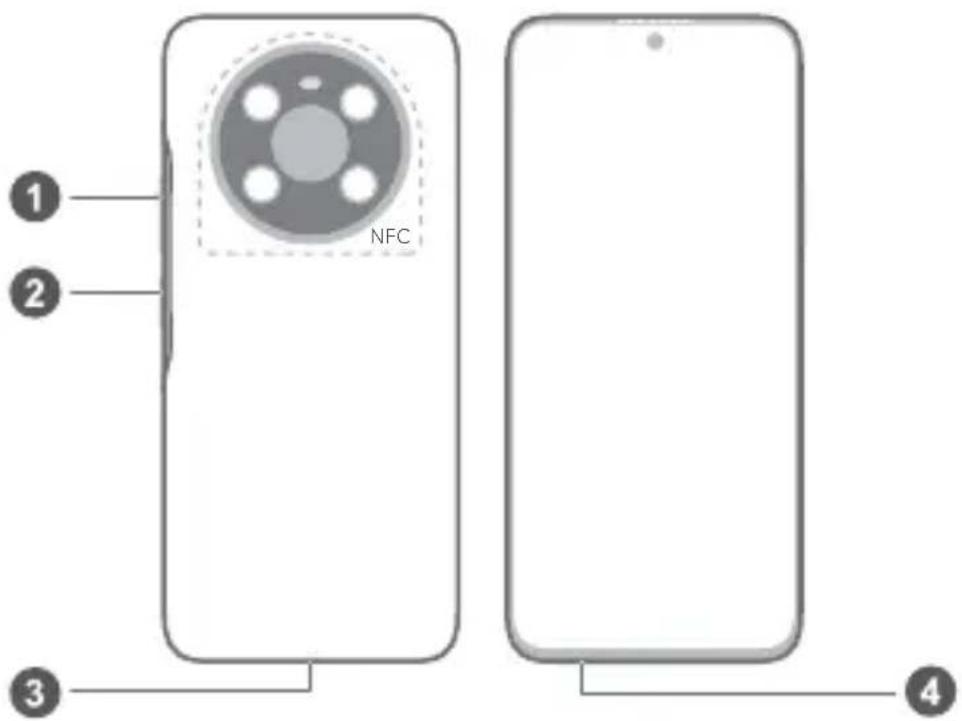

1	Volume button	2	Power button/Fingerprint sensor
3	USB Type-C port/Headset jack	4	Card slot

• Please keep the NFC area close to other devices or objects while using the NFC function.
• Check out the pre-installed Tips app and master all the great features on your device.

Getting Started

• Be careful not to scratch your device or hurt yourself when using the eject pin.
• Store the eject pin out of the reach of children to prevent accidental swallowing or injury.
• Do not use cut or modified SIM cards with your device as these may not be recognized and could damage the card tray (slot).
• If your SIM card does not match your device, please contact your carrier.

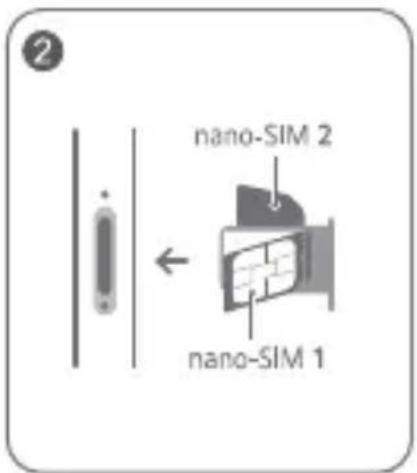

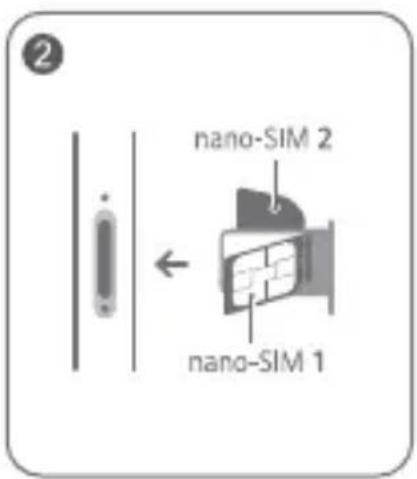

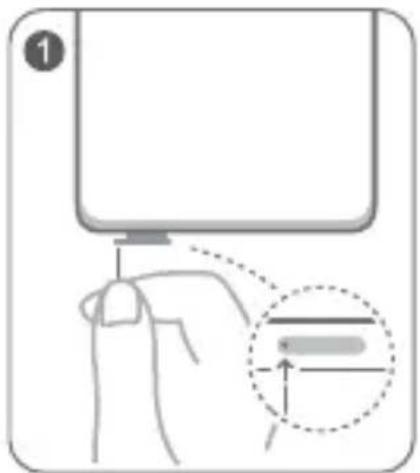

Follow the instructions in the following figures to set up your device. Please use the eject pin included.

Ensure that the card is correctly aligned and its notch is first inserted into the card tray.

SIM Card Management

Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app.

•4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 4G service.
- 4G service may be unavailable in certain areas due to network interference.
- If this guide is inconsistent with the description on the official website, the latter prevails.

For More Information

If you encounter any problems while using your device, you can obtain help from the following resources:

• Visit https://www.hihonor.com to view device information and other information.
• Visit https://www.hihonor.com/global/support/ for the most up-to-date contact information for your country or region.
• Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information.

Safety Information

Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.

Operation and safety

• To prevent possible hearing damage, do not listen at high volume levels for long periods.
• Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards.
- Ideal operating temperatures are 0^ to 35^ . Ideal storage temperatures are -20^ to +45^ .
- Pacemaker manufacturers recommend that a minimum distance of 15cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
- Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators.
- Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving.
- While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal.

• In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field.
- When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.
- Unplug the charger from electrical outlets and the device when not in use.
- Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire.
- Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode.
- Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards.
- Please consult your doctor and the device manufacturer to determine if using your device may interfere with the operation of your medical device.
- Adhere to any rules or regulations set forth by hospitals and health care facilities.
- This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact an authorized service center for a replacement.

Potentially Explosive Atmosphere

Power off your device in any area with a potentially explosive atmosphere, and comply with all signs and instructions. Areas that may have potentially explosive atmospheres include the areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do not power

on your device at refueling points such as service stations. Comply with restrictions on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical plants. In addition, adhere to restrictions in areas where blasting operations are in progress. Before using the device, watch out for areas that have potentially explosive atmospheres that are often, but not always, clearly marked. Such locations include areas below the deck on boats, chemical transfer or storage facilities, and areas where the air contains chemicals or particles such as grain, dust, or metal powders. Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or butane) whether this device can be safely used in their vicinity.

Disposal and Recycling Information

The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment.

For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://www.hihonor.com/.

Reduction of hazardous substances

This device and its electrical accessories comply with local applicable rules on the restricted use of certain hazardous substances in electrical and electronic devices, such as the Restriction of Hazardous Substances Directive (RoHS) and Batteries Directive (where batteries are included).

RF Exposure Information

The World Health Organization has stated that exposure can be reduced by limiting your usage or simply using a hands-free kit to keep the device away from the head and body.

Ensure that the device accessories, such as a device case and device holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.

For the countries that adopted the SAR limit 2.0 W/kg over 10 grams of tissue.

The device complies with RF specifications when used near your ear or at a distance of 0.50 cm from your body.

ANY-LX1: The highest reported SAR value: head SAR: 0.84 W/kg; body SAR: 1.27 W/kg.

ANY-LX2: The highest reported SAR value: head SAR: 1.15 W/kg; body SAR: 1.28 W/kg.

EU Regulatory Compliance

Hereby, Honor Device Co., Ltd. declares that this device is in compliance with the Radio Equipment Directive 2014/53/EU (RED). For more details, please refer to the EU Declaration of Conformity at https://www.hihonor.com/global/legal/certification/.

Frequency Bands and Power

The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows:

ANY-LX1	GSM900: 35.5dBm, GSM1800: 32.5dBm, WCDMA900/2100: 25.7dBm, LTE Band 1/3/7/8/20/28: 25.7dBm, Bluetooth 2.4GHz: 20dBm, Wi-Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 23dBm, 5470-5725MHz: 23dBm, 5725-5850MHz: 14dBm, NFC 13.56MHz: 42 dBμA/m @ 10 m
ANY-LX2	GSM900: 35.5dBm, GSM1800: 32.5dBm, WCDMA900/2100: 25.7dBm, LTE Band 1/3/7/8/20/28/38/40/41: 25.7dBm, Bluetooth 2.4GHz: 20dBm, Wi-Fi 2.4GHz: 20dBm, Wi-Fi 5G: 5150-5250MHz: 23dBm, 5250-5350MHz: 23dBm, 5470-5725MHz: 23dBm, 5715-5850MHz: 14dBm, NFC 13.56MHz: 42 dBμA/m @ 10 m

Legal Notice

Trademarks and Permissions

Android is a trademark of Google LLC.

LTE is a trademark of ETSI.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Honor Device Co., Ltd. is under license.

Wi-Fi ^® , the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-Fi Alliance.

Copyright © Honor Device Co., Ltd. 2022. All rights reserved.

ALL PICTURES AND ILLUSTRATIONS IN THIS GUIDE, INCLUDING BUT NOT LIMITED TO THE DEVICE COLOR, SIZE, AND DISPLAY CONTENT, ARE FOR YOUR REFERENCE ONLY. THE ACTUAL DEVICE MAY VARY. NOTHING IN THIS GUIDE CONSTITUTES A WARRANTY OF ANY KIND, EXPRESS OR IMPLIED.

Privacy Policy

To better understand how we protect your personal information, please see the privacy policy at https://www.hihonor.com/privacy-policy/worldwide/.
