Product type	Table oven
Brand	Steba
Model	KB M9
Temperature range	70 °C to 210 °C
Timer type	Mechanical, up to 30 minutes
Included accessories	Grid, baking sheet, sheet support, crumb tray
Glass door	Double glazing
Operation indicator	Yes, red
End-of-cooking beep	Yes
Recommended preheating	Yes, about 10 minutes
Grid height adjustment	Yes, by turning the grid
Removable crumb tray	Yes, easy to clean
Maintenance	Clean with a damp cloth and dish soap; door with glass cleaner; accessories with hot water
Safety	Hot surfaces, minimum distance 10 cm, do not immerse
Repairability	Original spare parts; repair by authorized after-sales service
Usage	Private and domestic use
Heating elements	Electric heating elements
Safety distance	At least 70 cm from flammable materials
Control type	Rotary thermostat and mechanical timer
Placement surface	Flat, stable and heat-resistant

Frequently Asked Questions - KB M9 STEBA

How to preheat the KB M9 oven?

Plug in the appliance, set the thermostat to the desired temperature (e.g. 180 °C) and wait until the heating elements are no longer glowing (first thermostat cycle). This takes about 10 minutes.

How to set the timer?

The timer is mechanical. Wind it fully to 30 minutes, then set the desired cooking time. The appliance starts automatically. To turn off, set the timer back to 0.

What to do if the food is not browned enough?

Increase the cooking time or temperature as needed. You can also preheat longer.

How to clean the crumb tray?

Place the appliance on its back, press the crumb tray button downward and pull it forward. Clean it with hot water, then put it back in place.

Can I use aluminum foil in the oven?

No, never wrap food in aluminum foil in the oven, as this can cause thermal shock and damage the appliance.

What accessories are included with the oven?

The oven comes with a grid, a baking sheet, a sheet support and a crumb tray.

What is the safety distance around the appliance?

Leave at least 10 cm of space around the appliance and at least 70 cm from flammable materials.

Can the appliance be used by children?

Yes, children over 8 years can use it under supervision. Cleaning must not be done by children unless they are over 8 and supervised.

What to do in case of malfunction?

Unplug the appliance and contact an authorized after-sales service. Do not attempt to repair yourself, as repairs must be carried out by a qualified electrician.

How to clean the inside of the oven?

Clean the inside with a damp cloth and a little dish soap. For the door, use a glass cleaner. The accessories can be cleaned with hot water. Wipe and dry thoroughly.

USER MANUAL KB M9 STEBA

Instructions for use 9

Mode d'emploi 16

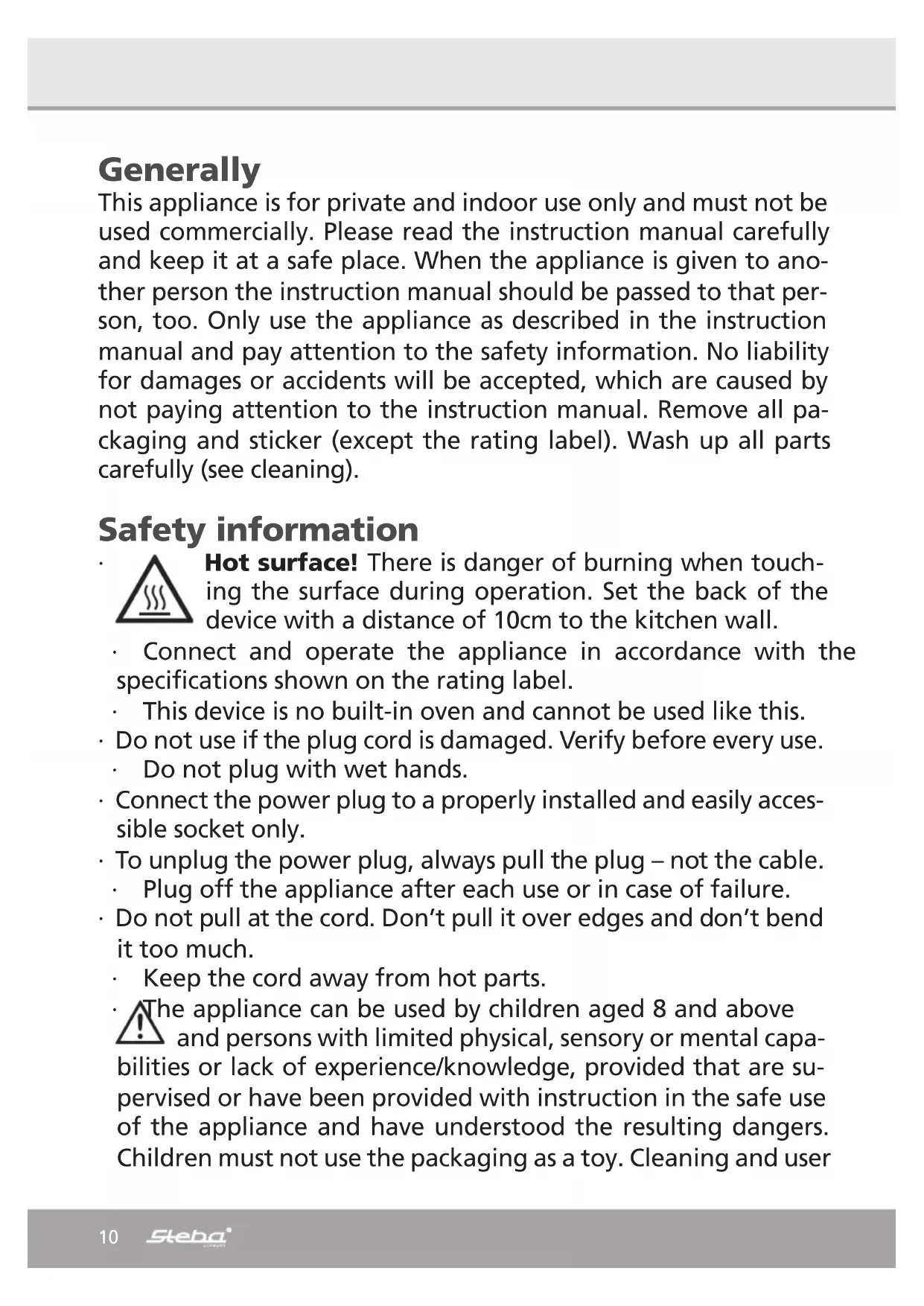

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker (except the rating label). Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation. Set the back of the device with a distance of 10cm to the kitchen wall.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

This device is no built-in oven and cannot be used like this.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user

maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

• Never place anything on top of the device and do not cover the ventilation slots.

• Never immerse the unit in water.

• Leave a space of about 10 cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

The device gets hot, only transport after it cooled down.
- Only use the device as described in this manual.

• You must not wrap the grill with tin foil (accumulation of heat).
• You must not put any materials such as paper, cardboard, plastic etc. into the appliance.
• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type en- vironments
o bed and breakfast type environments.

• Before initial use: clean all parts - except the heating elements - carefully and leave to dry. Heat up the device for about 15 min. to eliminate the smell of newness.

Attention! Housing and glass get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at

least 70cm to burnable materials.
- During operation steam emerge. Keep hands and face away.
- If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.
- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
- Make sure that children do not tease the cable or that a trip hazard occurs.
- The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
- Attention: as dripping fats can easily ignite the radiator, never grill without a pan! When removing the full pan, do not tip any grease on the radiator.
- Please use the enclosed handle to remove the wire grill and baking tray.
Clean after every use.
- Hygiene: Please always clean the device to avoid bacteria and mold formation.

Cleaning

Attention! Pull the plug before cleaning and allow the device to cool down.

• Never immerse the unit into water.

• Fat residues must be removed for reasons of hygiene and fire hazard.

• Do not use abrasives, oven spray or solvents.
• Clean the housing and the interior with a damp cloth with detergent, clean the glass with glass cleaner and dry.

The accessories can be cleaned in hot water and then dried.

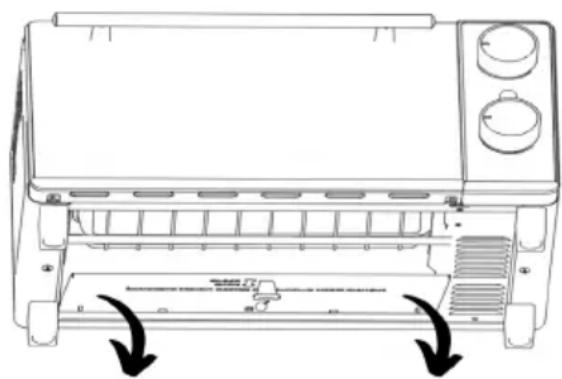

To clean the crumb flap, place the appliance on its back. Then press the button on the flap down and pull the flap forward. After cleaning, snap the flap back into place.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Temperature (No.1)

The temperature can be set infinitely variable between 70 and 210^

Power (No. 2)

The power control light indicates the operation of the device. It starts to light up as soon as the timer is set and no longer lights up when the timer has expired.

Timer (No. 3)

Fully inflate the watch (turn to 30 min) and then reset to the desired time. Please consider the preheating time of 10 minutes when setting the time. If the food is not brown enough, then extend the time.

Note: The device only works when the timer is set. If you want to turn off the device, set the timer back to position 0.

Backing tray (No. 9)

The baking tray can only be placed on the wire grill.

Wire grill (No. 10)

By turning the wire grill you can determine the distance to the heating elements.

Getting started

Pay attention that the crumb flap on the bottom side of the device is always closed.
- Connect the device.
If the timer is set, the red light shows that the device is turned on.
- Set regulator to the required degree setting (e.g. 180^ )
- Please note: Do not put any food into the oven until the oven has been pre-heated.
- Pre-heat the device until the heating elements are no longer glowing (i.e. until the regulator switches for the first time)
- You can now put food into the oven. Please note when doing this: It can take several minutes for the thermostat to operate and the heating elements to glow again, since the temperature is stored in the device because of the double pane of glass. This is not a defect in the device, and therefore not a cause for complaint. The oven door must be closed!
- Set the cooking time using the timer.
- When the time has elapsed, a signal sounds and the light switches off.

Important! Always preheat the device. The device can smoke slightly at the beginning. Do not put oversized food in the appliance so that there is no contact with the heating elements.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
