051775 - Air Stripper GYS - Free user manual and instructions

Product type	Pneumatic stripper
Brand	GYS
Model	051775
Rotation speed	4,000 rpm
Power	500 W
Length	280 mm
Weight	1,200 g
Noise level	86 dB
Air consumption	102 L/min
Recommended air pressure	6.2 bars (max 6-7 bars)
Air inlet	1/4"
Included accessories	1 stripper, 1 rubber wheel, 1 stripping wheel, 1 adapter, 3 stripping brushes
Compatible consumables	Brush adapter (ref 051768), hard brush 103×23 mm, coupling brush, stripping wheel 114×14 mm, rubber wheel (ref 051874)
Power supply	Compressed air, requires filter-regulator-lubricator
Warranty	2 years (parts and labor)
Maintenance	Regular lubrication with special pneumatic tool oil
Safety	Wear eye, ear protection and gloves; do not direct air jet at others; max pressure 6-7 bars
Recommended use	Stripping paint, fillers, coatings; carpet renovation with hook brushes
Operating environment	Do not use in explosive areas
Repairability	Original parts available from supplier; after-sales service after warranty upon estimate

Frequently Asked Questions - 051775 GYS

How to use the GYS 051775 pneumatic stripper?

Connect the tool to a compressed air network equipped with a filter-regulator-lubricator set to 6.2-7.5 bars. Make sure accessories are securely attached. Use the tool holding it firmly, without forcing. For more details, consult the manual.

What accessories are included with the tool?

The stripper comes with: 1 rubber wheel, 1 stripping wheel, 1 adapter, and 3 stripping brushes.

What air pressure is recommended?

The recommended air pressure is 6.2 bars, with a maximum limit of 6 to 7 bars. Never exceed this value.

How to maintain the pneumatic stripper?

Before each use, check the hoses and connections. Introduce a few drops of special pneumatic tool oil into the air inlet. Regularly purge filters and pipes.

What safety precautions should be taken?

Wear eye and hearing protection and gloves. Never point the air jet at yourself or others. Maintain a safe distance. Do not carry the tool by the hose.

What to do in case of breakdown?

Return the device to the GYS factory with proof of purchase and an explanatory note. Under the 2-year warranty, repairs are covered. After warranty, an estimate will be provided.

How to lubricate the tool?

Use a special pneumatic tool oil. At the start of the day, pour a few drops directly into the air inlet. For installations with a lubricator, set to approximately 1 drop every 30 seconds for 100 L/min of air.

What types of brushes can be used?

You can use hard brushes 103×23 mm (bristles 0.7 mm, ref 051812) or coupling brushes (bristles 0.5 mm, ref 051850). The brush adapter (ref 051768) is required.

Does the warranty cover normal wear?

No, the 2-year warranty covers manufacturing defects, but not normal wear of parts nor incidents due to misuse, drop, or disassembly.

Where to find spare parts?

Original parts are available from the GYS supplier. Use only original parts for maintenance. Contact the GYS after-sales service.

USER MANUAL 051775 GYS

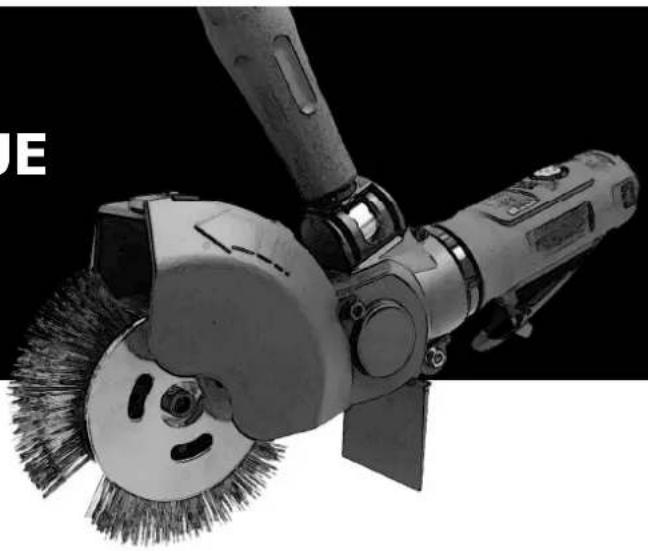

COFFRET DECAPEUSE PNEUMATIQUE

Réf.: 051775

CONDITIONS DE GARANTIE

Declaration of conformity 2
Precautions and warnings before use 3
Power supply 3
Commissioning of the system 3
Use of the system 3
Maintenance 3
Composition 3
Operation 3
Recommendation 3
Description 3
Settings 4
Use of the tool 4
Technical specifications 4
Warranty 4

To reduce the risk of physical damage, all persons operating, installing, servicing, repairing, maintaining, or replacing accessories, as well as those who work near the tool, must read and understand these instructions.

Possible risks from power supply and connections

• Pressurized air can cause serious damage.
• Always stop the air distribution and disconnect the tool from the network to replace accessories, repair it or if you are not using it.
• Do not direct the air jet at other people or yourself; always use the tool at a safe distance from people near the work area.
• Whipping of pipes can cause serious damage; check pipes and connections carefully for loss or breakage.
• Do not use the quick-change couplings on the tool, as they may cause the tool to become heavy and loose due to vibration
• Read the instructions for correct assembly.
• Whenever you use universal swivel couplings, use a locking pin.
• Do not exceed the maximum limit of 6/7 air pressure of the value indicated on the air tool insert.
• Handle hoses and connectors with care. Do not transport the tool by handling the pipe. Do not pull it by force to disconnect it from the air supply. Keep pipes away from heat sources, lubricants and sharp edges. - Check the hoses for wear before use. Check that all connections are secure.

Risks caused by fragments

• Always use eye and face protection when using the tool.
• Smaller fragments could also cause eye damage and blindness.
• The explosion of pneumatic tools can cause serious damage.

How to avoid the risk of becoming entangled

• Keep a suitable distance from working drills, blades, moving tools, etc.
• Do not wear rings or loose clothing.
• When you are near the tool and its accessories, pay attention to the hair as it could get tangled.

Risks caused by operation

• Avoid direct contact with the shaft and its accessory if they are in motion to prevent cutting.
• Use protective gloves.
• Do not modify the tool and its accessories.
• Operators and maintenance personnel must be physically able to manage the power of the tool and monitor the necessary operations.
• Do not force the tool; if you use it at the speed for which it was designed, its performance will be better.

Dangers caused by working conditions

• Slipping, tripping and falling are the main causes of accidents.
• The high noise level can cause permanent damage to hearing. Employers and occupational safety bodies recommend the use of ear protection.
• Keep your body in balance and firmly on your feet. Repetitive work movements, unusual positions and exposure to vibration can be harmful to your hands and arms. In case of numbness, tingling, pain or pallor, stop using the tool and see a doctor.
• This tool is not suitable for use in hazardous areas.

Safety standards for the use of the tool.

• Handle the tool with care to ensure prolonged performance over time.
• Wear eye and ear protection, a half mask and protective gloves when using the tool.
• Use the tool in ventilated areas.
• Do not use the tool in hazardous areas and use it away from combustible materials; contact of the tool with metals produces sparks.
• Do not hande the tool by the hose.
• Abrasives heat up during use. Allow them to cool before handling them. Disconnect the air hose when changing or adjusting the accessories.

POWER SUPPLY

Commissioning :

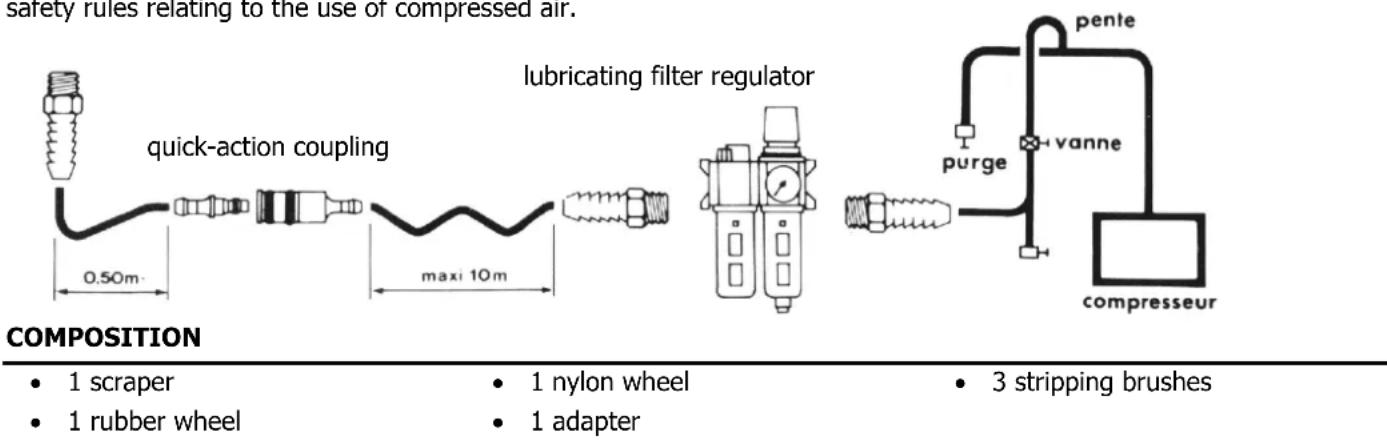

The compressed air network must be perfectly purged and adapted to the consumption of the tool. A pressure-reducing and lubricating filter (except for tools intended without lubrication) of suitable size must be installed at a maximum distance of 10 metres from the tool. Its regulation pressure must be set at 7.5 bar and the special oil flow rate for tools to be lubricated must be about 1 drop of oil every 30 seconds for an air flow rate of 100 litres/mm. Please note that the air consumption of your tool must be higher than the minimum priming flow rate of your lubricator. A shut-off valve must be placed upstream.

The connection between this filter-regulator-lubricator assembly and the tool is made with a special "compressed air" rubber or pvc hose with a maximum length of 10 metres and an internal diameter of at least 8mm for tools with a 1/4" supply connection and 12mm for 3/8" connections. It shall be fitted with a self-closing or semi-automatic coupling close to the tool for easy disconnection.

Use:

Use only accessories in perfect condition that correspond to the requirements of the tool.

Avoid running the tool empty. If this is the case, after a long period of use, make sure that no accessories are attached to the tool. It is essential to disconnect the tool from the power supply when attaching accessories.

Check that they are securely fastened before connecting the tool.

Regularly inspect the condition of the supply piping. In the event of damage or leaks, repair immediately. A broken pipe can cause serious injury.

Periodically check lubricator levels, filter and pipe purging.

Maintenance:

At the beginning of the day and before a prolonged period of non-use, introduce a few drops of special oil directly into the inlet port. Neve use flammable liquids such as petrol and diesel.

Regularly check the condition of the regulating filter and the oil level in the lubricator of the air system.

Make sure that the supply connections, piping and accessories are in perfect condition. Regularly drain the compressor pipes and tank.

Only original parts available from the supplier may be used for tool maintenance.

The company cannot be held responsible for modifications made to the tools and for failure to observe the general safety rules relating to the use of compressed air.

OPERATION

Ideal for stripping mastic paints and protective coatings. With the brushes, it is possible to renovate carpets and rugs.

CONSUMABLES

• brush adapter (ref 051768)
• hard brush 103 × 23 ~mm - strands 0,7mm (ref 051812)
• soft brush 103 × 23 ~mm - strands 0,5 ~mm (ref 051850)
• nylon wheel 114x14mm - nylon texture (ref 051843)
• rubber wheel (ref 051874)

Pneumatic surface remover

Rotational speed (trmin)	4 000
Power (W)	500
Length (mm)	280
Poids (gr)	1 200
Noise level (db)	86
Consumption (Lmin)	102
Air pressure (bars)	6,2
Supply connection	1/4"

WARRANTY CONDITIONS

• The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).
• The warranty does not cover incidents due to misuse, fall, disassembly or other damage due to transportation.

The warranty does not cover normal wear and tear on parts or drills.

In case of failure, return the unit to your distributor or to GYS

With the addition of: A proof of purchase (receipt, invoice...) with a note explaining the fault.

After the warranty, our service department is able to carry out repairs after acceptance of a quotation
