HHPC 9.5F AM X - Basket HOTPOINT - Free user manual and instructions

Brand	Hotpoint
Model	HHPC 9.5F AM X
Product type	Cooker hood
Height (adjustable)	59-87 cm
Width	90 cm
Depth	40 cm
Duct diameter	150 mm (15 cm)
Estimated weight	15 kg
Power supply voltage	220-240 V ~ 50 Hz
Total absorbed power	See rating plate (approx. 200-300 W)
Lighting	2 halogen lamps 20 W max, type G4, 12 V
Number of speeds	3 suction speeds + stop
Evacuation mode	Extracting (external evacuation) or recirculating (recycling) with optional charcoal kit
Grease filter	Metallic, washable monthly (manual or dishwasher)
Charcoal filter	Not supplied, replacement every 4 months
Minimum safety distance	55 cm (electric cooking) / 65 cm (gas or mixed cooking)
Protection	Disconnect before maintenance; use gloves
Certifications	EN/IEC 60335-1, 60335-2-31, 61591, 60704, etc.

Frequently Asked Questions - HHPC 9.5F AM X HOTPOINT

What is the recommended mounting height between the hood and the hob?

The minimum distance is 55 cm for an electric hob and 65 cm for a gas or mixed hob. If the hob instructions specify a greater distance, follow that.

How to clean the grease filters of the hood?

The metal grease filters should be cleaned at least once a month by hand with a non-aggressive detergent or in a dishwasher on a low temperature and short cycle. Discoloration is possible but does not affect efficiency.

How often should the charcoal filter be replaced?

The activated charcoal filter must be replaced every 4 months maximum. It cannot be washed or regenerated.

How to change the hood lamps?

Disconnect the appliance, wait for the lamps to cool down. Use a small flathead screwdriver to unclip the lamp cover. Replace with a halogen bulb type G4, 12V, 20W max. Do not touch the bulb with fingers.

Why does my hood seem not very effective?

Check that the selected speed is suitable for the amount of steam, that the kitchen is properly ventilated, that the charcoal filter (in recirculation mode) is not saturated, and that the grease filters are clean.

Can I use the hood without a charcoal filter?

Yes, if you use the hood in extracting mode (external evacuation). In recirculation mode, the charcoal filter is essential to absorb odors.

How to install the hood in recirculation mode?

You need to purchase an activated charcoal filter kit (not supplied). Follow the instructions in the manual to mount the charcoal filter onto the motor protection grilles.

What to do if the hood turns off during use?

Check for a power cut or if the circuit breaker has tripped. Disconnect the hood for 5 seconds then reconnect. If the problem persists, contact after-sales service.

Is it possible to use the hood without the grille?

No, never use the hood without the grille properly fitted. This could pose a risk of electric shock or injury.

How to reduce the environmental impact of the hood?

Use the minimum speed during cooking and leave it running for a few minutes afterwards. Clean the grease filters regularly and replace the charcoal filter when necessary. Use the maximum recommended duct diameter to minimize noise.

USER MANUAL HHPC 9.5F AM X HOTPOINT

Line drawing of two gloves with a warning symbol (no text or labels)

Prohibition sign with crossed-out human figure and two male figures, indicating exclusion or rejection.

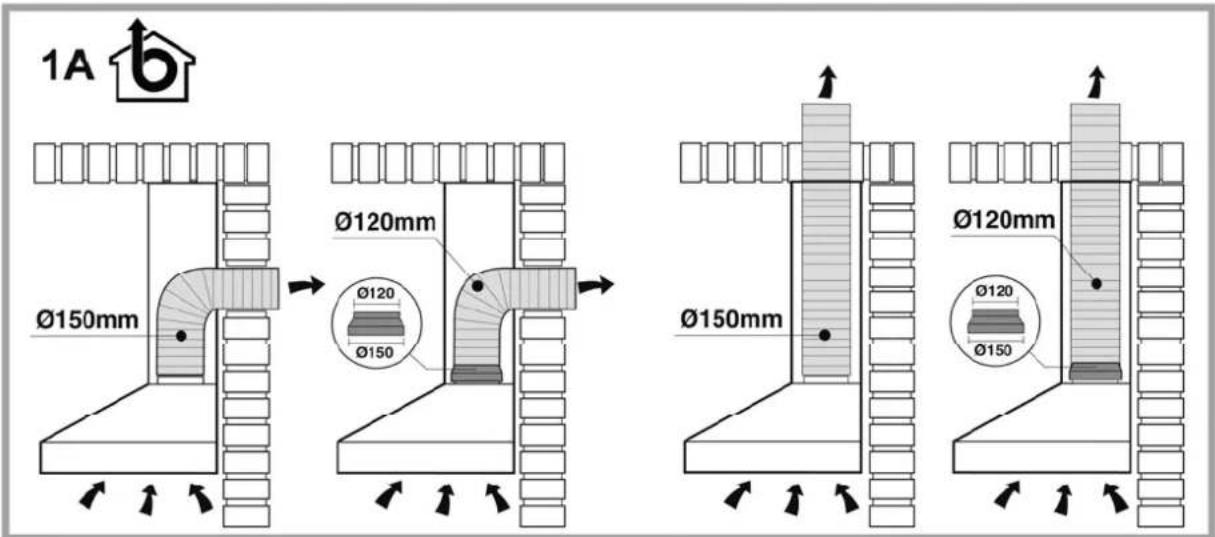

1A b Ø150mm Ø120mm Ø120 Ø150 Ø150mm Ø120mm Ø120 Ø150

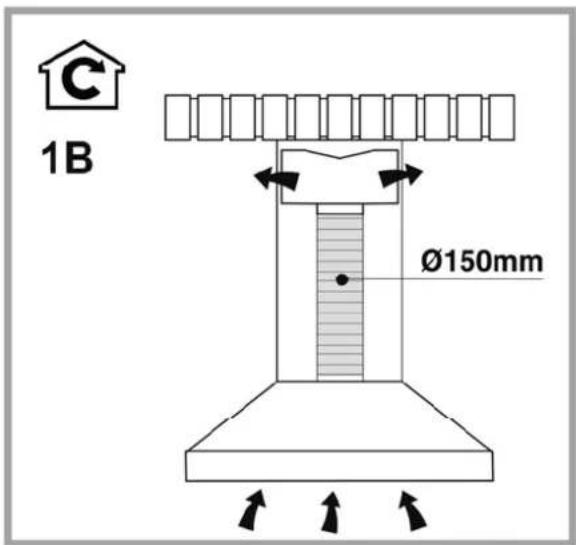

C 1B Ø150mm

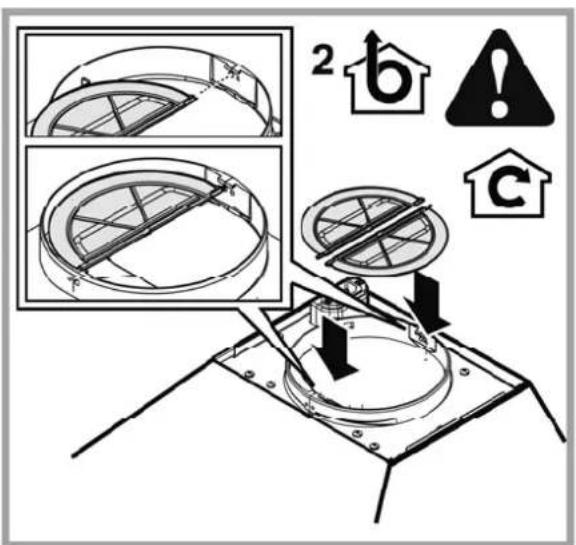

2 b ! c

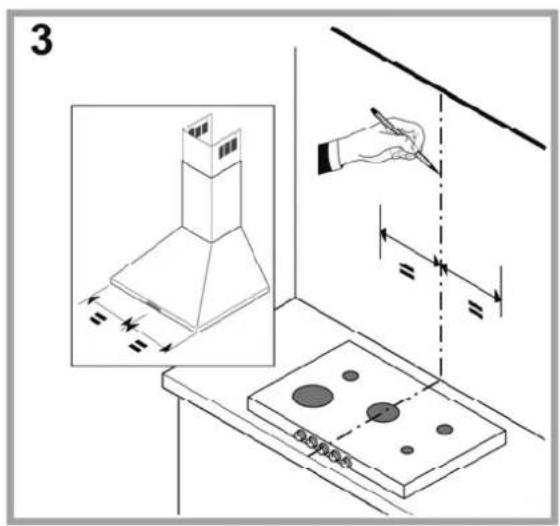

3

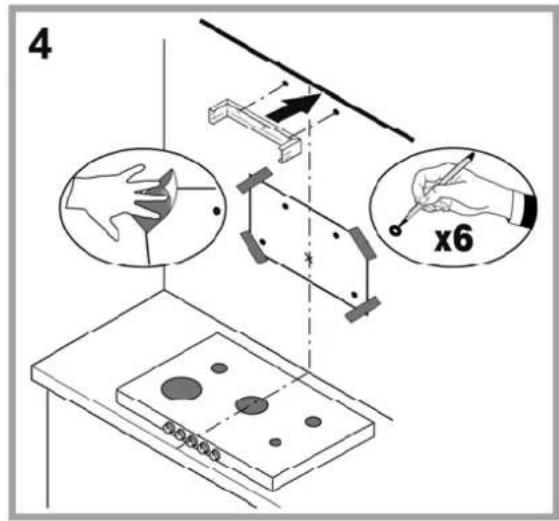

4 x6

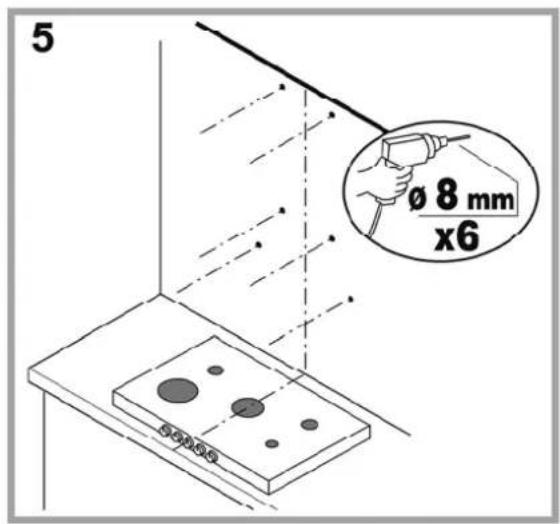

5 Ø 8 mm x6

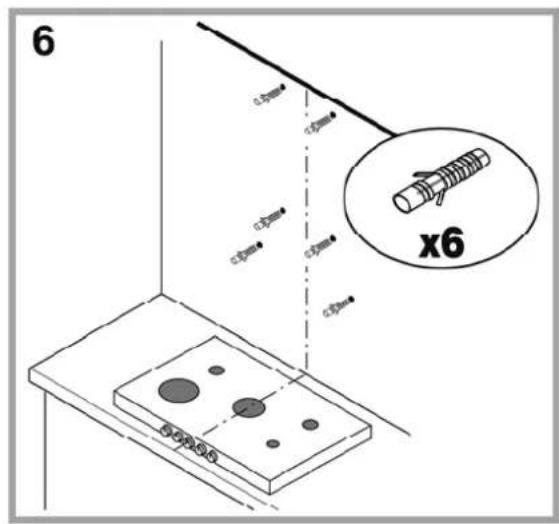

6 x6

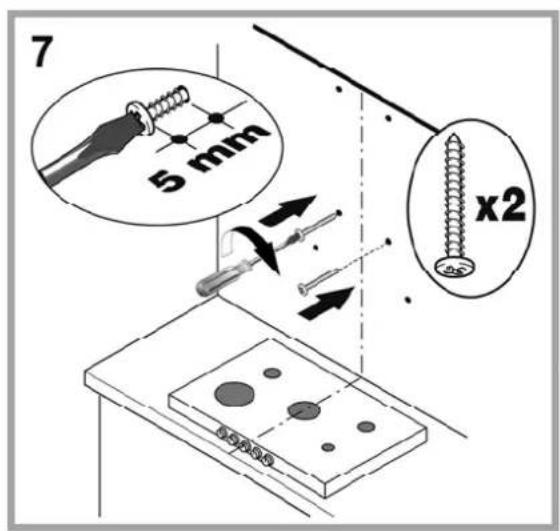

7 5 mm x2

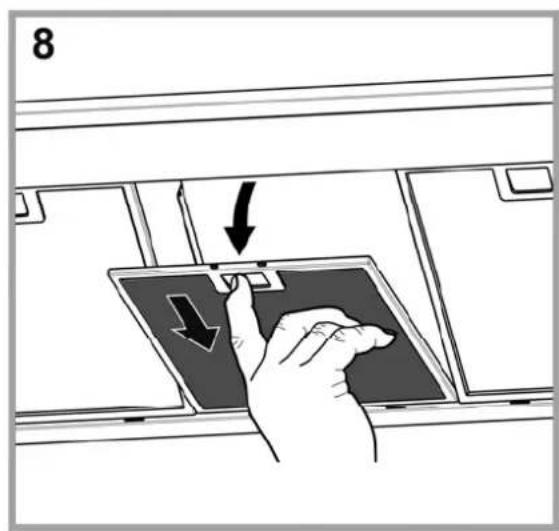

8

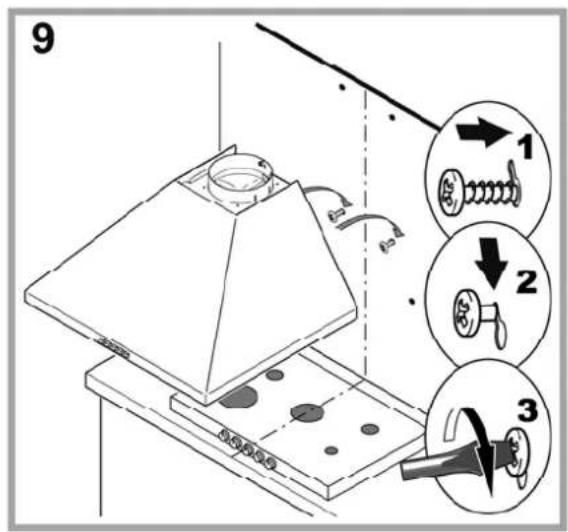

9 1 2 3

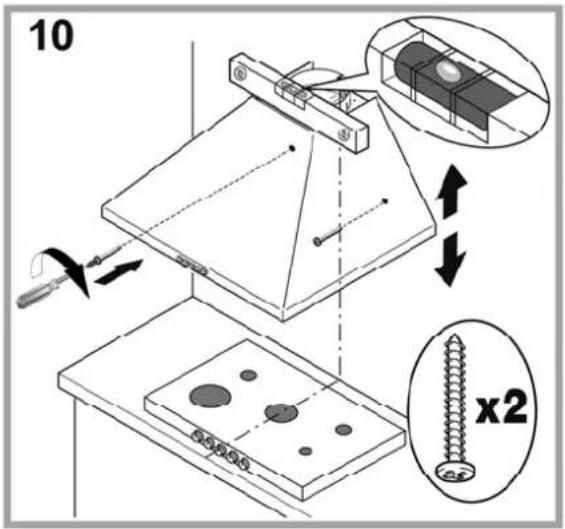

10 x2

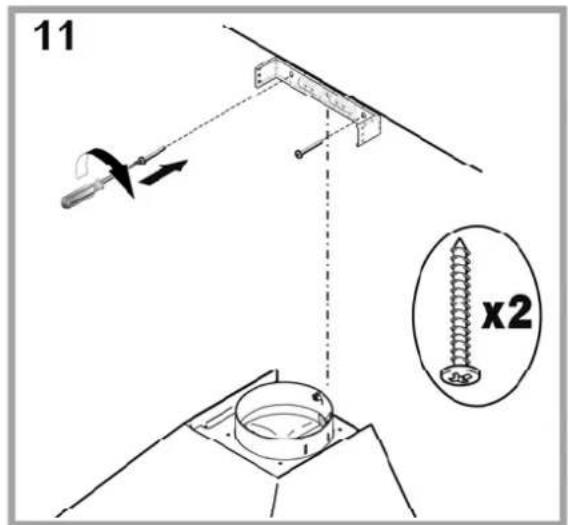

11 x2

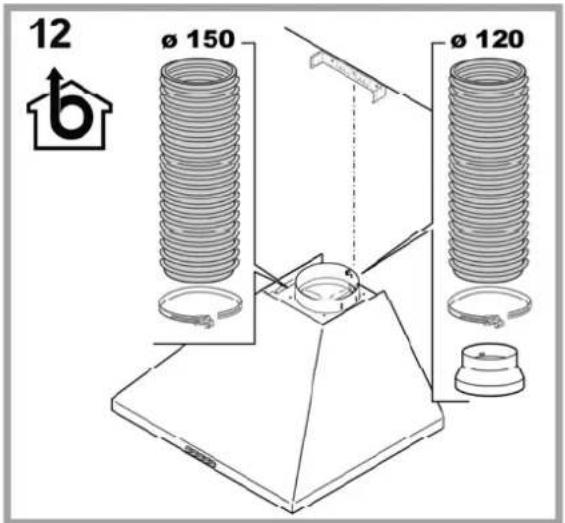

12 ø 150 ø 120

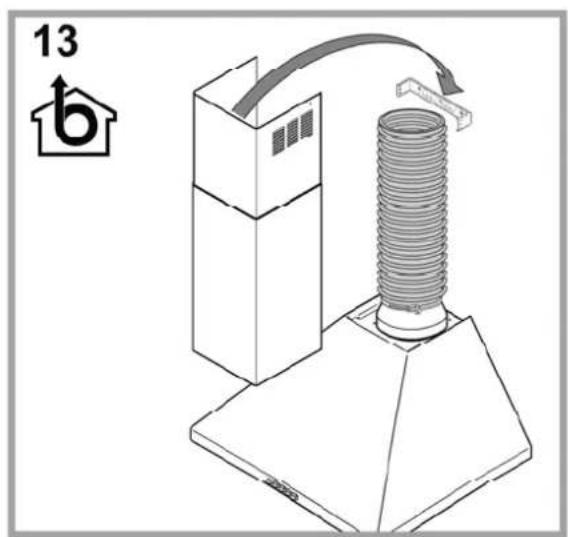

Diagram of a mechanical device with a spring and housing, showing motion arrows (no text or symbols)

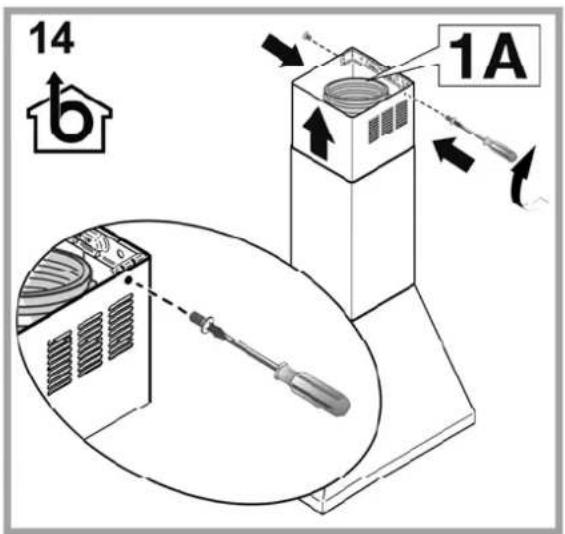

14 b 1A

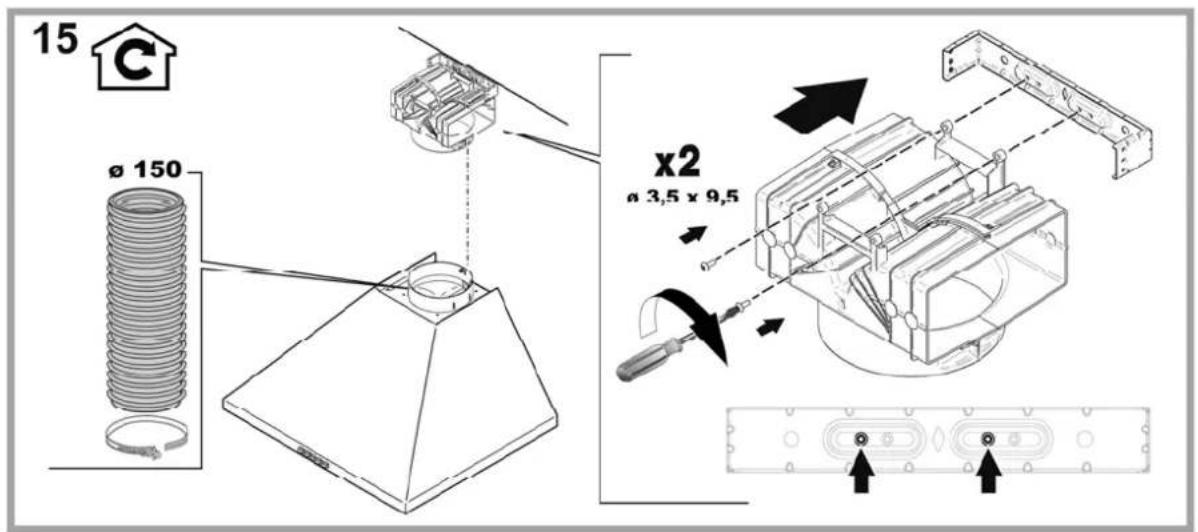

15 ø 150 x2 ø 3,5 x 9,5

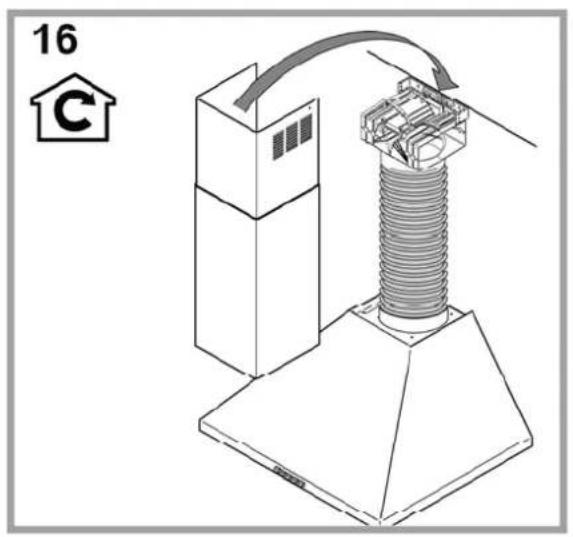

16 C

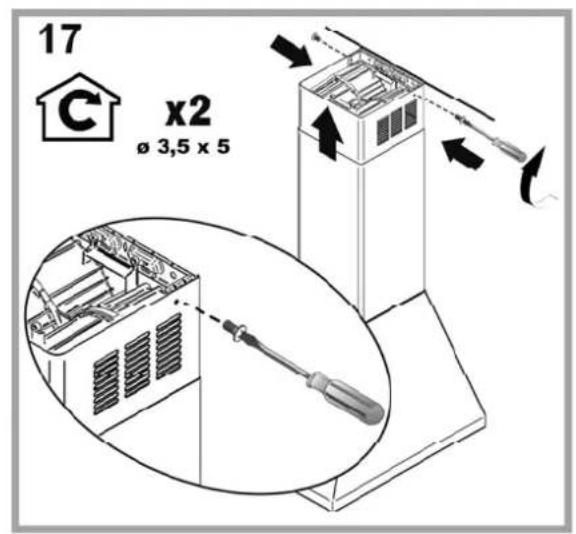

17 C x2 ø 3,5 x 5

18 C

19 C

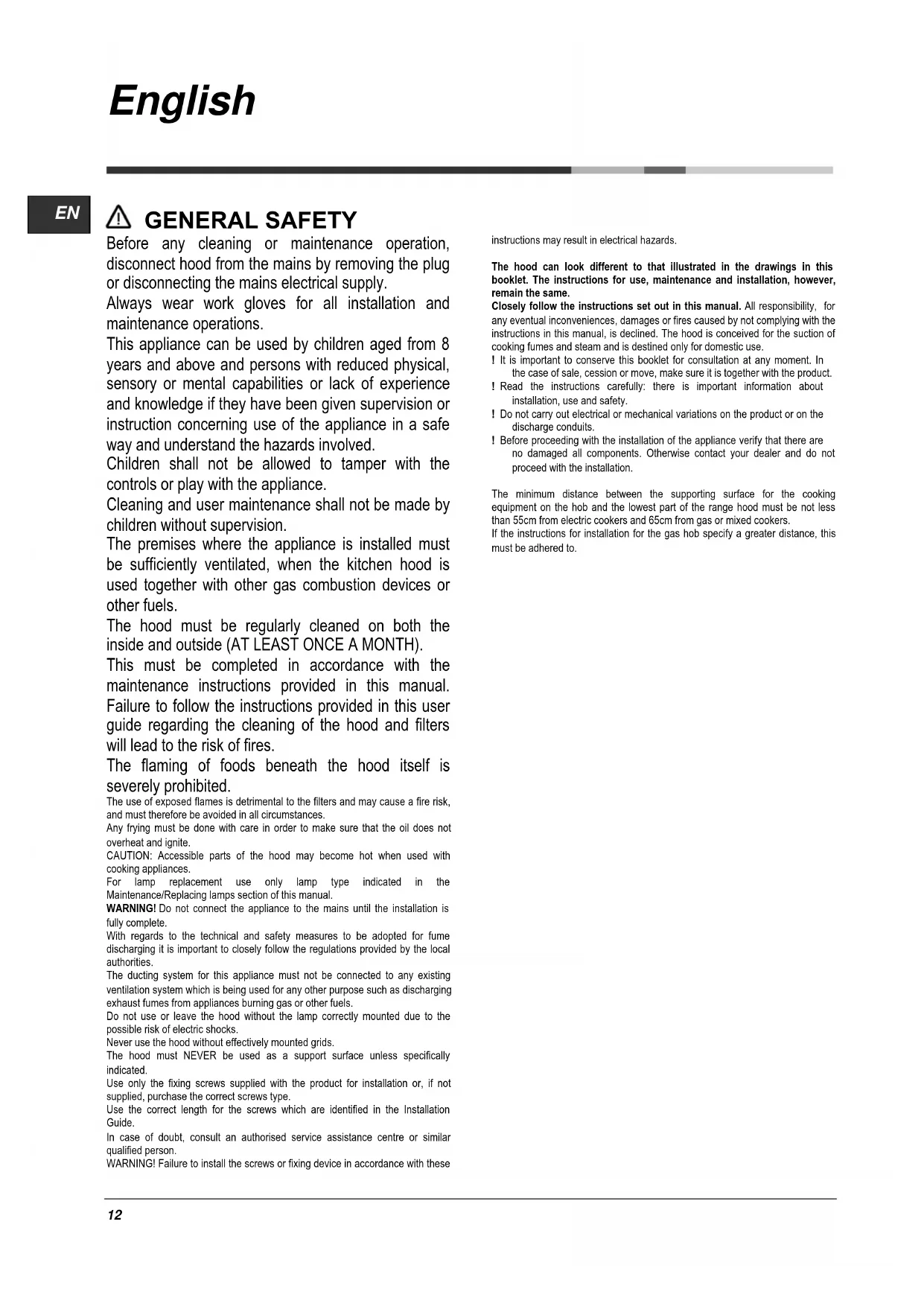

⚠ SICUREZZA GENERALE

Illustration of a hand holding a mechanical clamp or bracket with a small aircraft on top (no text or symbols)

Illustration of a hand holding three circular components with a compass and magnifying glass nearby (no text or symbols)

SMALTIMENTO

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these

instructions may result in electrical hazards.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 55cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Replacing the power cable

Warning! Power cable replacement must be undertaken by the authorised service assistance centre or similar qualified person.

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

T1. ON/OFF light switch
T2. Speed 1/OFF switch
T3. 2-speed selection
T4. 3-speed selection

MAINTENANCE

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the anti-grease filters

Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle.

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

Maintenance of the charcoal filter

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

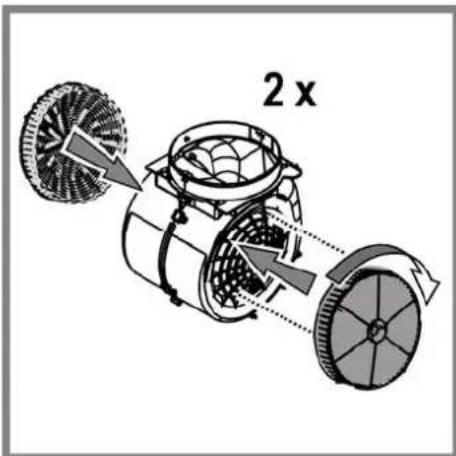

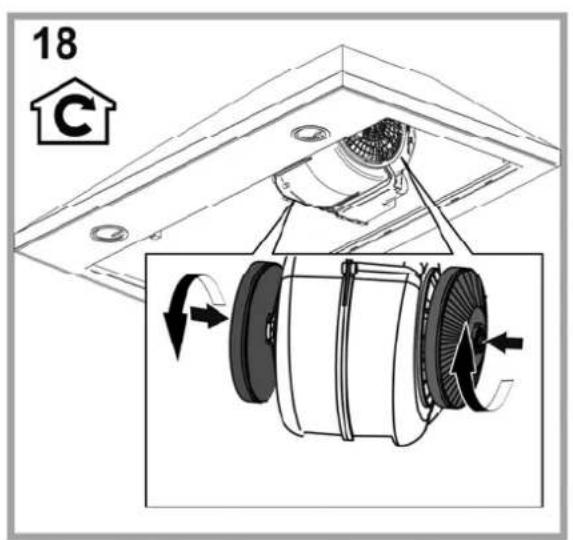

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

2 x

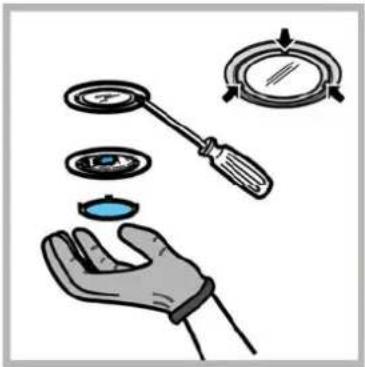

Replacing lamps

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the old light bulb with the one of the same type as specified in the feature label or near the light lamp on the hood.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.

2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

3. Reinstall the light cover. (it will snap shut).

Illustration of a hand holding three circular components with a magnifying glass above them (no text or symbols)

DISPOSAL

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:
Check that:
- The power has not been disconnected.
- A speed has been selected.
• If the hood performs inefficiently:
Check that:
- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

• If the hood has turned off during normal functioning:

Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Model	Height (cm)	Width (cm)	Depht (cm)	∅ of exhaust tube (cm)
HHPC 9.5F AM X HHPC 9.5F AM K		90	40	15-12,5-2
HHPC 6.5F AM W HHPC 6.5F AM K HHPC 6.5F AM X		60	40	15-12,5-2

Please check the plate in order to verify the total absorption and the light absorption.

	Power(W)	Voltage(V)	Cap	Dimensions(mm)
Halogen 2 x 20W 12		G4 33x∅10

Components not provided with the product

⚠ SÉCURITÉ GÉNÉRALE

Illustration of a hand holding a mechanical clamp or bracket with a small aircraft on top (no text or symbols)

Illustration of a hand holding three circular components with a pointer, no text or symbols present

ÉLIMINATION

Illustration of a hand holding a mechanical clamp or bracket with a small object inside (no text or symbols)

Illustration of a hand holding three circular components with a compass and magnifying glass nearby (no text or symbols)

ELIMINACIÓN

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Illustration of a hand holding three circular components with a compass and magnifying glass nearby (no text or symbols)

ELIMINAÇÃO

HHPC 6.5F AM X

70 - 87

Illustration of a hand holding a mechanical clamp or bracket with a small object inside (no text or symbols)

Illustration of a hand holding three circular components with a compass and magnifying glass nearby (no text or symbols)

VERWIJDERING

Illustration of a hand holding a tool with a bracket and pointer (no text or symbols)

Illustration of a hand holding three circular components with a pointer, no text or symbols present

ZŁOMOWANIE

HHPC 6.5F AM X

70 - 87

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

Illustration of a hand holding a small blue object, with a compass and magnifying glass nearby (no text or symbols)

İMHA ( BERTARAF )

Model	Yükseklik (cm)	Genişlik (cm)	Derinlik (cm)	tahliye borusu (cm)
HHPC 9.5F AM X HHPC 9.5F AM K		90	40	15-12,5-12
HHPC 6.5F AM W HHPC 6.5F AM K HHPC 6.5F AM X		60	40	15-12,5-12

Illustration of a hand holding a small mechanical component (no text or symbols visible)

Illustration of a hand holding a magnifying glass with a pointer, alongside a close-up of the lens and a small blue object (no text or symbols)

УТИЛИЗАЦИЯ

				(cm)
HHPC 9.5F AM XHHPC 9.5F AM K	59 -76,570 - 87	90	40	15-12,5-12
HHPC 6.5F AM WHHPC 6.5F AM KHHPC 6.5F AM X	59 -76,570 - 87	60	40	15-12,5-12

Illustration of a hand holding a tool with a bracket (no text or symbols visible)

Illustration of a hand holding a magnifying glass with a pointer and blue liquid, alongside a circular dial indicator (no text or symbols)

УТИЛІЗАЦІЯ

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

Illustration of a hand holding three circular components with a compass and magnifying glass nearby (no text or symbols)

LIKVIDACE ODPADU

Illustration of a hand holding a mechanical clamp or bracket with a small aircraft on top (no text or symbols)

Illustration of a hand holding a small blue object, with a compass and magnifying glass nearby (no text or symbols)

LIKVIDÁCIA

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding three circular components with a compass and magnifying glass nearby (no text or symbols)

ЖОЮ

	76,570 - 87
HHPC 6.5F AMWHHPC 6.5F AM KHHPC 6.5F AM X	59 -76,570 - 87	60	40	15-12,5-12

Illustration of a hand holding a magnifying glass with an eye and a pointer, no text or symbols present

الصيانة

التنظيف

Illustration of a hand holding a metal tool with a bracket (no text or symbols visible)
