DMCSP4560HDS - Mobile holder Tripp Lite - Free user manual and instructions

Product Type	Mobile Cart for Flat Screen
Brand	Tripp Lite
Model	DMCSP4560HDS
Usage	Indoor only
Main Material	Rugged Steel
Maximum Load Capacity	45 kg (estimated)
VESA Compatibility	200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 mm
Installation Configuration	Fixed mount or mobile cart (with casters)
Mounting Height	Adjustable depending on configuration (fixed or mobile)
Dimensions (approx.)	800 mm (width) x 600 mm (depth) x 1500 mm (height)
Net Weight	25 kg (estimated)
Warranty	5-year limited warranty
Maintenance	Check safety and tightness of fasteners every 3 months
Cleaning	Soft, dry cloth; avoid abrasive products
Safety	Do not exceed maximum load; use an assistant for assembly
Spare Parts	Available on request from Tripp Lite customer service
Repairability	Repair by a professional recommended; contact support

Frequently Asked Questions - DMCSP4560HDS Tripp Lite

What is the maximum weight supported by the cart?

The maximum load capacity is estimated at 45 kg. Never exceed this limit to avoid any risk of injury or damage.

What VESA standards are compatible?

The mount accepts the following VESA standards: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, and 600x400 mm.

Can I use this mount in a fixed position without the casters?

Yes, the manual offers two configurations: fixed mount (without casters) or mobile cart with casters. Follow the corresponding instructions.

What tools are required for assembly?

The provided tools include Allen keys of 4 mm, 5 mm and an M10 wrench. Screws and washers are also included.

How to maintain the cart?

It is recommended to check the safety and tightness of all fasteners at least every three months.

What is the warranty period?

Tripp Lite offers a 5-year limited warranty against defects in materials and workmanship.

Can I install a 65-inch screen?

This model is designed for screens up to approximately 60 inches. Check the weight and VESA compatibility before installation.

Is the cart stable on carpet?

The casters are suitable for flat surfaces. On carpet, ensure the cart remains stable and does not tip over. An assistant is recommended.

How to contact customer service?

Visit tripplite.com/support for assistance with missing or defective parts.

Can I use this mount outdoors?

No, the product is designed for indoor use only. Outdoor use may cause failure and injury.

USER MANUAL DMCSP4560HDS Tripp Lite

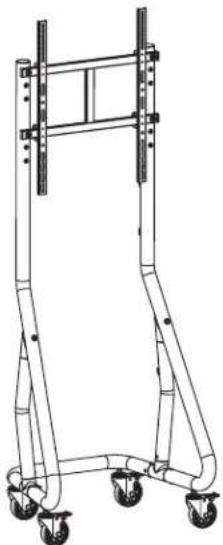

Heavy-Duty Streamline Portrait Mobile Cart

Model:DMCSP4560HDS

Espanol 12 • Français 23 • Pycckn 34 • Deutsch 45

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

200 × 200 / 300 × 200

300 × 300 / 400 × 200

400×300/400×400

600× 400

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing

Excellence

Safety Instructions

NOTE: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have questions regarding any of the instructions or warnings, please visit triplite.com/support.
• This product was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure the unit can safely support the combined load of the equipment and all attached hardware and components.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
  This product is intended for indoor use only. Using this product outdoors could lead to product failure and/or personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCULES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

A
(x1)

B
(x1)

C
(x1)

D
(x1)

E
(x2)

F
(x4)

G
(x3)

0
(x4)

P
(x1)

Package M

M-A
M5x14 (x4)

M-B
M6x14 (x4)

M-C
M6x30 (x4)

M-D
M8x30 (x4)

M-E
M8x50 (x4)

M-F
(x4)

M-G
(x8)

M-H
(x8)

Package P

H
M6x10 (x6)

1
M8x15 (x1)

J
M8x35 (x4)

K
D8 (x4)

L
4 mm (x1)

M
5 mm (x1)

N
M10 (x1)

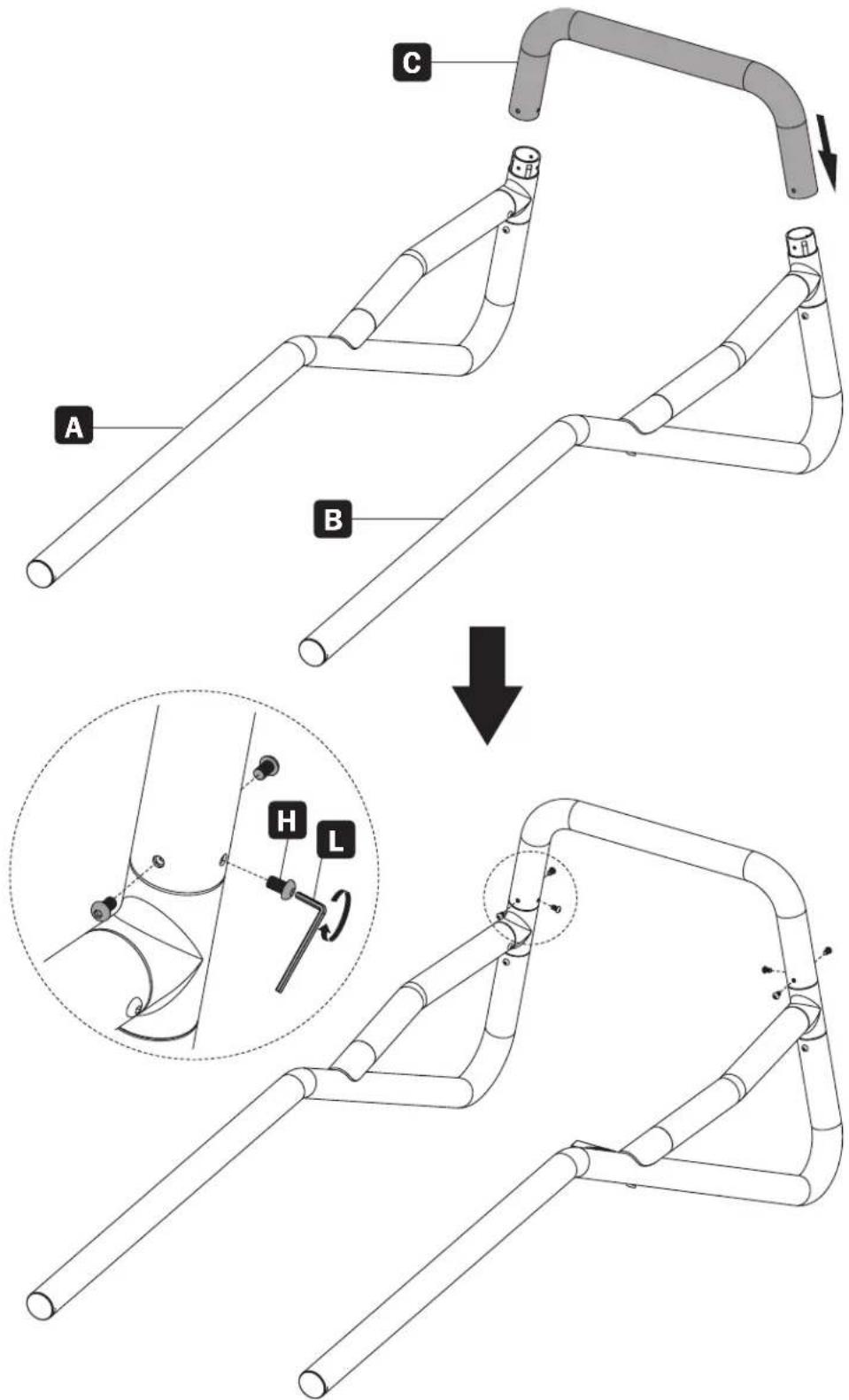

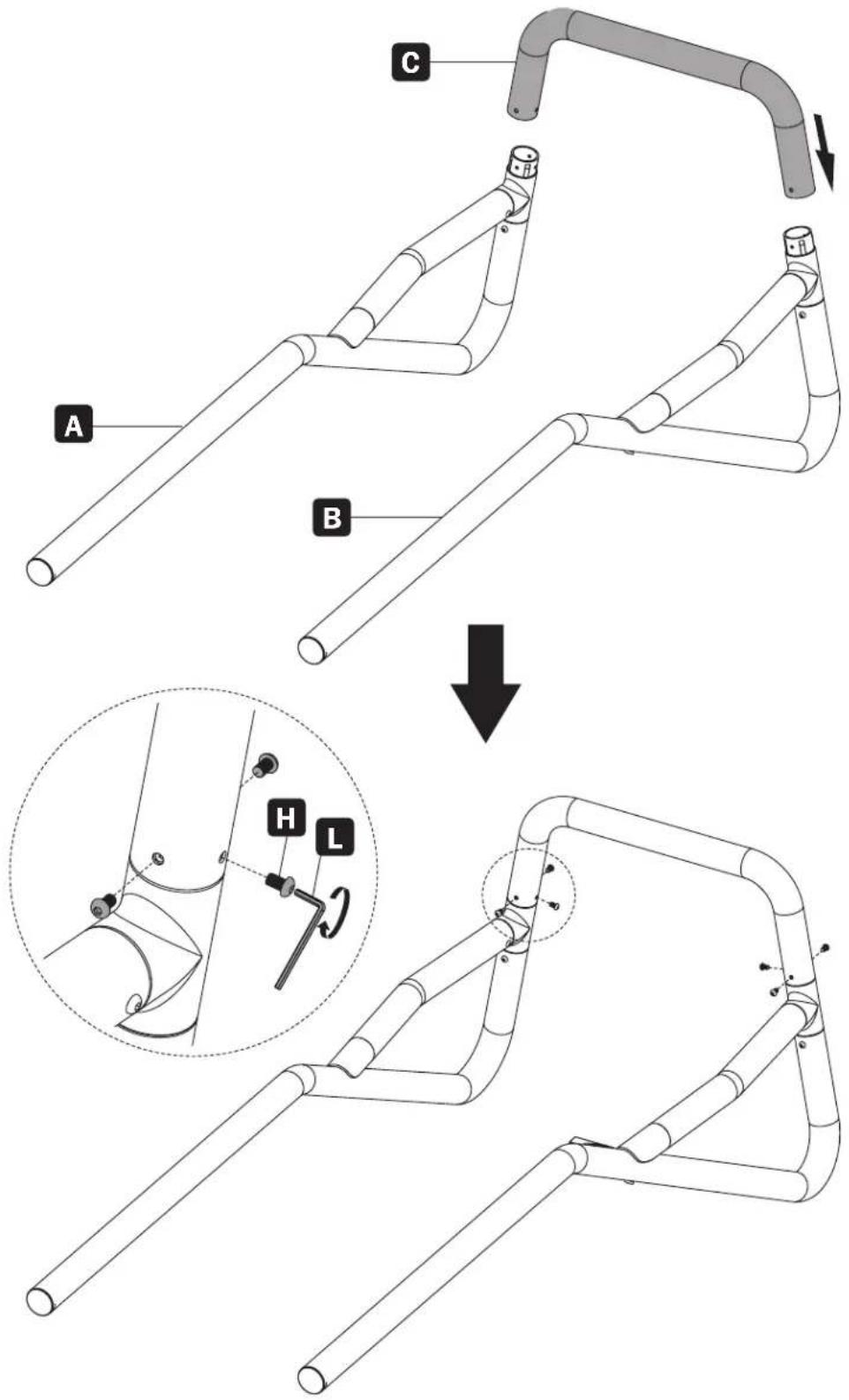

Assembly

1

Assembly

2a

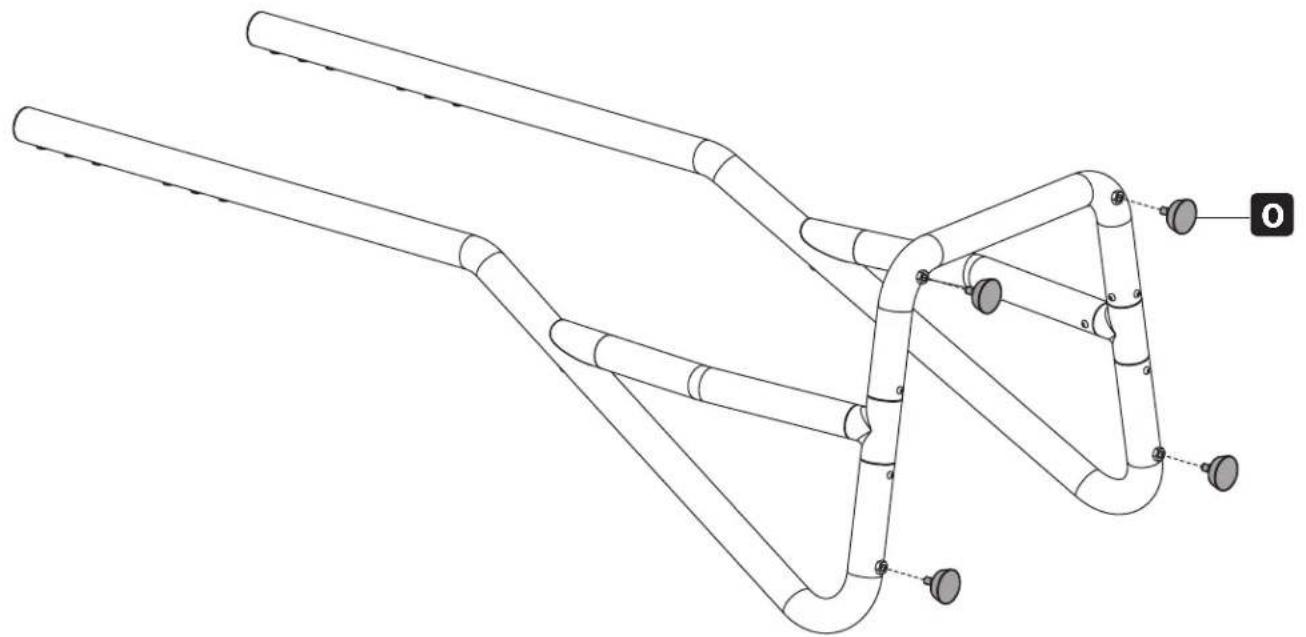

For Use as a Fixed Stand

2b

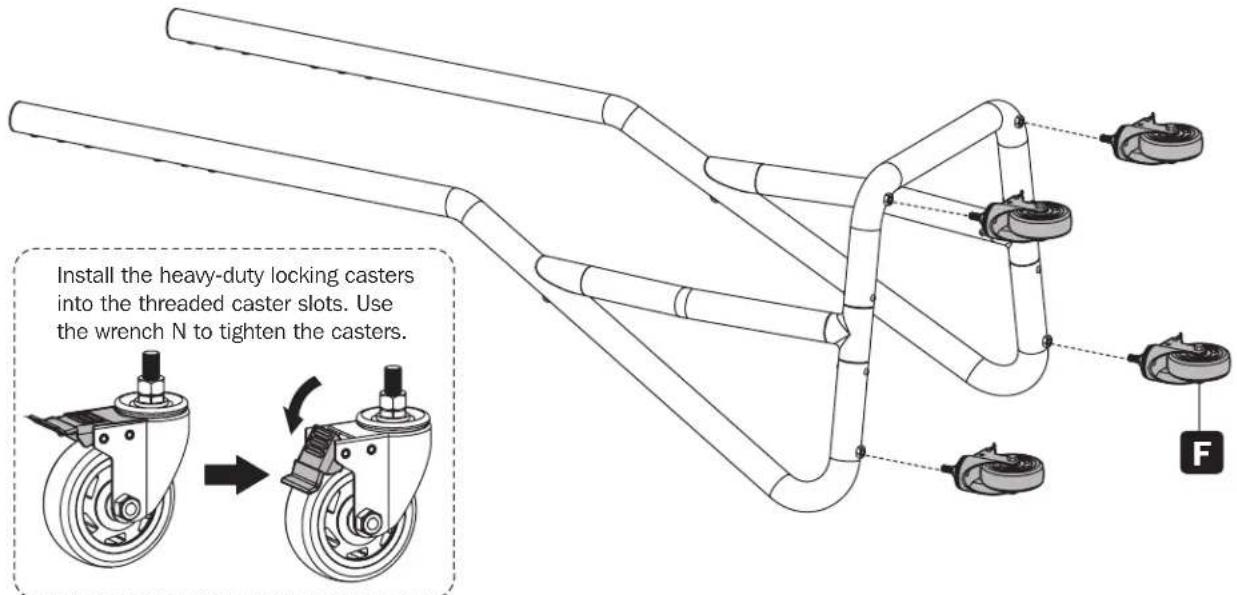

For Use as a Mobile Cart

Assembly

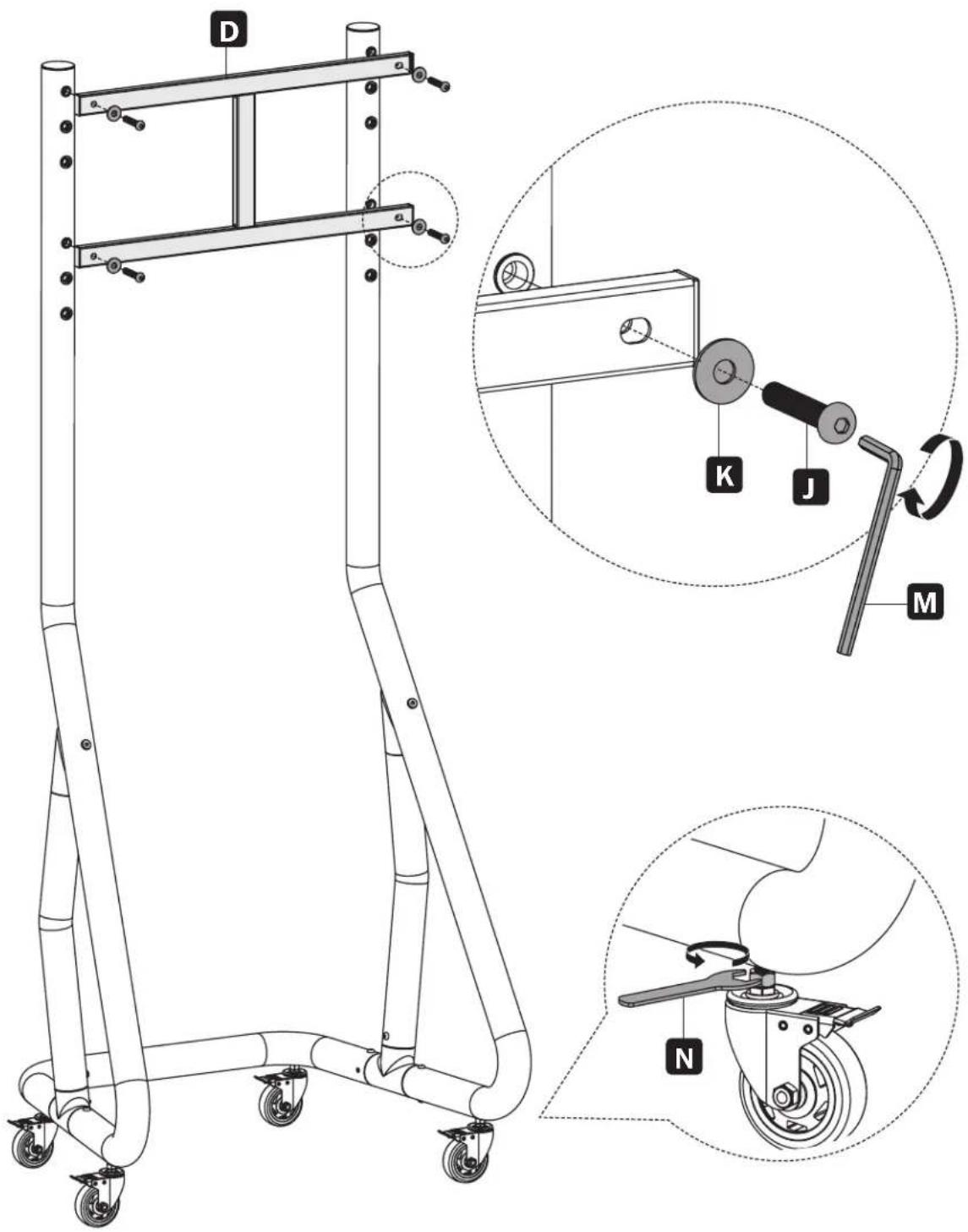

3

Assembly

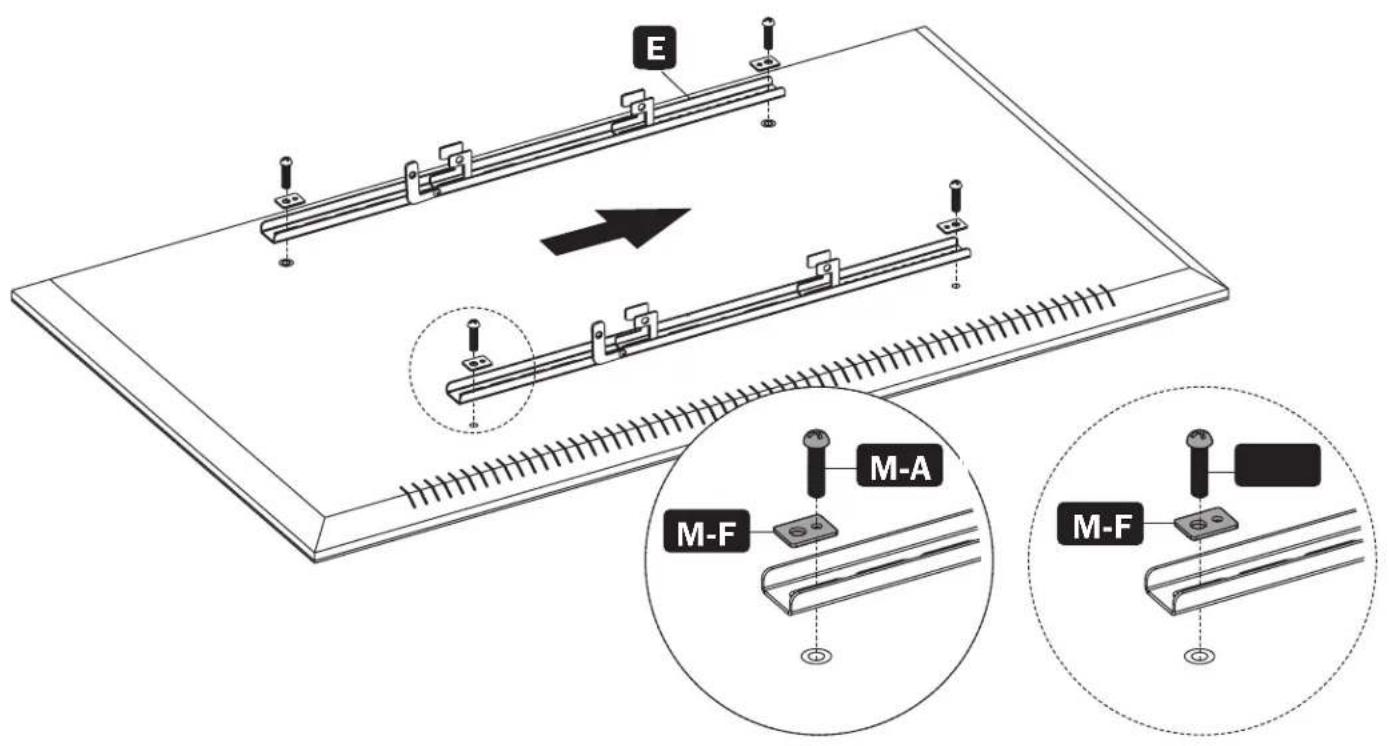

For Flat-Back Screens

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen.

CAUTION:

Do not over-tighten screws.

Assembly

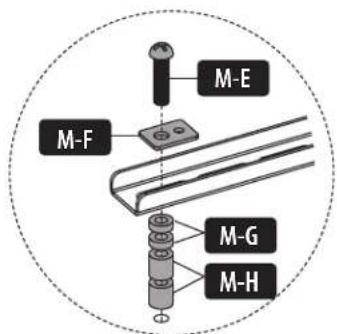

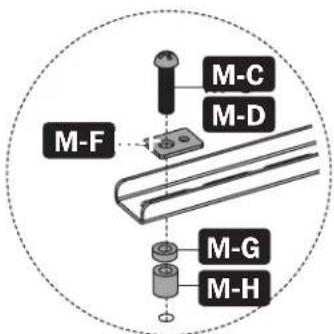

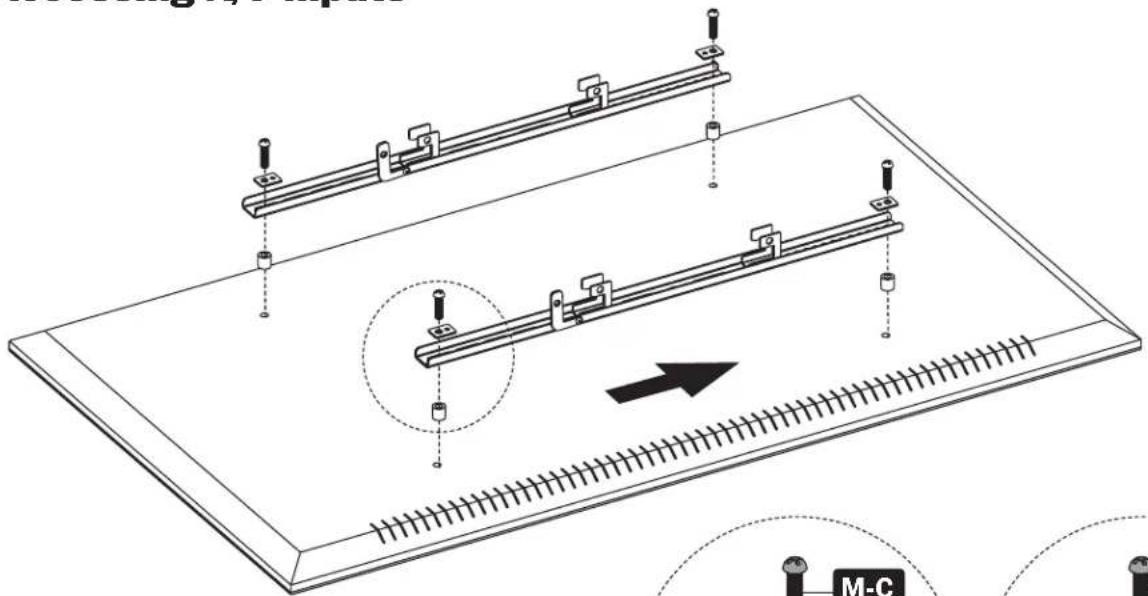

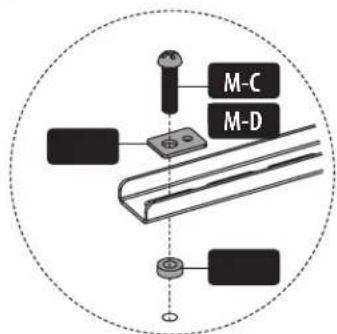

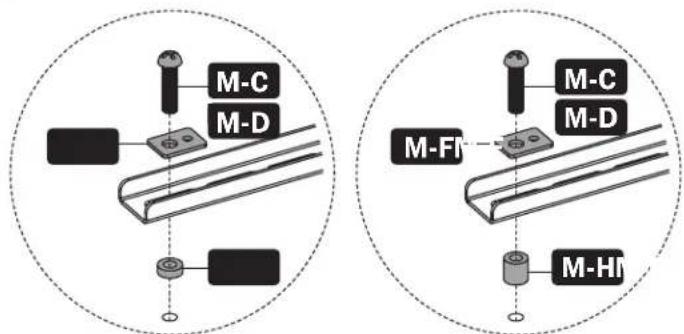

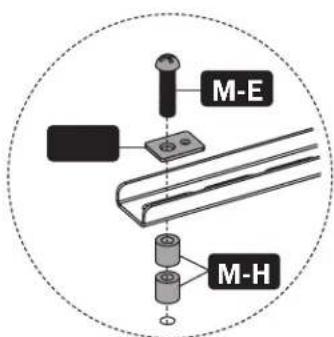

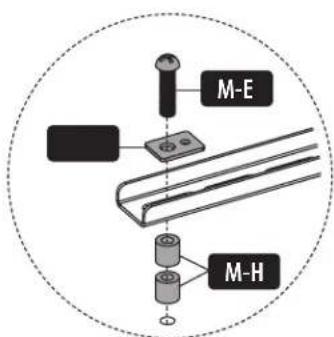

For Recessed-Back Screens or Accessing A/V Inputs

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen.

CAUTION:

Do not over-tighten screws.

Assembly

5

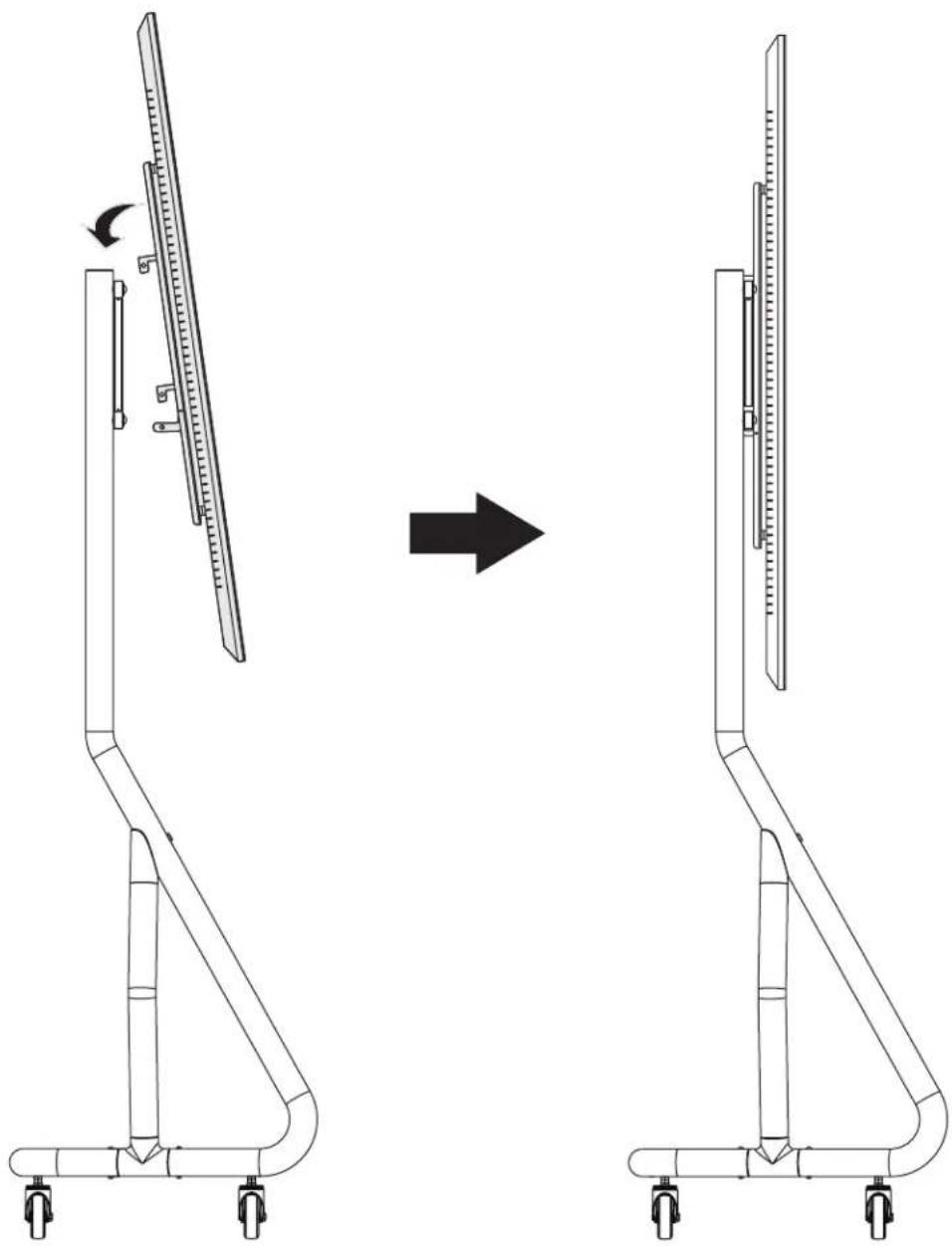

Note: With the help of an assistant or mechanical lifting equipment, hook the mounting arms onto the mounting brackets.

CAUTION:

Make sure the display is correctly mounted before releasing the display.

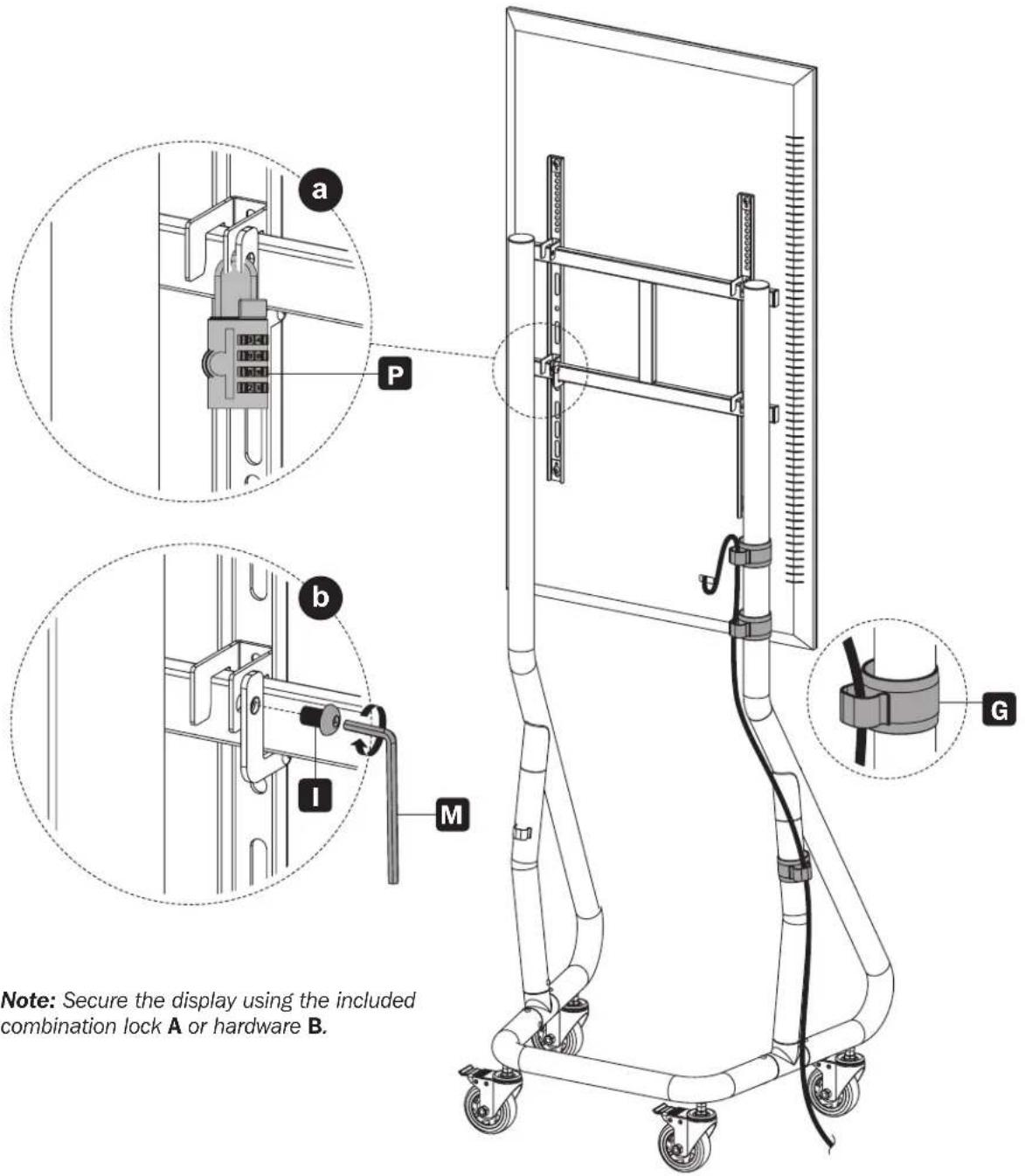

Assembly

6

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please visit tripplite.com/support if you have any questions.

Manufacturing Excellence

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support

PykoBODCTBO N0Ib30BaTeJia

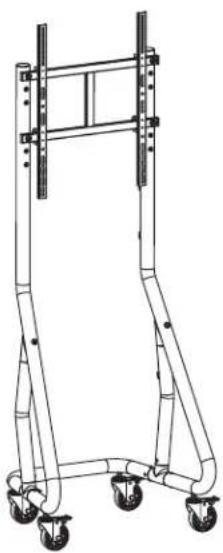

BepTnKaJIbHa npeeBnJxHa TeIexKa Streamline noBbIweHNo npOuHocTn

MoIeIb:DMCSP4560HDS

English 1 - Espanol 12 - Français 23 - Deutsch 45

BHMMAHME! HE IPEBbIaIeMAKcIMMJIbHo DIOYCTMHbI BEC. 3TO MOJET PIMBECTN K CEPbE3bIM TPABMM NIN MMyIcECTBEHOMY yUPEbY！

200× 200 / 300× 200

300 × 300 / 400 × 200

400 × 300 / 400 × 400

600× 400

Ppoyuunmucuero

G40CTB2

1111 W. 35th Street, Chicago, IL 60609 USA - tripplite.com/support

OxpanaTcR abTopckn npabom © 2021 Tripp Lite. Nepeneuatka Zanpeuaerca.

Yka3aHnnoTexHnke6e30nacHOCTN

PIMMEYAHHE. Ipeed hauanom yctahOBKN i60pkn moynBHNMaTeBHO H3yUHe Bce paaDbl pykoBOCTBA.

BHUMAHVE!

He NaHnHaTe UCTAHOBky Do Tex np, Noka He 03NaKOMITcB Co BcEMu yka3aHmM IN npEnpypeXeHnMn B HacToIe pykoBOdCTBe Hne IIOMeTcN CMBIC. PpN BO3HNKHOBEHn BONPOCob OTHOCINbHo IIOb6x Yka3aHm IN IN npEnpypeXeHn NocETte CTpaHmU triplite.com/support.
JaHHOe m3dene npeHa3nueHo Iy cTaHOBKn HcNtobBAnHrTObKO B ceJe, yka3aHbXb H aCtoTaeM pykoBodCTBe. He npabInbHaay cTaHOBKa daHHoro n3deJIM MoKet npmbctn K npuHHeHIO MaTePnaIbHorO uep6a nn cyueCTBeHHO bpe Da 3doPoBbIO nOJe.
YCTaHOBKa DaHHOI3eJIINrOJXHn IpOu3BOuMbTcra TOnbKO CneuaJIaNCTOM CIOCTaTOOH TeHXueCKo KBaUNHkaUeN 6a30BbIMn HabIKaMn CTPOITbCTBa, BNoHHe Mepe NOpHMauHUMCmblCNHooPMAun, H3IOKeHHoB HAcTOnuEeM pyKoBOdCTBe.
- y6eHITcB TOM, YTO DaHHoe N3dEJIne MOKeT C 3aNaCOM BbIepKINBaTc CymMapHyO HApy3Ky, Co3DaBaEMy O6OpyIOBaHNEM IN BCEMN BXODIIMN B KOMIINEKT DeTaIAMM OCHACTKN I DpyTMN KOMIOHENTAMN.
-Дяб63оас Horo noIbema n HndnexKaUero pa3MeueHnO obpyDobAHnO 68aTeBHO 6paauTecb 3a NOnMoUbIO UIN NOIb3yTecb rpy30noDbHMbIM O6obyHnEM.
- DaaHHe 3dEne npedHa3aHcnoI INoJIb30BaHnToBko B3aKpblTx NmoeueHax. IcNoJIb3OBAHme daHHoro n3dEner Ha OTkpblom Bo3dyx MoXet pmbectn K erO BbIXOy M3 CTOPOI INPmUHeHIO Bpe Da3DopOBbIO JIOeI.

TapaHTnI npErNCTpaZna n3dEJIa

YcNoBna 5-NetHeorpaHueHHo rapaHTm

PpOABeTg aapHnpyET OTCYrTBE M3HaAHbHix DeKcTob Maepnna HIN 3RTOBHeHm B TceHne 5 nC MOpHTa NepBoHaJIbHO NOKyIKN DAHHORIO 3dEHN Rn pI yCIOBN ETO CNOJb3OBAHn B COOTBCTBnCO BCEMN PImEHMBMn K HEMy kA3aHnMa. B cIyae IpoarBHeHn KaHX-16o DeKcTob Maepnna HIN 3RTOBHeHn B TceHne YkA3aHHOrO nepoDa IpoabEt ocUeCTBnET peMOHT HIN 3aMeHy DAHHORIO 3dEHN NCKIOHTeBnNo CBOeMy yCMOTpeHNO.

EIECTBNE HACTOUI E PAAHTHNI H PACIPOCTPAHETCR HA CUYAH ECTCEBHHO I3HOCA IINIOBPEKDEHMI B PE3YbTAIE ABAPM, HEHAIDKEAIEG NOCIOB3OBAHN, HAPUHEH NIPABIN 3KCIPIYATAUM INI XAIATLHOTCN. IPODABEU CE IPEDOCTABIRET HIKAKNX BBHO BpAXEHbIX TAPAHNTN 3A NKJIQUHHEM IPIMMO INIIOKHEHNO B HACTORIEM DOKYMHET. 3A NCKIOUHHEM CUYAEB, 3AIPUEHbIX DEICTBYOUHM 3AKOHODATEBIhCBOM, BCE IOJDA3YMEBAEMbIE TAPAHNTM, BKIOVAH BCE TAPAHNTM PPINOJDHOCTI INI PPOIAKHN MNCIOB3OBAHN NO H3AHAVEHNO, OPAHUHEHbI NO IPOJOHXTEBHOIT DECTBNN BILJEUYKA3AHBM IM TAPAHNTN HBM CPOKOM; KPOME TOTO, IV3 HACTOUI E TAPAHNTM ABHBm OB5AOHTC BCE NIOOCHy, CIUYAHBEI NO KOCBEHbI YbItKN. (B HekOTOpbX batax He donycKaetc BBeDeHne HApnoHEnH na pOoiKnteBnOCTb DeiTBN tex Wn INhX nopa3yMeBaembX rapaHTN, a B HeKoToPbx -KKIOUHeH mOrpaHHeHpe pa3mepa noobHybN INI KOCBEHbYb6tIKB. B 3TNX CAYNAH X BILsue3NIOKHeHcE OPAHnN KICIOUHMeMyrT ha BC He paoocptpahtbcr. Hactoianra paaHTn peoctabrrt Bam KOHKPeTbc NoPmDvceKne npaba, a Habop dpyrnx Baixn ppab MoKet 6bTb pa3nnuHbM B 3aBcIMMoCTn OT npncndkuiu).

BHMMAHME! Do hauana nIIOJIb3OBAHnA daHHoro yCTPOJCTBa NOIb3OBATeB DOJIKEN y6eIMTcB TOM, YTO OHO RAJIHTcP NPIROdHM, COOTBETCTBYUOUMN 6eOIOaCHM NIN ppeINoRaEMOro pIMMeHHe. B CBA3C 60JIbmm pa3Hoo6p3aHEm KOHKpTeHBx pIMMeHHe NIN pOn3BOuMTBe H DaET KAKHX-NIO 3aBeEH NIN rapaHTM OTHOCTeBHO pRHOHOCTn DAHHx N3DeM NIN KAKO-TINO BO KOHKpETHO pIMHeHn NIN XCOBTCTBn KaKHM-Im6 KOHKpTeHBm Tpe6OBaHnM.

KOMnHII Tlpp lntoTnHIO COBepueHCTBye CBOIO pOyDkuN. B CBA3N C 3TMM BO3MOXHO H3MeHeHMe TexHHueckHX XapakTePHK 6e3 npedpaHTenbHoro ybeDMneHN. BheuH N peaIbHix n3denm MOKeT HEcKnlo k0 ToJIMHaTcR O npctabHeHoro Ha foTOrpaHnx HnnOCTpaHx.

IpeueHb KOMnneKtaun

BHIMAHHE! NpeiHaayIOM yCTaHOBKn y6eINTcB b HauuHn BceX deTanei corNaCHO nepeuHIO KOMNKeTAuH. B cnyae oTCyTCTBna nn NobpeKdHn KaNX-nIb6 DeTanei obpaTntcB 3a nOmoBtu Ha ctpnuy tripplite.com/support.

A

1wT.

B

1wT.

C

1 uT.

D

1wT.

E

2wT.

F

4wT.

G

3wT.

0

4wT.

P

1wT.

YnakoBoUhBI KOMnJIeKT M

M-A

M5x14 (4 ur.)

M-B

M6x14 (4 ut.)

M-C

M6x30 (4 ut.)

M-D

M8x30(4uT.)

M-E

M8x50 (4 w.r.)

M-F

4wT.

M-G

8mT.

M-H

8wT.

YnakoBoHybI KOMnJIeKTP

H

M6x10 (6 wt.)

1

M8x15 (1 ut.)

J

M8x35 (4 wt.)

K

D8 (4 wt.)

L

4MM(1WT.)

M

5 MM (1 UT.)

N

M10(1wt.)

1

2a

He npetraBnBte BnHTb.

Popraok c60pkn

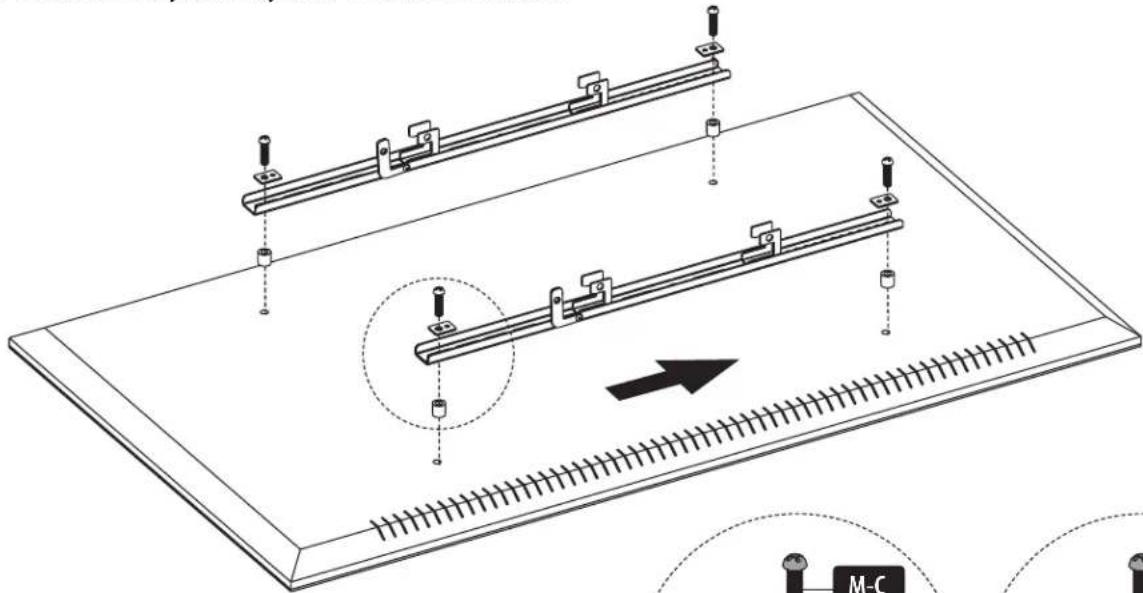

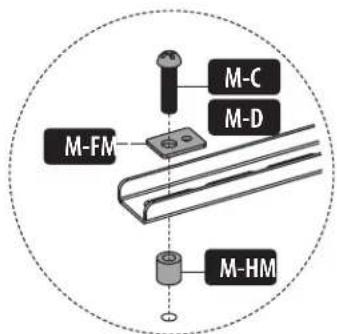

4b

Длma MOHHTOpOB,yCTaHaBnIBaEmbIX 3anOpNIO,nnI dIpyouyeHna DoCTyna Kaydno-/BnDeOBXoJaM

Ppumueaue. Bbupaune nodxoduaue buhmbl, uu npocmaKu (npu Heo6xduomocmu) BOOMBemcmbu cmunm MOumopa.

BHIMAHHE!

He npetepaBmBte BnTb.

Popraok c60pkn

5

Ppumueaue. C nomoubdo ppy20o compyduhka unu mexahuueckozo noobemho 06opdyobau npkpenume mohmackhbe phuazu K mohmaekhblm kpoohmeiHAM.

BHIMAHVE!

Pepxe Otnyctnb dncnne, y6eintcbb Tm, 00 h3akpeinn Hndnnaaum m oba3om.

Popraok c60pkn

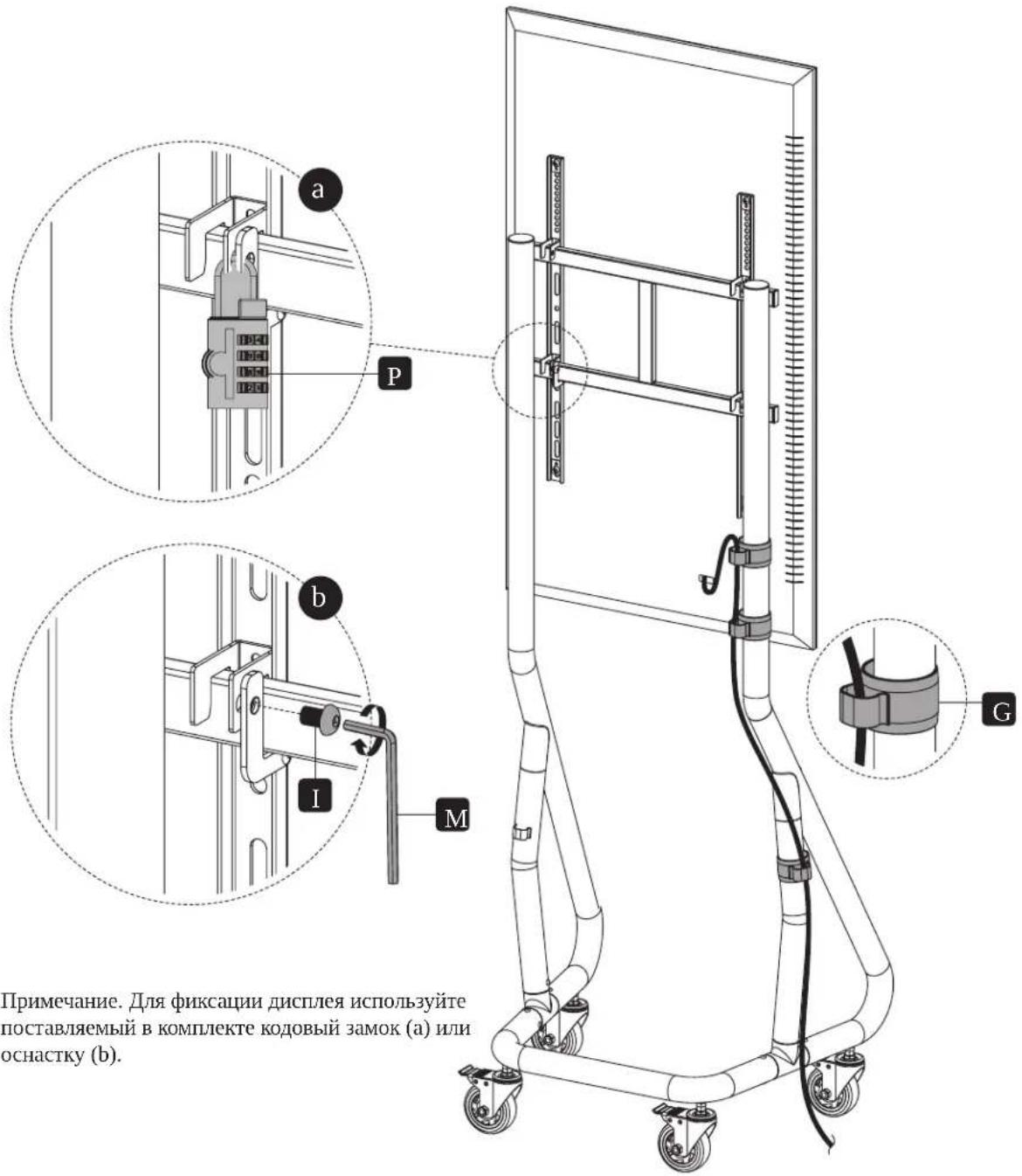

6

yXoJ

Perynapno (he pexe, qem pa3 B Tpr Meca) npOBepaTe HaedxHocb KpePiHeNk POnuTeHa m 630naCHoCTb er NcNoB3OBAHn.
B CNYae BO3HKNHOBeHn KaKnx-Ni6o BOnpcoB nocTe ctpaHcy tripplite.com/support.

PINOLOMILIA BHCZUBKO KHECHTEB.

1111 W. 35th Street, Chicago, IL 60609 USA · triplite.com/support

Bedienungsanleitung

Manufacturing Excellence

1111 W. 35th Street, Chicago, IL 60609 USA · tripplite.com/support
