U280A04A3C1 - Computer accessory Tripp Lite - Free user manual and instructions

Product Type	USB-C Power Expansion Hub
Model	U280-A04-A3C1
Brand	Tripp Lite
Dimensions (approx.)	7.6 x 4.5 x 2.0 cm
Weight (approx.)	45 g
Power Supply	Powered by Apple USB-C PD adapter (61 W / 87 W) via male USB-C input port
Input Ports	1 x USB-C (male)
Output Ports	1 x USB-C (female) PD 3.0 (up to 45 W), 1 x USB-A QC 3.0, 2 x USB-A BC 1.2 (up to 2.4 A each)
Charging Protocols	USB Power Delivery 3.0, Quick Charge 3.0, Battery Charging 1.2
Simultaneous Charging	Up to 4 devices
Charging Priority	USB-C PD 3.0 port takes priority, then balanced distribution to other ports
Built-in Protection	Against overloads, overheating, overvoltages, and short circuits
LED Indicator	White: sufficient power
Operating Temperature	5 to 35 °C
Storage Temperature	-20 to 50 °C
Relative Humidity	20 to 80% RH, non-condensing
Material	Plastic casing with non-slip padding
Care	Clean with a soft, dry cloth. Do not use abrasive cleaners.
Warranty	2-year limited
Optional Accessories	USB-C, Lightning, Micro-B cables (sold separately)

Frequently Asked Questions - U280A04A3C1 Tripp Lite

Which Apple chargers are compatible?

This hub is designed for Apple USB-C PD chargers of 61 W and 87 W (MacBook Pro).

What types of devices can I charge?

You can charge up to 4 USB devices simultaneously, including smartphones, tablets, earphones, etc. The USB-C PD port is ideal for USB-C compatible laptops (up to 45 W).

How to connect the hub?

Remove the existing USB-C cable from the Apple charger, plug the hub onto the charger (male USB-C port), then reconnect the USB-C cable to the hub's USB-C PD port.

Why is the white LED not lighting up?

Make sure the Apple charger is plugged into the mains and the hub is properly connected. If the problem persists, check that the charger provides sufficient power (61 W or 87 W recommended).

Can I use a non-Apple charger?

The hub is optimized for Apple PD chargers. Use of other chargers may result in reduced power or incompatibility. It is recommended to use the specified Apple chargers.

What is the charging speed on the QC 3.0 port?

The QC 3.0 port offers charging up to 4x faster than conventional chargers, suitable for Quick Charge compatible smartphones.

Does the hub protect my devices?

Yes, it includes protection against overloads, overheating, overvoltages, and short circuits, ensuring the safety of your devices.

How to clean the hub?

Unplug the device and clean it with a soft, dry cloth. Do not use liquid or abrasive cleaners.

What to do in case of charging problem?

Check the connections, test different cables, and make sure the Apple charger works. If the problem persists, contact Tripp Lite support during the warranty period.

What is the warranty for this product?

Tripp Lite offers a 2-year limited warranty from the date of purchase, covering defects in materials and workmanship.

USER MANUAL U280A04A3C1 Tripp Lite

Portable Power Expansion Hub for Apple USB-C Power Adapter

Model: U280-A04-A3C1

USB Type-C ^TM and USB-C ^TM are trademarks of USB Implementers Forum

Español 9 • Français 17 • Русский 25

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Copyright © 2019 Tripp Lite. All rights reserved. All trademarks are the property of their respective owners.

• U280-A04-A3C1

• Quick Start Guide

• Expand the charging capabilities of an Apple USB-C PD Charger (61W/87W)

• Charge up to 4 USB devices simultaneously*
• Features (x1) USB-C PD 3.0 port with a maximum power output up to 20V/2.25A (45W), (x1) USB-A QC 3.0 port with charging speeds 4x faster than conventional methods, and (x2) USB-A BC 1.2 port supplying up to 5V/2.4A power
• Non-slip grip padding provides a secure connection to the power adapter
• Provides overcharging, overheating, overvoltage and short circuit protection

*45W PD charging port takes priority over all other ports.

2

Optional Accessories

• U040-C03-C USB 2.0 Type-C to C Cable, 3A, USB-IF Certified (3 ft./0.9 m)
• M100-006-BK USB Sync/Charge Lightning Cable (6 ft./1.8 m).
  • U050-003-GY-MAX Heavy-Duty USB 2.0 A to Micro-B Cable, (3 ft./0.9 m)

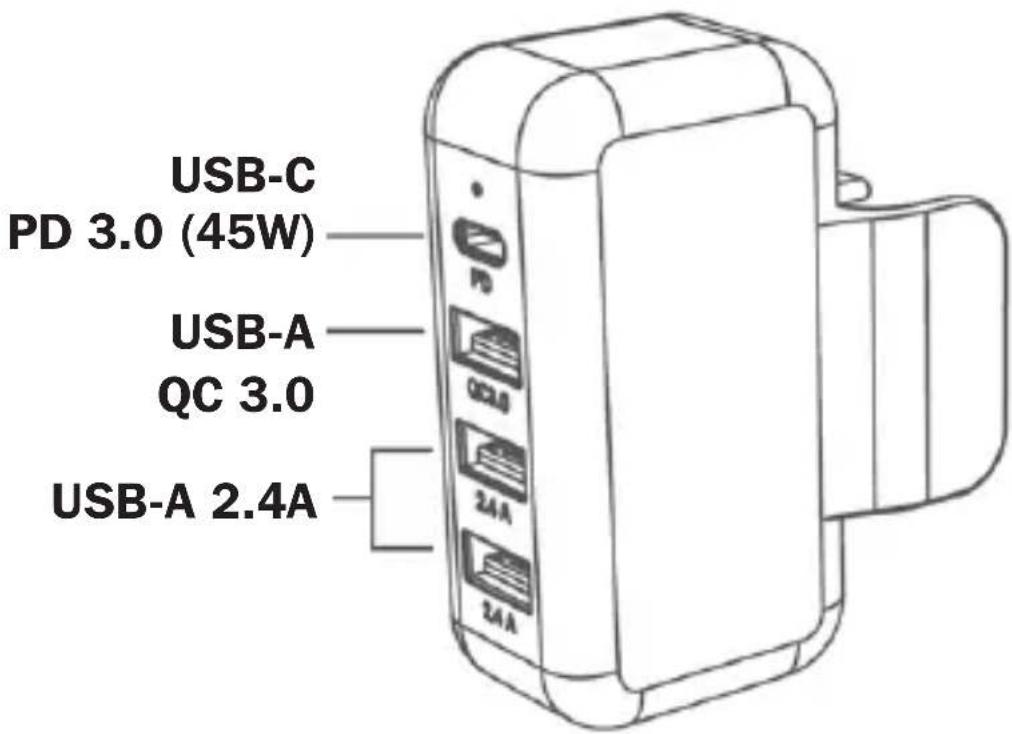

Feature Identification

USB-C PD 3.0 (45W) USB-A QC 3.0 USB-A 2.4A

Operation

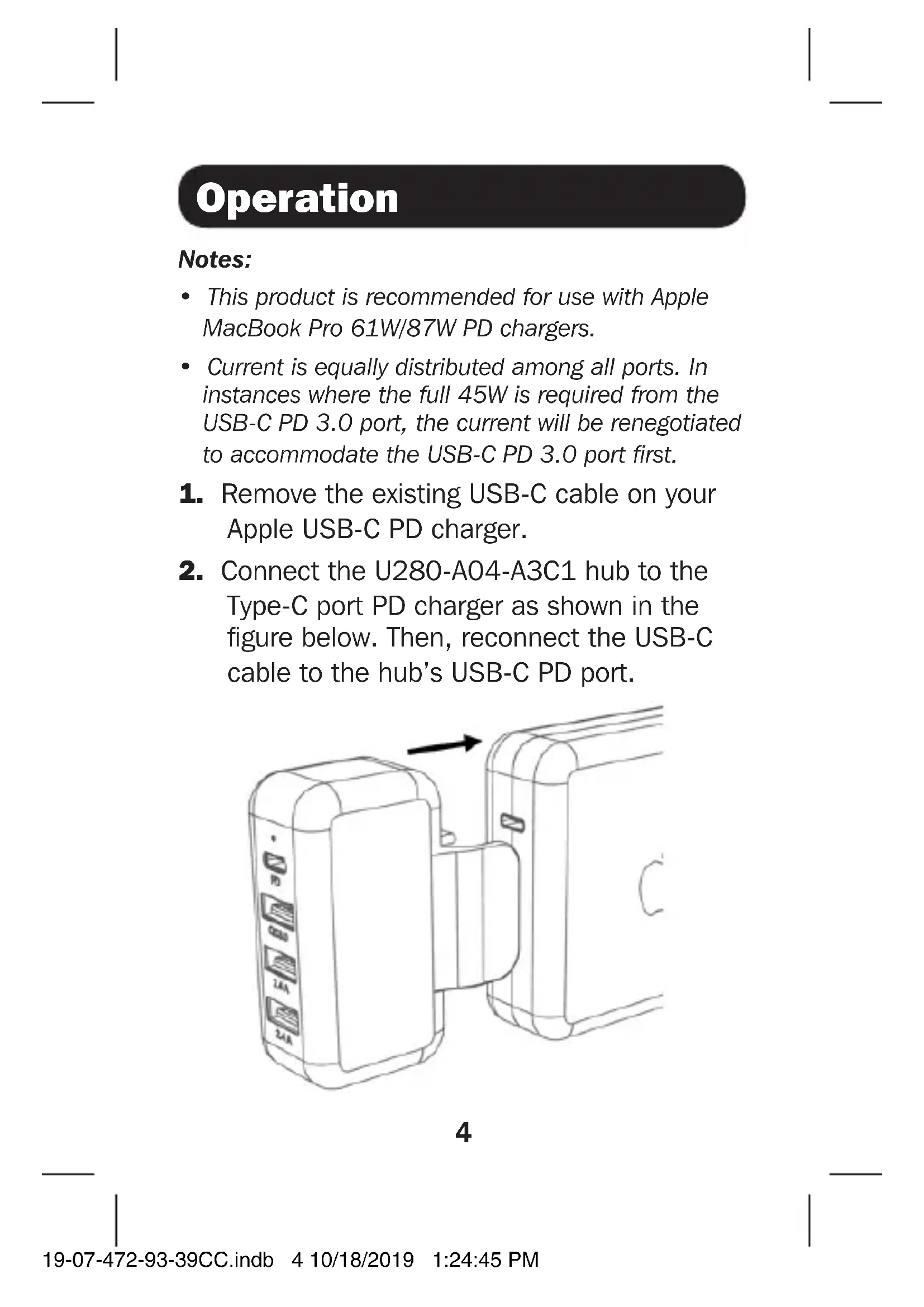

Notes:

• This product is recommended for use with Apple MacBook Pro 61W/87W PD chargers.

• Current is equally distributed among all ports. In instances where the full 45W is required from the USB-C PD 3.0 port, the current will be renegotiated to accommodate the USB-C PD 3.0 port first.

• Remove the existing USB-C cable on your Apple USB-C PD charger.

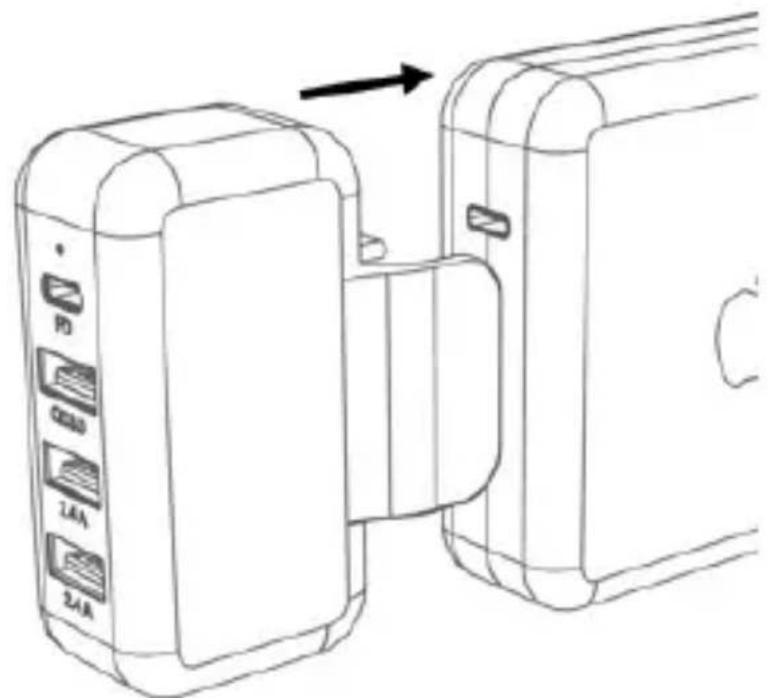

• Connect the U280-A04-A3C1 hub to the Type-C port PD charger as shown in the figure below. Then, reconnect the USB-C cable to the hub's USB-C PD port.

Line drawing of a device with two connected components, one showing a directional arrow (no text or symbols)

4

Operation

1. The 4-port power expansion hub is now ready to use. A white LED will illuminate to indicate sufficient power is being supplied.

Specifications

Input Port USB-C (Male)
Output Ports (x1) USB	B-C (Female)(x3) USB-A (Female)
OperatingTemperature Range	41°F to 95°F(5°C to 35°C)
StorageTemperature Range	-4°F to 122°F(-20°C to 50°C)
Relative Humidity 20% to 80% RH,Non-Condensing
PD ChargingSpecification	PD 3.0
BC 1.2 CompliantPorts	(x2) USB-A
QualcommQuick ChargeSpecification	QC 3.0

Warranty and Product Registration

2-YEAR LIMITED WARRANTY

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of two (2) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty and Product Registration

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Warranty and Product Registration

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

19-07-472 93-39CC_RevA
