Product type	String lights
Brand	HQ Power
Model	HQPL11002
Power supply	230 V~, 50 Hz
Number of sockets	20
Socket type	E27
Total length	10 m
Distance from plug to first socket	1.55 - 1.6 m
Use	Indoor and outdoor (splash-proof)
Water protection	Not submersible; sealing gaskets mandatory
Ambient temperature	Outdoor use in favorable weather conditions
Installation	Do not install in confined spaces (cupboards, ceilings)
Replacement lamps	Same type as those specified in the manual (E27)
Electrical connection	Do not connect to another light chain
Safety	Disconnect before handling; do not use if damaged
Maintenance	Check the condition of the cable, sockets, and lamps monthly
Warranty	24 months for non-professional use (Velleman conditions)
Weight	Approx. 1.2 kg (estimate)

Frequently Asked Questions - HQPL11002 HQ Power

How to replace a defective lamp?

Unplug the light chain. Carefully unscrew the lamp, remove the rubber gasket downwards, screw in the new lamp (same type), then replace the gasket evenly around the base. Make sure the gasket is not wrinkled.

Can I use this light chain in the rain?

Yes, it is splash-proof, but not suitable for underwater installation. Do not install or replace lamps in the rain or bad weather.

What is the required power supply voltage?

230 V~, 50 Hz. Check that the mains voltage matches the specifications.

Can I connect multiple light chains end-to-end?

No, it is prohibited to electrically connect this light chain to another light chain.

How to clean the light chain?

Unplug it before any cleaning. Use a dry or slightly damp cloth. Never immerse the light chain in water or any other liquid.

What to do if a lamp does not light up?

Unplug the light chain. Check that the lamp is screwed in properly and the gasket is in place. If the problem persists, replace the lamp with a new one of the same type.

Can I use LED lamps in this light chain?

Use only replacement lamps of the same type as specified in the manual (E27). The manual does not explicitly mention LEDs, but E27 LED bulbs compatible with the specified wattage may be suitable.

What is the distance between the plug and the first socket?

The distance is between 1.55 and 1.6 meters.

Can I install the light chain in a cupboard or closed ceiling?

No, it is not suitable for installation in cupboards, ceilings, or other confined spaces.

What to do if the power cable is damaged?

Do not use the light chain. The cable must be replaced by the manufacturer, a technician, or a qualified person to avoid danger.

USER MANUAL HQPL11002 HQ Power

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as assorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Refer to and read the instruction manual/booklet.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid any hazard.
• Do not connect the chain to the power supply while it is still in the packing.
• Do not connect this lighting chain electrically to another chain.
• Make sure that the available voltage does not exceed the voltage stated in the specifications in this manual.

HQPL11001/HQPL11002/HQPL11003

• Ensure that all lamp holders are fitted with a lamp.
• Do not remove or insert lamps while the chain is connected to the power supply.
• Replacement lamps must be of the exact same type as stated in the specifications in this manual.
• This lighting chain must not be used without all gaskets correctly in place.
• This splash-proof chain is suitable for indoor and outdoor use. When using outdoors, make sure to connect the chain to a splash-proof power socket approved for outdoor use. If in any doubt, contact a qualified electrician.
• For outdoor use, do not install the chain or replace lamps during rain or other inclement weather conditions.
• The device is not waterproof. Do not submerge in water or any other liquid. Not suitable for installation under water.
• Not suitable for installation in cabinets, ceilings, or other enclosures.

3. General Guidelines

• Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman Group NV nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Installation

4.1 Inspection before Installation

1. Take the chain out of the box and unroll it fully.

2. Make sure that the power plug is disconnected from the power supply.

3. Check the plug, cable, insulation, lamp holders, and lamps for damage:

Replace any damaged lamps. See Fitting or

Replacing Lamps for detailed instructions.

If you notice any other damage, do not use the chain and contact your dealer.

1. Make sure that the lamp holders are dry and clean on the inside and outside.

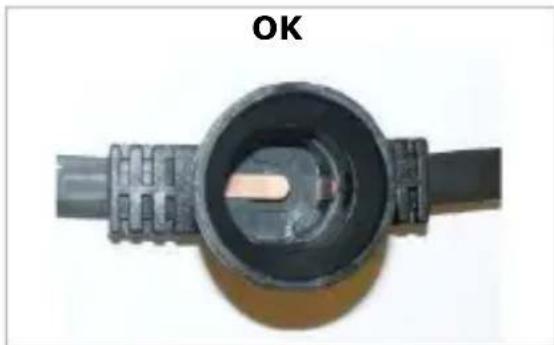

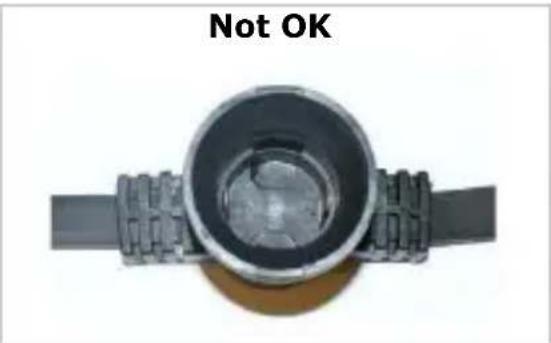

2. Check if the electrical connectors in the lamp holders are in the correct position. One shall be flat at the bottom of the socket, the other shall point upwards, as shown in the image. If you find a socket with both connectors pointing upwards, bend one down to match the other sockets.

Only do this when the power is disconnected.

4.2 Fitting/Replacing Lamps

1. Make sure that the power plug is disconnected from the power supply. Do not replace lamps during rain or other inclement weather conditions.

2. To replace a lamp, carefully unscrew the faulty lamp.

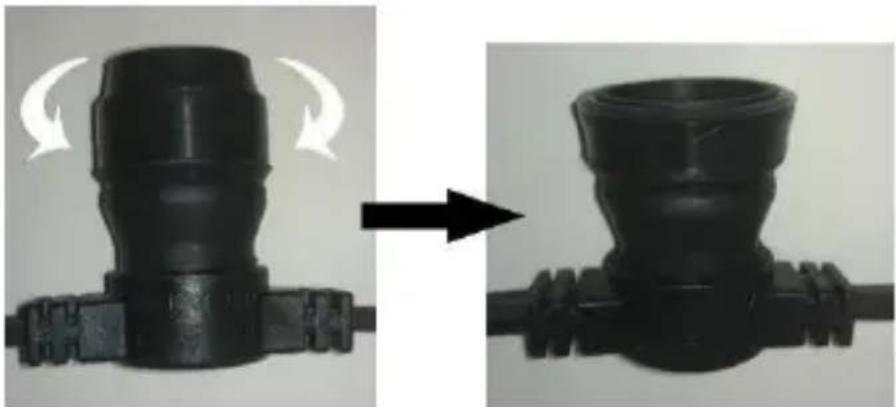

3. Fold down the rubber gasket over the lamp holder. This makes it easy to fit the lamp.

HQPL11001/HQPL11002/HQPL11003

1. With the gasket folded down, screw the lamp into the lamp holder.

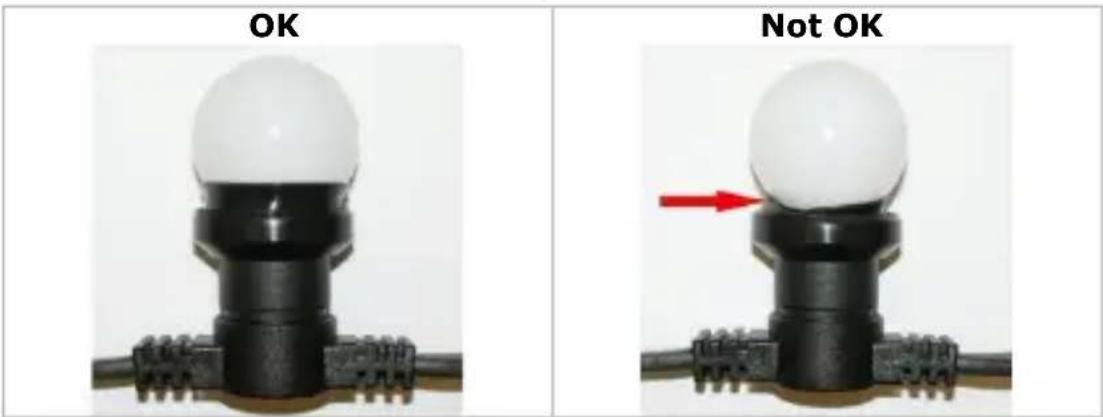

2. Fold the gasket back up around the base of the lamp. Make sure that the gasket fits evenly. The gasket must not be crinkled.

4.3 Testing

When each lamp holder has a lamp fitted and the gaskets are correctly placed, test the chain before installing it.

1. Plug the chain into a suitable power socket.
2. Check if all lamps are working.

o If yes, you can proceed with the installation.
- If no, disconnect the chain from power and replace any faulty lamps.

If the problem persists, do not use the chain and contact your dealer.

4.4 Installation

There must be a lamp fitted in each lamp holder, and each lamp must be sealed correctly with its gasket. It is not safe to use the chain with missing or incorrectly placed lamps or gaskets.

To install the chain after testing, proceed as follows:

1. Choose a suitable mounting spot. Make sure that the chain cannot get damaged, for example by sharp edges, swinging windows, doors, etc. Also make sure that the chain cannot cause hazardous situations if it accidentally comes loose. For example, avoid crossing passageways. Not suitable for installation in cabinets, ceilings, or other enclosures. Not suitable for installation under water.
2. To mount the chain, start at the side of the power plug. Position the power plug near a mains outlet, but do not plug it in yet. Make sure to leave enough power cable to easily plug into the mains outlet without stress on the cable.
3. Start mounting the chain in the desired location.

Make sure not to damage the insulation during installation. Do not use sharp tools to install the chain. Do not fix the chain to buildings or other supports using nails, staples, or other sharp, conducting materials.
4. It is recommended to fix the chain to a support at least every metre.

4.5 Use

1. Plug the chain into a suitable mains outlet to switch it on.
2. Unplug it from the mains to switch off.

5. Cleaning and Maintenance

• Once a month, inspect the plug, cable, insulation, and lamp holders for degradation due to weather, UV light, or other damage. If you notice any deterioration, stop using the chain and dispose of it.
• If a lamp is not working, unplug the chain immediately and replace the lamp. See Fitting or Replacing Lamps for detailed instructions. Use only replacement lamps of the exact same type as stated in the specifications in this manual.

6. Technical Specifications

power supply. 230 V\~, 50 Hz

colour.. black

IP rating IP44

plug to first socket 1.55-1.6 m

socket type

HQPL11001 10xE27

HQPL11002 20x E27

HQPL11003 50xE27

length

HQPL11001 5m

HQPL11002 10 m

HQPL11003 25 m

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu. The information in this manual is subject to change without prior notice.
