Product Type	Straight U-section for fiber optic routing system
Brand	Tripp Lite
Model	SmartRack SRFC10STR48
Category	Electrical wiring accessories
Height	118 mm (4.6 in)
Interior Width	241 mm (9.5 in)
Length	121.92 cm (48 in)
Estimated Weight	Approximately 1.5 kg (to be confirmed based on packaging)
Material	Steel or metal alloy (not specified)
Power Supply	None (passive component)
Main Function	Horizontal transport of fiber optic cables in a cable management system
Installation	Connection to other sections or fittings using couplers (sold separately), hand-tightening without tools
Compatible Accessories	Couplers, ramps, elbows, T-fittings, end caps, etc. (sold separately)
Maintenance and Cleaning	Clean with a dry or slightly damp cloth, without abrasive products
Safety	Use only with suitable loads, do not modify the structure
Spare Parts and Repairability	Accessories are sold separately, no internal spare parts
General Information	Manufactured by Tripp Lite, 1111 W. 35th Street, Chicago, IL 60609 USA

Frequently Asked Questions - SmartRack SRFC10STR48 Tripp Lite

What is the role of the SmartRack SRFC10STR48?

The SmartRack SRFC10STR48 is a straight U-section designed to route horizontally fiber optic cables within a cable management system.

What are the exact dimensions of the SRFC10STR48?

The dimensions are: height 118 mm, interior width 241 mm, and length 121.92 cm (48 inches).

How to install the straight U-sections?

Connect the sections to other sections or fittings using the SRFC10CPL10 couplers (sold separately). Tighten the screws and nuts by hand, no tools are needed.

What accessories are available for this model?

Many accessories are sold separately: couplers (SRFC10CPL10), ramps (SRFC10RAMP), 90° elbows (SRFC10ELBOW), T-fittings (SRFC10JUNT), cross-fittings (SRFC10JUNT4), end caps (SRFC10CAP), and waterfall adapters.

Can the SRFC10STR48 be used with 5-inch components?

Yes, using the SRFC5CPL10 adapter which allows combining 120 mm (5 in) components with 240 mm (10 in) ones.

What is the approximate weight of this section?

The weight is not specified in the manual, but it is estimated at about 1.5 kg. It is recommended to check on the packaging.

How to maintain the fiber management system?

Clean the sections with a dry or slightly damp cloth. Do not use abrasive products or solvents that could damage the surface.

What similar models are available?

Similar models include: SRFC5STR48 (120 mm width, 48 in), SRFC5STR72 (120 mm, 72 in), SRFC10STR48 (241 mm, 48 in), and SRFC10STR72 (241 mm, 72 in).

Is the product delivered with couplers?

No, the couplers (SRFC10CPL10) are sold separately. Only the straight U-section is included.

Where can I find the complete manual?

The complete manual is available for free download at notice-facile.com for SmartRack SRFC10STR48 models and others.

USER MANUAL SmartRack SRFC10STR48 Tripp Lite

Straight Channel Section for Fiber Routing System

Models:SRFC5STR48,SRFC5STR72,SRFC10STR48,SRFC10STR72

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

triplite.com/warranty

Manufacturing Excellence.

Parts List

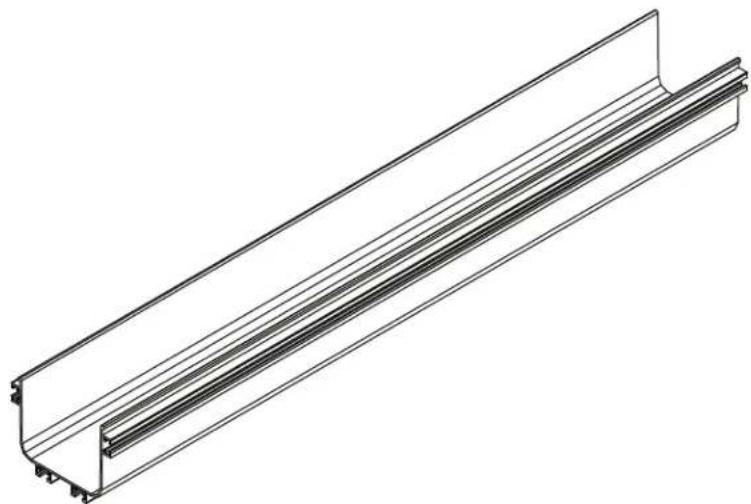

Straight Channel Section, x1

Models and Dimensions

Before proceeding with installation, first confirm your model and dimensions.

Model Cross-Sectional View Height Interior Width Length
SRFC5STR48		4.6 in. (118 mm)	4.8 in. (120 mm)	48 in. (1219 mm)
SRFC5STR72		4.6 in. (118 mm)	4.8 in. (120 mm)	72 in. (1829 mm)
SRFC10STR48		4.6 in. (118 mm)	9.5 in. (241 mm)	48 in. (1219 mm)
SRFC10STR72		4.6 in. (118 mm)	9.5 in. (241 mm)	72 in. (1829 mm)

Additional Accessories

All accessories are sold separately.

Accessory Model Number		Accessory Description and Function
5 in. (120 mm) System	10 in. (240 mm) System
SRFC5CPL5 SRFC10	CPL10 Coupler Kit to Connect Channels and Fittings
SRFC5RAMP SRFC10	ORAMP Up/Down Ramp to Change Level of a Horizontal Run
SRFC5ELBOW SRFC10	OELBOW 90-Degree Fitting to Create Elbow in a Horizontal Run
SRFC5JUNT SRFC10	JUNT T-Shaped Fitting to Create 90-Degree Branch from a Straight Run
SRFC5JUNT4 SRFC10	OJUNT4 4-Way Cross Fitting to Create a Junction with 2 Horizontal Exits
SRFC5DROP SRFC10	ODROP	Trumpet Drop-Out Kit to Limit Bend Radius at an Exit from a Channel, Horizontal T or Vertical T
SRFC4WTRFL		Movable Waterfall Adapter to Enable Cable to Cascade over the Side at a Horizontal Exit
SRFC4WTRFL36		Movable Waterfall Adapter with Pipe to Enable Cable to Cascade over the Side into 36 in. Corrugated Plastic Pipe at a Horizontal Exit
SRFC4WTRFL48		Movable Waterfall Adapter with Pipe to Enable Cable to Cascade over the Side into 48 in. Corrugated Plastic Pipe at a Horizontal Exit
SRFC5CAP SRFC10	CAP	End Cap Kit to Close off the End of a Channel for a Professional, Finished Look
SRFC5CPL10		Adapter to Combine 5 in. (120 mm) Components with 10 in. (240 mm) Components

Installation

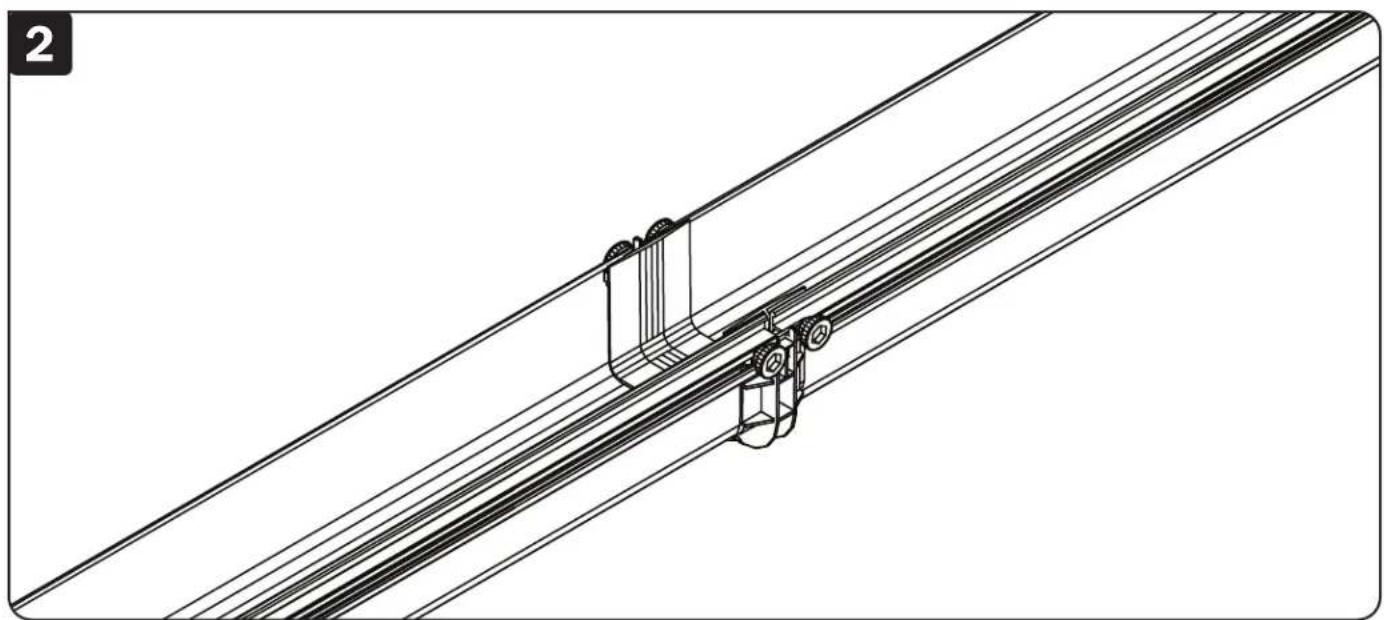

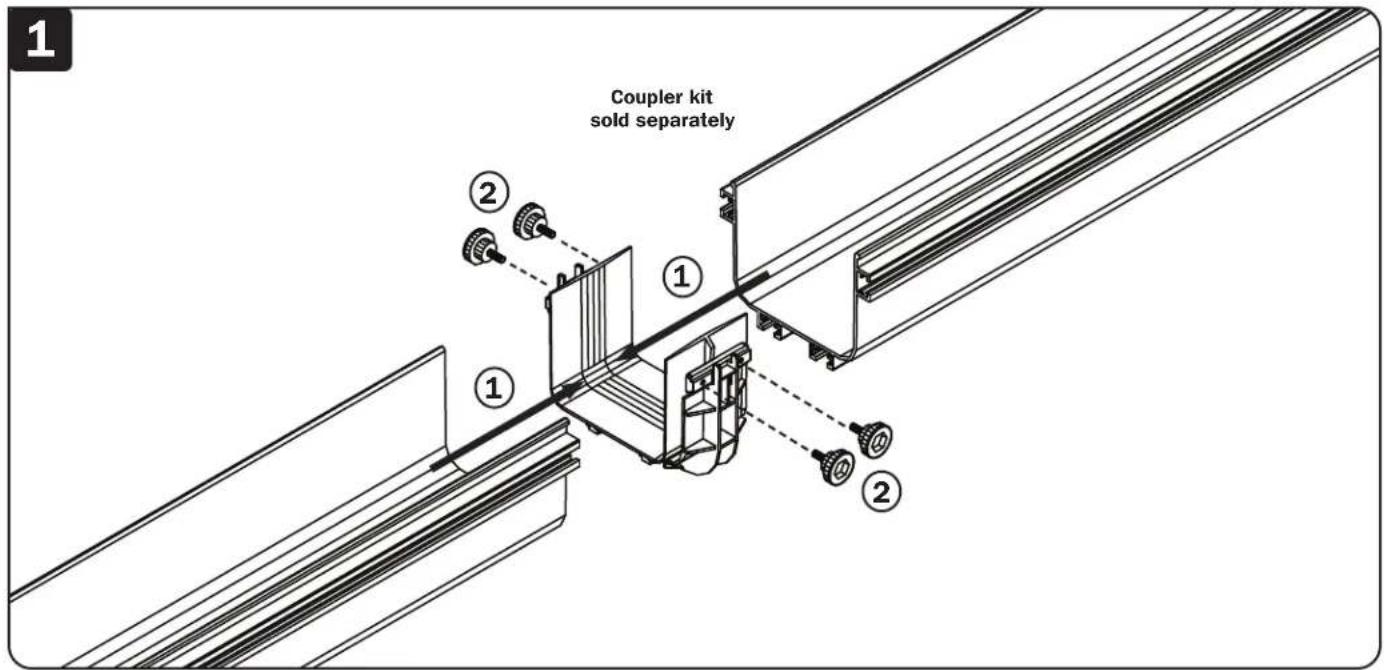

Straight channel sections carry fiber cables horizontally through the system. Connect to additional straight channel sections or other fittings using SRFC5CPL5 or SRFC10CPL10 couplers, sold separately. Tighten screws and nuts by hand, no tools necessary.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
