Product Type	U-shaped channel for fiber optic cable routing
Brand	Tripp Lite
Model	SmartRack SRFC5STR48
Dimensions (H × W × L)	118 mm × 120 mm × 121.92 cm (48 in)
Estimated Weight	1.5 kg
Material	Steel
Color	Black (default), other colors optional
Power	None (passive component)
Main Functions	Horizontal fiber optic cable routing in a rack
Installation	Connection to other sections or fittings via optional couplers; manual tool-less tightening
Maintenance and Cleaning	Clean with a dry, lint-free cloth
Safety	Indoor use only; no live parts
Spare Parts and Repairability	Accessories sold separately (couplers, fittings, etc.); no user-serviceable parts
General Information	Designed for Tripp Lite SmartRack cable management systems

Frequently Asked Questions - SmartRack SRFC5STR48 Tripp Lite

What is the exact model and what is it used for?

The model is SRFC5STR48, a straight U-shaped channel for horizontal fiber optic cable routing in a rack.

What are the dimensions of this accessory?

Height 118 mm, internal width 120 mm, length 121.92 cm (48 in).

How to install the U-shaped channel?

Connect it to other sections or fittings using SRFC5CPL5 couplers (sold separately). Tighten screws and nuts by hand, no tool required.

What accessories are available for this model?

Couplers, ramps, elbows, T-fittings, crosses, drop-outs, and end caps. All sold separately under SRFC5xxx references.

Can I use this product with copper cables?

No, this product is specifically designed for fiber optic cables. For copper cables, use other Tripp Lite accessories.

What is the minimum bend radius for the cables?

The bend radius is limited by drop-out accessories such as the Trumpet Drop-Out (SRFC5DROP). Follow the cable manufacturer's specifications.

Does this U-shaped channel come with mounting screws?

No, screws and nuts are included for inter-section connection, but rack mounting hardware is not provided (compatible with SmartRack systems).

What is the weight of this item?

Approximate weight is 1.5 kg, slightly varying depending on added accessories.

Can the color be customized?

Color kits are sold separately. The default color is black.

Where to find the full manual?

The manual is available for free in PDF on notice-facile.com for the Tripp Lite SmartRack SRFC5STR48 model.

USER MANUAL SmartRack SRFC5STR48 Tripp Lite

Straight Channel Section for Fiber Routing System

Models: SRFC5STR48, SRFC5STR72, SRFC10STR48, SRFC10STR72

Technical line drawing of a structural beam or panel with multiple parallel grooves (no text or symbols)

Español 5 • Français 9 • Русский 13

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

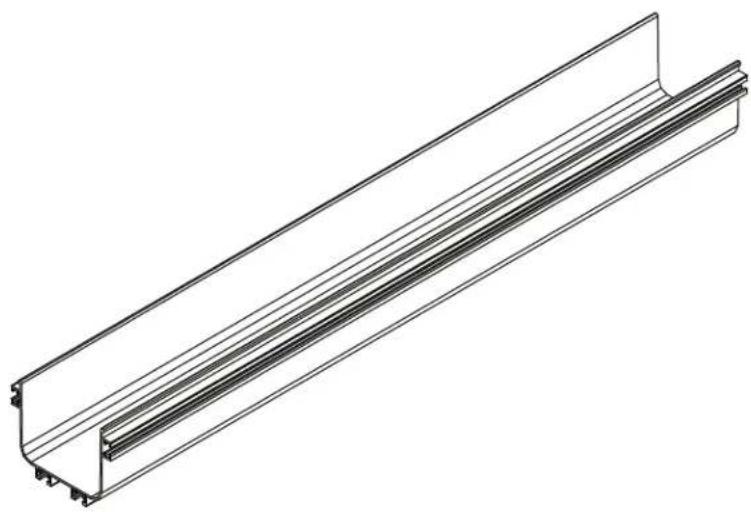

Parts List

Pure technical line drawing of a structural beam or channel (no text or symbols)

Straight Channel Section, x1

Models and Dimensions

Before proceeding with installation, first confirm your model and dimensions.

Model Cross-Sectional View Height Interior Width Length
SRFC5STR48		4.6 in.(118 mm)	4.8 in.(120 mm)	48 in.(1219 mm)
SRFC5STR72		4.6 in.(118 mm)	4.8 in.(120 mm)	72 in.(1829 mm)
SRFC10STR48		4.6 in.(118 mm)	9.5 in.(241 mm)	48 in.(1219 mm)
SRFC10STR72		4.6 in.(118 mm)	9.5 in.(241 mm)	72 in.(1829 mm)

Additional Accessories

All accessories are sold separately.

Accessory Model Number		Accessory Description and Function
5 in. (120 mm) System 10 in. (240 mm) System
SRFC5CPL5 SRFC10	CPL10 Coupler Kit to Connect Channels and Fittings
SRFC5RAMP SRFC10	RAMP Up/Down Ramp to Change Level of a Horizontal Run
SRFC5ELBOW SRFC10	ELBOW 90-Degree Fitting to Create Elbow in a Horizontal Run
SRFC5JUNT SRFC10	JUNT T-Shaped Fitting to Create 90-Degree Branch from a Straight Run
SRFC5JUNT4 SRFC10	JUNT4 4-Way Cross Fitting to Create a Junction with 2 Horizontal Exits
SRFC5DROP SRFC10	DROP	Trumpet Drop-Out Kit to Limit Bend Radius at an Exit from a Channel, Horizontal T or Vertical T
SRFC4WTRFL		Movable Waterfall Adapter to Enable Cable to Cascade over the Side at a Horizontal Exit
SRFC4WTRFL36		Movable Waterfall Adapter with Pipe to Enable Cable to Cascade over the Side into 36 in. Corrugated Plastic Pipe at a Horizontal Exit
SRFC4WTRFL48		Movable Waterfall Adapter with Pipe to Enable Cable to Cascade over the Side into 48 in. Corrugated Plastic Pipe at a Horizontal Exit
SRFC5CAP SRFC10	CAP	End Cap Kit to Close off the End of a Channel for a Professional, Finished Look
SRFC5CPL10		Adapter to Combine 5 in. (120 mm) Components with 10 in. (240 mm) Components

Installation

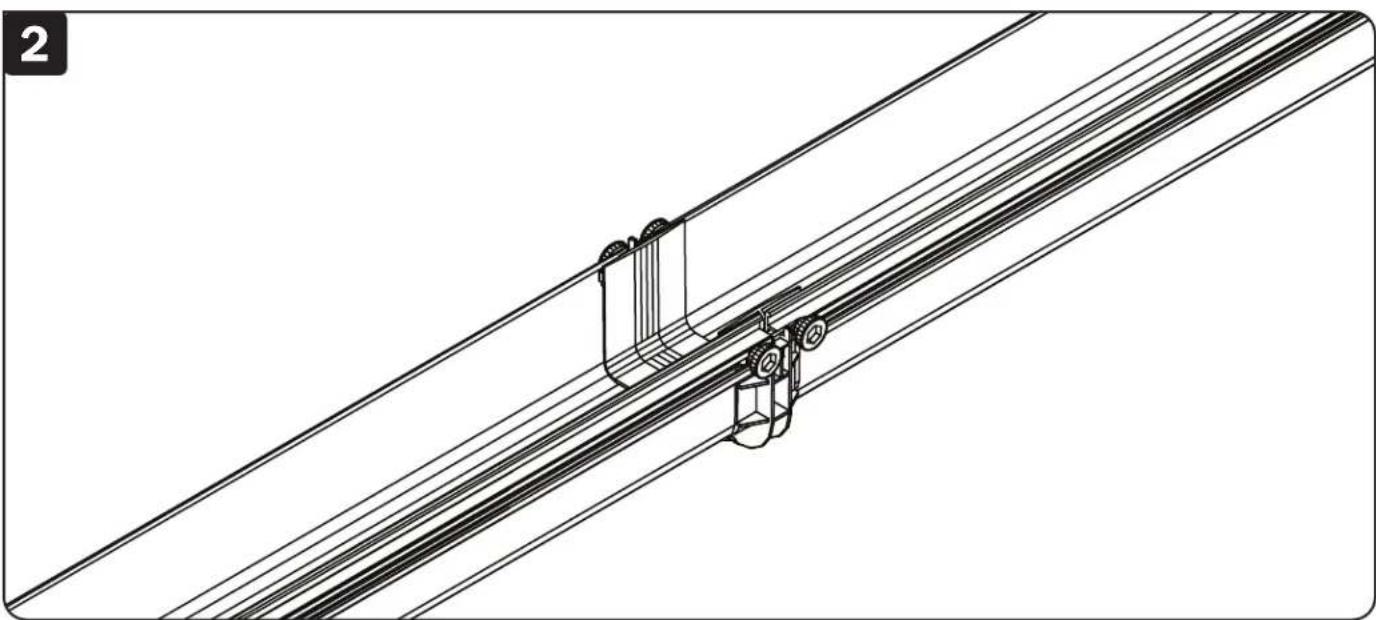

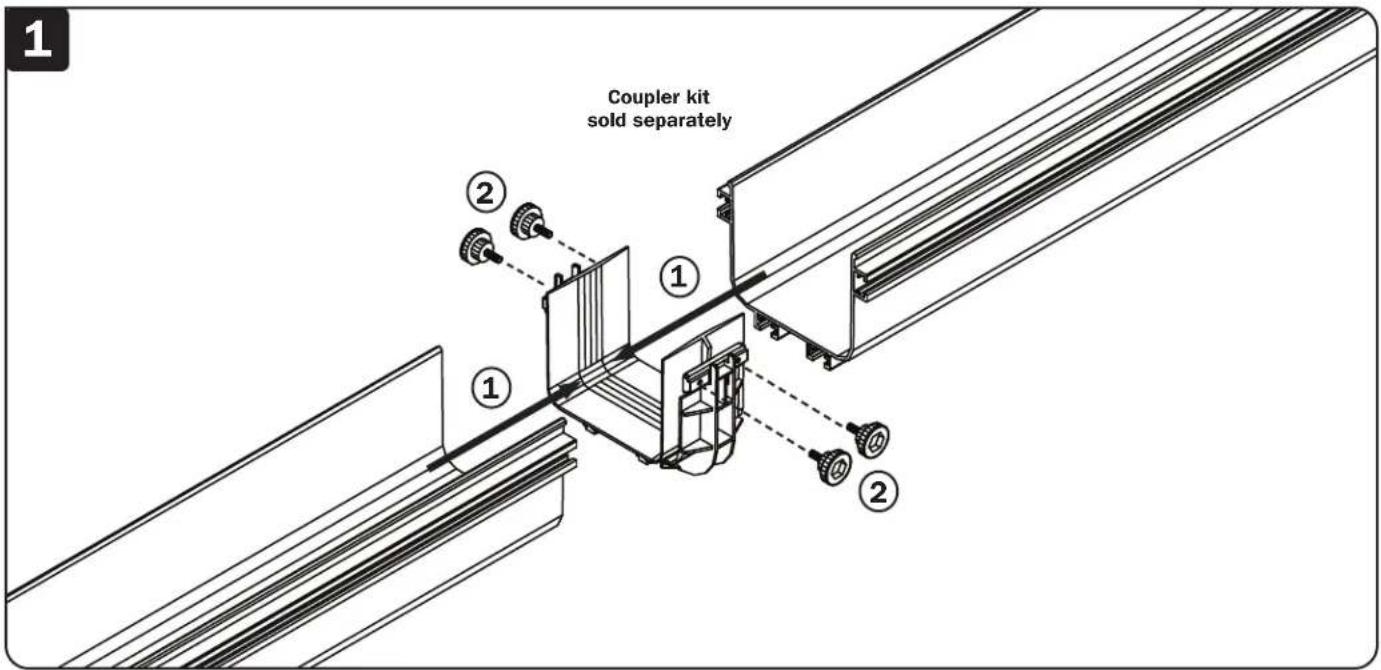

Straight channel sections carry fiber cables horizontally through the system. Connect to additional straight channel sections or other fittings using SRFC5CPL5 or SRFC10CPL10 couplers, sold separately. Tighten screws and nuts by hand, no tools necessary.

Coupler kit sold separately

Technical line drawing of a mechanical assembly or rail system with no visible text or symbols

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20-01-051 93-5008 mm
