Product Type	USB to RS-232 Serial Adapter
Brand	Tripp Lite
Model	U209-000-R
Transfer Rate	Up to 250 Kbps
Power Supply	USB bus, no external power required
Connectors	USB Type-A male and DB9 female serial port
Chip	Prolific PL2303GS
System Compatibility	Windows, Mac, Linux, Android (with OTG)
Cable	Double shielding to reduce EMI/RFI interference
Functions	Remote wake-up and power management
Installation	Plug and Play after driver installation
Warranty	3-year limited
Package Contents	Adapter, user manual
Maintenance	Clean with a dry, non-abrasive cloth
Safety	Use in a dry environment, avoid moisture
Repairability	No replaceable parts, not user-serviceable
Compliance	WEEE Directive (EU)

Frequently Asked Questions - U209000R Tripp Lite

How to install the driver on Windows?

Download the driver from tripplite.com/support. Run the installation and follow the instructions. Then plug the adapter into an available USB port.

Is the U209-000-R compatible with my Mac?

Yes, it is compatible with Mac operating systems. Drivers are available on the Tripp Lite website.

Can I use this adapter with an Android tablet?

Yes, with an Android device supporting OTG (Android 3.2+). You will need to download a terminal app like Prolific PL2303GS USB-UART from Google Play.

What OTG cable is needed for Android?

A USB OTG cable such as Tripp Lite model U052-06N is required to connect the adapter to an Android device.

Why doesn't my computer recognize the adapter?

Make sure you have installed the driver before connecting the adapter. Check in Device Manager that the adapter appears under Ports (COM & LPT).

What is the maximum data transfer speed?

The transfer rate can reach up to 250 Kbps.

Does the adapter require an external power supply?

No, it is powered directly from the USB port. No external power is required.

How to check if the installation was successful?

Open Device Manager. Under Ports, you should see a device with the adapter name and the assigned COM port.

What is the serial port pinout?

The DB9 female connector has the following pins: 1 DCD, 2 RXD, 3 TXD, 4 DTR, 5 GND, 6 DSR, 7 RTS, 8 CTS, 9 RI. Refer to the manual for the diagram.

What to do if the adapter is damaged?

Contact Tripp Lite to obtain a Return Merchandise Authorization (RMA) number and benefit from the 3-year limited warranty. Do not attempt to repair it yourself.

USER MANUAL U209000R Tripp Lite

USB to Serial Adapter

Model: U209-000-R

Español 13 • Français 25

Русский 37 • Deutsch 49

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Copyright © 2022 Tripp Lite. All rights reserved.

Package Contents

• U209-000-R USB to Serial Adapter
- Owner's Manual

Features

• Supports data transfer rates up to 250 Kbps
• External power not required
• Supports remote wake up and power management
- Premium double-shielded cable eliminates cross-talk and reduces EMI/RFI interference

System Requirements

• Computer with an available USB port
- Compatible with Windows ^ , Mac ^ and Linux operating systems
- Compatible with Android™ devices (tablets/phones) with USB Host Mode (OTG) support and Android OS version 3.2 and above (see the Android compatibility list file on Tripp Lite's website at triplite.com)
- Android-powered devices will require a USB Host Mode (OTG) cable such as Tripp Lite's U052-06N to connect to the U209-000-R

Installation

Note: The following instructions show how to install the driver on a Windows 7 computer. The installation steps will be similar for other Windows operating systems. For non-Windows operating systems, reference the installation files on Tripp Lite's website at tripplite.com. Compatible Android devices do not require a driver for use with the U209-000-R, but do require that a terminal server application be downloaded. The Prolific PL2303GS USB-UART app is recommended and can be found in the Google Play Store.

1. Without connecting the U209-000-R, power on your computer. Drivers for the cable can be downloaded from tripplite.com/support.

Installation

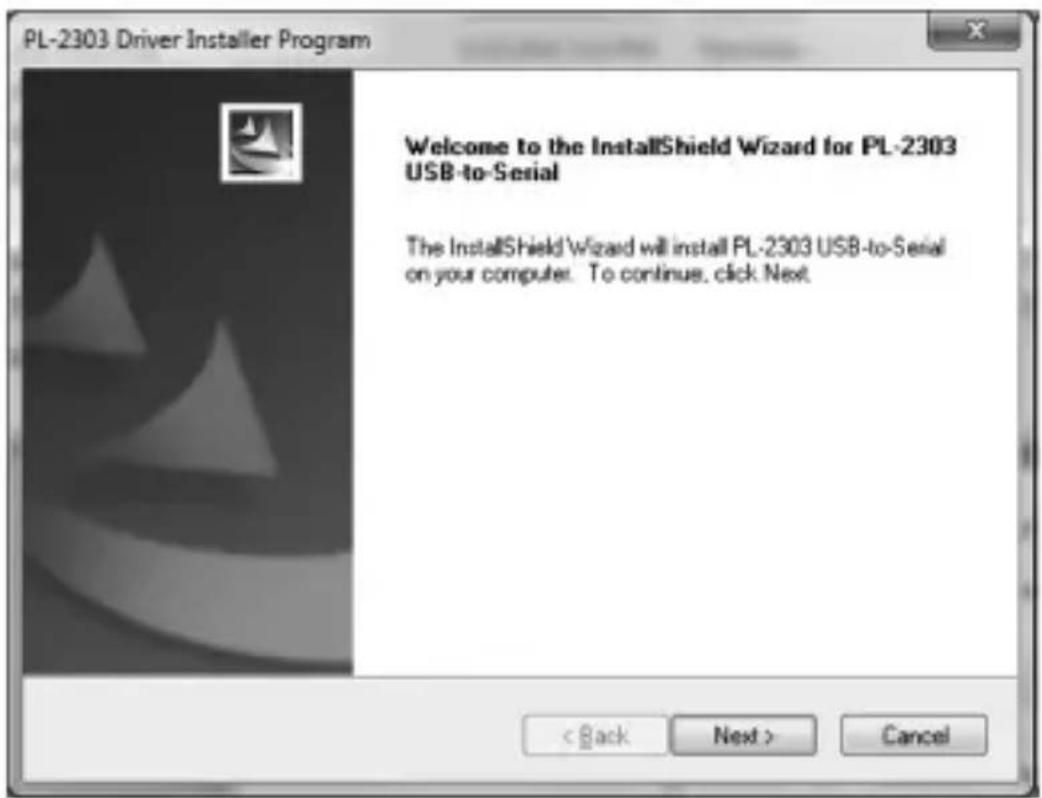

1. When the driver installer program launches, click the Next button to start installation.

Installation

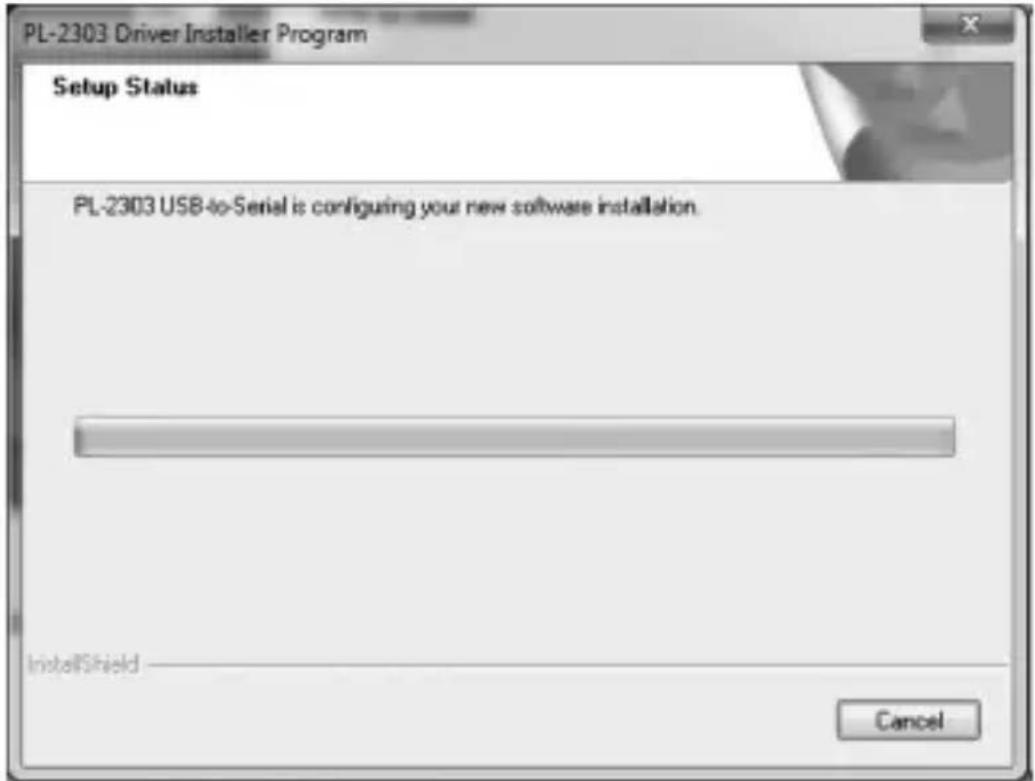

1. The driver installation begins. A progress bar tracks where you are in the installation process.

Installation

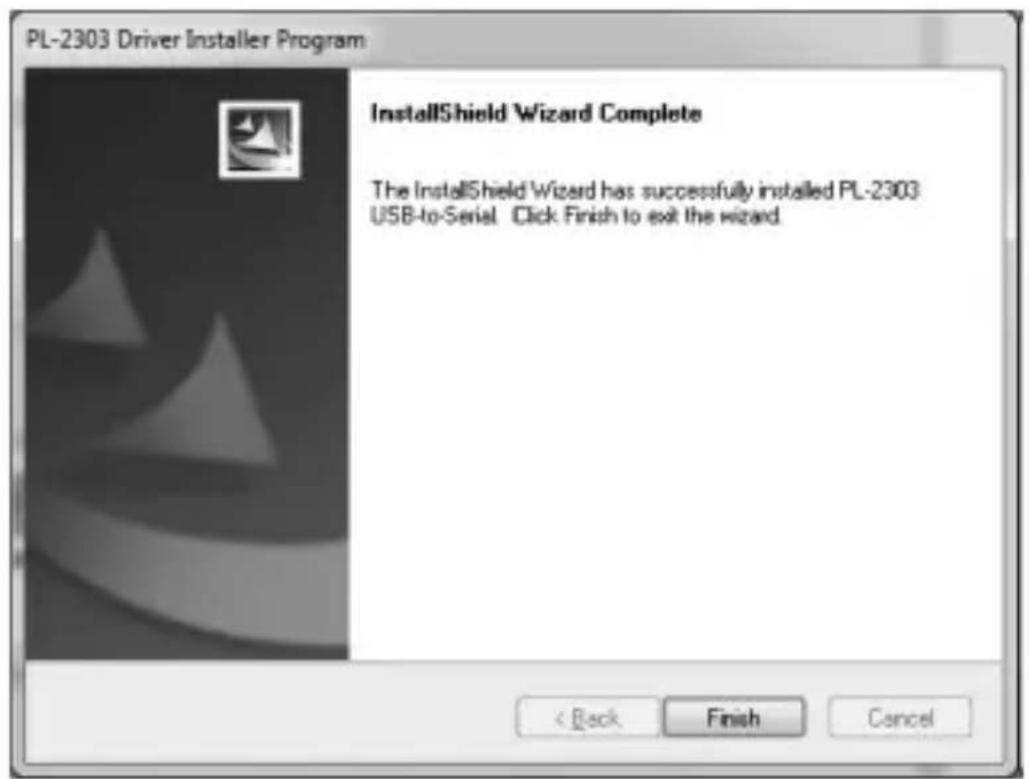

1. Once the installation process is complete, click the Finish button to close out of the program.

1. Connect the U209-000-R to an available USB port on your computer. Windows will detect the adapter and assign it a COM port upon completing the installation.

Installation

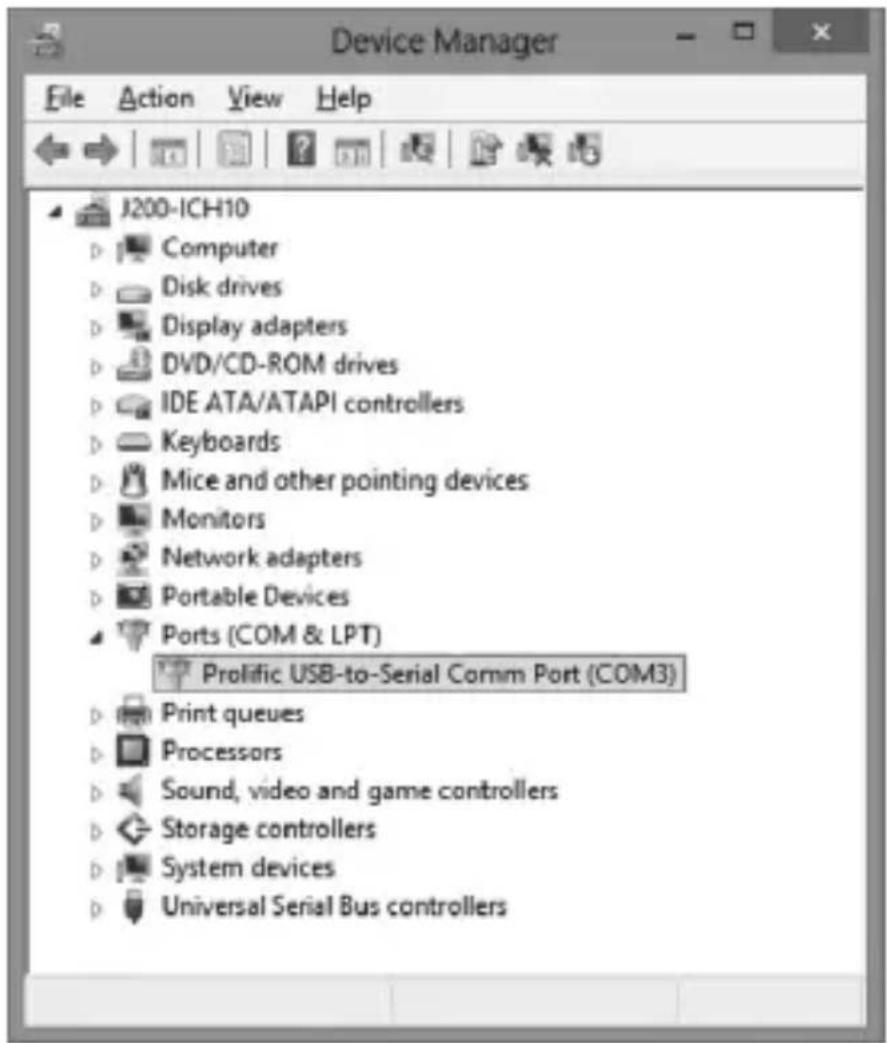

1. To verify that your adapter has been successfully installed, navigate to your computer's Control Panel and open the Device Manager screen. The adapter will appear in the Ports section, with its assigned COM port next to it.

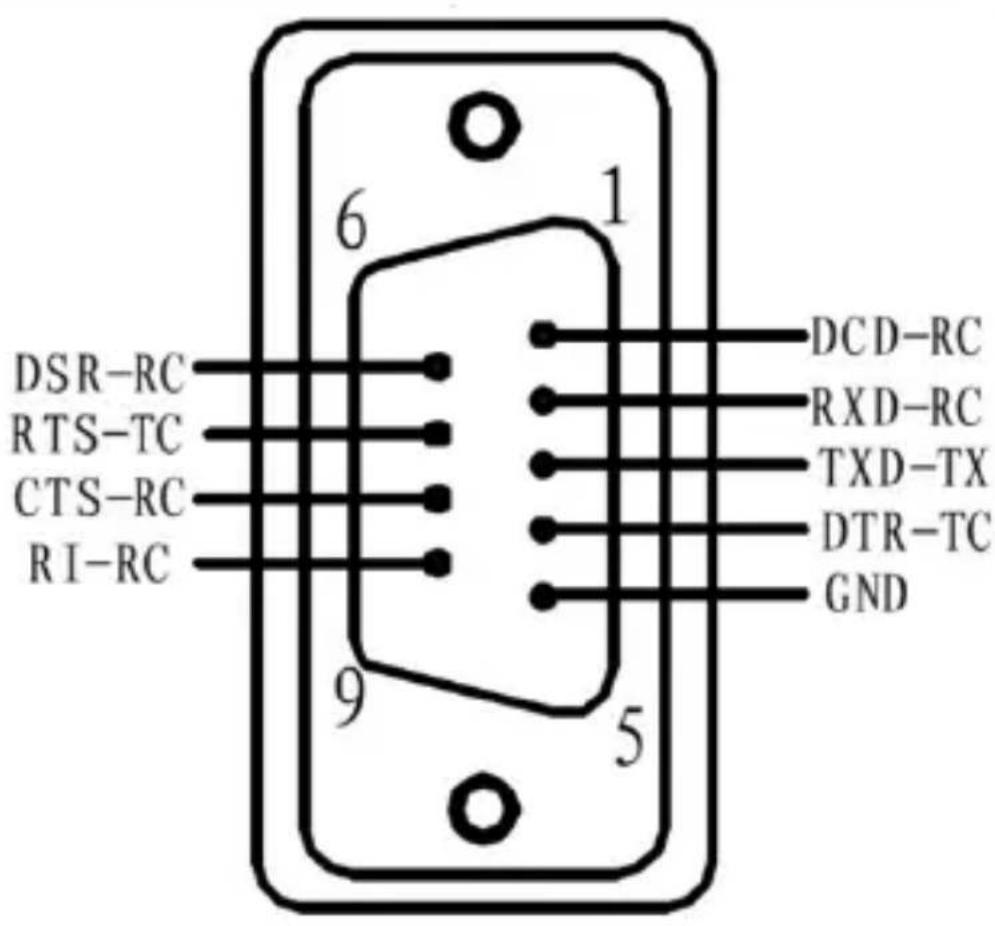

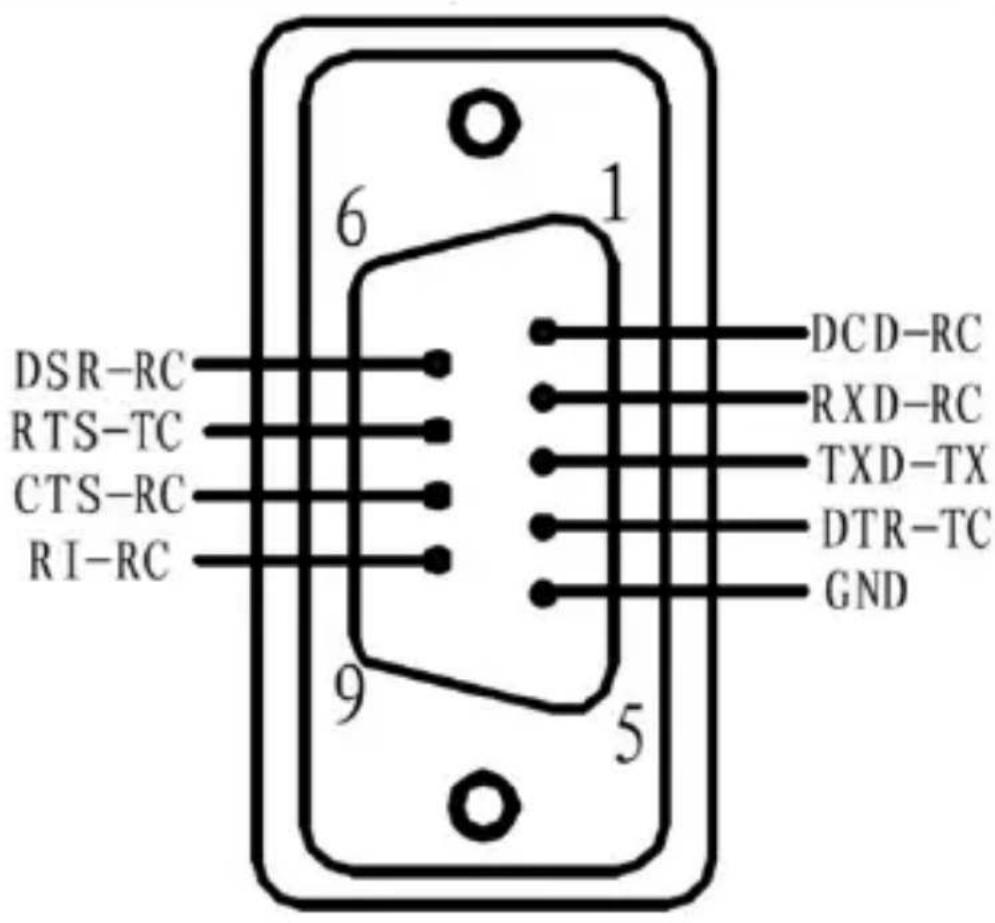

Pinout

Warranty and Product Registration

3-Year Limited Warranty

TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty and Product Registration

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

Regulatory Compliance

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement.

Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Instalación

Instalación

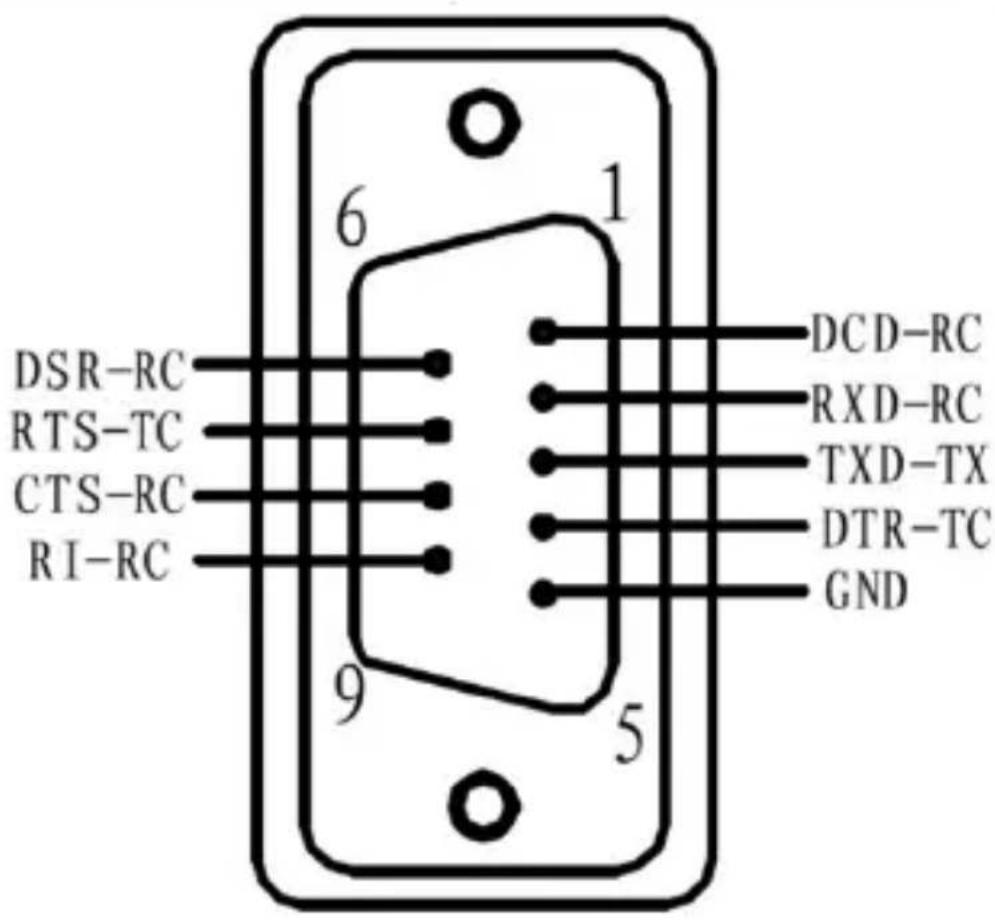

Pinouts
