Product Type	Built-in Microwave Oven
Brand	Frigidaire
Model	FMTK3027AW
Color	White
Required Opening Height	Minimum 432 mm, maximum 438 mm
Required Opening Width	Minimum 629 mm, maximum 635 mm
Required Opening Depth	Minimum 508 mm
Approximate Weight	45 kg (100 lb)
Power Supply	120 V, 60 Hz (standard estimate)
Main Functions	Microwave cooking, defrosting, programming
Maintenance and Cleaning	Clean the interior with a damp cloth after each use. Do not use abrasive cleaners.
Safety	Unplug before any intervention. Do not remove warning labels. Professional installation recommended.
Included Parts	Front frame, exhaust duct, screw A (11 units), screw B (4 units)
Warranty	The warranty may be voided in case of improper installation or removal of labels.

Frequently Asked Questions - FMTK3027AW FRIGIDAIRE

How to install the built-in trim kit FMTK3027AW?

Follow the provided instructions: prepare the opening to the specified dimensions, attach the exhaust duct, screw the mounting rails to the microwave, then slide the appliance into the opening. Attach the front frame with the provided screws. Ensure the floor is level.

What is the minimum opening height for this microwave?

The minimum opening height is 432 mm (17 inches) and the maximum height is 438 mm (17 1/4 inches).

Can I install this microwave over a gas oven?

No, this built-in kit is designed only for installation above an electric wall oven. Installation near a gas or electric range (within 2 feet) is not recommended.

How to properly connect the power cord?

Before plugging in, turn off the power at the electrical panel. Plug the cord into an outlet located outside the shaded area indicated in the instructions. For an opening depth greater than 53.3 cm, the outlet can be placed anywhere on the back wall.

What to do if the microwave does not heat?

First check that the appliance is properly plugged in and the circuit breaker has not tripped. Make sure the door is fully closed. If the problem persists, consult the user manual or contact customer service.

How to clean the interior of the microwave?

Clean the interior with a damp cloth after each use. For stubborn stains, use a solution of warm water and mild soap. Do not use abrasive cleaners or harsh chemicals.

Can I use metal utensils in this microwave?

No, never use metal utensils or aluminum containers in a microwave, as they can cause sparks and damage the appliance. Use microwave-safe containers (glass, ceramic, specific plastic).

What is the capacity of this microwave?

The capacity is not specified in this manual. Generally, built-in microwaves of this size have a capacity of about 1.6 to 2.2 cubic feet. Consult the product data sheet for the exact value.

How to set the clock on the microwave?

Refer to the control panel: press the 'Clock' button, use the numeric keys to enter the time, then confirm. Precise details are in the user manual.

Where to find spare parts for this model?

Spare parts (frame, screws, etc.) can be ordered from the manufacturer Frigidaire or authorized dealers. Use the model number FMTK3027AW to identify compatible parts.

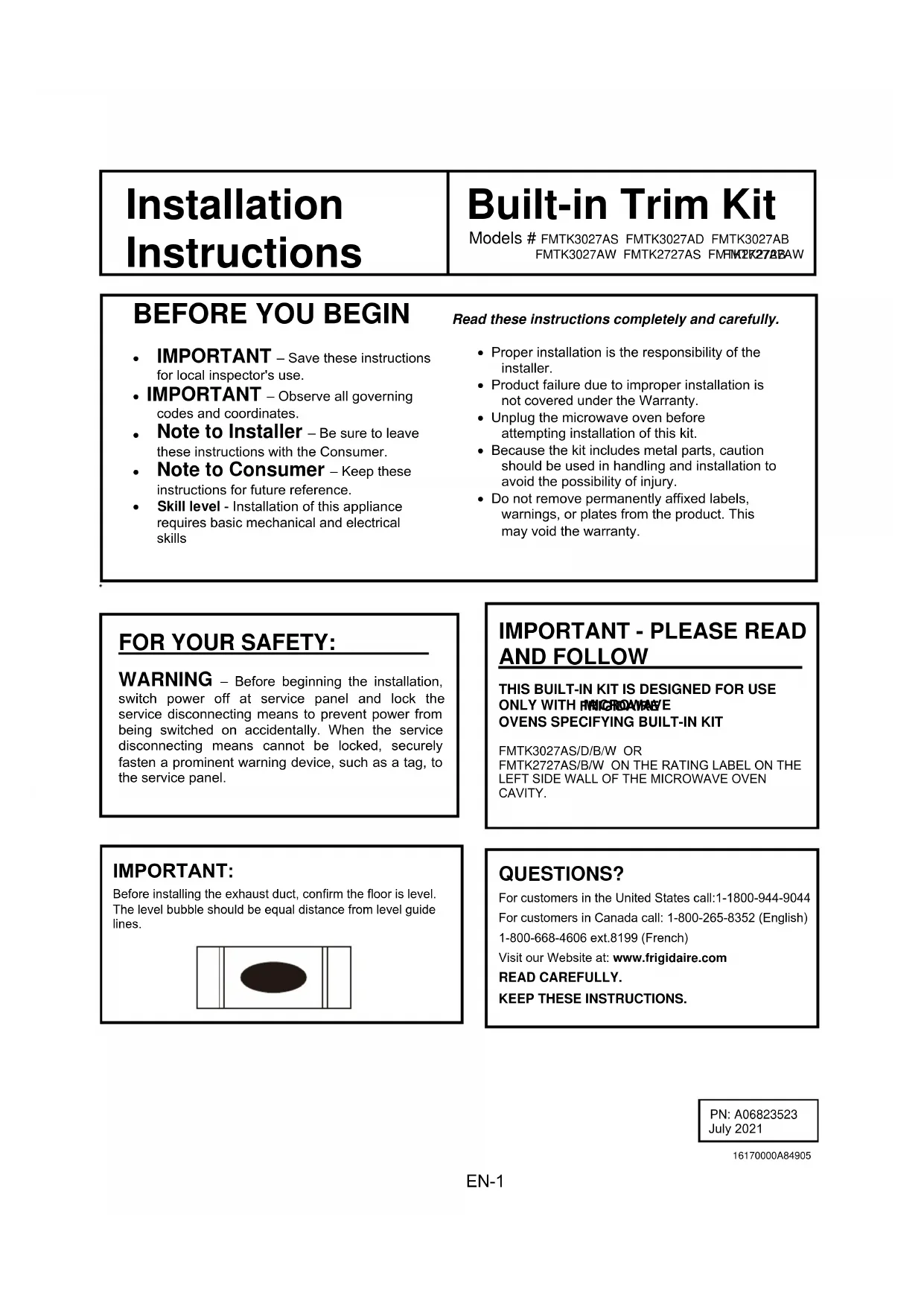

USER MANUAL FMTK3027AW FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Models # FMTK3027AS FMTK3027AD FMTK3027AB FMTK3027AW FMTK2727AS FMFM2K27ABAW

BEFORE YOU BEGIN

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and coordinates.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING – Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH MICROVAVE OVENS SPECIFYING BUILT-IN KIT

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-1800-944-9044 For customers in Canada call: 1-800-265-8352 (English) 1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN: A06823523

July 2021

16170000A84905

Installation Instructions

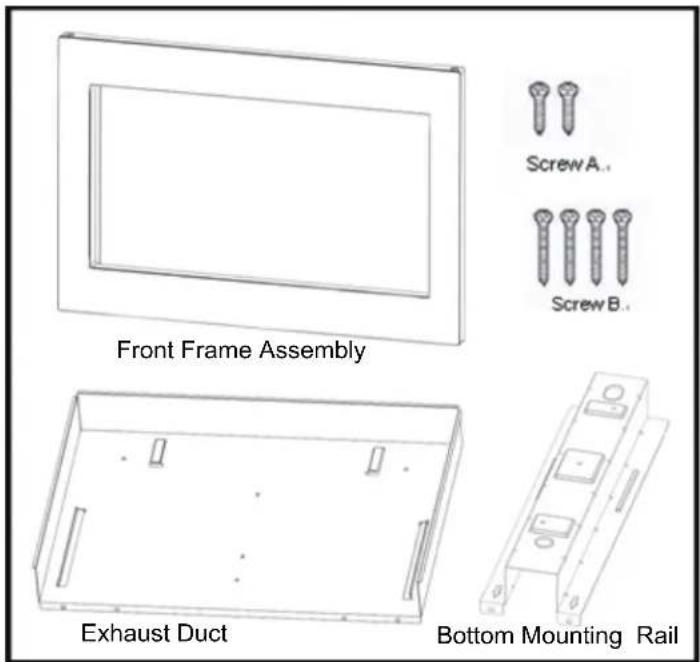

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly- QTY 1
2. Exhaust Duct - QTY 1
   Bottom Mounting Rail – QTY 2
3. Screw A - QTY 11 (3.9X8.0 mm)
4. Screw B - QTY 4 (4.0X20 mm)

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Model Number	Color Descripon
FMBS2227AB Black M	crowave
FMTK3027AS SS		30" trim kit
FMTK3027AD	Black SS	30" trim kit
FMTK3027AB	Black 30"	trim kit
FMTK3027AW	White	30" trim kit
FMTK2727AS SS		27" trim kit
FMTK2727AB	Black 27"	trim kit
FMTK2727AW	White	27" trim kit

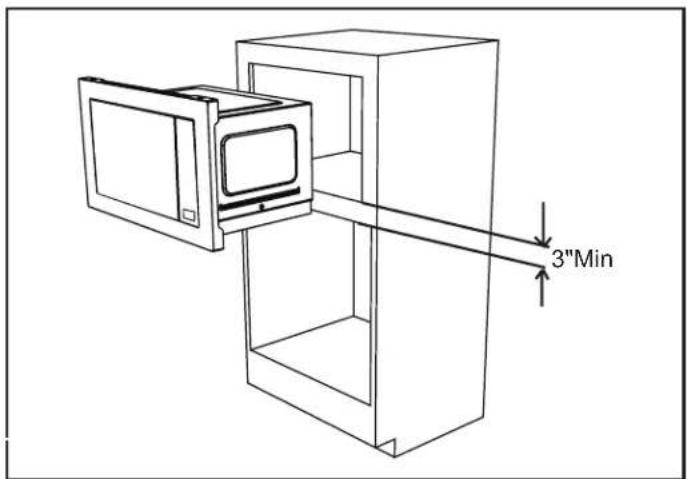

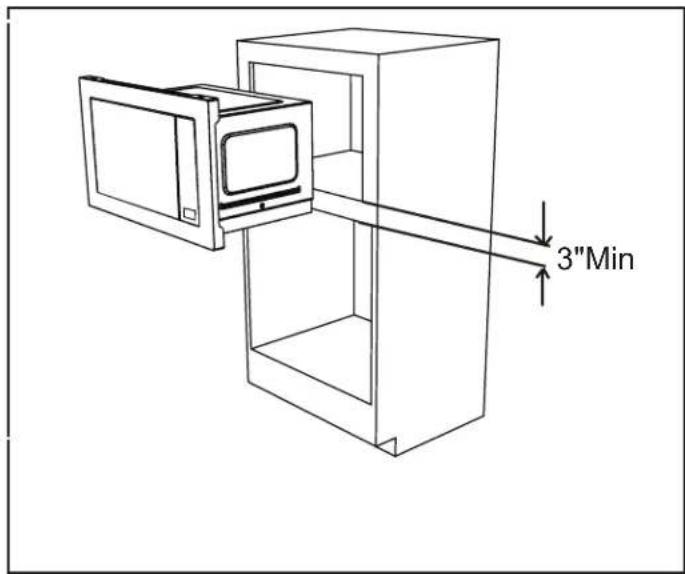

See Illustration 2 for proper location and when building above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches.

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non-self-cleaning single cavity wall oven.

CABINET OR WALL CUTOUT

Cutout Dimensions

Height (A)
Minimum	17" (432 mm)
Maximum	17 _1/4 " (438 mm)
Width (B)
Minimum	24 3/4" (629 mm)
Maximum	25" (635 mm)
Depth (C)
Minimum	20" (508 mm)

Front Frame Assembly Screw A.. Screw B.. Exhaust Duct Bottom Mounting Rail

Illustration 1

Trim Kit Overall Dimensions
	27" 30"
Height	18 1/8 (460 mm)	18 1/8 (460 mm)
Width	26 15/16 (684 mm)	29 15/16 (759 mm)
Depth	1 9/16 (40 mm)	1 9/16 (40 mm)

3"Min

Illustration 2

Installation Instructions

6" (15.2 cm) 4" (10.2 cm) 4" (10.2 cm) A B C

Illustration 3

Screw A Center Line

Illustration 4

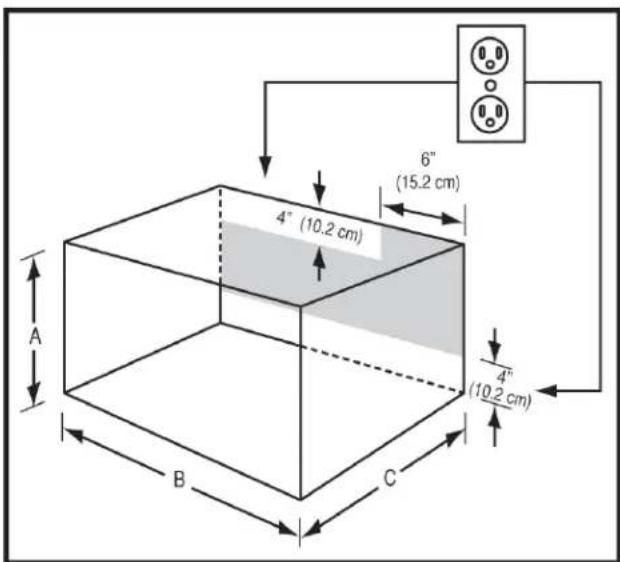

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

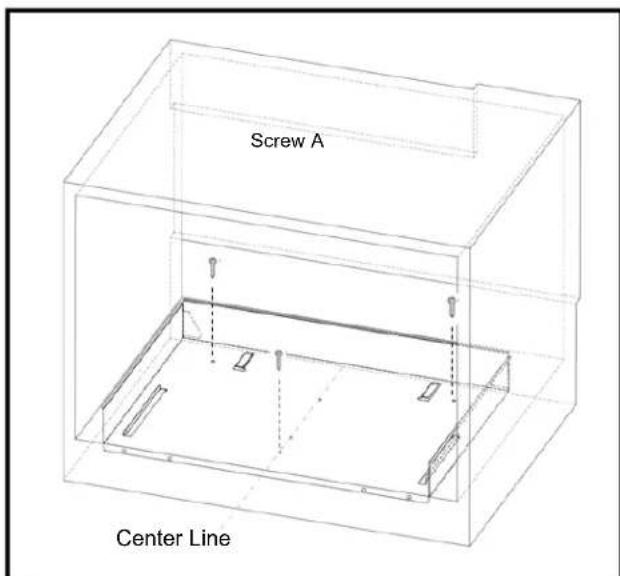

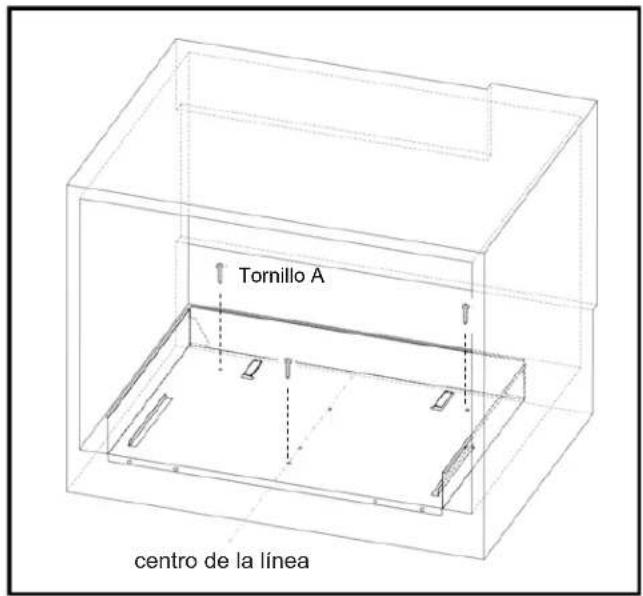

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4.
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 screws are needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

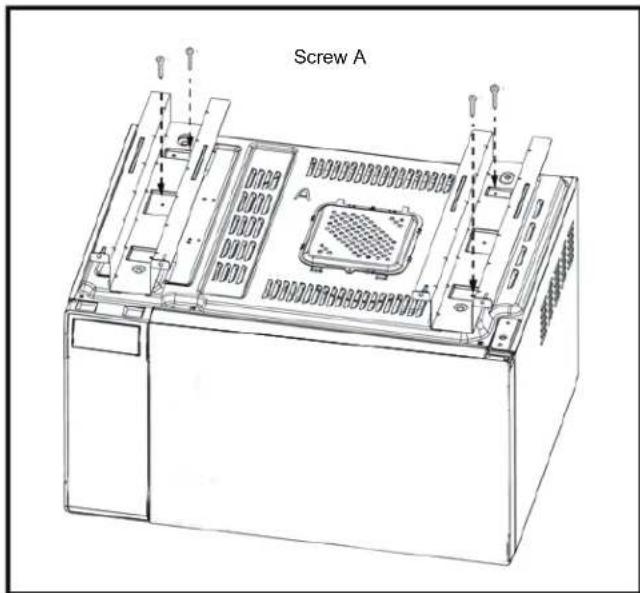

1. Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four screws A. See Illustration 5 below.

Screw A

Illustration 5

OVEN INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet. IMPORTANT: Protect cabinet when placing on counter top.

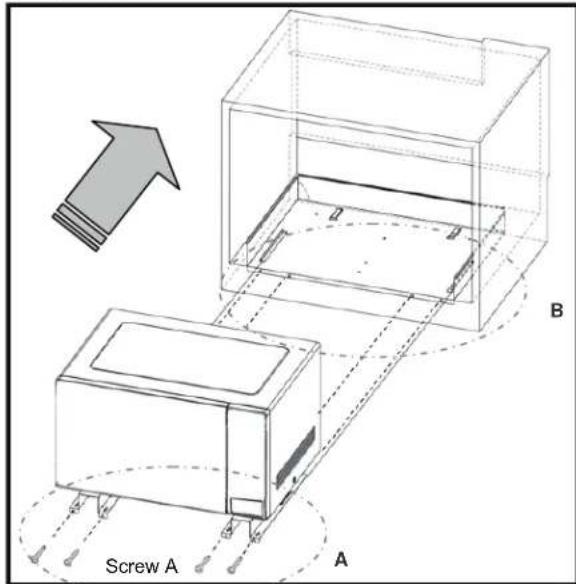

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6.
3. Secure the Exhaust Duct Assembly with the four screws A.

Screw A A B

Illustration 6

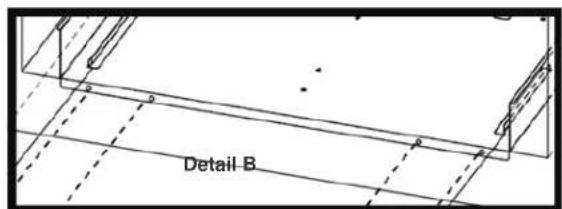

Detail B

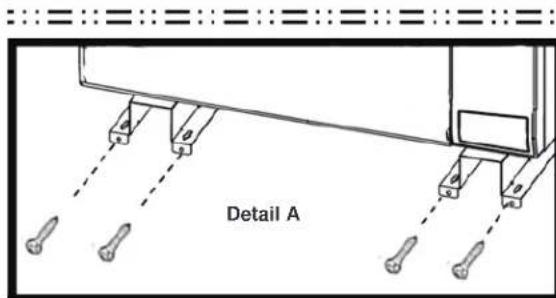

Detail A

FRAME INSTALLATION

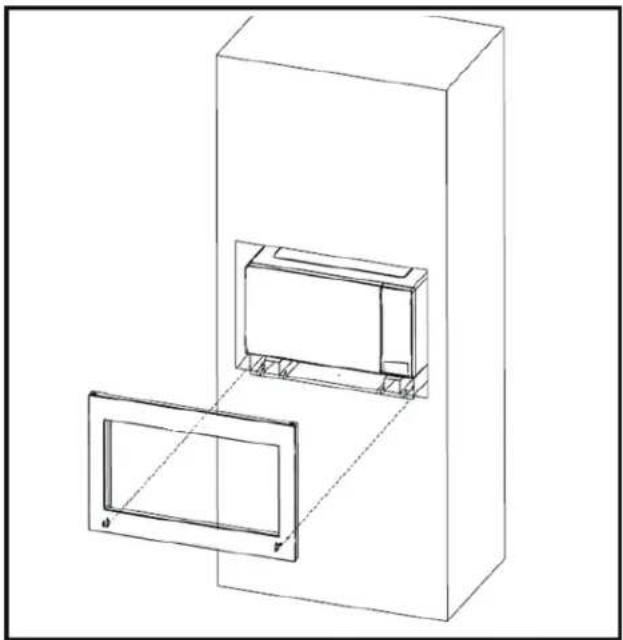

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

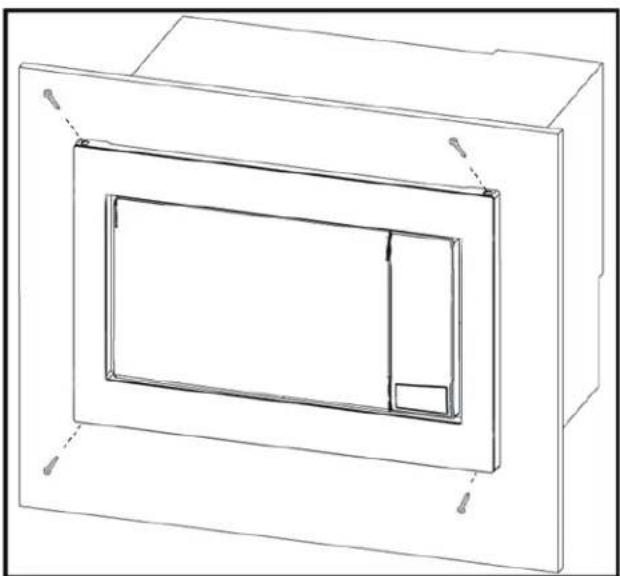

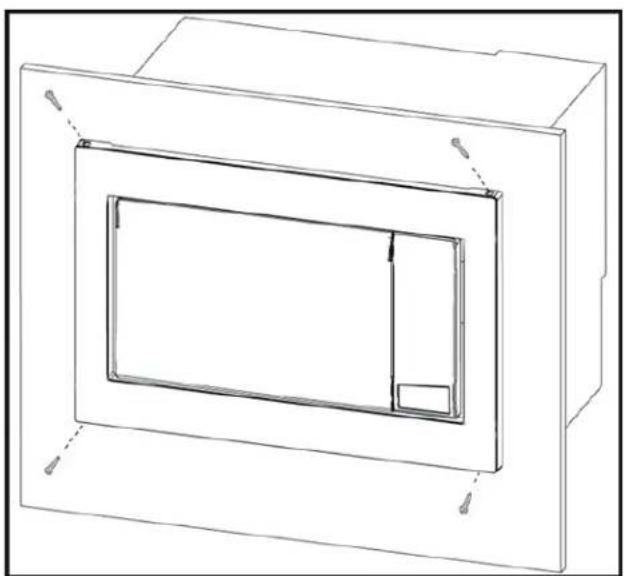

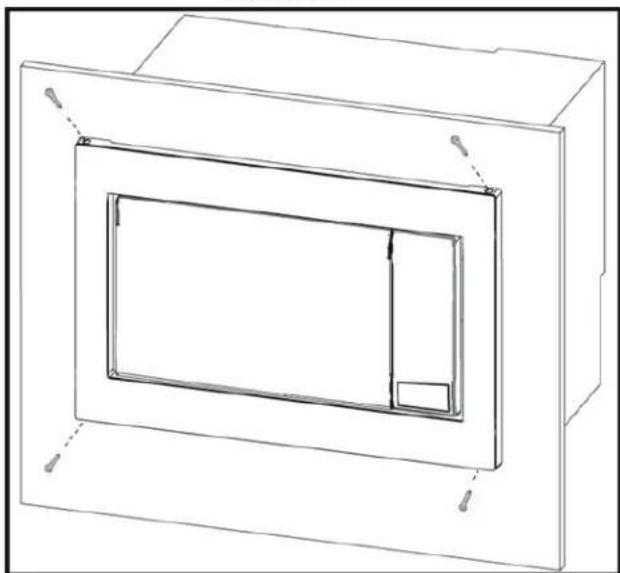

2. Check that it is level and then secure with two Screws B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining Screws B. See Illustration 8.

Technical line drawing of a mechanical assembly with two rectangular components and a central housing (no text or symbols)

Illustration 7

Technical line drawing of a rectangular enclosure with internal partition (no text or symbols)

Illustration 8

6" (15.2 cm) 4" (10.2 cm) 4" (10.2 cm) A B C

Ilustración 3

Technical line drawing of a mechanical assembly with two components, one rectangular and one rectangular, shown without any text or symbols.

ilustración 7

Technical line drawing of a rectangular enclosure with internal partition (no text or symbols)

ilustración 8

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FMIGROWREVE OVENS SPECIFYING BUILT-IN KIT

FMTK3027AS/D/B/W OR

For customers in the United States call:1-1800-944-9044

For customers in Canada call: 1-800-265-8352 (English) 1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021

Front Frame Assembly Exhaust Duct Bottom Mounting Rail Vis A Vis B

Illustration 1

Dimensions Ensemble de garniture ensemble
	27po	30po
Hauteur	18 1/8 (460 mm)	18 1/8 (460 mm)
Largeur	26 15/16 (684 mm)	29 15/16 (759 mm)
Profondeur	1 9/16 (40 mm)	1 9/16 (40 mm)

3"Min

Illustration 2

6" (15.2 cm) 4" (10.2 cm) 4" (10.2 cm) A B C

Illustration 3

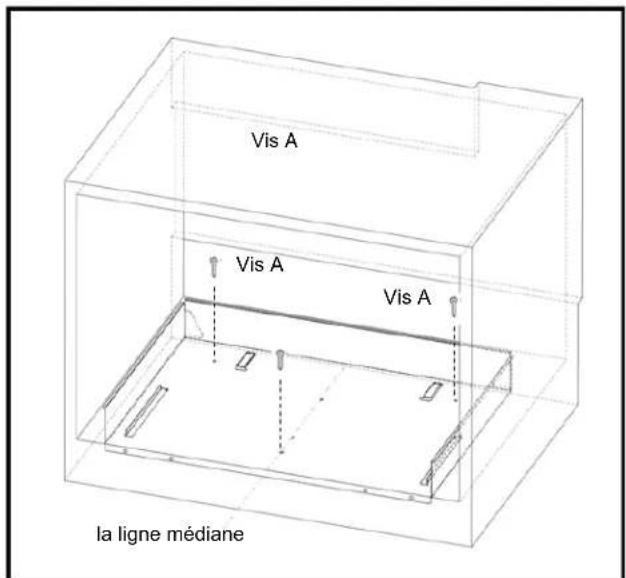

MONTAGE DU CONDUIT D'ÉVACUATION

Technical line drawing of a mechanical assembly with two rectangular components and a base plate (no text or symbols)

Illustration 7

Technical line drawing of a rectangular enclosure or enclosure with internal compartments and mounting points (no text or symbols)

Illustration 8
