FMTK2727AW - Microwaves FRIGIDAIRE - Free user manual and instructions

Product Type	Built-in Microwave Oven
Brand	Frigidaire
Model	FMTK2727AW
Color	White
Oven Width	26 15/16 in (684 mm)
Oven Height	18 1/8 in (460 mm)
Oven Depth	1 9/16 in (40 mm) (frame depth); oven approx. 20 in (508 mm)
Interior Capacity	1.1 cu ft (31 L)
Output Power	900 W
Power Supply Voltage	120 V ~ 60 Hz
Microwave Frequency	2.45 GHz
Cooking Functions	Defrost, auto cooking, sensor cooking, reheating, popcorn
Power Levels	10 levels
Timer and Clock	Yes, digital timer and clock
Interior Light	LED lamp
Turntable	Yes, glass
Control Type	Electronic touch controls
Child Safety	Child lock
Interior Material	Stainless steel coating
Cleaning	Clean with a damp cloth and mild detergent; avoid abrasives
Net Weight	Approximately 16.8 kg (37 lb)
Warranty	1 year parts and labor
Original Spare Parts	Available from the manufacturer; use only Frigidaire parts
Installation	Built into cabinet or wall, requires trim kit (provided with the model)

Frequently Asked Questions - FMTK2727AW FRIGIDAIRE

What is the power of this Frigidaire FMTK2727AW microwave?

The output power is 900 W, providing fast and even cooking.

What are the dimensions of the required opening to install this microwave?

The opening must have a height of 17 to 17 1/4 in (432-438 mm), a width of 24 3/4 to 25 in (629-635 mm), and a minimum depth of 20 in (508 mm).

How to clean the inside of the microwave?

Use a damp cloth with a mild detergent. Avoid abrasive cleaners that could scratch the stainless steel interior coating. For odors, place a bowl of water with lemon and heat for 2 minutes.

Does the microwave have a child lock?

Yes, the child lock function is available. Refer to the manual to activate this safety feature.

Can I use metal utensils in this microwave?

No, metal utensils or those with metallic finishes can cause sparks. Use only microwave-safe containers.

How to install the trim kit provided with the FMTK2727AW model?

Follow the instructions in the manual: first attach the exhaust duct to the floor of the opening, then place the oven by sliding it onto the duct. Then secure the front frame with the provided screws.

What to do if the microwave does not heat?

Check that the door is properly closed, that the cord is plugged in, and that the circuit breaker has not tripped. If the problem persists, contact an authorized technician.

Can I use this microwave above a gas stove?

No, this microwave is designed to be built-in above an electric wall oven only. It must not be installed within 2 feet of a gas or electric stove.

How to defrost food with this microwave?

Use the defrost function by entering the weight of the food. The microwave automatically adjusts power and time. Turn food halfway through.

Where can I find spare parts for this model?

Original Frigidaire spare parts are available from the manufacturer or authorized dealers. Always use parts specific to model FMTK2727AW.

USER MANUAL FMTK2727AW FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Models # FMTK3027AS FMTK3027AD FMTK3027AB FMTK3027AW FMTK2727AS FMTK27BAW

BEFORE YOU BEGIN

IMPORTANT - Save these instructions for local inspector's use.
- IMPORTANT - Observe all governing codes and coordinates.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions for future reference.
- Skill level - Installation of this appliance requires basic mechanical and electrical skills

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
  Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING - Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FVNGROAAGE OVENS SPECIFYING BUILT-IN KIT

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-1800-944-9044
For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)
Visit our Website at: www.frigidaire.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021

16170000A84905

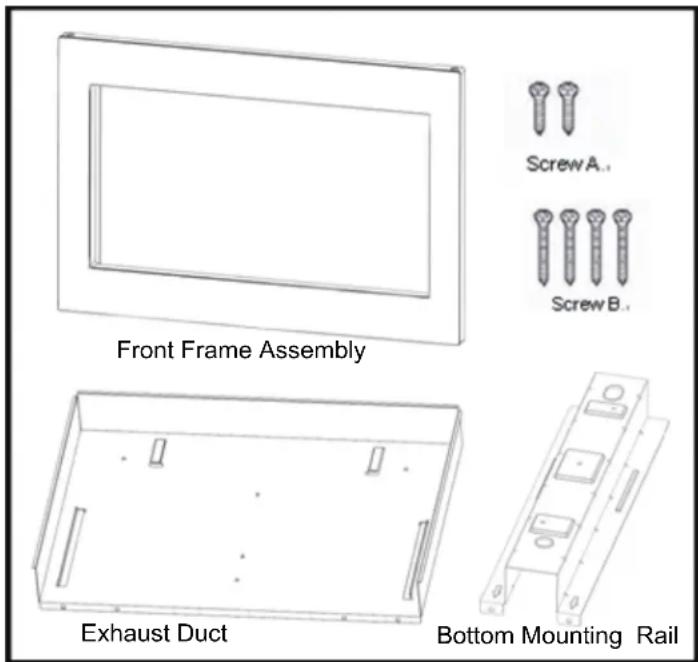

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly-QTY 1
   2.Exhaust Duct - QTY 1

Bottom Mounting Rail - QTY 2

1. Screw A - QTY 11(3.9X8.0 mm)
2. Screw B - QTY 4 (4.0X20 mm)

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Model Number	Color Descripon
FMBS2227AB Black M	crowave
FMTK3027AS SS		30'' trim kit
FMTK3027AD	Black SS	30'' trim kit
FMTK3027AB	Black 30''	trim kit
FMTK3027AW	White	30'' trim kit
FMTK2727AS SS		27'' trim kit
FMTK2727AB	Black 27''	trim kit
FMTK2727AW	White	27'' trim kit

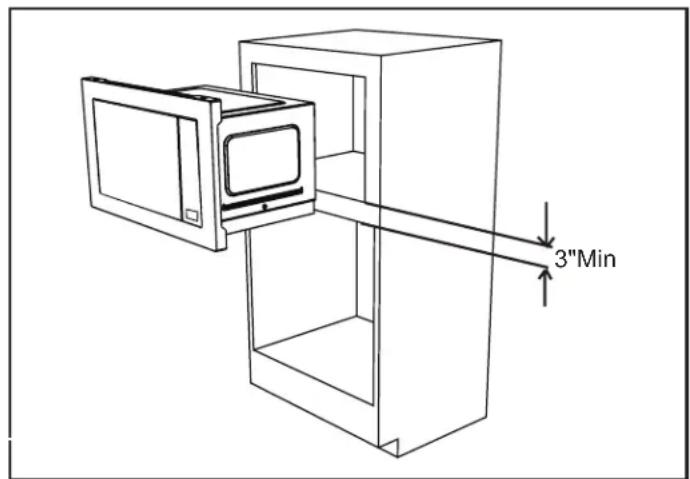

See Illustration 2 for proper location and when building above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches.

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non-self-cleaning single cavity wall oven.

CABINET OR WALL CUTOUT

Cutout Dimensions

Height (A)
Minimum	17" (432 mm)
Maximum	17 1/4" (438 mm)
Width (B)
Minimum	24 3/4" (629 mm)
Maximum	25" (635 mm)
Depth (C)
Minimum	20" (508 mm)

Illustration 1

Trim Kit Overall Dimensions
	27” 30"
Height	18 1/8 (460 mm)	18 1/8 (460 mm)
Width	26 15/16 (684 mm)	29 15/16 (759 mm)
Depth	1 9/16 (40 mm)	1 9/16 (40 mm)

Illustration 2

Installation Instructions

Illustration 3

Illustration 4

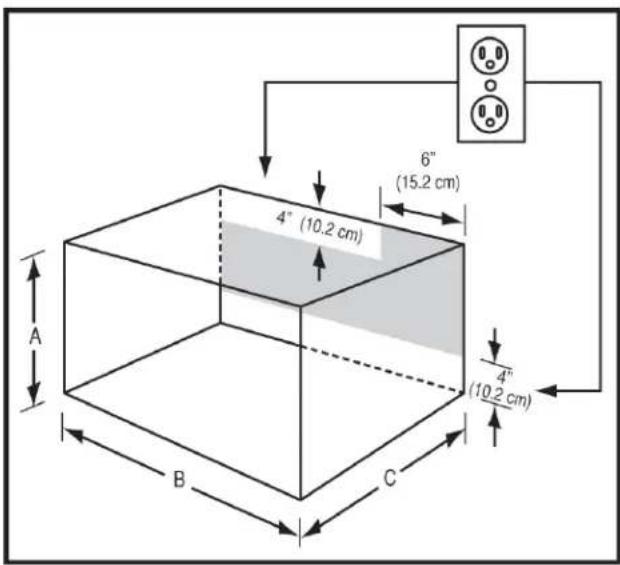

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

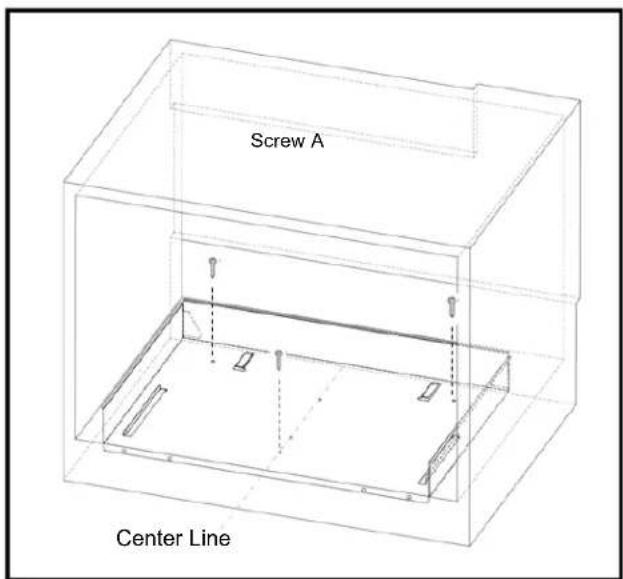

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4.
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 screws are needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

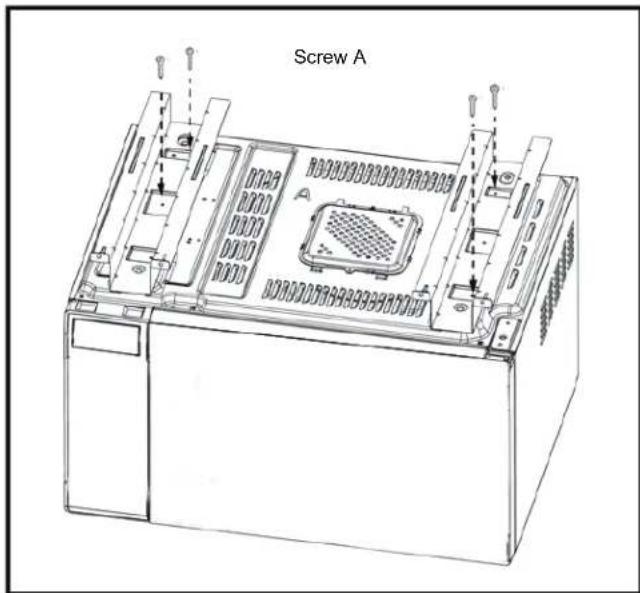

1. Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four screws A. See Illustration 5 below.

Illustration 5

OVEN INSTALLATION

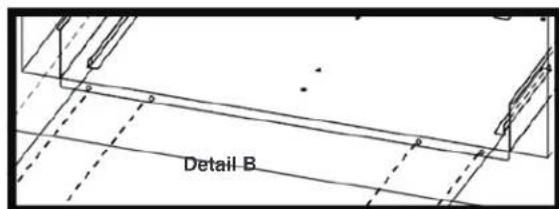

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.
   IMPORTANT: Protect cabinet when placing on counter top.

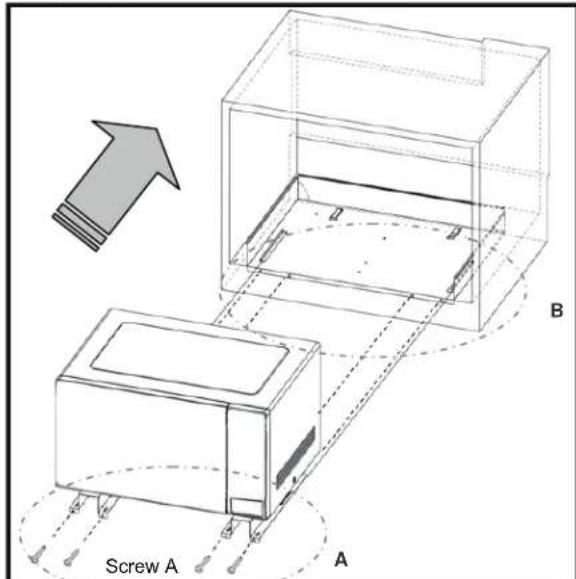

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6.
3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

FRAME INSTALLATION

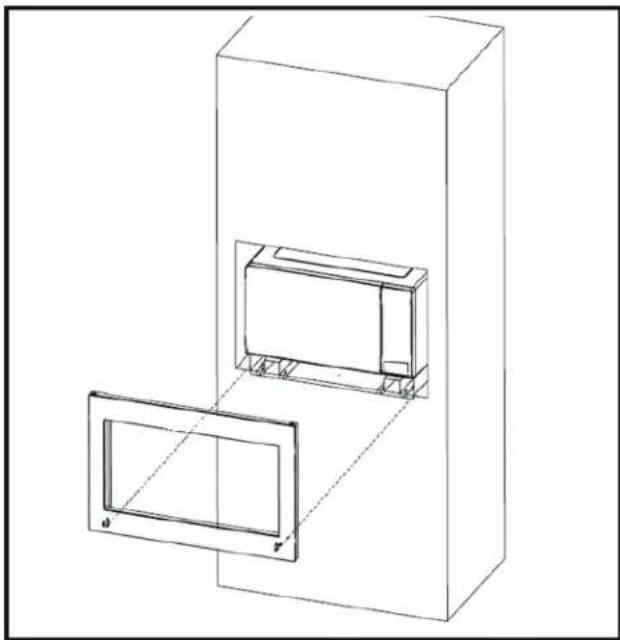

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

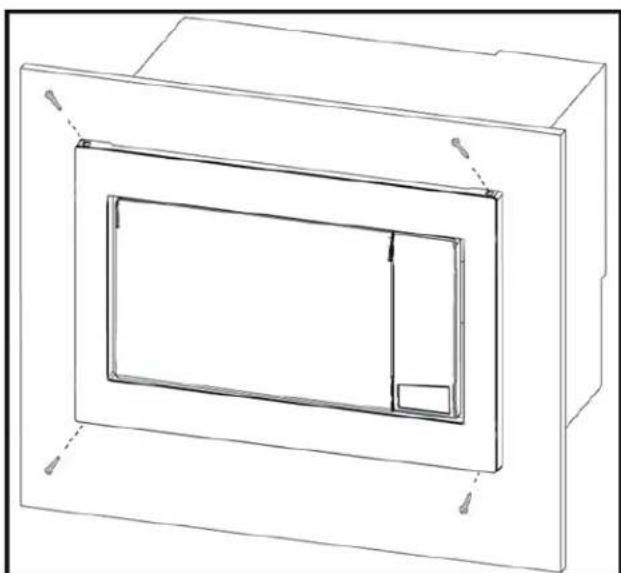

2. Check that it is level and then secure with two Screws B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining Screws B. See Illustration 8.

Illustration 7
Illustration 8

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FIMIGROVREVE OVENS SPECIFYING BUILT-IN KIT

FMTK3027AS/D/B/W OR

For customers in the United States call:1-1800-944-9044

For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021
