USER MANUAL TWINS 1 TIP FRESH N REBEL

We share a genuine and never-ending love for music, fashion and colours, and are bold at heart. We create mobile must-haves that people want to be seen with and really complement someone's style.

Fresh 'n Rebel was born in Rotterdam and is still based in this creative and raw soul of the Netherlands. Our urban designs are made for those who dare to go for the unknown and want to surround themselves with good quality and the finest details as much as we do.

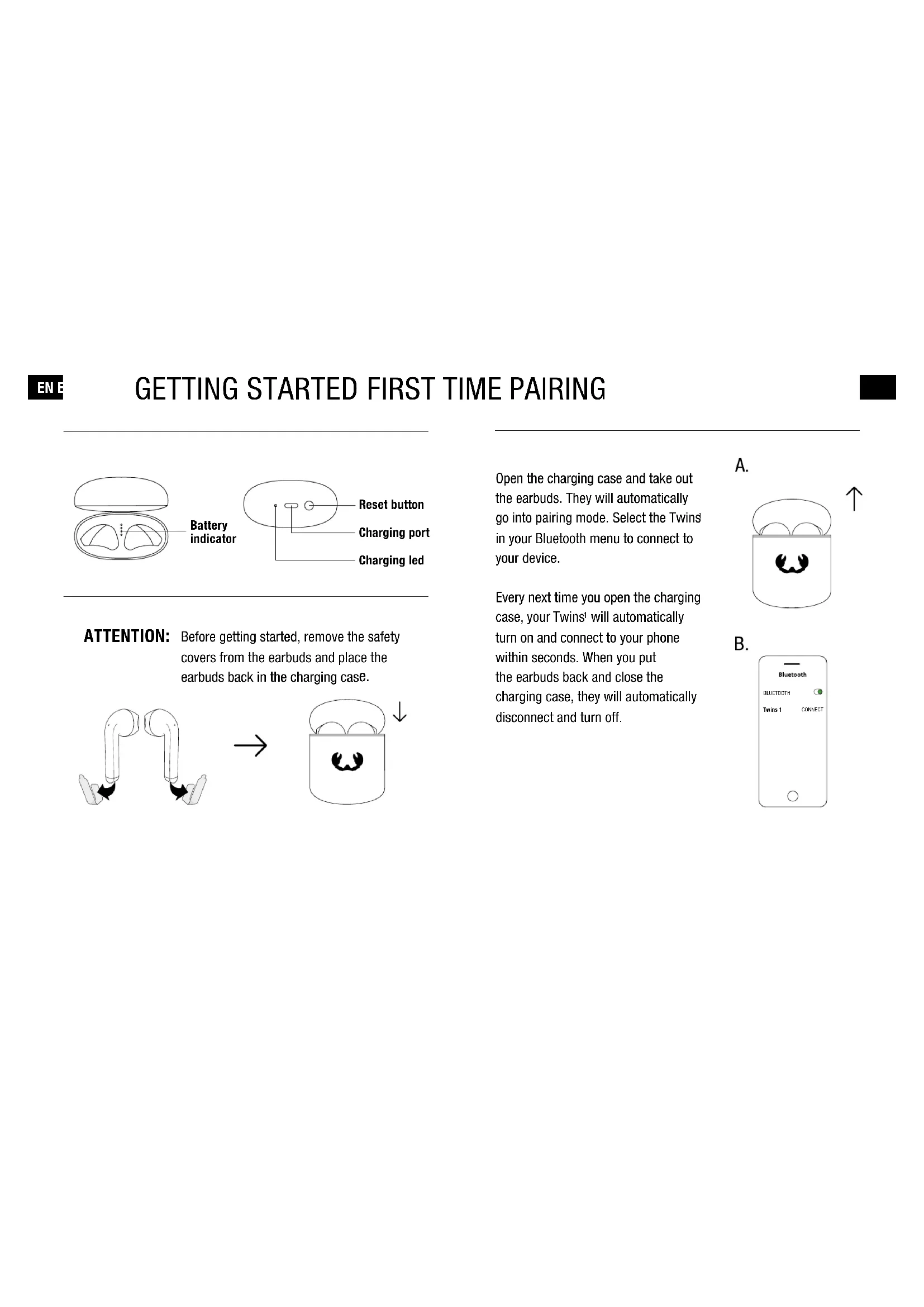

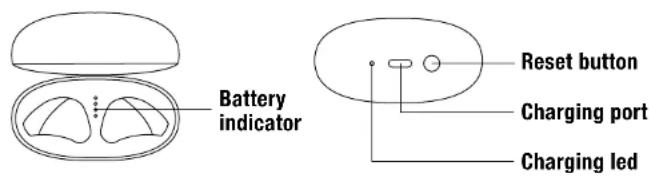

GETTING STARTED FIRST TIME PAIRING

ATTENTION: Before getting started, remove the safety covers from the earbuds and place the earbuds back in the charging case.

Open the charging case and take out the earbuds. They will automatically go into pairing mode. Select the Twins in your Bluetooth menu to connect to your device.

Every next time you open the charging case, your Twins will automatically turn on and connect to your phone within seconds. When you put the earbuds back and close the charging case, they will automatically disconnect and turn off.

A.

B.

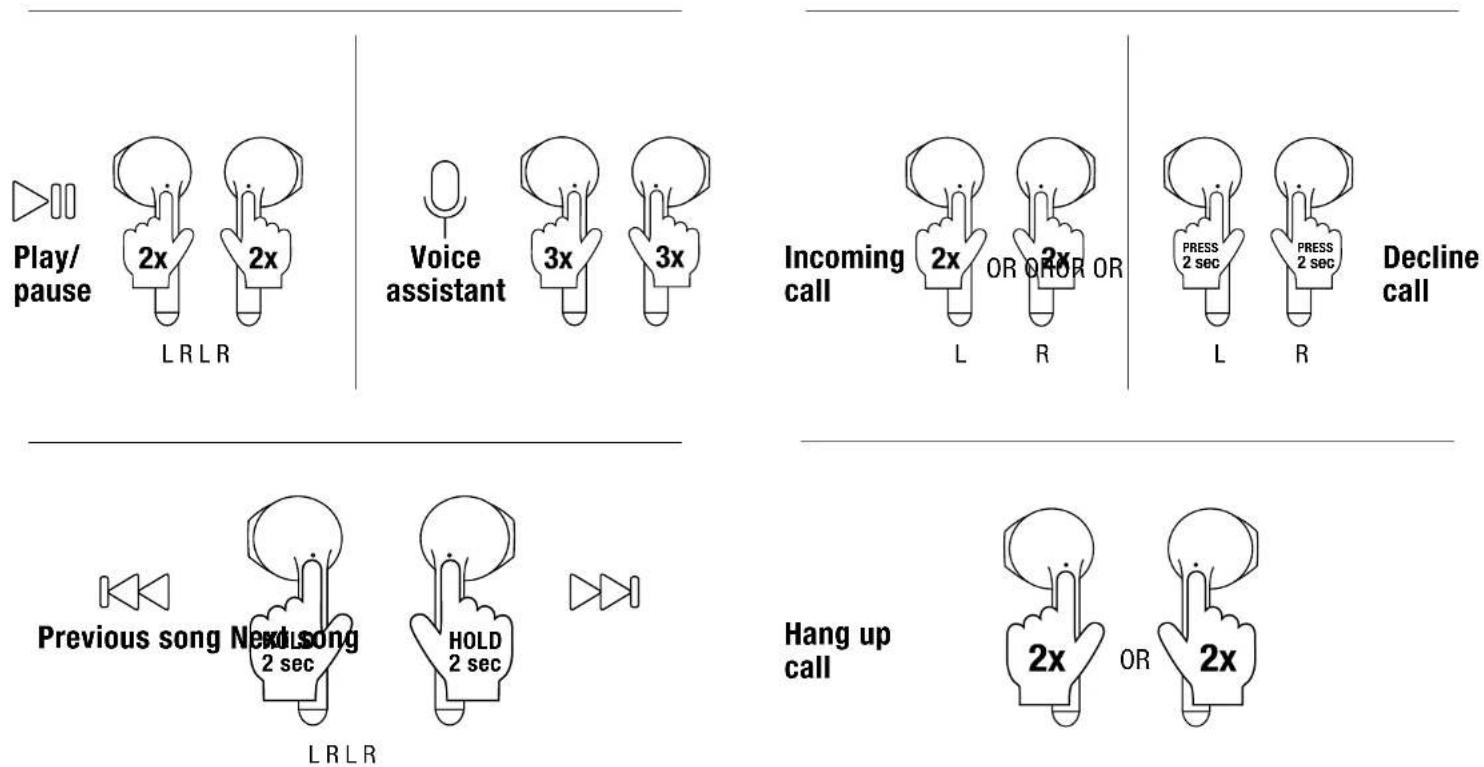

TOUCH CONTROLS

LED BEHAVIOUR

Earbuds

• Blinking very slowly Connected
• Blinking Earbuds are reconnecting to each other
• Blinking very fast Searching for connection

Case (outside)

• Blinking very slowly
• Off Not charging
  On

Charging with cable

Fully charged

Case (inside)

• Battery indicator:

1 LED

blinking

Case needs to be charged

1 LED 0

5% Batt

remaining in case

2 LEDs

25-50%

Battery remaining in case

3 LEDs

50-75%

Battery remaining in case

4 LEDs

75-100%

Battery remaining in case

FEATURES

Playtime earbuds:

4 HOURS

Recharging earbuds:

1.5 HOURS

Total playtime:

4 HOURS

20 HOURS

HOURS

At average use for music and phone calls at 50% volume.

Double Master:

Use the left and right earbuds separately or together.

FAQ

What is Double Master?

• The Double Master functionality means that both earbuds have a built-in microphone, so you can use the earbuds individually (either the right or the left one) or both of them as a pair for stereo sound.
• Single Master means you can use only the right earbud individually or the right and left earbuds together. You can never use the left earbud separately from the right earbud.

I can't seem to get touch control to work, what should I do?

• Aim for the LED and try touching with a bit more force.

My earbuds don't turn off automatically when I put them back in the charging case, what can I do?

• Is 1 LED blinking inside the charging case? Then the battery level of the case is too low to connect to the earbuds and automatically turns them off. Charge the case and the issue will be solved.

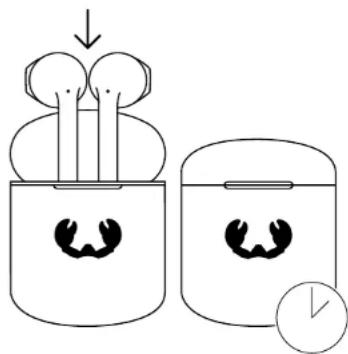

One of my earbuds doesn't work anymore, what can I do?

• Put the earbuds back in the charging case, close the case and wait 10 seconds before trying again.

sec.10

How do I solve my connection issues?

• Place the earbuds back inside the charging case and leave the lid open.
• Hold the reset button for 5 seconds until the outside LED is blinking 3 times. Your Twins' will reset.

Notice

The information in this document may change without prior notice and in no way constitutes any liability on the part of Sitecom Europe B.V..
No part of this user manual may be reproduced in any form or be broadcasted in any way electronically, mechanically, by photocopy or recording without the written permission of Sitecom Europe B.V.

© Sitecom Europe B.V. - Version 1.0, November 2021

Protecting the environment

Old devices must not be disposed of with household waste!

If the device is no longer operational, every consumer is required by law to dispose of used devices separately from household waste, e.g. at a collection point run by the communal authority/borough. This ensures that old devices are recycled in a professional manner and also rules out negative consequences for the environment. For this reason, electrical equipment is labelled with the displayed symbol.

Batteries and rechargeable batteries do not belong in the household garbage!

Every consumer is required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances*) or not, to a collection point run by the communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner. Please only turn in batteries and rechargeable batteries which are empty!

*) labelled with: Cd = cadmium, Hg = mercury, Pb = lead

Trademark

All trademarks and brand names are the property of their respective owners.

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sitecom Europe B.V. is under license.

Safety notes

Danger of suffocation for children!

Make sure that children do not play with the packaging foil, and that they do not pull small parts off the earphones and put them in their mouth. There is a danger of suffocation.

Extended listening at high volumes may lead to hearing loss.

To avoid damage to health, avoid extended listening at high volumes.

Set the volume control of your audio source to a low level before you put on the earphones.

Risk in road traffic!

Your earphones can significantly dampen external noise. Therefore, for reasons of road safety, do not wear your earphones whilst driving vehicles or cycling.

If you are a pedestrian, pay attention to your surroundings while wearing the earphones, especially when crossing the street.

Risk of injury!

Do not use your earphones in environments where there is a risk of explosion.

Risk of explosion/fire!

Lithium rechargeable batteries can explode if handled improperly. Do not heat or burn the rechargeable battery. Only charge the rechargeable battery at an ambient temperature of 10 - 45^ . Do not use the earphones in environments where there is a risk of explosion. Do not expose batteries and rechargeable batteries to direct sunlight.

Interference caused by radio waves!

Radio waves could affect the function of other sensitive devices that are not protected.

Only use the earphones in environments where the use of Bluetooth is permitted.

Risk of damage!

These earphones are rated IPX4 meaning they are protected from splashing water (e.g. rain). Ensure that the earphones do not become fully submerged. Protect them from heat (e.g. during the summer in cars) and mechanical influences (e.g. severe shocks, pressure and falling).
