USER MANUAL VPKVC144W Veripart

Fridge freezer combination

Climate classification N/ST

Electric shock classification: Class I

Voltage: 220-240V

Frequency: 50Hz

Rated current: 0.34A

Total input power: 49W

Energy Consumption of E_16 0.32kWh/24h

Energy Consumption of E32 0.726kWh/24h

Total storage volume: 205L

Refrigerator storage volume: 153L

Freezer storage volume: 52L

Refrigerant: R600a/40g

2.4Kg/24h Freezing Capacity 43Kg Sensor Switch

Net weight: 43Kg

Temperature rise time: 9h

Product code: 895865

Serial Number:

Made In China

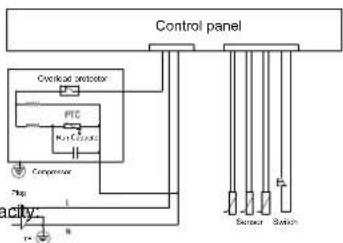

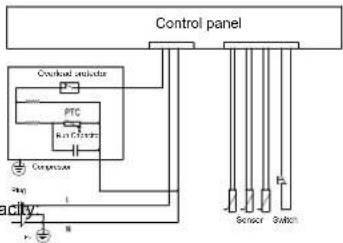

Diagram of Circuit Principles

Veripart is a registered trademark.

Weena 664, 3012CN, Rotterdam

The Netherlands

VPKVC144W

Zilver - Silver - Argent - Silber

veripart™

Type: VPKVC144W

Climate classification N/ST

Electric shock classification: Class I

Voltage: 220-240V

Frequency: 50Hz

Rated current: 0.34A

Total input power: 49W

Energy Consumption of E_16 0.32kWh/24h

Energy Consumption of E32 0.726kWh/24h

Total storage volume: 205L

Refrigerator storage volume: 153L

Freezer storage volume: 52L

Refrigerant: R600a/40g

Net weight:

Temperature rise time:

Product code:

Serial Number:

Made In China

Diagram of Circuit Principles

2.4Kg/24h Freezing Capacity: 43Kg

Veripart is a registered trademark. Weena 664, 3012CN, Rotterdam

The Netherlands

INHOUDSOPGAVE

VOORWOORD 4

1. VEILIGHEID 6
2. PRODUCTEIGENSCHAPPEN 12
3. INSTALLATIE 14
4. FUNCTIES 21
5. REINIGING EN ONDERHOUD 26
6. STORINGEN OPLOSSEN 28
7. BUITEN GEBRUIK STELLEN 31
8. VEILIG AFVOEREN

32

VOORWOORD

Over dit document

1.1 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

!WAARSCHUWING!

Technical diagram of a refrigerator with numbered parts for identification

F E E B C A

Simple line drawing of a vertical container with a black checkmark symbol on the side (no text or labels)

Simple line drawing of a refrigerator with a black 'X' symbol on the front panel (no text or labels)

Line drawing of a hand holding a wooden shelf with a ruler, no text or symbols present

Diagram of a double door frame with two upward-pointing arrows indicating flow or movement (no text or symbols present)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Koelkast compartiment deur

Middelste scharnier

Schroeven

Recycling symbol with recycling arrow and crossed-out trash bin (no text or labels)

1. SAFETY 38
2. PRODUCT FEATURES 44
3. INSTALLATION 46
4. FUNCTIONS 53
5. CLEANING AND MAINTENANCE 58
6. TROUBLESHOOTING 60
7. TAKING OUT OF SERVICE 63
8. SAFE DISPOSAL

64

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Coolblue B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Coolblue B.V. and/or the third party to whom the data belong.

NOTE

- You can also find the latest version of this manual online, at www.coolblue.nl if you search for the article number.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Customer service can be reached at:

https://www.coolblue.nl/en/customer-service

1. SAFETY:

1.1 SAFETY WARNINGS AND REGULATIONS

!WARNING!

• Keep the vents in the appliance housing open in both freestanding and built-in fridges.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your refrigerator.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance (only in cases where the cooling circuit is freely accessible).
• Do not place electrical appliances in the food storage compartments of the refrigerator (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• When positioning the appliance, ensure that the power cable is not stuck or damaged.
• Do not use an extension lead or socket for this appliance.

CAUTION!

• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• It is dangerous for people other than authorised technicians to carry out maintenance or repairs with cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.

- This appliance may be used by children from eight years of age and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been trained in the safe use of the appliance and that they understand the associated dangers.

! ATTENTION!

- This appliance is intended for domestic use and similar applications such as:

- staff kitchens in shops, offices and other work environments;

- farms and guests in hotels, motels, B&B and other residential environments;

- catering and similar non-retail applications.

- It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

- Food storage times recommended by the food manufacturer must be observed.

- Never pull the power cable to disconnect the plug from the socket. Always hold the plug firmly and pull it straight out of the socket.

1.2 SAFETY INSTRUCTIONS: INSTALLATION

DANGER!

Risk of fire / flammable materials.

! CAUTION!

• The appliance is heavy. Take care when handling and wear protective gloves and closed footwear.
• It is dangerous for persons other than authorised service technicians to carry out maintenance on electrical components (plug, power cable, compressor, etc.) or to carry out repairs with the cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.
• If you detect any damage to the appliance or the power cable, do not connect the appliance but contact the service department (see contact details on page 10).
• The power cable must be attached behind the appliance and must not be exposed or loose.
• Make sure that the power cable of the installed appliance is always easily accessible.
• This appliance requires a standard 220-240V 50Hz socket with 2-pole earthing. The power cable of this appliance is equipped with a 2-pole plug suitable for standard wall sockets with earthing to minimise the risk of electric shocks.
• On first installation (or after turning the door) wait at least four hours before connecting the appliance to the power. This allows the oil to flow back into the compressor.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).
• Incorrect use of the earthed plug may cause an electric shock.
• This appliance is not intended for use as a built-in refrigerator.

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• This appliance is not suitable for use with an inverter.

• Do not install the appliance near radiators, stoves, ovens or hobs.
• Do not install the appliance in direct sunlight.
• Do not install this appliance in spaces that are too damp or too cold.
• Do not expose the appliance to rain.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m ^3 . The amount of refrigerant contained in the appliance can be found on the type plate.
• The lamp supplied with this appliance is only for use in this appliance and is not intended for other applications.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the “Climate Range” table below.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct).

This type of refrigerator has climate range N and ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST	From +16°C to +38°C
T	From +16°C to +43°C

1.3 SAFETY INSTRUCTIONS: USE

! CAUTION!

Observe the following instructions to avoid food contamination:

• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish in suitable containers in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

Does not contain freon

The freon-free refrigerant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Guarantee

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/en/customer-service. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/en/customer-service

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance.

See link www.theenergylabel.eu for detailed information on the energy label.

VERIPART CONTACT DETAILS
Address:	Weena 664, 3012 CN, Rotterdam
Website https://www.coolblue.nl/en/customer-service

2. PRODUCT FEATURES

• Electronic temperature control

- Reversible door

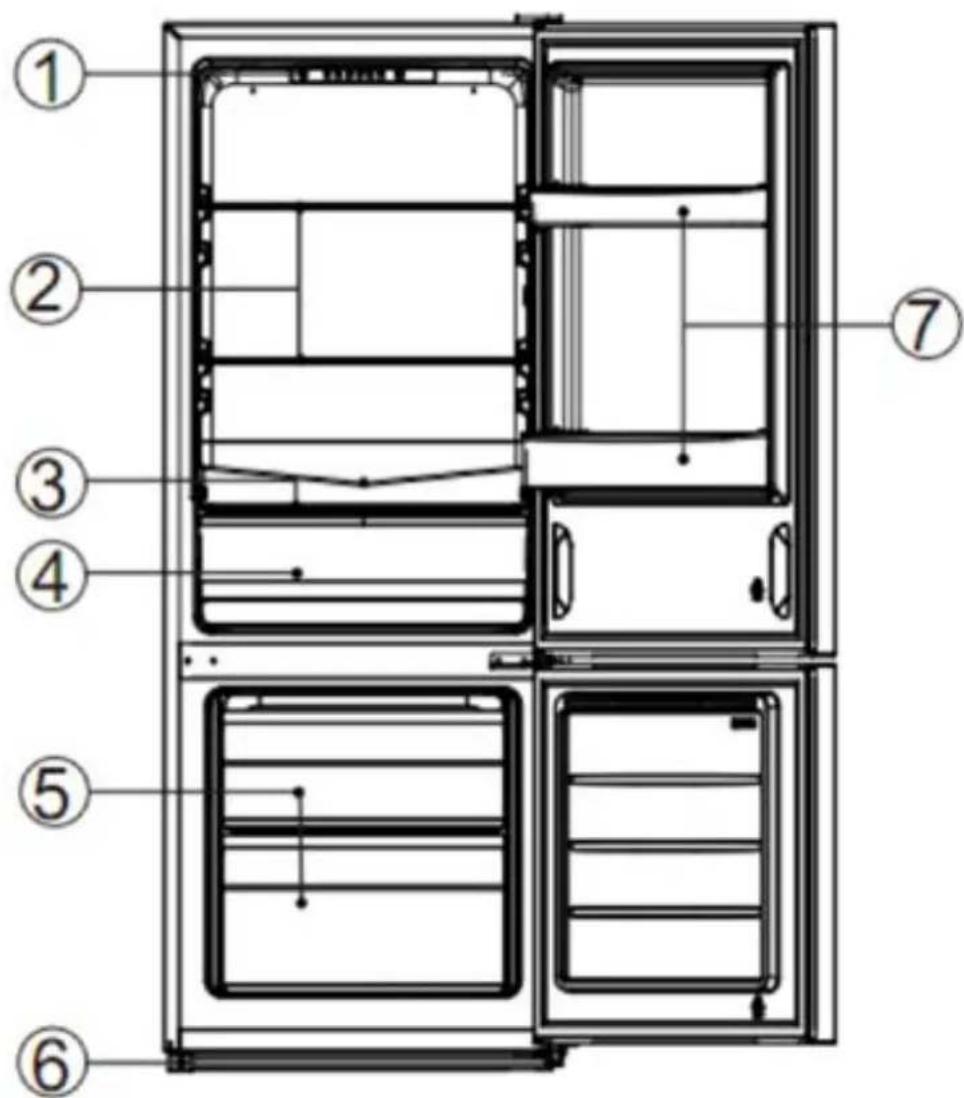

Technical diagram of a refrigerator with numbered parts for identification

1. Thermostat

2. Refrigerator Glass Shelves

3. Crisper Cover

4. Crisper

5. Freezer Drawers

6. Adjusting feet

7. Bottle frames

Due to technological innovation, the descriptions of the product in this manual may not be completely consistent with your refrigerator.

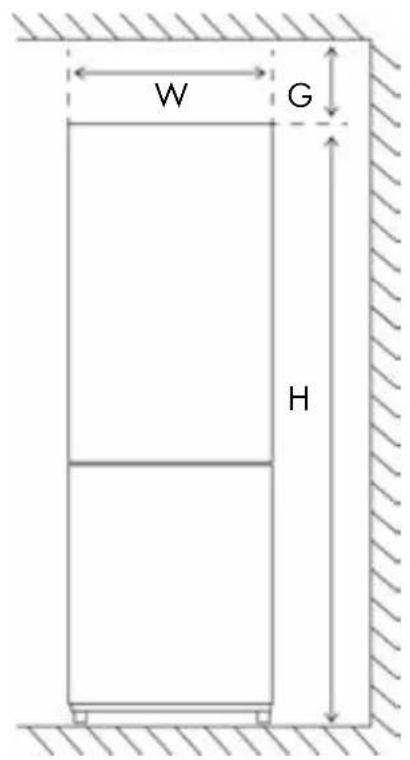

W G H

Figure 1: Front view

F E E B C A

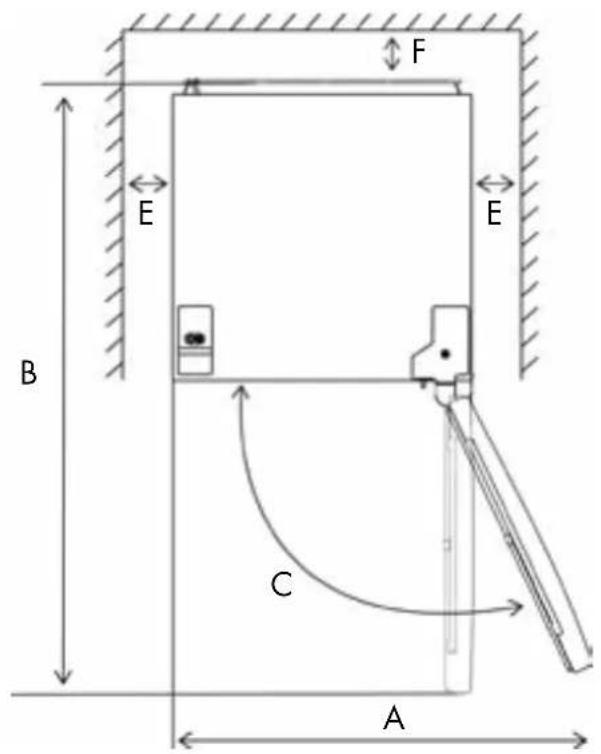

Figure 2: Top view

W D H A B C(°) E F G
54cm 55cm	144cm 9	1cm 105,5	cm 135 5	cm 5cm 5cm

NOTE!

- Figures 1 and 2 only illustrate the space required for the appliance.

3. INSTALLATION

Before installing the refrigerator, carefully review the safety information (section 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Wait

Wait four hours before connecting the appliance so the oil can flow back to the compressor.

3. Clean

Clean the interior and all internal accessories with lukewarm water and some neutral soap before first use to remove the typical smell of a brand new appliance. Dry everything carefully.! Do not use solvents or abrasive powders; these will damage the coating

4. Location

The location where you place your appliance should be well ventilated and the air should not be too warm. Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so that as to guarantee the cooling effect and save on energy consumption. Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.

5. Heat dissipation area

During operation, the appliance emits heat to the environment. Therefore there must be at least 5 cm clearance on the top, at least 5 cm on both sides and at least 5 cm on the back of the fridge. (see page 47)

6. Installation of the appliance

• This appliance is not intended for use as a built-in refrigerator.
• Use the front adjuster to level the appliance. If the appliance is not level, it may affect the performance of the gasket seal or even lead to a failure of your appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
• Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the refrigerator on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the refrigerator to prevent colour change due to heat dissipation.
• Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. The appliance must be earthed. The power cable is supplied with a contact for this purpose. If the socket is not earthed, connect the appliance to a separate earth according to current regulations and consult a qualified electrician.

7. Mounting accessories

Adjustable shelves

The walls of the appliance are equipped with a series of guide profiles so that the shelves can be inserted if desired.

Installing the door compartments

To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

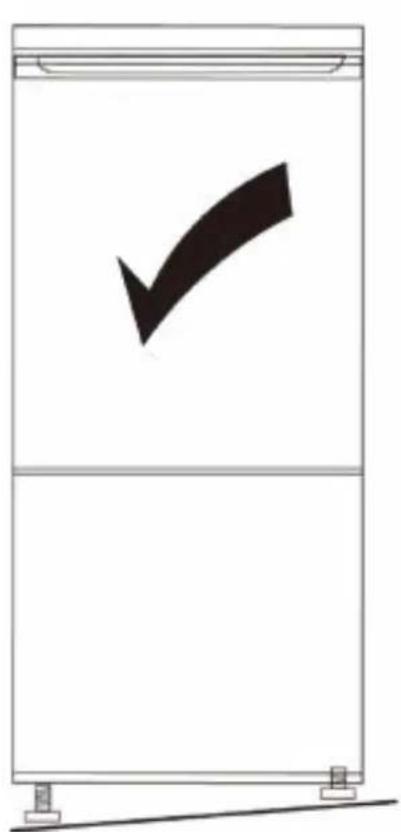

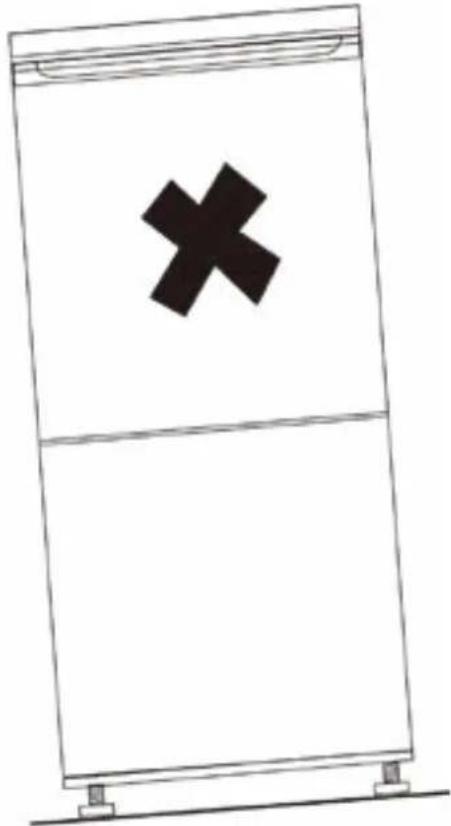

Level

Simple line drawing of a vertical container with a black checkmark symbol on the side (no text or labels)

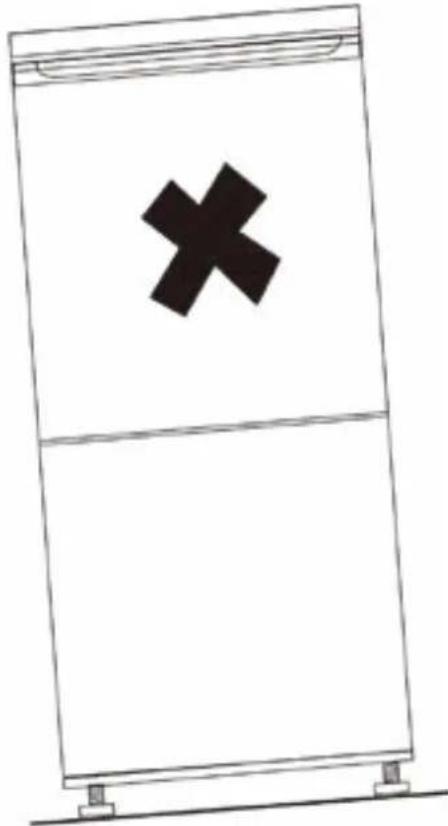

Simple line drawing of a refrigerator with a black 'X' symbol on the front panel (no text or labels)

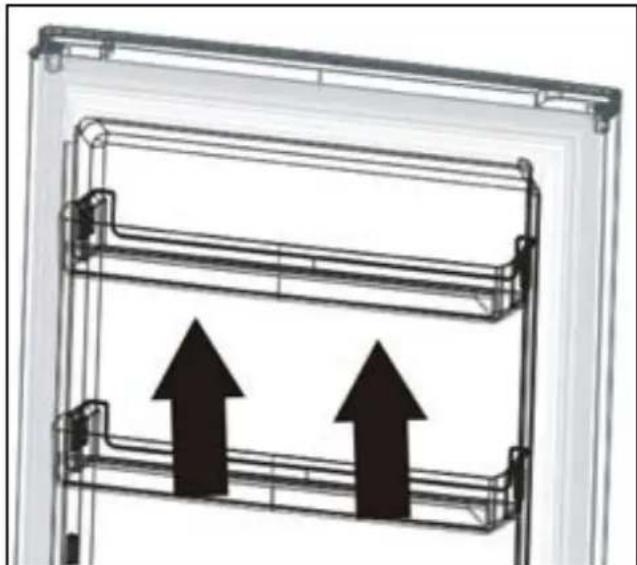

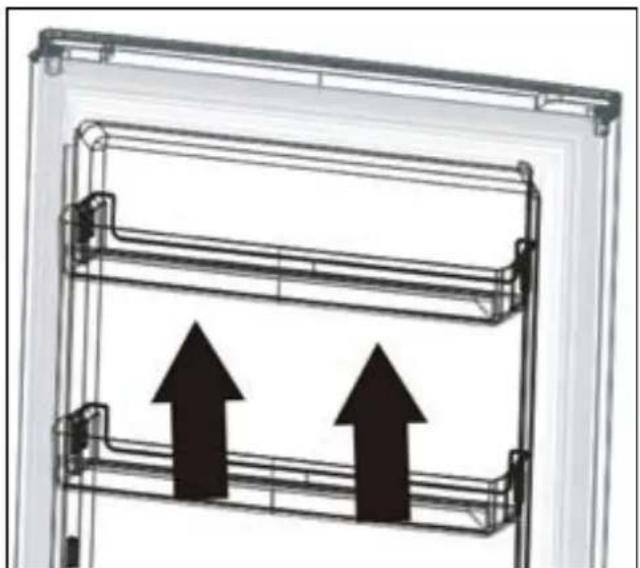

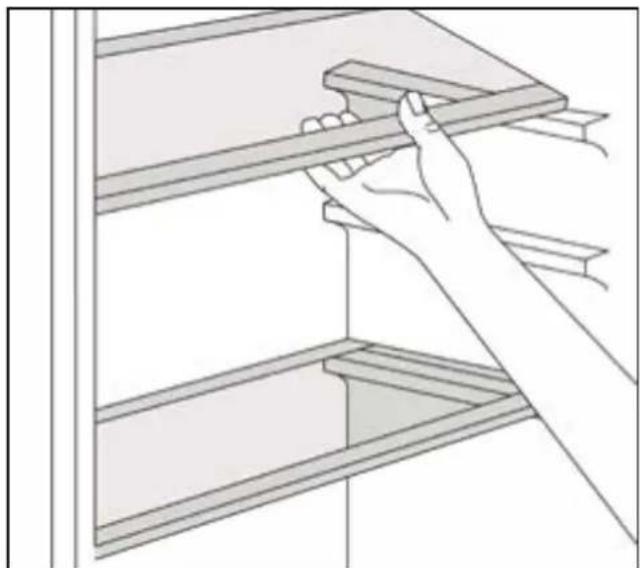

Adjustable shelves / door compartments

Line drawing of a hand holding a wooden shelf with a ruler, no text or symbols present

Diagram of a double door frame with two upward-pointing arrows indicating flow or movement (no text or symbols present)

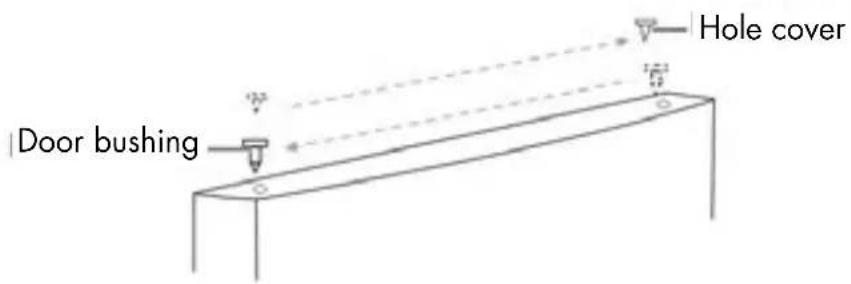

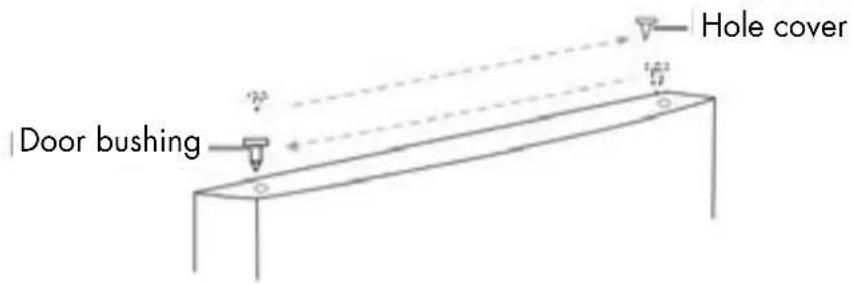

REVERSING THE DOOR SWING

1. Make sure that your fridge freezer combination is unplugged.

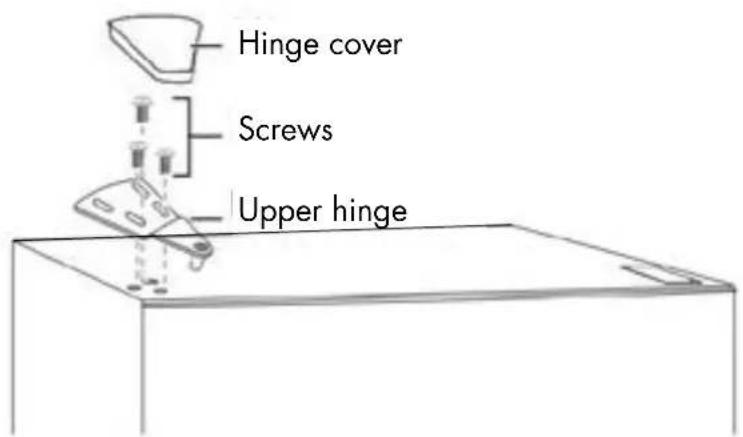

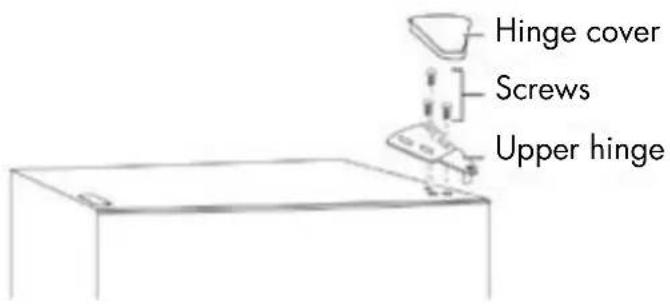

2. Pry the hinge cover up and off, remove the three screws that secure the upper hinge to the door, then remove the hinge.

Hinge cover Screws Upper hinge

1. Remove the refrigerator compartment door from the cabinet.

2. Remove the two screws that secure the centre hinge.

Technical line drawing of a mechanical assembly with no visible text or symbols

Refrigerator compartment door

Center hinge

Screws

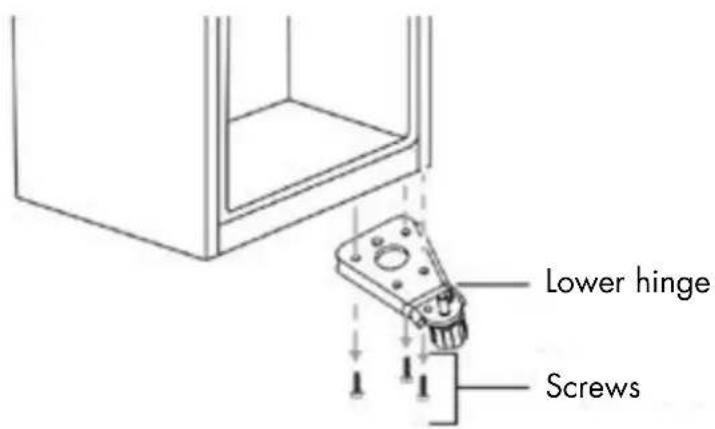

1. Remove the freezer compartment door.
2. Remove the screws that secure the lower hinge to the right side of the cabinet, then remove the hinge.

Lower hinge Screws

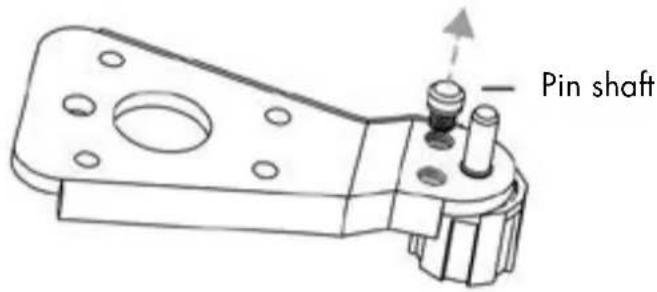

1. Remove the bottom ring and nut securing the pin shaft to the right hole on the lower hinge, then remove the shaft.

Pin shaft

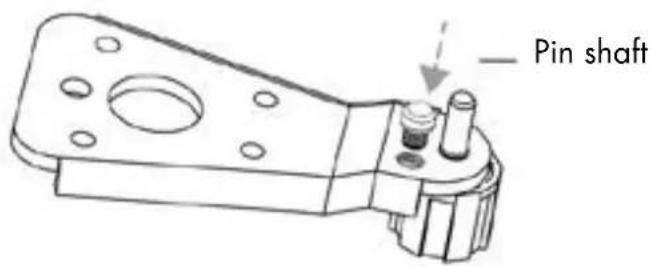

1. Insert the pin shaft into the left hole on the lower hinge, then secure the shaft with the washer and nut.

Pin shaft

1. Install the lower hinge on the left side of the cabinet.

2. Remove the screw that secures the door stop from the bottom right of the freezer compartment door, then remove the door stop and install to the bottom left side.

Freezer door Door stop

1. Install the freezer compartment door.
2. Move the door bushing from the top right side of the freezer door to the top left side of the door. Then move the left hole cover to the right side.

Door bushing Hole cover

1. Remove the centre hinge screw hole plug on the left side of the cabinet, then install in the screw holes on the right side of the cabinet.

Pure diagram of a mechanical or electrical setup with no text, numbers, or symbols

Screw hole plug

1. Install the centre hinge to the left side with the two screws you removed previously.

Freezer compartment door

Center hinge

Door bushing

Screws

Pure mechanical linkage diagram without any text, numbers, or symbols

1. Remove the screw that secures the door stop from the bottom right of the refrigerator compartment door, then remove the door stop and install to the bottom left side.

Refrigerator door

Left door stop

1. Install the Refrigerator compartment door.

2. Move the door bushing from the top right side of the Refrigerator door to the top left side of the door. Then move the left hole cover to the right side.

Door bushing Hole cover

1. Remove the hole cover from the top left side of the cabinet and secures the cover on the top right side of the cabinet.

Hinge screw hole cover -3 - -3 -

1. Secure the upper hinge to the top left side of the cabinet with the three screws you removed previously. Before you tighten the upper hinge screws, make sure that the top of the door is level with the cabinet and that the rubber gasket makes a good seal.

2. Install the hinge cover over the hinge on the top left side of the cabinet.

Hinge cover Screws Upper hinge

4. FUNCTIONS

Temperature setting:

The temperature of the fridge freezer combination is controlled by the control panel mounted in the fridge compartment.

- The fridge freezer combination temperature setting cycles as following: 5 4 3 2 1 FASTCOOL 5 .

COLDESTCOLD	5	When the user needs a colder temperature.
	4
	3	Normal use.
	2	When the user does not need a colder temperature.
	1

- Mode "3" is recommended. Mode "5" is not recommended to avoid freezing any food.

- You can set the 'fast cool' function to quickly cool or freeze foods. The 'fast cool' function will stop automatically after 26 hours, or it can be disabled manually.

FAST COOL 5 4 3 2 1 COLODEST RECOMMEND COLD SET

Note!

- If the indicator light '5' or '3' or '1' starts flickering, it indicates that the refrigerator has malfunctioned. Please contact the after-sales personnel for on-site service as soon as possible.

INSTRUCTIONS FOR FOOD STORAGE

Precautions for use

• The appliance might not operate consistently (there is possibility of defrosting or temperature becoming too warm in the frozen food compartment) if situated for an extended period of time below the cold limit of the temperature range for which the refrigerating appliance is designed.
• The information about the climate type of the appliance is provided on the rating label.
• The internal temperature can be affected by such factors as the location of the refrigerating appliance, the ambient temperature, and how frequently the door is opened. If necessary, the setting of any temperature control device might have to be adjusted to allow for these factors.
• Effervescent drinks should not be stored in the freezer compartment or the low-temperature compartment, and some products, such as water ices, should not be consumed too cold.

Food storage location

Due to the cold air circulation in the refrigerator, the temperature of each area in the refrigerator is different, so different kinds of food should be placed in different areas.

The fresh food compartment is suitable for the storage of food that does not need to be frozen, such as cooked food, beer, eggs, some condiments that need cold preservation, milk, fruit juice, etc. The crisper box is suitable for the preservation of vegetables, fruits, etc.

The freezer compartment is suitable for the storage of ice cream, frozen food and food that needs to be preserved for a long time.

Use of the fresh food compartment

Set the temperature of the fresh food storage compartment between 2^ C \~ 8^ C and store food that is intended for short-term storage, or to be eaten at any time, in the fresh food compartment.

Fridge shelf: When removing the shelf, lift it up first, and then pull it out; and when installing the shelf, place it into position before putting it down. (For the two-section shelf, push the first section to the rear, and then pull the second section out). Keep the shelf's rear flange upward, to prevent foods from coming into contact with the liner wall. When taking out or putting in the shelf, hold it firmly, and handle with care to avoid damage.

Crisper box: Pull out the crisper box to access the food. After using or cleaning the cover plate of the crisper box, be sure to put it back onto the crisper, so that the internal temperature of the crisper box will not be affected.

How to use the ice-making box

Place the ice-cube tray in the upper position of the freezer compartment, so that it will freeze as soon as possible.

Suggestions for food storage

It is best to wash food items and wipe them dry before storing them inside the refrigerator. Before foods are put in the refrigerator, it is advisable to wrap them up, so as to prevent water evaporation in the case of fresh fruits and vegetables on the one hand and prevent the taint of odours on the other hand.

Do not put too much or very heavy food inside the refrigerator. Leave enough space between food items: if they are too close, the cold air flow will be blocked, thus affecting the refrigeration effect. Do not store an excessive amount of heavy items, to avoid the shelf from being crushed. When storing the food, keep it away from the inner wall. Also, do not place water-rich foods too close to the rear of the fridge, lest they get frozen to the inner wall.

Categorized storage of foods: Foods should be stored by category, with the foods you eat every day placed at the front of the shelf, so the length of time the door is open can be shortened and food spoilage due to expiration can be avoided.

Energy-saving tips: Allow hot food to cool down to room temperature before putting it in the refrigerator. Put any frozen food in the fresh food compartment to thaw, using the low temperature of the frozen food to cool the fresh food, thus saving energy.

Storage of fruits and vegetables

In the case of refrigerating appliances with chilling compartments, it is important to note that some types of fresh vegetables and fruits are sensitive to cold and are, therefore, not suitable for storage in this kind of compartment.

Use of the frozen food storage compartment

The freezer temperature is set at -18^ , and it is advisable to store food requiring long-term preservation in the freezer compartment, although the storage duration indicated on the food packaging should be adhered to.

The freezer drawers are used to store food that needs to be frozen. Fish and meat in large blocks should be cut into small pieces and packed into freezer bags before being evenly distributed inside the freezer drawers.

• Allow hot food to cool down to room temperature before putting it in the freezer compartment.
• Do not put sealed glass containers or cans full of liquid in the freezer compartment, so as to avoid bursting or distortion due to expansion after the liquid freezes.
• Divide food into appropriately small portions.
• It is best to wrap food up before freezing it, and the materials used for wrapping should be dry, to prevent the freezer bags from freezing together. Foods should be packed in or covered with suitable materials that are firm, tasteless, impervious to air and water, non-toxic and pollution-free, to avoid cross-contamination and the transfer of odours.

Tips for shopping for frozen food

1. When you are buying frozen food, look at the Storage Guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the star rating. This is usually the period stated as "Best before", found on the front of the packaging.
2. Check the temperature of the frozen food cabinet in the shop where you buy frozen food.
3. Make sure the frozen food package is in perfect condition.
4. Always buy frozen products last on your shopping trip or visit to the supermarket.
5. Try to keep frozen items together whilst shopping and on the journey home, as this will help to keep the food cooler.
6. Don't buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep the frozen foods cold longer.
7. For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steamed. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.
8. Use quality food and handle it as little as possible. When food is frozen in small quantities, it will take less time for it to freeze and thaw.
9. Estimate the amount of food that needs to be frozen. When freezing large amounts of fresh food, adjust the temperature control knob to the low mode to lower the freezer temperature so, food can be frozen quickly and retain its freshness.

5. CLEANING AND MAINTENANCE

Before cleaning the appliance, carefully review the safety information (Section 1).

For hygienic reasons, the inside of the appliance, including accessories, should be cleaned regularly.

! CAUTION!

• Remove the plug from the socket before cleaning. Never touch the plug with wet hands because of the risk of electric shocks and injury.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not put your hands in the bottom of the fridge as the sharp metal corners can cause scratches.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts.
• Do not use electrical appliances (such as a hairdryer or heater) to defrost your appliance.

! ATTENTION!

- The electrical parts of the appliance may only be cleaned with a dry cloth.

Interior and exterior cleaning

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly. The fresh food compartment is preferably cleaned monthly.
• Remove all shelves, fruit and vegetable compartment, bottle racks, cover plate, drawers, etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this. (no water)
• If the appliance has been empty for a long time, turn it off, defrost, clean, dry and leave the door open to avoid mould forming in the appliance.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. Caution!

ATTENTION!

• Before solving the problem, switch off the power supply.
• If the following descriptions do not solve your problem, please contact our customer service: www.coolblue.nl/en/customer-service
• Only a qualified electrician or authorised person may solve the faults not contained in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS
The appliance does not cool at all	- The temperature control knob is in the Coldest position.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- Where is the device installed? Is it located on a balcony, in a garage, storage room or other place where the ambient temperature is less than 10°C?	- Switch the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 10°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.- The door is not completely closed- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
The appliance freezes or cools too much.	- The temperature is set too cold or the appliance is in the coldest position.	- Temporarily set the temperature control knob to a warmer position.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
There is too much frost and ice.	- The door is not closed properly.- The door gasket is deformed or dirty.- The products are not packed correctly.- The temperature is set incorrectly.- The appliance is fully loaded and set to the lowest temperature.- The set temperature in the appliance is too low and the ambient temperature is too high.	- Find the cause of the door not closing properly, remove or move possible obstacles.- As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service.- Pack the products better.- Please refer to Section 4.- Set a higher temperature. Please refer to Section 4. Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly.- Many products are placed at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Please refer to Section 4.- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the previous section.
The lamp does not work.	- The lamp is broken.- The lamp is in the standby position.	- Please contact our customer service.- Close and open the door.
The side panels are hot.	- This is normal. The heat exchanger components are on the side.

7. TAKING OUT OF SERVICE

Switching off and storage

If the appliance will not be used for several months, first switch it off (turn the thermostat switch to OFF) and then pull the plug out of the socket.

• Make sure the appliance is completely thawed.
- Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
- Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
- Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
- Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
- The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

! CAUTION!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

Creative Commons recycling symbol with recycling icon and crossed-out trash bin

The materials used in this appliance marked with this symbol are recyclable.

This marking indicates that this product should not be disposed of via household waste throughout the EU. In order to prevent damage to the environment or human health as a result of uncontrolled waste, it must be processed responsibly so that raw materials can be reused sustainably. Use the existing collection systems or contact the shop where you purchased the product if you want to dispose of the used product. There, the product is recycled in an environmentally friendly way.

• Old cooling appliances still have value. Responsible disposal ensures that valuable raw materials can be recycled. Of course, the appliance may not be disposed of with (domestic) residual waste, but it must be collected or returned to the environmental station of your municipal waste processing company.
• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.
• Information on how to dispose of old appliances and packaging correctly can be found at your local municipal waste processing company.

Veripart is a registered trademark of Coolblue B.V.

Weena 664

3012CN Rotterdam

The Netherlands

Made in China

FR - NOTICE D'UTILISATION

COMBINÉ RÉFRIGÉRATEUR- CONGÉLATEUR

VPKVC144Z

VPKVC144W

veripart

TABLE DES MATIÈRES

AVANT-PROPOS 68

1. SÉCURITÉ 70
2. CARACTÉRISTIQUES DU PRODUIT 76
3. INSTALLATION 78
4. FONCTIONS 85
5. NETTOYAGE ET ENTRETIEN 90
6. DÉPANNAGE 92

7. ÉVACUATION SÉCURISÉE 96

8. MISE HORS SERVICE 95

AVANT-PROPOS

Technical diagram of a refrigerator with numbered parts for identification

F E E B C A

Simple line drawing of a vertical container with a black checkmark symbol on the side (no text or labels)

Simple line drawing of a refrigerator with a black 'X' symbol on the front panel (no text or labels)

Plateaux / bacs de portes amovibles

Line drawing of a hand holding a wooden shelf with a ruler, no text or symbols present

Diagram of a double door frame with two upward-pointing arrows indicating flow or movement (no text or symbols present)

INVERSION DE LA PORTE

Technical diagram showing a mechanical assembly with labeled components and motion indicators

Symbol of recycling and disposal with recycling symbol above a trash can and crossed-out lines below (no text or labels)

Technical diagram of a refrigerator with numbered parts for identification

F E E B C A

Simple line drawing of a vertical container with a black checkmark symbol on the side (no text or labels)

Simple line drawing of a refrigerator with a black 'X' symbol on the front panel (no text or labels)

Line drawing of a hand holding a wooden shelf with a ruler, no text or symbols present

Diagram of a double door frame with two upward-pointing arrows indicating flow or movement (no text or symbols present)

TÜRANSCHLAG WECHSELN

Recycling symbol with a recycling triangle and a crossed-out trash bin, no text or numbers present.
