T2 Pro X 904650 - Bike rack THULE - Free user manual and instructions

Product type	Hitch-mounted bike rack
Brand	Thule
Model	T2 Pro X 904650
Number of bikes	2
Maximum load capacity	40 kg (20 kg per bike)
Dimensions (L x W x H)	Approx. 110 x 60 x 30 cm
Net weight	Approx. 15 kg
Main material	Steel with anti-corrosion coating
Attachment	On trailer hitch ball
Locking system	Yes (central locking)
Integrated rear lights	No
Removable license plate holder	Yes (space provided)
Frame compatibility	Standard frames (max diameter 80 mm)
E-bike compatibility	Yes, subject to max weight
Carbon bike	Requires Thule 982 adapter
Maintenance	Clean with clear water, lubricate mechanisms
Storage	In a dry place after cleaning
Warranty	Refer to manual or retailer
Standards	Compliant with EU and local regulations

Frequently Asked Questions - T2 Pro X 904650 THULE

What is the maximum weight supported by the Thule T2 Pro X bike rack?

The maximum total weight is 40 kg, i.e. 20 kg per bike. Never exceed this limit.

Can I transport a carbon frame bike?

Yes, but we recommend using the Thule 982 adapter to avoid damaging the frame. Consult the bike manufacturer.

How to install the bike rack on my hitch?

Follow the step-by-step assembly instructions provided with the product. Make sure the hitch ball is clean and the locking mechanism is engaged.

Does the bike rack obstruct the taillights?

Yes, the taillights may be blocked. You must add an external lighting system compliant with local regulations.

Do I need to remove bike accessories before transport?

Yes, remove anything that could come loose (child seat, basket, lock, pump) as they could fall off during the trip.

What is the maximum allowed speed with the bike rack?

Never exceed 130 km/h and adjust your speed to road conditions. On speed bumps, drive at a maximum of 10 km/h.

How to maintain my Thule T2 Pro X bike rack?

Clean it with hot water or car shampoo, especially in winter. Lubricate the coupling mechanism and check the tightness of screws regularly.

Can I use the bike rack on a motorhome or trailer?

No, it is designed for a car. Do not install it on a trailer or camper van.

What to do if a part is damaged or lost?

Use only original Thule spare parts. Contact your retailer with the serial number.

Is it mandatory to remove the bike rack when not in use?

Yes, for safety and fuel economy reasons, remove it when you are not carrying bikes.

USER MANUAL T2 Pro X 904650 THULE

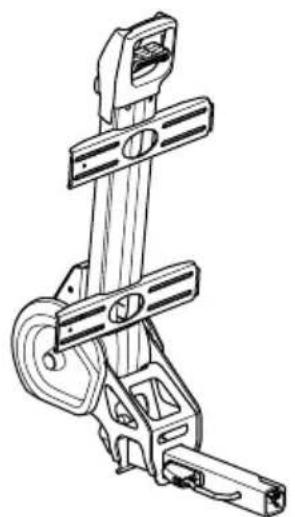

Technical line drawing of a mechanical assembly with labeled components (THULS), no readable text or symbols present.

EN Hitch bike racks

THULE Instructions Safety THULE

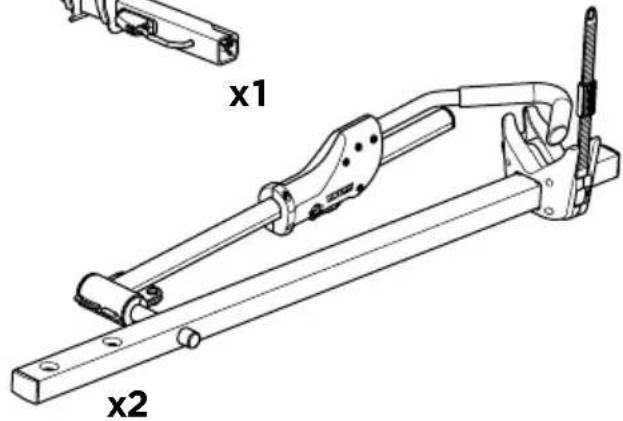

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a curved mechanical component with internal ribs (no text or symbols)

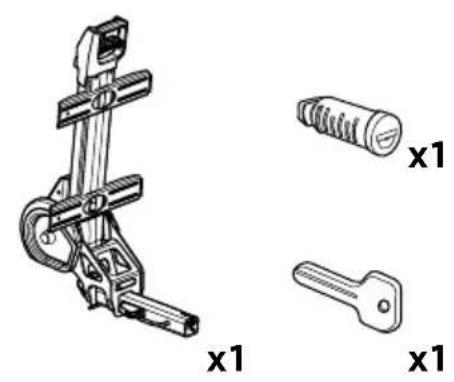

x2 x1

x4 x8 x8 x4x4x1

x1 x2

x1

x1x2

IMPORTANT - READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

Symbols

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTE indicates additional information that is useful for trouble-free and optimal use of the product.

Simple line drawing of a rectangular object with two vertical lines and a labeled point 'X' (no text or symbols on the object itself)

1.25" Hitch

9035XTR

904550

X = 1.5"/3.8 cm

Max 2

Simple line drawing of a rectangular object with two vertical lines and a circular hole, labeled 'X' at the bottom (no text or symbols on the object itself)

X = less than 1.5"/3.8 cm

2"

904450

Max

50lbs

(23kg)

Simple line drawing of a rectangular mechanical component with internal flow arrows (no text or symbols)

Max

100lbs

(45kg)

1.25"

904450

Max

50lbs

(23kg)

Line drawing of a rectangular mechanical component with internal flow arrows (no text or symbols)

Max

100 lbs

(45kg)

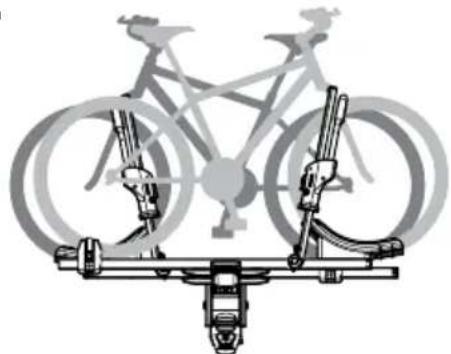

Simple line drawing of a bicycle with no text or symbols

Simple line drawing of a bicycle with no text or symbols

Simple line drawing of a bicycle with two wheels and a dashed measurement arrow (no text or symbols)

20" min and 29" max Max 49" / 124.5 cm3" max

i

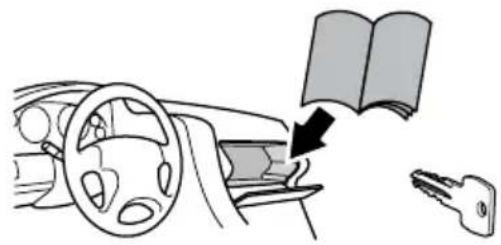

Diagram showing a car interior with steering wheel, dashboard, and key inserted into the window (no text or symbols)

Your Key-Number

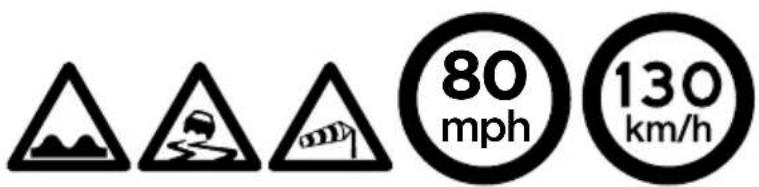

80 mph 130 km/h

Side profile diagram of a car with a vehicle and two exhaust pipes, no text or symbols present

Diagram showing a car being stopped by an elevator, with an arrow indicating direction and a stop sign labeled 'STOP'

200 miles / 333 km

Mechanical diagram showing a robotic arm with motion arrows indicating rotation (no text or symbols)

Diagram of a car with an upward arrow indicating motion or force, next to a stack of cylindrical objects (no text or symbols)

7.5 lb ft 10 Nm

Silhouette of a person standing next to a chair with a bag, next to a curved wall (no text or symbols)

Technical illustration of mechanical components including a bracket, screw, and key (no text or symbols)

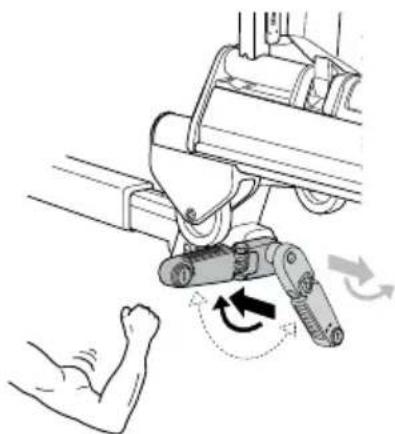

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating motion direction (no text or symbols present)

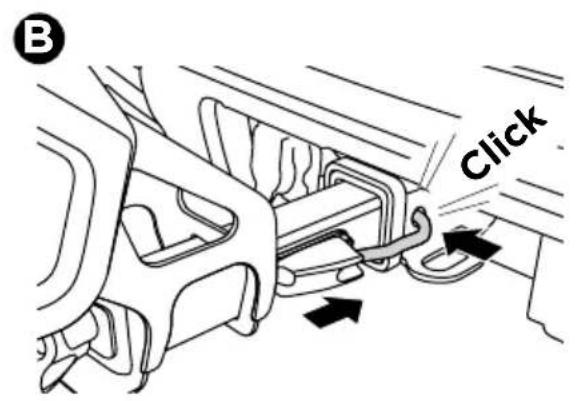

B Click

Diagram showing a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

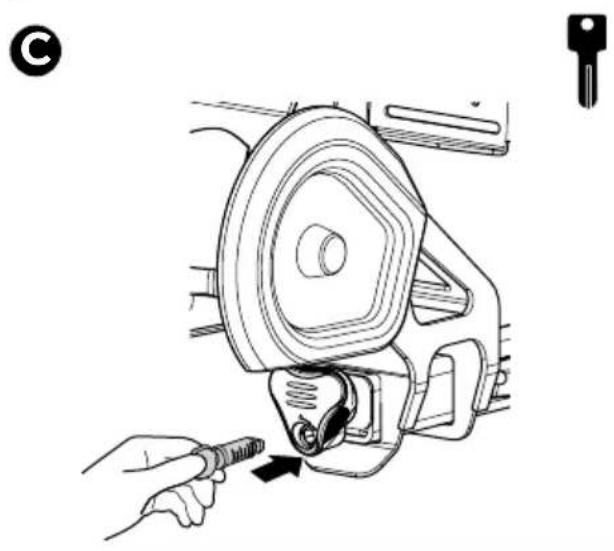

Line drawing of a car engine component being adjusted for a key, showing tool and part details (no text or symbols)

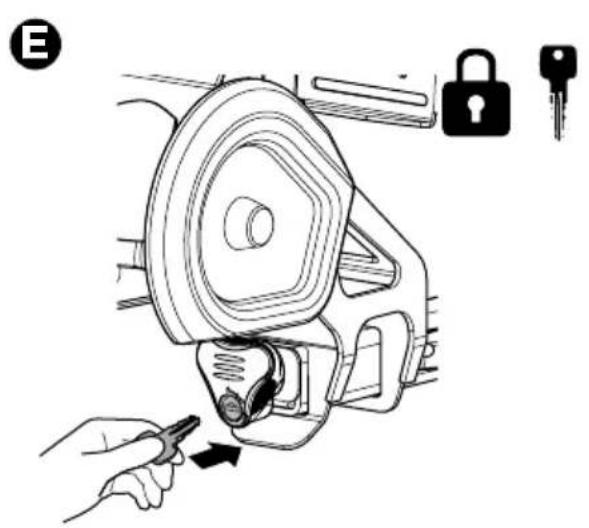

Illustration of a car interior showing a hand using a tool to adjust the seatbelt, with lock and key symbols nearby (no text or labels)

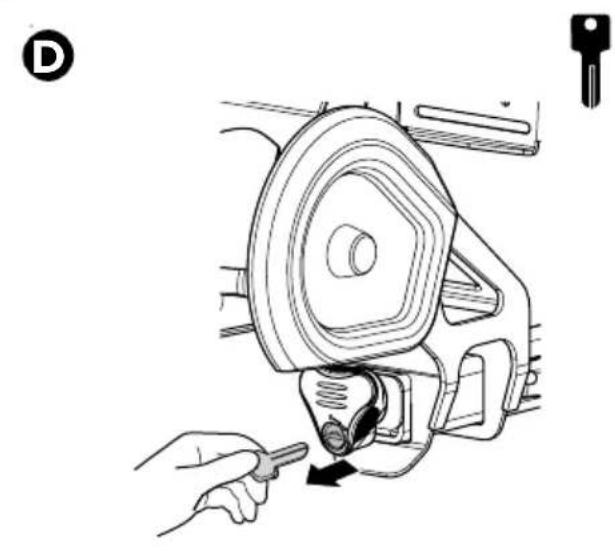

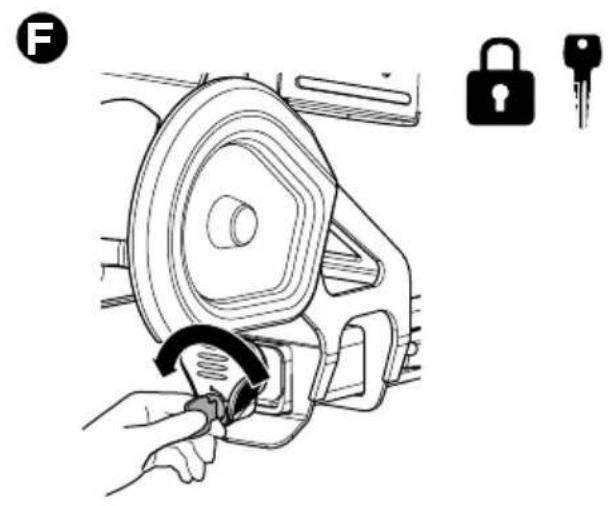

Diagram showing a hand using a tool to adjust a car wheel and lock mechanism (no text or symbols present)

3

Technical line drawing of a curved mechanical component with two labeled parts (x2 and x4), no text or symbols present.

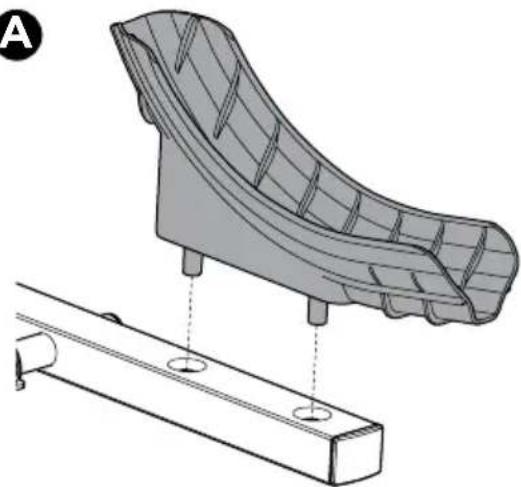

A

Technical illustration of a curved mechanical component with two views: top shows internal structure, bottom shows side profile (no text or symbols)

B

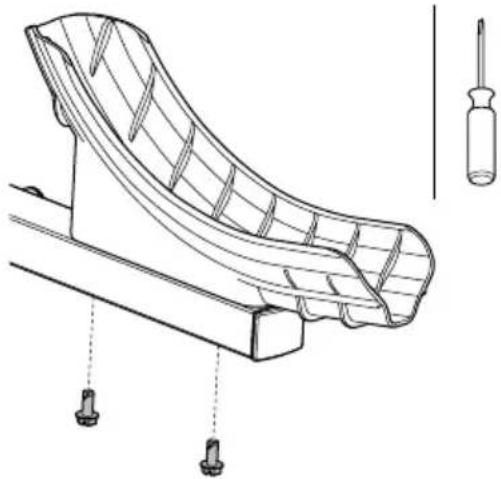

Technical line drawing of a curved mechanical component with screwdriver and mounting base (no text or symbols)

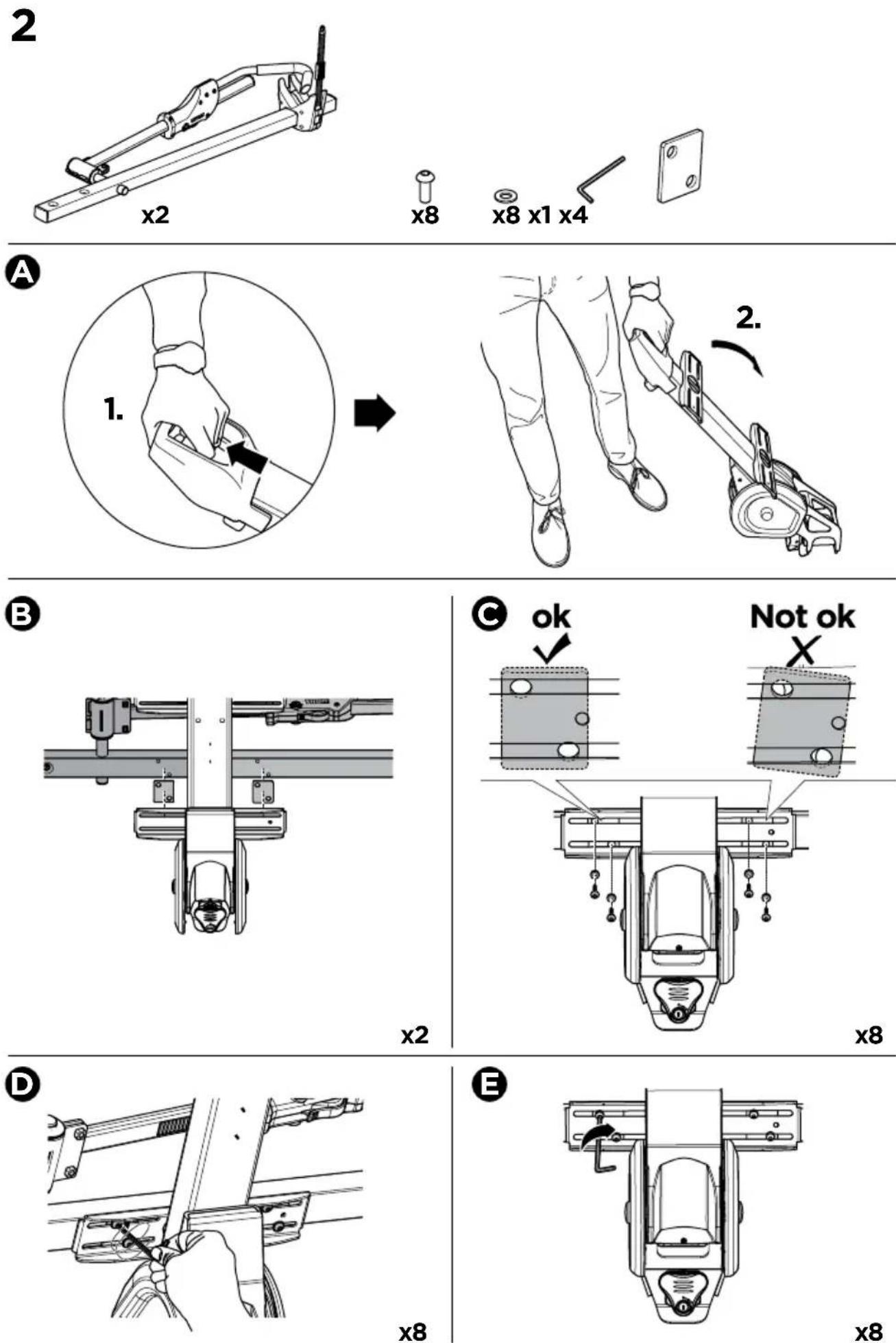

x2 x2

4

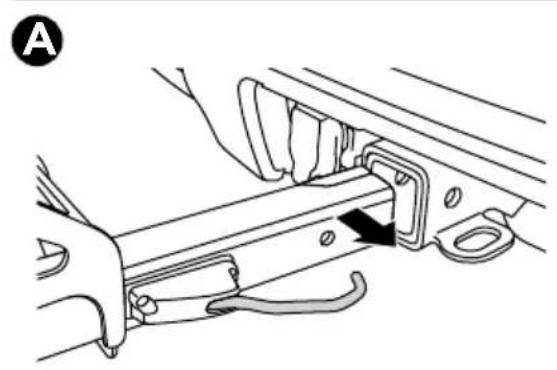

A

1. 2.

3.

x2

B

1. 2.

Line drawing of a bicycle wheel with a mechanical lever attachment (no text or symbols)

x2

5

Simple diagram of four empty rounded rectangular boxes arranged horizontally within a rectangle, labeled 'x1' at bottom (no text or symbols within shapes)

A

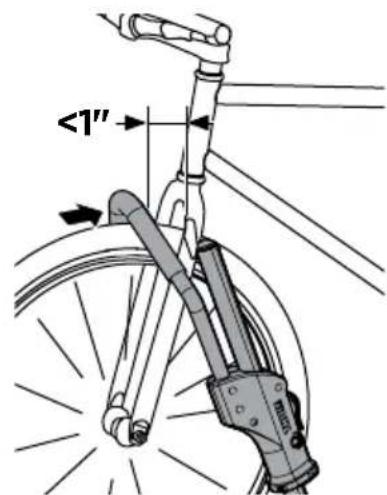

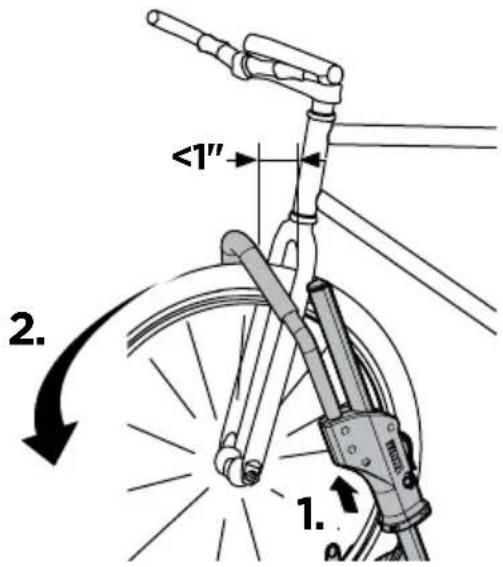

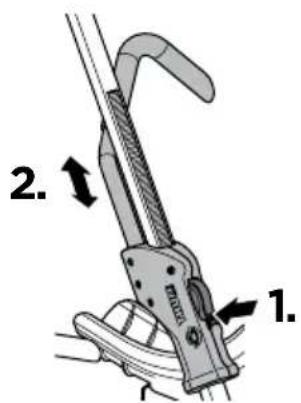

<1" 2. 1.

x2

B

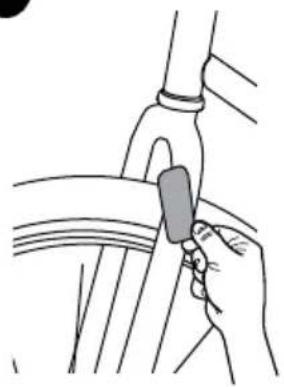

Hand holding a rectangular object with five empty rectangular panels, no text or symbols visible

●

Line drawing of a person adjusting a seatbelt (no text or symbols)

x2

●

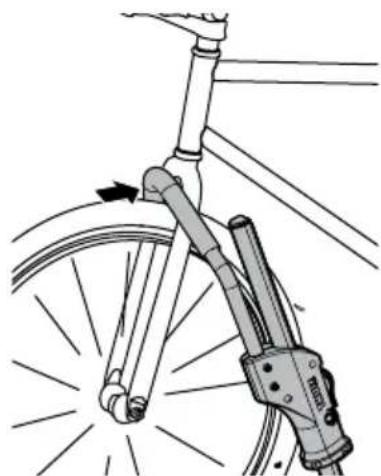

Diagram of a bicycle steering wheel and suspension mechanism (no text or labels)

x2

E

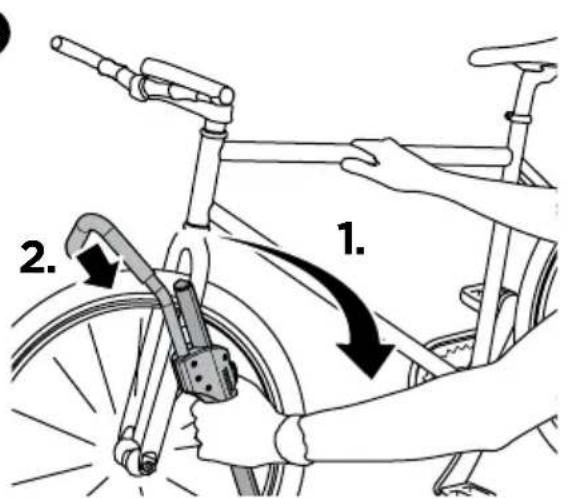

1. 2.

<1"

x2

6A 1.

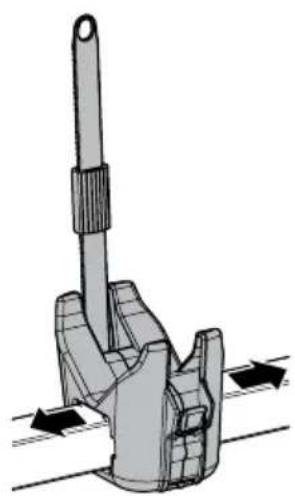

Mechanical component diagram showing a lever mechanism with directional arrows (no text or symbols)

1.

Illustration of a hand adjusting a car seatbelt with a black arrow indicating force (no text or symbols present)

x2

B

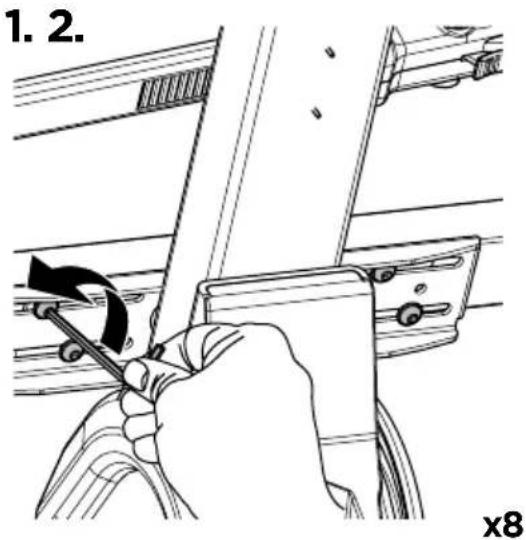

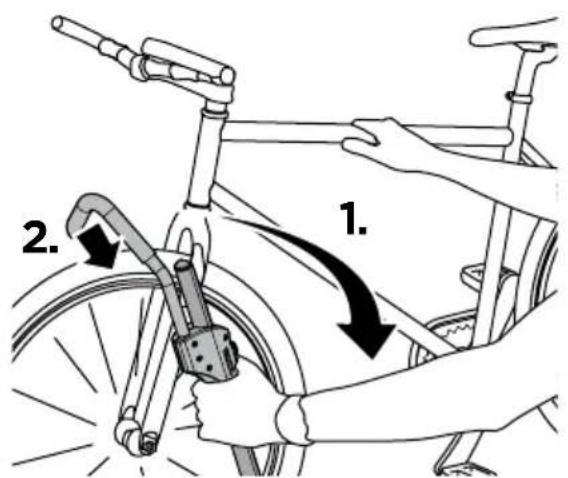

1. 2. x8

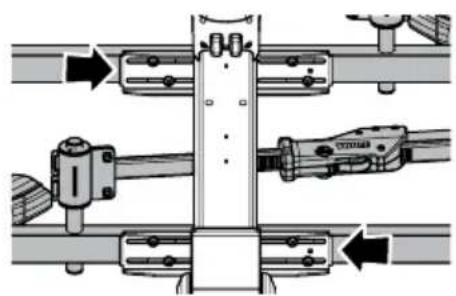

Mechanical assembly diagram showing interlocking components with no visible text or symbols

1.

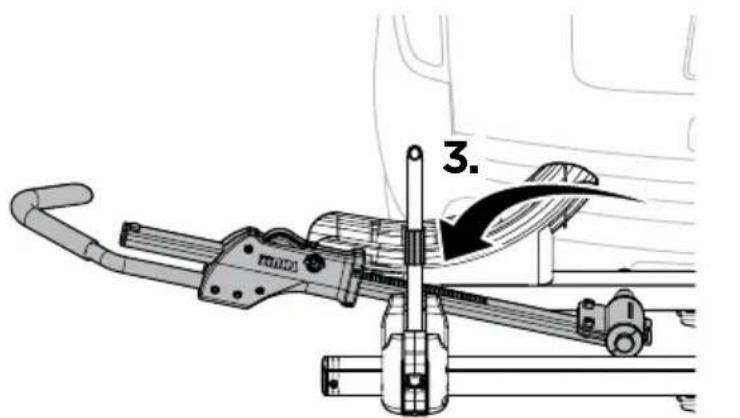

Diagram of a bicycle support system with two wheels and connecting brackets (no text or labels)

7

A

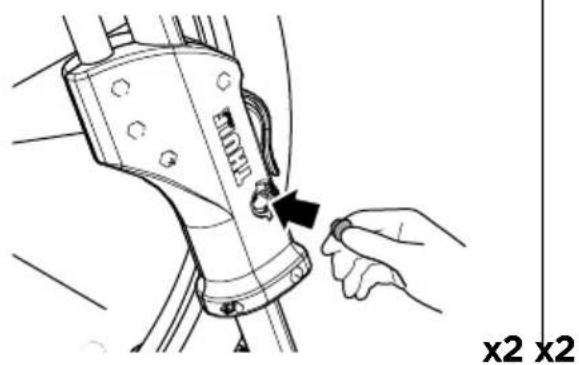

x2 x2

B

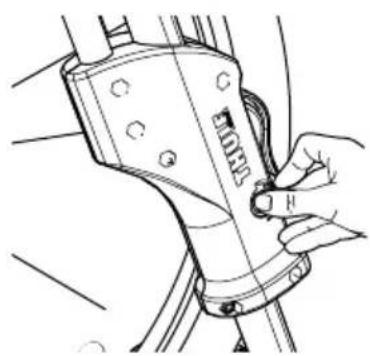

Line drawing of a hand holding a mechanical component labeled 'FIRE' (no text or symbols beyond the label)

8

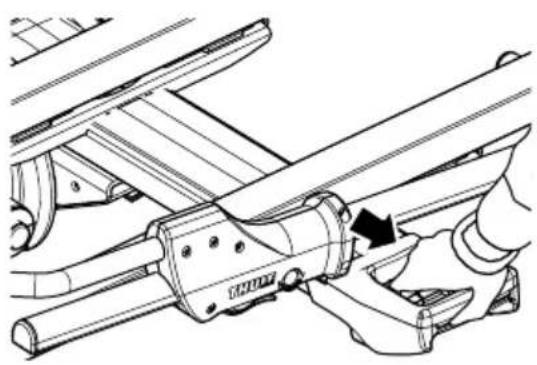

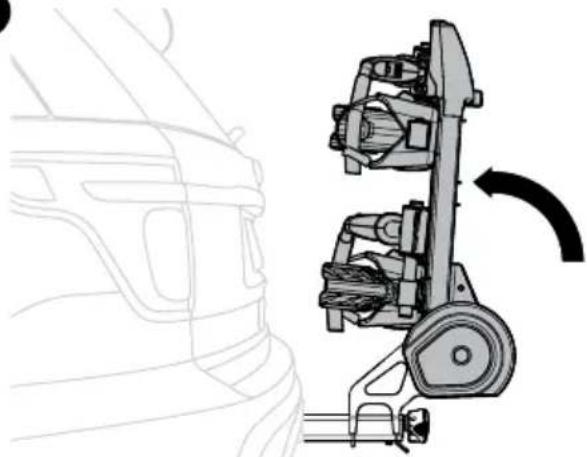

Technical line drawing of a mechanical assembly with a hand operating a lever (no text or symbols present)

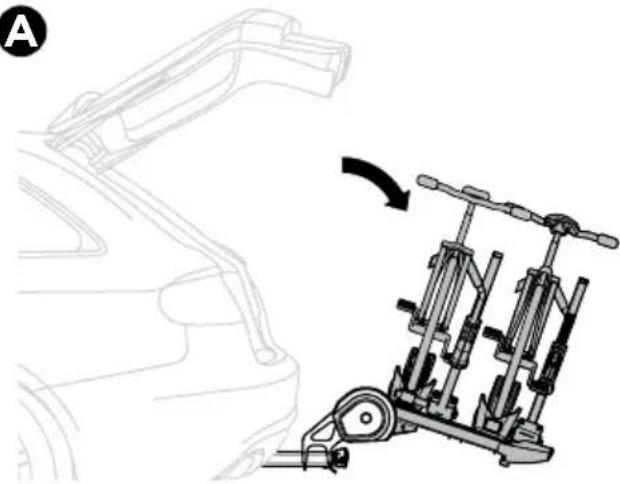

A

Technical line drawing of a mechanical assembly with a gear mechanism and directional arrow (no text or symbols)

B

Technical line drawing of a car's side mirror and brake system (no text or symbols)

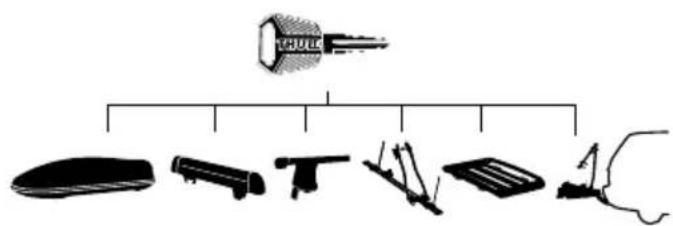

Thule One-Key System

Diagram showing a mechanical component with labeled parts including a cylindrical part, flange, handle, and tool.

450200 (x2)

450400 (x4)

450600 (x6)

450800 (x8)

WARNING

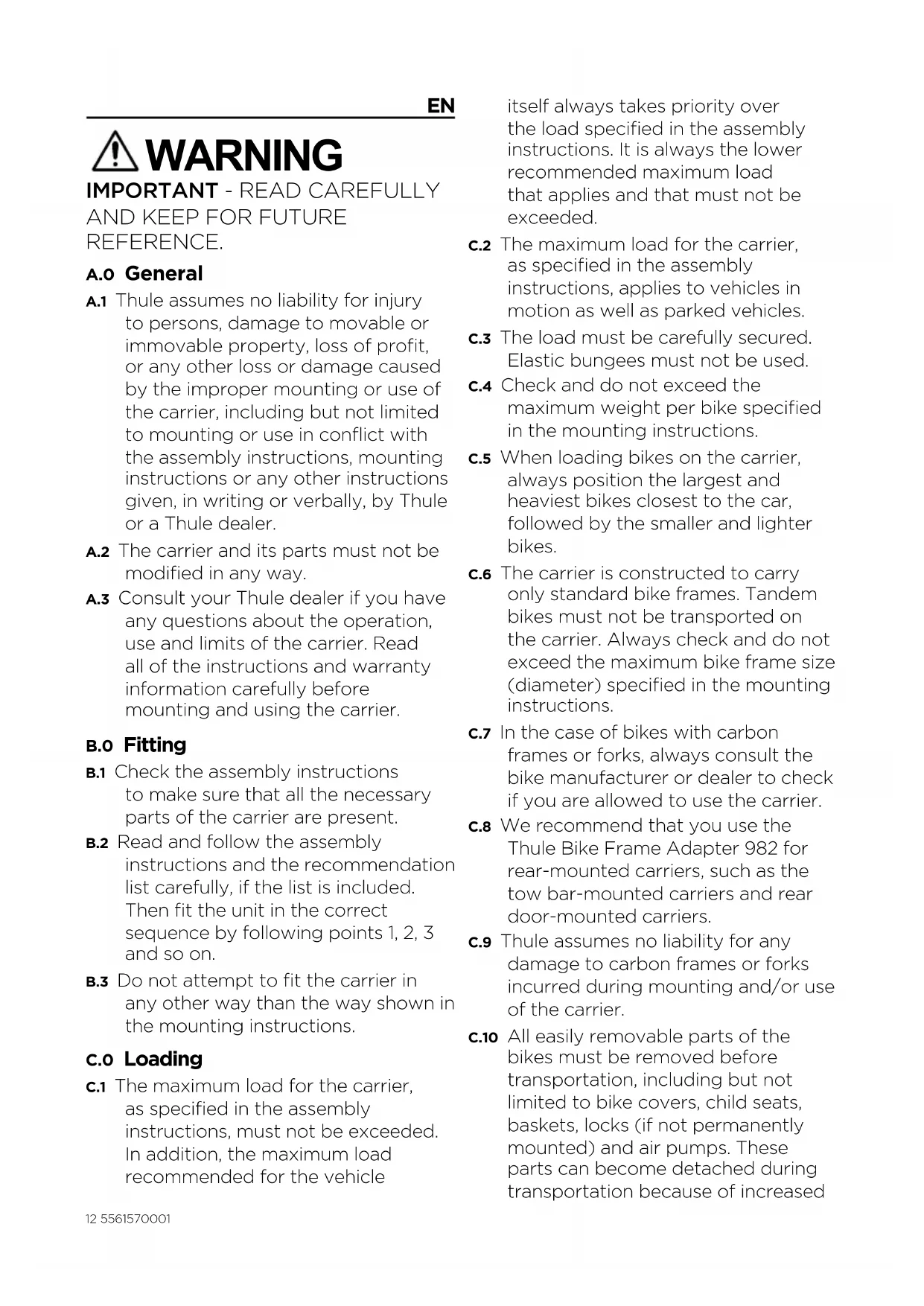

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

A.0 General

A.1 Thule assumes no liability for injury to persons, damage to movable or immovable property, loss of profit, or any other loss or damage caused by the improper mounting or use of the carrier, including but not limited to mounting or use in conflict with the assembly instructions, mounting instructions or any other instructions given, in writing or verbally, by Thule or a Thule dealer.

A.2 The carrier and its parts must not be modified in any way.

A.3 Consult your Thule dealer if you have any questions about the operation, use and limits of the carrier. Read all of the instructions and warranty information carefully before mounting and using the carrier.

B.0 Fitting

B.1 Check the assembly instructions to make sure that all the necessary parts of the carrier are present.

B.2 Read and follow the assembly instructions and the recommendation list carefully, if the list is included. Then fit the unit in the correct sequence by following points 1, 2, 3 and so on.

B.3 Do not attempt to fit the carrier in any other way than the way shown in the mounting instructions.

c.o Loading

c.1 The maximum load for the carrier, as specified in the assembly instructions, must not be exceeded. In addition, the maximum load recommended for the vehicle

itself always takes priority over the load specified in the assembly instructions. It is always the lower recommended maximum load that applies and that must not be exceeded.

c.2 The maximum load for the carrier, as specified in the assembly instructions, applies to vehicles in motion as well as parked vehicles.

C.3 The load must be carefully secured. Elastic bungees must not be used.

C.4 Check and do not exceed the maximum weight per bike specified in the mounting instructions.

c.5 When loading bikes on the carrier, always position the largest and heaviest bikes closest to the car, followed by the smaller and lighter bikes.

C.6 The carrier is constructed to carry only standard bike frames. Tandem bikes must not be transported on the carrier. Always check and do not exceed the maximum bike frame size (diameter) specified in the mounting instructions.

C.7 In the case of bikes with carbon frames or forks, always consult the bike manufacturer or dealer to check if you are allowed to use the carrier.

c.8 We recommend that you use the Thule Bike Frame Adapter 982 for rear-mounted carriers, such as the tow bar-mounted carriers and rear door-mounted carriers.

c.9 Thule assumes no liability for any damage to carbon frames or forks incurred during mounting and/or use of the carrier.

C.10 All easily removable parts of the bikes must be removed before transportation, including but not limited to bike covers, child seats, baskets, locks (if not permanently mounted) and air pumps. These parts can become detached during transportation because of increased

air resistance and vibration and can constitute a danger to other road users.

C.11 If the vehicle is equipped with an automatic boot or tailgate opening function, this function must be disabled and the luggage compartment must be opened manually when the rear-mounted carrier is fitted, to avoid damage to the vehicle and/or the carrier.
C.12 If necessary, the load must be fitted with the appropriate lights and warning signs in accordance with local laws.
C.13 In the case of vehicles first type-approved after 1 October 1998, the rear-mounted carrier and/or the load must not cover the vehicle's third brake light. The vehicle's third brake light must be visible from:

• 10 degrees to the left and to the right of the longitudinal axis of the vehicle
- 10 degrees above and 5 degrees below the horizontal axis of these figures are not complied with, an optional replacement brake light must be fitted. National laws must be taken into account while using the carrier.

C.14 Keep the mounting and safety instructions and (if applicable) the EC-type approval in the vehicle where the carrier is mounted.
C.15 Not intended for tandems or recumbents.
C.16 Do not install on a trailer or other towed vehicle.
C.17 This product is not intended for use on any recreational vehicle.

D.0 Driving characteristics and regulations

D.1 This product is intended for use on public and private roads, including off-roads such as gravel roads, forest

service roads, and access roads. Other off-road driving and use are made on the user's responsibility and is not covered by the warranty. Adapt your speed to the prevailing road conditions and the load being carried. Check the load fastenings regularly.

D.2 The vehicle driver is solely responsible for ensuring that the carrier is in perfect condition and that the carrier and load are securely fastened (even if fitted by a third person).
D.3 Every time the carrier is used, check that the carrier is securely fitted after driving a short distance (50 km) and then at regular intervals. If you notice any unusual noise, movement of the load and/or carrier, different behaviour of the vehicle or other unusual conditions, stop and check that the carrier and load are secured correctly, and in accordance with the mounting instructions.

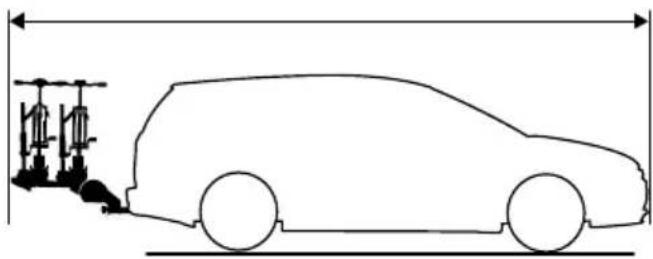

D.4 The vehicle's total length and/or height may increase when a carrier is mounted. The bikes themselves may increase the vehicle's total width and height. Take special care when reversing and/or entering garages or ferries etc.
D.5 Replace any damaged or worn parts of the carrier immediately. During transportation, all levers, bolts and/or nuts must be tightened in accordance with the mounting instructions.
D.6 Carriers fitted with a lock must always be in the locked position. The keys must be removed and kept inside the vehicle during transport.
D.7 Be aware that the vehicle's driving characteristics and braking behaviour (including in curves) might change and that the vehicle might become vulnerable to side winds when the carrier is fitted.

D.8 Depending on the carrier model, the car's tail lights can be obstructed. If that is the case and if the carrier does not already have integrated rear lights, an external light board must be fitted.
D.9 An additional number plate might be required. This should be attached to the appropriate part of the carrier in accordance with local laws.
D.10 The vehicle's speed must always be adjusted to the load being carried and the current driving conditions, such as the road type, road quality, wind conditions, traffic intensity and applicable speed limits, but must under no circumstances exceed 130 km/h. Applicable speed limits and other traffic regulations must always be observed.
D.11 Drive slowly over speed bumps, maximum speed 10 km/h.
D.12 Be aware that wind noise may be generated during transport and may vary depending on the vehicle and load.
D.13 For reasons of fuel economy and environmental impact as well as the safety of other road users, the carrier must be removed from the vehicle when not in use.

E.0 Maintenance

E.1 Clean the carrier regularly using warm water or car shampoo, especially when using or after using the carrier in coastal areas (the effect of salt water) or during periods when salt is applied to the roads (winter time).
E.2 Lubricate the coupling mechanism (but not the surfaces in contact with the tow ball surface) and other moving parts of the carrier when required.
E.3 Remove the carrier before using an automatic car wash.

E.4 When the carrier is removed from the vehicle, it must be stored in a dry storage area. All the components of the carrier must be stored safely. Remember to clean and maintain the carrier in accordance with the instructions.
E.5 If you lose part(s) of the carrier or part(s) of the carrier wear out, only use genuine Thule spare parts as replacements. Spare parts can be purchased from your dealer or manufacturer.
E.6 To ensure that you receive the spare parts quickly and to avoid time-consuming queries, please provide the relevant product details and the serial number when placing an order or making an inquiry.
E.7 In order to ensure that you are able to replace lost or defective keys as quickly as possible, note down the lock and key number which can be found on your key.
E.8 Check tightness of all bolts and knobs periodically.
E.9 Check rubber straps for wear and replace if worn.
