Product type	4-door refrigerator
Brand	Furrion
Model	FCR14ACBQABL01
Total volume	14 cu ft (396 L)
Wine compartment volume	3 cu ft (85 L)
Power supply	115 V AC / 60 Hz
Refrigerant	R134a
Energy consumption	1.268 kWh/24h
Noise level	< 45 dB(A)
Operating temperature range	+16 °C to +43 °C
Defrost type	Manual
Control type	Mechanical (rotary thermostat)
Freezer temperature	≤ -17.8 °C
Upper right compartment temperature	0 °C to +10 °C
Upper left compartment temperature	+2.8 °C to +16 °C (12.8 °C cover)
Dimensions (H × W)	1835 × 806 mm
Interior lighting	LED
Vegetable bins	Yes (not dishwasher safe)
Ice cube tray	Yes (included)
Door panel	With locking latch for transport
Maintenance	Cleaning with baking soda; check seals every 3 to 6 months
Safety	Child lock (removable doors); do not store flammable materials
Spare parts	LED bulb, door seals, shelves, bins (available from authorized dealer)
Warranty	See included warranty card

Frequently Asked Questions - FCR14ACBQABL01 Furrion

How to start the refrigerator for the first time?

Before plugging in, leave the refrigerator upright for 30 minutes so that the refrigerant flows into the compressor. Then plug into a 115 V AC outlet; the unit starts automatically.

What thermostat setting do you recommend?

Setting "3" is recommended for normal use. Turn the thermostat control knob to this position and wait for the refrigerator to cool completely before placing food inside.

What to do if the refrigerator is not cooling enough?

Check that food is not too tightly packed, door seals are in good condition, ventilation is not blocked, and the thermostat is set correctly. If the problem persists, contact an authorized Furrion service center.

How to defrost the refrigerator?

Defrosting is manual. Unplug the appliance, remove food, and let the ice melt. Do not use mechanical tools to speed up the process. Then clean the interior and plug back in.

How to clean the interior of the refrigerator?

Use hot water with a baking soda solution (15 ml per liter of water). Avoid scented soaps and detergents. Dry thoroughly before restarting.

What to do in case of a power outage?

When power returns, wait at least 7 minutes before reconnecting the refrigerator to avoid damaging the compressor.

How to replace the LED bulb?

Unplug the appliance, remove the LED lamp cover by pulling down, unscrew the screws, replace the bulb with one of the same or lower wattage, then put the cover back.

Why is there condensation on the outside of the refrigerator?

This occurs in humid weather and is normal. It is the same phenomenon as condensation on a glass of cold water. Wipe with a dry cloth.

How to properly install the refrigerator in an RV?

Cut an opening to the indicated dimensions (1835 x 806 mm), leave at least 50 mm space at the back for ventilation, fix with self-tapping screws through the mounting flanges, and ensure upper and lower vents are in place.

What to do if defrost water overflows?

Check that the drain hose and drip tray are not clogged and that the tray is correctly installed. Clean them if necessary.

USER MANUAL FCR14ACBQABL01 Furrion

Exterior view of a stainless steel multi-level appliance cabinet (no visible text or symbols)

Thank you and congratulations for purchasing this Furrion product. Before operating your new product, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the product. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new owners of this product.

The manufacturer does not accept responsibility for any damages due to not observing these instructions. If you have any further questions regarding our products, please contact us at [e-mail]

Contents

Contents....1

Important Safety Instructions....2

Safety Awareness....2
Safety Precautions....2

Parts and Features....3

Before Using 4

About Your Refrigerator 4
Before Using for the First Time....4

Installation 5

What's in the Box....5
Install the Refrigerator 5
Electrical Connection 7

Operation....8

Turn On/Off the Refrigerator 8
Thermostat Control 8

Maintenance 8

Refrigerator Care Checklist 8
Defrosting....8
Cleaning....9
Door Sealing....9
Remove/Reinstall the Refrigerator....9
Refrigerator Storage 9
Replacement Parts....9

Specifications 10

Troubleshooting....10

Important Safety Instructions

Safety Awareness

Read this manual carefully and understand the contents before you use the refrigerator.

Be aware of possible safety hazards when you see the safety alert symbol on the refrigerator and in this manual. A safety alert symbol followed by a the signal word identifies the danger of the hazard. Carefully read the descriptions of these signal words to fully know their meanings. They are for your safety.

WARNING

This signal word means a hazard, which if ignored, can cause dangerous personal injury, death, or property damage.

CAUTION

This signal word means a hazard, which if ignored, can cause small personal injury or property damage.

Safety Precautions

CAUTION

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.

• The storage of flammable materials behind or around the refrigerator creates a fire hazard. Do not use the area behind the refrigerator to store anything, especially flammable materials (gasoline, cleaning supplies and etc.)
• Do not remove the ground prong from the AC power cord of the refrigerator. Do not use a two prong adapter or an extension cord with either AC power cord.
• A circuit overload can result in an electrical fire if the wires and/or fuses are not the correct size.
• Incorrect installation, adjustment, change to, or maintenance of this refrigerator can cause personal injury, property damage, or both. Have service and maintenance work done by your dealer or by a Furrion authorized service center.
• Disconnect the power source before doing any maintenance work on the refrigerator. All service work on this refrigerator must be done by a qualified service technician.
• Do not bypass or change the refrigerator's electrical components or features.

• When you discard an appliance, remove all doors to prevent accidental entrapment and suffocation.

• Do not spray liquids near electrical outlets, connections, or the refrigerator components. Many liquids are electrically conductive and can cause a shock hazard, electrical shorts, and in some cases fire.

• The refrigerator cooling system is under pressure. Do not try to repair or recharge a defective cooling system. Do not bend, drop, weld, move, drill, puncture, or hit the cooling system.

• At regular service intervals, make sure that the refrigerator vent areas and the ventilation air pathway between the vents are completely free from any flammable material or blockage. After a period of storage, it is especially important to check these areas for any flammable material or blockage caused by animals.

• The rear of the refrigerator has sharp edges and corners. To prevent cuts or abrasions when working on the refrigerator, be careful and wear cut resistant gloves.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use extension cords or ungrounded (two prong) adapters;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Save these instructions for future reference!

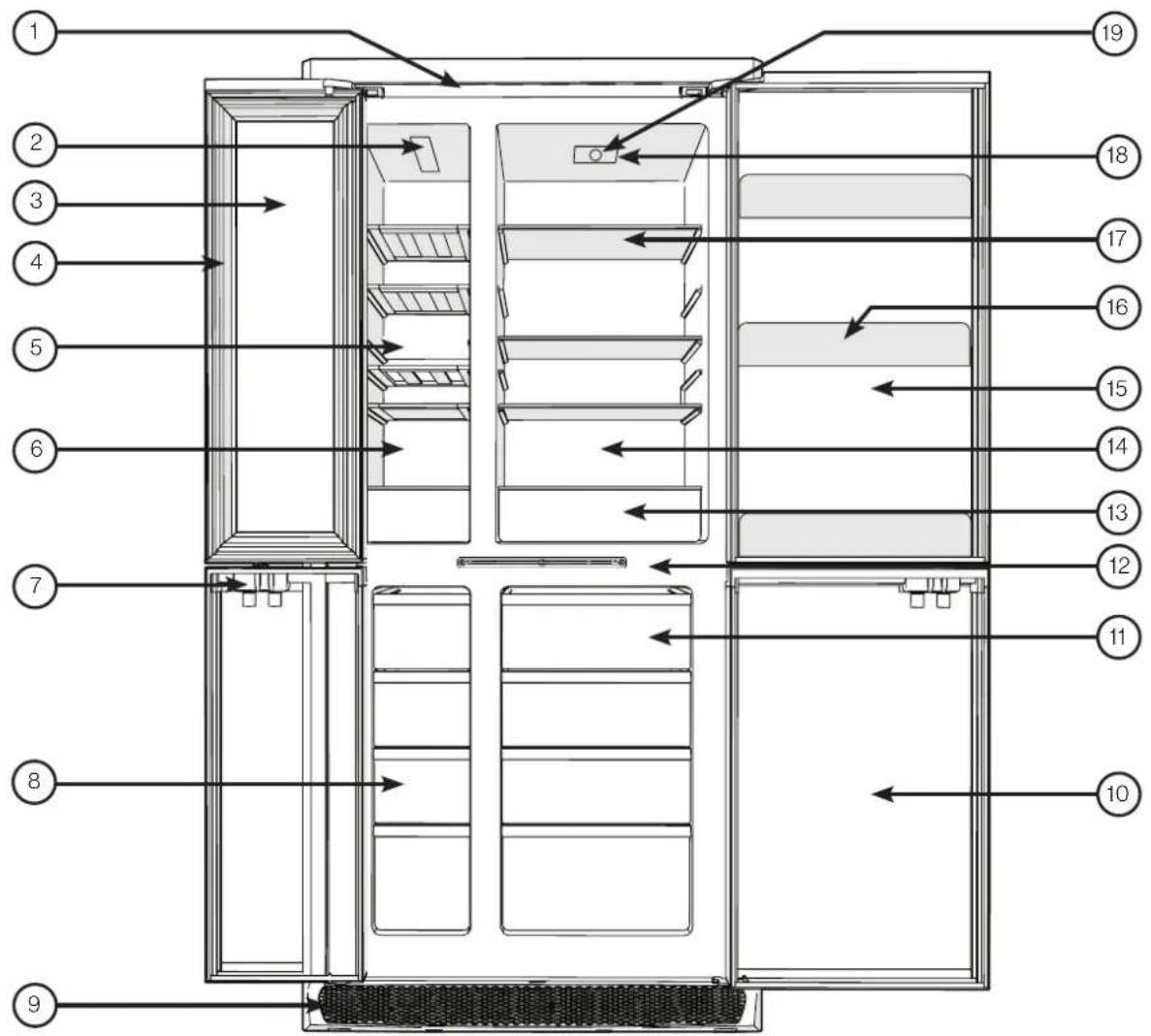

Parts and Features

Technical diagram of a refrigerator interior with numbered compartments and directional arrows indicating flow or movement.

Item Part Name

1	Top Bracket
2	Top Wine Cooler LED Lamp
3	Top Left Door
4	Sealing Gasket
5	Wooden Shelf
6	Wine Storage Compartment
7	Door Latch
8	Bottom Left Freezer
9	Bottom Air Intake Vent
10	Bottom Right Door

Item Part Name

11	Bottom Right Freezer
12	Lock Plate
13	Vegetable Crisper
14	Top Right Storage Chamber
15	Top Right Door
16	Door Bin
17	Glass Shelf
18	Storage LED Lamp
19	Thermostat

Before Using

About Your Refrigerator

Storage Volume:

This refrigerator is made for storage of foods, frozen food and for making ice.

Total Capacity

14 cubic feet

Leveling:

CAUTION: The refrigerator is made to operate within 3° off level side-to-side and 6° off level front-to-back (as looking at the front of the refrigerator). Operating it at more than these limits can cause damage to the cooling system and create a risk of personal injury or property damage. Make sure the vehicle is level before you operate the refrigerator.

NOTE: The refrigerator is designed allows 30^ temporary heeling up while driving in mountains.

Operation during travel:

The refrigerator should be level when the vehicle is stopped, performance during travel is not usually affected.

Food compartment:

Start up the refrigerator and let it cool for three hours before loading with food.

If the refrigerator does not start to cool down after about two hours, contact your dealer or a Furrion authorized service center.

For the best cooling performance:

-Let air move freely inside the entire food compartment.
-Do not cover the shelves with plastic, paper, etc.

To decrease the amount of ice that collects on the cooling unit:

-Cover all liquids and moist foods.
- Let all hot foods cool before putting them into the refrigerator.
-Do not open the door any longer than necessary.

Freezer compartments:

The freezer compartments are made to keep prefrozen food frozen and not to quick freeze food.

NOTE: Do not put other items on the ice tray while the water is freezing. The water freezes more rapidly if the thermostat is at the COLDEST position.

Door handles:

During travel, the door latch prevents the door from opening. When closing each door, push the door towards the refrigerator until you hear a "click" sound.

To open each door, pull the handle away from the refrigerator. During storage, the storage latch prevents the door from completely closing. Use it to prevent odors when the refrigerator is stored for an extended period of time. If the door latch is broken or away from the door handle, please contact professional persons replace this part.

Crispers:

The crispers are located at the bottom right side of the fresh food compartment and supply a storage area to preserve fruit and vegetable freshness. Make sure that you always push the crispers fully in. The glass crisper covers are made so that you can remove them.

NOTE: Do not wash the crispers in a dishwasher. The crispers are not dishwasher safe.

Interior LED light:

The interior light is at the top of the fresh food compartment. It comes on when the refrigerator is ON and the door is open.

Ice-tray:

The ice-tray is designed to allow you to make ice that will cool a hot drink or chill a beverage.

Product Ice Cubes:

Filling the ice-tray with cold water, then place into a freezer until the freezer freezes into ice.

Removing Ice Cubes:

Turn upside down the ice-tray and twist slightly to remove the ice cubes or pour some cool water on the bottom of the tray.

Before Using for the First Time

• Remove all adhesive tape and packaging from the interior of the refrigerator.
• Remove the transport protection pieces and pull off the adhesive tape.
• Wash the inside of the refrigerator with lukewarm water with a little bicarbonate of soda added (5 ml to 0.5 liter of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly.
• The refrigerator may be installed with its rear panel directly against the cabinet. The minimum air gap must be 50mm minimum.
• For good circulation, the vent at the top and bottom of the refrigerator must not be blocked. Your refrigerator should be placed on flat and firm surface for quieter operation.
• Do not expose the refrigerator to direct sunlight or a heat source such as ovens, radiators, heaters, etc.
• Do not under any circumstances place heated beverages in your refrigerator.
• Do not open the door more often than necessary to lessen the escape of cold air.
• For better air circulation, do not overfill the unit.
• Adjust the temperature regulator according to the amount of product and the ambient temperature.
• Turning it to maximum will cause it to run continuously and ice up. Avoid the maximum setting.

Installation

This appliance is intended to be used in household and similar applications such as:

-Staff kitchen areas in shops, offices and other working environments.
-Farm houses and by clients in hotels, motels and other residential type environments.
-Bed and breakfast type environments.
-Catering and similar non-retail applications.

This refrigerator is not approved for use as a free standing refrigerator. Incorrect installation, adjustment, alteration or maintenance of this refrigerator can cause personal injury, property damage or both. Obey the instructions in this manual to install the refrigerator.

Do not install the refrigerator directly on carpet. Put the refrigerator on a metal or wood panel that extends the full width and depth of the refrigerator.

Do not allow anything to touch the refrigerator cooling system.

Make sure the electrical installation obeys all applicable codes. Do not bypass or change the refrigerator's electrical components or features.

What's in the Box

Make sure you have the following listed items included in the packaging. If any item is damaged or missing, contact your dealer.

• Refrigerator
  • Instruction Manual
• Warranty Card
• Ice Tray

Install the Refrigerator

CAUTION: Do not lift or drag the refrigerator doors during installing, damage to the refrigerator can result. Furrion recommends you have another person to assist during installation process.

1. Select a suitable position where you are going to install your refrigerator.

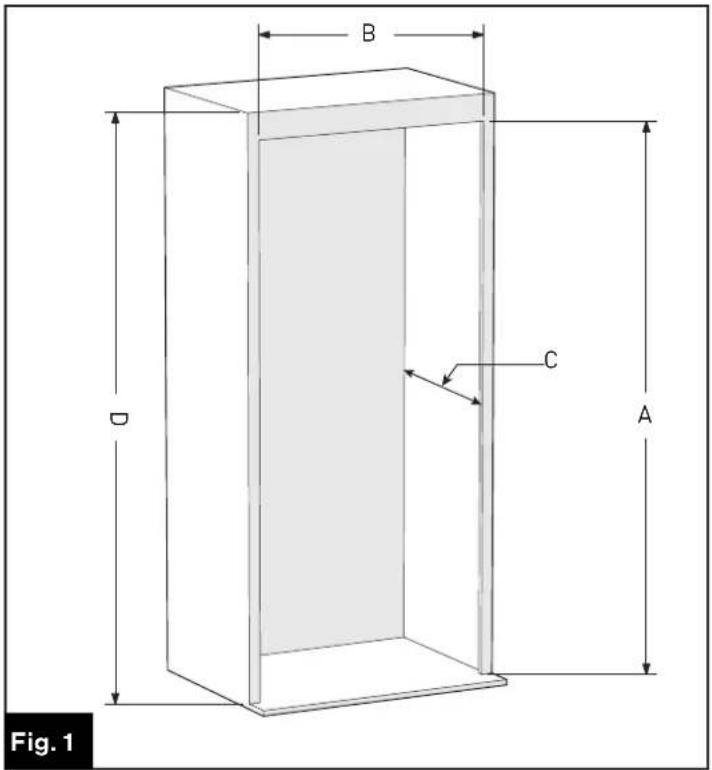

2. Mark and cut out an open area on the wall according to the dimensions outlined in Fig. 1.

B C D A Fig. 1

Item	Dimension
A	72 14 " (1835mm)
B	31 34 " (806mm)
C	22 ^13/_16 " (580mm) min.
D	73 14 " (1860.5mm) min.

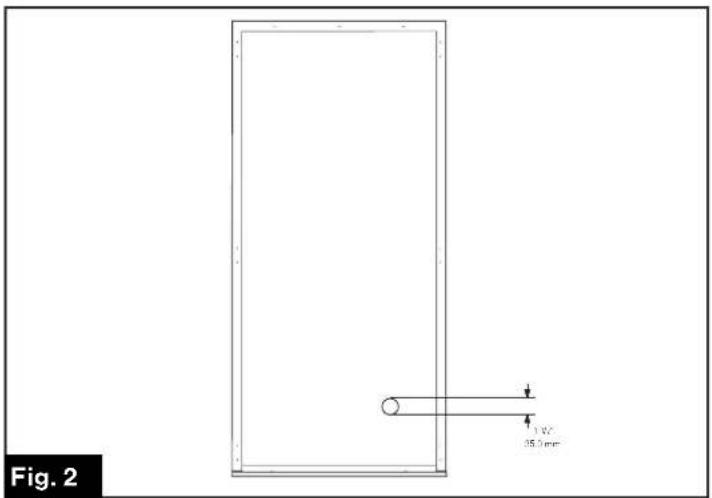

1. Drill a 1½" hole on the vehicle wall using a hole saw. (Fig. 2) Extend the power cord from the to cutting hole and connect to the refrigerator (see "Electrical Connection" section for detail) CAUTION: Ensure there are no electrical cables, gas lines, pipes or other important parts behind the wall where the drill holes will be.

Fig. 2 1 kW 35.0 mm

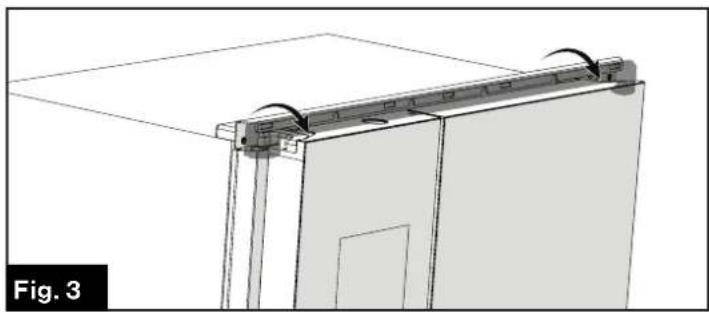

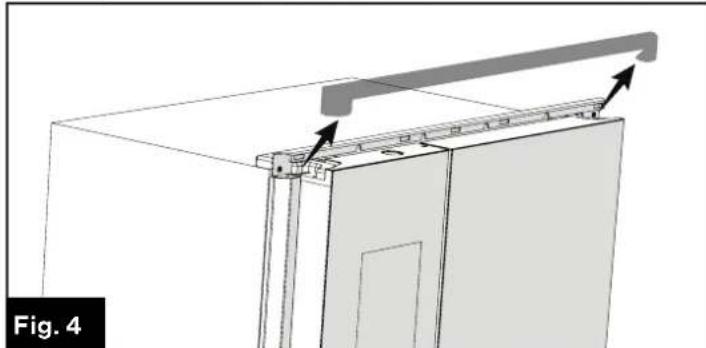

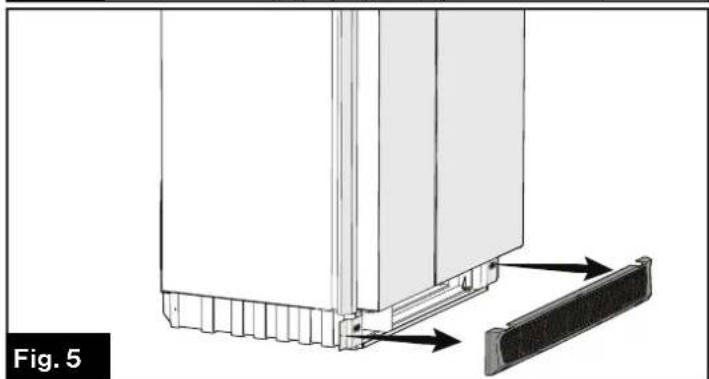

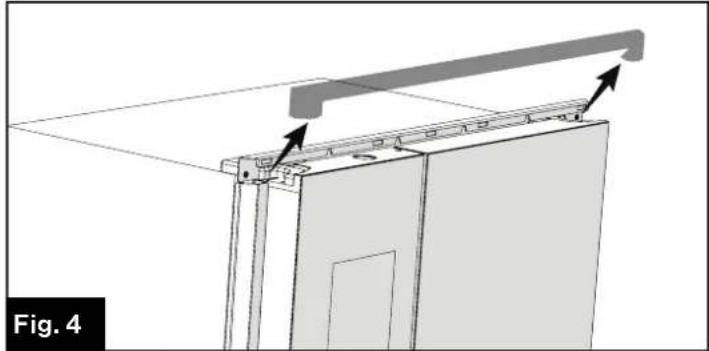

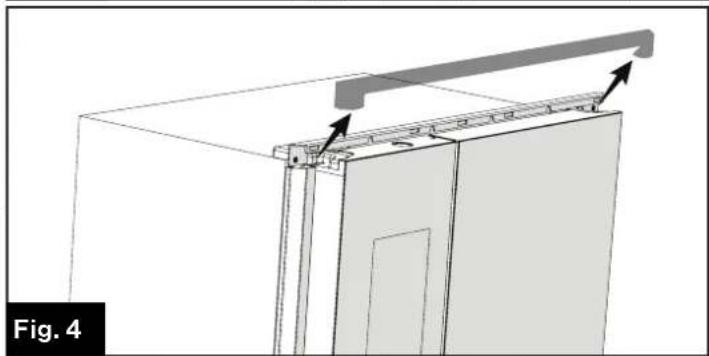

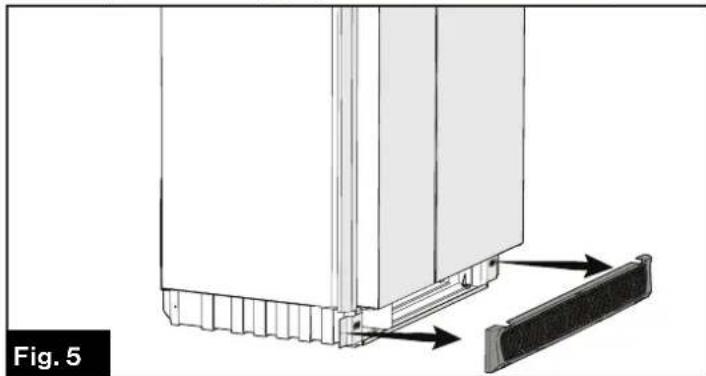

1. Pull on the top of the exhaust vent towards you and lift to remove it from the refrigerator. (Fig. 3 and Fig. 4) Pull on both left and right sides to remove the bottom intake vent from the refrigerator. (Fig. 5)

Technical line drawing of a mechanical assembly with mounting brackets and a door (no text or symbols)

Technical diagram of a door frame assembly with mounting bracket and support structure (no text or symbols)

Technical diagram showing a mechanical assembly with a component and a separate panel, labeled Fig. 5 (no text or symbols on the diagram itself)

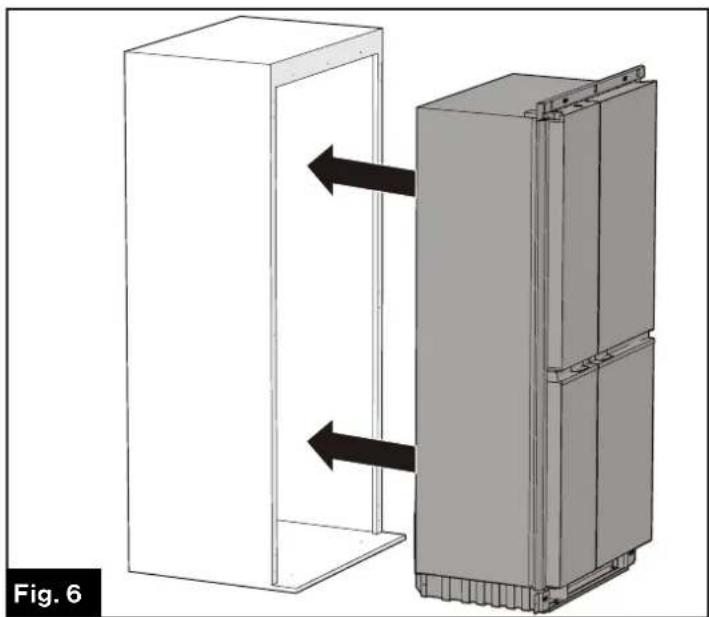

1. Put the refrigerator completely into the enclosure. (Fig. 6) Make sure to leave 1^15 / 16'' (50mm) minimum space from the back of the refrigerator to the cabinet for better air circulation. (Fig. 7)

Diagram showing a device with two boxes, one open and one closed, both with arrows indicating direction (no text or symbols present)

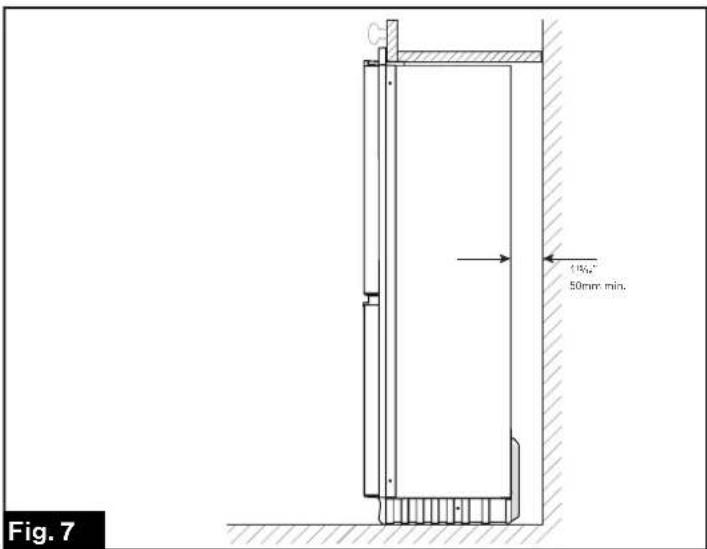

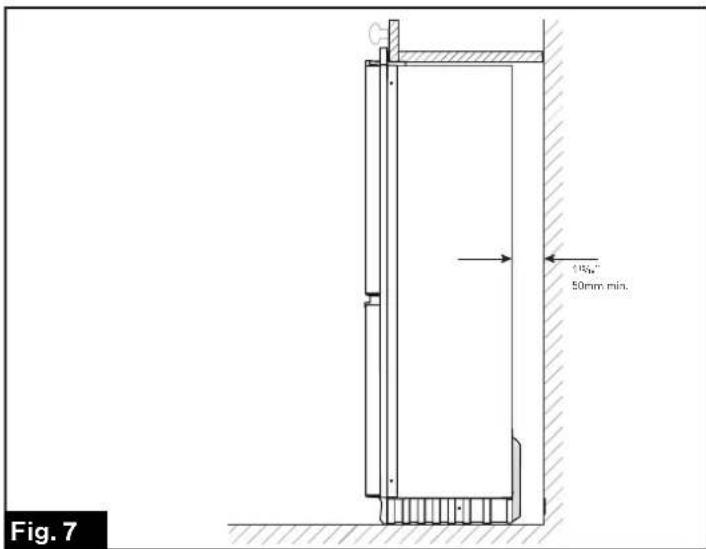

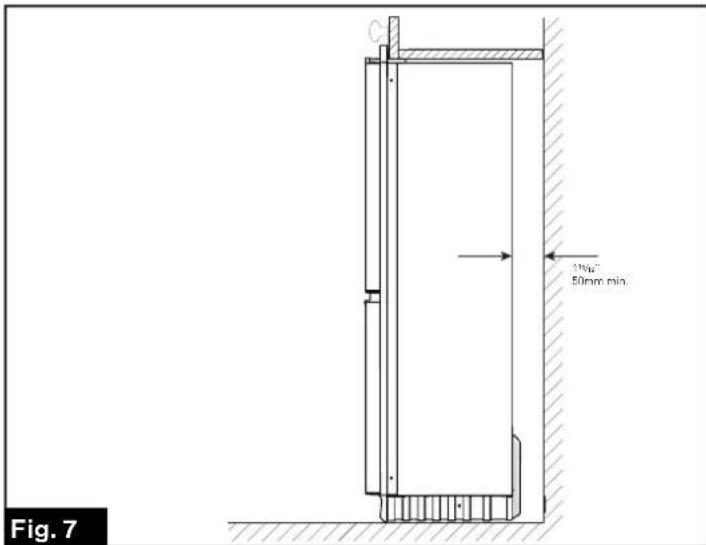

Fig. 7 150mm 50mm min.

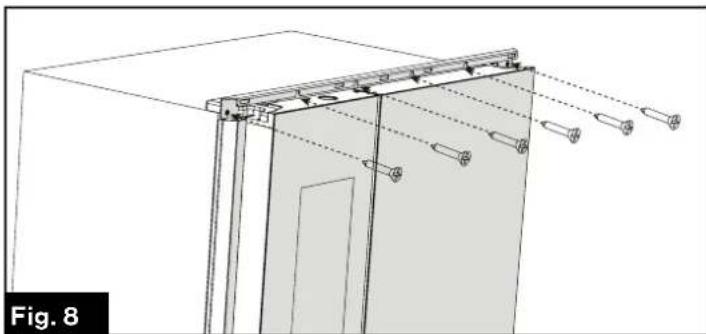

1. Fix the refrigerator into the enclosure through the mounting flange using 12 self-tapping screws (ST 4.8 *19). (Fig. 8 and Fig. 9)

Technical line drawing of a cabinet or enclosure with mounting brackets and hanging fixtures, labeled Fig. 8 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

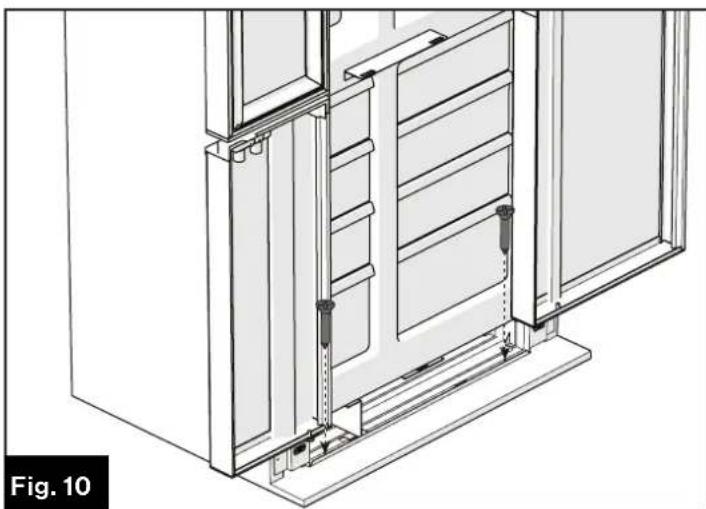

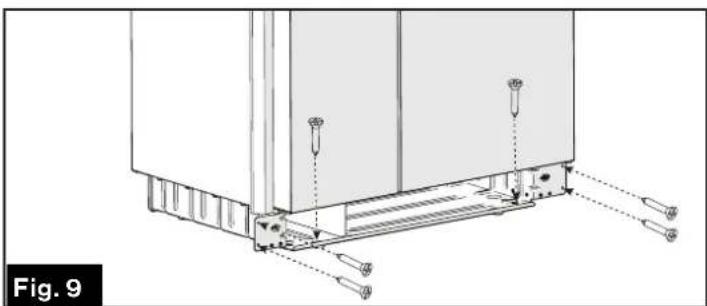

1. Open the bottom doors of the refrigerator and secure the refrigerator into the enclosure using two self-tapping screws. (Fig. 10)

Technical line drawing of a cabinet or enclosure structure with internal compartments and mounting base (no text or symbols)

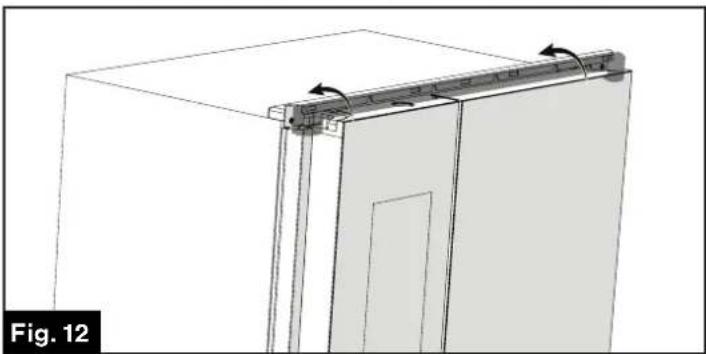

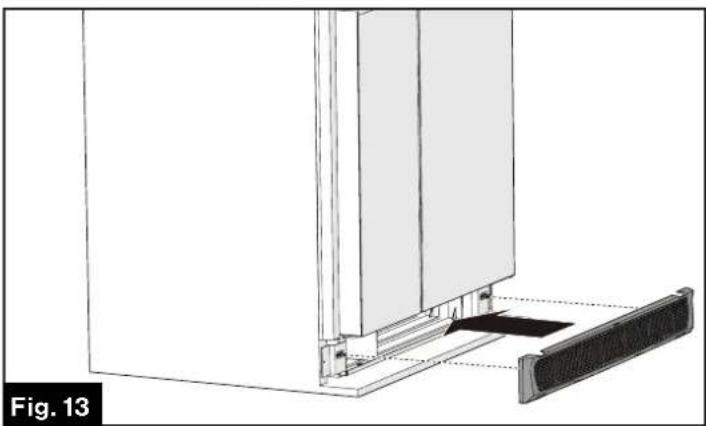

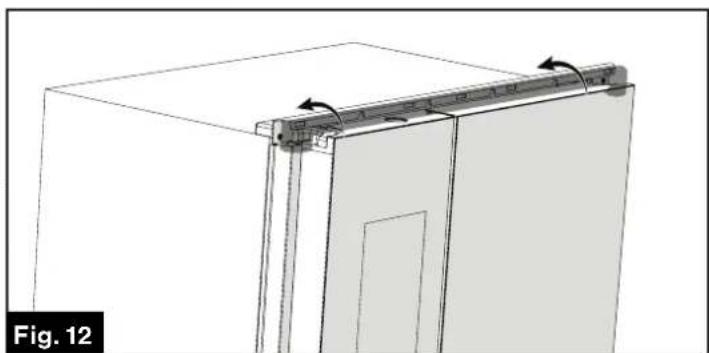

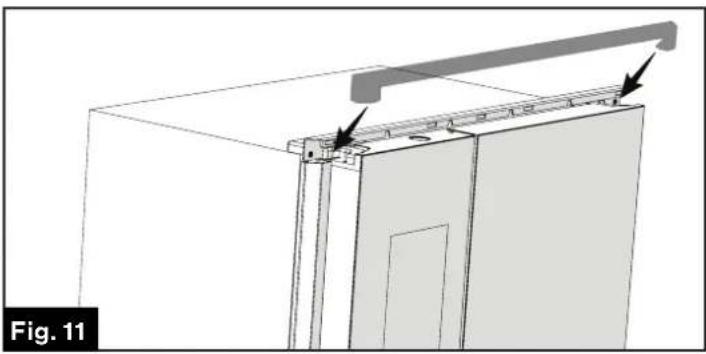

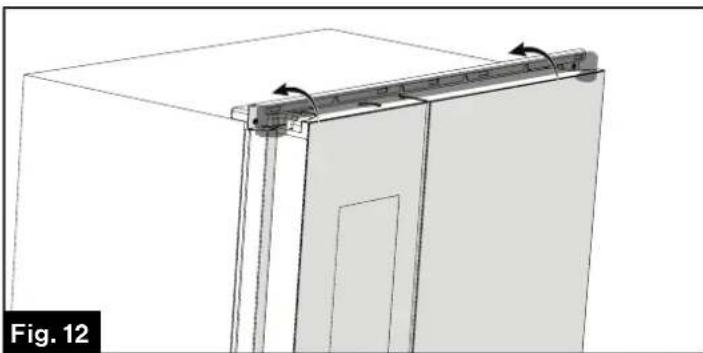

1. Replace the top and bottom vents to the refrigerator. Make sure the releasing tabs on back of the each are fully inserted into the slots. (Fig. 11 Fig. 12 and Fig. 13)

3D architectural diagram showing a window frame structure with an arrow indicating assembly or connection (no text or symbols)

Technical line drawing of a door frame with an attached shelf, showing structural components and directional arrows (no text or symbols)

Diagram of a door frame assembly with a guardrail attachment, labeled Fig. 13 (no text or symbols on the diagram itself)

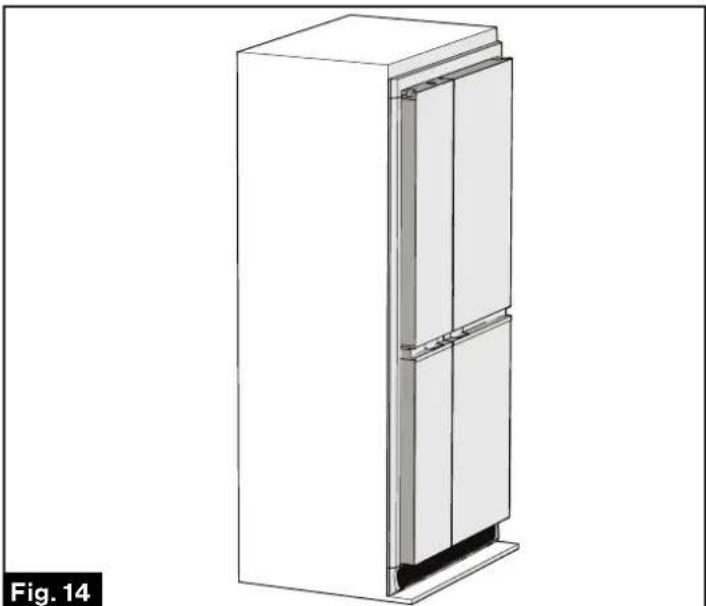

1. The refrigerator is now fully installed into the enclosure. (Fig. 14)

3D technical illustration of a vertical cabinet or enclosure with internal compartments and mounting base (no text or symbols)

Electrical Connection

WARNING

The rear of the refrigerator cooling system has hot surfaces and sharp surfaces that can damage electrical wiring. Make sure there is a good clearance between all electrical wiring and the cooling system of the refrigerator. Position any electrical wiring within the refrigerator enclosure opposite the burner side of the refrigerator. Do not put any electrical wiring through the roof exhaust vent. Failure to correctly position electrical wiring can result in electrical shock or fire.

The refrigerator operates on the following energy sources: 115-volt AC - (132 volts maximum - 108 volts minimum)

NOTE: If a DC power source is to be connected, please use a genuine Furrion designed/authorized power inverter to change the 12V DC power to AC 115V/60Hz. Operation out of these limits can damage the refrigerator electrical components and will void the warranty.

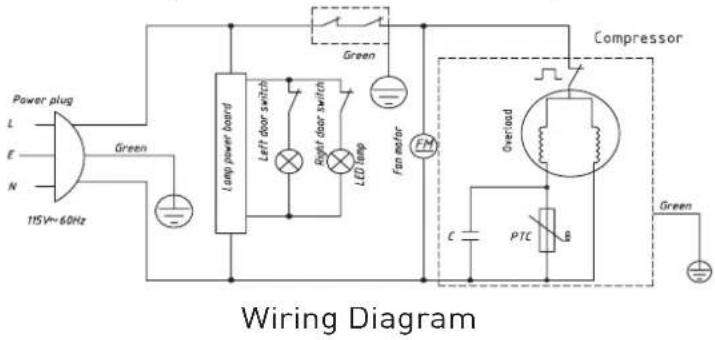

Power plug L E N 115V~60Hz Green Lamp power board Left door switch Right door switch LED lamp Green Fan motor FM Compressor Overload C PTC in Green Wiring Diagram

Operation Maintenance

The refrigerator operates on a 115V AC/60Hz energy source. Operation out of these limits can damage the refrigerator electrical components and will void the warranty.

Turn On/Off the Refrigerator

Before connecting the refrigerator to the mains and putting into operation for the first time, leave the refrigerator to stand for 30 minutes to allow the refrigerant to flow into the compressor. Otherwise the compressor may be damaged. NOTE: If the refrigerator is unplugged or power lost, you must wait at least 7 minutes before restarting.

To Switch On:

Plug the refrigerator into the power socket and the refrigerator will be turned on automatically.

To Switch Off:

Unplug the refrigerator from the power socket.

Thermostat Control

WARNING

• Do not set the temperature too low, the "3" setting should be considered cold enough as a storage temperature.
• After the refrigerator has been unplugged, leave for 7 minutes minimum before plugging it in again.

The thermostat control knob for is located on top of storage compartment.

1 2 3 4 5

The first time you turn on your refrigerator, rotate the thermostat control knob to the "3" position and leave enough time for your refrigerator to cool down completely before loading stuffs.

The thermostat control knob has five settings. "1" is the warmest. "5" is the coldest. The "3" level should be the most appropriated setting for office or RV refrigerator use.

Read and understand the following maintenance sections of this manual.

NOTE: Furrion is not responsible for installation, adjustment, alteration, service, or maintenance performed by anyone other than a qualified RV dealer or a Furrion authorized service center.

Have a qualified RV dealer or a Furrion authorized service center do this annual safety and maintenance check:

-Make sure the AC voltage is 110 -120 volt.

Refrigerator Care Checklist

Your refrigerator will give you years of trouble free service if you do these simple checks every three to six months:

- Keep the food compartment and the freezer clean. See "Cleaning" section.

• Defrost the refrigerator as necessary. See "Defrosting" section.

• Make sure the door seals correctly. See "Door Sealing" section.

• Be aware of any cooling changes that are not because of weather, loading, or control changes. If changes occur, contact your dealer or service center.

• Make sure the air flow in the lower intake vent, through the refrigerator coils and condenser, and out the upper exhaust vent is not blocked or decreased.
• Make sure the area behind the refrigerator is clear. Do not use the area behind the refrigerator for storage of anything, especially combustible materials, gasoline or other flammable vapors and liquids.

Defrosting

Excess frost decreases the cooling performance of the refrigerator. Defrost the refrigerator and freezer as necessary. The cooling fins of the refrigerator operates at temperature below freezing and will form frost from humidity naturally, which is always present in the air. The humidity inside the refrigerator increases:

-With higher outside temperature and humidity.
- With the storage of non-sealed fresh foods or warm foods storage.
- With the amount of time that the door(s) are open.
-With any air leakage into the refrigerator.

Cleaning

Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Use warm water and baking soda solution - about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors.

After cleaning the door gaskets, apply a thin layer of petroleum jelly to the door gaskets at the hinge side. This helps keep the gaskets from sticking and bending out of shape.

Avoid cleaning cold glass shelves (if equipped) with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter.

Do not wash any plastic refrigerator parts in the dishwasher.

Cleaning the Outside

Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.

Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint.

Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

Cleaning the Inside

To help prevent odors, leave an open box of baking soda in the fresh food and freezer compartments.

Door Sealing

If either door does not seal correctly, excess frost will collect inside the refrigerator. Make sure the doors seal correctly:

1. Close each door on a piece of paper that is about the size and thickness of a dollar bill.
2. Gently pull the paper. You should feel a slight drag between the gasket and the cabinet.
3. Do this on all four sides of the door.
4. If you do not feel a slight drag on the paper, the door does not seal correctly Have your dealer or a Furrion authorized service center to correct the seal of the door.

Remove/Reinstall the Refrigerator

Your dealer or Furrion authorized service center must do this procedure.

CAUTION: The rear of the refrigerator has sharp edges and corners. To prevent cuts or abrasions when working on the refrigerator, be careful and wear cut resistant gloves.

1. Remove the AC power cord from the receptacle.
2. Remove the plastic vents from the mounting flanges of the refrigerator.
3. Remove the screws from the upper and lower mounting flanges on the front of the refrigerator.
4. Remove the refrigerator from the opening.
   Repeat steps 4 to 1 to reinstall the refrigerator into the enclosure.

Refrigerator Storage

Before the refrigerator is stored for an extended (seasonal) period of time.

• Defrost and clean the interior of the refrigerator. See
  "Cleaning" section for detail.
• Close the doors with the storage latch.

If the refrigerator is stored for an extended period of time, before start up:

- Make sure there are no obstructions in the vents, the ventilation air pathway, or the flue area.

Replacement Parts

You may purchase replacement parts through your local RV dealer or Furrion authorized Service Center.

LED Lamp Replacement

The interior light is at the top of the fresh food compartment. To replace a burned-out bulb:

1. Unplug the refrigerator from its receptacle.
2. Remove the LED lamp cover by pulling it downward.
3. Unscrew the screws holding the LED lamp after fully cooled down and replace with a bulb in the same or lower wattage.
4. Install the cover.

Specifications Troubleshoot

Specifications

Power Supply	AC115V / 60Hz
Refrigerant	R134a
Total Volume	14.0 cu.ft
Wine Cooler Storage	3.0 cu.ft
Storage Temperature (Top Right)	0~+10°C
Storage Temperature (Top Left)	+2.8~+16°C and Cover 12.8°C
Freezer temperature 1/2	≤-17.8°C
Defrost	Manual Defrost
Control Type	Mechanical Control
Power Consumption	1.268 Kwh/24h
Sweat	No sweat occurs
Noise Level	Less than 45 dB(A)
Working Temperature Range	+16°C ~ +43°C

ng

Problem Solution

When the refrigerator does not work	Check if there is a power failure.
	Check if the power plug is plugged into power outlet.
When the refrigerator is cooling excessively	The temperature control dial may be set too high.
	If you place foodstuffs containing a lot of moisture directly under the cool air outlet, they will freezer easily. This does not indicate a malfunction.
When the refrigerator is not cooling sufficiently	The food may be packed too tightly together which will block the flow of cool air.
	You may have put something hot or a lot of foodstuffs into the refrigerator.
	The door may not have been closed properly.
	The door gaskets may be damaged.
	The refrigerator may not be ventilated.
	There may be insufficient clearance between the refrigerator and the surfaced immediately both sides and above.
	The temperature control dial may not be set properly.
When the defrosting water overflows inside the refrigerator and onto the floor	Checks that the drain pipe and drain hose are not clogged.
	Check that the drain pan is house properly.
When the refrigerator's cabinet front heats up	In order to safeguard against condensation, there is an anti-condensation pipe which heats up the cabinet front when running actuated. A warm cabinet front does not indicate a malfunction.
When condensation forms on the outside of the refrigerator	Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.
When you hear a sound like water flowing	A sound like water flowing is the refrigerant flowing. It doesn't indicate a malfunction.
When the cabinet's side panel heats up	The side panel of the cabinet will heat up when the door is opened or closed frequently. When starting the unit and when the unit operates in summer with high ambient outside temperature. In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

Technical diagram of a refrigerator interior with numbered compartments and directional arrows indicating flow or movement.

Compartiments de congélation:

Technical line drawing of a cabinet or enclosure with mounting brackets and internal components (no text or symbols)

Technical diagram of a door frame assembly with mounting bracket and directional arrows indicating assembly (no text or symbols)

Diagram of a mechanical assembly with labeled components, showing a bracket and mounting bracket (no text or symbols present)

Diagram showing a device with two boxes, one open and one closed, both with arrows indicating direction (no text or symbols present)

Fig. 7 150mm 50mm min.

Technical line drawing of a door frame assembly with hanging weights and structural details (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and support rods (no text or symbols)

Technical line drawing of a cabinet or enclosure structure with internal compartments and mounting base (no text or symbols)

Technical diagram of a door frame assembly with mounting bracket and door, labeled Fig. 11 (no text or symbols on the diagram itself)

Technical line drawing of a door frame with a scroll wheel, showing internal components and directional arrows (no text or symbols)

Technical diagram showing a door frame mounted on a wall with a guardrail attached, labeled Fig. 13 (no text or symbols on the diagram itself)

3D architectural rendering of a vertical cabinet or enclosure with two doors and a side panel, labeled Fig. 14 (no text or symbols on the diagram itself)

Power plug L E N 115V~60Hz Green Lamp power board Left door switch Right door switch LED lamp Green Fan motor FM Compressor Overload C PTC B Green

Schéma de câblage

Technical diagram of a refrigerator interior with numbered compartments and directional arrows indicating flow or movement.

Technical line drawing of a cabinet or enclosure with mounting brackets and doors, labeled Fig. 3 (no text or symbols on the diagram itself)

Technical diagram of a door frame assembly with arrows indicating assembly direction (no text or symbols)

Technical diagram showing a structural component with arrows indicating assembly or alignment, labeled Fig. 5 (no text or symbols on the diagram itself)

Diagram showing a cabinet with an open door and a side-mounted refrigerator, both with arrows indicating direction (no text or symbols present)

Fig. 7 20mm 50mm pin

Technical line drawing of a cabinet or enclosure with internal components and structural elements, labeled Fig. 8 (no text or symbols on the diagram itself)

Technical diagram of a mechanical assembly with labeled parts and alignment indicators (no readable text or symbols)

Technical line drawing of a door frame assembly with mounting brackets and structural supports (no text or symbols)

Technical diagram of a door frame assembly with mounting bracket and side panel (no text or symbols)

Diagram of a door frame with a scroll wheel, showing structural components and directional arrows (no text or symbols)

Diagram of a door frame assembly with a guardrail attachment, labeled Fig. 13 (no text or symbols on the diagram itself)

3D architectural rendering of a vertical cabinet or enclosure with two panels, showing internal structure and mounting base (no text or symbols)

Conexión eléctrica

ADVERTENCIA

Abstract black geometric shapes on white background (no text or symbols)

Furrion Innovation Center & Institute of Technology

- 52567 Independence Ct., Elkhart, IN 46514, USA - Toll free:1-800-789-3341

- Email: [e-mail]

©2007-2020 Furrion Ltd. Furrion ^® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries.

CN ZL201830164333.7 and other patents pending
