USER MANUAL FCR10DCGTA-BR-SV-EM Furrion

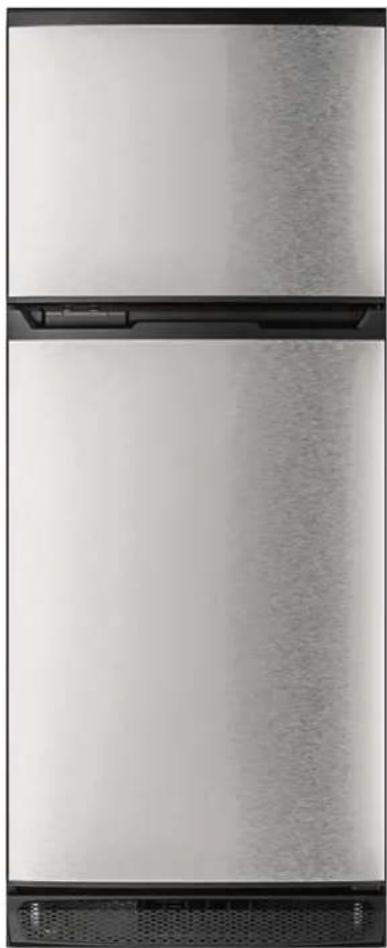

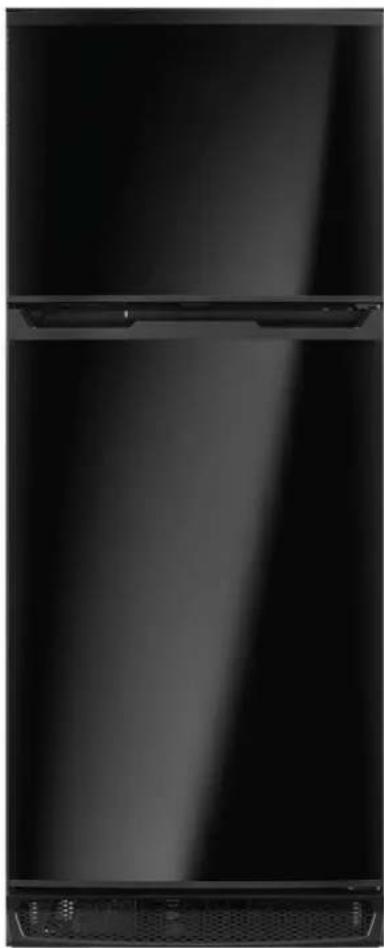

10 cu.ft. Furrion Arctic™ Mark II 12 Volt Built-in Refrigerator
HIGH EFFICIENCY DC COMPRESSOR
POWERFUL COOLING
BIG STORAGE
VOLUME
BUILT-IN
QUIET OPERATION
EASY
INSTALLATION
DOOR
LOCK
VIBRATIONSMARTIVCLOSED LOOP OFF-GRID MODE CHARCOAL FILTER
Specifications
| Validity Capacity | 10 cu. ft. |
| Freezer Capacity | 2.8 cu. ft |
| Fridge Capacity | 7.2 cu. ft |
| Noise (db) | 43db |
| Reversible door | Yes |
| Temperature range | 32°F to 50°F |
| (refrigerator compartment) | (0°C to +10°C) |
| Cooling speed | 3 hours. 77°F to 5°F(25°C to -15°C) with no load |
| Temperature range | 10.4°F to -4°F |
| (freezer compartment) | (-12°C to -20°C) |
| Cooling speed | 3 hours. 77°F to 41°F(25°C to 5°C) with no load |
| Cooling Type | Compression Cooling System |
| Refrigerant | R600a |
| Rated Voltage | DC 12V |
| Power Consumption | 438Wh/year |
Door Panel Dimensions
| Thickness | 4.35mm (+/-0.5mm)/ 0.17" |
| Chamfer | 3mm for 4 corners |
| Dimensions | |
| Freezer Compartment 1pc/set | 476mm x 603mm (+/-1mm) |
| Refrigerator Compartment 1 pc/set | 883mm x 603mm (+/-1mm) |

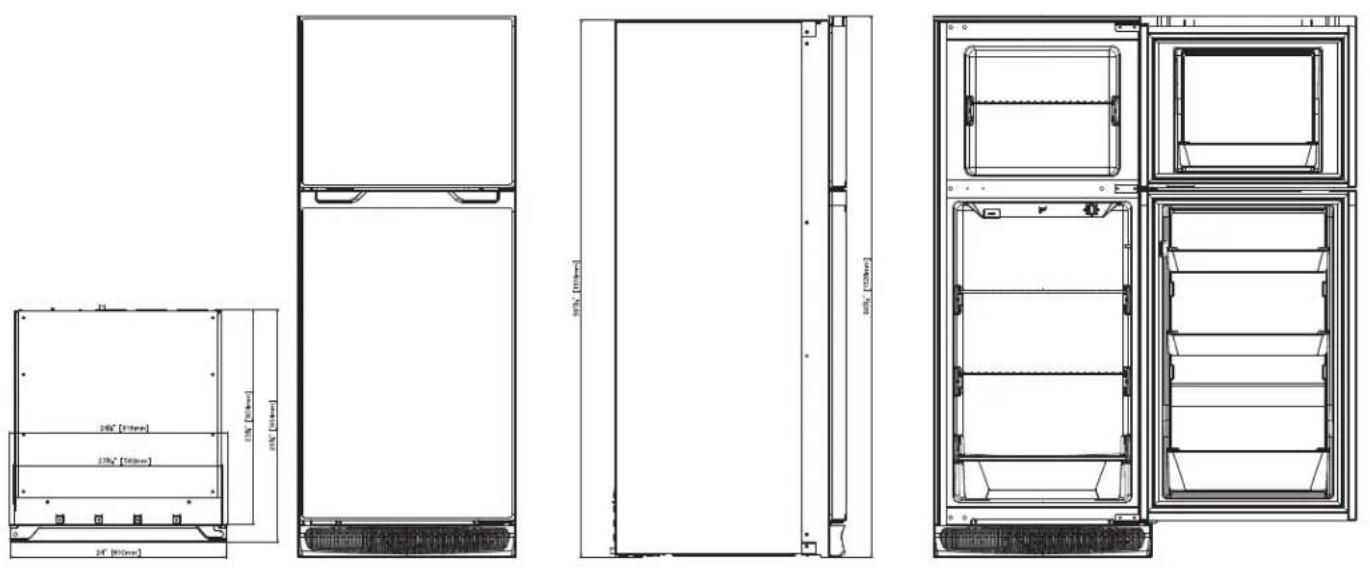

Dimensions and Weight
| Product Dimensions(W x H x D) | 24.25 x 60.19 x 25.75"(616 x 1528 x 654mm) |
| Recessed Dimensions(W x H x D) | 52.69 x 23.31 x 23.75"(1338 x 592 x 604mm) |
| Packaging Dimensions(W x H x D) | 29.92 x 63.19 x 27.17"(760 x 1605 x 690mm) |
| Net Weight (lbs/kg) | 138/62.7 |
| Gross Weight (lbs/kg) | 151/68.7 |
