Product type	Electric cooker
Brand	Rommer
Model	H 610
Power supply	220-240 V ~ / 380-415 V 3N~
Frequency	50/60 Hz
Oven functions	Light, Defrost, Turbo, Natural convection, Ventilation, Pizza, Grill, Express grill, Double fan grill, Steam cleaning
Hob type	Electric
Number of burners	Not specified
Oven capacity	Not specified
Dimensions	Not specified
Weight	Not specified
Door material	Glass
Oven lighting	Bulb 230 V, 15-25 W, type E14
Electronic timer	With audible alarm
Steam cleaning	Built-in

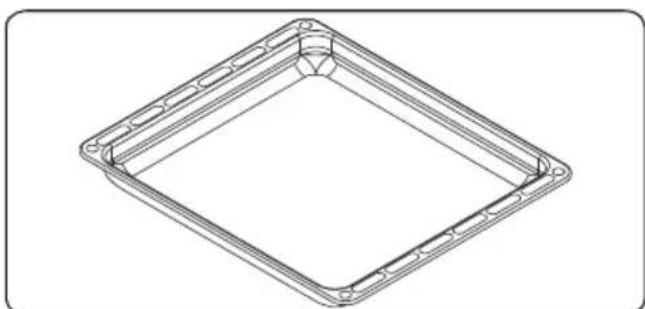

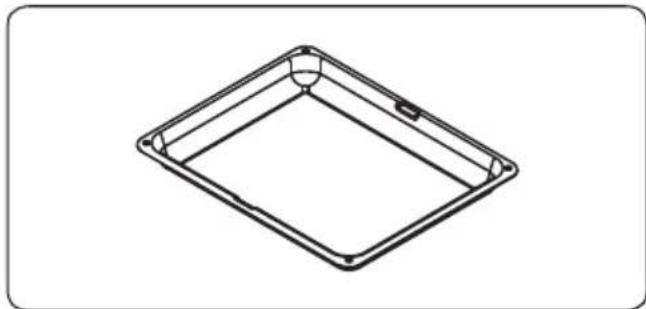

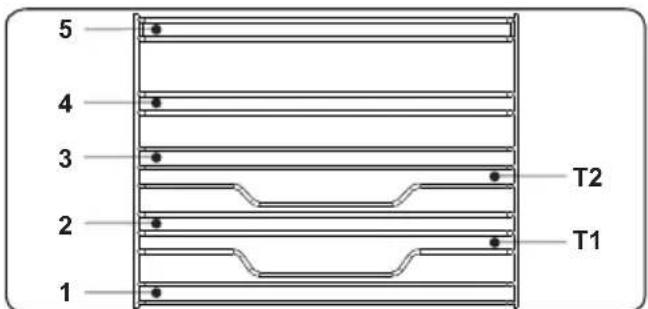

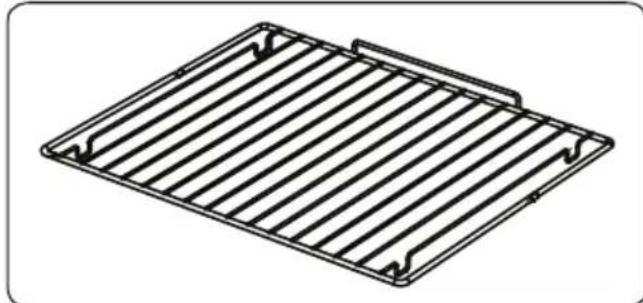

Included accessories	EasyFix metal grid, drip tray, small drip tray, water collector
Maintenance	Clean with soft cloth, door removal
Safety	Detailed safety instructions in the manual
Spare parts	Use only original parts
Repairability	Call a qualified technician
Additional information	68-page user manual

Frequently Asked Questions - H 610 Rommer

How to set the time on the electronic timer?

Press the + and - buttons simultaneously. The symbol flashes. Set the time using the + and - buttons while the dot flashes. Wait a few seconds to confirm.

How to use the steam cleaning function?

Set the oven function and thermostat to the steam cleaning symbol. Pour 200 to 250 ml of water into the small container at the bottom of the oven. The function lasts about 20 minutes, then wipe the interior.

What to do if the oven does not heat up?

Check that the power supply is connected and that other appliances work. Also check that the temperature knob is correctly set and the door is closed.

How to replace the oven bulb?

Unplug the appliance and let it cool. Remove the glass lens, then the bulb. Replace it with a bulb resistant to 300°C (230 V, 15-25 W, type E14). Screw the lens back on.

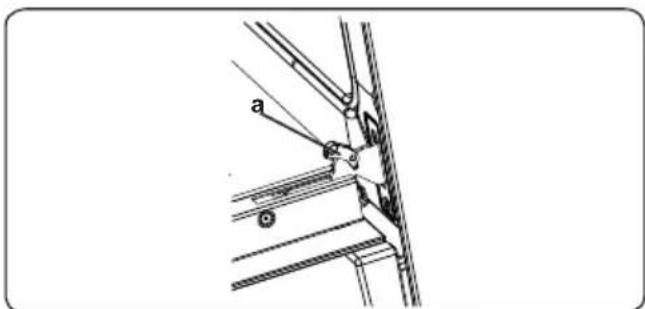

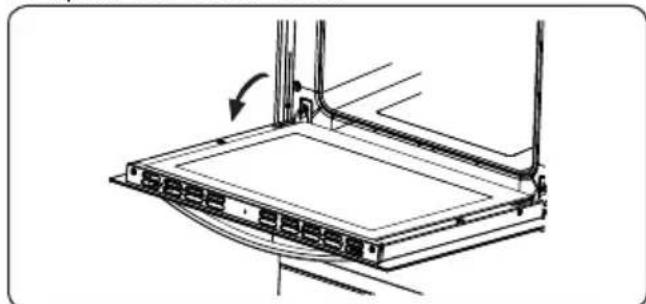

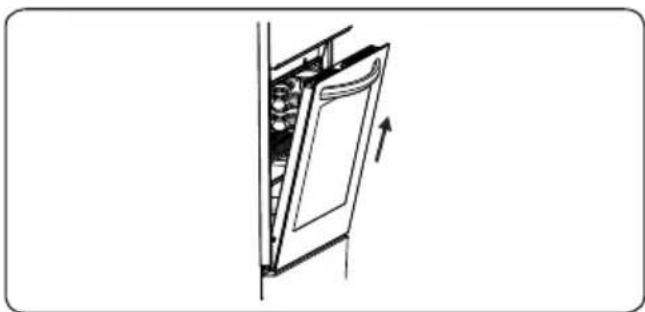

How to remove the oven door for cleaning?

Open the door, open the stirrup (a) with a screwdriver. Close the door almost completely, then pull it towards you to remove it. Clean the windows, then reassemble in reverse order.

How to use the Turbo function?

Select the Turbo function with the function knob. Set the desired temperature. The indicator light turns on. Heat is evenly distributed by the circular heating element and fan. Preheat for about 10 minutes.

What is the function of the express grill?

The express grill activates the grill and upper heating elements for quick cooking over a large area. Ideal for meats. Use the top shelf, preheat 10 minutes, keep the door closed at 190°C.

How to set the audible alarm?

Press MODE until the symbol flashes. Use the + and - buttons to select the delay (0:00 to 23:59). Press MODE to confirm. The audible alarm sounds at the end.

How to program automatic cooking?

Place the food, select the function and temperature. Press MODE until dur is displayed, set the duration with + and -. Press MODE until end, set the end time. The oven turns off automatically.

What to do if the fan is noisy?

Check that the oven is level and that no tray or grid vibrates or touches the rear panel. If the noise persists, contact a qualified technician.

USER MANUAL H 610 Rommer

3. CARACTERISTIQUES DU PRODUIT

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
▲	WARNING Serious injury or death risk
▲	RISK OF ELECTRIC SHOCK Dangerous voltage risk
▲	FIRE Warning; Risk of fire / flammable materials
▲	CAUTION Injury or property damage risk
●	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETYINSTRUCTIONS 4
1.1 General SafetyWarnings 4
1.2 InstallationWarnings 6
1.3 During Use 7
1.4 During Cleaning and Maintenance 8
2.INSTALLATION AND PREPARATION FOR USE 10
2.1 Instructions for the Installer 10
2.2 Installation of the Oven 10
2.3 Electrical Connection and Safety 11
3.PRODUCT FEATURES 13
4. USE OF PRODUCT 14
4.1 Oven Controls 14
4.2 Cooking Table 15
4.3 Use of the Digital Timer 15
4.4 Accessories 18
5.CLEANING AND MAINTENANCE 19
5.1 Cleaning 19
5.2 Maintenance 20
6.TROUBLESHOOTING&TRANSPORT 22
6.1 Troubleshooting 22
6.2 Transport 22

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 GENERAL SAFETY WARNINGS

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Danger of fire: Do not store items on the cooking surfaces.

WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not operate the appliance with an external timer or separate remote-control system.
• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside

the oven.

• Handles may get hot after a short period during use.
• Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
• Do not use steam cleaners for cleaning the appliance.

WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.
CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

• Your appliance is produced in accordance with all applicable local and international standards and regulations.
• Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for

heating a room.

• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• Please keep children and animals away from this appliance.

1.2 INSTALLATION WARNINGS

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, Styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance from the atmosphere. Do not expose it to effects such as sun, rain, snow, dust or excessive humidity.

• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100^ .

• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 DURING USE

• When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.
• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.
• Do not put flammable or combustible materials in or near the appliance when it is operating.
• Always use oven gloves to remove and replace food in the oven.
• Under no circumstances should the oven be lined with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the oven unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the oven off and cover the pan with its lid or a fire blanket.

• If the product will not be used for a long period of time, turn the main control switch off.
• Make sure the appliance control knobs are always in the "0" (stop) position when it is not in use.
• The trays incline when pulled out. Take care not to spill or drop hot food while removing it from the ovens.
• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 DURING CLEANING AND MAINTENANCE

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models.

You may notice differences between these instructions and your model.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and

electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

2. INSTALLATION AND PREPARATION FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

2.1 INSTRUCTIONS FOR THE INSTALLER General instructions

After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage,

do not use it and contact an authorised service person or qualified technician immediately.

• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
  The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100^
• The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.

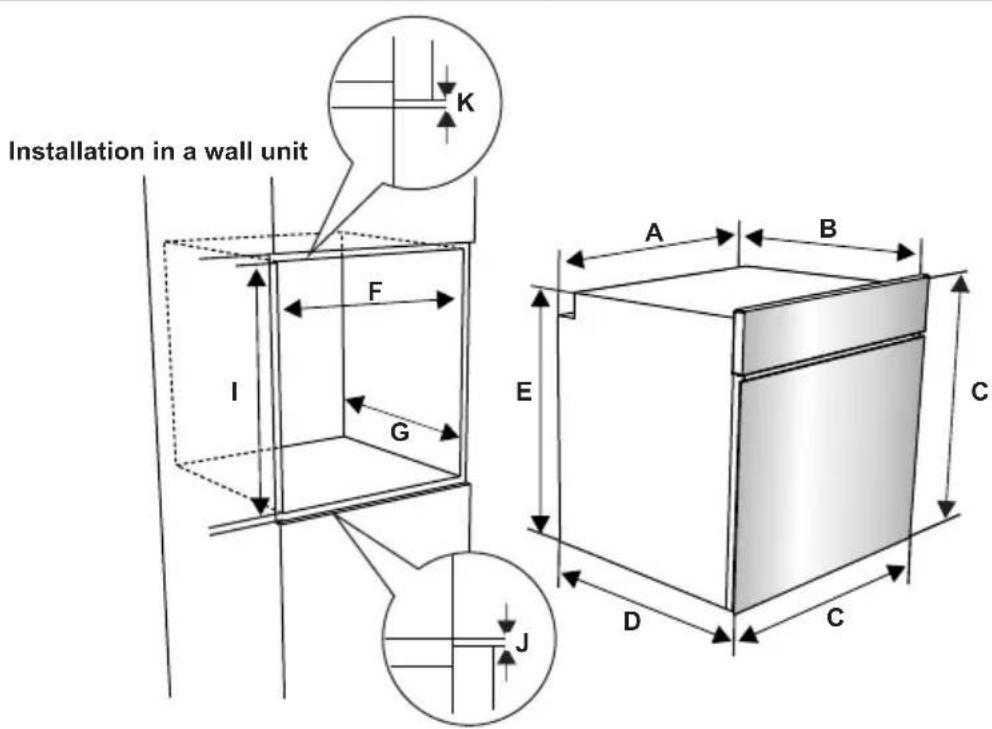

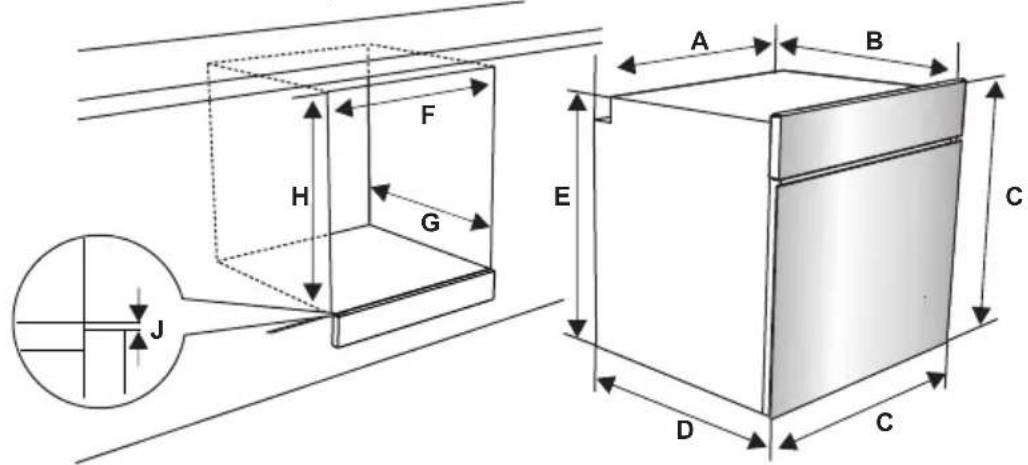

2.2 INSTALLATION OF THE OVEN

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

A (mm)	557 min./max.	F (mm) 560/580
B (mm)	550 min.	G (mm) 555
C (mm)	595 min.	H/I (mm) 600/590
D (mm)	575 min.	J/K (mm) 5/10
E (mm)	574

Installation under a worktop

After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

2.3 ELECTRICAL CONNECTION AND SAFETY

WARNING: The electrical connection

of this appliance should be carried out

by an authorised service person or

qualified electrician, according to the

instructions in this guide and in compliance

with the current local regulations.

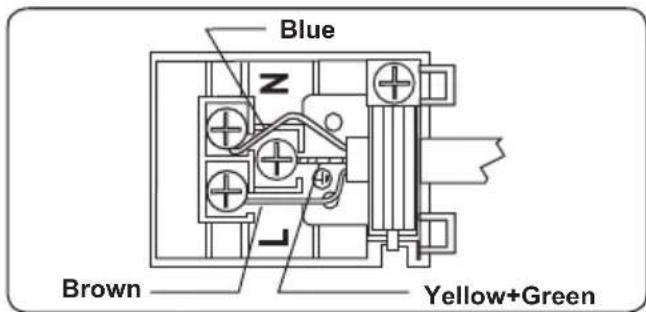

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).
• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.

• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3mm contact spacing) must be used in order to meet the safety regulations.

• The appliance is designed for a power supply of 220-240V ~ and 380-415V 3N~. If your supply is different, contact the authorised service person or a qualified electrician.

• The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.
• Ensure all connections are adequately tightened.
  Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.

3.PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

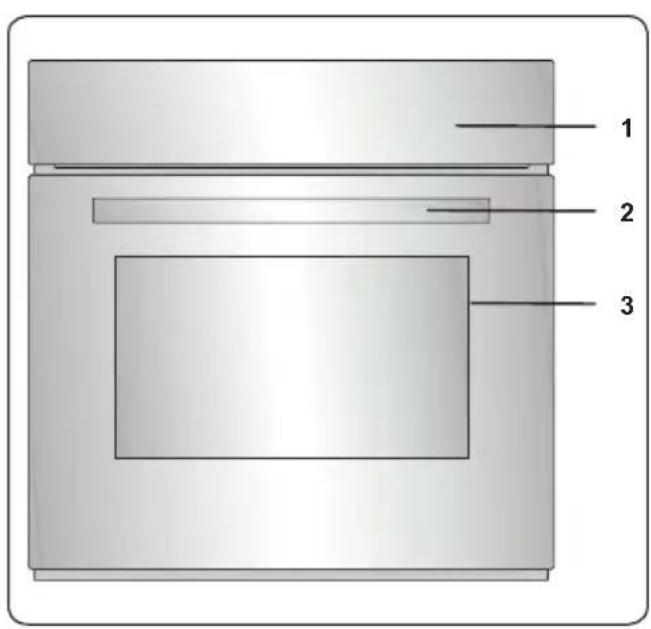

List of Components

1. Control Panel
2. Oven Door Handle
3. Oven Door

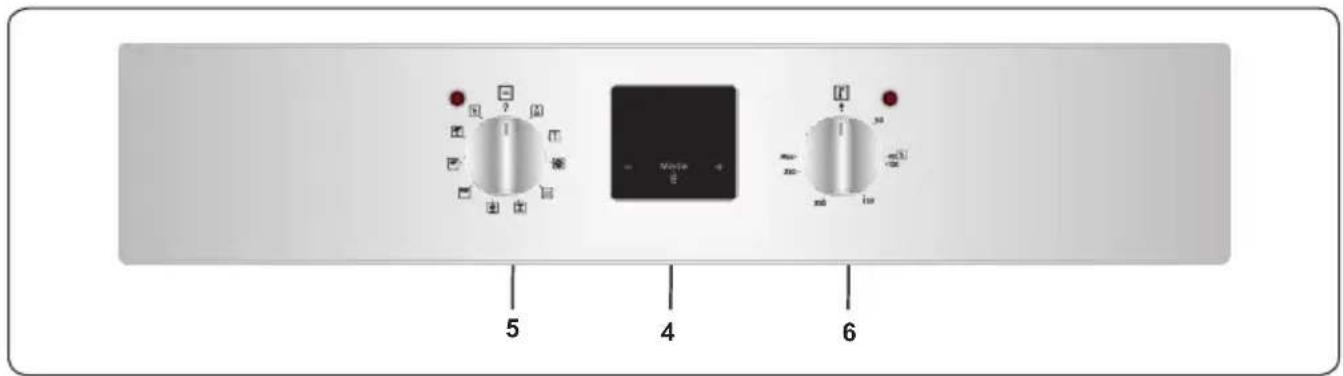

Control Panel

1. Timer
2. Oven Function Control Knob
3. Oven Thermostat Knob

4. USE OF PRODUCT

4.1 OVEN CONTROLS

Oven function control knob

Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see 'Oven Functions'.

Oven thermostat knob

After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will illuminate whenever the thermostat is in operation to heat up the oven or maintain the temperature.

Oven Functions

• The functions of your oven may be different due to the model of your product.

Oven Lamp: Only the oven light will switch on. It will remain on for the duration of the cooking function.

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven

on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food, to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Turbo Function: The oven's thermostat and warning lights will switch on, and the ring heating element and fan will start operating. The turbo function

evenly disperses the heat in the oven so all food on all racks will cook evenly. It is recommended that you preheat the oven for about 10 minutes.

Static Cooking Function: The oven's thermostat and warning lights will switch on, and the lower and upper

heating elements will start operating. The static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating.

This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes.

Pizza Function: The oven's thermostat and warning lights will switch on, and the ring, lower heating elements and fan will start operating. This function

is ideal for baking food, such as pizza, evenly in a short time. While the fan evenly disperses the heat of the oven, the lower heating element ensures baking of the food.

Grilling Function: The oven's thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for

grilling and toasting food. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Faster Grilling
Function: The oven's thermostat and warning lights will switch on. The grill and upper heating elements will start

operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Double Grill and Fan
Function: The oven's thermostat and warning lights will switch on, and the grill, upper heating elements and fan will

start operating. This function is used for faster grilling of thicker food and for grilling food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Vap Clean Function: Set the oven function and thermostat to the Vap Clean function symbol. Pour 200-250ml of water (about 1 cup)

into the small tray on the oven base. Vap Clean runs for approximately 20 minutes and will prepare your oven so that it can be easily cleaned.

4.2 COOKING TABLE

Function	Dishes
Static	Puff Pastry 2-3	170-190	35-45
	Cake 2-3-4	170-190	30-40
	Cookie 2-3-4	170-190	30-40
	Stew 2 175	200	40-50
	Chicken 1 - 2	200	45-60

Fan	Puff Pastry 2-3	-4 170-190	25-35
	Cake 2-3-4	150-170 25	-35
	Cookie 2-3-4	150-170 25	5-35
	Stew 2 175	200 40-50
	Chicken 1 - 2	200 45-60
Grilling	Puff Pastry 2-3	-4 170-190	35-45
	Cake 2-3-4	150-170 30	-40
	Cookie 2-3-4	150-170 25	5-35
	Stew 2 175	200 40-50
	Grilled meatballs	5 200	10-15
	Chicken *	190 50	-60
	Chop 4-5	200 15	5-25
	Beefsteak	5 200	15-25

*If available cook with roast chicken skewer.

4.3 USE OF THE DIGITAL TIMER

Function Description
A	Auto cooking
	Manual cooking
	Cooking time
	Cooking end time
·	Dot
	Minute minder
Mode	Mode function
-	Decrease timer
+	Increase timer
23 59	Timer display

Time adjustment

The time must be set before you start using the oven. Following the power connection, the symbol "A" and "000" will flash on the display.

1. Press the "+" and "-" keys simultaneously. Symbol will appear, and the dot in the middle of the screen will start to flash.

1. Adjust the time while the dot is flashing using the ^ 十 + ^ 一 and - keys.

1. After a few seconds, the dot will stop flashing and will remain illuminated.

Audible warning time adjustment

The audible warning time can be set to any time between 0:00 and 23:59 hours. The audible warning time is for warning purposes only. The oven will not be activated with this function.

1. Press "MODE". The symbol will begin to flash and "000" will be displayed.

1. Select the desired time period using the ^ 十 and - keys while is flashing.

1. The symbol will remain illuminated, the time will be saved and the warning will be set.

When the timer reaches zero, an audible warning will sound and the symbol will flash on the display. Press any key to stop the audible warning and the symbol will disappear.

Semi-automatic time adjustment (cooking period)

This function helps you to cook for a fixed period of time. A time range between 0 and 10 hours can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

1. Press "MODE" until you see "dur" and symbol on the display screen. The symbol "A" will flash.

1. Select the desired cooking time period using the ^ 十 + ^ 一 and - keys.

1. The current time will reappear on the screen, and the symbols "A", and will remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbols "A" and will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the warning sound. The symbols will disappear and the timer will switch back to manual function.

Semi-automatic time adjustment (finishing time)

This function automatically starts the oven so that cooking will finish at a set time. You can set an end time of up to 10 hours after the current time of day. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

1. Press "MODE" until you see "end" and symbol on the display screen. "A" and the current time of day will flash.

1. Use the "+" and "-" buttons to set the desired finishing time.

1. The current time will reappear on the screen, the symbols "A", and remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbol "A" and will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the sound. The symbol will disappear and the timer will switch back to manual function.

Full-automatic programming

This function is used to start cooking after a certain period of time and for a certain duration. A time of up to 10 hours after the current time of day can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

1. Press "MODE" until you see "dur" and symbol on the screen. The symbol "A" will flash.

1. Select the desired cooking time period using the ^ 十 + ^ 一 and - keys.

1. The current time will reappear on the screen, the symbols "A", and remain illuminated.

1. Press "MODE" until you see "end" and symbol on the screen. The time and the symbols "A" and will flash.

1. Select the desired finishing time using the ^ 十 + ^ 一 and - keys.

1. Add the cooking period to the current time of day. You can set a time of up to 23 hours and 59 minutes after this.

1. The current time will reappear on the screen, and the symbols "A", and will remain illuminated.

The operating time will be calculated and the oven will automatically start so that cooking will finish at the set finishing time. When the timer reaches zero, the oven will switch off, an audible warning will sound and the symbols "A" and will flash. Turn both control knobs to the "0" position and press any key to stop the sound. The symbol will disappear and the timer will switch back to manual function.

Sound Adjustment

To adjust the volume of the audible warning sound, while the current time of day is displayed, press and hold the " - " button for 1-2 seconds until an audible signal sounds. After this, each time the " - " button is pressed, a different signal will sound. There are three different types of signal sounds. Select the desired sound and do not press any other buttons. After a short time, the selected sound will be saved.

4.4 ACCESSORIES

The EasyFix Wire Rack

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

• Insert the accessory to the correct position inside the oven.
• Allow at least a 1 cm space between the fan cover and accessories.
  Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns.
• The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.
• Trays and wire grids can be positioned on any level from 1 to 5.
• Telescopic rails can be positioned on levels T1, T2, 3, 4, 5.
• Level 3 is recommended for single level cooking.
• Level T2 is recommended for single level cooking with the telescopic rails.
• The turnspit wire grid must be positioned on Level 3.
• Level T2 is used for the turnspit wire grid positioning with telescopic rails.

****Accessories may vary depending on the model purchased.

The Deep Tray

The deep tray is best used for cooking stews.

Put the tray into any rack and push it to the end to make sure it is placed correctly.

The Small Tray

The small tray is best used for baking pastry. Place the tray in the centre of a wire grid.

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

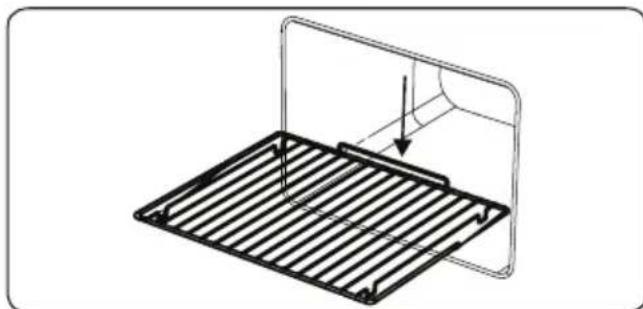

WARNING

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

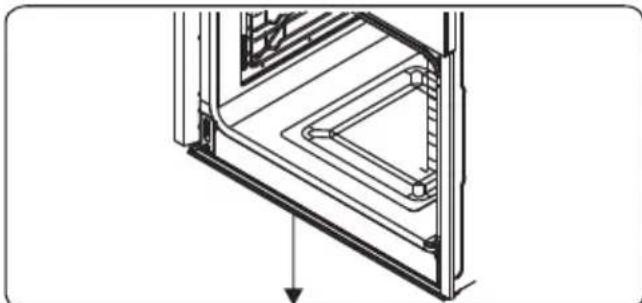

The Water Collector

In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

Open the oven door into the grilling position and leave it in this position for 20 seconds. Water will drip to the collector.

Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

5. CLEANING AND MAINTENANCE

5.1 CLEANING

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts of your appliance.

• Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

1. Open the oven door.

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

1. Close the door until it almost reaches the fully closed position and remove the door by pulling it towards you.

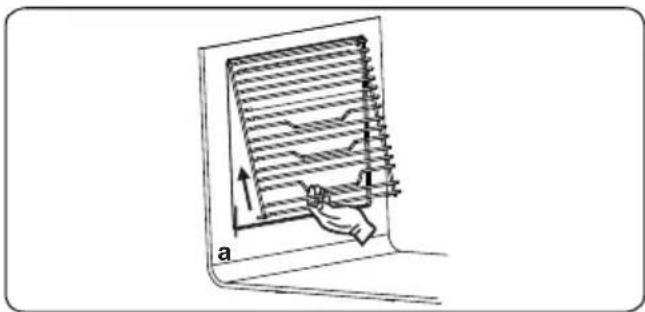

Removal of the Wire Shelf

To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

5.2 MAINTENANCE

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.

• Insert the new bulb (resistant to 300^ ) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).

• Replace the glass lens, and your oven is ready for use.

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room

illumination.

6. TROUBLESHOOTING&TRANSPORT

6.1 TROUBLESHOOTING

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible	Cause Solution
Oven does not switch on.	Power is switched off.	Check whether there is power supplied. Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set. Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Oven light (if available) does not operate.	Lamp has failed. Electrical supply is disconnected or switched off.	Replace lamp according to the instructions. Make sure the electrical supply is switched on at the wall socket outlet.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used. Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
The timer buttons cannot be pressed properly.	There is foreign matter caught between the timer buttons. Touch model: there is moisture on the control panel. The key lock function is set.	Remove the foreign matter and try again. Remove the moisture and try again. Check whether the key lock function is set.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level. Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.

6.2 TRANSPORT

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.
