ION Sonic - Toothbrush Niceboy - Free user manual and instructions

Product type	Sonic electric toothbrush
Brand	Niceboy
Model	ION Sonic
Power supply	Lithium-ion battery 3.7 V, 800 mAh
Charging	Wireless via charging dock, Micro USB cable (5 V, 85 mA)
Charging time	8 to 10 hours
Battery life	Approximately 40 days (2 min/use, 2 times/day)
Brushing modes	Multiple modes (Sensitive by default, switching within 5 seconds after turning on, automatic memory)
Timer	2 minutes with reminder every 30 seconds to change area
Waterproof rating	IPX7 (waterproof up to 1 meter immersion)
Package contents	1 handle, 3 brush heads (soft, medium, hard), 1 wireless charging dock, 1 Micro USB cable
Brush head replacement	Every 60 days recommended
Cleaning and maintenance	Rinse the head after use, do not wash in dishwasher, store dry
Safety	Do not use in bath or shower, consult a dentist if recent oral surgery, stop if persistent bleeding
Electromagnetic compatibility	Compliant with standards, consult a doctor if wearing a pacemaker
Repairability	No user-serviceable parts, battery replaceable at authorized service center
Warranty	See the manual or niceboy.eu for terms
Country of manufacture	China

Frequently Asked Questions - ION Sonic Niceboy

How to charge the Niceboy ION Sonic toothbrush?

Place the toothbrush vertically on the wireless charging dock. Connect the Micro USB cable to the dock and a power outlet. Red light indicates 0-10% charge, orange 10-100%, green when fully charged. Charging time is 8 to 10 hours.

What are the available brushing modes?

The brush has multiple modes. By default, the Sensitive mode is activated. To change mode, briefly press the switch button within 5 seconds after turning on. The selected mode is remembered if used for more than 5 seconds.

How to know when the battery is low?

When the battery is low, the charging light may blink or the brush may run shorter. Recharge as soon as possible. A steady red light indicates charge below 10%.

Can I use the toothbrush in the shower?

No, the toothbrush is IPX7 (waterproof for immersion), but the charging dock must not be exposed to water. Do not use the brush in the bath or shower to avoid electrical hazard.

How often should I replace the brush head?

It is recommended to replace the head every 60 days or sooner if bristles are worn. Replace it if bristles are frayed or bent.

What to do if the toothbrush does not work?

First check that the battery is charged (red light on the dock). Place the brush vertically on the dock. If it still does not charge, clean the charging port. If the problem persists, contact an authorized Niceboy service center.

The movement force is reduced, what to do?

Make sure not to press too hard on your teeth. Check that the gap between the head and body is correct. If needed, remove the head and reattach it leaving a slight gap.

The brush stops before the end of 2 minutes, why?

This may be due to a low battery. Recharge it fully. If the problem persists, the battery may be at the end of its life and must be replaced by a service center.

How to clean the toothbrush?

Rinse the brush head with water after each use. Do not put it in the dishwasher. Wipe the handle with a damp cloth. Store it in a dry place.

Is the toothbrush compatible with implanted devices like pacemakers?

The brush meets electromagnetic standards, but if you have a pacemaker or other implant, consult your doctor or device manufacturer before use.

USER MANUAL ION Sonic Niceboy

Two identical tooth profiles with black circular indentations, no text or symbols present

Simple line drawing of two USB connectors with a connecting rod (no text or symbols)

Line drawing of a handheld electronic device with a vertical screen and control knob (no text or symbols)

NÁVOD K POUŽITÍ

30 sec 30 sec 30 sec 30 sec 30 sec

Diagram illustrating dental arch and jaw alignment with labeled teeth positions and directional arrows

Pure electrical circuit lines without any symbols

Two circular diagrams showing a mechanical component with internal structure and a close-up of a wire loop (no text or symbols)

Poznámka:

Two identical toothbrush designs with black circular indentations on their caps (no text or symbols)

Simple line drawing of two USB connectors with a connecting wire (no text or symbols)

Line drawing of a handheld electronic device with a vertical handle and control knob (no text or symbols)

NÁVOD NA POUŽITIE

1. Pri prvom použití vložte kefku do bezdrôtovej dokovacej stanice. Proces nabíjania:

30 sec 30 sec 30 sec 30 sec 30 sec

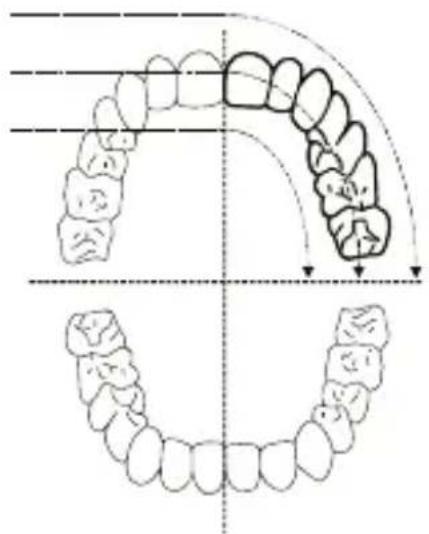

Vonkajšia 10 s

Hore 10 s

Vnútorná 10 s

Diagram illustrating dental arch and jaw alignment with labeled teeth positions and directional arrows

Pure electrical circuit lines without any symbols

Two circular diagrams showing mechanical components with internal structures, no text or symbols present.

Poznámka:

1. Niceboy ION SmartSonic toothbrush handle
2. 3x brush heads (soft, medium, hard)
3. Wireless docking station
4. Micro USB charging cable

Two identical tooth profiles with circular indentations, no text or symbols present

Simple line drawing of two USB connectors with a connecting rod (no text or symbols)

Line drawing of a handheld electronic device with a vertical screen and control knob (no text or symbols)

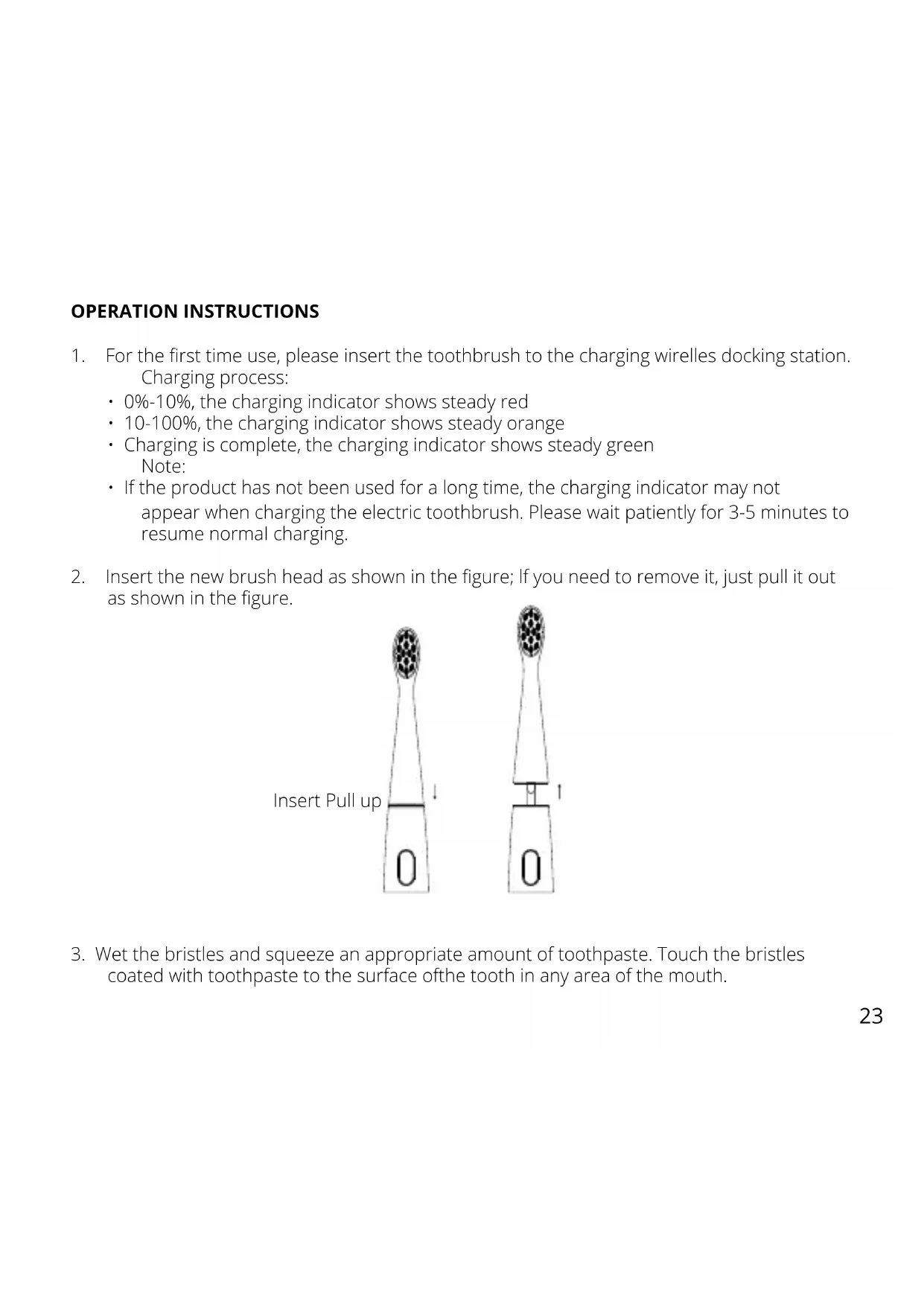

OPERATION INSTRUCTIONS

1. For the first time use, please insert the toothbrush to the charging wirelles docking station. Charging process:

• 0%-10%, the charging indicator shows steady red
• 10-100%, the charging indicator shows steady orange
- Charging is complete, the charging indicator shows steady green Note:

- If the product has not been used for a long time, the charging indicator may not appear when charging the electric toothbrush. Please wait patiently for 3-5 minutes to resume normal charging.

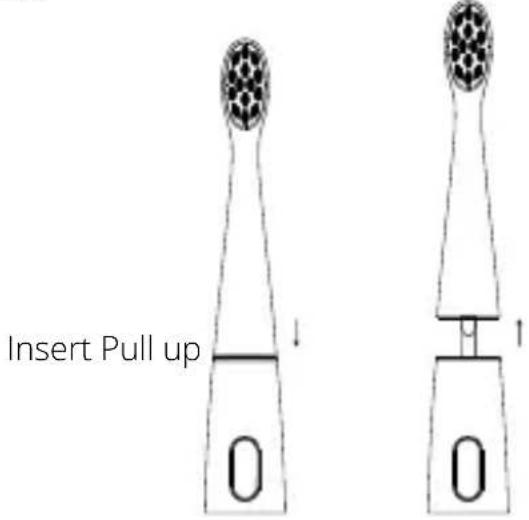

1. Insert the new brush head as shown in the figure; If you need to remove it, just pull it out as shown in the figure.

Insert Pull up

1. Wet the bristles and squeeze an appropriate amount of toothpaste. Touch the bristles coated with toothpaste to the surface of the tooth in any area of the mouth.

2. Press the switch and swing your teeth up and down slightly to brush your teeth laterally from the outside and inside. The oral cavity is divided into 4 areas, and the recommended brushing time for each area is 30 seconds. When the 30-second cleaning of this area is completed, the electric toothbrush will pause shortly to remind you to clean the next area.

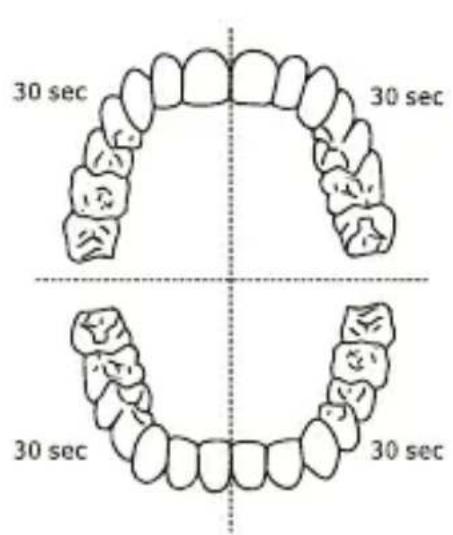

30 sec 30 sec 30 sec 30 sec 30 sec

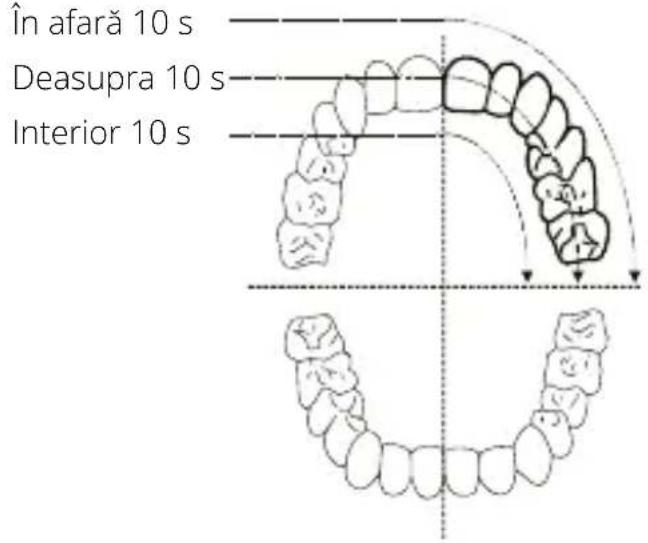

Outside 10 s Above 10 s Inside 10 s

Diagram illustrating dental arch and jaw structure with labeled components and directional arrows

1. You can press the mode switching button cf the handle to switch the mode according to personal preference.

Note:

• 1: By default, the Sensitive mode is activated by default
- 2: Switch mode: within 5 seconds after opening, short press the mode switch button to switch the working mode;
• 3: Mode automatic memory: use any mode for more than S seconds, the system will record this mode. The memory mode is activated by default the next time it is turned on.

Pure electrical circuit lines without any symbols

Mode switch button

Mode indicator

( • ◦ ◦ ◦ ◦ • )

Sensitive

( ◦ • ◦ ◦ ◦ • )

Clean

( ◇ ◇ ◆ ◇ ◇ ◆ )

White

( ◦ ◦ ◦ * ◦ + )

GumCare

( ◇ ◇ ◇ ◇ • + )

ExtraCare

1. When the scientific and healthy brushing time of 2 minutes is completed, the electric toothbrush will automatically stop. After brushing your teeth, rinse the brush head with running water, please shake off the excess water on the brush head and handle. Keep the crystals of the toothbrush dry and store in a mol, dry place.

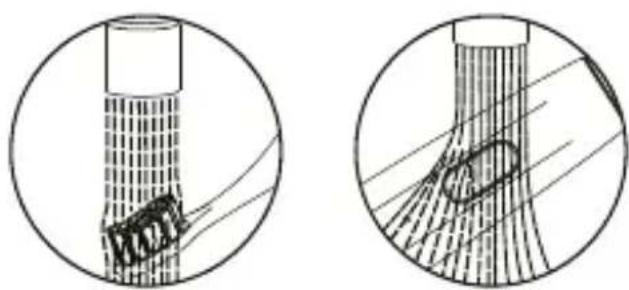

Two circular diagrams showing a mechanical component with internal structure and a close-up of a wire loop (no text or symbols)

Note:

- If you want to stop the electric toothbrush halfway through cleaning the oral cavity, after turning on the electric toothbrush for 5 seconds, short press the key.

- If it will not be used for a long time, please unplug the charging power plug, and thoroughly clean the brush head and handle, store in a cool and dry place;

- It is recommended to replace the toothbrush head every 60 days.

SAFETY INSTRUCTIONS

• Read this user manual carefully before you use the appliance and save it for future reference.
• Keep the plugged-in charging base away from water. Do not place or store it over or near water contained in a bathtub, washbasin, etc. Do not immerse the charging base in water or any other liquid. After cleaning, make sure the charging base is completely dry before you connect it to the mains.
• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Never use the charging base if it is damaged in any way. If the charging base cord or the plug is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• If the appliance is damaged in any way (brush head, toothbrush handle), stop using it. This appliance contains no user-serviceable parts. If the appliance is damaged, contact the Consumer Care Centre in your country.
• Do not use the charging base outdoors or near heated surfaces.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

PRECAUTIONS

• Do not use the toothbrush in the bath or shower.
• If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use the toothbrush.
• Consult your dentist if excessive bleeding occurs after using this toothbrush or if bleeding continues to occur after 1 week of use.
• The Niceboy ION Sonic toothbrush complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device, contact your physician or the device manufacturer of the implanted device before you use the Niceboy ION Sonic.
• This appliance has only been designed for cleaning teeth, gums and tongue. Do not use it for any other purpose. Stop using the appliance and contact your doctor if you experience any discomfort or pain.
• If you have medical concerns, consult your doctor before you use the Niceboy ION Sonic. - The Niceboy ION Sonic toothbrush is a personal care device and is not intended for use on multiple patients in a dental practice or institution.
• Stop using a brush head with crushed or bent bristles. Replace the brush head every 3 months or sooner if signs of wear appear. - Do not clean the brush head in the dishwasher.
• Do not use other brush heads than the ones recommended by the manufacturer.
• Supervise children while they are brushing until they have established good brushing habits.
• If your toothpaste contains peroxide, baking soda or bicarbonate (common in whitening toothpastes), thoroughly clean the brush head with soap and water after each use. This prevents possible cracking of the plastic.

PRODUCT SPECIFICATIONS

RPM: 43 000

Rated voltage / power: 3,7V == 1,85W

Charging: Wireless charging dock

Input: 5V == 85 mA

Working hours: 40 Days (calculated according to the working state of 2 minutes/time and 2 times/day)

Battery capacity: 800 mAh

Charging time: 8-10 Hours

Waterproof: IPX7

The battery or accumulator that may be included with the product has a life of six months because it is a consumable item. Improper handling (prolonged charging, short circuit, breakage by another object, etc.) can lead to fires, overheating or battery leakage, for example.

FAQ

• The following frequently asked questions will help you use the warranty service effectively.

• To save your time and unnecessary expenses, please perform the following simple check before contacting professional after-sales service.

• The swing strength is weakened

• Check whether the toothbrush is strongly pressed against the teeth.

• Check that the gap between the brush head and the main body is too large or too close.
• Solution:
• Put the brush head gently on the teeth.

• Remove the brush head from the arm and put it on the output shaft again, keeping a certain distance between the tooth head and the handle.

• The toothbrush can only work for a short time.

• Check whether the charging base is in good contact with the charging interface at the bottom of the main body, and whether the charging indicator of the handle is lit red.

• Check the power is insufficient.

- Solution:

- Clean the USB 1/0 port

• The battery has reached the end of its life.

1. Toothbrush does not work

- Place the main body vertically on the charger, where the toothbrush body is connected to the charging base, and confirm whether the red indicator light is on.

- Solution:

- Please charge.

- Please replace the battery in Niceboy authorized customer center.

RTB Media s.r.o. hereby declares that the type of radio equipment NICEBOY ION SONIC complies with Directives 2014/53 / EU, 2014/30 / EU, 2014/35 / EU, and 2011/65 / EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/cs/podpora/prohlaseni-o-shode-mM38CtmYvX693IHwu4CWpk3vjGrvnC

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal.

You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly. User information for disposing electrical and electronic devices.

(Business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.

DE

LIEFERUMFANG

Two identical toothbrush designs with black circular indentations on their caps (no text or symbols)

Simple line drawing of two USB connectors with a connecting wire (no text or symbols)

Line drawing of a handheld electronic device with a vertical port and control knob (no text or symbols)

BEDIENUNGSANLEITUNG

30 sec 30 sec 30 sec 30 sec 30 sec

Außen 10 s

Oben 10 s

Innen 10 s

Diagram illustrating dental arch structure with labeled components and directional arrows indicating alignment or orientation.

Pure electrical circuit lines without any symbols

Two circular diagrams showing a mechanical component with internal structure and a close-up of a textured surface (no text or symbols)

Anmerkung:

Two identical toothbrush designs with black circular indentations on their caps (no text or symbols)

Simple line drawing of two USB connectors with a connecting wire (no text or symbols)

Line drawing of a handheld electronic device with a vertical port and dotted lines indicating ports (no text or symbols)

HASZNÁLATI ÚTMUTATÓ

30 sec 30 sec 30 sec 30 sec 30 sec

Kívül 10 mp

Felül 10 mp

Belül 10 mp

Diagram illustrating dental arch and jaw alignment with labeled teeth positions and directional arrows

Pure electrical circuit lines without any symbols

Üzemmódváltó gomb

Üzemmódjelző

(• ◇ ◇ ◇ ◇ •) Sensitive (◇ • ◇ ◇ ◇ •) Clean (◇ ◇ • ◇ ◇ •) White (◇ ◇ ◇ • ◇ •) GumCare (◇ ◇ ◇ ◇ • •) ExtraCare

Two circular diagrams showing a mechanical component with internal striations and a highlighted section (no text or symbols)

Megjegyzés:

Two identical tooth profiles with black circular indentations, no text or symbols present

Simple line drawing of two USB connectors with a connecting wire (no text or symbols)

Line drawing of a handheld electronic device with a vertical port and dotted lines indicating ports (no text or symbols)

UPUTE ZA RAD

1. Za prvu upotrebu umetnite četkicu za zube u postaju za bežično punjenje.

Postupak punjenja:

• 0% – 10%, indikator punjenja stalno je crvene boje
• 10 % – 100 %, indikator punjenja stalno je narančaste boje
• Punjenje je završeno, indikator punjenja stalno svijetli zeleno. Napomena:

• Ako se proizvod dulje vrijeme nije upotrebljavao, indikator punjenja možda se neće pojaviti kod punjenja električne četkice za zube. Strpljivo pričekajte 3 – 5 minuta da biste nastavili s uobičajenim punjenjem.

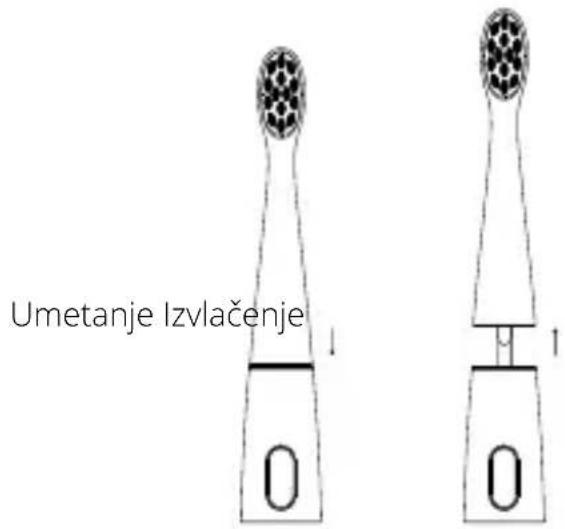

• Novu glavu četkice umetnite kako je prikazano na slici; ako je morate skinuti, samo je izvucite kako je prikazano na slici.

30 sec 30 sec 30 sec 30 sec 30 sec

Izvana 10 s Odozgo 10 s Iznutra 10 s

Diagram illustrating dental arch structure with labeled components and directional arrows indicating alignment or movement.

Pure electrical circuit lines without any symbols

(• ◦ ◦ ◦ ◦ •) (○ • ◦ ◦ ◦ •) (○ ◦ • ◦ ◦ •) (○ ◦ ◦ • ◦ •) (○ ◦ ◦ ◦ • •)

Sensitive

Clean

White

GumCare

ExtraCare

Two circular diagrams showing mechanical components with internal structures, no text or symbols present.

Napomena:

• 1: Ako električnu četkicu za zube želite zaustaviti na pola čišćenje usne šupljine, kratko na pet sekundi pritisnite gumb nakon uključivanja električne četkice za zube..
  • 2: Ako se dulje vrijeme neće upotrebljavati, iskopčajte električni kabel napajanja i temeljiito očistite glavu i ručku četkice te je spremite na hladno i suho miesto;
  • 3: Preporučuje se da glavu četkice mijenjate svakih 60 dana.

SIGURNOSNE UPUTE

Two identical toothbrush designs with black circular indentations on their caps (no text or symbols)

Simple line drawing of two USB connectors with a connecting wire (no text or symbols)

Line drawing of a handheld electronic device with a vertical port and control knob (no text or symbols)

INSTRUKCJA OBSŁUGI

Pure electrical circuit lines without any symbols

Two circular diagrams showing a mechanical component with internal structure and a close-up of a textured surface (no text or symbols)

Uwaga:

Two identical toothbrush designs with black circular indentations on their caps (no text or symbols)

Simple line drawing of two USB connectors with a connecting wire (no text or symbols)

Line drawing of a handheld electronic device with a vertical port and control knob (no text or symbols)

NAVODILA ZA UPORABO

30 sec 30 sec 30 sec 30 sec 30 sec

Zunanja stran 10 s Zgoraj 10 s Notranja stran 10 s

S D) S

1. Če želite spremeniti način delovanja, pritisnite gumb na ročaju.

Opomba:

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Gumb

Two circular diagrams showing mechanical components with internal structures, no text or symbols present.

Opomba:

Two identical tooth profiles with circular indentations, no text or symbols present

Simple line drawing of two USB connectors with a connecting wire (no text or symbols)

Line drawing of a handheld electronic device with a vertical port and dotted lines indicating ports (no text or symbols)

INSTRUCTIUNI DE UTILIZARE

30 sec 30 sec 30 sec 30 sec 30 sec

Pure electrical circuit lines without any symbols

Two circular diagrams showing mechanical components with internal structures, no text or symbols present.

Notă:

Two identical tooth profiles with black circular indentations, no text or symbols present

Simple line drawing of two USB connectors with a connecting rod (no text or symbols)

Line drawing of a handheld electronic device with a vertical screen and control knob (no text or symbols)

30 sec 30 sec 30 sec 30 sec 30 sec

Снаружи 10 сек.

Вверху 10 сек.

Внутри 10 сек

Diagram illustrating dental arch and jaw alignment with labeled tooth positions and directional arrows

Pure electrical circuit lines without any symbols

Two circular diagrams showing mechanical components with internal structures, no text or symbols present.

Примечание:

Simple line drawing of a trash bin with no text or symbols

Two identical toothbrush designs with black circular indentations on their caps (no text or symbols)

Simple line drawing of two USB connectors with a connecting wire (no text or symbols)

Line drawing of a handheld electronic device with a vertical port and control knob (no text or symbols)

MODE D'EMPLOI

30 sec 30 sec 30 sec 30 sec 30 sec

Diagram illustrating dental arch and jaw alignment with labeled components and directional arrows

Pure electrical circuit lines without any symbols

Two circular diagrams showing a mechanical component with internal structure and a close-up of a textured surface (no text or symbols)

Commentaire:

SPÉCIFICATIONS DU PRODUIT

Vitesse : 43 000

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)
