Battery compartment door

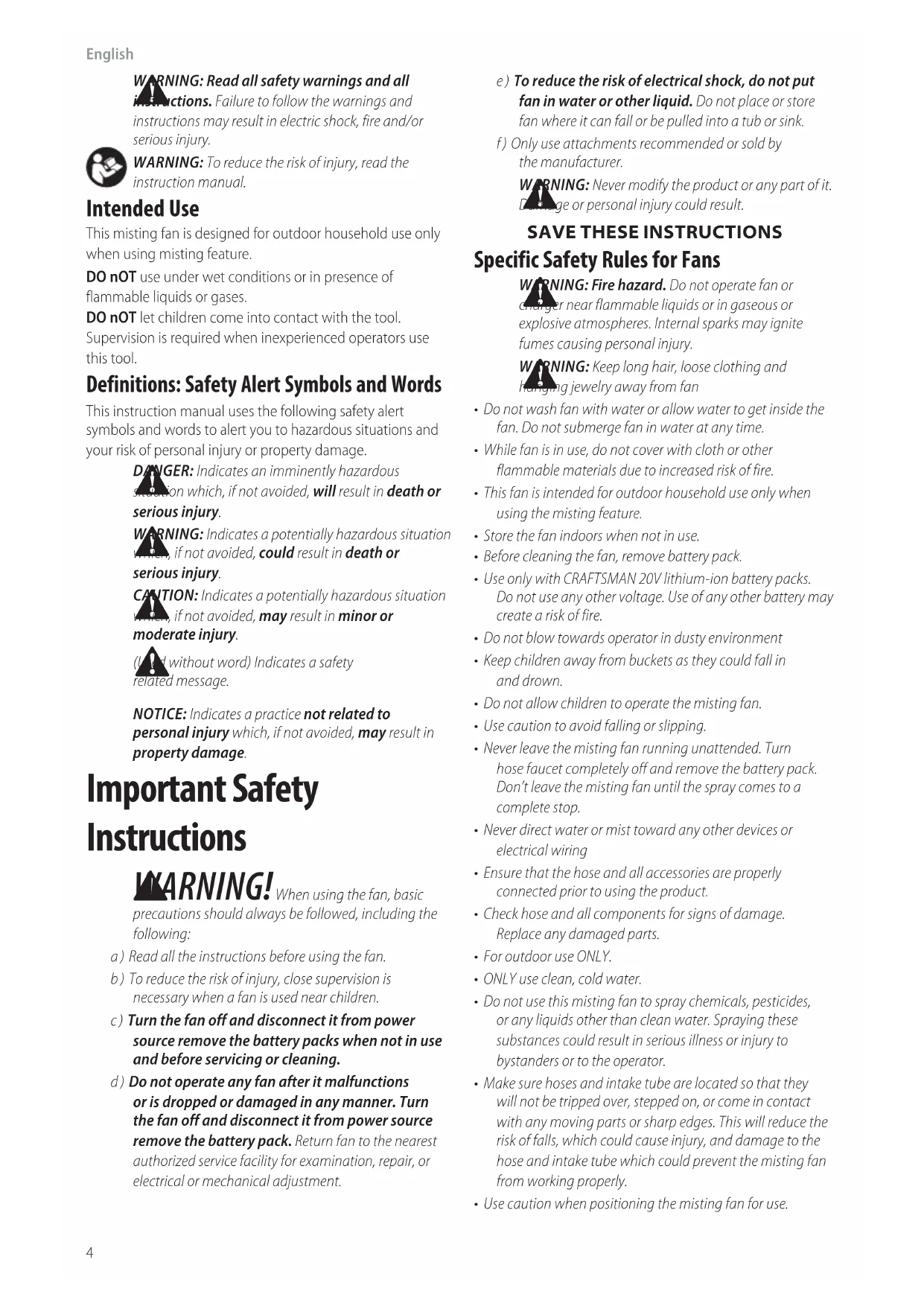

Specific Safety Rules for Fans

charger near flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personalinjury. WARNING: Keep long hair, loose clothing and hanging jewelry away from fan• Do not wash fan with water or allow water to get inside the fan. Do not submerge fan in water at anytime.• While fan is in use, do not cover with cloth or other flammable materials due to increased risk offire.• This fan is intended for outdoor household use only when using the misting feature.• Store the fan indoors when not inuse.• Before cleaning the fan, remove batterypack.• Use only with CRAFTSMAN 20V lithium‑ion battery packs. Do not use any othervoltage. Use of any other battery may create a risk offire.• Do not blow towards operator in dusty environment• Keep children away from buckets as they could fall in anddrown.• Do not allow children to operate the mistingfan.• Use caution to avoid falling orslipping.• Never leave the misting fan running unattended. Turn hose faucet completely off and remove the battery pack. Don’t leave the misting fan until the spray comes to a completestop.• Never direct water or mist toward any other devices or electrical wiring• Ensure that the hose and all accessories are properly connected prior to using theproduct.• Check hose and all components for signs of damage. Replace any damagedparts.• For outdoor useONLY.• ONLY use clean, coldwater.• Do not use this misting fan to spray chemicals, pesticides, or any liquids other than clean water. Spraying these substances could result in serious illness or injury to bystanders or to theoperator.• Make sure hoses and intake tube are located so that they will not be tripped over, stepped on, or come in contact with any moving parts or sharp edges. This will reduce the risk of falls, which could cause injury, and damage to the hose and intake tube which could prevent the misting fan from workingproperly.• Use caution when positioning the misting fan foruse.e ) To reduce the risk of electrical shock, do not put fan in water or other liquid. Do not place or store fan where it can fall or be pulled into a tub orsink.f ) Only use attachments recommended or sold by themanufacturer.

WARNING: Never modify the product or any part of it. Damage or personal injury couldresult.

SAVE THESE INSTRUCTIONS

Important Safety Instructions

WARNING! When using the fan, basic precautions should always be followed, including the following:a ) Read all the instructions before using thefan.b ) To reduce the risk of injury, close supervision is necessary when a fan is used nearchildren.c ) Turn the fan off and disconnect it from power source remove the battery packs when not in use and before servicing orcleaning.d ) Do not operate any fan after it malfunctions or is dropped or damaged in any manner. Turn the fan off and disconnect it from power source remove the battery pack. Return fan to the nearest authorized service facility for examination, repair, or electrical or mechanicaladjustment. Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury. (Used without word) Indicates a safety relatedmessage.NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use This misting fan is designed for outdoor household use only when using misting feature.DO nOT use under wet conditions or in presence of flammable liquids orgases.DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.English (original instructions) WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.WARNING: To reduce the risk of injury, read the instructionmanual.5 English

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non‑compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in CRAFTSMANchargers.

• DO NOT splash or immerse in water or otherliquids.

• DO NOT allow water or any liquid to enter batterypack.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium‑ion battery packs areburned.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk offire.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

• Battery liquid may be flammable if exposed to spark orflame.

• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of thecharger. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute OPM .................... oscillations per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute A ......................... amperes W ........................watts Wh ......................watt hours Ah ....................... amp hours or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

• Avoid placing where water could collect on surface creating a slipping hazard.

• Never place the unit near switches or electricaloutlets.

• Verify that all connections are secure to this misting fan before operating

• Use caution while using in windy conditions. Winds may carry mists into electricalwiring.

• Do not kink or overbend the intaketube.

• Be careful not to spill any water when filling waterbucket.

• Ensure all hose connections are secure before using misting fan. Spilled water and leaks can result in a slippery surface and create a slip and fallhazard.ENGLISH

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords plugged together, and nameplate ampere rating. If in doubt, use the next heaviergauge. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug. Have them replacedimmediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in thecavity. Charging a Battery (Fig.C)

1. Plug the charger into an appropriate outlet.

2. Insert and fully seat battery pack

. Green charging light(s) will continuously blink whilecharging. Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Do not allow water or any liquid to entercharger.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress. The RBRC® Seal Please take your spent battery packs to an authorized CRAFTSMAN service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org. or call the toll free number in the RBRC®Seal. RBRC® is a registered trademark of Call 2Recycle,Inc. Fuel Gauge Battery Packs (Fig.B) Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end-userapplication. Transportation

WARNING: Fire hazard. Do not store, carry, or

transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li‑ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry‑onbaggage.7 ENGLISH OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ Adjusting the Fan Angle (Fig.K)

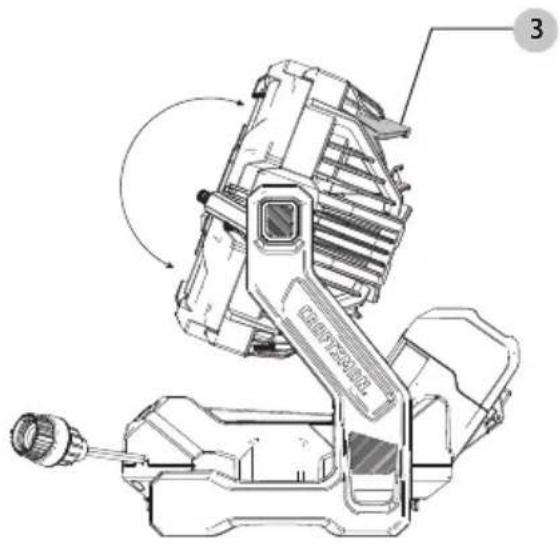

WARNING: Keep fingers away from the front and rear

grill of thefan. This fan has soft detents to maintain multiple angles. To adjust, gently push or pull the fan handle

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Wall Mounting Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1” (25.4mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. NOTE: Do not attempt to mount CMCB101 charger under a bench ortable. NOTE: Only mount CMCB101 charger with the charging lights pointed upward toward theceiling. VersaTrack™

WARNING: Do not charge batteries while charger is

hung onTrackwall. CRAFTSMAN chargers, except the CMCB101, can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for furtherinformation. NOTE: The CMCB101 charger is not CRAFTSMAN VersaTrack™ Trackwallcompatible.

SAVE THESE INSTRUCTIONS FOR

3. Charging is complete when the green charging light(s)

remain(s) continuously ON. Battery pack can be left in charger or removed.

WARNING: Only charge batteries in air temperature

over 40° F (4.5° C) and below 104° F (+40°C).

4. Charger will not charge a faulty battery pack, which may

be indicated by the charging light(s) staying OFF. Take charger and battery pack to an authorized service center if light(s) stay(s)OFF. NOTE: Refer to label near charging light(s) on charger for blinkpatterns. NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. The hot/cold pack delay will be indicated by the green light(s) continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the chargingprocedure. Electronic Protection System Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to berecharged. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out thelights; c. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. You may charge a partially used pack whenever you

desire with no adverse effect on the batterypack. Charger Cleaning Instructions

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions.English

WARNING: Blow dirt and dust out of all air vents with

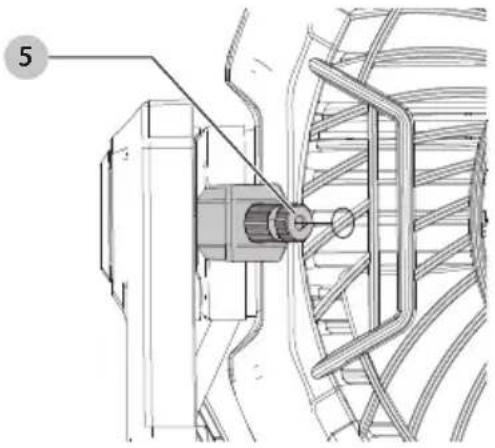

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing thisprocedure. Nozzle Maintenance (Fig.E, I, J) Ensure all misting nozzle maintenance is properly performed. Leaks can result creating a slip and fall hazard or cause property damage. Irregular mist patterns or leakage may be the result of a clogged or dirty mistingnozzle. To Clean Nozzles

1. Turn off the fan and thepump.

2. Remove the battery pack

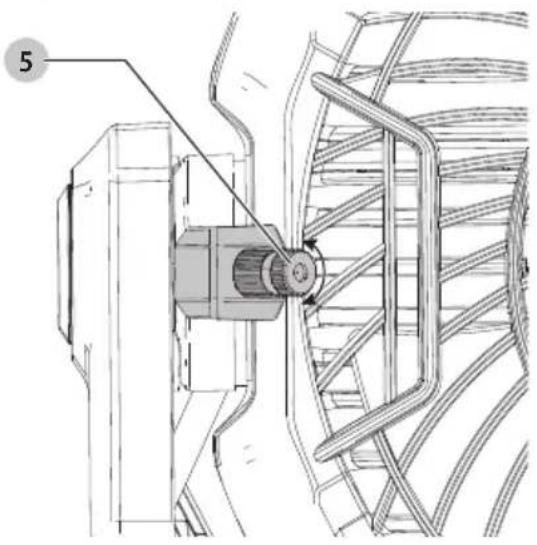

from each side of the fan by rotating them in a counterclockwisedirection.

4. Soak the misting nozzles in a de-scaling agent for at least

5. Use a brush to clean any foreign materials restricting the

misting nozzles in the front and rear holes while rinsing withwater.

6. Flush the misting nozzles withwater.

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regularcleaning. Usage with Garden Hose (Fig.H)

CAUTION: Do not allow water to continue to flow when the fan is off

1. Set the fan base onto a flat, stablesurface.

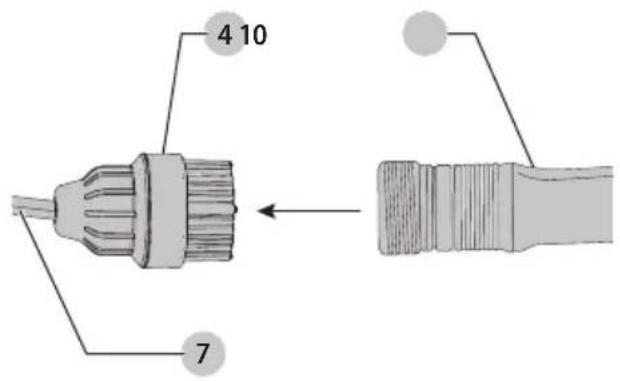

2. Attach the garden hose

(not included) to the intake tube head

, and hand tighten the hose by rotating the connectorthread. nOTE: Do not secure the intake tube in the storage clips

while attached to the garden hose. The storage clips are only for storage when not in use

3. Choose the appropriate setting for the pump. Refer to

Pump Switch for furtherinformation.

4. Set your fan setting. Refer to Turning the Fan On and Off

for furtherinformation.

4. Choose the appropriate setting for the pump. Refer to

Pump Switch for furtherinformation.

5. Set your fan setting. Refer to Turning the Fan On and Off

for furtherinformation. nOTE: The fan and water bucket must be moved seperately. The fan is not attached to the water bucket. Usage with Water Bucket (Fig. F, G)

WARNING: Do not submerge the fan in the

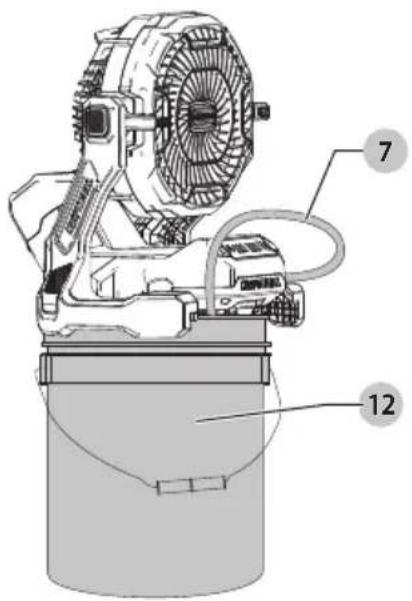

1. Place the water bucket

(not included) on a flat and levelsurface.

2. Fill the water bucket with plain, clean water with no

other additives. Do not fill the bucket so itoverflows.

3. Set the fan base onto the rim of the water bucket so the

is submerged in thewater. nOTE: Do not secure the intake tube

in the storage clips

while pumping water from the water bucket. The storage clips are only for storage when not in use Pump Switch (Fig.A)

• To turn the pump on low, press the pump button

once. When turning on the pump, the fan will be turned on automatically at lowspeed.

• To turn the pump on medium, press the pump buttontwice.

• To turn the pump on high, press the pump button threetimes.

• To turn the pump switch off, press the pump button a fourth time for 1second. The pump will turn off from any onsetting. Turning the Fan On and Off (Fig.A) Fan speed is variable and can be adjusted by the fan button

To turn the fan on low, press the fan buttononce. To turn the fan on medium, press the fan buttontwice. To turn the fan on high, press the fan button threetimes. To turn off the fan, press the fan button for a fourth time for 1second. The pump will turn off from any onsetting. nOTE: If you turn on the pump only, the fan will turn on to the lowestsetting. Installing and Removing the Battery Pack (Fig.E)

CAUTION: Make sure the battery compartment door is closed before operating the fan. DO NOT allow water to enter the battery compartment nOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

into the fan, open the battery compartment door

. Align the battery pack with the rails inside the fan's battery compartment and slide it in until the battery pack is firmly seated and ensure that it does notdisengage. Shut the battery compartment door. To remove the battery pack from the fan, open the battery compartment door. Press the release button

and firmly pull the battery pack out of the fan's battery compartment. Insert it into the charger as described in the charger section of thismanual. installing attachments or accessories. An accidental start‑up can causeinjury.

WARNING: Do not aim toward electrical or other

riskareas.9 ENGLISH Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

• Register online at www.craftsman.com/registration Repairs The charger and batteries are notserviceable. There are no serviceable parts inside the charger or batterypack.

WARNING: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts. Accessories

Since accessories, other than those offered by CRAFTSMAN , have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct. Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call . Storage (Fig. A, E, G)

WARNING: Drain all water from system prior to

• Always completely empty water from intake tube

. Run the pump dry until the misting nozzles no longer dispense ofwater.

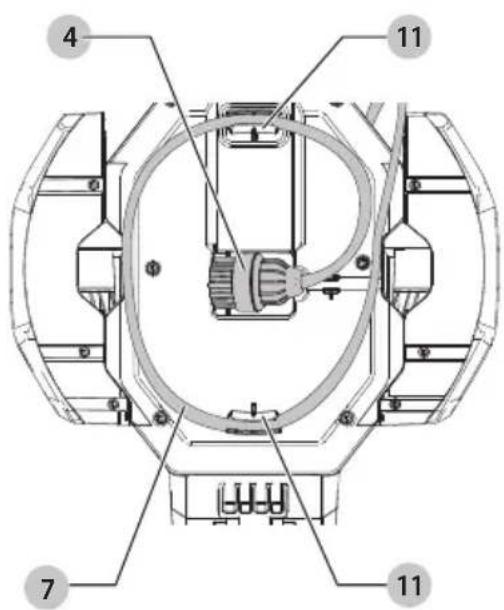

• Place intake tube into the storage clips

located on the bottom of the unit.

• Store on level surface in a dry well-ventilated area above freezing temperature. STOREINDOORS.

• Keep unit away from corrosive agents, such as de-icing salts and other chemicals. Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces.

90DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90days from the date of purchase with a receipt for a full refund – no questionsasked. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a freereplacement.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.FRAnçAis
