USER MANUAL JIM158XYRS JENN-AIR

For questions about features, operation/performance, parts, accessories, or service, call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com. In Canada, call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING

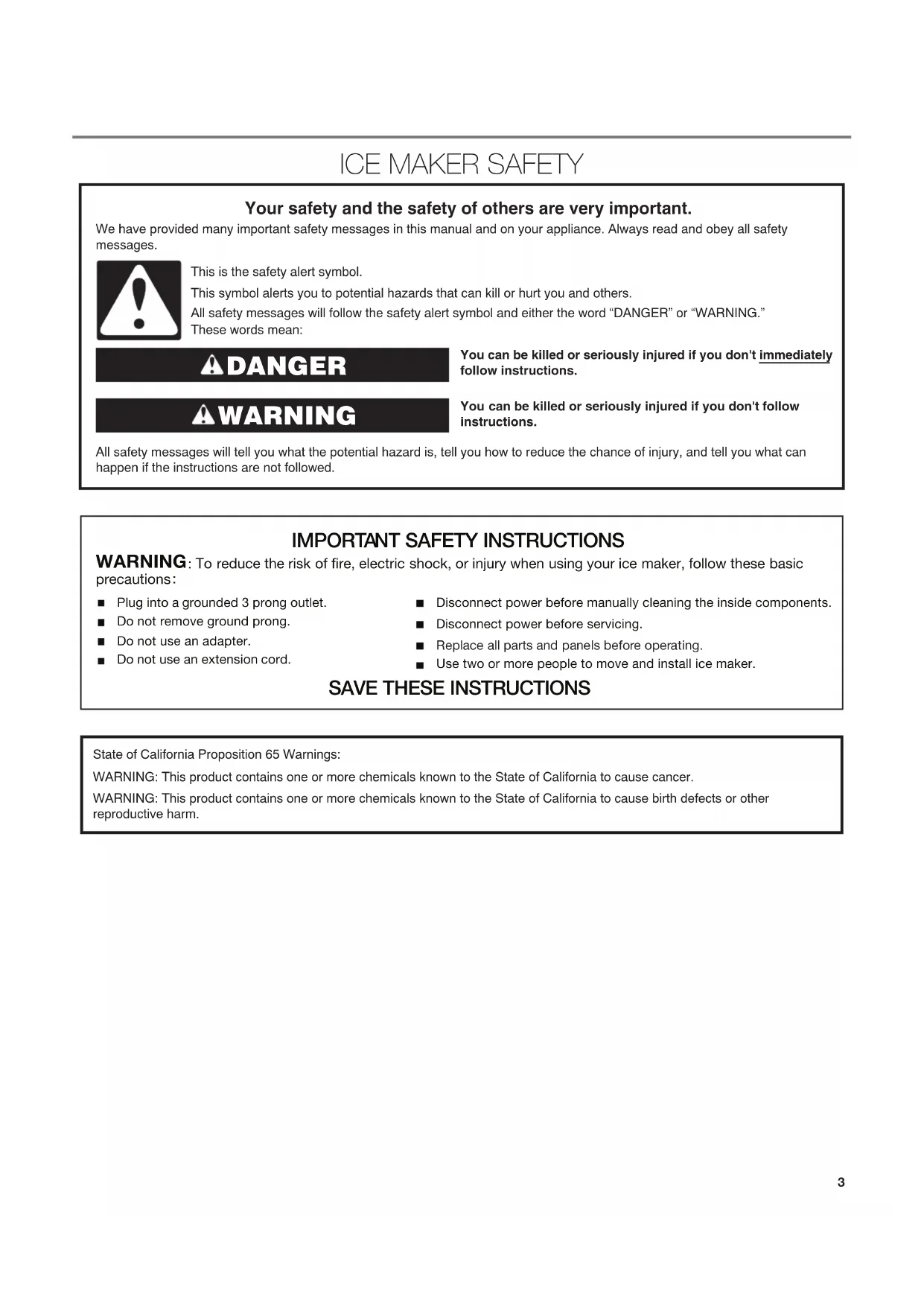

IMPORTANT SAFETY INSTRUCTIONS

WARNING : To reduce the risk of fire, electric shock, or injury when using your ice maker, follow these basic precautions

SAVE THESE INSTRUCTIONS

Plug into a grounded 3 prong outlet. Do not remove ground prong.Do not use an adapter. Do not use an extension cord. Disconnect power before manually cleaning the inside components.Disconnect power before servicing. Replace all parts and panels before operating. Use two or more people to move and install ice maker. State of California Proposition 65 Warnings:WARNING: This product contains one or more chemicals known to the State of California to cause cancer.WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.4 INSTALLATION INSTRUCTIONS Unpack the Ice Maker Removing packaging materials Remove tape and glue from your ice maker before using. ■ To remove any remaining tape or glue from the exterior of the ice maker, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your ngers. Wipe with warm water and dry. ■ Do not use sharp instruments, rubbing alcohol, ammable uids, or abrasive cleaners to remove tape or glue. Do not use chlorine bleach on the stainless steel surfaces of the ice maker. These products can damage the surface of your ice maker. Cleaning before use After you remove all of the packaging materials, clean the inside of your ice maker before using it. See the cleaning instructions in the “Ice Maker Care” section. Location Requirements ■ To ensure proper ventilation for your ice maker, the front side must be completely unobstructed. The ice maker may be closed-in on the top and three sides, but the installation should allow the ice maker to be pulled forward for servicing if necessary. ■ Installation of the ice maker requires a cold water supply inlet of ¼" (6.35 mm) OD soft copper tubing with a shutoff valve or a Whirlpool supply line Part Number 8212547RB, and a Whirlpool approved drain pump, Part Number 1901A, only to carry the water to an existing drain. ■ Choose a well ventilated area with temperatures above 55°F (13°C) and below 110°F (43°C). Best results are obtained between 70°F and 90°F (21ºC and 32°C). ■ The ice maker be installed in an area sheltered from the elements, such as wind, rain, water spray, or drip. ■ When installing the ice maker under a counter, follow the recommended opening dimensions shown. Place electrical and plumbing xtures in the recommended location as shown.NOTES: ■ Check that the power supply cord is not damaged, pinched or kinked between the ice maker and the cabinet. ■ Check that the water supply line is not damaged, pinched or kinked between the ice maker and the cabinet. ■ Check that the drain line (on some models) is not damaged, pinched or kinked between the ice maker and the cabinet. ■ Check that the ice maker door is not ush with the standard cabinets to avoid problems with opening the ice maker door. ■ Choose a location where the oor is even. It is important for the ice maker to be level in order to work properly. If needed, you can adjust the height of the ice maker by changing the height of the front and rear leveling legs. See “Leveling.” WARNING Excessive Weight HazardUse two or more people to move and install ice maker.Failure to do so can result in back or other injury.14¹⁄₂"(36.8 cm)18"(45.7 cm)24"(60.1 cm)9"(22.9 cm)28¹⁄₂"(72.4 cm)34"(86.4 cm) Min.

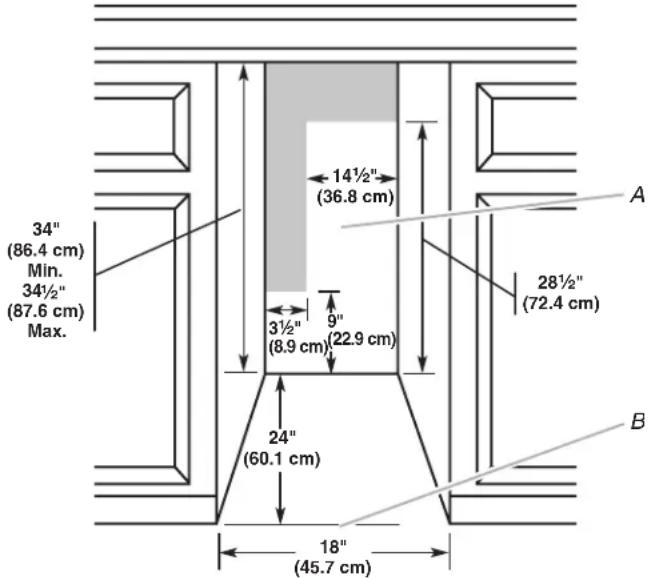

A. Recommended location for electrical and plumbing xturesB. Floor level5 Electrical Requirements Before you move your ice maker into its nal location, it is important to make sure you have the proper electrical connection: A 115 volt, 60 Hz., AC-only, 15 or 20 amp electrical supply, properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required. It is recommended that a separate circuit, serving only your ice maker, be provided. Use a receptacle which cannot be turned off by a switch or pull chain. IMPORTANT: If this product is connected to a GFCI (Ground Fault Circuit Interrupter) equipped outlet, nuisance tripping of the power supply may occur, resulting in loss of cooling. Ice quality may be affected. If nuisance tripping has occurred, and if the condition of the ice appears poor, dispose of it. Recommended Grounding Method The ice maker must be grounded. The ice maker is equipped with a power supply cord having a 3 prong grounding plug. The cord must be plugged into a mating, 3 prong, grounding-type wall receptacle, grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounded, 3 prong wall receptacle installed by a qualied electrician. Water Supply Requirements Check that the water supply lines are insulated against freezing conditions. Ice formations in the supply lines can increase water pressure and damage your ice maker or home. Damage from frozen supply lines is not covered by the warranty. Important: A cold water supply with water pressure of between 30 and 120 psi (207 and 827 kPa) is required to operate the ice maker. Note: If the water pressure is less than what is required, ice cubes could be hollow or irregular shaped. If you have questions about your water pressure, call a licensed, qualied plumber. Reverse Osmosis Water Supply IMPORTANT: ■ A reverse osmosis water ltration system is not recommended for ice makers that have a drain pump installed. ■ For gravity drain systems only. ■ The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the ice maker needs to be between 30 and 120 psi (207 and 827 kPa). If a reverse osmosis water ltration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa). NOTE: The reverse osmosis system must provide 1 gal. (3.8 L) of water per hour to the ice maker for proper ice maker operation. If a reverse osmosis system is desired, only a whole-house capacity reverse osmosis system, capable of maintaining the steady water supply required by the ice maker, is recommended. Faucet capacity reverse osmosis systems are not able to maintain the steady water supply required by the ice maker. If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa): ■ Check to see whether the sediment lter in the reverse osmosis system is blocked. Replace the lter if necessary. ■ Allow the storage tank on the reverse osmosis system to rell after heavy usage. If you have questions about your water pressure, call a licensed, qualied plumber. Vacation or Extended Time Without Use ■ When you will not be using the ice maker for an extended period of time, turn off the water and power supply to the ice maker. ■ Check that the water supply lines are insulated against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your ice maker or home. Damage from freezing is not covered by the warranty. Connect Water Supply Read all directions before you begin. IMPORTANT: ■ Plumbing shall be installed in accordance with the International Plumbing Code and any local codes and ordinances. ■ Use copper tubing or Whirlpool supply line, Part Number 8212547RP, and check for leaks. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING6 ■ Install tubing only in areas where temperatures will remain above freezing. Tools Needed Gather the required tools and parts before starting installation: ■ Flat-blade screwdriver ■

" and ½" open-end wrenches or two adjustable wrenches ■ ¼" nut driver NOTE: Do not use a piercing-type or ³⁄

" (4.76 mm) saddle valve which reduces water ow and clogs more easily. Connecting the Water Line

1. Turn off main water supply. Turn on nearest faucet long

enough to clear line of water.

2. Using a ½" copper supply line with a quarter-turn shutoff

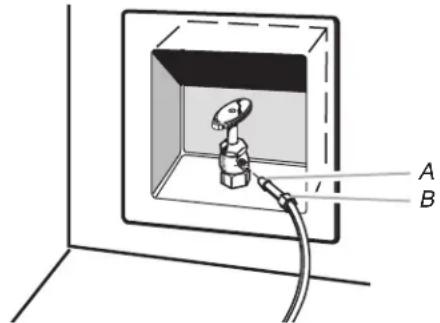

valve or the equivalent, connect the ice maker as shown. NOTE: To allow sufcient water ow to the ice maker, a minimum ½" diameter home supply line is recommended.

3. Now you are ready to connect the copper tubing. Use ¼"

(6.35 mm) OD soft copper tubing for the cold water supply. ■ Ensure that you have the proper length needed for the job. Be sure both ends of the copper tubing are cut square. ■ Slip compression sleeve and compression nut on copper tubing as shown. Insert end of tubing into outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

4. Place the free end of the tubing into a container or sink, and

turn on main water supply and ush out tubing until water is clear. Turn off shutoff valve on the water pipe. IMPORTANT: Always drain the water line before making the nal connection to the inlet of the water valve to avoid possible water valve malfunction.

5. Bend the copper tubing to meet the water line inlet which is

located on the back of the ice maker cabinet as shown. Leave a coil of copper tubing to allow the ice maker to be pulled out of the cabinet or away from the wall for service. Rear View

6. Remove and discard the short, black plastic tube from the

end of the water line inlet.

7. Thread the nut onto the end of the tubing. Tighten the nut by

hand. Then tighten it with a wrench two more turns. Do not overtighten. NOTE: To avoid rattling, be sure the copper tubing does not touch the cabinet’s side wall or other parts inside the cabinet.

8. Install the water supply tube clamp around the water supply

line to reduce strain on the coupling.

9. Turn shutoff valve ON.

10. Check for leaks. Tighten any connections (including

connections at the valve) or nuts that leak. Drain Pump Installation (on some models) NOTE: Connect drain pump to your drain in accordance with all state and local codes and ordinances. It may be desirable to insulate drain tube thoroughly up to drain inlet to minimize condensation on the drain tube. Insulated tube kit Part Number W10365792 is available for purchase. Drain pump is designed to pump water to a maximum height of 10 ft (3 m). Use only Whirlpool approved drain pump kit Part Number 1901A. Do not connect the outlet end of the drain tube to a closed pipe system to keep drain water from backing up into the ice maker. Kit Contains: ■ Drain pump kit Part Number 1901A ■

" drain tube (ice maker bin to drain pump reservoir inlet) ■ ½" ID x 10 ft (3 m) drain tube hose (drain pump discharge to household drain)

" ID x 32" (81 cm) vent tube (drain pump reservoir vent to ice maker cabinet back) ■ Cable clamps (secures vent tube to back of ice maker) (3)

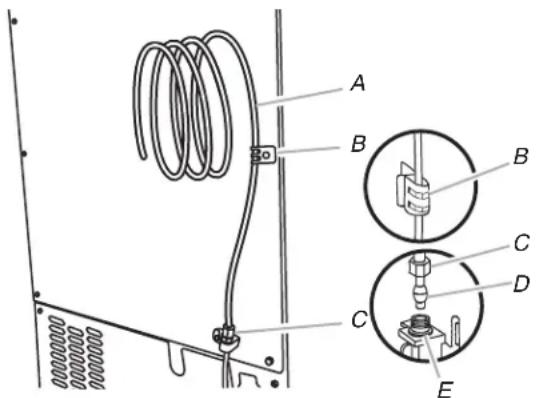

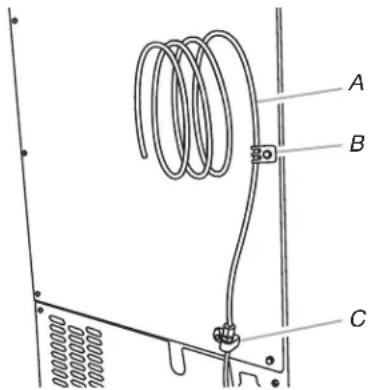

A. Copper tubing B. Water supply tube clamp C. Inlet water tube clamp and supply line connector C. Ferrule (purchased) D. Supplied line from ice maker DA B C A. Line to ice maker B. Nut (purchased)7 ■ #8-32 x

" pump mounting screws (secures drain pump to baseplate and clamps to back of ice maker) (5) ■

" small adjustable hose clamp (secures vent to drain pump) ■

" large adjustable hose clamp, (secures drain tube to ice maker bin and drain pump reservoir inlet) (3) ■ Rear panel (2) ■ Instruction sheet If Ice Maker Is Currently Installed NOTE: If ice maker is not installed, please proceed to “DrainPump Installation” section.1. Push the selector switch to the Off position.2. Unplug ice maker or disconnect power.3. Turn off water supply. Wait 5 to 10 minutes for the ice to fall into the storage bin. Remove all ice from bin.4. Unscrew the drain cap from the bottom of the water pan located inside the storage bin. Allow water to drain completely. Replace drain cap. See “Drain Cap” illustration. Drain Cap 5. If ice maker is built into cabinets, pull ice maker out of the opening.6. Disconnect water supply line. See “Water Supply Line” illustration.Water Supply Line Drain Pump Installation NOTE: Do not kink, smash or damage tubes or wires during installation.1. Unplug ice maker or disconnect power.2. Remove rear panel. See “Rear Panel” illustration for 5 screw locations. Pull rear panel away from the drain tube and discard.Rear Panel 3. Remove the old drain tube and clamp attached to the ice maker bin.NOTE: Discard old drain tube and clamp.4. Install new drain tube (

" ID x 5¹⁄ ") from ice maker bin to drain pump reservoir inlet using new adjustable clamps. See “Drain Tube” illustration.NOTES: ■ Do not kink. ■ Trim tube length, if required. WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.

A. ¼" copper tubingB. Cable clampC. ¼" compression nutD. Ferrule (sleeve)E. Ice maker connection

" ID x 32" [81 cm]) to drain pump reservoir vent. Use one

" small adjustable clamp, supplied. See “Parts Locations” illustration. NOTE: Do not install household drain tube at this time. Parts Locations

6. Remove power cord clamp and ground screw attached to ice

maker power cord, which is mounted to the unit base. See “Parts Locations” illustration. NOTE: Clamp and screw will be reused.

7. Slide drain pump into the ice maker base on the right side.

The pump mounting tab should slip into the rectangular slot in the ice maker base. It will be necessary to tip the pump slightly to slip into the slot. See “Drain Pump Mounting Tab Slot” illustration. Drain Pump Mounting Tab Slot Drain Pump Installed

8. Align the 2 screw holes at the rear of the pump. Use two

" screws, supplied. See “Parts Locations” illustration.

9. Connect drain tube to ice maker bin outlet (

adjustable clamp, supplied. See “Drain Tube” illustration.

10. Coil ice maker power cord into a 4" (10.2 cm) diameter

coil. Wrap electrical tape around the power cord in several places to keep the cord in a coil. Locate coiled power cord between the drain pump and side of enclosure and plug into the receptacle of the drain pump. See “Parts Locations” illustration.

11. Attach the drain pump power cord to ice maker unit base with

clamp and screw (removed in Step 6) that was used to attach ice maker power cord. See “Parts Locations” illustration.

12. Place new rear panel (small one for 15" ice makers, large one

for 18") against the back of the ice maker. Route the vent tube and drain pump discharge tube through cutouts in the rear panel.

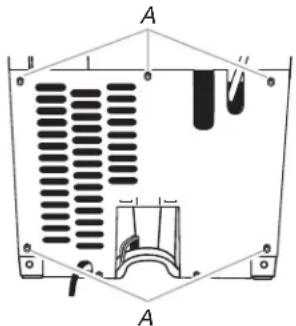

13. Secure rear panel with original screws. See “Rear Panel”

" screws, supplied. See “Vent Tube” illustration.

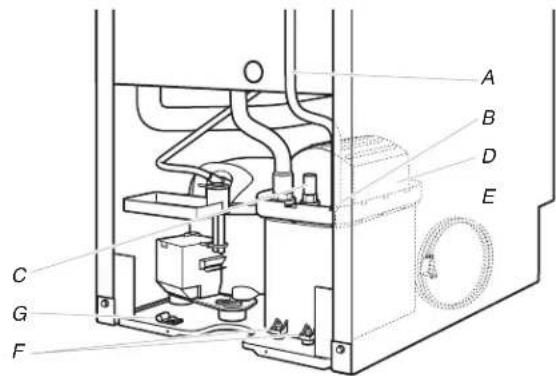

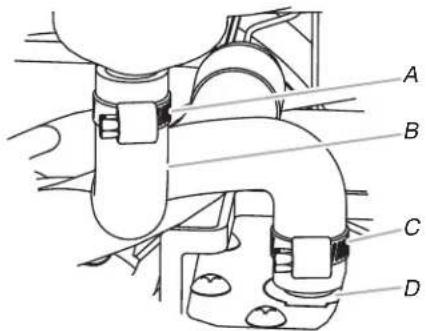

" adjustable hose clampB. Drain tube (ice bin to drain pump)

" adjustable hose clampD. Drain pump reservoir inlet

" hose clampC. Drain pump discharge tubeD. Drain pumpE. Ice maker unit power cordF. #8-32 x

" pump mounting screwsG. Drain pump power cord, clamp andscrew

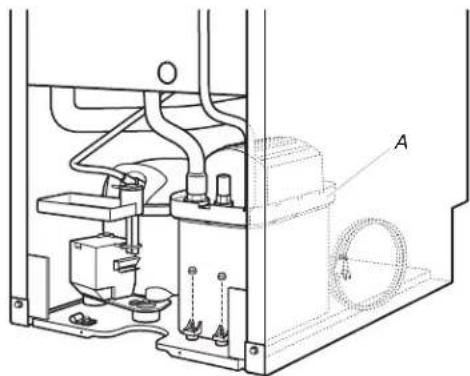

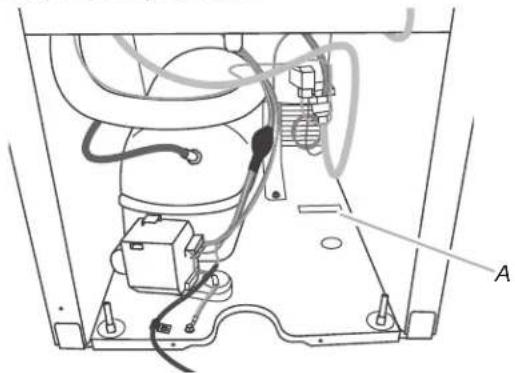

A. Mounting tab slot A. Drain pump installed9 Vent TubeNOTE: Do not pinch, kink or damage the vent tube. Check that it is not damaged, or pinched or kinked between the cabinet and the ice maker.15. Attach ½" ID x 10 ft (3 m) drain tube to pump discharge tube. See “Parts Locations” illustration.16. Connect ice maker to water supply and install ice maker as specied by the product installation instructions.17. Check all connections for leaks.18. Plug in ice maker or reconnect power.19. Turn on ice maker.20. Wait for rinsing cycle, approximately 5 minutes, to be sure the ice maker is operating properly. Drain Connection Gravity Drain System Connect the ice maker drain to your drain in accordance with all state and local codes and ordinances. If the ice maker is provided with a gravity drain system, follow these guidelines when installing drain lines. This will help keep water from owing back into the ice maker storage bin and potentially owing onto the oor, causing water damage. ■ Drain lines must have a minimum of

" (15.88 mm) inside diameter. ■ Drain lines must have a 1" drop per 48" (2.54 cm drop per 122 cm) of run or ¼" drop per 12" (6.35 mm per 30.48 cm) of run and must not have low points where water can settle. ■ The oor drains must be large enough to accommodate drainage from all drains. ■ The ideal installation has a standpipe with a 1½" (3.81 cm) to 2" (5.08 cm) PVC drain reducer installed directly below the outlet of the drain tube as shown. You must maintain a 1" (2.54 cm) air gap between the drain hose and the standpipe. ■ Do not connect the outlet end of the drain tube to a closed pipe system to keep drain water from backing up into the ice maker.IMPORTANT: A drain pump is necessary when a oor drain is not available. A Drain Pump kit, Part Number 1901A, is available for purchase.Side View

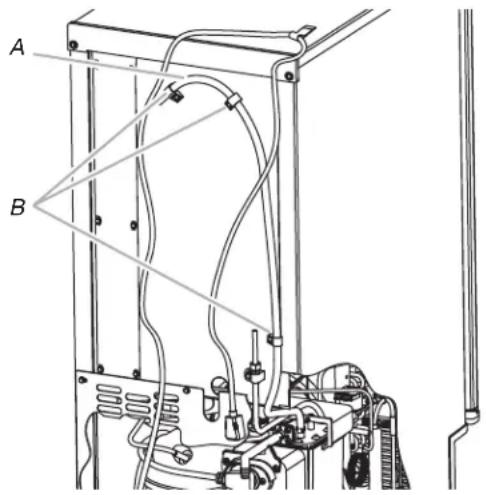

A. Vent tubeB. Clamps and screws Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING 1" (2.5 cm)20" (50.80 cm)1⁷⁄₈"(1.9 cm)

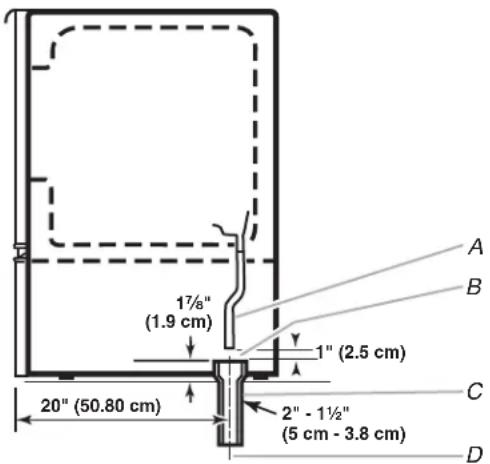

2" - 1¹⁄₂"(5 cm - 3.8 cm)A. Drain hoseB. 1" (2.54 cm) air gapC. PVC drain reducerD. Center of drain should be 20" (50.8 cm) from front of door, with or without the ¾" (1.91 cm) panel on the door. The drain should also be centered from left to right (8

" from either side of the ice maker).10 Drain Pump System (on some models) IMPORTANT: ■ Connect the ice maker drain to your drain in accordance with the International Plumbing Code and any local codes and ordinances. ■ The drain pump discharge line must terminate at an open sited drain. ■ Maximum rise 10 ft (3.1 m) ■ Maximum run 100 ft (30.5 m)NOTES: ■ If the drain hose becomes twisted and water cannot drain, your ice maker will not work. ■ It may be desirable to insulate the drain line thoroughly up to the drain inlet. An Insulation Sleeve kit, Part Number W10365792, is available for purchase. ■ Do not connect the outlet end of the drain tube to a closed pipe system to keep drain water from backing up into the ice maker. Connecting the Drain After ensuring that the drain system is adequate, follow these steps to properly place the ice maker:1. Plug into a grounded 3 prong outlet.2. Style 1—For gravity drain system, push the ice maker into position so that the ice maker drain tube is positioned over the PVC drain reducer. See “Gravity Drain System.”Style 2—For drain pump system connect the drain pump outlet hose to the drain. See “Drain Pump System.”3. Recheck the ice maker to be sure that it is level. See “Leveling.”4. If it is required by your local sanitation code, seal the cabinet to the oor with an approved caulking compound after all water and electrical connections have been made. Door Reversal—Side Swing Only Tools NeededGather the required tools and parts before starting installation. ■

" wrench ■ Flat putty knife ■ ¼" wrench ■ Phillips screwdriver Remove Stainless Steel Door Wrap Panel (on some models) 1. Remove the 2 hex-head screws located under the stainless steel door wrap panel ange on the bottom of the door.2. Pull up and outward on the door wrap panel from the bottom.3. Rotate the door wrap panel until it separates from the door and pull up.NOTE: Be sure the edge guards do not separate from the door wrap panel. Door Stop and End-Cap Reversal 1. Unplug the ice maker or disconnect power.Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING WARNING Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury. Hinge pin

" hex-head hinge screwHandle screwEnd cap screw

A. Hex-head screws WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.11

2. Remove the handle screws and handle (on some models).

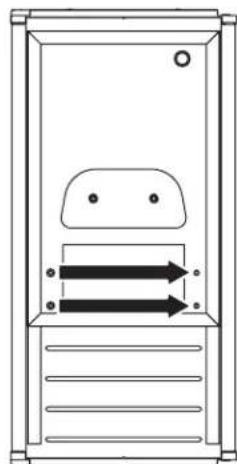

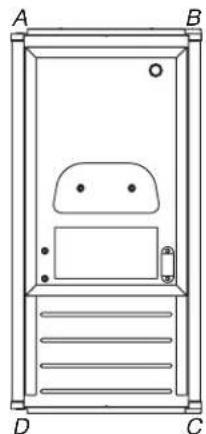

5. Remove the screw and door stop at corner A. Remove the

screw and end cap at corner C. Place the door stop at corner C, and tighten screw. Place the end cap at corner A, and tighten screw.

6. Remove the screw and door stop at corner D. Remove the

screw and end cap at corner B. Place the door stop at corner B, and tighten screw. Place the end cap at corner D, and tighten screw.

7. Depending on your model, the brand badge for the front door

of your ice maker may be in the package with the Use and Care Guide. Fasten the brand badge to the door.

1. Unscrew and remove the top hinge. Replace the screws in the

2. Remove the screws from the bottom of the opposite side of

the ice maker cabinet. Turn the top hinge upside down so that the hinge pin points up. Place the hinge on the bottom opposite side of the ice maker and tighten screws.

3. Remove the “old” bottom hinge screws and hinge. Replace

the screws in the empty hinge holes.

4. Remove the screws from the top of the opposite side of the

ice maker cabinet. Turn the hinge upside down so that the hinge pin points down. Place the hinge on the top opposite side of the ice maker and tighten the screws.

3. Replace the handle and handle screws.

Replace Door Wrap (on some models)

2. Rotate the door wrap downward until it covers the door

3. Install the 2 hex-head screws into the bottom of the door.

Top Hinge Bottom Hinge Reverse Door Catch

1. Remove the white decorative screws from the opposite side

of the door and set aside.

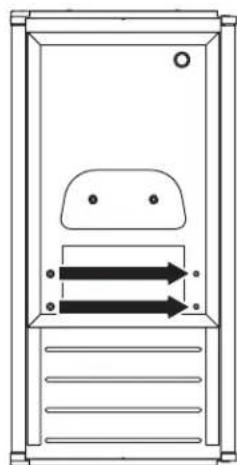

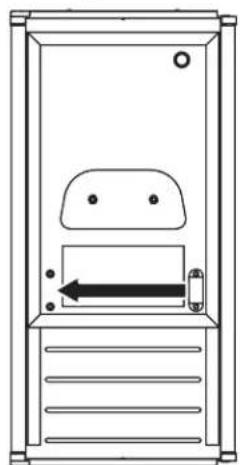

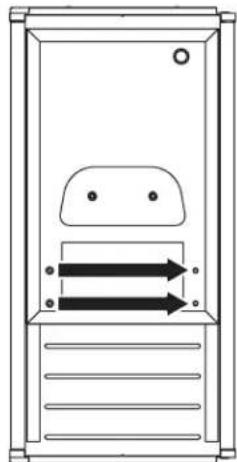

2. Remove the screws from the magnetic door catch and replace

it on the opposite side of the door.

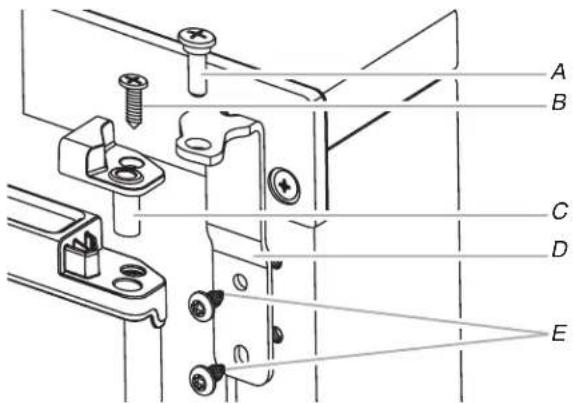

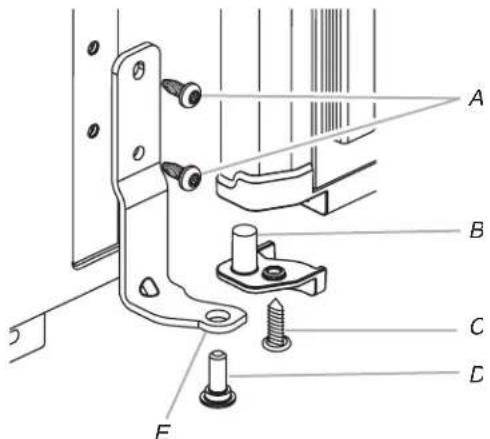

A. Hinge pin B. Phillips-head countersink screw C. Hinge pin sleeve D. Hinge E. Hex-head hinge screw

A. Hex-head hinge screw B. Hinge pin sleeve C. Phillips-head countersink screw D. Hinge pin E. Hinge12

3. Install the white decorative screws on the opposite side of the door.4. Plug into a grounded 3 prong outlet.

Leveling It is important for the ice maker to be level in order to work properly. Depending upon where you install the ice maker, you may need to make several adjustments to level it. You may also use the leveling legs to lower the height of the ice maker for undercounter installations.Tools NeededGather the required tools and parts before starting installation. ■ 9" level ■ Adjustable wrenchNOTE: It is easier to adjust the leveling legs if you have another person to assist you.1. Move the ice maker to its nal location.NOTE: If this is a built-in installation, move the ice maker as close as possible to the nal location.2. Place the level on top of the product to see whether the ice maker is level from front to back and side to side.3. Push up on the top front of the ice maker, and then locate the leveling screws that are on the bottom front of the ice maker.4. Using an adjustable wrench, change the height of the legs as follows: ■ Turn the leveling leg to the right to lower that side of the ice maker. ■ Turn the leveling leg to the left to raise that side of the ice maker.NOTE: The ice maker should not wobble. Use shims to add stability when needed.5. Push up on the top rear of the ice maker and locate the leveling legs that are on the bottom rear of the ice maker.6. Follow the instructions in Step 4 to change the height of the legs.7. Use the level to recheck the ice maker to see that it is even from front to back and side to side. If the ice maker is not level, repeat steps 2 to 5. If the ice maker is level, go to the “Connect Water Supply” section. Water Filtration System Install the Water Filter 1. Purchase a Jenn-Air approved water lter. 2. Take the water lter out of its packaging and remove the cover from the O-rings. Be sure the O-rings are still in place after the cover is removed.3. The water lter compartment is located in the right-hand side of the ice maker control panel. Push in on the door to release the latch, and then lower the door.Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

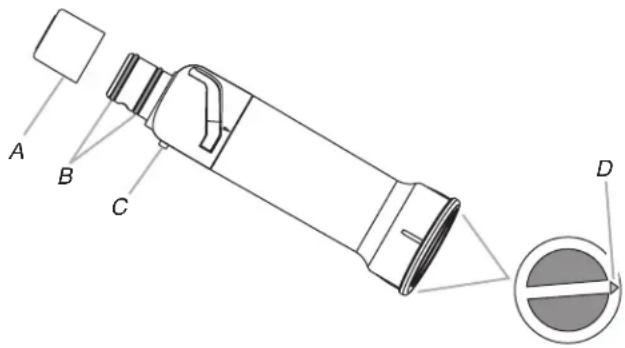

A. CoverB. O-ringsC. Alignment pinD. Alignment arrow13 4. Using the arrow pointing to the alignment pin on the side of the lter and the arrow inside the control housing, align the alignment pin with the cutout notch and insert the lter into the housing.5. Turn the lter clockwise until it locks into the housing. Ensure that the alignment arrow on the lter head aligns with the locked symbol on the control box housing.NOTE: If the lter is not correctly locked into the housing, the ice maker will not produce ice. The Water Filter Status Light The water lter status lights will help you know when to change your water lter. ■ The “Order Filter” status light will be illuminated when it is time to order a replacement lter. ■ The “Replace Filter” status light will be illuminated when it is time to replace the lter. ■ Replacing the disposable water lter with a new lter will automatically reset the lter status tracking feature. See “Using the Controls.” Replace the Water Filter To purchase a replacement water lter, see “Accessories.”Replace the disposable water lter when indicated on the water lter status display or at least every 9 months. If the ice making rate decreases before the Replace Filter light illuminates, then replace the lter.1. Locate the water lter compartment in the right-hand side of the control housing. See Step 3 in the “Install Water Filter” section.2. Turn the water lter counterclockwise (to the left), and pull it straight out of the compartment.NOTE: There may be some water in the lter. Some spilling may occur.3. Install the replacement water lter by following steps 2 through 5 in the “Install the Water Filter” section.

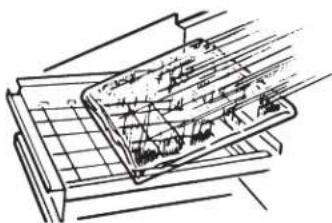

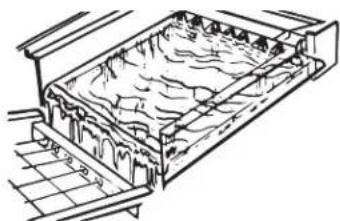

How Your Ice Maker Works When you rst start your ice maker, the water pan will ll and the system will rinse itself before starting to make ice. The rinsing process takes about 5 minutes.Under normal operating conditions, the ice maker will cycle at preset temperatures. The ice level sensor located in the ice storage bin will monitor the ice levels.IMPORTANT: If the water supply to the ice maker is turned off, be sure to set the ice maker control to OFF. The Ice Making Process 1. Water is constantly circulated over a freezing plate. As the water freezes into ice, the minerals in the water are rejected. This produces a sheet of ice with a low mineral content.2. When the desired thickness is reached, the ice sheet is released and slides onto a cutter grid. The grid divides the sheet into individual cubes.3. The water containing the rejected minerals is drained after each freezing cycle.4. Fresh water enters the machine for the next ice making cycle.

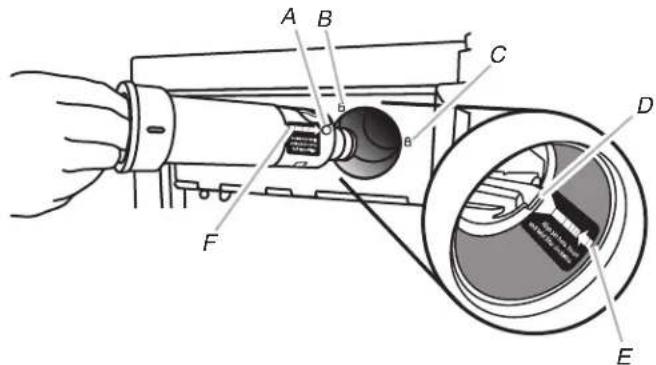

A. Alignment pinB. Unlocked symbolC. Locked symbolD. Cutout notch inside control housingE. Arrow pointing to cutout notchF. Arrow pointing to alignment pin A. Alignment arrow aligned with locked symbol14

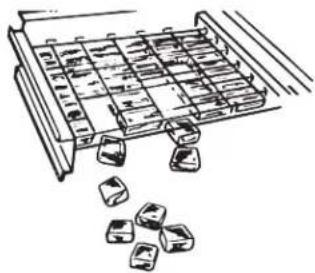

5. Cubes fall into the storage bin. When the bin is full, the ice

maker shuts off automatically and restarts when more ice is needed. The ice bin is not refrigerated, and some melting will occur. The amount of melting varies with room temperature. NOTE: As the room and water temperatures vary, so will the amount of ice produced and stored. This means that higher operating temperatures result in reduced ice production. Using the Controls

NOTES: ■ Pressing the On/Off button does not shut off power to the ice maker. ■ Allow 24 hours to produce the rst batch of ice. Discard the rst 2 batches produced. Max Ice Mode Select the Max Ice feature when you have an upcoming need for a large amount of ice and the ice bin is low or empty. Max Ice mode will produce a greater quantity of ice in a 24-hour period. ■ Press MAX ICE while the ice maker is on. The indicator light will illuminate. ■ Press MAX ICE again to turn off the Max Ice feature. The indicator light will turn off. ■ The Max Ice mode will be on when you rst turn on the product. It will turn off after 24 hours. To turn Max Ice back on, press MAX ICE. Clean It is recommended that you clean the ice maker when the “Cleaning Needed” light is illuminated, or 9 months has elapsed, or ice production decreases signicantly. To clean your ice maker, see “Ice Maker System” in the “Cleaning” section. Door Ajar Alarm The Door Ajar Alarm feature sounds an alarm when the ice maker door is open for 5 minutes. The alarm will repeat every 2 minutes. Close the door to turn off. The feature then resets and will reactivate when the door is left open again for 5 minutes. Normal Sounds Your new ice maker may make sounds that are not familiar to you. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces such as oors, walls and cabinets can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them. ■ You will hear a buzzing sound when the water valve opens to ll the water pan for each cycle. ■ Rattling noises may come from the ow of the refrigerant or the water line. Items stored on top of the ice maker can also make noises. ■ The high-efciency compressor may make a pulsating or high pitched sound. ■ Water running over the evaporator plate may make a splashing sound. ■ Water running from the evaporator plate to the water pan may make a splashing sound. ■ As each cycle ends, you may hear a gurgling sound due to the refrigerant owing in your ice maker. ■ You may hear air being forced over the condenser by the condenser fan. ■ During the harvest cycle, you may hear a “thud” when the ice sheet slides from the evaporator onto the cutter grid. ■ When you rst start the ice maker, you may hear water running continuously. The ice maker is programmed to run a rinse cycle before it begins to make ice. ■ If the ice maker is connected to a water supply pressure in excess of 60 psi, you may hear a loud sound during water lling associated with the ow of water through the inlet valve. Call a licensed, qualied plumber to determine the best method to reduce the supply water pressure (50 psi is recommended).15

Cleaning The ice making system and the air cooled condenser need to be cleaned regularly for the ice maker to operate at peak efciency and to avoid premature failure of system components. See the “Ice Maker System” and the “Condenser” sections. Exterior Surfaces Wash the exterior enamel surfaces and gaskets with warm water and mild soap or detergent. Wipe and dry. Regular use of a good household appliance cleaner and wax will help maintain the nish. Do not use abrasive cleaners on enamel surfaces as they may scratch the nish.For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Do not use chlorine bleach on the stainless steel surfaces. Ice Maker System Minerals that are removed from water during the freezing cycle will eventually form a hard scaly deposit in the water system. Cleaning the system regularly helps remove the mineral scale buildup. How often you need to clean the system depends upon how hard your water is. With hard water of 15 to 20 grains/gal. (4 to 5 grains/liter), you may need to clean the system as often as every 9 months.NOTE: Use one 16 oz (473 mL) bottle of approved ice maker cleaner. To order, see “Accessories.”1. Press the ON/OFF button.2. Wait 5 to 10 minutes for the ice to fall into the storage bin. Remove all ice from the storage bin.3. Unscrew the drain cap from the bottom of the water pan located inside the storage bin as shown. Allow the water to drain completely.4. Replace the drain cap securely on the water pan. If the drain cap is loose, water will empty from the water pan and you will have either thin ice or no ice.5. Read and follow all handling information on the cleaner bottle before completing the steps below. Use one 16 oz (473 mL) bottle of approved ice maker cleaner.6. Pour one bottle of solution into the water pan. Fill the bottle twice with tap water and pour it into the water pan.7. Press the CLEAN button. See “Using the Controls.” The Clean button will blink, indicating that the cleaning cycle is in process. When the “Cleaning Complete” light is illuminated (approximately 70 minutes), the cleaning cycle is complete. During the cleaning cycle, the system will both clean and rinse itself.8. After the cleaning cycle is complete, remove the drain cap from the water pan. Look for any cleaning solution left in the water pan. If cleaning solution drains from the water pan, you should run the clean cycle again. Be sure to rell the water pan with cleaner before starting the clean cycle again. Be sure to replace the drain cap securely on the water pan. If the drain cap is loose, water will empty from the water pan and you will have either thin ice or no ice.NOTE: Severe scale buildup may require repeated cleaning with a fresh quantity of cleaning solution.9. Press the ON/OFF button to resume ice production. Condenser A Dirty or Clogged Condenser ■ Obstructs proper airow. ■ Reduces ice making capacity. ■ Causes higher than recommended operating temperatures which may lead to component failure.1. Unplug ice maker or disconnect power.2. Remove the 2 screws in the lower access panel and the 2 screws from the base grille area of the front panel support.3. Pull the bottom forward and then pull down to remove the lower access panel.

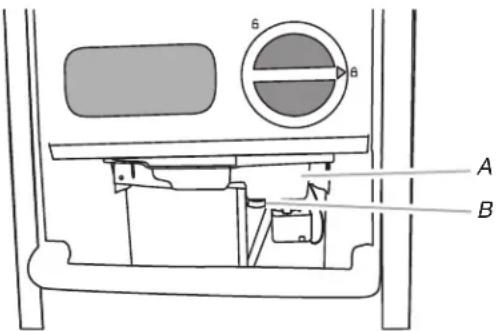

A. Water panB. Drain cap WARNING Electrical Shock HazardDisconnect power before cleaning.Replace all parts and panels before operating.Failure to do so can result in death or electrical shock.16

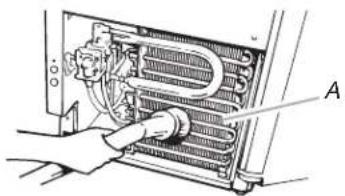

4. Remove dirt and lint from the condenser ns and the unit

compartment with a brush attachment on a vacuum cleaner.

5. Replace the lower access panel using the 4 screws.

6. Plug in ice maker or reconnect power.

1. Unplug ice maker or disconnect power.

2. Open the storage bin door and remove any ice that is in the

3. Remove the drain cap from the water pan and drain

thoroughly. Replace the drain cap securely on the water pan. If the drain cap is loose, water will empty from the water pan, and you will have either thin ice or no ice.

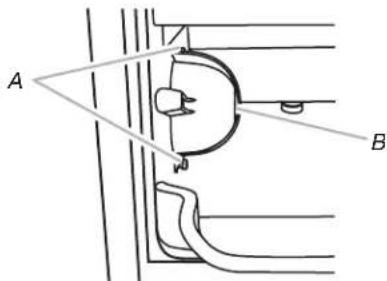

4. Pull out on the bottom of the cutter grid cover until the snaps

5. Unplug the wiring harness from the left side of the cutter grid.

6. Unplug the ice level sensor from the right side of the cutter

grid. Pull the ice level sensor down and forward away from the cutter grid.

7. Remove the right-hand and left-hand screws. Lift the cutter

grid up and out. NOTE: Make sure the plastic spacer from the right-hand side of the cutter grid bracket stays with the cutter grid.

8. Remove the mounting screw that holds the water pan in

place. Pull out on the front of the water pan.

9. Disconnect the pump bracket from the water pan and unplug

the water pan drain pump.

10. Remove, clean and replace the ice scoop and ice scoop

holder. NOTE: On some models, the ice scoop holder is located in the upper left of the unit, and on other models, the ice scoop holder is located in the lower left of the unit. ■ After removing the ice scoop, remove the holder by removing the 2 screws. ■ Wash the ice scoop holder along with the other interior components using the following instructions. ■ Replace the ice scoop holder by replacing the screws.

11. Wash the interior components (cutter grid, exterior of hoses,

and water pan) and the storage bin, door gasket, ice scoop, and ice scoop holder with mild soap or detergent and warm water. Rinse in clean water. Then clean the same parts with a solution of 1 tbs (15 mL) of household bleach in 1 gal. (3.8 L) warm water. Rinse again thoroughly in clean water. NOTE: Do not remove hoses. Do not wash plastic parts in dishwasher. They cannot withstand temperatures above 145°F (63°C).

12. To replace the water pan, set the water pan inside the ice bin.

Hook up the water pan pump. Snap the pump bracket back onto the water pan and place back into position. Secure the water pan by replacing the mounting screw.

13. Check the following:

■ Drain cap from the water pan is securely in place. If the drain cap is loose, water will empty from the water pan, and you will have either thin ice or no ice. ■ Hose from water pan is inserted into storage bin drain opening.

A. Cutter grid cover

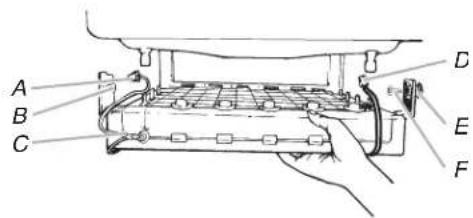

A. Cutter grid harness B. Screw C. Cutter grid D. Ice level sensor harness E. Plastic spacer F. Screw

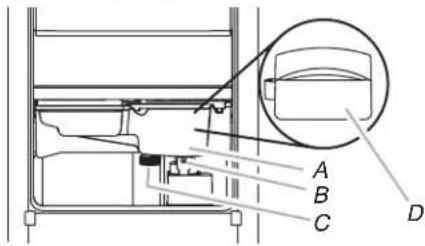

A. Water pan B. Water pan screw C. Drain cap D. Drain pump cover

14. Slide the cutter grid back into place and secure it by replacing

the right-hand screw and plastic spacer. Then tighten the left- hand screw. Reconnect the cutter grid harness and the ice level sensor harness.

15. Replace the cutter grid cover using the screw that was

16. Gently wipe the control panel with a soft, clean dishcloth

using warm water and a mild liquid dish detergent.

17. Plug in ice maker or reconnect power.

18. After cleaning, make sure that all controls are set properly and

that no control indicators are ashing. Vacation and Moving Care To Shut Down the Ice Maker:

1. Unplug ice maker or disconnect power.

2. Remove all ice from storage bin.

3. Shut off the water supply.

4. Remove the 2 screws in the lower access panel and the 2

screws from the base grille area of the front panel support. Pull forward to remove the lower access panel.

5. Disconnect the inlet and outlet lines to the water valve. Allow

these lines to drain and then reconnect to the valve.

6. Replace lower access panel and screws.

7. Drain water from water pan by removing the drain cap.

8. If the room temperature will drop below 32°F (0°C), water

must be removed from the drain line. For Ice Makers with a Drain Pump Installed ■ Plug in ice maker or reconnect power. ■ Turn ice maker off and remove all remaining ice from ice bin. ■ Pour 1 qt (0.95 L) of water into the ice bin near the drain and let the ice maker stand for approximately 5 minutes. This will allow the water in the bin to drain into the drain pump so that the pump will remove the remaining water from the ice bin and the drain pump. ■ Unplug ice maker or disconnect power.

9. Before using again, clean the ice maker and storage bin.

10. Plug into a grounded 3 prong outlet.

NOTE: All components of the ice maker are permanently lubricated at the factory. They should not require any additional oiling throughout the normal life of the machine. WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.18 TROUBLESHOOTING Try the solutions suggested here rst in order to avoid the cost of an unnecessary service call. Ice Maker Operation

PROBLEM RECOMMENDED SOLUTIONS

Ice Maker Will Not Operate Check that it is plugged into a grounded 3 prong outlet. Check that the control is turned on. See “Using the Controls.” Replace the fuse or reset the circuit breaker. NOTE: If problems continue, contact an electrician. Room temperature must be above 45°F (7°C). Otherwise, bin thermostat may sense cold room temperature and shut off even though the bin is not full of ice. The ice maker may not restart once it does shut off. If there was a large amount of water added to the ice maker, wait a few minutes for the drain pump to clear. If there is still water in the bin, check to see whether the drain hose is kinked. For models with drain pumps, check that the drain hose is not damaged, or kinked or pinched between cabinet and ice maker. Use only Whirlpool approved drain pump kit, Part Number 1901A. Ice Maker Seems Noisy Is the water in the reservoir overowing? This is normal. This overow helps to purge minerals that were removed from the water during the ice making process. Is there a “whooshing” sound? Check the following things: ■ Check that the water supply is hooked up and turned on. ■ Check that the drain cap is tight and the water drain pan pump is securely attached to the water pan. Is there ice between the evaporator plate and the cutting grid? Check that the ice maker is level. See “Leveling.” If the ice maker is level, and the problem persists, run a cleaning cycle. See “Cleaning.” If the ice maker is connected to a water supply pressure in excess of 60 psi, you may hear a loud sound during water lling associated with the ow of water through the inlet valve. Call a licensed, qualied plumber to determine the best method to reduce the supply water pressure (50 psi is recommended). Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING19 Ice Production

PROBLEM RECOMMENDED SOLUTIONS

Ice Maker Runs But Produces No Ice Check that the control is turned on. Check that the water supply is properly connected and turned on. If the drain cap is loose, water will empty from the water pan, and you will have either thin ice or no ice. Tighten the drain cap. Clean the drain tube. Check that there are no kinks in the drain line. Ice Maker Runs But Produces Very Little Ice Is the accelerated ice production feature turned on? This feature increases the ice production rate to provide you with more ice in the same amount of time. See “Using the Controls.” Room temperatures of more than 90ºF (32ºC) will normally reduce ice production. Dirt or lint may be blocking the airow through the condenser. See “Condenser” in the “Cleaning” section. If there is white scale buildup in the ice maker’s water or freezing system, you should clean the ice maker. See “Interior Components” in the “Cleaning” section. If the drain cap is loose, water will empty from the water pan, and you will have either thin ice or no ice. Tighten the drain cap. Ensure that the cutter grid is securely in place and that its harness plug is connected. See “Interior Components” section of “Cleaning” for instructions on cutter grid removal. Check that water lter is properly installed. Ice Quality

PROBLEM RECOMMENDED SOLUTIONS

Off Taste, Odor or Gray Color in the Ice Is there unusually high mineral content in the water supply? The water may need to be treated. Is there mineral scale buildup? Clean your ice maker. See “Ice Maker System” in the “Cleaning” section. Do not store any foods in the ice bin. Check that all packaging materials were removed at the time of installation. Thin, Soft or Clumps of Ice Is there unusually high mineral content in the water supply? The water may need to be treated. Is there mineral scale buildup? Clean your ice maker. See “Ice Maker System” in the “Cleaning” section. Are there clumps of ice in the bin? If ice is not used regularly, it will melt and form clumps. Break the clumps with the ice scoop provided. WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock.20 Plumbing Problems

PROBLEM RECOMMENDED SOLUTIONS

Water Not Entering Drain Properly Is the drain hose aligned over the drain? Move the ice maker to align the drain. See “Connect Water Supply.” NOTE: Service technicians cannot repair plumbing problems outside of the ice maker. Call a licensed, qualied plumber.

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. In the U.S.A. If the problem is not due to one of the items listed in the “Troubleshooting” section… Call the dealer from whom your appliance was purchased, or call Jenn-Air at 1-800-JENNAIR (1-800-536-6247) to locate an authorized service company. When calling, please know the purchase date and the complete model and serial number of your appliance. Be sure to retain proof of purchase to verify warranty status. If the dealer or service company cannot resolve your problem, write to: Jenn-Air Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Web address: www.jennair.com Or call: 1-800-JENNAIR (1-800-536-6247) U.S. customers using TTY for deaf, hearing impaired or speech impaired, call: 1-800-688-2080. NOTE: When writing or calling about a service problem, please include the following information:

1. Your name, address and daytime telephone number.

2. Appliance model number and serial number.

3. Name and address of your dealer or servicer.

4. A clear description of the problem you are having.

5. Proof of purchase (sales receipt).

User’s guides, service manuals and parts information are available from Jenn-Air Brand Home Appliances, Customer eXperience Center. In Canada If the problem is not due to one of the items listed in the “Troubleshooting” section… Call the dealer from whom your appliance was purchased, or call Jenn-Air at 1-800-JENNAIR (1-800-536-6247) to locate an authorized service company. When calling, please know the purchase date and the complete model and serial number of your appliance. Be sure to retain proof of purchase to verify warranty status. If the dealer or service company cannot resolve your problem, write to: Jenn-Air Brand Home Appliances Customer eXperience Center

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7 Web address: www.jennair.ca Or call: 1-800-JENNAIR (1-800-536-6247). NOTE: When writing or calling about a service problem, please include the following information:

1. Your name, address and daytime telephone number.

2. Appliance model number and serial number.

3. Name and address of your dealer or servicer.

4. A clear description of the problem you are having.

5. Proof of purchase (sales receipt).

User’s guides, service manuals and parts information are available from Jenn-Air Brand Home Appliances, Customer eXperience Center. WARNING Excessive Weight Hazard Use two or more people to move and install ice maker. Failure to do so can result in back or other injury.21 Accessories To order accessories, in the U.S.A., visit our web site www.jennair.com/accessories or call 1-800-JENNAIR (1-800-536-6247). In Canada, visit our web site www.jennair.ca or call 1-800-807-6777. Water FilterOrder Part Number F2WC9I1 or ICE2CleanerOrder Part Number 4396808Affresh Stainless Steel CleanerIn U.S.A., order Part Number W10355016In Canada, order Part Number W10355016BAffresh Stainless Steel WipesIn U.S.A., order Part Number W10355049In Canada, order Part Number W10355049BAffresh Kitchen & Appliance CleanerIn U.S.A., order Part Number W10355010In Canada, order Part Number W10355010B

PERFORMANCE DATA SHEET

Ice Maker Water Filtration System Model P6GEG2KL, P6KG2KL, P6WG2KL Capacity 2000 Gallons (7571 Liters) This system has been tested according to NSF/ANSI Standards 42 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specied in NSF/ANSI Standards 42.Substance Reduction Aesthetic EffectsNSF Reduction RequirementsAverage InuentInuent Challenge ConcentrationMaximum EfuentAverage EfuentMinimum % ReductionAverage % ReductionChlorine Taste/Odor 50% reduction 1.9727 mg/L 2.0 mg/L ± 10% 0.71 mg/L 0.7788 mg/L 70.2 72.81Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.50 gpm (1.89 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 2000 gallons (7571 liters). ■ It is essential that operational, maintenance, and lter replacement requirements be carried out for the product to perform as advertised. ■ Use replacement lter P6RFWG2K, P6RFGEG2K, P6RFKG2K, Part Number ICE2.Style 1 – When the water lter status display changes from “GOOD” to “ORDER,” order a new lter. When the lter indicator reads “REPLACE,” it is recommended that you replace the lter.Style 2 – Press FILTER to check the status of your water lter. If the lter indicator light is yellow and the words “ORDER FILTER” appear on the display screen, order a new lter. If the lter indicator light is red, it is recommended that you replace the lter. ■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary. ■ The product is for cold water use only. ■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. ■ Refer to the “Warranty” section for the Manufacturer’s name, address and telephone number. ■ Refer to the “Warranty” section for the Manufacturer’s limited warranty.Application Guidelines/Water Supply ParametersWater Supply City or WellWater Pressure 30 - 120 psi (207 - 827 kPa)Water Temperature 33°- 100°F (0.6° - 37.8°C)Service Flow Rate 0. 50 gpm (1.89 Lpm) @ 60 psi System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor.

NSF is a registered trademark of NSF International.22 01/17 IF YOU NEED SERVICE: warranty service to: Jenn-Air Customer eXperience Center1-800-JENNAIR (1-800-536-6247). If outside the 50 United States or Canada, contact your authorized Jenn-Air dealer to determine whether another warranty applies. 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.jennair.com. 2. All warranty service is provided exclusively by our authorized Jenn-Air Service Providers. In the U.S. and Canada, direct all requests for JENN-AIR

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE. Please have the following information available when you call the Customer eXperience Center:✱ Name, address, and telephone number✱ Model number and serial number ✱ A clear, detailed description of the problem ✱ Proof of purchase including dealer or retailer name and address THREE YEAR LIMITED WARRANTY (PARTS AND LABOR) For thr ee years from the date of purchase, when this major appliance is installed, operated, and maintained accor ding to instructions attached to or fur nished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (her eafter “Jenn-Air”) will pay for factory specified

placement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was pur chased or, at its sole discretion, replace the

oduct. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period

FOURTH THROUGH FIFTH YEAR LIMITED WARRANTY (SEALED REFRIGERATION SYSTEM PARTS ONLY – LABOR NOT INCLUDED) In the fourth thr ough the fifth years from the date of original pur chase, when this major appliance is installed, operated, and maintained accor ding to instructions attached to or furnished with the pr oduct, Jenn-Air will pay for factory specified

placement parts for the following components to correct non-cosmetic defects in materials or workmanship in the sealed

efrigeration system that existed when this major appliance was pur chased: compressor, evaporator, condenser, dryer/strainer, and connecting tubing. This limited five year warranty is only for the sealed r efrigeration system replacement parts as identified and does not include labor

ARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be pr ovided by a Jenn-Air designated service company . This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was pur chased. This limited warranty is ef fective from the date of original consumer pur chase. Proof of original purchase date is required to obtain service under this limited warranty

The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIES IMPLIED W ARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A

RTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and pr ovinces do not allow limitations on the duration of implied warranties of mer chantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary fr om state to state or province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Jenn-Air makes no r epresentations about the quality, durability, or need for service or repair of this major appliance other than the

presentations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your r etailer about buying an extended warranty.1. Commercial, non-residential, multiple-family use, or use inconsistentwith published user, operator, or installation instructions.2. In-home instruction on how to use your product.3. Service to correct improper product maintenance or installation,installation not in accordance with electrical or plumbing codes, orcorrection of household electrical or plumbing (e.g., house wiring, fuses,or water inlet hoses).4. Consumable parts (e.g., light bulbs, batteries, air or water filters,preservation solutions).5. Defects or damage caused by the use of non-genuine Jenn-Air partsor accessories.6. Damage from accident, misuse, abuse, fire, floods, acts of God, or usewith products not approved by Jenn-Air.7. Repairs to parts or systems to correct product damage or defectscaused by unauthorized service, alteration, or modification of theappliance.8. Cosmetic damage including scratches, dents, chips, and other damageto the appliance finishes, unless such damage results from defects inmaterials and workmanship and is reported to Jenn-Air within 30 days.9. Discoloration, rust, or oxidation of surfaces resulting from causticor corrosive environments including, but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.

10. Food or medicine loss due to product failure.

11. Pickup or delivery. This product is intended for in-home repair.

12. Travel or transportation expenses for service in remote locations where

LAS GARANTÍAS IMPLÍCIT

ASSISTANCE OU SERVICE

/™ ©2017. All rights reserved.
