Product Type	Down-draft extractor hood
Brand	JENN-AIR
Model	JXD7836BS
Width	100.2 cm (39 1/6")
Depth	66.0 cm (26")
Power Supply	120 V, 60 Hz, 15 A, fuse
Fan Speeds	4 speeds (1-4)
Controls	Infrared remote control, remote switch, controls on the extractor
Lighting	Base lamps (LED)
Automatic Shut-off Function	Yes, gradual reduction over 33 minutes
Filter Cleaning Indicator	Red light after 30 hours of operation
Duct Type	Rigid metal duct, 10" (25.4 cm) diameter
Discharge	Outdoor only (wall or roof)
Filters	2 metal grease filters, dishwasher safe
Glass Panel	Curved, removable for cleaning
Remote Control Batteries	2 CR2032 lithium batteries (3 V)
Fuse	5 A, 125 V, non-time delay
Surface Cleaning	Soapy water, soft cloth, avoid abrasives
Warranty	2 years limited
Optional Accessories	In-line ventilation system UXI0600DYS (600 CFM) or UXI1200DYS (1200 CFM)

Frequently Asked Questions - JXD7836BS JENN-AIR

How to install the JXD7836BS hood?

Installation must be performed by a qualified person. Follow the instructions in the manual: prepare the down-draft extraction system, install the exhaust duct (10-inch diameter), connect the in-line ventilation system (models UXI0600DYS or UXI1200DYS), and make electrical connections. Be sure to observe clearance distances and local codes.

How to clean the grease filters?

First remove the glass panel, then the filters by pulling on the buttons. Wash them in the dishwasher or in hot soapy water. Dry them and reinstall by pushing upward until magnetic attachment. Reinstall the glass panel.

How to reset the filter cleaning indicator?

The red light comes on after 30 hours of operation. To reset it, press the speed increase button (on the remote or on the unit) and hold it for about 7 seconds.

What to do if the hood does not rise?

Check that the circuit breaker is not tripped or that no fuse is blown. Make sure the glass is properly installed (the system prevents rising if the glass is removed). If the problem persists, contact after-sales service.

How to replace the remote control batteries?

Use a small Phillips screwdriver to unscrew the cover on the back of the remote. Slide the cover upward. Replace the two CR2032 batteries with the positive side facing up. Close the cover and screw it back on.

What types of ducts are recommended?

Use only rigid metal ducts of 10-inch (25.4 cm) diameter. Avoid plastic or flexible metal ducts. The total duct run must not exceed 60 feet (18.3 m) for a 10-inch round duct.

Does the hood work with a gas cooktop?

Yes, but the suction may affect the flame. To improve performance, reduce the hood speed or increase the burner flame. If the cooktop has flame-sensing ignition, a lower speed may avoid continuous sparking.

How to replace the hood fuse?

Disconnect power. Use a flat-blade screwdriver to pry the fuse from the front panel. Push down on the fuse base to remove it. Replace with a non-time delay 125 V, 5 A fuse. Snap the cover back into place, then reconnect power.

What is the grounding procedure?

The appliance must be plugged into a grounded 3-prong outlet. Do not use an adapter or extension cord. If the cord is too short, have a qualified electrician install an outlet near the appliance.

Where to find replacement parts?

Contact Jenn-Air customer service at 1-800-JENNAIR (1-800-536-6247) or visit www.jennair.ca. Use only factory-specified parts to ensure compatibility.

USER MANUAL JXD7836BS JENN-AIR

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.ca.

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT

TABLE OF CONTENTS

VENT SYSTEM SAFETY....3

INSTALLATION REQUIREMENTS ....5

Tools and Parts 5

Location Requirements....5

Electrical Requirements 7

Venting Requirements....7

INSTALLATION INSTRUCTIONS ....8

Venting Methods 8

Downdraft Vent System Preparation 9

Install Downdraft Vent System....10

Install Downdraft Vent In-Line (External Type)

Blower Motor....10

Make Electrical Connections for In-Line

Blower Motor System 12

Complete Installation 13

Grounding Instructions....13

DOWNDRAFT VENT SYSTEM USE 14

Operating Downdraft Vent System....14

VENT SYSTEM CARE ....16

Surface of Downdraft Vent....16

Glass....16

Filters....16

Changing the Remote Batteries....16

USER SERVICING INSTRUCTIONS....17

Replacing the Fuse ....17

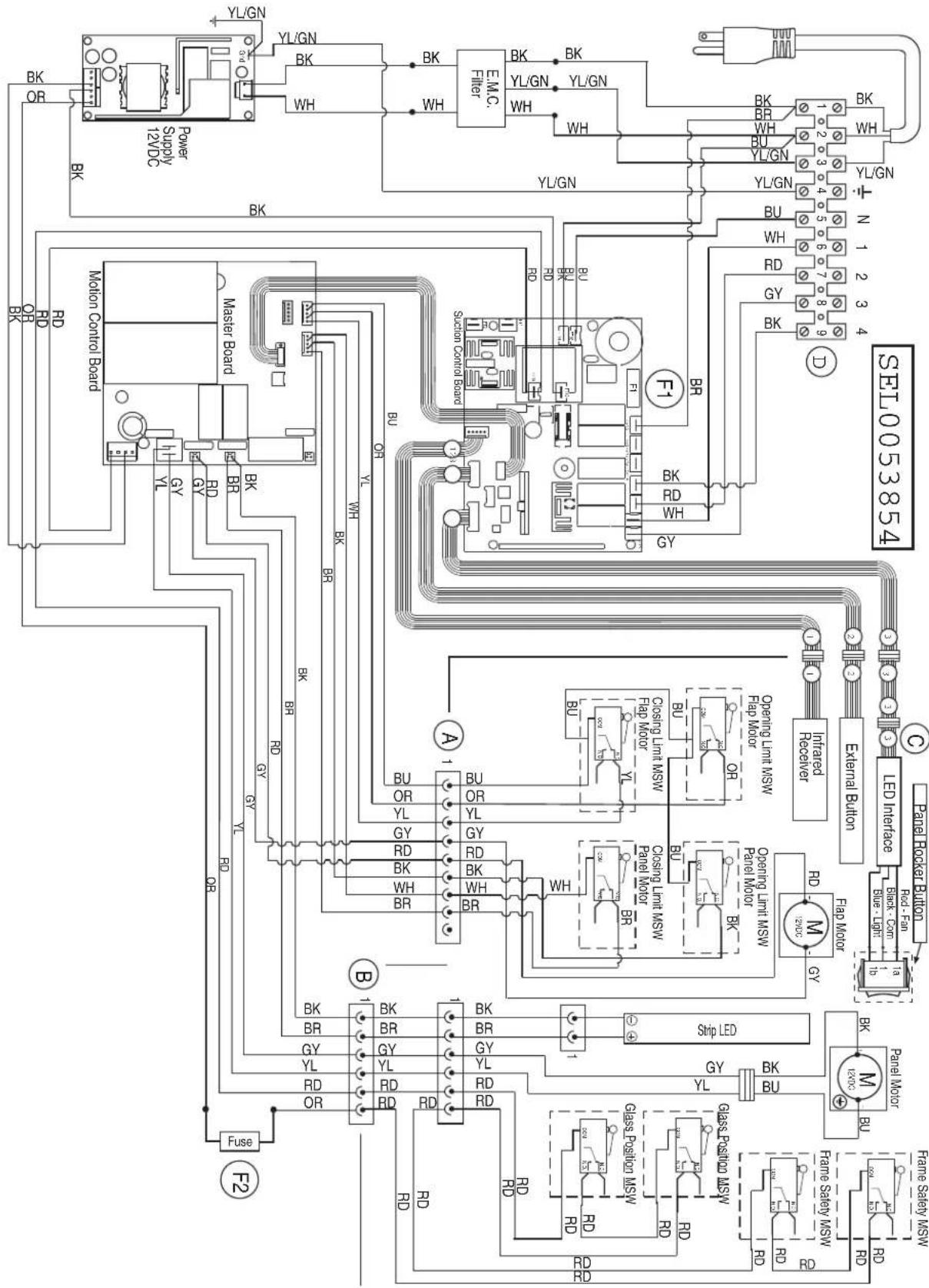

WIRING DIAGRAM ....18

ASSISTANCE OR SERVICE....19

In the U.S.A. 19

In Canada 19

Accessories....19

WARRANTY 20

TABLE DES MATIÈRES

SÉCURITÉ DU SYSTÈME DE VENTILATION....21

EXIGENCES D'INSTALLATION....23

INSTRUCTIONS D'INSTALLATION....26

ASSISTANCE OU SERVICE....38

Au Canada....38

Accessoires ....38

GARANTIE....39

VENT SYSTEM SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented outdoors.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:
- You know you have a class ABC extinguisher, and you already know how to operate it.
- The fire is small and contained in the area where it started.
– The fire department is being called.
- You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■Jigsaw or keyhole saw
Drill
■3/16" (5 mm) drill bit for pilot holes
Pencil
■Tape measure or ruler
■1/8" Flat-blade screwdriver
■Phillips screwdriver
■ 12 " and 916 " Open-end wrenches or adjustable wrench
■1¼" (32 mm) drill bit
Level
■Metal snips
■Wire stripper or utility knife
■Caulking gun and weatherproof caulking compound

Parts Supplied

■Remote control with batteries
■2 - Grease filters
■Top frame
■Frame support
■12 - 4 x 10 mm flat-head screws
■10" (25.4 cm) diameter vent collar
■Vent collar mounting frame (attached)
■Remote up/down switch
■4 - Cable tie mounting bases
■4 - Cable ties
■Curved glass panel
■4 - Leveler feet with nuts
■2 - Undercounter mounting brackets
■8 - 5 mm x 12 mm pan-head screws
■6 - 4 x 20 mm wood screws

Parts Needed

■UL listed or CSA approved 12 " (12.7 mm) conduit connector
■Wall or roof cap with damper to match vent system
■Vent system
■Wiring cable for remote blower kit
■Vent clamps/duct tape
■ Blower motor system (see the “Accessories” section for information on ordering)

Location Requirements

NOTE: Downdraft vent is installed directly behind the cooktop. For ease of installation, install the downdraft vent system first, and then install the cooktop.

IMPORTANT: Observe all governing codes and ordinances.

■Have a qualified technician install the downdraft vent. It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located on the front of the downdraft vent.
■Downdraft vent location should be away from strong draft areas, such as windows, doors, and strong heating vents or fans.
■Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.
■Consult the cooktop manufacturer Installation Instructions before making any cutouts.

Check that the downdraft vent and cooktop location will clear the cabinet walls, backsplash, and rear wall studs inside the cabinet.

Check for the minimum distance between the front edge of the countertop and the front edge of the cooktop. The minimum horizontal distance between the overhead cabinets is the same as the width of the installed downdraft vent.

■All openings in ceiling and wall where the downdraft vent will be installed must be sealed.
■Grounded electrical outlet is required. See "Electrical Requirements" section.

For Mobile Home Installations

The installation of this downdraft vent must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

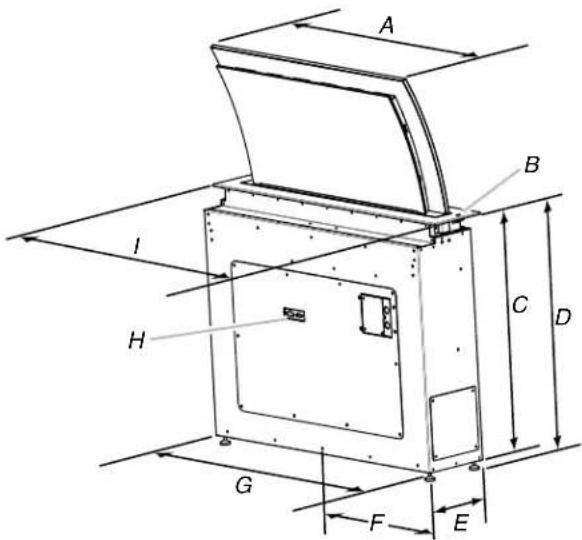

Product Dimensions Cabinet Dimensions

A B I H C D G F E

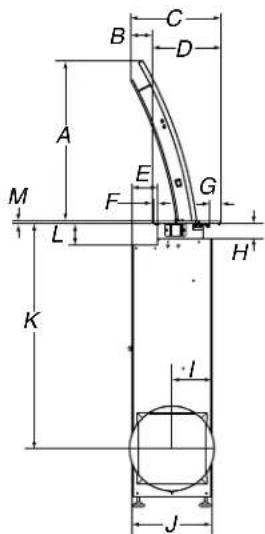

A. 35 ^1/4 " (89.5 cm)
B. Infrared remote sensor
C. 29 ^15/16 " (76.0 cm)
D. 33" (83.8 cm) min., 38½" (97.8 cm) max.
E. 9¼" (23.5 cm)

F. Centerline of bottom vent area

G. 39¼" (99.7 cm)

H. Remote up/down switch connector

1. 40 ^3/4 " (103.5 cm)

A B C D E F G M L H' K I J

A. 18½" (47.0 cm)
B. 2½" (6.4 cm)
C. 10 ^3/8 " (26.4 cm)
D. 7 ^1/8 (20.0 cm)
E. 3" (7.6 cm)
F. 12 " (1.3 cm)
G. 1 ^5/16 " (3.3 cm)

H. 1 ^5/8 (4.1 cm)
1.45% (11.7 cm)
J. 9¼" (23.5 cm)
K. 26" (66.0 cm)
typical, both sides
L. 2 ^7/16 " (6.2 cm)
M. 5/16" (0.8 cm)

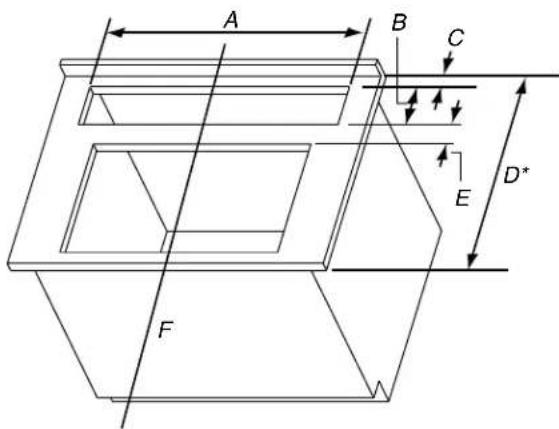

A B C D* E F

A. 39 ^1/6 (100.2 cm)
B. 6 11/16" (17.0 cm)
C. 2" (5.1 cm) min. to back wall
D. Minimum countertop depth. See IMPORTANT*.
E. 3½" (8.9 cm) min.
F. Centerline of cooktop and downdraft ventilation system

*IMPORTANT: Cabinet and countertop depths are determined by the cooking appliances to be used with this downdraft vent system.

NOTES:

■See appliance manufacturer's installation instructions for cooking appliances dimensional cutout requirements.
■ Exterior-mounted blower systems connect with 10" (25.4 cm) round vent. The cutout locations for this vent system will depend upon your specific installation.
■ Use the dimensions for the vent system cutout location that apply to your installation.

Countertop Cutout Dimensions

IMPORTANT: Countertops with a bull-nosed front edge are not recommended for these installations.

Cabinet and countertop depths requirements may be deeper than 38" (96.5 cm). This depth is determined by the cooking appliances being installed with this downdraft vent system.

To avoid mistakes, it is recommended that the cooktop and vent cutouts be drawn on the countertop before making any cutouts. See cooking appliance Installation Instructions for complete cutout dimensions, location dimensions and installation details.

A C B D

A. Cooktop
B. Downdraft vent system
C. Countertop
D. Back wall of cabinet

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

■If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located on the front of the downdraft vent.
■Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

Venting Requirements

IMPORTANT: Make sure there is proper clearance within the wall or floor before making exhaust vent cutouts.

■Use heavy (rigid) metal vent.
■Venting system must terminate to the outside.

■ Do not terminate the vent system in an attic or other enclosed area.

■Do not use 4" (10.2 cm) laundry-type wall caps.

■Do not install 2 elbows together.

■Do not use plastic or metal foil vent.

■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

■Use no more than three 90° elbows

■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than one elbow is used.
■ Use clamps or duct tape to seal all joints in the vent system.
■ Use caulking tape to seal the exterior wall or floor opening around cap.
■Do not cut joist or stud. If vent cutout falls over a joist or stud, a supporting frame must be constructed.

Flexible metal vent is not recommended. If it is used, calculate each foot of flexible vent as 2 ft (0.6 m) of rigid metal vent.

Flexible elbows count twice as much as standard elbows.

Recommended Vent System Length:

The vent system length should not exceed the maximum lengths listed in the Maximum Length of Vent System chart. See "Calculating Vent System Length" in the "Venting Methods" section in the Installation Instructions for the interior- or exterior-mounted vent motor.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

See the “Accessories” section for information on ordering optional kits.

INSTALLATION INSTRUCTIONS

NOTE: Your downdraft vent requires you to purchase an in-line (external type) blower motor system. See "Blower Motor System" in the "Accessories" section.

CAUTION: To reduce the risk of fire and electrical shock, install the downdraft only with remote blower systems that are sold by Whirlpool Corporation. Model numbers UXI0600DYS (600 cfm) and UXI1200DYS (1200 cfm).

Venting Methods

Determine which venting method is best for your application. Vent system can terminate through the wall or roof. A wall cap or roof cap is required.

NOTES:

■Venting through a concrete slab is not recommended.

■ The in-line blower motor system must be placed in an enclosed area and can be located in a utility room, basement, crawl space or attic. Observe all governing codes and ordinances.
■10" (25.4 cm) round vent duct is required for connections to the retractable downdraft vent system outlet cover and the remote blower motor inlet and outlet covers. 10" (25.4 cm) round vent duct is recommended for the retractable downdraft vent system with remote blower motor system. Transitioning to different size ducting will reduce the efficiency of the retractable downdraft vent system.

Technical line drawing of a mechanical device with two ports and directional arrows labeled A (no text or symbols beyond labels)

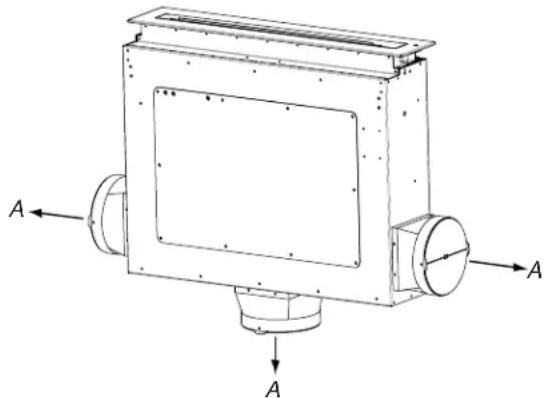

A. Three options for exhaust direction to remote blower motor system

Calculating Vent System Length

It is recommended that you use round vent instead of rectangular vent, especially if elbows are required. If rectangular vent is required, it should be transitioned to 10" (25.4 cm) round vent as soon as possible.

Maximum Length of Vent System

Vent Length

10" (25.4 cm) round 60 ft (18.3 m)

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece 10" (25.4 cm) Round

45° elbow 2.5 ft

(0.8 m)

90° elbow 5.0 ft

(1.5 m)

The maximum equivalent vent lengths of 10" (25.4 cm) round vents - 60 ft (18.3 m).

$$ 2 - 9 0 ^ {\circ} \text { elbows } = 1 0. 0 \text { ft (3 m) } $$

$$ 1 0 \mathrm{ft} (3 \mathrm{m}) \text { straight } = 1 0. 0 \mathrm{ft} (3 \mathrm{m}) $$

$$ \begin{array}{l l} \text { Length of } 1 0 ^ {\prime \prime} (2 5. 4 \mathrm{cm}) & = 2 0 \mathrm{ft} (6 \mathrm{m}) \ \text { system } \end{array} $$

NOTE: The remote blower system requires a separate wiring cable that should be installed at the same time the vent work is installed.

Downdraft Vent System Preparation

NOTE: It is easiest to install this unit before the countertop is installed. The preferred method of installation is inserting this unit into the cabinet and then placing the countertop over it.

WARNING

Excessive Weight Hazard

Use two or more people to move and install downdraft vent.

Failure to do so can result in back or other injury.

1. Place cardboard or similar material on top of a flat surface where you can easily assemble the downdraft vent system.
2. Open the wooden crate by removing the screws holding the top in position.
3. Remove the parts packages from the wood crate and set aside.
4. Remove the downdraft vent system from the wooden crate and place on assembly surface with the access panel/junction box facing up.
5. Measure the distance "E" from the cabinet floor to the top of the countertop.

NOTE: Dimension "E" must be 32 ^5/8 " (82.9 cm) minimum or the cabinet floor will have to be removed to allow the hood feet to rest on the floor.

A C B D E

A. Cooktop
B. Downdraft vent system
C. Countertop
D. Back wall of cabinet
E. Cabinet floor to top of countertop

1. Screw in the 4 feet so that the overall height of the unit from the feet to the top is approximately 1" (2.5 cm) less than dimension "E."

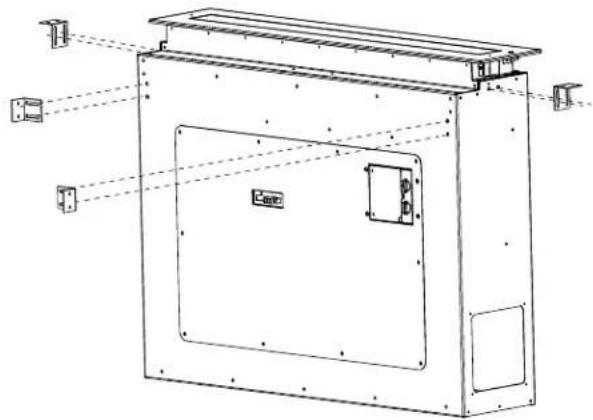

2. Install the right and left undercounter mounting brackets to the vent box. The mounting brackets can be mounted to the front or rear face of the downdraft for attachment to the cabinets or to each side face for attachment to the countertop. (See the following illustration.) Loosely secure the screws in the slots with the 4 - 4.9 x 12 mm machine screws.

Technical line drawing of a rectangular electronic device with mounting brackets and internal components (no text or symbols)

Vent Collar and Vent Transition Installation

When installed in a cabinet, the vent system can exhaust through the bottom, right side, or left side of the vent box. The downdraft vent system is shipped ready to vent out of the bottom of the vent box. If this is not the desired exhaust direction, complete the following steps.

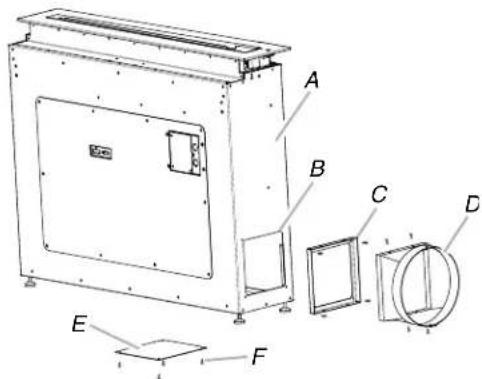

Technical diagram of a device with labeled components A through F, showing internal structure and mounting points.

A. Vent box
B. Exhaust port
C. Vent collar mounting frame
D. Vent transition
E. Cover plate
F.Screws

1. Remove cover plate from the desired exhaust port location.
2. Remove vent collar mounting frame from bottom exhaust port location.
3. Install the vent collar mounting frame to the desired vent box exhaust port using the 4 screws.
4. Install the vent translation to the vent collar mounting frame using 4 - 4.9 x 12 mm screws.
5. Install the cover plate to the exhaust port that the vent collar mounting frame was removed from using the 4 screws.

Install Downdraft Vent System

1. Remove the 3 screws from the terminal box cover.

Technical line drawing of a mechanical device with labeled components A and B (no text or symbols beyond labels)

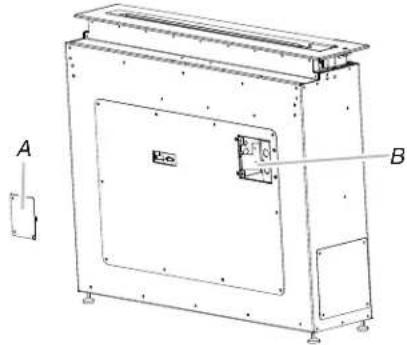

A. Terminal box cover
B. Knockout

1. Remove the knockout from the front panel and install a 12 " (1.3 cm) UL listed or CSA approved conduit connector.
2. Using 2 or more people, insert the downdraft vent into the cabinet. Position the downdraft vent so that it is approximately centered below the countertop cutout location.
3. If the countertop is not already installed, follow the directions for the countertop installation to place it onto the cabinets.
4. Using a 1/2" wrench, screw out the feet on the vent box to raise the top of the unit until it is flush with the top surface of the countertop.
5. Center and level the top of the downdraft vent left to right and front to back. Use a 916 " wrench to lock the feet into position with the locknuts.
6. Secure the hood vent box to the countertop or cabinet sides with the undercounter mounting brackets attached earlier at the desired location. If mounting to a countertop, use screws or mounting method recommended for the specific type of countertop.
7. Install the top frame support, using the 12 - 3.9 x 9 mm flat-head screws.
8. Install the top frame.

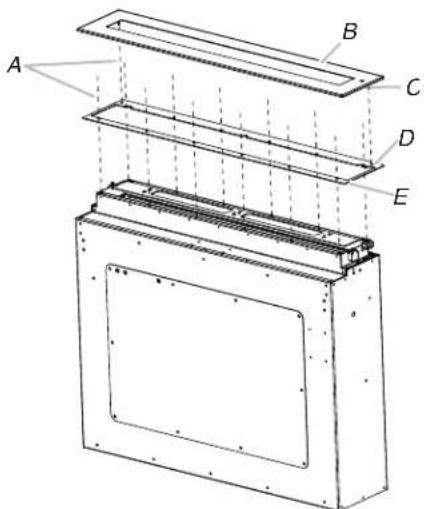

A B C D E

A. 12 Flat-head screws
B. Top frame
C. Guide pins in top frame
D. Hole for top frame guide pins
E. Top frame support

Install Downdraft Vent In-Line (External Type) Blower Motor

Prepare for Mounting the In-Line Blower System

The in-line blower system must be fastened to a secure structure of the roof, ceiling, wall, floor, or new or existing frame construction. The 4 holes on either the inlet (bottom) side or the outlet (top) side of the blower must be used to mount the in-line blower system to the structure.

NOTE: The mounting hole locations must span the studs. Additional stud framing may be required. Plywood may be used to span open areas between ceiling or floor joists or roof rafters to aid installation. This structure must be strong enough to support the weight of the in-line blower system (50 lb [22.7 kg] min).

Prepare the In-line Blower System

WARNING

Excessive Weight Hazard

Use two or more people to move and install in-line blower motor system.

Failure to do so can result in back or other injury.

1. Using 2 or more people, move the in-line blower motor system to the mounting location.
2. Remove the 10 screws from the front cover of the in-line blower motor housing and set them aside.
3. Remove the front cover of the in-line blower motor housing and set it aside.

NOTE: To make the blower motor housing easier to mount, the blower motor assembly can be removed. If you do not want to remove the blower motor assembly, proceed to "Install In-line Blower System" in this section.

1. Disconnect the motor electrical plug from the blower motor assembly.
2. Remove the screws that secure the blower motor assembly to the in-line blower housing and set them aside.
3. Pull the spring clip to release the blower motor assembly. Remove the blower motor assembly from the housing and place it on a covered surface.

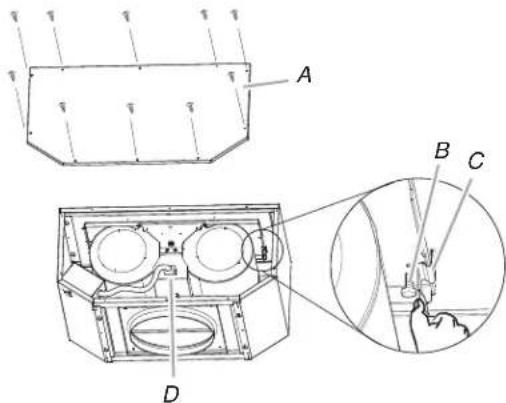

A B C D

A. Front cover
B. Blower mounting screws
C. Spring clip
D. Motor electrical plug

Install In-line Blower System

NOTE: The blower motor housing can be mounted using 4 holes from either the inlet side or the outlet side of the blower.

Outlet Side

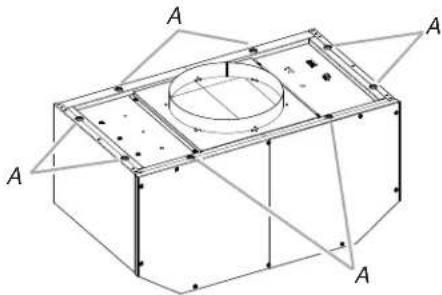

Isometric technical drawing of a rectangular mechanical housing with internal components and labeled points A (no text or symbols beyond labels)

A. Mounting holes

Inlet Side

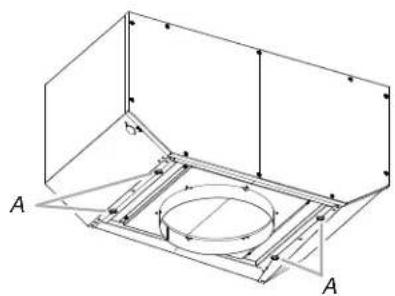

Technical line drawing of a mechanical assembly with labeled points A and a central circular feature (no text or symbols beyond labels)

A. Mounting holes

1. Position the in-line blower motor housing in its mounting location and mark the 4 mounting hole locations.
2. Drill 4 mounting pilot holes using a 3/16'' (4.8 mm) drill bit.
3. Attach the in-line blower motor housing to the mounting location with 4 - 6 x 80 mm mounting screws and washers.
4. If it is removed, reinstall the blower motor assembly and secure it with the screws previously removed.
5. If it is removed, reattach the motor electrical plug to the connector on the blower motor assembly.

Complete Preparation

1. Determine and make all necessary cuts for the vent system. IMPORTANT: When cutting or drilling into the floor, ceiling or wall, do not damage electrical wiring or other hidden utilities.
2. Determine the location where the 12 " (1.3 cm) wiring conduit will be routed through the floor, ceiling or wall between the in-line blower and the downdraft vent.
3. Drill a 1¼" (3.2 cm) hole at this location.
4. Locate the electrical terminal boxes in the in-line blower housing and downdraft vent. Remove the terminal box covers and set the covers and screws aside.

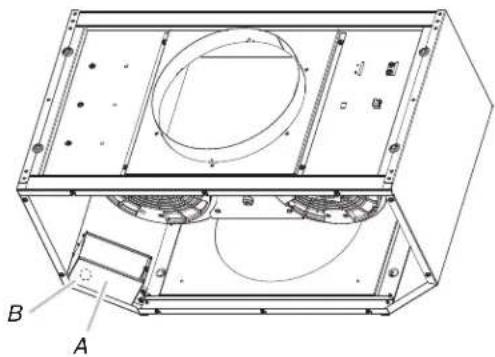

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

A. Electrical terminal box
B. Electrical knockout

1. Remove the electrical knockout from the in-line blower housing and downdraft vent to prepare for the installation of the UL listed or CSA approved 12 " (1.3 cm) wiring conduit and conduit connector.
2. With the downdraft vent mounted, run the 12 " (1.3 cm) wiring conduit between the in-line blower motor housing and the downdraft vent. Pull enough 12 " (1.3 cm) wiring conduit to allow for easy connection to the terminal boxes in the in-line blower housing and downdraft vent.
3. Run the six 18 AWG wires through the 12 " (1.3 cm) wiring conduit and conduit connectors and into the terminal boxes on the in-line blower housing and downdraft vent. Leave enough wire length in each terminal box to make the wiring connections.
4. Install the conduit connectors and conduit to the in-line blower housing and downdraft vent electrical terminal boxes.
5. Connect the vent system to the downdraft vent and in-line blower system and seal all joints with clamps.

Make Electrical Connections for In-Line Blower Motor System

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

Electrical Connection Inside In-line Blower System

1. Disconnect power.
2. Connect the wires from the wiring conduit to the wires from the motor electrical plug cable inside the in-line blower housing terminal box.

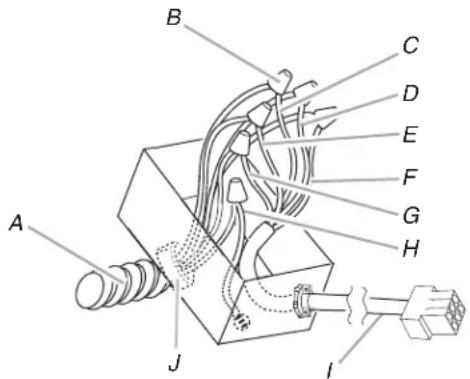

A B C D E F G H J I

A. UL listed or CSA approved 12 " (1.3 cm) wiring conduit
B. UL listed wire connectors
C. Black wires
D. White wires
E. Red wires

F. Blue wires
G. Gray wires
H. Green (or yellow/green) and green/yellow wires
I. Motor electrical plug cable
J. UL listed or CSA approved 12 " (1.3 cm) strain relief

1. Use UL listed wire connectors and connect the black wires (C) together.
2. Use UL listed wire connectors and connect the white wires (D) together.
3. Use UL listed wire connectors and connect the red wires (E) together.

4. Use UL listed wire connectors and connect the blue wires (F) together.

5. Use UL listed wire connectors and connect the gray wires (G) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect the green (or yellow/green) ground wire to the green/yellow ground wire (H) in the terminal box using UL listed wire connectors.
2. Reinstall the in-line blower terminal box cover and screw.
3. Reinstall the front cover of the in-line blower housing and secure it with 10 mounting screws.

Electrical Connection Inside Downdraft Vent Between In-line Blower System and Downdraft Vent

NOTE: Discard the 6-wire connector assembly supplied with the in-line blower motor system.

1. With the downdraft vent mounted, locate the terminal block inside the downdraft vent junction box.
2. Using a small 18 " flat-blade screwdriver, loosen the screw in the 5 open spots of the terminal block.
3. Connect the same color wire from the in-line blower wiring conduit to the same color wires on the terminal block in the downdraft vent junction box (black to black, white to white, etc.).
4. Tighten the terminal block screws.

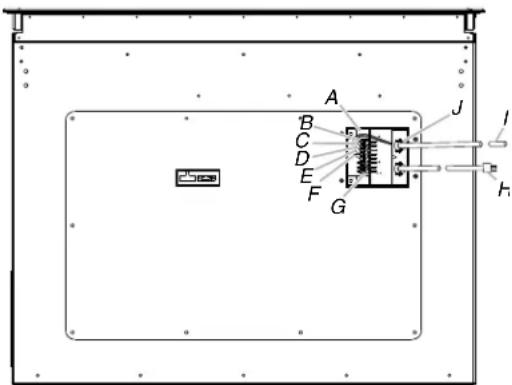

A B C D E F G J I H

A. Downdraft vent junction box

B. Black wires
C. Gray wires
D. Red wires
E. White wires
F. Green (or yellow/green) and green/yellow wires

G. Terminal block
H. Power supply cord
1. 12 " (1.3 cm) UL listed or CSA approved wiring conduit from in-line blower system
J. 12 " (1.3 cm) UL listed or CSA approved conduit connector

Complete Installation

1. Plug the optional remote up/down switch into the front panel of the vent box.

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

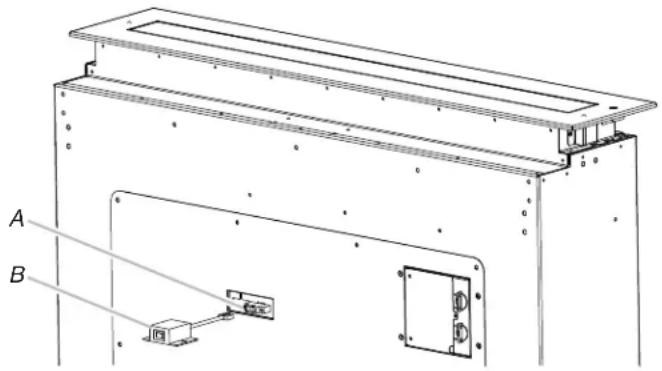

A. Remote up/down switch connector
B. Remote up/down switch

1. Use cable tie mounting bases and cable ties to rout the switch wiring to an easily accessible area near the front inside of the cabinet.
2. Use 2 screws to secure the remote up/down switch housing to the cabinet.
3. Connect vent system to blower. Vent system must end with a wall or roof cap. Use clamps or duct tape to seal all joints.

Grounding Instructions

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper grounding can result in risk of electric shock.

Consult a qualified electrician if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

NOTE: The grounded 3 prong outlet shall be located below the cooktop surface and cannot be placed in a closed cabinet without any access. Route the power cord beneath the downdraft vent system and away from the heat generated by the cooktop of other appliances.

1. Plug 3 prong power cord into a grounded 3 prong outlet located inside the cabinet where the downdraft vent is mounted.
2. Use the remote control or the remote up/down switch to raise the vent hood. (See the "Remote Control Operation" section.) If the vent hood does not rise, check that the circuit breaker has not tripped or a household fuse blown.
3. Remove packing material.
4. Install filters. See "Filters" in the "Vent System Care" section.
5. Install glass. See "Glass" in the "Vent System Care" section.

DOWNDRAFT VENT SYSTEM USE

The retractable downdraft vent system is designed to remove smoke, cooking vapors and odors from the cooktop area.

■ For best results, the vent should be operating before cooking is started.

■If you use large or tall utensils, place them on the large rear element or burner surface.

■A higher heat setting than normally used may be needed when the downdraft vent is operating.

■For gas cooktops, the downdraft vent system may affect the flame stability and cooking performance. To improve the burner performance, either decrease the downdraft vent blower speed or increase the cooktop burner flame setting.

For gas cooktops with flame sensing ignitions, the downdraft vent system may disperse the flame away from the spark igniter and may cause it to continually spark while trying to reignite a burner that is already lit. To resolve the issue of the cooktop igniter continuously sparking, either decrease the downdraft vent blower speed or increase the cooktop flame setting for that burner.

Operating Downdraft Vent System

Downdraft Vent System Use:

NOTES:

■ The downdraft vent system will not allow the vent hood to be lowered with the glass removed.

■The downdraft vent system comes with a remote up/down switch to be used in conjunction with the downdraft mounted controls and a handheld remote control.

Remote Up/Down Switch

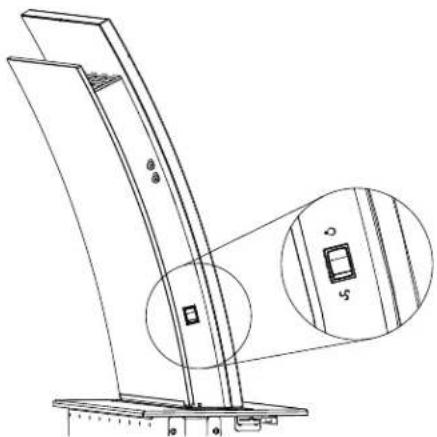

The remote up/down switch is used to raise and lower the vent hood without use of the handheld remote.

Technical line drawing of a mechanical assembly with mounting brackets and a small component labeled A (no text or symbols present)

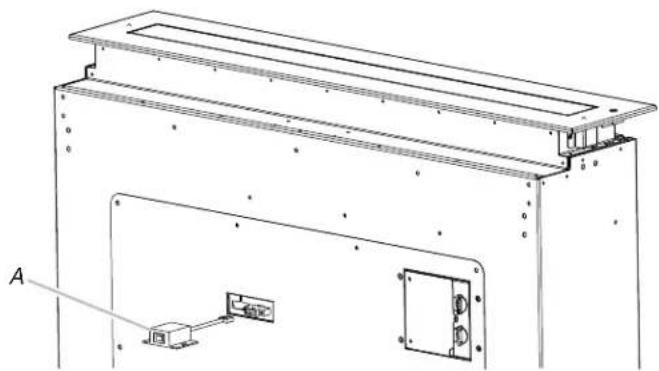

A. Remote up/down switch

1. Push the remote up/down switch to raise and lower the vent hood. If the fan and lights are On, they will turn Off when the vent hood is being lowered.

Downdraft Mounted Controls

The downdraft mounted controls are used to turn On and control the fan speed and to turn on the base lights without use of the handheld remote.

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

1. Push the control switch up to turn the base lights On and Off.

2. Push the control switch down to turn On and change the fan speed from 1 to 4, then to Off. The number of fan speed indicator lights increase as the fan speed increases, and all turn off when the fan is Off.

A B C D E F

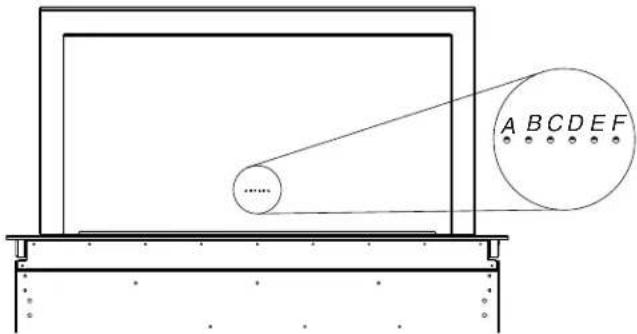

Indicator Lights

A. White - auto off timer indicator

B. White - speed 1 (low)

C. White - speed 2

D. White - speed 3

E. White - speed 4

F. Red - clean filter indicator

NOTE: The "Clean Filter" indicator comes on after 30 hours of blower operation. See the "Vent System Care" section for filter cleaning requirements.

To reset the indicator, press and hold the Speed Increase button on the remote, or the Speed Increase rocker on the right side of the unit, for approximately 7 seconds.

Remote Control Operation

A F E B C Max D

A. Power on/off

B. Up/down

F. Fan speed increase

NOTE: The infrared remote (IR) sensor is located on the top right surface of the ventilation system top frame. When the remote communicates with the sensor, there is an audible signal.

Power On/Off

■ When hood is in the down position, the On/Off button raises hood, turns on the lights and sets the fan speed to 1 (minimum). One speed indicator light comes on.
■ When hood is in the raised position, the On/Off button turns the blower and speed indicator light off.

Up/Down

■The up/down button raises and lowers the hood. The lights and fan turn Off in the down position.

Fan Speed Increase

■Increases fan speed from speed 1 to speed 4. The number of fan speed indicator lights increases as the fan speed increases.

Fan Speed Decrease

■Decreases fan speed from speed 4 to speed 1. The number of fan speed indicator lights decreases as the fan speed decreases.

Maximum Fan Speed

■Turns the fan directly to speed 4 without stepping through speeds 1-3 and turns the indicator lights on to the maximum number.

Auto Off (fan only)

■Steps down (decreases the fan speed) through the speeds to Off (33 minutes to Off from maximum speed). The left indicator light blinks and the fan speed indicator lights turn Off as the fan speeds change.
■Steps down from speed 4 to speed 3 - (3 minutes).
■Steps down from speed 3 to speed 2 - (5 minutes).
■ Steps down from speed 2 to speed 1 - (10 minutes).
■Steps down from speed 1 to OFF - (15 minutes).

NOTE: If the remote stops functioning properly, remove the batteries for 1 minute and then reinstall the batteries. (See "Changing the Remote Batteries" in the "Vent System Care" section.) This will reset the remote to its original settings. If the remote still does not function properly, change the batteries. The remote requires 2 - CR2032 batteries.

VENT SYSTEM CARE

Surface of Downdraft Vent

To avoid damaging the finish, clean downdraft vent with soap and water. Do not use scouring powder or abrasive solutions.

Exterior Surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads.

Always wipe dry to avoid water marks.

Cleaning Method:

■ Liquid detergent soap and water, or all-purpose cleanser
■ Wipe with damp soft cloth or nonabrasive sponge, and then rinse with clean water and wipe dry.

Glass

To Remove:

1. The vent hood must be in the raised position. See the "Downdraft Vent System Use" section.
2. Grasp the glass on both sides and pull up to disengage the glass panel hooks from the glass retention pins and bottom channel.

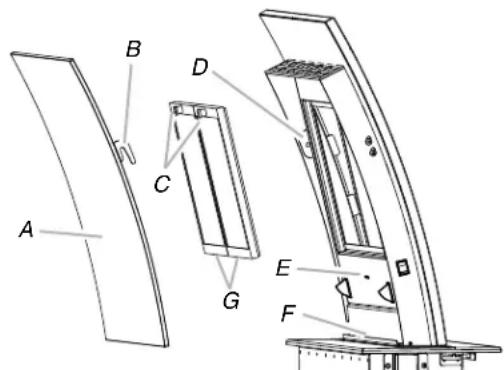

Technical diagram of a device with labeled components A through G, showing internal structure and assembly details.

A. Glass panel
B. Hooks - glass panel (2)
C. Filter knobs

D. Glass retention pins (2)

E. Indicator lights

F. Bottom channel

G. Filters (2)

1. Wash both sides of the glass with warm, soapy water or glass cleaner.
2. Wipe the glass with a soft damp cloth or nonabrasive sponge, then rinse with clean water and wipe dry.

To Install:

1. The vent hood must be in the raised position. See the "Downdraft Vent System Use" section.
2. The filters should be installed before replacing the glass. See the "Filters" section.
3. Align the bottom edge of the glass with the bottom channel and attach the hooks over the pins on the vent hood.
4. Slide the glass down to clip the hooks onto the pins and capture the bottom of the glass in the channel.

Filters

Frequently remove and clean the filter(s) in the retractable section of the downdraft vent. This will improve the operating efficiency of the downdraft vent system.

NOTE: The glass panel must be removed prior to removing the filters. See "To Remove" in the "Glass" section.

To Replace or Clean:

1. Remove each filter by pulling the knob and lifting up.
2. Wash metal filters as needed in dishwasher or hot detergent solution and dry the clean filters.
3. Reinstall the filter by making sure the knobs are toward the front. Insert metal grease filter into the bottom filter track.
4. Push up on metal filter and it will magnetically latch into place.
5. Repeat steps 1-4 for the other filter.
6. Replace the glass panel. See "To Install" in the "Glass" section.

Changing the Remote Batteries

To Remove Battery:

1. Use a small Phillips screwdriver to remove the screw from the small back cover.
2. Pull up on the bottom of the remote and remove. It has a slot on the end and is magnetically held in place.
3. Remove the battery by pushing it toward the center to clear the edge of the battery from the 2 battery retention tabs, and pull it out to remove the battery.
4. Repeat Step 3 for other battery.

To Replace Battery:

1. Place the battery into the battery mounting hole with the positive (+) side up. Push the battery to the left against the spring and push down to lock it under the 2 battery retention tabs.
2. Repeat Step 1 for other battery.
3. Replace the small back cover. Fit the end tab under the large back cover and snap it into place.
4. Use a small Phillips screwdriver to replace and secure the screw.
   NOTE: The remote uses 2 - CR2032 3v lithium batteries.

USER SERVICING INSTRUCTIONS

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

NOTE: If the hood does not operate, check to see if the circuit breaker has been tripped and that there is power to the unit.

Replacing the Fuse

1. Disconnect power
2. Using a flat-blade screwdriver, pry the fuse cover away from the front panel of the downdraft hood.
3. Remove the fuse from the fuse holder by pushing it from the bottom side with the screwdriver.

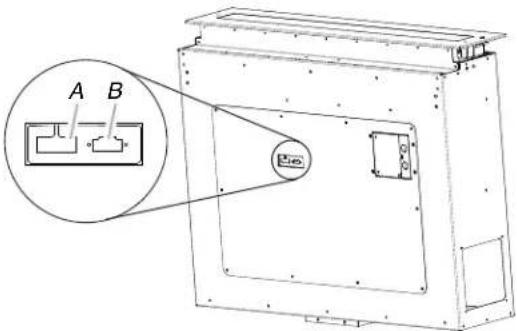

A B

A. Fuse holder
B. Remote up/down switch connector

1. To avoid the risk of fire, replace the fuse with a 125 volt, 5 amp non-time delay fuse.
2. Push cover in until it locks into position.
3. Reconnect power.

WIRING DIAGRAM

SEL0053854 Power Supply 12VDC BK OR BK YL/GN BK WH WL BK E.M.C. Filter BK YL/GN WH WL BK WH WL BK YL/GN YL/GN N 1 2 3 4 BU WH RD GY BK D F1 BR BK RD WH GY Suction Control Board Mater Board RK DR BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY BY By BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR BR Brk 1 BA Bk 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA k 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA m 1 BA n 2 B C D E F G H I J K L M N O P Q R S T U V W X Y Z Y A B B C D E E F F G H I J K L M N O P Q R S T U V W X Y Z Y A B B C D E E F S U V W X Y Z Y A B B C D E E F S U V W X Y Z Y A B B C D E E F S U V W X Y Z Y A B B C D E E F S U V W X Y Z Y A B B C D E E F S U V W X Y Z Y A B B C D E E F S U V W X Y Z Y A B B C D E E F S U V W x y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y z y s t u v t h e r o n d i n g e r e c t i o n d i n g e r e c t i o n d i n g e r e c t i o n d i n g e r e c t i o n d i n g e r e c t i o n d i n g e r e c t i o n d i n g e r e c t i o n d i n g e r e c t i o n d i n g e r e c t i o n d j e l e d l i n g e r e c t i o n d j e l e d l i n g e r e c t i o n d j e l e d l i n g e r e c t i o n d j e l e d l i n g e r e c t i o n d j e l e d l i n g e r e c t i o n d j e l e d l i n g e r e c t i f o r a b b c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c & b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b a x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x w # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # ## # A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Y A B B C D E E F G H I J K L M N O P Q R S T U V W X Y Z Y A B B C D E E F G H I J K L M N O P Q R S T U V W X Y Z Y A B B C D E E F G H I J K L M N O P Q R S T U V W X Y Z Y A B B C D E E F G H I J K L M N O P q u a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a u p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p p.p . . B C D E E F G H I J K L M N O P Q R S T U V W X Y Z Y A B B C D E E F G H I J K L M N O P q u aa#e#n#l# ## ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ####### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ###### ##### ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ### FUSE F2 Bk BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BRBLBk BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BR BL BRBLBk BR BL BR BL BR BL BR BL BR BL BR BL BR BL BRBLBk Br BL BR BL BR BL BR BL BR BL BRBLBk Br BL BR BL BR BL BR BL BRBLBk Br Bl BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBk Br BTBkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBrkBTbRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdRdrDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsgDsngTmWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtWtswwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnnsnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnssnSSmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmbblgmmsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbsbblgmbrbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkbkkbkkbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbbb

ASSISTANCE OR SERVICE

If you need service

Please refer to the warranty page in this manual.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call Jenn-Air Customer eXperience Center toll free:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

Our consultants provide assistance with:

■Scheduling of service. Jenn-Air ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.
■Features and specifications on our full line of appliances.
■Referrals to local Jenn-Air ^30 appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance

If you need further assistance, you can write to Jenn-Air®

Appliances with any questions or concerns at:

Jenn-Air Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free at 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

Our consultants provide assistance with:

■Scheduling of service. Jenn-Air ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada.
■Features and specifications on our full line of appliances.
■Referrals to local Jenn-Air ^® appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.

For further assistance

If you need further assistance, you can write to Jenn-Air®

Appliances with any questions or concerns at:

Jenn-Air Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

NOTE: Instructions are included with each kit.

Blower Motor System (1 system is required)

600 CFM In-Line Blower Motor System

Order model number UXI0600DYS

1200 CFM In-Line Blower Motor System

Order model number UXI1200DYS

10" (25.4 cm) Round Make-Up Air System

Order Part Number W10446917

JENN-AIR® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address and telephone number
■Model number and serial number
■A clear, detailed description of the problem
■Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit https://jennair.custhelp.com.
2. All warranty service is provided exclusively by our authorized Jenn-Air Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Jenn-Air Customer eXperience Center

1-800-JENNAIR (1-800-536-6247)

https://jennair.custhelp.com

If outside the 50 United States or Canada, contact your authorized Jenn-Air dealer to determine whether another warranty applies.

TWO YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For two years from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Jenn-Air”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Jenn-Air designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Jenn-Air parts or accessories.
6. Conversion of products from natural gas or L.P. gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Jenn-Air.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes unless such damage results from defects in materials and workmanship and is reported to Jenn-Air within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Jenn-Air servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

SÉCURITÉ DU SYSTÈME DE VENTILATION

A B I H C D G F E

A. 35 ^1/4 " (89,5 cm)

C. 29 ^15/_16 " (76,0 cm)

D. 33" (83,8 cm) min., 38½" (97,8 cm) max.

E. 9 ^1/4 " (23,5 cm)

A B C D E F G M L H' K I J

A. 18½" (47,0 cm)

B. 2½" (6,4 cm)

C. 10 ^3/8 " (26,4 cm)

D. 718 (20,0 cm)

E. 3" (7,6 cm)

F. 12 " (1,3 cm)

G. 1 ^5/16 " (3,3 cm)

H. 15% (4,1 cm)

1.45% (11,7 cm)

J. 9 ^1/4 " (23,5 cm)

B. 6 11/16" (17,0 cm)

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Technical line drawing of a mechanical device with two ports and directional arrows labeled A (no text or symbols beyond labels)

Technical line drawing of a rectangular electronic device with mounting brackets and internal components (no text or symbols)

Technical diagram of a device with labeled components A through F, showing internal structure and mounting details.

Technical line drawing of a mechanical device with labeled components A and B (no text or symbols beyond labels)

Isometric technical drawing of a rectangular device with internal components and labeled corner points (no text or symbols present)

A. Trous de montage

Côté entrée

Isometric technical drawing of a mechanical assembly with labeled points A and a central circular feature (no text or symbols beyond labels)

A. Trous de montage

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

A B C D E F G H J I

A B C D E F G J I H

Technical line drawing of a mechanical assembly with labeled components A and B (no text or symbols beyond labels)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing a component detail (no text or symbols)

Technical diagram of a device with labeled components A through G, showing internal structure and assembly details.

ASSISTANCE OU SERVICE

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

http://www.jennair.ca
