JVI0636LS - Range hood JENN-AIR - Free user manual and instructions

Product type	Island range hood
Brand	JENN-AIR
Model	JVI0636LS
Width	91.4 cm (36 in)
Minimum height above cooking surface	76.2 cm (30 in)
Suggested maximum height	91.4 cm (36 in)
Weight (approx.)	45.4 kg (100 lb)
Power supply	120 V, 60 Hz, 15 A
Duct diameter	15.2 cm (6 in) round
Exhaust type	External or recirculation (with optional kit)
Fan speeds	4 speeds (Min, Med, Max, Boost)
Boost function	Timed maximum speed (5 min), automatic return
Timer	Adjustable automatic shutoff (15 min)
Lighting	2 integrated LED lights
Grease filter	Metallic, dishwasher safe
Charcoal filter	Optional (for recirculation), washable
Filter saturation indicator	Yes (light signal)
Controls	Touch buttons (T1 to T6)
Material	Stainless steel
Installation	Ceiling mounted, requires support for 45.4 kg load
Grounding	Required
Grease filter maintenance	Monthly
Charcoal filter maintenance	Every 2 months (wash), replace every 3 years
Replacement parts available	Filters, recirculation kits, duct cover extensions, etc.

Frequently Asked Questions - JVI0636LS JENN-AIR

How to clean the grease filters?

The metal grease filters can be cleaned by hand or in a dishwasher (short cycle, low temperature). They should be cleaned once a month. Dishwasher washing may slightly discolor them, but this does not affect their efficiency.

How to reset the filter saturation indicator?

The Filter button (T6) light turns on when the grease or charcoal filters need maintenance. To reset, press the T6 button for more than 3 seconds. The light turns off. For the charcoal filter, ensure the function is activated (see manual).

Can I use the hood without external exhaust?

Yes, there is a recirculation version. You must purchase separately the recirculation kit (part number W11522798) that includes a charcoal filter and a deflector. The air is then filtered and returned to the kitchen.

How to set the automatic shutoff timer?

Press and hold the desired fan speed button (Min, Med, Max or Boost) for 2 seconds. The fan will automatically stop after 15 minutes and the light will flash. To cancel, press the same button again.

What if the LED lights stop working?

The LED lights are integrated and must be replaced by an authorized technician. Contact customer service at 1-800-JENNAIR (United States) or 1-800-536-6247 (Canada) for assistance.

What are the minimum clearances for installation?

The hood must be installed at least 76.2 cm (30 in) above an electric or gas cooktop. The suggested maximum height is 91.4 cm (36 in). Check the product dimensions and location requirements in the manual.

How to electrically connect the hood?

The hood must be connected to a 120 V, 60 Hz, 15 A circuit with ground. Follow the wiring instructions: connect black (L), white (N), and green/yellow (ground) wires. Use UL-approved cable clamps and connectors. Call a qualified electrician if needed.

What is the Boost function?

The Boost function (T4) activates the maximum fan speed for 5 minutes, then automatically returns to the previous speed. It is ideal for quickly removing intense smoke and odors.

How to enable or disable the charcoal filter signal?

Turn off the hood, then press the T6 (Filter) button for more than 3 seconds. The button lights up: the charcoal filter reminder function is activated. To deactivate, repeat the same procedure (the button turns off).

Where can I find replacement parts like filters?

You can order parts from JennAir customer service at 1-800-JENNAIR or at www.jennair.com. Part numbers are listed in the manual: replacement grease filter (W11522797), recirculation kit (W11522798), etc.

USER MANUAL JVI0636LS JENN-AIR

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE

UNIQUEMENT.

JENNAIR®

TABLE OF CONTENTS TABLE DES MATIÈRES

HOOD SAFETY 2

INSTALLATION REQUIREMENTS....4

Tools and Parts....4

Location Requirements....4

Venting Requirements....5

Electrical Requirements 6

INSTALLATION INSTRUCTIONS....7

Prepare Location....7

Assemble and Install Hood....7

Make Electrical Connection....10

Install Duct Covers....11

HOOD USE....13

Controls and Features....13

HOOD CARE....14

User Servicing and Maintenance Instructions....14

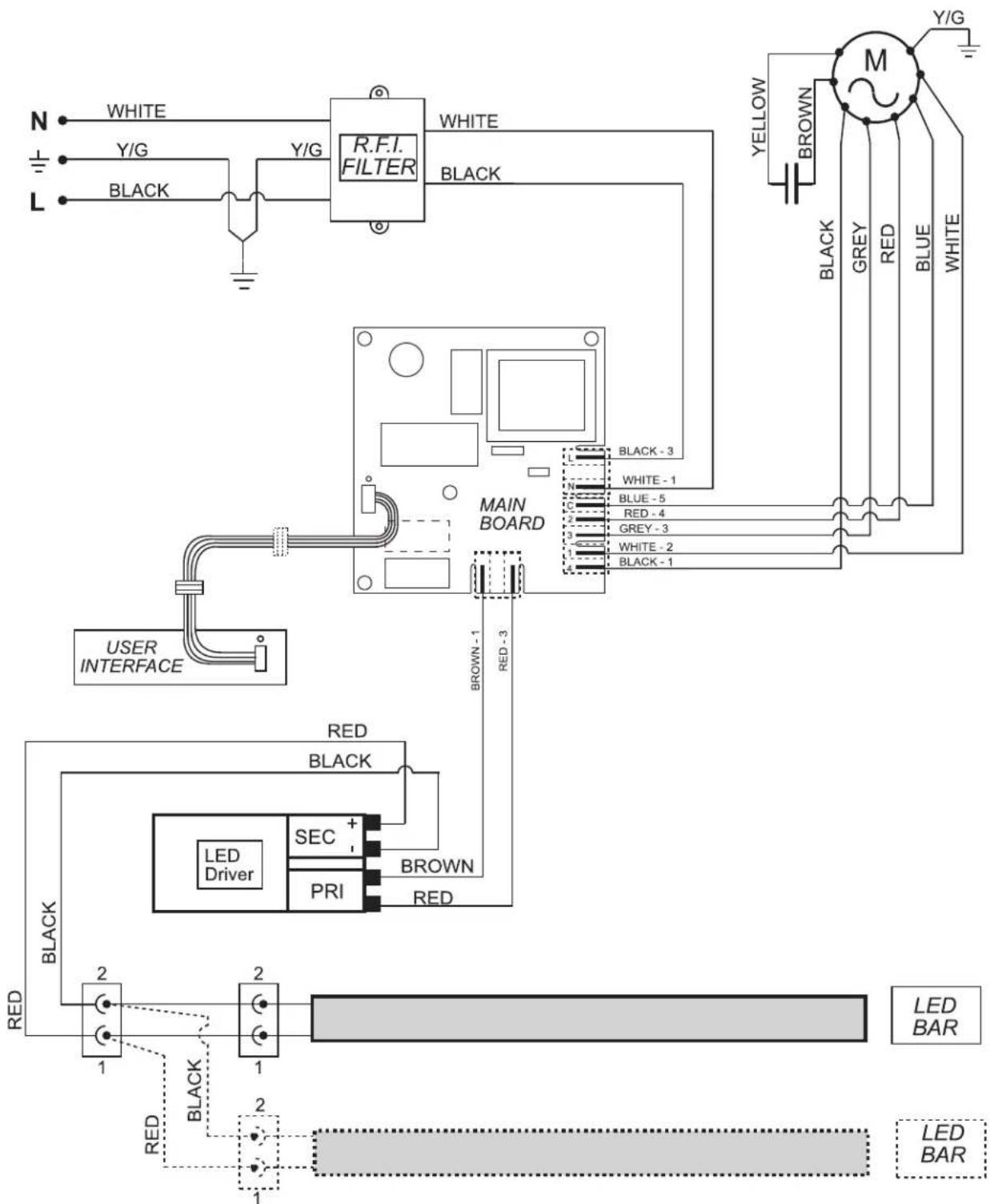

WIRING DIAGRAM....15

ASSISTANCE OR SERVICE....16

In the U.S.A. 16

In Canada....16

Accessories....16

SÉCURITÉ DE LA HOTTE....17

EXIGENCES D'INSTALLATION ....19

INSTRUCTIONS D'INSTALLATION....22

ASSISTANCE OU SERVICE....32

Aux É.-U. 32

Au Canada....32

Accessoires....32

HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented to the outdoors.

CAUTION: For General Ventilating Use Only. Do To Exhaust Hazardous Or Explosive Materials And Vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside -Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING ^a :

■ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
■ NEVER PICK UP A FLAMING PAN - You may be burned.
■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
■ Use an extinguisher ONLY if:
- You know you have a Class ABC extinguisher, and you already know how to operate it.
- The fire is small and contained in the area where it started.

Use The fire department is being called.

- You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.
This appliance is not intended for use by people (including children) whose physical, sensory or mental capacities are different or impaired or who lack the necessary experience or knowledge/expertise to do so, unless such persons are supervised or are trained to operate the appliance by a person who accepts responsibility for their safety.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Level

■ Drill with 1¼" (3 cm), 3/8" (9.5 mm), 7/64" (2.75 mm) and 1/8" (3 mm) drill bits
■ Pilot hole drill bits (determined by chimney support attachment method)

■Pencil
■Wire stripper or utility knife
■Tape measure or ruler
■Pliers
■Caulking gun and weatherproof caulking compound
■Vent clamps
■Jigsaw or keyhole saw
■Flat-blade screwdriver
■Metal snips
■Phillips screwdriver
Ladder
■Hacksaw

Parts needed

■Home power supply cable
■ 1/2" (12.7 mm) UL listed or CSA approved strain reliefs (2)
■UL listed wire connectors (3)

For vented installations, you will also need:

■Wall or roof cap

■Metal vent system

For non-vented (recirculating) installations, you will also need:

■ Recirculating Kit for non-vented (recirculating) installations only. See “Assistance or Service” section to order.

■6" (15.2 cm) round metal vent duct. Length required is determined by ceiling height.

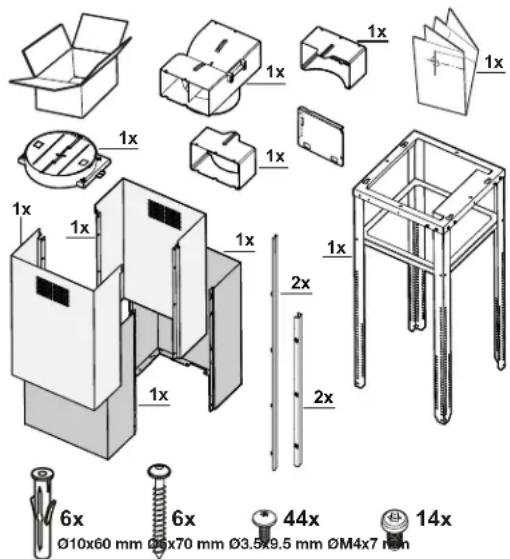

Parts Supplied

Remove parts from packages. Check that all parts are included.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial rating plate is located behind the left filter on the rear wall of the vent hood.

Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

Grounded electrical outlet is required. See "Electrical Requirements" section.

Because of the size and weight of this island hood, the chimney support must be securely attached to the ceiling.

For plaster or drywall ceilings, the chimney support must be attached to joists. If this is not possible, you must build a support structure behind the plaster or drywall. The support structure must be able to support 100 lbs (45.4 kg).

IMPORTANT: The means of fixing supplied with the hood, are exclusively suitable for fixing on concrete or brick ceiling.

■ Ask a qualified technician to indicate which fasteners should be used depending on the type of wall/ceiling in the home.
For the various wall- or ceiling-mounted installations, use screws and dowels suited to the type of structural material (e.g. cement, wood, etc.).
■Check that the screws and dowels supplied with the product are suited to the type of wall/ceiling on which the hood will be mounted.
■ A qualified technician must ensure the wall/ceiling where the hood will be installed is solid enough to support the weight of the product.

If not, prepare a suitable frame for said purpose.

This hood is recommended for use with cooktops with a maximum total rating of 90,000 BTUs or less.

The hood is factory set for venting through the roof.

For non-vented (recirculating) installation, see "Non-vented (recirculating) Installations" in "Assemble and Install Hood" section. Recirculation Kit Part Number W11522798 is available from your dealer or an authorized parts distributor.

All openings in ceiling and wall where hood will be installed must be sealed.

For Mobile Home Installations

The installation of this hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

Product Dimensions

A. 13^16/16 " (35.5 cm)
B. 13^16 / 16 (35.5 cm)
C. 36" (91.4 cm)
D. 23^10/_16 " (60 cm)

*Vented installations only

E. 2^6/_16 " (6 cm)

F. 13^16 / _16 " (69 cm)

G. **13 ^14 /16" (81 cm) minimum

***40 ^9/16 " (103 cm) minimum

**Non-vented (recirculating) installations only

Installation Dimensions

A. Ceiling height
B. Hood height from ceiling to bottom of the hood: A - C - D = B
C. 30" (76.2 cm) minimum to 36" (91.4 cm) maximum suggested hood height
D. Countertop height

IMPORTANT:

Minimum distance "C": 30" (76.2 cm) from electric cooking surface.

Minimum distance "C": 30" (76.2 cm) from gas cooking surface.

Suggested maximum distance "C": 36" (91.4 cm)

The chimneys can be adjusted for different ceiling heights. See the following chart.

	Vented Installations
	Minimum ceiling height	Maximum ceiling height
Electric cooking surface	7' 10" (2.39 m)	10' 4" (3.24 m)
Gas cooking surface	8' 4" (2.54 m)	9' 10" (3.0 m)

Non-vented (Recirculating) Installations

	Minimum ceiling height	Maximum ceiling height
Electric cooking surface	7' 10" (2.39 m)	10' 4" (3.24 m)
Gas cooking surface	8' 4" (2.54 m)	10' 4" (3.24 m)

*NOTE: The hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "C" between the bottom of the hood and the cooking surface. For higher ceilings, a Stainless Steel Chimney Extension Kit Part Number is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the hood.

Venting Requirements

■Vent system must terminate to the outside, except for non-vented (recirculating) installations.
■ Do not terminate the vent system in an attic or other enclosed area.
■Do not use 4" (10.2 cm) laundry-type wall caps.
■Use metal vent only. Rigid metal vent is recommended. Do not use plastic or metal foil vent.
■ The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the hood.

For the most efficient and quiet operation:

■Use a straight run or as few elbows as possible.
■Use no more than three 90° elbows.

■ Make sure there is a minimum of 24" (61.0 cm) of straight vent between the elbows, if more than 1 elbow is used.

■Do not install 2 elbows together.
■Use vent clamps to seal all joints in the vent system.

■ Use caulking to seal exterior wall or roof opening around the cap.

■The size of the vent should be uniform.

Cold Weather Installations

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

Venting Methods

This island hood is factory set for venting through the roof.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance. Vent system can terminate either through the roof or wall.

To vent through a wall, a 90° elbow is needed.

For Non-Vented (recirculating) Installations

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, fitting a charcoal filter and the deflector. Fumes and vapors are recycled through the top grille.

Roof venting Non-vented (recirculating)

A. Roof cap
B. 6" (15.2 cm) round vent

A. Deflector
B. 6" (15.2 cm) round vent
NOTE: Wall venting can be an option for 2-story homes.

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent ft (meters) for each vent piece used in the system.

Vent Piece 6" (15.2 cm) Round

45° elbow 2.5 ft (0.8 m)

90° elbow 5.0 ft (1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example Vent System

The following example falls within the maximum vent length of 35 ft (10.7 m).

1 - 90° elbow = 5 ft (1.5 m)

1 - wall cap = 0 ft (0.0 m)

8 ft (2.4 m) straight = 8 ft (2.4 m)

System length = 13 ft (3.9 m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

GROUNDING INSTRUCTIONS

■If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
■Do not ground to a gas pipe.
- Check with a qualified electrician if you are not sure hood is properly grounded.
■Do not have a fuse in the neutral or ground circuit.
- Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

WARNING: Improper grounding can result in a risk of electric shock.

■Only for appliances provided with power supply cord:

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
■ Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

■Do not run cord under carpeting.

■ Do not cover cord with throw rugs, runners, or similar coverings.

■Do not route cord under furniture or appliances.

- Arrange cord away from traffic area and where it will not be tripped over.

■ The hood should be connected directly to the fused disconnect (Or circuit breaker).

■ Wire sizes must conform to the requirements of the National Electrical Code ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code Part 1 and C22.2 No. 0-M91 - latest edition** and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

INSTALLATION INSTRUCTIONS

Prepare Location

■ It is recommended that the vent system be installed before the hood is installed.
■Before making cutouts, make sure there is proper clearance within the ceiling for exhaust vent.
■ Hood is to be installed 30" (76.2 cm) minimum for electric cooking surfaces, 30" (76.2 cm) minimum for gas cooking surfaces, to a suggested maximum of 36" (91.4 cm) above the cooking surface.
■ Check your ceiling height and the hood height maximum before you select your hood.

1. Disconnect power.
2. Determine which venting method to use: roof, wall, or non-vented.
3. Select a flat surface for assembling the hood. Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift hood onto covered surface.

Hood Mounting Screws Installation

1. Determine and mark the centerline on the ceiling where the hood will be installed, considering the requirements for ceiling support structures. See the "Location Requirements" section. Make sure the hood is centered over the cooking surface.
2. Tape template in place on the ceiling at the marked centerline. The line for the front of the hood should be parallel to the front of the cooktop.

Hand holding a grid-like object with intersecting lines above (no text or symbols)

1. Use a pencil to mark the mounting screws, wire access and duct hole locations on the ceiling.

NOTE: Mounting hole locations should be into a ceiling support structure capable f holding 100 lbs (45.4 kg). Remove the template.

1. Drill (4) 3/16" (4.8 mm) pilot holes for mounting the upper horizontal support

Complete Preparation

1. Determine the required location for the home power supply cable and drill a 1/2" (1.3 cm) diameter hole for wire access.
2. Run wire through the home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough 1/2" conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box.

NOTE: Do not reconnect power until installation is complete.

NOTE: For better handling of the hood, before proceeding with installation, remove the perimeter suction panel and the grease filter, as shown in figure, steps 1-2-3-4.

1. For vented installations only: Using a jigsaw or keyhole saw, cut a 6½" (16.5 cm) diameter hole for the vent duct.

Install In-Line Smart Kit - Optional

NOTE: Your hood can work with either an internal or an in-line (external) blower motor system. An optional In-Line Smart Kit (purchased separately) allows the blower motor that comes with this hood to be installed in a location other than inside the hood cavity.

CAUTION: To reduce the risk of fire and electric shock, install this hood only with the In-Line Smart Kit manufactured by Whirlpool, W10692945.

For installation see the In-Line Smart Kit installation instructions. See the "Assistance or Service" section to order.

Assemble and Install Hood

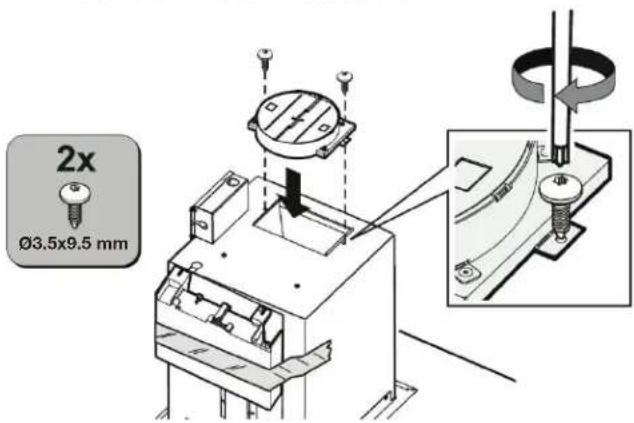

1. Install transition on top of hood (if removed for shipping) with 2 - 3.5 x 9.5 mm sheet metal screws.

1. Mark with a pencil the hole locations for screws and duct on the ceiling.

Illustration of a person using a tool to adjust or install a mechanical component, with no visible text or symbols.

1. Drill 6 holes on the ceiling ∅10 mm, insert 6 plugs (∅10x60 mm) and 4 screws (∅6x60 mm) as shown in figure. Pay attention that the screws and plugs must be suitable for the type of wall.

Line drawing of a person adjusting a mechanical component with a grid-like structure (no text or symbols)

1. Remove the sticker from the electrical system box as shown in figure and follow steps 1-2-3.

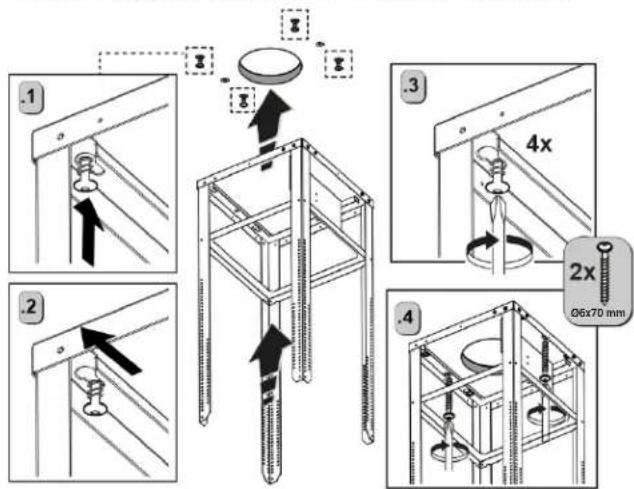

1. Adjust the height of the structure by referring to the indications shown in figure.

1. Fasten the flexible pipe and tighten it with a clamp (not supplied) in the air outlet bracket of the product as shown in figure.

1. Take the structure and fix it on the 4 screws and tighten. Take the two safety screws ∅6x70 mm and fix it permanently to the ceiling, follow steps 1-2-3-4 indicated in figure.

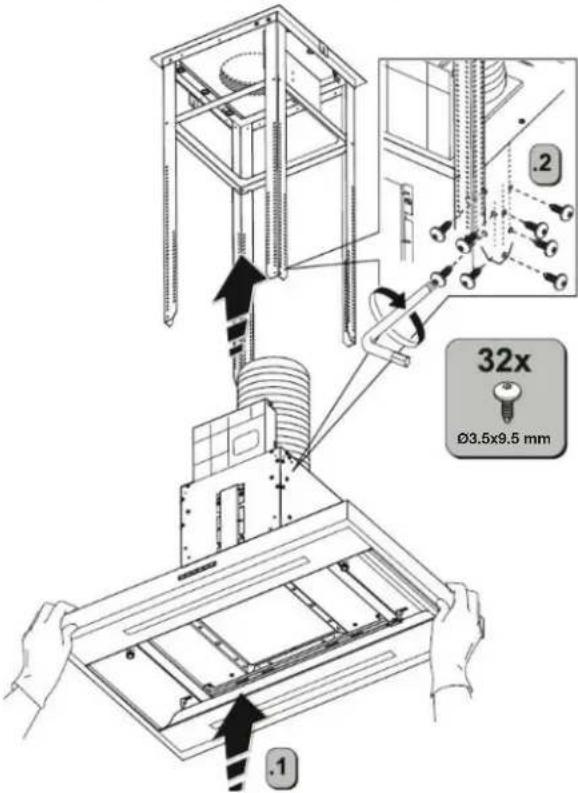

1. Attach the hood assembly to the lower vertical supports with 32 screws ∅3.5x9.5 mm as shown in figure, step 1-2.

For the Non-Vented (Recirculating) Installations, the kit must be ordered from your retailer. The kit is composed of a carbon filter, a bracket and 4 screws ∅3.5x9.5 mm, the bracket must be fixed to the lower part of the hood with the 4 screws supplied as shown in figure.

Non-Vented (Recirculating) Installations: Take the air diverter and fix it to the wall bracket previously fixed, with 2 screws ∅3.5x9.5 mm. Fix the air diverter on the support bracket of the structure with 4 screws ∅3.5x9.5 mm as shown in figure.

Exhaust Installations: Connect the flexible pipe to the external outlet hole as shown in figure.

Technical line drawing of a mechanical assembly with hands installing components inside a housing (no text or symbols)

Non-Vented (Recirculating) Installations: Connect the flexible hose to the air diverter and fix it with a clamp (not supplied) as shown in figure.

Technical illustration of a mechanical assembly with a magnified view showing internal components and a tool (no text or symbols present)

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.
2. Remove terminal box cover.
3. Remove the knockout in the terminal box, and then install a UL listed or CSA approved 1/2" (12.7 mm) strain relief.
4. Run home power supply cable through strain relief and into the terminal box.
5. Use UL listed wire connectors and connect black wires (L) together.
6. Use UL listed wire connectors and connect white wires (N) together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect green (or bare) ground wire from home power supply to yellow-green ground wire (F) in terminal box using UL listed wire connectors.
2. Tighten strain relief screw.
3. Install terminal box cover.
4. Check that all light bulbs are secure in their sockets.
5. Reconnect power.

Optional Power Cord Kit Installations

For optional power cord kit installations, follow the instructions supplied with the power cord kit. See the "Assistance or Service" section for information on ordering.

NOTE: Use only with hood cord connection kits that have been investigated and found acceptable for use with this model hood.

Install Duct Covers

NOTE: Remove the film from the duct covers.

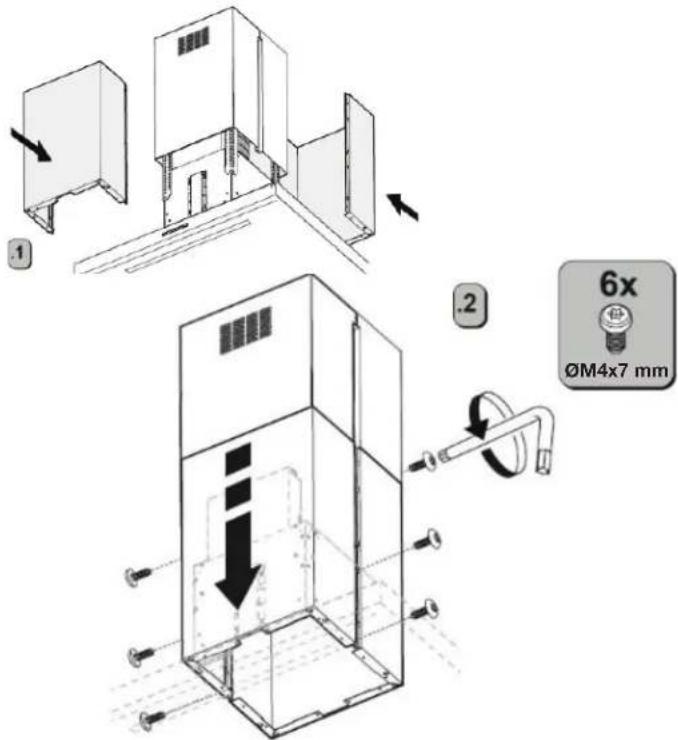

1. Assemble the upper duct covers together, and then install the duct covers around the support frame. The larger hole in the flanges of the upper duct cover must be outside the smaller hole in the mating flange of the other upper duct cover.
2. Take the upper tubes and fit them on the slot of the structure and fix them with two screws ∅3.5x9.5 mm phases 1-2-3 in the figure and fix them definitively with 8 screws ∅M4x7 mm step 4 in the figure.

1. Take the lower tubes coupled and secure them with 6 screws ∅M4x7 mm as indicated in figure, step 1-2.

1. Take the 2 external panels and fit them onto the slots of the lower chimney, figure, step 1. Take the other 2 external panels and check the height of the seat and if necessary cut off the excess, remove the protection and press them onto the upper pipes as indicated in figure, step 3-4.

1. If the product is using a recirculation kit, place the carbon filter on the bracket as shown in figure.

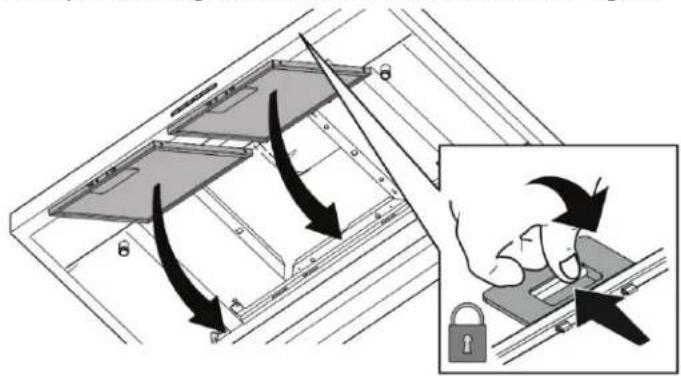

1. Reposition the grease filters in their seats as shown in figure.

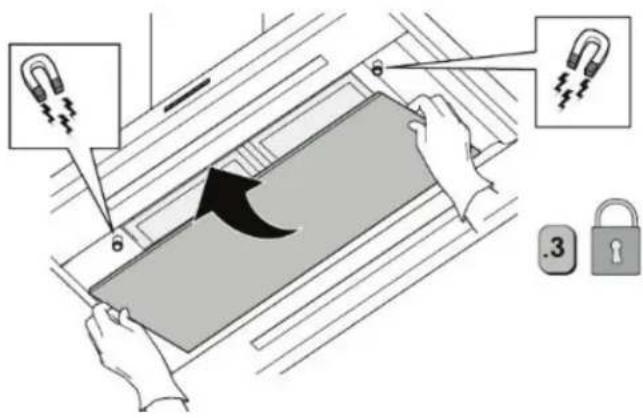

1. Reposition the perimeter suction panel as shown in figure, phase 1-2-3.

NOTE: For non-vented (recirculating) installation, the slotted holes in the upper duct covers will be visible when assembled. For vented installations, the slotted holes will be hidden down inside the lower duct covers.

A. Top toward ceiling
B. Slots installed up for non-vented installations
C. Slots installed down for vented installations

HOOD USE

The hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The hood controls are located on the front side of the canopy.

A. Louver holes (non-vented [recirculating] installations only)
B. Upper duct covers
C. Lower duct covers
D. LED lights (2)

E. Metal grease filters (located behind the perimetic cover)
F. Perimetic cover
G. Canopy
H. Control panel

Controls and Features

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

T1 = Motor ON/OFF button - 1st speed.

T2 = 2nd speed.

T3 = 3rd speed.

T4 = 4th Boost Speed.

Timed On/Off Boost, after 5 minutes the hood returns to the previously set speed.

T5 = Light ON/OFF button.

T6 = Reset Button for filters:

The filters must always be reset with the motor running.

The hood will warn the user that it is time to do maintenance work on the filters, by giving out a light-signal.

Flashing Button: carry out the maintenance of the greasy filters, following this press the button for over 3 seconds and the button will turn off.

Lit Button: carry out maintenance on carbon-filters, following this press the button for more than 3 seconds, the button will switch off.

Attention: the hood is provided only with a warning signal for greasy filters.

To put into function the greasy-filter signal:

Set the hood off, press switch button number 6 for more than 3 seconds, the switch will turn on signalling that the function has been set.

To deactivate the carbon filter signal, repeat the entire procedure again.

Functions

Fan Speeds

Min Press MIN FAN to turn the fan on at Minimum speed.

Med Press MED FAN to turn the fan on at Medium speed.

Max Press MAX FAN to turn the fan on at Maximum speed.

Boost Press BOOST to turn the fan on at the highest speed. Boost will automatically turn Off after 5 minutes and the fan will switch to High speed.

Control Panel

Timer

The hood can be set to turn Off automatically after 15 minutes.

1. Press and hold the desired fan speed button for 2 seconds. The fan will run on the chosen speed for 15 minutes, and the fan speed button light will flash continuously. After 15 minutes, the fan will turn Off automatically.

2. Press the desired fan speed button again while the fan timer is running to cancel the fan timer.

NOTE: Changing the fan speed or turning Auto Sense On will also cancel the 15 minute timer.

Filter

The Filter button lights up when it is time to replace or clean the filter. The button will be lit only when the fan is On. Press FILTER after replacing the filter to turn the Filter button light Off. See the "Cleaning" section for how to replace or clean the filter.

Light

Press LIGHT to turn the hood lights On and Off.

HOOD CARE

User Servicing and Maintenance Instructions

Cleaning:

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL.

Steam screen:

The steam screen must always be left closed and opened only for maintenance (e.g. cleaning or changing filters).

Grease filter

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if signaled on the model in possession-indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

Charcoal filter (For Non-Vented (Recirculating))

It absorbs unpleasant odors caused by cooking..

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if signaled on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out). Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 212^ F ( 100^ C) to dry completely. Replace the filter every 3 years and when the cloth is damaged.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times longer than the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

WIRING DIAGRAM

SEL0172982

ASSISTANCE OR SERVICE

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call JennAir Customer eXperience Center toll free:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

Our consultants provide assistance with:

■Scheduling of service. JennAir ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.
■Features and specifications on our full line of appliances.
■Referrals to local JennAir ^® appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance

If you need further assistance, you can write to JennAir®

Appliances with any questions or concerns at:

JennAir Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free at 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

Our consultants provide assistance with:

■Scheduling of service. JennAir ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the Canada.
■Features and specifications on our full line of appliances.
■Referrals to local JennAir ^® appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.

For further assistance

If you need further assistance, you can write to JennAir®

Appliances with any questions or concerns at:

JennAir Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Chimney Kit 10.5 ft-12.1 ft (3.2 m-3.7 m)

Order Part Number W11522780

Chimney Kit 8.9 ft-10.5 ft (2.7 m-3.2 m)

Order Part Number W11522788

Charcoal Filter Kit - Recirculating Kit

(for non-vented installations only)

Order Part Number W11522798

Filter Kit - Replacement

Order Part Number W11522797

6" (15.2 cm) Makeup Air Kit

(consult local building codes)

Order Part Number W10446915

SÉCURITÉ DE LA HOTTE

A. 13^16/_16 po (35,5 cm)

E. 2^6/_16 po (6 cm)

B. 13 ^16/_16 po (35.5 cm)

F. 23 ^16 /16 po (69 cm)

C. 36 po (91,4 cm)

G. **31 ^14 / _16 po (81 cm) minimum

D. 23 ^10/_16 po (60 cm)

*** 40 ^9/16 po (103 cm) minimum

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

INSTRUCTIONS D'INSTALLATION

Hand holding a grid-like object with directional arrows, no text or symbols present

Illustration of a person using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a person using a handheld device to press or install a component (no text or symbols present)

Technical line drawing of a mechanical assembly with hands installing components inside a frame (no text or symbols)

Technical illustration of a mechanical assembly with a close-up view of internal components (no text or symbols)

ASSISTANCE OU SERVICE

JennAir Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

JennAir Brand Home Appliances
