USER MANUAL RV1329C4T LG

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

EN ENGLISH ES ESPANOL FR FRANÇAIS

RV1329C1T

RV1329CN1T

RV1329C4T

RV1329CN4T

RV1329C7T

RV1329CN7T

CONTENTS

3 PRODUCT FEATURES

4 IMPORTANT SAFETY INSTRUCTIONS

6 BASIC SAFETY PRECAUTIONS
12 GROUNDING INSTRUCTIONS
13 SAFETY INSTRUCTIONS FOR INSTALLATION
16 SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY

19 INTRODUCING YOUR DRYER

19 Specification
20 Accessories

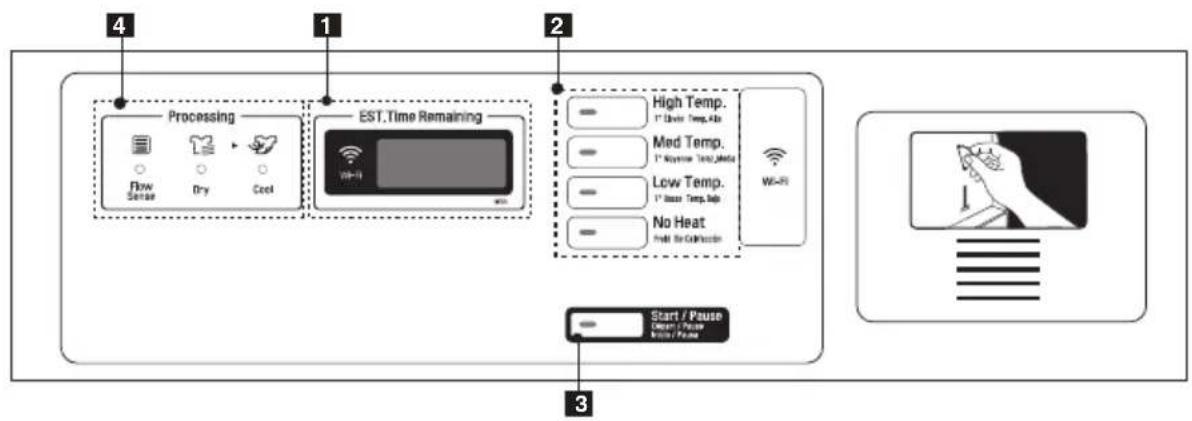

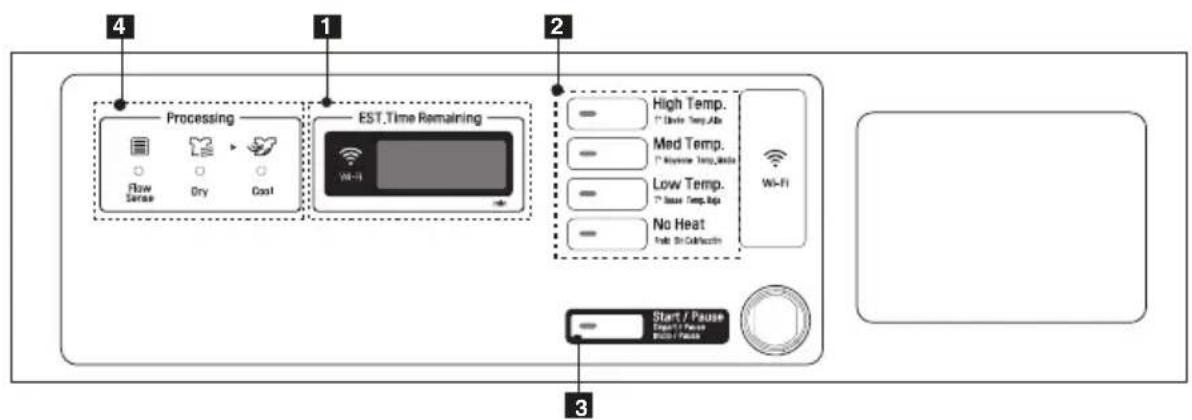

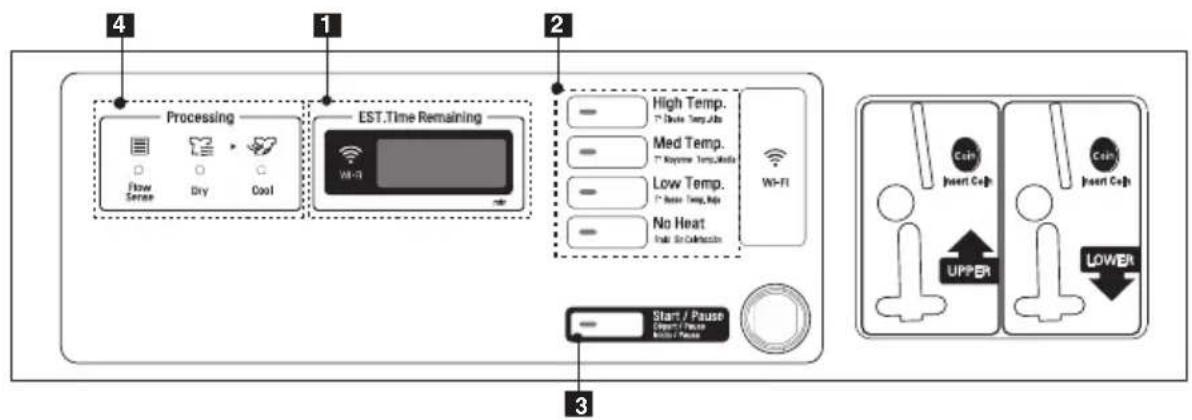

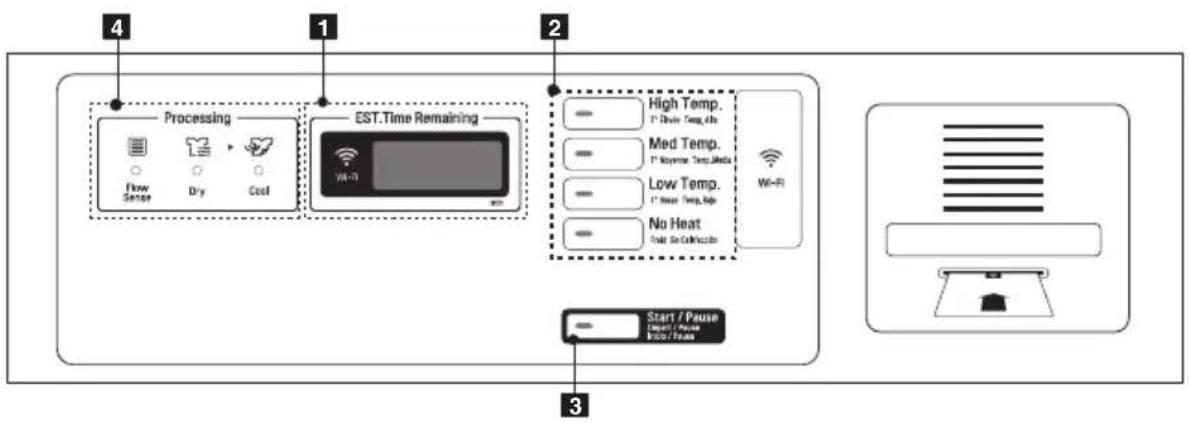

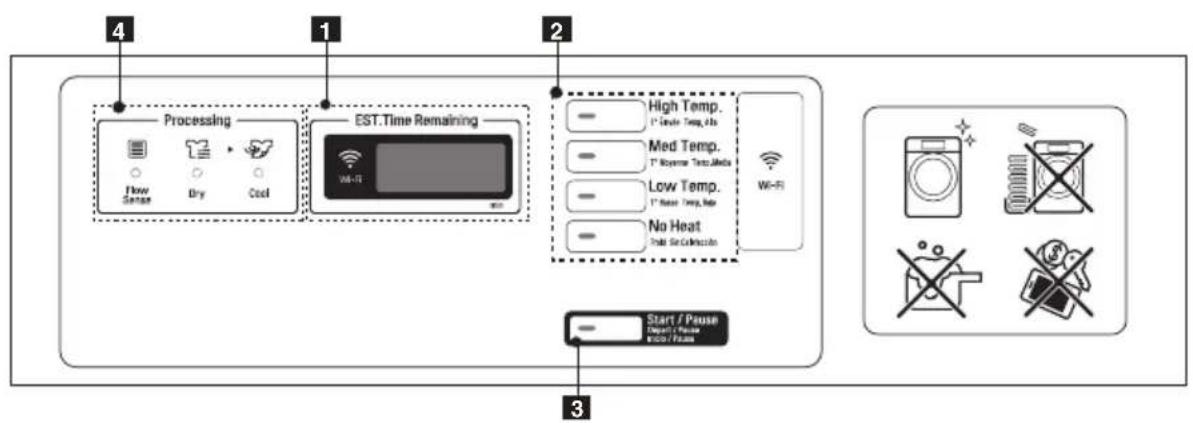

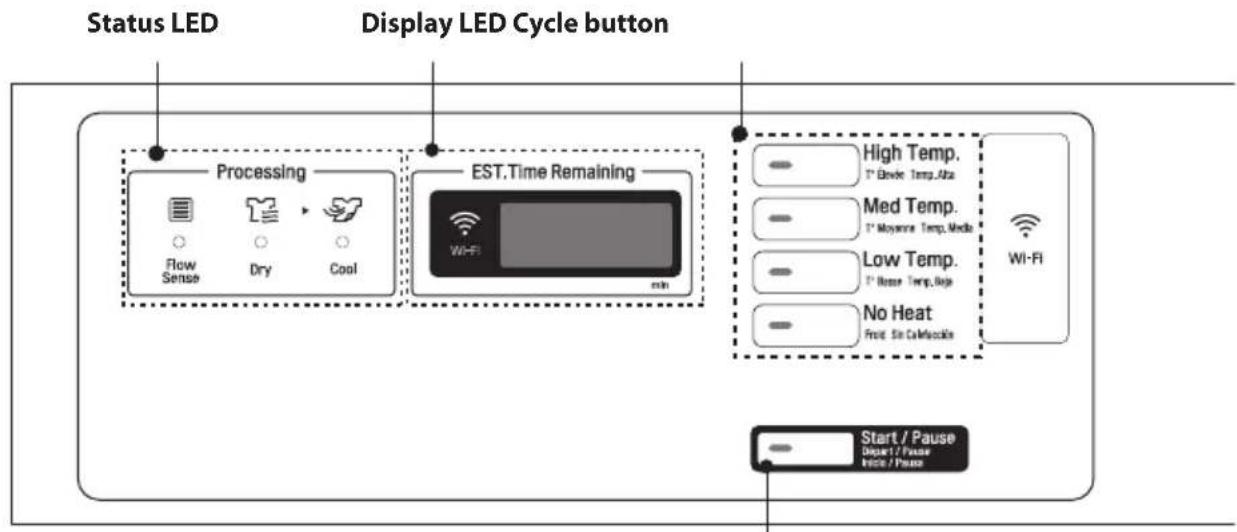

20 Control panel features

25 Structure of Programming mode - Card/Coin type
26 Structure of Programming mode - OPL type

27 Programming Mode - Setup Mode

27 1. Regular Price Setup
28 2. Special Price Setup
29 3. Top Off Price Setup
30 4. Features of the Machine (1st Set)
31 4-1. Special Price Day Setup
32 4-2. Sense Dry Setup
33 4-3. Top Off Setup
34 4-4. Pause Function Setup
35 5. Special Price Day Setup
36 6. Special Price Beginning Time Setup
37 7. Special Price Ending Time Setup
38 8. Dry Time Setup
39 9. Special Day Dry Time Setup
40 10. Top Off Time Setup
41 11. Coin 1 Value Setup
42 12. Penny Increment Pricing Offset Setup
43 13. Beep Volume Setup
44 14. Standby Return Time Setup

45 15.Type
46 15-1. Product Type Setup
47 15-2. Currency Type Setup
48 15-3. Vend Type Setup
49 15-4.Card Reader Type Setup
50 15-5. Coin Drop Type Setup

51 Programming Mode - Test Mode

51 1. Test
52 2. Diagnostic Test
53 3. Factory Reset
54 4. Time Setup
55 5. Courtesy Cycle
55 6. Kill Cycle
56 7. Duck Ceck
57 8. Password Setup

58 Programming Mode - Collect Mode

61 SMART FUNCTIONS

62 MAINTENANCE

63 STACK MACHINE INSTALLATION INSTRUCTIONS

65 ERROR MODE

65 POWER FAIL RECOVERY

65 DEFAULT DRYER SETTINGS

65 INSTALLATION GUIDE FOR HARMONICS AND FLICKER

59 Collect Mode Data List

PRODUCT FEATURES

ARTISTIC DESIGN

Modern front panel look and big clear glass door make your dryer look stylish

EASY OF USE

An entire selection of user-friendly functions makes operating the dryer easy.

COMMERCIAL LAUNDRY APPS

• Laundry Lounge Installer : This app allows installers to register products on the server. It is only available to authorized users.

※ Download Laundry Lounge Installer at shared link from Official LG B2B channel.

• Laundry Lounge : This app allows users to do real-time monitoring of registered stores and products.

※ Search for Laundry Lounge in the Google Play Store or Apple App Store.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, Injury to persons, or death.

Your Safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word DANGER, WARNING, or CAUTION.

These words mean:

DANGER

You will be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

You may be slightly injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

BASIC SAFETY PRECAUTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed as described in this manual.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.
• Do not reach into the dryer if the drum or any other part is moving.

• Do not repair or replace any part of the dryer or attempt any servicing unless specifically recommended in this Owner's Manual or in published user-repair instructions that you understand and have the skills to carry out.

• Do not tamper with controls.

• Before the dryer is removed from service or discarded, remove the door to the drying compartment.
• Do not allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
• Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust, and dirt.

• The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.

• Do not install or store the dryer where it will be exposed to the weather.

• Always check the inside of the dryer for foreign objects.

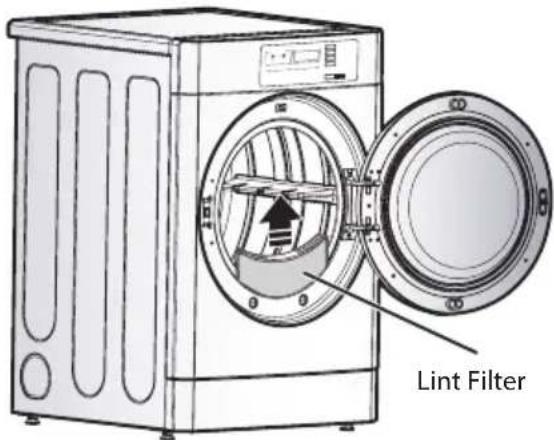

• Clean lint screen before or after each load.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

• The final part of a tumble dryer cycle occurs without heat(cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never operate the dryer without lint filter in place. Never operate the dryer with a wet lint filter.

WARNING

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

• The lint trap has to be cleaned frequently.
• Lint must not be allowed to accumulate around the tumble dryer.

• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
  Electric Dryer Max capacity is 10kg
  Gas Dryer Max capacity is 10,2kg

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised not to play with the appliance.

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Disposal of your old appliance

1. This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2. Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative

consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.

1. You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www/lg.com/global/ recycling

WHAT IS NOT COVERED.

Service trips to your home to instruct you on the product.

If the product is connected to any voltage other than that shown on the rating plate.

If the fault is caused by accidents, neglects, misuses of Acts of God.

If the fault is caused by reasons except for normal domestic use or use in accordance with the owner's manual.

If the fault is caused by pests, for example, rats or cockroaches etc..

Noise or vibration that is considered normal, for example, water drain sound, spin sound or warning beeps.

Correcting the installation for example, leveling the product, adjustment of drain.

Normal maintenance recommended by the owner's manual.

Removal of foreign objects/substances from the machine including the pump and inlet hose filter, for example, grit,nails, bra wires and buttons etc..

Replace fuses in or correct wiring or correct house plumbing.

Correction of unauthorized repairs.

Incidental or consequential damage to personal property caused by possible defects with this appliance.

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the products, or the replacement of a defective part, shall be borne by the owner.

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, Injury to persons, or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance or any other appliances.

• Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance must be equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not use an adapter or extension cord. Do not remove ground prong. If you don't have the proper outlet, consult an electrician.

Do not modify the plug provided with the appliance.

If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance must be connected to a grounded metal, permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the appliance. Electric shock can result if the dryer is not properly grounded. The appliance may only be installed in a room if the room meets the appropriate ventilation requirements specified in the national installation regulations. Minimum required spacing of 2,54cm to adjacent appliances, walls and furniture.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded.

SAFETY INSTRUCTIONS FOR INSTALLATION

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Properly ground dryer to conform with all governing codes and ordinances. Follow details in the installation instructions. Electric shock can result if the dryer is not properly grounded.
• Before use, the dryer must be properly installed as described in this manual. Electric shock can result if the dryer is not properly grounded.
• Install and store the dryer where it will not be exposed to temperatures below freezing or exposed to the weather.

• All repairs and servicing must be performed by an authorized servicer unless specifically recommended in this Owner's Manual. Use only authorized factory parts. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• To reduce the risk of electric shock, do not install the dryer in humid spaces. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuit can melt, creating electric shock and/or fire hazard.
• Remove all packing items and dispose of all shipping materials properly. Failure to do so can result in death, explosion, fire, or burns.

• Place dryer at least 18 in. above the floor for a garage installation. Failure to do so can result in death, explosion, fire, or burns.

• Keep all packaging from children. Packaging material can be dangerous for children. There is a risk of suffocation.

• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc. Failure to do so can result in fire.

• Do not place candles, smoking materials, or other flammable on to top of the product. Dripping wax, smoke, or fire can result.

• Remove all protective vinyl film from the product. Failure to do so can cause product damage, smoke or fire.

• Means for disconnection with contact separation at least 3mm is that the means for disconnection must be incorporated in the fixed wiring according to the wiring rules.

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR INSTALLATION

• The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. Children being supervised not to play with the appliance.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Exhaust/Ducting:

Gas dryers MUST be exhausted to the outside. Failure to follow these instructions can result in fire or death.
- The dryer exhaust system must be exhausted to the outside of the dwelling. If the dryer is not exhausted outdoors, some fine lint and large amounts of moisture will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fire hazard.
- Use only rigid metal or flexible metal 4-inch (10,2 cm) diameter ductwork inside the dryer cabinet or for exhausting to the outside. Use of plastic or other combustible ductwork can cause a fire. Punctured ductwork can cause a fire if it collapses or becomes otherwise restricted in use or during installation.
- Ductwork is not provided with the dryer, and you should obtain the necessary ductwork locally. The end cap should have hinged dampers to prevent backdraft when the dryer is not in use. Failure to follow these instructions can result in fire or death.

• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• The exhaust duct must be 4 inches (10.2 cm) in diameter with no obstructions. The exhaust duct should be kept as short as possible. Make sure to clean any old ducts before installing your new dryer. Failure to follow these instructions can result in fire or death.
  DO NOT use sheet metal screws or other fasteners which extend into the duct that could catch lint and reduce the efficiency of the exhaust system. Secure all joints with duct tape. For complete details, follow the Installation Instructions. Failure to follow these instructions can result in fire or death.
• In the appliance enclosure or in the built-in structure, keep ventilation opening clear of obstruction.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires Do not dry unwashed items in the tumble dryer.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent injury to persons or damage to the dryer, the electrical power cord must be plugged into a properly grounded outlet.
• For personal safety, this dryer must be properly grounded. Failure to do so can result in electric shock or injury.
• Refer to the installation instructions in this manual for specific electrical requirements for your model. Failure to follow these instructions can create an electric shock hazard and/or a fire hazard.
• This dryer must be plugged into a properly grounded outlet. Electric shock can result if the dryer is not properly grounded. Have the wall outlet

and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow these instructions can create an electric shock hazard and/or a fire hazard.

• The dryer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
• Never unplug your dryer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. The power cord can be damaged, resulting in a risk of fire and electric shock.

Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. The power cord can melt, creating electric shock and/or fire hazard.
- When installing or moving the dryer, be careful not to pinch, crush, or damage the power cord. This will prevent injury and prevent damage to the dryer from fire and electric shock.

• To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long sleeved gloves and safety glasses. Failure to follow all of the safety warnings in this manual could result in property damage, injury to persons or death.
• The final part of the tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

CAUTION

These instructions are only valid if the following country code is on the appliance. If this code is not present on the appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning the modification of the appliance to the condition of use for the country Before installation, check that the local distribution conditions, nature of gas and pressure, and the adjustment of the appliance are compatible.

• the method of connection and the installation regulations in the country where the appliance is to be installed (if such regulations exist); also the ventilation dimensions shall be given for the purposes of installation in those countries where there are no appropriate regulations.

WARNING

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

INTRODUCING YOUR DRYER

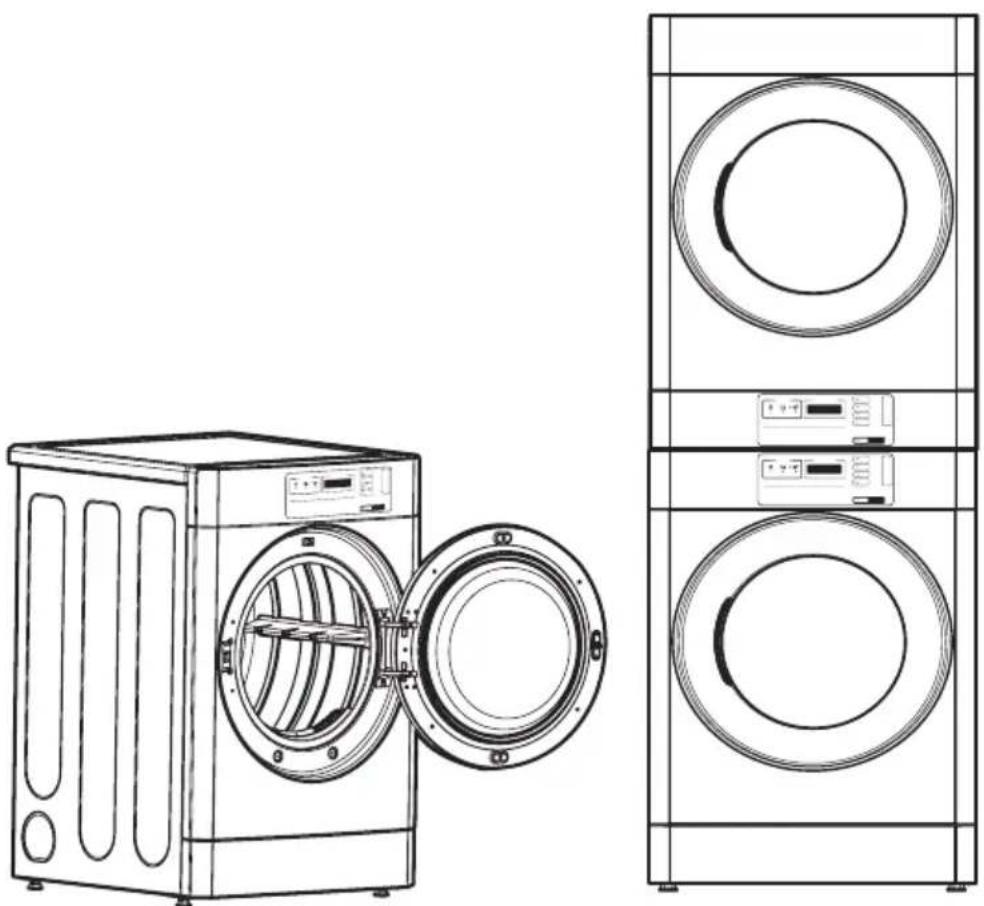

Specification

Type: Electric and Gas Dryer
Rating: Please refer to the rating label regarding detailed information.
Single dryer size: 686mm(W) × 764mm(D) × 983mm(H)
■ Stack dryer size: 686 mm(W) x 764 mm(D) x 1954 mm(H)
Electric Dryer Max Capacity: 10kg
Weight:59,4kg
A-weighted emission sound pressure lebel: < 70dB(A)
Specifications are subject to change by manufacturer.

Accessories

OPL sheet (only for OPL type)

Control panel features

Card type

OPL type

• Side by Side (Rv1329C4T)
• Stack Upper (Rv1329C7T)
  -Stack Lower (Rv1329C1T)

1. Display LED

3.Start/Pause button

1. Cycle button

4.StatusLED

Control panel features

Coin type

- Side by Side (Rv1329CN4T)

-Stack upper (Rv1329CN7T)

-Stack lower (Rv1329CN1T)

1. Display LED

3.Start/Pause button

1. Cycle button

2. Status LED

Start/Pause button

Display LED

The Display shows the vend price, remaining time, and programming options.

Error codes are also displayed here.

Cycle button

Press the cycle button to Select the desired cycle based on laundry types and conditions.

High Temp.

Use this cycle to get high heat for heavy fabrics, such as jeans corduroys or work clothes (High heat).

Med Temp.

Use for drying sturdy fabrics such as work casual clothes (Medium heat).

Low Temp.

Use for drying synthetic fabrics, washable knit fabrics and noiron finishes (Low heat).

No Heat

Use for items that require heat-free drying such as plastics or rubber.

Start/Pause button

The Start LED flashes when the full vend price has been satisfied then the cycle has been chosen or the machine is paused.

The Start LED flashes when a card is inserted to add time to the current cycle.

If you press the Start/Pause button while dryer is working, machine will be paused.

Status LED

LED Description
○ Flow Sense	LED flashes when the duct is blocked by lint. Check and clean the duct.
○ Dry	LED flashes whenever the heating cycle is in operation.
○ Cool	LED flashes whenever the cool down cycle is in operation.
Wi-Fi	LED flashes when the Wi-Fi is connecting. LED stays lit when the Wi-Fi is connected.

All types of machines show 'PUSH'

NOTE

• Price setting varies by country.
• Set your country from mode. (Refer How to enter the type)
  After EEPT, reset your country. (Default country is England)

2. Select the cycle

Press the desired button and the display will show you the price of the cycle.(You cannot change the cycle while the machine is running.)

NOTE

When the card balance is not enough, machine displays the balance for 5 seconds and then displays message repetitively

Insert a sufficient amount of change that is a more than the programmed vend price for a selected cycle.

3. Insert Coin/Card (Not for OPL type)

Insert a sufficient amount of change that is more than the programmed vend price for the selected cycle. Insert a card that has a sufficient balance.

The card balance should be more than the programmed vend price for the selected cycle.

NOTE

The last 2 minutes of the remaining time are always for the cool down portion.

4. Top off (To add more time)

After a debit card is inserted, the operating time can be increased to 10 minutes / 0,10 when the Start button or the chosen course button has been pressed. (The card should have enough balance to satisfy increasing time.)
The operating time can be increased to 10 minutes / 0,10 (default) by adding more coins.

NOTE

Owner can control the additional time(Top Off Time) and money setting (refer to Top off Price setting

When the COOL DOWN has been working, if time is added, it goes back to the Dry.
Time can be added up to 99 minutes.

5. Change cycle

You can not change the cycle while the machine is running.

6. Cycle finish

After the Cool Down of cycle, the machine stops and the display shows 'End' with beep sound.

PROGRAMMING MODE

You can check machine information or change setting on Program setup or Diagnostic test.

There are two methods that you can enter programming mode.

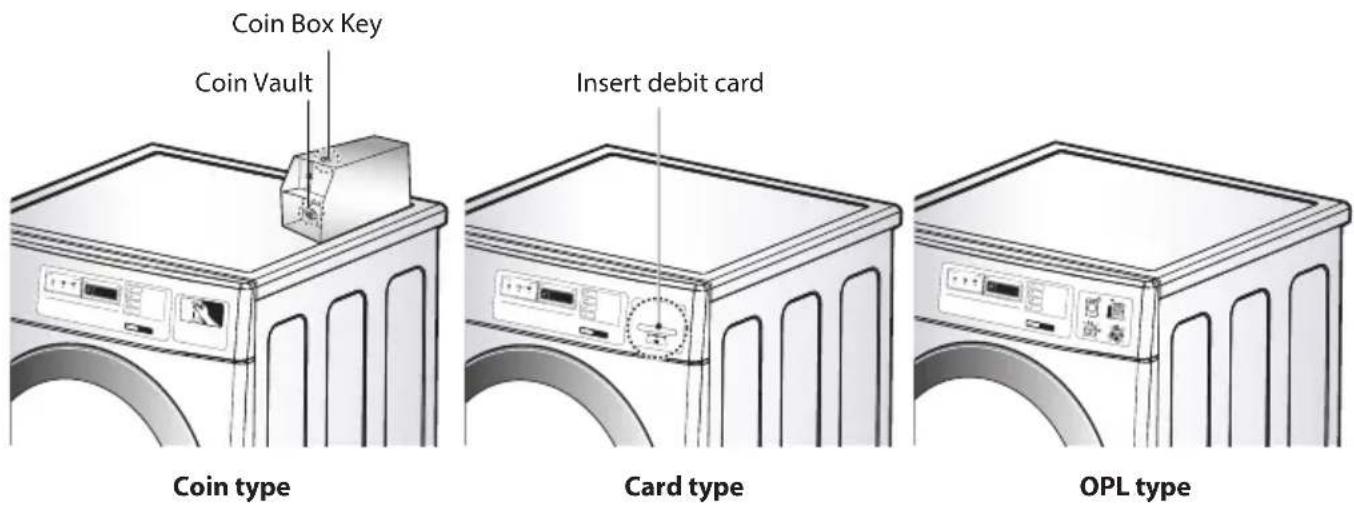

how to enter Programming mode:

• Coin type - Turn on/off the toggle switch.
• Card type - Insert the service card.
  -All types

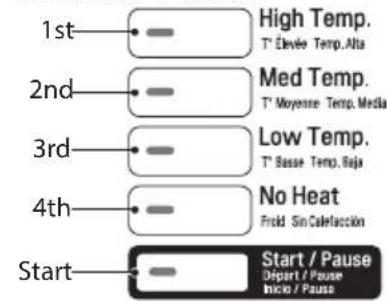

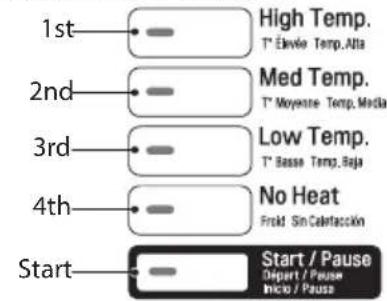

1) Press the 1st & 3rd button at the same time.
2) Press the 2nd & 3rd buttons to toggle numbers.

Then, press the 4th button to move to the next digit.

3) Press the Start button to finish password input.

※ Default Password : 3000

NOTE

If you turn on the power without connecting the meter case for the first time, the machine will display RL 9C
- When the machine comes from the factory, it is set in the coin type. You can change Card/Coin type by button.

(For more information refer to SETUP mode's FEA1.)

The machine will display "PUSH" for OPL type
- Price setting varies by country.
- Set your country from loc1 mode. (Refer How to enter the type)
- After EEPT, reset your country. (Default country is England)

Structure of Programming mode - Card/Coin type

Algorithm Flow Chart shows how to control programming mode.
Before program set, check the structure of programming mode.

SEUP

is to set price value, time value and vend type etc.

EE6E

consists of line test, reset, free cycle and kill cycle.

E

Is to collect the usage data.

Structure of Programming mode

NOTE

Do not use
It is only used in inspecting the machine.
This function is for Card type only.

Structure of Programming mode - OPL type

Algorithm Flow Chart shows how to control programming mode.
Before program set, check the structure of programming mode.

SEUP

is to set price value, time value and vend type etc.

EESE

consists of line test, reset, free cycle and kill cycle.

Is to collect the usage data.

Structure of Programming mode

NOTE

• Do not use

It is only used in inspecting the machine.

PROGRAMMING MODE - Setup Mode

Setup Mode:lay)

■ You can change dryer vend price, cycle time, and cycle parameters, etc.

How to enter Programming mode:

• Coin type - Turn on/off the toggle switch.
• Card type - Insert the service card.
• All types - Enter password.

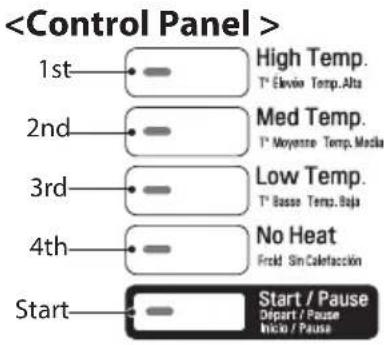

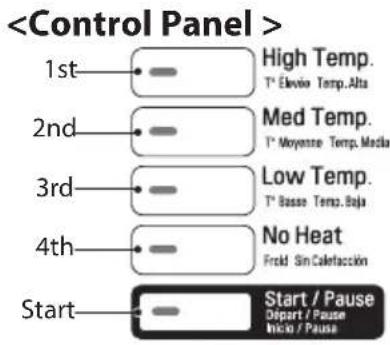

1) Press the 1st & 3rd button at the same time.
2) Press the 2nd & 3rd buttons to toggle numbers.

Then, press the 4th button to move to the next digit.

3) Press the Start button to finish password input.

※ Default Password : 3000

1. Par Price Setup

This function sets the regular prices for all/each cycle.

Regular Price Setup Display
Enter SVC Mode		86.98
Press 1st button		86.98
Press 2nd button		58.08
Press Start button		89.88
Press 2nd button or 3rd button Until display shows		89.88
Press Start button		89.88
Select the price you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	Start button to select :→ 1st button to go back a step :← SB69 > SB92 > SB98 > SB208 2nd button to move up :↑ 3rd button to move down :↓
Press Start to set the price The next cycle setting will be displayed.		88.98

NOTE

Range:0,00\~10,00
Increments:0,10
- ALL is to select the default prices for all the cycles at once.
- Select individual price for COS1~4
COS1:High Temp

COS2:Med Temp
COS3:Low Temp
COS4: No Heat
※ Individual cycle prices are prioritized above 'ALL'.
- Set your country from £5 to Currency

Type Setup)

2. SF67 Price Setup

This function sets special prices for all/each cycle.

Special Price Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:88
Press 2nd button		88:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the price you want	SETUP > SPRP > SALL > 8400
Button functions :
Start button = Select
1st button = Go back a step
2nd button = Move up or Increase value
3rd button = Move down or Decrease value
Press Start to set the price The next cycle setting will be displayed.		88:88

NOTE

Range:0,00\~10,00
Increments:0,10
- ALL is to select the default prices for all the cycles at once.
- Select individual price for COS1~4
COS1:High Temp
COS2:Med Temp
COS3:Low Temp
COS4: No Heat

※ Individual cycle prices are prioritized above 'ALL'.

Set your country from to Currency Type Setup)

3. Eiff Price Setup

This function sets the Top Off Price.

Top Off Price Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:58
Press 2nd button		58:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:58
Select the price you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETB→E6E4→C05H→E05H C05H E05H E05H
Press Start to set the price The next menu will be displayed.		88:58

NOTE

Range:0,10\~10,00
Increments:0,10
- Select individual price for COS1~4
COS1:High Temp
COS2:Med Temp
COS3:Low Temp
COS4: No Heat

4. RESURES of the Machine (1st Set)

This function sets up multiple features of each machine, under FEA1.

Features of the Machine (1st Set)		Display
Enter SVC Mode		86:96
Press 1st button		88:58
Press 2nd button		88:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Select the setting you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up 3rd button = Move down	SETUP→FEA→SPDE SEDE EAFF PAUS

NOTE

Price Day enable or disable
SEDE :Sensor Dry enable or disable
- EFFF: Top Off enable or disable
- PAUS: Pause function enable or disable

4-1. Price Day Setup

Special Price Day Setup can be used to set special prices.

Special Price Day Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:58
Press 2nd button		88:08
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Press Start button		88:58
Select the feature you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up 3rd button = Move down	SETUP→EERT→SPDE→H56 EERT
Press Start to enable or disable The next menu setting will be displayed.		88:88

4-2. SE B Dry Setup

Sense Dry Setup can be used to enable/disable Sense Dry.

Sense Dry Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:58
Press 2nd button		88:08
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:58
Select the features you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up 3rd button = Move down	SETUP→FETA→SEBA→DH5B E6A6B
Press Start to enable or disable The next	menu setting will be displayed.	88:88

4-3. E68ff Setup

Top Off Setup can be used to enable/disable drying time add-on function.

Top Off Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:58
Press 2nd button		88:08
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the features you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up 3rd button = Move down	SETUP→FERR→EGFF→HISB Ea8b
Press Start to enable or disable The next	menu setting will be displayed.	88:85

4-4. Function Setup

Pause Function Setup can be used ro enable/disable the ability to pause the cycle when pressing the Start/Pause button.

Pause Function Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:58
Press 2nd button		88:08
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the features you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up 3rd button = Move down	SETUP→FERR→PAUS→8456 E6A66
Press Start to enable or disable The next	menu setting will be displayed.	88:88

5. Special Price Day Setup

Special Price Day Setup can be used to select which days to apply special prices.

Special Price Day Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:58
Press 2nd button		88:08
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Press Start button		88:88
Select the setting you want	SETUP > SPEED > SUN > HU
Button functions :
Start button = Select
1st button = Go back a step
2nd button = Move up
3rd button = Move down
Press Start to enable or disable The next	menu setting will be displayed.	88:88

6. Price Setting 6.1 Price Setting 6.2 Price Setting 6.3 Price Setting

Special Price Beginning Time Setup can be used to set the start time of special prices.

Special Price Beginning Time Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:98
Press 2nd button		58:08
Press Start button		89:08
Press 2nd button or 3rd button Until display shows		58:08
Press Start button		88:08
Select the setting you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETUP→SP6E→88:88
Press Start to set time The next menu setting will be displayed.		58:88

NOTE

Make sure to set up the Time feature before using this feature.
Range:0\~23 hr
- Increments: 1 hr

7. Price Ending Time Setup

Special Price Ending Time Setup can be used to set the end time for special prices.

Special Price Ending Time Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:58
Press 2nd button		58:88
Press Start button		89:88
Press 2nd button or 3rd button Until display shows		58:88
Press Start button		88:88
Select the setting you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETUP→SPEE→88:88
Press Start to set the time The next menu setting will be displayed.		88:88

NOTE

Make sure to set up the Time feature before using this feature.
Range:1\~24hr
- Increments: 1 hr

8. me Setup

Dry Time Setup can be used to set the duration of drying.

Dry Time Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:98
Press 2nd button		58:08
Press Start button		89:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the time you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETB→E8E8→COSH→SESSO COSH→COSH COSH→COSH COSH→COSH COSH→COSH
Press Start to set the time The next cycle setting will be displayed.		88:98

NOTE

Range:5\~99min
- Increments: 1 min
COS1:High Temp
COS2:MedTemp
COS3:Low Temp
COS4: No Heat

9. Special Day Dry Time Setup

Special Day Dry Time Setup can be used to set the duration of drying.

Special Day Dry Time Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:98
Press 2nd button		58:08
Press Start button		89:88
Press 2nd button or 3rd button Until display shows		58:88
Press Start button		80:98
Select the length of time you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETB > SBCB > COSB > HCSB
	COSB > COSB > COSB
	COSB > COSB
	COSB > COSB
Press Start to set the time The next cycle setting will be displayed.		88:98

NOTE

Range:5\~99min
- Increments: 1 min
COS1:High Temp
COS2:MedTemp
COS3:Low Temp
COS4: No Heat

10. 667ff Time Setup

Top Off Time Setup can be used to set the add time for each cycle.

Top Off Time Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:88
Press 2nd button		58:88
Press Start button		89:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		80:88
Select the length of time you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETB > EAGE > COS1 > 98:60 COS2 COS3 COS4
Press Start to set the time The next cycle setting will be displayed.		88:88

NOTE

Range:1\~99min
- Increments: 1 min
COS1:High Temp
COS2:MedTemp
COS3:Low Temp
COS4: No Heat

11. value Setup

Coin 1 Value Setup can be used to set the value of each coin signal received.

Coin 1 value Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:98
Press 2nd button		58:88
Press Start button		89:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the price you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETUP→E6A1→E04B
Press Start to set the price The next menu setting will be displayed.		88:88

12. Increment Pricing Offset Setup

Penny Increment Pricing Offset Setup can be used to set additional cent increase when card is used.

Penny Increment Pricing Offset Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:58
Press 2nd button		58:88
Press Start button		89:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the price you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETUP→BIPAO→BBB
Press Start to set the price The next menu setting will be displayed.		88:88

NOTE

Range:0\~4
- Penny increment pricing offset is available only when set to card type.
It does not affect the coin type's price setting

13. 量表 volume Setup

Beep Volume Setup can be used to set the volume of the control and end-of-cycle sounds.

Beep volume Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:98
Press 2nd button		58:88
Press Start button		89:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:98
Select the setting you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SBUP > BEEP > H19H BE0E OFFE
Press Start to set the volume. The next menu setting will be displayed.		88:88

14. By Return Time Setup

Standby Return Time Setup can be used to set how long the input payment is held until the machine resets to standby mode.

Stanby Return Time Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:58
Press 2nd button		58:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the length of time you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value	SETUP→EFA→88:88
Press Start to set the time The next menu setting will be displayed.	84:88

NOTE

• 0: Holds input payment permanently.
• 1~180 : Holds input payment for selected amount of time, then returns to standby mode.

15. TYPE

Type can be used to set the machine's various type settings.

Type		Display
Enter SVC Mode		86:90
Press 1st button		86:58
Press 2nd button		86:88
Press Start button		86:88
Press 2nd button or 3rd button Until display shows		86:88
Select the setting you want	SEUR	P4PE
Button functions:
Start button = Select
1st button = Go back a step
2nd button = Move up
3rd button = Move down

NOTE

Pectype
:Currency type
UE88:Vend type
Card reader type
:Coin meter type

15-1. Type Setup

Product Type Setup can be used to set the machine's payment type (Pay or Free).

Product Type Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:88
Press 2nd button		88:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		84:86
Press Start button		88:88
Select the type you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up 3rd button = Move down	SEUR > EYPE > PAES > SPAS FAEE
Press Start to set the type Display returns to standby mode.

15-2. Lcncy Type Setup

Currency Type Setup can be used to set the country and its currency

Currency Type Setup		Display
Enter SVC Mode		86:90
Press 1st button		88:58
Press 2nd button		58:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		84:PE
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the type you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value
Press Start to set the type Display returns to standby mode.

NOTE

Country (Loc1) Range Increments
England (0) 0~10,000,10
Australia (1) 0~10,000,100
USA (2) 0~9,950,05
China (3) 0~1991
Korea (4) 0~9900
Japan (5) 0~9500
Canada (6)	0~9,950,05
Philippines (7)	0~995	5

15-3. Type Setup

Vend Type Setup can be used to set the payment type (Coin/Card).

vend Type Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:88
Press 2nd button		88:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		84:86
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the type you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up 3rd button = Move down	SETUP > TYPE > UEBD > C01n CABB APP
Press Start to set the type Display returns to standby mode.

15-4. Reader Type Setup

Card Reader Type Setup can be used to set the card reader company.

Card Reader Type Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:58
Press 2nd button		58:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		84:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the type you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value
Press Start to set the type Display returns to standby mode.

NOTE

0:Greenwald
1:ESD

15-5. Drop Type Setup

Coin Drop Type Setup can be used to set the coin pulse signal setting for coin drops.

Coin Drop Type Setup		Display
Enter SVC Mode		86:96
Press 1st button		88:58
Press 2nd button		58:88
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		84:PE
Press Start button		88:88
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Select the type you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up or Increase value 3rd button = Move down or Decrease value
Press Start to set the type Display returns to standby mode.

NOTE

• Coin pulse

0:50ms:ESD,Greenwald,Munzprufer

1:100ms:Korea

Programming Mode - Test Mode

Diagnostic tests:

This program has been added for testing the dryer and detecting errors.

how to enter Programming mode:

• Coin type - Turn on/off the toggle switch.
• Card type - Insert the service card.
  -All types

1) Press the 1st & 3rd button at the same time.
2) Press the 2nd & 3rd buttons to toggle numbers.
Then, press the 4th button to move to the next digit.
3) Press the Start button to finish password input.
※ Default Password : 3000

1.

Test features can be used to check and change various machine settings.

Test		Display
Enter SVC Mode		86.90
Select the feature you want	EESE▶AL 9C
	8964
	8962
	8968
Button functions :	EEPE
Start button = Select	8838
1st button = Go back a step	8888
2nd button = Move up	8888
3rd button = Move down	8888
	PASS

NOTE

ALC Use (Do not Use)
: Diagnostic Test 1
:Factory Use (Do not Use)
:Factory Use (Do not Use)
EEE:FactoryReset

:Time Setting
. Courtesy Cycle
:Kill cycle
Duct check
BBSS:Password Setup

2. Logistic Test

Diagnostic Test can be used to check functionality of various machine parts.

Press Start to move through the check points.

Number of times the Start button is pressed	Check point Display
0 Enter SVC Mode		AL 9C
- Press 2nd button		L8E4
1	Check the version and code for machine. • Electric Coin type : P0:OE • Electric Card type : P0:CE • Electric OPL type : P0:PE • Gas Coin type : P0:Og • Gas Card type : P0:Cg • Gas OPL type : P0:Pg	Displays 8888 , P0:XX, gU:XX, gd:XX and gF:XX alternately (Version)
2 PDA Check		6666
3 Motor runs	Measured moisture value (70~239)
4	• Elcric type : Heater runs (Motor + Heater 1 (2700W)) • Gas Type : Motor runs	Current temperature (5~70) (Display shows the temperature inside the drum in Celsius)
5	• Elcric type : Heater runs (Motor + Heater 1+Heater 2 (5400W)) • Gas Type : Gas valve runs (Motor +Valve)	Current temperature (5~70) (Display shows the temperature inside the drum in Celsius)
6	LED&Button Check Press the whole course buttons.	Displays 8888 , P0:XX, gU:XX, gd:XX and gF:XX alternately (Version)
7 Test Ends		6666
8	Door switch (Motor&Heater Off, Buzzer beeps seven times)	dE (The door is open. Please close the door completely)
9	Test goes back at step 3. (Motor on & Heater Off)	Measured moisture value (70~239)

NOTE

Make sure the drum is empty when diagnostic test is being performed. Do not use

3. Eby Reset

Factory Reset is used to reset the machine to default settings.

Factory Reset		Display
Enter SVC Mode		86:90
Press 2nd button or 3rd button Until display shows		86:88
Press Start button		86:88
Press 2nd button Until display shows		86:88
Press Start button		86:88

NOTE

• Default values for Card/coin type dryer.
• Drying time : 50 minutes
  -Top off time : 10 minutes
• Drying time in OPL machine can be changed from 1 to 100 minutes by pressing the cycle button.
  Price setting varies by country
  After Factory Reset, set your country from Loo to Currency Type Setup)

4. Setup

Time Setup can be used to set the current year, month, day, hour, and minute.

Time Setup		Display
Enter SVC Mode		86:90
Press 2nd button or 3rd button Until display shows		88:88
Press Start button	Display shows you 2000(Year) → 0101(Month/ Date) → Sat(Day) → 0000(Time(24hr))
Press Start button		88:88
Press 2nd button or 3rd button Until display shows the year you want (i.e. 2020)		88:88
Press Start button		88:88
Press 2nd button or 3rd button	Until display shows the month you want in the left two digits (i.e. June = 0601)	88:88
Press Start button		88:88
Press 2nd button or 3rd button	Until display shows the day you want in the right two digits (i.e. June 11th = 0611)	88:88
Press Start button		88:88
Press 2nd button or 3rd button	Until display shows the hour you want (i.e. 2:00 PM = 1400)	88:00
Press Start button		88:00
Press 2nd button or 3rd button	Until displays shows the minute you want (i.e. 2:15 PM = 1415)	88:88
Press Start button	Display shows you 2020 → 0611(Month/Date) → tHU(Day) → 1415(Time(24hr))
Press 1st button Until display returns to standby mode

NOTE

Time is displayed in military time format.
- Time Setup must be set to use Special Day Price feature.
- When the machine is powered off, Time Setup is reset to default.

5. Coursy Cycle

Courtesy Cycle is a free cycle given to customers for Pay Type machines.

Courtesy Cycle		Display
Enter SVC Mode		88:98
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Press 2nd button Until display shows		88:88
Press Start button	Machine is ready to use. User can choose desired course and press Start.

6. 15 cycle

Kill Cycle is used to end the currently operating cycle.

Cycle Kill		Display
Enter SVC Mode		88:96
Press 2nd button or 3rd button Until display shows		88:88
Press Start button		88:88
Press 2nd button Until display shows		88:88
Press Start button	Machine ends the cycle and goes back to standby mode. ●NOTE ●Only works for machine that is currently operating. ●Cycle can be ended with Cycle Kill Card for Card Type machines.	88:88

NOTE

• OPL type: Dryer will end the cycle by opening the door.

7. check

Duct Check is used to check when if duct is installed well.

Duct Check		Display
Enter SVC Mode		86:96
Press 2nd button or 3rd button Until display shows		88:88
Press Start button Displays the number of duct blockages.		88:88
Press Start button	The installation check starts. Wait for the examination to complete. If you stop the product in the middle, the check may not be successful.	88:88
	End is displayed at normal end. The DUTC flashes on the display when checking for abnormalities. Turn off the power and reconfirm the do installation.	88:88 or 88:88

8. 2ndord Setup

Password Setup can be used to change the password to enter Service mode.

Password Setup		Display
Enter SVC Mode		86:96
Press 2nd button or 3rd button Until display shows		88:58
Press Start button
Button functions: Start button = Select 1st button = Go back a step 2nd button = Increase value 3rd button = Decrease value 4th button = Move to next digit	Input current password Default Password : 3000 1) Press the 2nd & 3rd buttons to toggle numbers. 2) Press the 4th button to move to the next digit.	88:88
Press Start button		88:88
Button functions: Start button = Select 1st button = Go back a step 2nd button = Increase value 3rd button = Decrease value 4th button = Move to next digit	Input new password (i.e. 1234) 1) Press the 2nd & 3rd buttons to toggle numbers. 2) Press the 4th button to move to the next digit.	88:88 88:88 88:88 88:88
Press Start button New password is set		88:58

Programming Mode - Collect Mode

Collect Information Data: (ay)

The dryer collects the usage data so that the owner can check various information like number of various cycles used, how many times card or coins used, etc.

how to enter Programming mode:

• Coin type - Turn on/off the toggle switch.
• Card type - Insert the service card.
  -All types -

1) Press the 1st & 3rd button at the same time.
2) Press the 2nd & 3rd buttons to toggle numbers.
Then, press the 4th button to move to the next digit.
3) Press the Start button to finish password input.

Collect Mode

Collect Mode		Display
Enter SVC Mode		86:96
Press 1st button		86:88
Press 2nd button or 3rd button Until display shows		86:88
Press Start button		86:88
Select the category you want Button functions: Start button = Select 1st button = Go back a step 2nd button = Move up 3rd button = Move down	Refer to the follow Collect Mode Data List

Collect Mode Data List

No.	Abbreviation	Meaning Description
1	rgPr	Regular Price (Default Price)
2	rgP1	Regular COS1 Price
3	rgP2	Regular COS2 Price
4	rgP3	Regular COS3 Price
5	rgP4	Regular COS4 Price
6	ltrC	Interval Regular Cycles	(0 ~ 65535)
7	ltr1	Interval Regular COS1 Cycles	(0 ~ 65535)
8	ltr2	Interval Regular COS2 Cycles	(0 ~ 65535)
9	ltr3	Interval Regular COS3 Cycles	(0 ~ 65535)
10	ltr4	Interval Regular COS4 Cycles (0 ~ 65535)
11	ACrC	Accumulated Regular Cycles (0 ~ 65535)
12	ACr1	Accumulated Regular COS1 Cycles (0 ~ 65535)
13	ACr2	Accumulated Regular COS2 Cycles (0 ~ 65535)
14	ACr3	Accumulated Regular COS3 Cycles (0 ~ 65535)
15	ACr4	Accumulated Regular COS4 Cycles (0 ~ 65535)
16	ltsU	Interval 'Courtesy Cycle' Usage Count (0 ~ 65535)
17	ACSU	Accumulated 'Courtesy Cycle' Usage Count	(0 ~ 65535)
18	ItFC	Interval 'Token' Cycle Count	(0 ~ 65535)
19	ACFC	Accumulated 'Token' Cycle Count	(0 ~ 65535)
20	top1 COS1	Top Off Price
21	top2 COS2	Top Off Price
22	top3 COS3	Top Off Price
23	top4 COS4	Top Off Price
24	lto1	Interval COS1 Top Off Cycle Count	(0 ~ 65535)
25	lto2	Interval COS2 Top Off Cycle Count	(0 ~ 65535)
26	lto3	Interval COS3 Top Off Cycle Count	(0 ~ 65535)
27	lto4	Interval COS4 Top Off Cycle Count	(0 ~ 65535)
28	ACo1	Accumulated COS1 Top Off Cycle Count	(0 ~ 65535)
29	ACo2	Accumulated COS2 Top Off Cycle Count	(0 ~ 65535)
30	ACo3	Accumulated COS3 Top Off Cycle Count	(0 ~ 65535)
31	ACo4	Accumulated COS4 Top Off Cycle Count	(0 ~ 65535)
32	ACrt	Accumulated Run Time (minutes)	(0 ~ 65535)
33	ItPd	Interval Power Downs	(0 ~ 255)
34	Itdd	Interval Unauthorized Service Door Openings	(0 ~ 255)
35	ItUC	Interval Unauthorized Coin Vault Openings	(0 ~ 255)
36	Ittl	Interval Total Income (Ltd + Ittd)	(0 ~ 65535)
37	ACtl	Accumulated Total Income (ACd + ACtd)	(0 ~ 65535)
38	IttC	Interval Total Cycle Count	(0 ~ 65535)
39	ACtC	Accumulated Total Cycle Count	(0 ~ 65535)
40 ltd	Interval Money	(0 ~ 65535)
41 AC	d Accumulated	Money (0 ~ 65535)
42 lttd	Interval Top Off Money (0 ~ 65535)
43 AC	td Accumulated	Top Off Money (0 ~ 65535)
44 dELC Sensor Dry Usage Count (0 ~ 65535)

NOTE

• Interval Cycles are reset to 0 after data is collected with Collect Card.
• Accumulated Cycles do not count Service or Trouble Cycles.
  Price settings vary by country.

SMART FUNCTIONS

Wireless LAN Module Specifications

Model	LCW-004
Frequency Range	2412 to 2472 MHz
Output Power (Max.)	IEEE 802.11b: 17.82 dBm
	IEEE 802.11g: 17.72 dBm
	IEEE 802.11n: 16.61 dBm

Wireless function S/W version: V 1.0
For consideration of the user, this device should be installed and operated with a minimum distance of 20cm between the device and the body.

Declaration of Conformity

C E

Hereby, LG Electronics declares that the radio equipment type Dryer is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www/lg.com/global/support/cedoc/cedoc# LG Electronics European Shared Service Centre B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

NOTE

Distributor

JLA

Meadowcroft Lane, Ripponden, West Yorkshire HX6 4AJ, United Kingdom

Bijelisviset

Kranjceviceva 50, Zagreb, Croatia, OIB 31225259453

IMESA FRANCE

210 RUE HENNEBIQUE - ZI LES MILLES 13796 AIX EN PROVENCE - France

MS Group

VIA FRATELLI ROSSELLI 14/16,20019 SETTIMO MILANESE, Italy

GIRBAU

Carretera de Manlleu, km.1 - 08500 Vic - Spain

Merkiber

Calle del Yunque, 9 (Sector P-Norte) Poligono Industrial Arinaga, Aguimes, 35118 Las Palmas Spain

Dormer

Brewery Street, Castlebellingham, Dundalk, County Louth, Ireland

JESSERNIGG

Leberstrasse 20, A-1110 Vienna, Austria

Permak

Barbaros Bulvari No:93, 34357 Besiktas/Istanbul, Turke

MAINTENANCE

Regular cleaning

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:

• Unplug the dryer before cleaning to avoid the risk ofelectric shock. Failure to follow this warning can cause serious injury, fire, Electric shock, or death.
• Never use harsh chemicals, abrasive cleaners or solvents to clean the dryer. They will damage the finish.

Cleaning the Exterior

Proper care of your dryer can extend its life. The outside of the machine can be cleaned with warm water and a mild, nonabrasive household detergent. Immediately wipe off any spills with a soft, damp cloth.

NOTE

Do not use methylated spirits, solvents, or similar products. Never use steel wool or abrasive cleansers; they can damage the surface.

Cleaning the Interior

Wipe around the door opening and seal with a soft, damp cloth to prevent lint and dust buildup that could damage the door seal.

Clean the window with a soft cloth dampened with warm water and a mild, nonabrasive household detergent; then wipe dry.

The stainless steel drum can be cleaned with a conventional stainless steel cleaner, used according to the manufacturer's specifications.

Never use steel wool or abrasive cleansers; they can scratch or damage the surface.

Cleaning Around and Under the Dryer

Vacuum lint and dust from around the dryer and underneath it regularly. Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages.

Maintaining Ductwork

Vent ductwork should be checked for lint buildup and cleaned at least once per year. If any noticeable reduction in airflow or drying performance occurs, immediately check ductwork for obstructions and blockages. Contact a qualified technician or service provider.

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service personnel - Do not contact the following parts while the appliance is energized: Motor, Control board.

Cleaning the Lint Filter

Always clean the lint filter after every cycle.

To clean, open the dryer door and pull the lint filter straight up.Then:

1. Roll any lint off the filter with your fingers, or

1. Vacuum the lint filter, or

1. If the lint filter has become very dirty or clogged with fabric softener, wash the lint filter in warm, soapy water and allow to dry thoroughly before reinstalling.

NOTE

NEVER operate the dryer without the lint filter in place.
NEVER operate the dryer with a wet lint filter. Recommended frequency of periodic servicing is once a year

STACK MACHINE INSTALLATION INSTRUCTIONS

1. Suitable model for stacking

Stack type Upper Dryer Lower Dryer Lower Washer
Model Name	RV1329C7T RV1329CN7T	RV1329C1T RV1329CN1T	FH069FD2MS FH069FD2M FH069FDMS FH069FDM

2. Stacking kit

• Stacking kit is provided in the upper dryer.

• Stacking kit includes the stacking bracket(1), security bracket(3), bolt(1), screw(9).

1) Stacking bracket 2) bolt 3) Screw 4) security bracket

• Sliding kit includes the slide bracket(2), sliding pad(4), screw(18).

1) Stacking bracket 2) Sliding pad 3) Screw

NOTE

• The machine can be stacked only on the model designated as suitable by LGE.
• Do not stack the washer on the top.
• You can order the parts for stacking from Qualified dealer or Qualified SVS agent of LGE.

3. Stacking the machine

• Install two sliding brackets on the top plate of lower washer.
• Remove the legs from the leg brackets.
• Remove the four(4) leg brackets from the bottom of upper dryer.
• Assemble the four(4) slide pads on the base.

*Security bracket installation (Only coin model)

• Install two security bracket on the panel frame and top plate in the lower washer.
  Install one security bracket on the lower panel frame in the upper dryer.

• Lift and stack the upper dryer on the lower washer.
• Set the rear of the upper dryer and the rear of the lower washer in the same position.
• Push the upper dryer matching the slide & stacking bracket to make upper and lower front parallel.

• Install the stacking bracket at the rear of the stacked dryer and washer.
• Assemble the six(6) screw to fix the lower machine and upper dryer.

NOTE

Please refer to Service Manual for detail to explain how to stack and fix the machine

ERROR MODE

Meaning of Error Codes that LED displays during occurrence or problem.

Dryer error code

PROBLEM POSSIBLE CAUSE SOLUTION
E E I	It is displayed when thermistor is opened or shorted	Thermistor should be replaced.
E E 2	ELECTRIC TYPE It is displayed when thermistor temperature have increased about 5 degrees for 3 seconds GAST TYPE It is displayed when thermistor temperature have increased about 17 degrees for 10 seconds	Thermistor should be replaced.
C-R-E	Disconnection of card reader wire. Check the card reader wire.

POWER FAIL RECOVERY

In case of power failure the machine stops running but the time display remains on, showing the time just before power failure.

Press the START button after the power is restored, then the machine will restart.

DEFAULT DRYER SETTINGS

Default Settings Default
Cycle Time (Minutes) 50 Minutes
Cool Down Time Cycle 2 Minutes
High Temperature 154,4°F (68°C)
Medium Temperature 140°F (60°C)
Low Temperature	ELECTRIC TYPE 125,6°F (52°C) GAS TYPE 116,6°F (47°C)
Top Off Time (Minutes per coin) 10 Minutes
Coin #1 Value 0,10
Minutes/Minutes and seconds	Minutes
Fahrenheit/Celsius	Celsius
Error Mode	On

NOTE

• Price setting varies by country.
• Set your country from loc mode. (Refer How to enter the type)
• After EEPT, reset your country. (Default country is England)

INSTALLATION GUIDE FOR HARMONICS AND FLICKER

※ The below installation guide is limited applicable only for model

Model: Rv1329CN1T, Rv1329CN4T, Rv1329CN7T, Rv1329C1T, Rv1329C4T, Rv1329C7T

Installation Guide for harmonics (EN 61000-3-2 & EN 61000-3-12)

This equipment complies with IEC (EN) 61000-3-12 in harmonic currents emission limits corresponding Rsce=33.

Installation Guide for Flicker (EN 61000-3-3 & EN 61000-3-11)

This device is intended for the connection to a power supply system with a maximum permissible system impedance Z_max of 0.3996(0.339+j0.212)Ω at the interface point (power service box) of the user's supply. The user has to ensure that this device is connected only to a power supply system which fulfills the requirement above. If neccessary, the user can ask the public power supply company for the system impedance at the interface point.

MANUAL DE USUARIO

SECADEORA COMERCIAL

0:50ms :ESD,Greenwald,Munzprufer

1:100ms:Corea

http://www/lg.com/global/support/cedoc/cedoc# LG Electronics European Shared Service Centre B.V.

Meadowcroft Lane, Ripponden, West Yorkshire HX6 4AJ, United Kingdom

Bijelisviset

Kranjceviceva 50, Zagreb, Croatia, OIB 31225259453

IMESA FRANCE

210 RUE HENNEBIQUE - ZI LES MILLES 13796 AIX EN PROVENCE - France

MS Group

VIA FRATELLI ROSSELLI 14/16,20019 SETTIMOMILANESE, Italy

GIRBAU

Carretera de Manlleu, km.1 - 08500 Vic - Spain

Merkiber

Calle del Yunque, 9 (Sector P-Norte) Poligono Industrial Arinaga, Aguimes, 35118 Las Palmas Spain

Dormer

Brewery Street, Castlebellingham, Dundalk, County Louth, Ireland

JESSERNIGG

Leberstrasse 20, A-1110 Vienna, Austria

Permak

Barbaros Bulvari No:93, 34357 Besiktas/Istanbul, Turke

MANTENIMIENTO

LIMPIEZA REGULAR

PRECAUCION:

3 CARACTERISTIQUES DU PRODUIT

4 CONSIGNES IMPORTANTE S RELATIVES A LA SECURITE

6 PRECAUTIONS DE SECURITE ELEMENTAIRES

12 CONSIGNES DE MISE A LA TERRE

13 CONSIGNES DE SECURITE POUR L'INSTALLATION

16 CONSIGNES DE SECURITE POUR LE BRANCHEMENT ELECTRIQUE

19 PRÉSENTATION DE VOTRE SÉCHE-LINGE

19 Caracteristiques

20 Accessoires

CARACTERISTIQUES DU PRODUIT

DESIGN ARTISTIQUE

0:50 ms :ESD,Greenwald,Munzprufer

1:100 ms: Coree

Tests de diagnostic: (age)

Brewery Street, Castlebellingham, Dundalk, County Louth, Irlande

JESSERNIGG

Leberstrasse 20, A-1110 Vienna, Autriche

Permak

Barbaros Bulvari No:93, 34357 Besiktas/Istanbul, Turquie

MAINTENANCE

Nettoyage régulier

AVENTISSEMENTS
