PAU33 - USB Charger Aukey - Free user manual and instructions

Product Type	USB Wall Charger
Brand	Aukey
Model	PAU33 (PA-U33)
Dimensions (L x W x H)	94 x 60 x 25 mm
Weight	169.5 g
Input Power	AC 100-240V, 50/60Hz, 1.5A max
Total Output	5V / 10A (50W)
Maximum Output per Port	Up to 2.4A (shared across 5 ports)
Technology	AiPower (automatic device detection)
Number of USB Ports	5
Safety Features	Overcurrent, overload, and short-circuit protection
Package Contents	Charger, AC power cable, instruction manual
Warranty	24 months from date of purchase
Care and Cleaning	Clean with a dry, soft cloth. Do not use liquids or abrasives.
Spare Parts and Repairability	Contact customer support. Not user repairable.

Frequently Asked Questions - PAU33 Aukey

Which port should I use to charge my phone?

Thanks to AiPower technology, you can use any of the 5 ports. Each port automatically delivers the optimal current for your device.

What is the maximum output of each port?

Each port can deliver up to 2.4A, but the total combined output must not exceed 10A (50W). If multiple devices are connected, the current is shared.

Can I charge a device with an input limit of 1A (1000 mAh)?

Yes, the charger detects your device's demand and only supplies the necessary current (smart protection). It will not damage your device.

How do I check the input voltage and current of my device?

Check your device's user manual, original adapter, or contact the manufacturer. Generally, most USB devices use 5V.

What should I do if the charger does not charge my device?

Check that your device accepts 5V DC input and a current between 0 and 2.4A. Ensure the USB cable is properly connected and the wall outlet is working.

Can I charge multiple devices at the same time?

Yes, all 5 ports can be used simultaneously. Total power is 50W, each device receives the highest possible speed according to its compatibility.

Is it normal for the charger to heat up?

Yes, slight warmth is normal when using multiple ports. The charger is designed to withstand high temperatures. If it becomes excessively hot, unplug it and contact support.

What types of devices are compatible?

All USB-charging devices (smartphones, tablets, headphones, power banks, etc.) are compatible thanks to AiPower technology.

Does the charger have an LED indicator?

The PAU33 model does not have an LED indicator visible from the descriptions. The absence of LED prevents light pollution at night.

What to do in case of a problem with the charger?

Contact Aukey support at [e-mail]. The 24-month warranty covers manufacturing defects. Do not attempt to repair yourself.

USER MANUAL PAU33 Aukey

ACKEYINTERNATIONALLIMITED

Web: www.surveey.com E- mail: supp#[e-mail]

10000000000000000000000000000000000000000000000000

Shengchen, Guangdong S18111 CN

AUKEY

User Manual

5-Port USB Charging Station

Model: PA-U33

Contents

Model: PA-U33

English 01~04

Deutsch 05~08

Francais 09~12

Espanol 13~16

Italiano 17~20

日本語 21~24

Introduction

Thank you very much for choosing Aukey AiPower PA-U33 50W/10A 5 USB Port Wall Charging Station! Please read this manual carefully before using the wall charger as it contains some important information. And if you have trouble understand and follow the instructions listed in this manual, please contact our customer support team at [e-mail].

What is in the Box?

• Aukey 50W/10A Five USB Port Wall Charger
• AC Cable
• Instruction Manual

What is AiPower Technology?

Smart:

Automatically recognize your mobile devices and compatible with them.

Fast:

Identify the voltage setting of your device and automatically adjust the output to fit it, so you can charge it at its full speed.

Easy:

All five ports have AiPower tech, you do not need to find the most suitable USB output to charge. Just plug your device into any of the ports!

Safe:

Over-current, over-charging, short-circuit protection make your wall charger and mobile devices safe.

Features:

• AiPower Technology: Enable full speed charges and universal compatibility.
• Powerful: With an industry high power output of 10A through 5 ports, charge five power hungry devices at full speed (Up to 10A total).
• Portable: lightweight and compact design.

Tech Specification:

Brand	Aukey
Tech	AiPower
Input	AC 100-240V 50-60Hz 1.5A Max
Charging Output	5V / 10A (Max)
Max Out for Each Port	Up to 2.4A
Power	50W
Size	94*60*25mm/3.7*2.36*0.98in(L*W*H)
Weight	169.5g/5.98goz

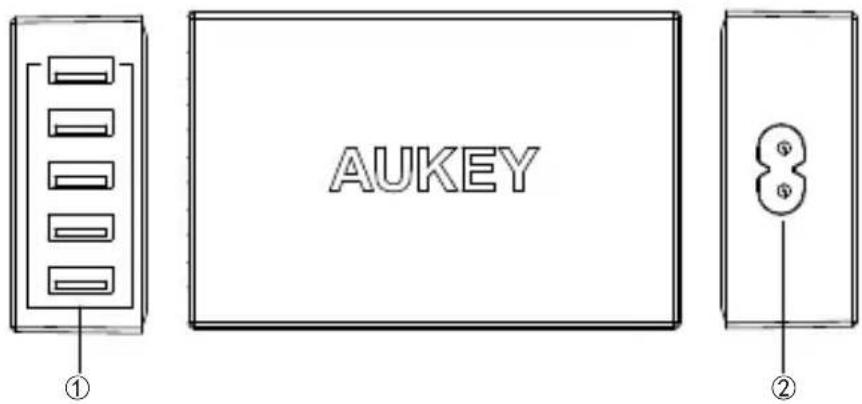

Identification of Parts

① Charging ports
② Power Cord input

FAQ and Solution:

1. Which charging port should I use to charge my device?

Thanks to the AiPower tech, each port can be used to charge your mobile devices at full speed.

1. The total output of the PA-U33 is 10A, and how about the max output of each port?

The max output of each port can reach up to 2.4A when the total output does not exceed 10A.

1. The Input of my devices is only 1,000mAh; will the Aukey PA-U33's 2.4A high output harm it?

No, the charger will indentify the input current your devices needed and only supply the maximum charge current your devices.

1. How do I check the input current and voltage of my device?

Please refer to your devices' user manual, original charging adapter or contact the manufacturer to determine the information.

1. What if the Aukey 50W wall charger is not charging my device?

2. Check to ensure your device is USB powered with a voltage input DC 5V and current input 0-2.4A.

3. Check to ensure the connection between your wall charger and the lighter socket is secure.

Note:

1. The wall charger may be a little warm when you use it to charge multi devices. This is normal.
2. When your device is run out of the battery and power off, some devices may be charged a little slower at beginning because of the battery protection from your device.

Warranty

Aukey provides all our customers 24 months warranty from the date of purchase.

Contact us

For any inquiries or comments concerning our product or any quality-related issue with our product, please contact us at [e-mail]. We will respond to you as soon as possible.

Einführung

Specifications Techniques:
