Product Type	Dual Port USB Wall Charger
Brand	Aukey
Model	LTST14 (PA-T16)
Fast Charging Technology	Qualcomm Quick Charge 3.0
Number of USB Ports	2
Input Voltage	AC 100–240V
Output Voltage (Quick Charge 3.0 port)	DC 3.6–6.5V / 6.5–9V / 9–12V
Maximum Output Current	3A (per port)
Total Output Power	39W
Dimensions	64 x 63 x 28 mm
Weight	116g
Box Contents	Charger, user manual, warranty card
Compatibility	Standard USB devices and Quick Charge 2.0/1.0
Care and Cleaning	Keep away from liquids and extreme heat sources
Warranty	Manufacturer's warranty, contact support based on region

Frequently Asked Questions - LTST14 Aukey

How can I tell if my device is Quick Charge 3.0 compatible?

Check the full list of compatible devices on Qualcomm's official website: www.qualcomm.com. Devices compatible with Quick Charge 2.0 and 1.0 are also supported.

Can I use the charger with a non-Quick Charge device?

Yes, the charger works with any standard USB device. The charging speed will then be limited to the device manufacturer's specifications (e.g., an iPhone will charge normally, without fast charging).

What is the maximum power output of the charger?

The total output power is 39W. Each port can deliver up to 3A at variable voltage depending on Quick Charge 3.0 compatibility.

Is the charger compatible with Quick Charge 2.0?

Yes, the charger is backward compatible with Quick Charge 2.0 and 1.0. The charging speed will adapt to the device.

How to use the charger for the first time?

Plug the charger into a wall outlet, connect your charging cable to the device and then to the USB port of the charger. Unplug once charging is complete.

Can I charge two devices at the same time?

Yes, both USB ports can be used simultaneously. The total power of 39W is shared between the two ports.

What to do if the charger overheats abnormally?

Unplug the charger immediately and contact customer service. Avoid using it near heat sources or in a confined environment.

How to contact Aukey customer service?

Depending on your region, send an email with the model number and your Amazon order: [e-mail] (USA), [e-mail] (Europe), [e-mail] (Canada), [e-mail] (Japan).

Is the charger suitable for travel?

Yes, thanks to its universal input 100-240V, it works worldwide. A plug adapter may be needed depending on the country.

What are the dimensions and weight of the charger?

The charger measures 64 x 63 x 28 mm and weighs 116g, making it compact and easy to carry.

USER MANUAL LTST14 Aukey

Dual-Port USB Turbo Charger

with Qualcomm® Quick Charge™ 3.0 Technology

Contents

English 01\~04

Deutsch 05\~08

Français 09\~12

Español 13\~16

Italiano 17\~20

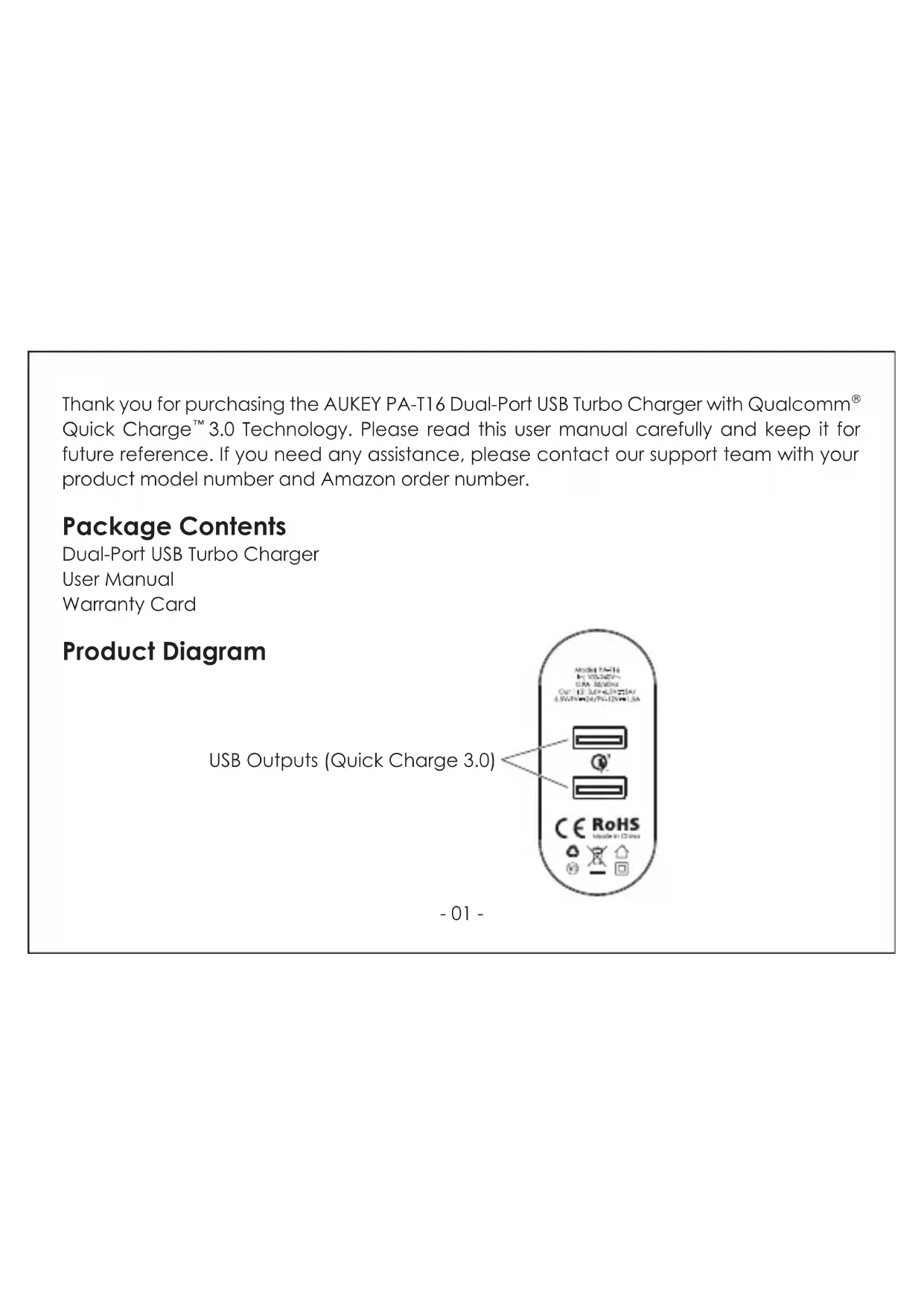

Thank you for purchasing the AUKEY PA-T16 Dual-Port USB Turbo Charger with Qualcomm® Quick Charge™ 3.0 Technology. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Dual-Port USB Turbo Charger

User Manual

Warranty Card

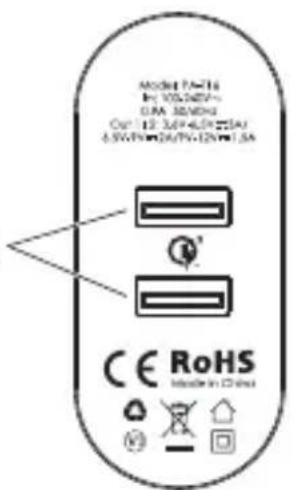

Product Diagram

USB Outputs (Quick Charge 3.0)

Specifications

Model	PA-T16
Technology	Quick Charge 3.0
Input	AC 100–240V
USB Output 1 / 2 (Quick Charge 3.0)	DC 3.6–6.5V 3A, 6.5–9V 2A, 9–12V 1.5A
Total Power Output	39W
Dimensions	64 x 63 x 28mm / 2.52" x 2.48" x 1.10"
Weight	116g / 4.09oz

What is Quick Charge 3.0?

Charge compatible devices up to four times faster than conventional charging. Quick Charge 3.0 is engineered to refuel devices twice as fast as Quick Charge 1.0 and is up to 38% more efficient than Quick Charge 2.0. Backward-compatible with Quick Charge 2.0/1.0 devices.

Getting Started

1. Plug the PA-T16 into a wall outlet
2. Connect your charging cable to your device's charging port
3. Connect the other end to an output port on PA-T16
4. Unplug your device when fully charged

Q & A

How do I know if my device is Quick Charge 3.0 compatible?

For a complete list of Quick Charge-compatible devices, please visit Qualcomm's website: www.qualcomm.com

Can I use the PA-T16 Quick Charge 3.0 ports with devices that don't support Quick Charge?

Yes. Quick Charge 3.0 supports multi-voltage output. You can use the PA-T16 to charge any USB-powered device, but charging speeds will be limited by original device manufacturer's specifications (e.g. you can charge an iPhone, but can't Quick Charge an iPhone).

Product Care

- Keep away from liquids and extreme heat

Warranty & Customer Support

For questions, support, or warranty claims, please contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN

RoHS

Made in China

Qualcomm Quick Charge is a product of Qualcomm Technologies, Inc. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Quick Charge is a trademark of Qualcomm Incorporated. All Qualcomm Incorporated trademarks are used with permission.
