Product Type	Dual USB wall charger with Quick Charge 3.0
Brand	Aukey
Model	DSB4 (PA-T16)
Fast charging technology	Qualcomm Quick Charge 3.0 (compatible 2.0/1.0)
Input power	AC 100-240V
USB output (Quick Charge 3.0)	DC 3.6-6.5V/3A, 6.5-9V/2A, 9-12V/1.5A per port
Total output power	39 W
Number of USB ports	2 ports (Quick Charge 3.0)
Dimensions	64 x 63 x 28 mm
Weight	116 g
Box contents	Charger, user manual, warranty card
Exterior material	Plastic (not specified, standard estimation)
Care and cleaning	Keep away from liquids and sources of extreme heat. Clean with a dry cloth.
Safety	Do not expose to water or excessive heat. Unplug after use.
Warranty	Manufacturer warranty, after-sales service via email depending on region ([e-mail] for US, [e-mail] for Europe, etc.)
Device compatibility	Devices compatible with Quick Charge 3.0, 2.0, 1.0 and other USB devices (standard charging)

Frequently Asked Questions - DSB4 Aukey

What is Quick Charge 3.0 and how is it different from previous versions?

Quick Charge 3.0 is a fast charging technology from Qualcomm that charges compatible devices up to 4 times faster than a standard charger. It is twice as fast as Quick Charge 1.0 and up to 38% more efficient than Quick Charge 2.0.

How do I know if my device is compatible with Quick Charge 3.0?

Check the list of compatible devices on Qualcomm's official website: www.qualcomm.com. Generally, recent smartphones and tablets from brands like Samsung, LG, Xiaomi, etc. support it.

Can I use this charger with an iPhone or other non-Quick Charge device?

Yes, the charger is backwards compatible with all USB devices. It will provide a standard charge at the maximum speed supported by the device, for example for an iPhone, charging will be normal (not fast).

What is the maximum power output per USB port?

Each USB port supports a variable output depending on voltage: 3.6-6.5V/3A, 6.5-9V/2A or 9-12V/1.5A. The total power of both ports is 39W.

Can I charge two devices at the same time?

Yes, the charger has two USB ports, both with Quick Charge 3.0. You can charge two devices simultaneously, but the total power is shared (max 39W).

How to maintain and clean this charger?

Keep it away from liquids and sources of extreme heat. To clean it, use a soft dry cloth. Do not immerse in water.

What should I do if my charger stops working?

First check the wall outlet and cable. If the problem persists, contact Aukey after-sales service according to your region ([e-mail] for USA, [e-mail] for Europe, etc.) providing your Amazon order number and product model.

Is the charger compatible with 220V input voltage?

Yes, the input accepts a universal voltage of 100-240V, so it can be used worldwide with a plug adapter if necessary.

What are the dimensions and weight of the charger?

The charger measures 64 x 63 x 28 mm and weighs 116 g, making it compact and easy to carry.

Where can I find the full manual for this product?

The manual is available for free on the website notice-facile.com in PDF format. You can also download it from the product page or request a translation in different languages.

USER MANUAL DSB4 Aukey

Dual-Port USB Turbo Charger with Qualcomm® Quick Charge™ 3.0 Technology

Contents

English 01~04

Deutsch 05~08

Francais 09~12

Espanol 13~16

Italiano 17~20

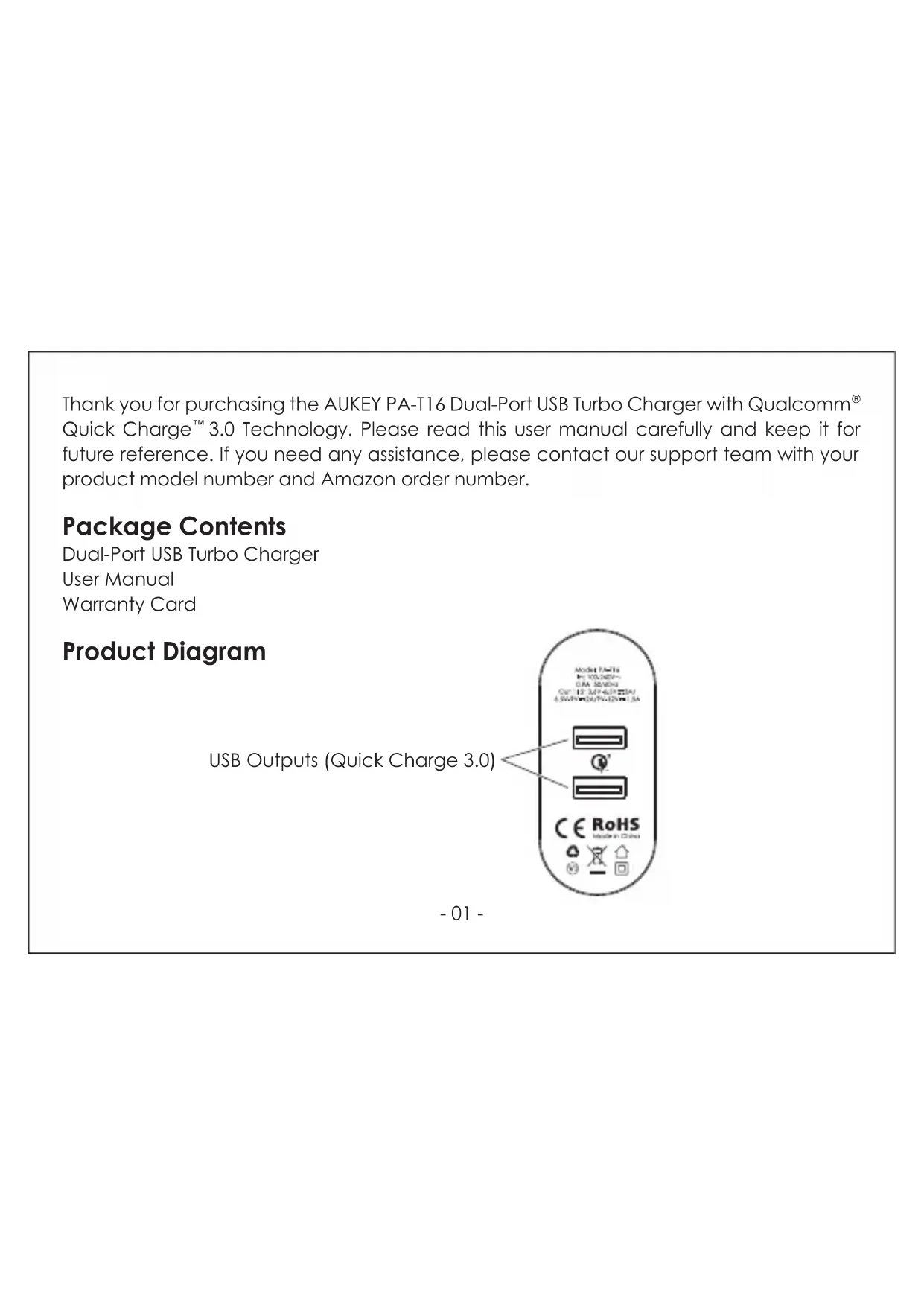

Thank you for purchasing the AUKEY PA-T16 Dual-Port USB Turbo Charger with Qualcomm® Quick Charge™ 3.0 Technology. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Dual-Port USB Turbo Charger

User Manual

Warranty Card

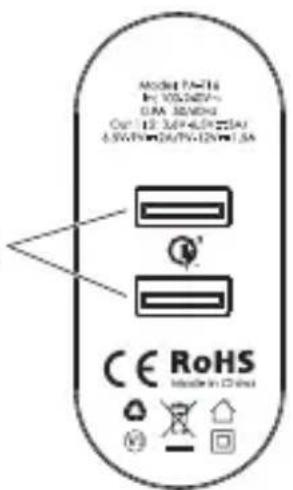

Product Diagram

USB Outputs (Quick Charge 3.0)

Specifications

Model	PA-T16
Technology	Quick Charge 3.0
Input	AC 100-240V
USB Output 1 / 2 (Quick Charge 3.0)	DC 3.6-6.5V 3A, 6.5-9V 2A, 9-12V 1.5A
Total Power Output	39W
Dimensions	64 × 63 × 28mm / 2.52” × 2.48” × 1.10”
Weight	116g / 4.09oz

What is Quick Charge 3.0?

Charge compatible devices up to four times faster than conventional charging. Quick Charge 3.0 is engineered to refuel devices twice as fast as Quick Charge 1.0 and is up to 38% more efficient than Quick Charge 2.0. Backward-compatible with Quick Charge 2.0/1.0 devices.

Getting Started

1. Plug the PA-T16 into a wall outlet
2. Connect your charging cable to your device's charging port
3. Connect the other end to an output port on PA-T16
4. Unplug your device when fully charged

Q&A

How do I know if my device is Quick Charge 3.0 compatible?

For a complete list of Quick Charge-compatible devices, please visit Qualcomm's website: www.QUALCOMM.COM

Can I use the PA-T16 Quick Charge 3.0 ports with devices that don't support Quick Charge?

Yes. Quick Charge 3.0 supports multi-voltage output. You can use the PA-T16 to charge any USB-powered device, but charging speeds will be limited by original device manufacturer's specifications (e.g. you can charge an iPhone, but can't Quick Charge an iPhone).

Product Care

• Keep away from liquids and extreme heat

Warranty & Customer Support

For questions, support, or warranty claims, please contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN

Made in China

Qualcomm Quick Charge is a product of Qualcomm Technologies, Inc.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. Quick Charge is a trademark of
Qualcomm Incorporated. All Qualcomm Incorporated trademarks are used with permission.
