Product Type	Portable LED Lamp with RGB Functions
Brand	Aukey
Model	LTW6 / LT-ST23
Dimensions	95 x 95 x 75 mm
Weight	259 g
Power Input	DC 5V 1A (charges via Micro-USB)
Power Consumption	2 W
Battery Capacity	2200 mAh
Charging Time	Approximately 3.5 hours
Battery Life	Up to 6 hours (full brightness) / 100 hours (minimum brightness)
Max Luminous Flux	180 lumens
Color Temperature	2700K (soft yellow) / 6500K (cool white)
Color Rendering Index	≥ 80 Ra
LED Type	SMD2835 (29 LEDs)
Protection Rating	IP65 (water and dust resistant)
Lighting Modes	Cool white, soft yellow, manual RGB cycle, auto RGB cycle
Brightness Adjustment	Yes, via touch button (continuous dimming)
Memory Function	Remembers last mode and brightness
Control	Multifunction button + touch button on top
Mounting	Magnetic base + carabiner + adhesive metal plates
Package Contents	Lamp, Micro-USB cable, 2 metal plates, carabiner, manual, warranty card
Maintenance	Clean with a soft dry cloth; recharge every 3 months if unused
Safety	Do not disassemble, avoid extreme heat, secure the strap firmly
Warranty	Manufacturer warranty (contact AUKEY customer service with order number)

Frequently Asked Questions - LTW6 Aukey

How to turn the Aukey LTW6 lamp on and off?

Press and hold the multifunction button to turn the lamp completely on or off. A double-click on the touch button (center of the cover) turns the light on or off in standby mode, but only the multifunction button completely cuts off power.

How to switch between lighting modes?

Briefly press the multifunction button to cycle through the four modes: cool white, soft yellow, manual RGB cycle, and auto RGB cycle.

How to adjust brightness?

Press and hold the touch button (control point) until the desired brightness is reached. Brightness varies continuously; a green flash of the indicator indicates extreme levels.

How to use RGB color mode?

In manual RGB cycle mode, press and hold the touch button to cycle through colors and release on the desired one. In auto mode, colors scroll continuously.

How long does the battery last?

Battery life ranges from 6 hours at full brightness (180 lumens) up to 100 hours at minimum brightness, depending on the mode used.

How to know if the lamp is charging?

During charging, the LED indicator blinks red. When fully charged, the indicator turns solid blue.

Is the lamp waterproof?

Yes, it has an IP65 rating, making it splash and dust resistant. It can be used outdoors in dry weather, but is not submersible.

How to attach the lamp to a non-magnetic surface?

Use the two adhesive metal plates provided: clean the surface, remove the protective film, stick the plate, then place the magnetic base of the lamp against the plate.

What to do if the lamp does not turn on?

Check that the battery is charged (plug in the Micro-USB cable). If the red indicator blinks, the battery is low. Make sure to press and hold (about 2 seconds) the multifunction button to turn on.

How to clean the lamp?

Use a soft dry cloth. Do not use chemical or abrasive cleaners. Disconnect the cable and turn off the lamp before cleaning.

USER MANUAL LTW6 Aukey

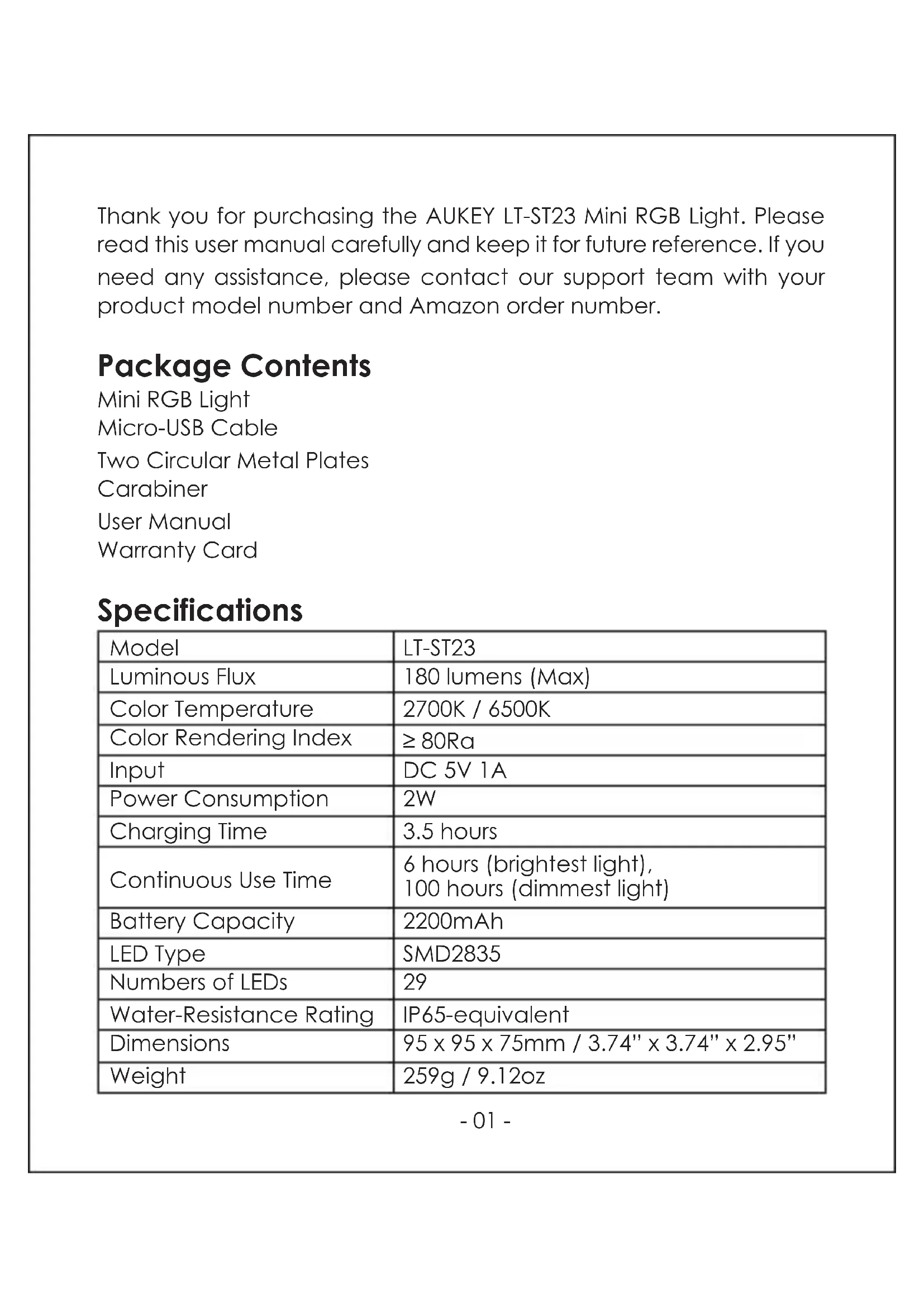

Thank you for purchasing the AUKEY LT-ST23 Mini RGB Light. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Mini RGB Light

Micro-USB Cable

Two Circular Metal Plates

Carabiner

User Manual

Warranty Card

Specifications

Model	LT-ST23
Luminous Flux	180 lumens (Max)
Color Temperature	2700K / 6500K
Color Rendering Index	≥ 80Ra
Input	DC 5V 1A
Power Consumption	2W
Charging Time	3.5 hours
Continuous Use Time	6 hours (brightest light),100 hours (dimmest light)
Battery Capacity	2200mAh
LED Type	SMD2835
Numbers of LEDs	29
Water-Resistance Rating	IP65-equivalent
Dimensions	95 x 95 x 75mm / 3.74" x 3.74" x 2.95"
Weight	259g / 9.12oz

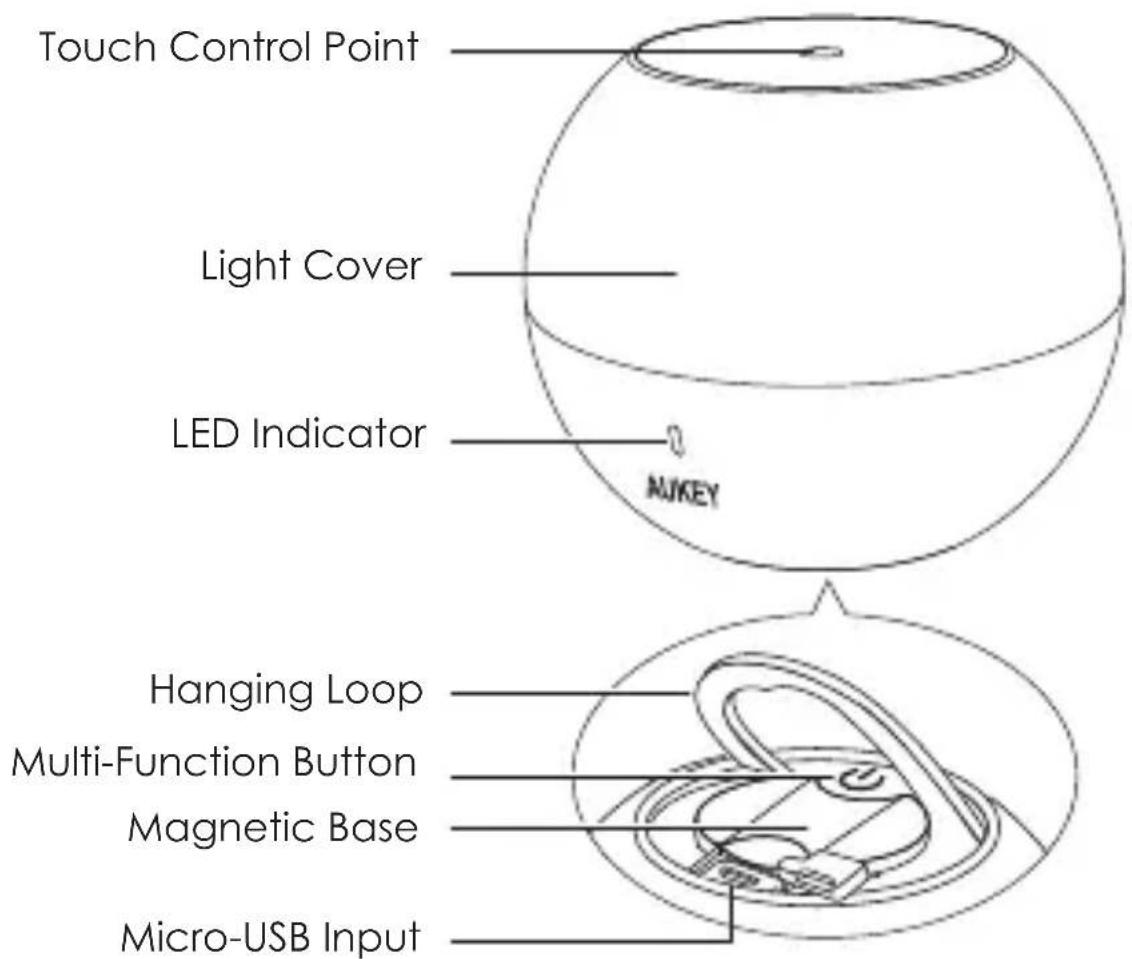

Product Diagram

Touch Control Point Light Cover LED Indicator NUKEY Hanging Loop Multi-Function Button Magnetic Base Micro-USB Input

Getting Started

Connect one end of the included micro-USB cable to the charging input port of the LT-ST23 and the other end of the cable to a USB charger or charging port to charge. LED indicator will be flashing red while charging and blue when fully charged. Charging takes around 3.5 hours.

Powering On/Off the Light

• Long-press the multi-function button to turn on/off the light
• When the light is switched on, the LED indicator is blue (or flashes red when battery is below 20%)
• With the light on, double-tapping the touch control point (center-top of the light cover) also switches the light on/off, but off is standby with touch control active. Only the multi-function button switches the light fully off

Switching Between Light Modes

There are four main light modes: cool white, soft yellow, manual RGB color-cycling, and automatic RGB color-cycling.

Switch between light modes by pressing the multi-function button●

Adjusting Light Brightnes

• Long-press the touch control point until you get the desired brightness. On each long press, the brightness will smoothly scale in the opposite direction
• Stop at any brightness level between the highest and lowest (LED indicator will flash green when these are reached)
• Brightness is only adjustable in cool white and soft yellow light modes

Using the Light Color Modes

There are two RGB color-cycling light modes. The first is manual and the second is automatic. Use manual to choose a color. Automatic cycles through all the colors continuously.

- In manual, long-press the touch control point until you get the desired color

Light Memory Function

The light switches on with the last-set mode, so you don't need to repeat color selection or brightness adjustment to reach your preferred setting.

Using the Magnetic Light Mounts

The light directly attaches to many metal surfaces. For convenient mounting on other surfaces, two metal plates are included.

1. Clean the flat surface (such as a wall) where you want to install the light with a mixture of equal parts (1:1) isopropyl alcohol and water
2. Carefully remove the metal plate's adhesive backing and adhere the plate to the surface
3. Press and hold firmly for a few minutes to ensure tight adhesion
4. Place the light's magnetic base against the magnetic plate so that it magnetically attaches

Product Care & Use

• Don't repair, dismantle, or modify the product
• Keep away from extreme heat
• When using the hanging strap, ensure secure fixing to avoid the light falling
• Disconnect power cable and switch off light before cleaning or when not in use for a long time
• Clean the light only with a soft, dry cloth
• Charge the LT-ST23 at least once every 3 months

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.
