USER MANUAL HAH08 Aukey

Thank you for purchasing the AUKEY LT-ST37 Aura Lamp. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

Aura Lamp

Remote Control

AC Adapter

User Manual

Warranty Card

Specifications

Model	LT-ST37
Brightness	100 lm
Color Temperature	3000K
Color Rendering Index	≥80Ra
Input	AC 100-240V 50/60Hz
Power Consumption	12W
Number of LEDs	72
LED Type	SMD5050
LED Lifespan	35000hrs
Operating Temperature	-20 – 40°C / -4 – 104°F
Dimensions	353 x 320 x 120mm / 13.9" x 12.6" x 4.72"
Weight	700g / 24.69oz

Note: Light specifications are given for default warm white light setting

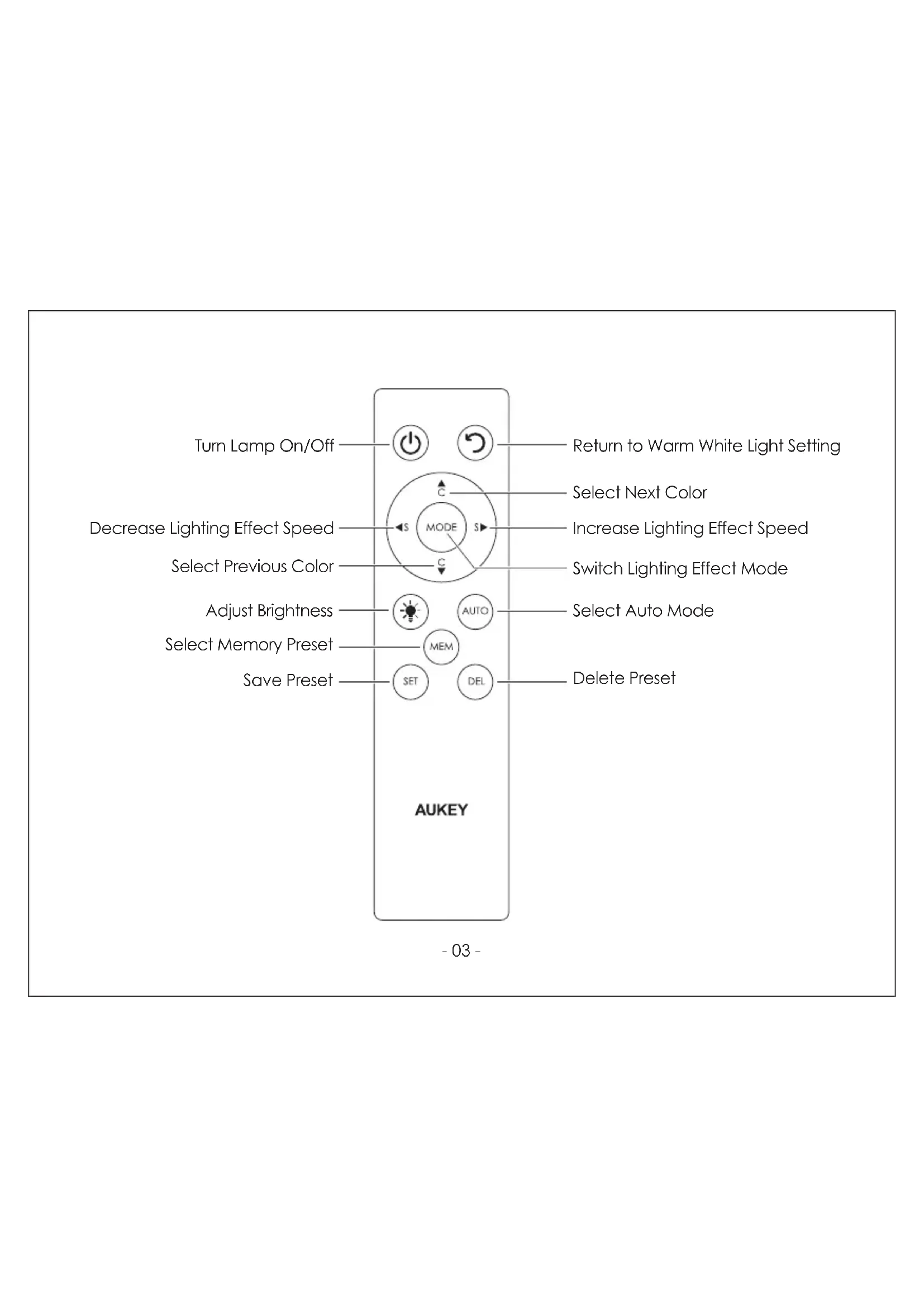

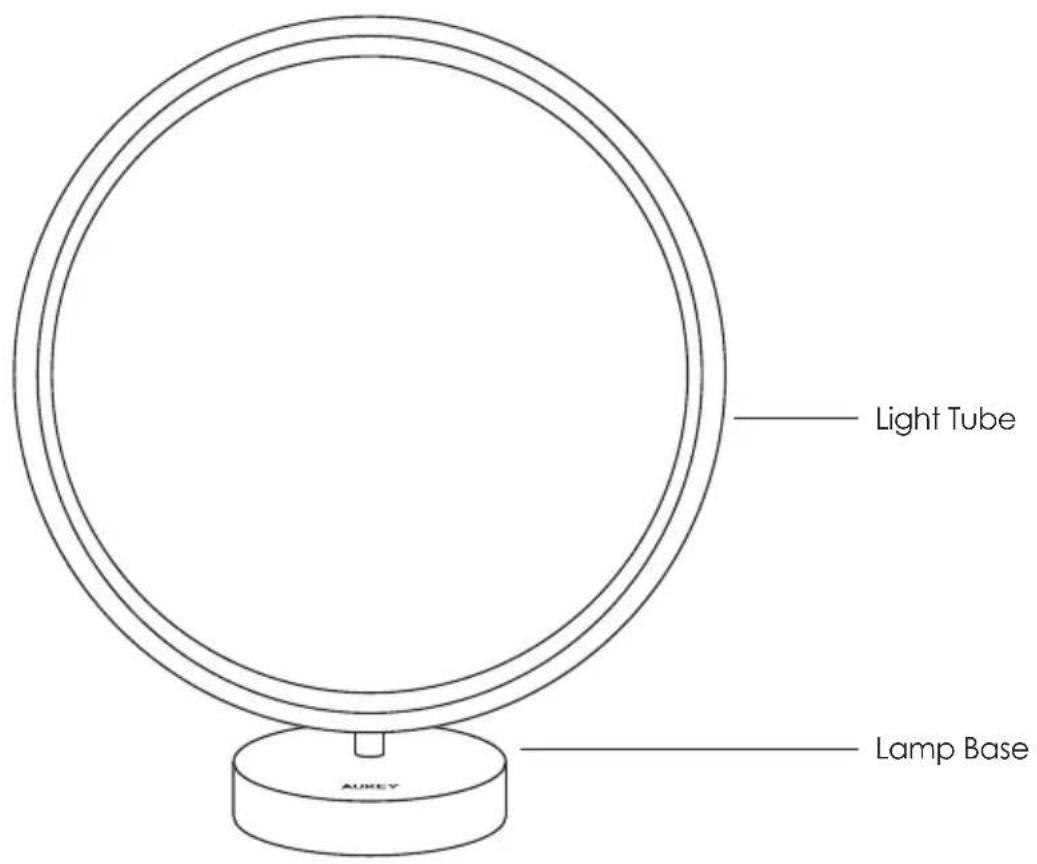

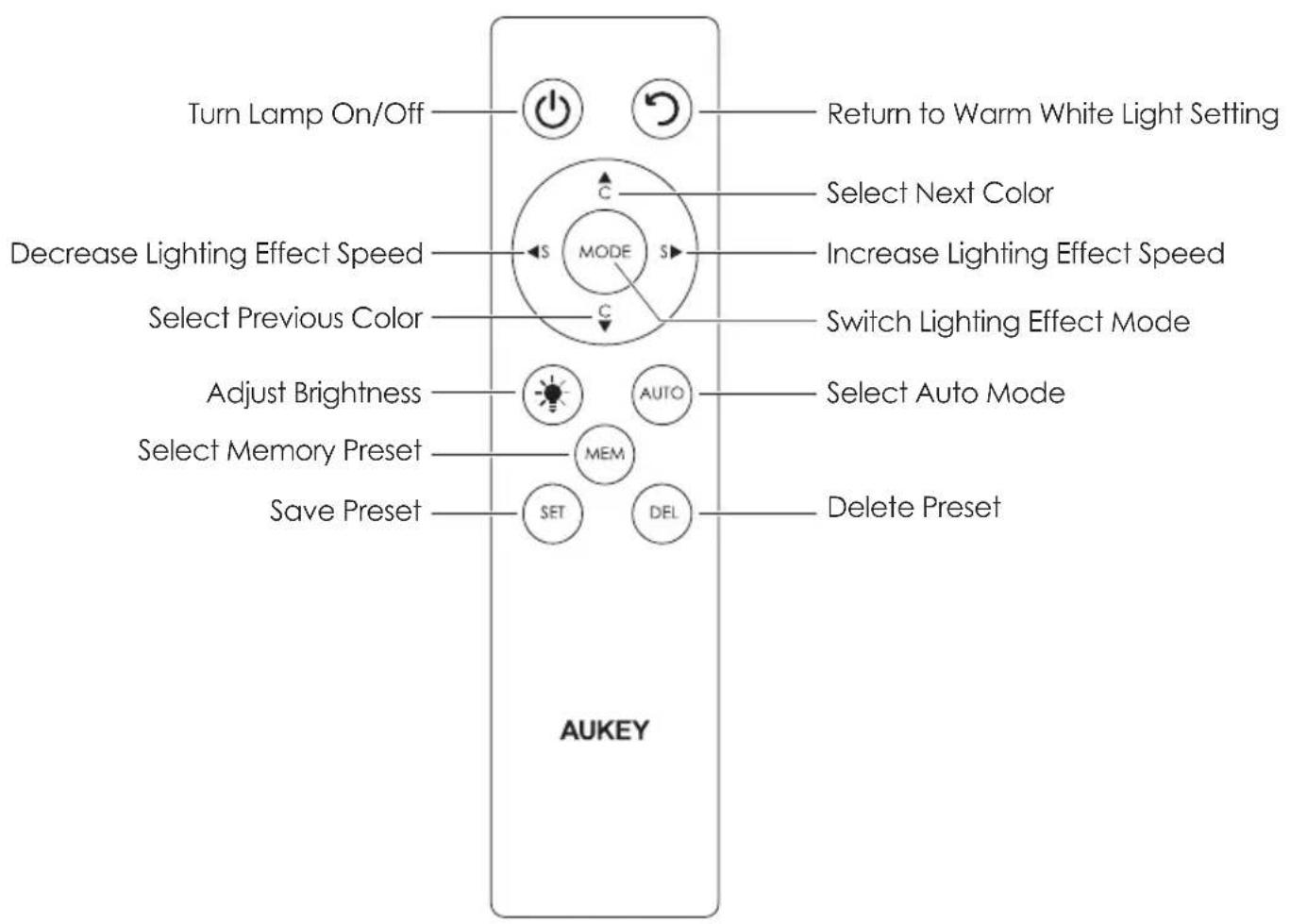

Product Diagram

Getting Started

Using the Lamp

1. Connect one end of the included AC adapter to a wall outlet and the other end to the power input on the lamp
2. Press the power button on the remote control to turn on/off. For convenience, the lamp automatically switches on when initially connected to power

Changing Lighting Effect Modes, Speeds, and Colors

• Switch between the 6 lighting effect modes by pressing the mode button
• Switch between the 4 lighting effect speeds by pressing the left S button to decrease speed or right S button to increase speed (all modes except static mode)
• Switch colors within modes by pressing the top C button to go forward through the colors or bottom C button to go backward through the colors

Mode	Effect	Color Change Sequence
1	Static	Red – Green – Blue – Yellow – Aqua Marine – Pink – Warm White
2	Stack	Red – Green – Blue – Yellow – Aqua Marine – Pink – Warm White
3	Pulse	Red – Green – Blue – Yellow – Aqua Marine – Pink – Warm White
4	Chase	Red – Green – Blue – Yellow – Aqua Marine – Pink – Warm White
	Three-Color Chase5	Red, Blue, Green – Red, Pink, Yellow – Yellow, Green, Aqua Marine – Aqua Marine, Blue, Pink – Aqua Marine, Yellow, Pink – Red, White, Blue – Red, White, Yellow
6	Three-Color Rotate	Red, Blue, Green – Red, Pink, Yellow – Yellow, Green, Aqua Marine – Aqua Marine, Blue, Pink – Aqua Marine, Yellow, Pink – Red, White, Blue – Red, White, Yellow

Using Auto Mode

• Press the auto button once for rainbow swirl and a second time for pulse color-cycling
• When in auto mode, the top C button and bottom C button can also be used to go forward and backward through the auto lighting effect modes

Adjusting Light Brightness

• Switch down through the 4 brightness levels by pressing the brightness adjustment button (static mode only)

Lighting Memory Function

• The lamp automatically switches on with the last-used lighting setup so you don't need to set it again
• If power is disconnected, the lamp will switch on in the default warm white light setting next time

Managing & Using Presets

• Press the set button to save your current customized lighting setup as a preset for quick access any time. Lamp will flash once to indicate a preset is saved
• Press the memory button to toggle between your saved presets
• A total of up to 16 custom presets can be stored, and old presets will be replaced when the preset memory is full
• Select a preset you've saved and press the delete button to delete it. The lamp will then switch to your next preset
• If power is disconnected, preset will still be retained except for preset speed settings

Product Care & Use

• Don't repair, dismantle, or modify the product
• Keep away from extreme heat
• Switch off lamp and disconnect power cable before cleaning or when not in use for a long time
• Clean the light with only a soft, dry cloth

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US orders: [e-mail]

Amazon EU orders: [e-mail]

Amazon CA orders: [e-mail]

Amazon JP orders: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN

RoHS

Made in China
