| Product Type | AS-i / Profibus DP Gateway Interface |
| Brand | IFM |
| Model | AC1375 |
| Power Supply | Specific AS-i power supply (e.g. AC1216), 30 V DC (AS-i bus) |
| Main Functions | AS-i master version 3.0, Profibus DP interface, LED diagnostics, configuration menu, slave addressing |
| Dimensions (W x H x D) | 120 x 80 x 60 mm (approx.) |
| Weight | 200 g (approx.) |
| Housing Material | Metal |
| Protection Rating | IP20 |
| Mounting | DIN rail 35 mm, mandatory grounding |
| Electrical Connection | Screw terminals for AS-i (+/-), Profibus DP (A/B), FE (functional earth) |
| Profibus DP Baud Rate | 9600 to 12 MBaud |
| Max number of parallel gateways | 31 |
| Display | Screen with adjustable contrast |
| LED Indicators | PWR/COM, PROJ, CONF/PF, Profibus DP |
| Environmental Conditions | No condensation, avoid dust, vibrations, and shocks |
| Maintenance and Cleaning | Clean with a dry cloth, do not use solvents |
| Safety | Disconnect power before connection, correct grounding of FE terminal |
| Spare Parts and Repairability | Contact the manufacturer IFM |
| General Information | User manual available as free PDF at notice-facile.com |
Frequently Asked Questions - AC1375 IFM
User questions about AC1375 IFM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Interface in PDF format for free! Find your manual AC1375 - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AC1375 by IFM.
USER MANUAL AC1375 IFM
- The SmartLink DP integrates one AS-i master in accordance with the AS-i version 3.0 and a Profibus DP interface
- It controls the exchange of data to the sensor/actuator level
- communicates with the higher control level (in the gateway mode)
Profibus-DP interface
• Baud rate 9600 to 12 MBaud
• Electrical separation from the gateway power supply
- Up to 31 gateways connected in parallel
- Pin connection: pin 3: signal B, pin 8: signal A
- Max. distance between gateway and host: depending on the baud rate
Installation
Fix the SmartLink DP onto a 35 mm DIN rail which has an electrically safe ground connection. The protection rating of the unit is IP20, therefore it should be mounted in a protected location (e.g. control cabinet).
Ensure a condensation-free environment. Avoid excessive dust, vibration and shock. The air circulation through the vents must not be impeded.
Avoid installation in direct vicinity of frequency inverters.
Electrical connection
Disconnect the installation from power. Connect the unit as indicated on the terminals. Never connect the minus potentials to each other or the minus potentials to the FE connection. Ensure an interference-free earth connection (low-noise earth) to the SmartLink DP terminal (FE: functional earthing). The terminal FE is internally connected to the housing and the Din rail clip.
Ensure that interference currents of other units are not discharged via this connection.
Operating and indicating elements
You are informed about the state of the master and the connected system by means of four diagnostic LEDs on the SmartLink DP.
- LED PWR/COM lights: AS-i voltage present, at least one slave was detected
- LED PWR/COM flashes: AS-i voltage present, but no slave was detected correctly
- LED PROJ lights: Projection mode active, the configuration monitoring is deactivated
- LED PROJ flashes: Projection mode active, switching to the protected mode not possible as a slave with the address 0 is connected.
- LED CONF/PF lights: Projected and current configuration do not match
- LED CONF/PF flashes: Peripheral fault on at least one connected slave
• LED Profibus DP lights: Bus error Profibus DP

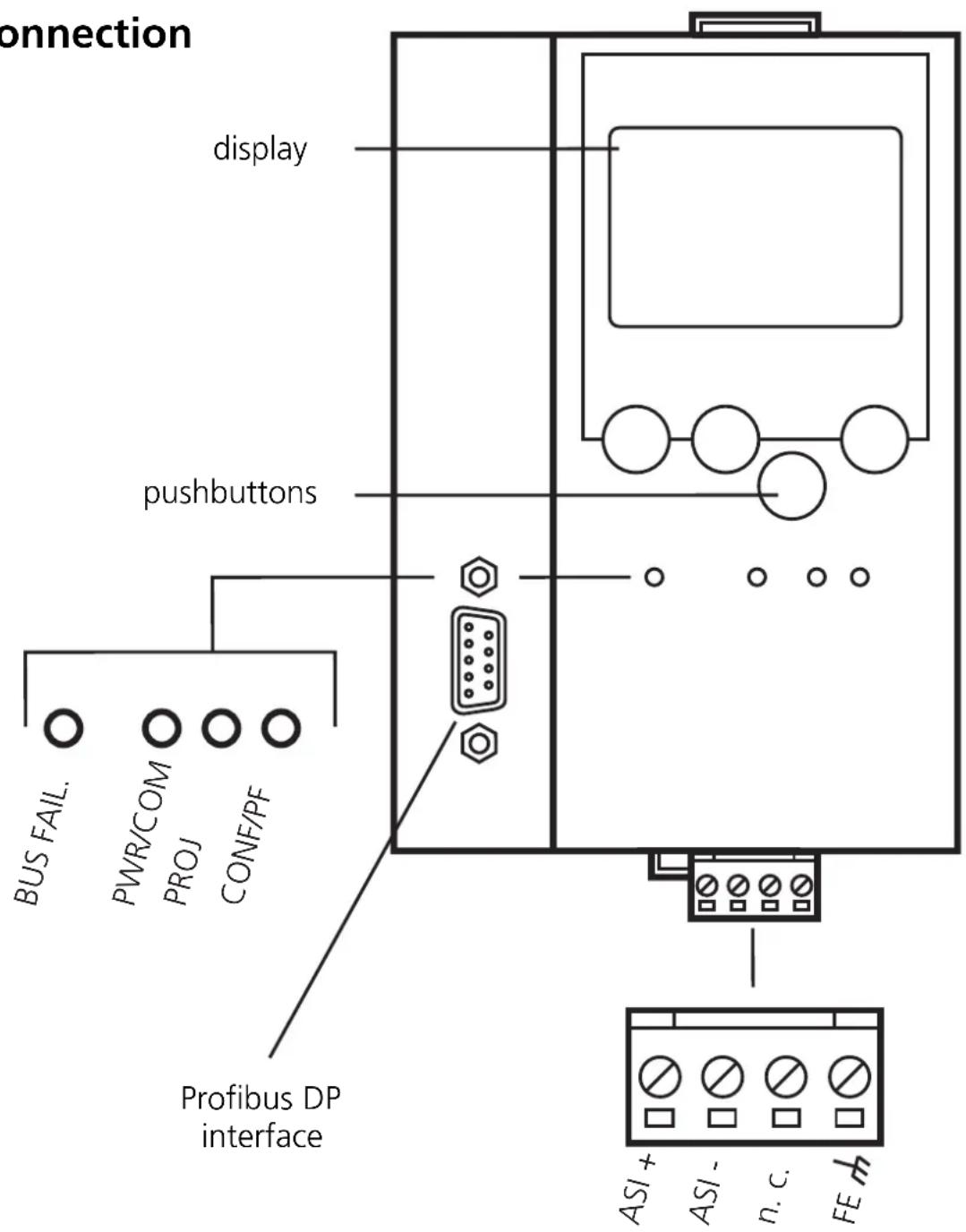

LED indicators and pin connection


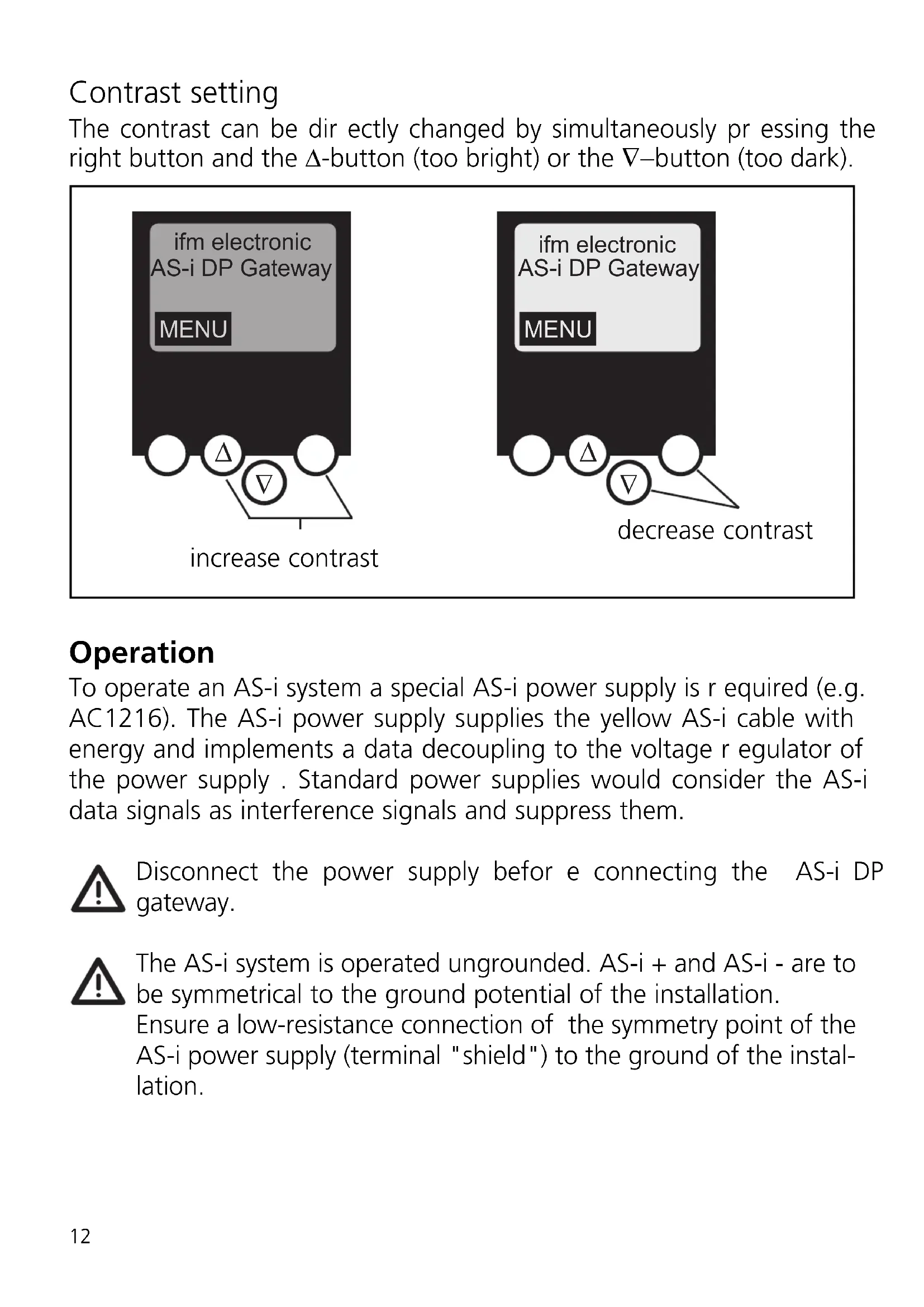

Contrast setting
The contrast can be directly changed by simultaneously pressing the right button and the -button (too bright) or the -button (too dark).

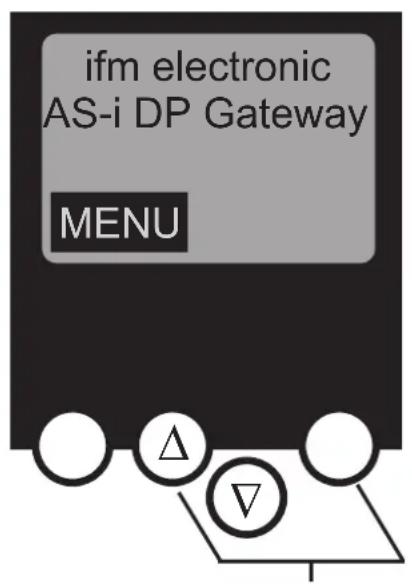

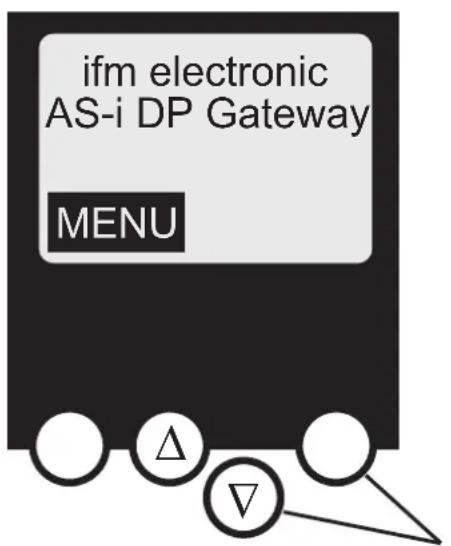

Operation
To operate an AS-i system a special AS-i power supply is r required (e.g. AC1216). The AS-i power supply supplies the yellow AS-i cable with energy and implements a data decoupling to the voltage r regulator of the power supply. Standard power supplies would consider the AS-i data signals as interference signals and suppress them.
Disconnect the power supply before e connecting the AS-i DP gateway.
The AS-i system is operated ungrounded. AS-i + and AS-i - are to be symmetrical to the ground potential of the installation.
Ensure a low-resistance connection of the symmetry point of the AS-i power supply (terminal "shield") to the ground of the installation.
Menu overview
Open the main menu by pressing the left button "MENU" in the start display.
To navigate within a menu point press the button or .
Press the buttons simultaneously to switch between the German and English menu.

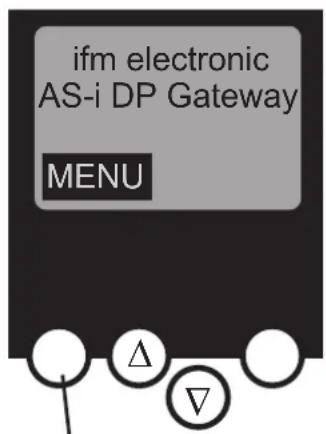

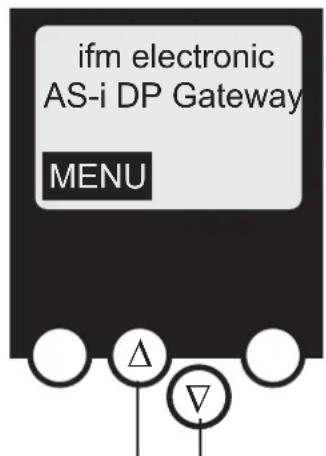

Menu navigation
O Quick setup (Summary of the menu points required for a basic configuration)
∇ Reading of the current AS-i configuration (config all)
∇ Setting of the field bus connection
O Slave lists (Checking of the addresses of the connected AS-i slaves)
∇ List of the detected AS-i slaves (LDS)
∇ List of the projected AS-i slaves (LPS)
∇ List of the activated AS-i slaves (LAS)
∇ List of the AS-i slaves with peripheral fault (LPF)
O Address slave (Programming of the correct addresses in the connected AS-i slaves)
∇ Re-addressing of an AS-i slave connected to the gateway
∇ Automatic addressing of new AS-i slaves to the next free address (easy Start-up)
O Diagnostics
∇ (Diagnosis of the AS-i network and the slave communication)
O Master setup (AS-i master flags)
∇ Reading of the current AS-i configuration (config all)
∇ Changeover to the projection mode: configuration of the AS-i system
∇ Changeover to the protected mode: standard mode (the master monitors the configuration)
∇ Deactivation of the automatic AS-i slave addressing in the protected mode
∇ Deactivation of the AS-i reset when exiting the projection mode
∇ Display of the config error counter of the connected AS-i system
∇ Reset of the config error counter
∇ Display of the fault rate percentage of the connected AS-i system
O Slave Info (Detailed information about the connected AS-i slaves)
∇ Digital or analogue inputs/outputs of the connected AS-i slaves
∇ Current and projected parameters of the connected AS-i slaves
∇ Current and projected I/O and I/D codes of the connected AS-i slaves
∇ Message faults in the communication to the connected AS-i slaves
O Fieldbus setup(Setting of the fieldbus interface)
∇ Input of the slave address of the gateway in the higher-level Profibus DP
∇ Further information about the higher-level Profibus DP
O System setup (Setting of the gateway unit)
∇ Input of the password to enable changes in the system configuration
∇ Storage of the current configuration setting
∇ Reset of the unit to the factory setting
O System info (Device information)
∇ Hardware and firmware version numbers of this gateway
∇ Serial number of this gateway
Limited voltage
The device shall be supplied from an isolating transformer having a secondary Listed fuse rated as noted in the following table.
| Overcurrent protection | ||
| Control-circuit wire size | Maximum protective device rating ampere | |
| AWG | mm^2 | |
| 26 | (0.13) | 1 |
| 24 | (0.20) | 2 |
| 22 | (0.32) | 3 |
| 20 | (0.52) | 5 |
| 18 | (0.82) | 7 |
| 16 | (1.3) | 10 |
