USER MANUAL E38425 IFM

Installation instructions

Thermowell for temperature sensors

E38xxx

Contents

1 Preliminary note 3

1.1 Symbols used 3
1.2 Warnings used 3

2 Safety instructions.... 3
3 Intended use 4
4 Installation.... 4

4.1 Use in hygienic areas according to 3-A.... 4
4.2 Use in hygienic areas according to EHEDG 5
4.3 Welding thermowells.... 6

1 Preliminary note

You will find instructions, technical data, approvals and further information using the QR code on the unit / packaging or at www.ifm.com.

1.1 Symbols used

√ Requirement
Instructions
Reaction, result

[...] Designation of keys, buttons or indications

→ Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note

1.2 Warnings used

CAUTION

Warning of personal injury

▷ Slight reversible injuries may result.

2 Safety instructions

- The unit described is a subcomponent for integration into a system.

• The system architect is responsible for the safety of the system.

• The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. This documentation must contain all necessary information and safety instructions for the operator, the user and, if applicable, for any service personnel authorised by the architect of the system.

• Read this document before setting up the product and keep it during the entire service life.

• The product must be suitable for the corresponding applications and environmental conditions without any restrictions.
• Only use the product for its intended purpose (→ Intended use).
• Only use the product for permissible media.
• If the operating instructions or the technical data are not adhered to, personal injury and/or damage to property may occur.
• The manufacturer assumes no liability or warranty for any consequences caused by tampering with the product or incorrect use by the operator.
• Installation, electrical connection, set-up, operation and maintenance of the product must be carried out by qualified personnel authorised by the machine operator.
• Protect units and cables against damage.

3 Intended use

The thermowell protects temperature sensors against aggressive media, high pressures and high flow velocities.

The Thermowell allows replacement of the sensor without process interruption.

4 Installation

CAUTION

During installation or in case of mechanical failure, high pressure or hot media can leak from the system.

▷ Risk of injury caused by pressure or burns.
▶ Ensure that the system is free of pressure during installation.
▶ Ensure that no media can leak at the mounting location during installation.

▶ Insert the thermowell into the process connection.
▶ Secure thermowells with a process connection with a clamp.
▶ For thermowells that are screwed in, observe the tightening torque ( → Technical data at documentation.ifm.com).

4.1 Use in hygienic areas according to 3-A

▶ Make sure that the thermowell is integrated into the system according to 3-A.
▶ Use only process adapters with 3-A certification and marked with the 3-A symbol ( → Accessories at www.ifm.com).

▶ For use according to 3-A, take note of the corresponding regulations for cleaning and maintenance.

▶ Not suitable for systems that have to meet the criteria of E1.2 / 63-03 of the 3-A standard 63-03.

The positioning of the thermowell / sensor must be observed to ensure the mounting adapter will self-drain: do not install the unit in positions 4 and 5.

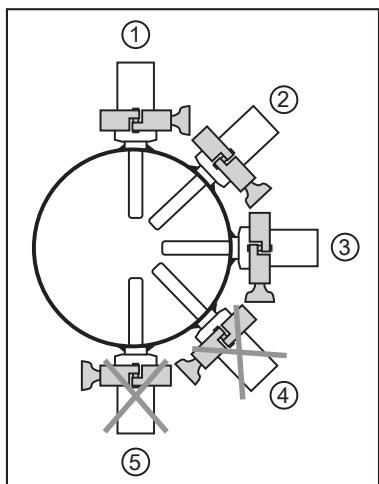

Fig. 1: Installation position for 3-A certification

4.2 Use in hygienic areas according to EHEDG

The thermowell is suited for CIP (clean in place) when installed correctly.

▶ Observe the application limits (temperature and material resistance) according to the data sheet.

▶ Ensure that the installation of the unit in the system complies with EHEDG.
▶ Use self-draining installation.
▶ Only use process adapters permitted according to EHEDG with special seals required by the EHEDG position paper.
▶ For any structures in a tank, direct water jet cleaning and cleaning of any dead spaces must be possible.
▶ Adhere to the dimensions shown in the following figure to avoid dead spaces that cannot be cleaned effectively:

L < (D - d).

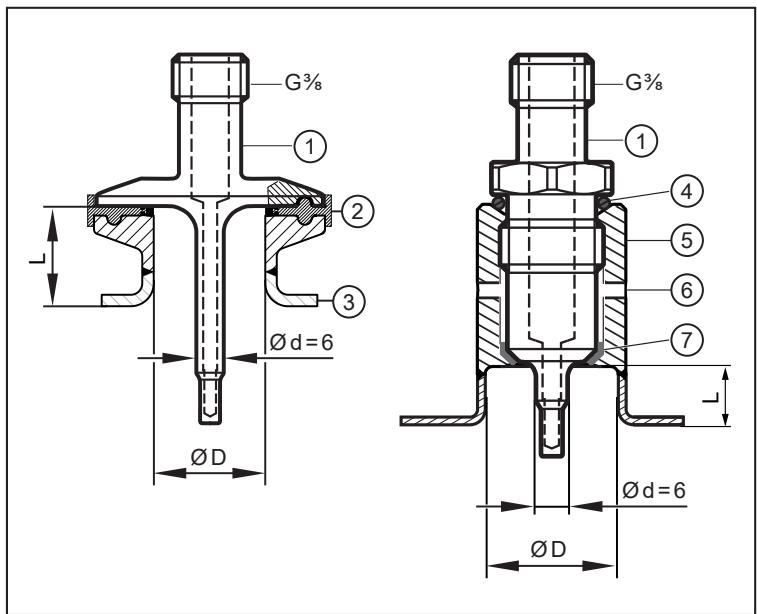

Fig. 2: Mounting dimensions for EHEDG approval

1: Thermowell
3: Process connection
5: Adapter for process connection
7: PEEK sealing ring

2: Sealing ring in accordance with EHEDG position paper
4: Sealing ring between the housing and the process connection
6: Leakage port

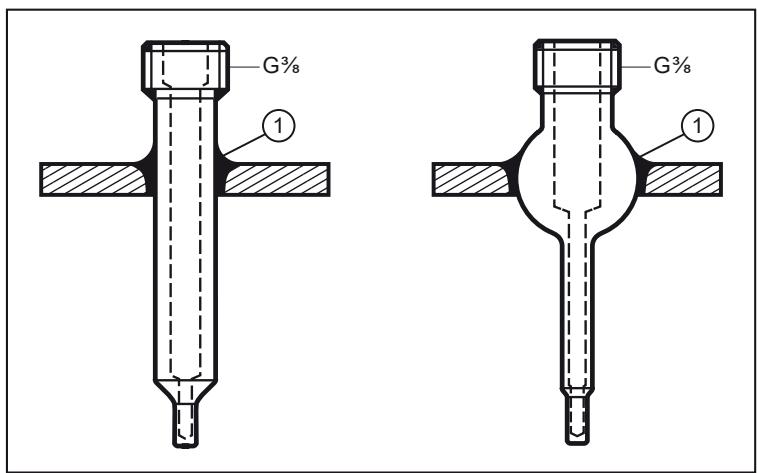

Fig. 3: Installation according to EHEDG with welding thermowells

1: Welding edges

4.3 Welding thermowells

General notes on the welding operation:

▶ The welding operation is to be carried out by qualified personnel according to state-of-the-art technology.
▶ Use materials and welding operations that are suitable for the housing material.
▶ Keep the surfaces free from any contamination.
▶ Ensure the careful preparation of the components.

In case welded adapters are used, the food contact surface must be smooth (surface roughness Ra < 0.8 μm) and the welding has to be done according to EHEDG Guideline 9 and 35.

Welding operation:

Fig. 4: Applying the fixing points

Fig. 5: Applying the welding seams

▶ Apply the fixing points of the welding thermowell at equal distance (crosswise) with a sufficient adhesive force.
▶ Apply the welding seams between the fixing points opposite each other.
▶ Ensure sufficient intervals between the individual welding operations to avoid glowing through or warping of the welding thermowell due to overheating.

After completion of the welding operation:

▶ Let the workpiece cool down.
▶ Slightly grease the thread using a lubricating paste which is suitable and approved for the application.
▶ Screw the sensor into the adapter and tighten. Tightening torque: 10 Nm.
