USER MANUAL OGS700 IFM
CE
Operating instructions Through-beam sensor
OGE7xx / OGS7xx
1 Preliminary note
1.1 Symbols used
▶ Instruction
▷ Reaction, result
[...] Designation of pushbuttons, buttons or indications
→ Cross-reference

Important note
Non-compliance can result in malfunctions or interference.
2 Safety instructions
According to the cULus approval
Caution - Use of controls or adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

Visible laser light; CLASS 1 LASER PRODUCT.
EN/IEC 60825-1 : 2007 and EN/IEC 60825-1 : 2014
Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1
Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.

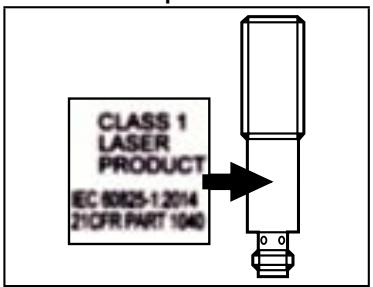

Position of the product label

Additional label

3 Functions and features
The through-beam sensor detects objects and materials without contact and indicates their presence by a switching signal.
Range: www.ifm.com → Select your country → Data sheet direct: e.g. OGE700.
4 Installation

1: LED
▶ Secure the receiver (OGE7xx) to a bracket.
▶ Align the transmitter (OGS7xx) to the receiver and secure it in the same way. Maximum range is only possible with precise alignment.
5 Electrical connection

The unit must be connected by a qualified electrician.
▶ The national and international regulations for the installation of electrical equipment must be adhered to.
▶ Voltage supply according to EN 50178.
▶ Disconnect power.
▶ Connect the unit as follows:
Transmitter (OGS7xx) DC

Receiver (OGE7xx) DC PNP

pin 1 = L + (1 0 ... 3 6 VDC)
( pin 2: not used )
pin 3 = L -
( pin 4: not used )
pin 1 = L + (1 0... 3 6 VDC)
( pin 2: not used )
pin 3 = L -
pin 4: load (PNP, 200 mA)
6 Settings
6.1 The sensor is to switch when the object is detected
| 1 | ▶ Position the object.![]() |
| ▶ Press [OUT on]. ▷ The LED flashes. | |
| 2 | ▶ Remove the object.![]() |
| ▶ Press [OUT off]. ▷ The LED goes out. The programming is finished. |
6.2 The sensor is not to switch when the object is detected
▶ Position the object (see figure 1) and press [OUT off] for 2 s.
▶ Remove the object (see figure 2) and press [OUT on].
The setting can also be carried out first without object and then with object.
6.3 Setting of the maximum sensitivity
▶ Interrupt the light beam.
The sensor is to switch when the object is detected.
▶ First press [OUT on], then [OUT off].
The sensor is to switch when the object is not detected
▶ First press [OUT off], then [OUT on].
6.4 Programming unsuccessful
▷ The yellow LED flashes quickly (8 Hz).
• Insufficient difference in measurements.
• Max. programming time (15 min.) exceeded.
6.5 Electronic lock
Lock or unlock the buttons
▶ Press the two buttons simultaneously for 10 s.
▷ Acknowledgement is indicated by a change of the LED status.
7 Operation
▶ Check whether the units operate correctly.
▷ Transmitter: The green LED is lit when the sensor is ready for operation.
▷ Receiver: The yellow LED is lit when the output is switched.
8 Maintenance, repair and disposal
▶ Keep the front panes of the sensors free from soiling.
▶ For cleaning do not use any solvents or cleaning agents which could damage the plastic material.
▶ Do not try to open the module enclosure. There are no user - serviceable components inside.
