USER MANUAL JS48NXFXDW JENN-AIR

For questions about features, operation/performance, parts, accessories, or service, call 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com. In Canada, call 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

• Au Canada p. 63
• ACCESSOIRES p. 63
• FEUILLES DE DONNÉES SUR LA PERFORMANCE p. 64

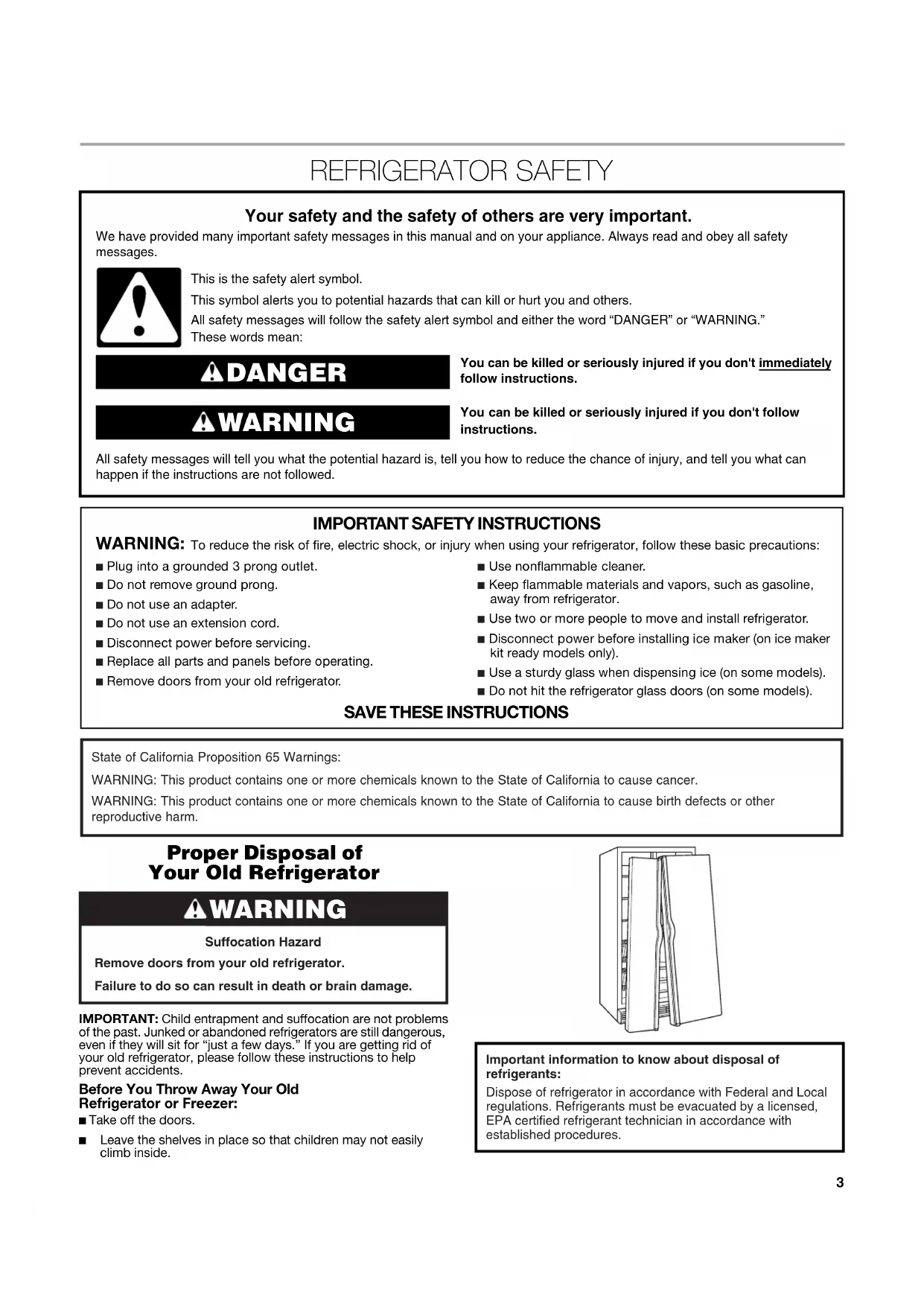

• GARANTIE REFRIGERATOR SAFETY Proper Disposal of Your Old Refrigerator IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous, even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents. Before You Throw Away Your Old Refrigerator or Freezer: ■ Take off the doors. ■ Leave the shelves in place so that children may not easily climb inside. p. 663

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING

To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

SAVE THESE INSTRUCTIONS

■ Plug into a grounded 3 prong outlet. ■ Do not remove ground prong. ■ Do not use an adapter. ■ Do not use an extension cord. ■ Disconnect power before servicing. ■ Replace all parts and panels before operating. ■ Remove doors from your old refrigerator. ■ Use nonflammable cleaner. ■ Keep flammable materials and vapors, such as gasoline, away from refrigerator. ■ Use two or more people to move and install refrigerator. ■ Disconnect power before installing ice maker (on ice maker kit ready models only). ■ Use a sturdy glass when dispensing ice (on some models). ■ Do not hit the refrigerator glass doors (on some models). State of California Proposition 65 Warnings:WARNING: This product contains one or more chemicals known to the State of California to cause cancer.WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm. WARNING Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage. Important information to know about disposal of refrigerants:Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.4 BEFORE USE Remove the Packaging ■ Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry. ■ Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.” ■ Dispose of/recycle all packaging materials. Clean Before Using After you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.” Water Supply Requirements Read all directions before you begin. IMPORTANT: ■ When your refrigerator was installed, the water connection from the water source should have been connected to your refrigerator. If your refrigerator is not connected to a water source, see “Connect to Water Line” in the Installation Instructions. If you have any questions about your water connection, see “Troubleshooting” or call a licensed, qualified plumber. ■ If you turn the refrigerator on before the water line is connected, turn the ice maker OFF. See “Ice Maker and Storage Bin.” ■ All installations must meet local plumbing code requirements. Water Pressure A cold water supply with water pressure between 30 and 120 psi (207 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, see “Troubleshooting” or call a licensed, qualified plumber. Reverse Osmosis Water Supply IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa). If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 psi (276 kPa). If the water pressure to the reverse osmosis system is less than 40 psi (276 kPa): ■ Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary. ■ Allow the storage tank on the reverse osmosis system to refill after heavy usage. ■ If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.” If you have questions about your water pressure, call a licensed, qualified plumber. Water System Preparation Please read before using the water system. Immediately after installation, follow the steps below to make sure that the water system is properly cleaned.

1. Open the freezer door and turn off the ice maker. For Style 1,

lift up the wire shutoff arm as shown. For Style 2, move the switch to the OFF (right) setting as shown. The On/Off switch is located on the top right side of the freezer compartment. Style 1 – Non-Dispenser Models Style 2 – Dispenser Models NOTE: If your model has a base grille water filter, make sure the water filter is properly installed so that the Eject button is out. See “Water Filtration System.”

2. Use a sturdy container to depress and hold the water

dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on, 5 seconds off) until a total of 3 gal. (12 L) has been dispensed. This will flush air from the filter and water dispensing system, and prepare the water filter for use. Additional flushing may be required in some households. NOTE: As air is cleared from the system, water may spurt out of the dispenser. Pinch Hazard Installation of door panels with less than a ³⁄₈" (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching. CAUTION Important information to know about glass shelves and covers: Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.5

3. Open the freezer door and turn on the ice maker. For Style 1,

lower the wire shutoff arm. For Style 2, move the switch to the ON (left) position.■ Allow 24 hours to produce the first batch of ice. ■ Discard the first three batches of ice produced. ■ Depending on your model, you may want to select the maximum ice feature to increase the production of ice. REFRIGERATOR USE Power On/Off Switch If you need to turn the power to your refrigerator On or Off, you must remove the top grille panel to access the power switch. Turn the power to the refrigerator Off when cleaning your refrigerator or changing light bulbs. Standard Installation - Flush Grille To remove the top grille panel:1. Open the door(s).2. Lift the top grille panel straight up, then pull straight out. Place the panel on a soft surface.To replace the top grille panel:

1. Hook the panel brackets onto the mounting bolts extending

from the top of the refrigerator. 2. Pull the grille panel down slightly to lock into place. Integrated Installation - Full Height Grille To install the grille panel to the refrigerator:1. Slide the upper and lower slots in each bracket onto the mounting pins extending upward from the top of the refrigerator. 2. Push the grille panel forward to fully engage the spring clips and fasten the grille panel. To remove the grille panel from the refrigerator:1. Open the door(s).

2. Place both hands under the grille panel, grasping the bottom

edge between your fingers and thumbs. 3. Pull the grille panel straight out until the grille stops. Then, lift up on the grille panel to remove. Power On or Off Switch 1. Remove the top grille panel.2. Press power switch to the On or Off position.3. Replace the top grille panel.IMPORTANT: Be sure the power switch is set to the On position after cleaning refrigerator or changing light bulbs.A. Top grilleB. Cabinet sides Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING WARNING Explosion HazardKeep flammable materials and vapors, such as gasoline, away from refrigerator.Failure to do so can result in death, explosion, or fire. B BA A. Power switch

Using the Controls Depending on your model, your refrigerator may have Style 1 or Style 2 controls. Follow the instructions specific to your model. IMPORTANT: ■ Wait 24 hours after you turn on the refrigerator before you put food into it. If you add food before the refrigerator has cooled completely, your food may spoil. NOTE: Adjusting the refrigerator and freezer controls to a lower (colder) setting will not cool the compartments any faster. ■ If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls. ■ After the refrigerator is turned on, the Over Temperature audio alarm and indicator light may activate every 1¹⁄₂ hours until the refrigerator and freezer temperatures are below 48°F (9°C) and 15°F (-9°C), respectively, or until the alarm is turned off. To turn off the audio alarm and indicator light, see “Master Alarm Reset.” Turning Refrigerator On/Off and Viewing Set Points The On/Off touch pad on the control panel shuts down refrigerator functions such as cooling, some lighting, fans and compressors. To turn the power off completely, use the power On/Off switch located behind the top grille. See “Power On/Off Switch.” ■ Press and hold the ON/OFF touch pad for 3 seconds. The LED will light up to indicate that cooling is Off. Press the touch pad again to turn on cooling. The LED will turn off. Viewing the Celsius Temperatures ■ Press F/C touch pad. To redisplay degrees Fahrenheit, press F/C again. NOTE: If the freezer temperature is below zero, the negative sign next to the freezer display will light up. This is normal. Adjusting Controls IMPORTANT: ■ The preset settings should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm. NOTE: Wait at least 24 hours between adjustments. Recheck the temperatures before other adjustments are made. ■ Press the SET TO RECOMMENDED touch pad to reset the set points to the factory recommended temperatures. NOTE: The factory recommended set points are 0°F (-18°C) for the freezer and 37°F (2°C) for the refrigerator. ■ The actual temperature may differ from the display when a door is open for an extended period of time. To Adjust Set Point Temperatures: The set point range for the freezer is -5°F to 3°F (-21°C to -16°C). The set point range for the refrigerator is 34°F to 42°F (1°C to 6°C). ■ Press the refrigerator or freezer PLUS (+) or MINUS (-) touch pad until the desired temperature is reached. Style1 Style 2 Alarm Functions Master Alarm Reset Pressing Alarm Reset once will turn off the audio alarm and indicator light. The audio alarm will not sound again for the current condition that caused the alarm until a new condition occurs or until a Master Alarm Reset is performed. A Master Alarm Reset can be performed by pressing ON/OFF twice or by turning the power to the refrigerator off and on again. See “Power On/Off Switch.” After performing a Master Alarm Reset, the indicator light will reactivate if the condition that caused the alarm is still present. See “Over Temperature,” “Call Service,” or “Door Alarm.” Style 1 Style 2 Door Alarm The Door Alarm indicator light will flash, an alarm will sound and the interior lights will turn off when a door has been open for longer than 10 minutes. When the door is closed, the audio alarm will reset and turn off, but the Door Open indicator light will continue to flash until the temperature is equal to or below 45°F (7°C) and 15°F (-9°C) for the refrigerator and freezer compartments, respectively. NOTE: To deactivate the audio alarm and indicator light, see “Master Alarm Reset.”

CONDITION/REASON: TEMPERATURE

ADJUSTMENT: REFRIGERATOR too cold Not set correctly for conditions REFRIGERATOR Control 1° higher REFRIGERATOR too warm High use or room very warm REFRIGERATOR Control 1° lower FREEZER too cold Not set correctly for conditions FREEZER Control 1° higher FREEZER too warm/too little ice High use or heavy ice use FREEZER Control 1° lower7 Over Temperature IMPORTANT: If the Over Temperature Alarm activates, your food may spoil. See the “Power Interruptions.” Minimize door openings until temperatures return to normal. The Over Temperature feature is designed to let you know when either the refrigerator temperature rises above 48°F (9°C) or the freezer temperature rises above 15°F (-9°C) for longer than 1¹⁄₂ hours. The audio alarm will shut off automatically when the temperature returns to normal, but the indicator light will continue to flash until the Alarm is pressed to let you know that an over temperature condition has occurred. If the over temperature condition is still present when an Over Temperature Reset is performed, the indicator light will continue to reactivate every 1¹⁄₂ hours until refrigerator and freezer temperatures are below 48°F (9°C) and 15°F (-9°C), respectively. NOTE: The audio alarm will be disabled for subsequent occurrences of over temperature alarm condition. To enable the audio alarm, see “Master Alarm Reset.” Call Service (on some models) If the Call Service indicator light is flashing, call for service. See the “Assistance or Service” section for information on calling for service. NOTE: The audio alarm will be disabled for subsequent occurrences of the call service alarm condition. To enable the audio alarm, see “Master Alarm Reset.” Max Cold The Max Cold feature assists with periods of heavy ice usage, full grocery loads, or temporarily warm room temperatures. ■ Press MAX COLD to turn on the Max Cold feature. The Max Cold indicator light will remain on for 24 hours unless manually turned off. NOTE: The temperature display will remain at 34°F (1°C) and -5°F (-21°C) for the refrigerator and freezer compartments, respectively, while the Max Cold feature is enabled. After 24 hours, the refrigerator returns to the previous temperature set points. Rest Mode (on some models) The Rest Mode feature is designed for the traveler or for those whose religious observances require turning off the lights and ice maker. By selecting this feature, the temperature set points and Deli drawer settings remain unchanged, the ice maker will be disabled and the interior lights will turn off. For most efficient refrigerator operation, turn off Rest Mode when it is no longer required. ■ Press REST MODE to turn on this feature. ■ Press REST MODE again to turn off this feature. NOTE: If the Max Cold feature has been selected prior to turning on the Rest Mode feature, then the set points will remain at 34°F (1°C) and -5°F (-21°C) for the refrigerator and freezer compartments, respectively, until the Max Cold feature times out. The refrigerator will then return to the previous temperature set points chosen prior to the selection of the Max Cold feature, but the lights and ice maker will remain off until Rest Mode is pressed again. Sabbath Mode (on some models) The Sabbath Mode feature is designed for the traveler or for those whose religious observances require turning off the lights and ice maker. By selecting this feature, the temperature set points and Deli drawer settings remain unchanged, the ice maker will be disabled and the interior lights will turn off. For most efficient refrigerator operation, turn off Sabbath Mode when it is no longer required. ■ Press SABBATH MODE to turn on this feature. ■ Press SABBATH MODE again to turn off this feature. NOTES: ■ If the refrigerator is operating in Sabbath mode and you press SABBATH MODE to turn off the feature, close the doors to reset the interior lighting. ■ If the Max Cold feature has been selected prior to turning on the Sabbath Mode feature, then the set points will remain at 34°F (1°C) and -5°F (-21°C) for the refrigerator and freezer compartments, respectively, until the Max Cold feature times out. The refrigerator will then return to the previous temperature set points chosen prior to the selection of the Max Cold feature, but the lights and ice maker will remain off until Sabbath Mode is pressed again. Water Filter Status Style 1–Reset The Reset Filter control allows you to restart the water filter status tracking feature each time you replace the water filter. See “Water Filtration System.” ■ Press and hold RESET for 3 seconds, until the indicator display changes to 99%. Style 2–Reset Filter The reset filter control allows you to restart the water filter status tracking feature each time you replace you water filter. See “Water Filtration System.” ■ Press and hold RESET FILTER for 3 seconds, until the Order or Replace light turns off.8 Water and Ice Dispensers (on some models) IMPORTANT:■ After connecting the refrigerator to a water source or replacing the water filter, flush the water system. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on, 5 seconds off) until a total of 3 gal. (12 L) has been dispensed. This will flush air from the filter and water dispensing system and prepare the water filter for use. Additional flushing may be required in some households. NOTE: As air is cleared from the system, water may spurt out of the dispenser. ■ Allow 24 hours for the refrigerator to cool down and chill water. ■ Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. ■ The dispensing system will not operate when the freezer door is open.■ Depending on your model, your water and ice dispensers may have one or more of the following features: a water level indicator in the dispenser tray, a light that turns on when you use the dispenser, or a lock option to avoid unintentional dispensing. Water Dispenser To dispense water:1. Press a sturdy glass against the water dispenser pad.NOTES: ■ While dispensing water and for 3 seconds after dispensing has stopped, the digital display will show how many ounces of water have been dispensed.■ To switch from ounces to cups, press and hold ICE and LOCK at the same time until the dispenser beeps after 3 seconds. To switch from cups to liters, press and hold the buttons for another 3 seconds. To switch back to ounces, repeat the process a third time.2. Remove the glass to stop dispensing.NOTE: Water may have an off-flavor if you do not use the dispenser periodically. Dispense enough water every week to maintain a fresh supply. Ice Dispenser Ice dispenses from the ice maker storage bin in the freezer when the dispenser pad is pressed. The dispensing system will not operate when the freezer door is open. To turn off the ice maker, see “Ice Maker and Storage Bin.”Your ice maker can produce both crushed and cubed ice. The display screen reads “CRUSHED” or “CUBED,” indicating which type is selected. To change the setting, press the ICE button before dispensing ice.For crushed ice, cubes are crushed before being dispensed. This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal, and pieces of ice may vary in size. When the ice maker is changing from crushed to cubed, a few ounces of crushed ice will be dispensed along with the first cubes.To dispense ice:1. Press the button to select the desired type of ice.2. Press a sturdy glass against the ice dispenser pad. Hold the glass close to the dispenser opening so ice does not fall outside of the glass. IMPORTANT: You do not need to apply a lot of pressure to the pad in order to activate the ice dispenser. Pressing hard will not make the ice dispense faster or in greater quantities.3. Remove the glass to stop dispensing.NOTE: Ice may continue to dispense for up to 10 seconds after removing the glass from the pad. The dispenser may continue to make noise for a few seconds after dispensing. Dispenser Light (on some models) When you use the dispenser, the light will automatically turn on. If you want the light to be on continuously, you may choose either ON or AUTO. ON: Press LIGHT to turn the dispenser light on. AUTO: Press LIGHT a second time to select AUTO mode. The dispenser light will automatically adjust to become brighter as the room brightens, dimmer as the room darkens. OFF: Press LIGHT a third time to turn the dispenser light off. The dispenser lights are LEDs that can not be changed. If it appears that your dispenser lights are not working, be sure that the light sensor is not blocked (in AUTO mode). See “Troubleshooting” for more information. Dispenser Lock (on some models) The dispenser can be turned off for easy cleaning or to avoid unintentional dispensing by small children and pets. NOTE: The lock feature does not shut off power to the product, to the ice maker, or to the dispenser light. It simply deactivates the ice and water dispensers. To turn off the ice maker, see “Ice Maker and Storage Bin.” ■ Press and hold LOCK for 3 seconds to lock the dispenser. While the dispenser is locking, “LOCKING” will appear on the display screen and the blue indicator light around the LOCK button will flash. When the dispenser is locked, the indicator light will change to red for a few seconds, then turn off. Cut Hazard Use a sturdy glass when dispensing ice. Failure to do so can result in cuts. WARNING9 ■ Press and hold LOCK a second time to unlock the dispenser. While the dispenser is unlocking, “UNLOCKING” will appear on the display screen and the red indicator light around the LOCK button will flash. When the dispenser is unlocked, the indicator light will change to blue for a few seconds, then turn off. Ice Maker and Storage Bin (on some models - Accessory) IMPORTANT: Flush the water system before turning on the ice maker. See “Water and Ice Dispensers.” Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. Allow 3 days to completely fill the ice container. Style 1 To Turn the Ice Maker On/Off: The On/Off switch for the ice maker is a wire shutoff arm located on the side of the ice maker.

1. To turn the ice maker on, simply lower the wire shutoff arm.

NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position.

2. To manually turn the ice maker off, lift the wire shutoff arm to

the OFF (arm up) position and listen for the click to make sure the ice maker will not continue to operate. To Remove and Replace the Ice Bin:

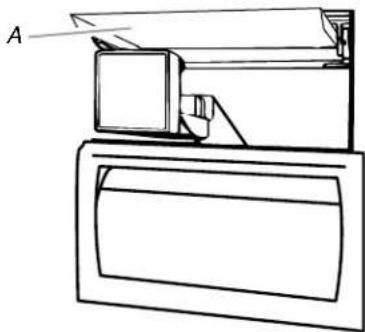

1. Flip up the covering panel.

2. Lift the wire shutoff arm so it clicks into the OFF (up)

position. Ice can still be dispensed, but no more can be made.

3. Lift up the front of the storage bin and pull the ice bin forward.

4. Replace the bin by pushing it in all the way or the dispenser

will not work. Push the wire shutoff arm down to the ON position to restart ice production. Make sure the door is closed tightly. Style 2 To Turn the Ice Maker On/Off: The On/Off switch is located on the top right side of the freezer compartment.

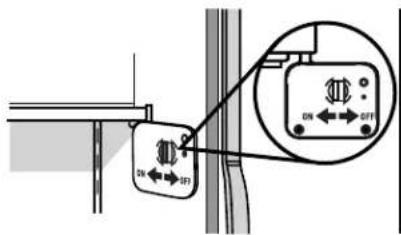

1. To turn the ice maker on, slide the control to the ON (left)

position. NOTE: Your ice maker has an automatic shutoff. The ice maker sensors will automatically stop ice production, but the control will remain in the ON (left) position.

2. To manually turn the ice maker off, slide the control to the OFF

(right) position. To Remove and Replace the Ice Storage Bin:

1. Hold the base of the storage bin with both hands and press

the release button to lift the storage bin up and out. NOTE: It is not necessary to turn the ice maker control to the OFF (right) position when removing the storage bin. The sensor cover (“flipper door”) on the left wall of the freezer stops the ice maker from producing ice if the door is open or the storage bin is removed.

2. Replace the storage bin on the door and push down to make

sure it is securely in place. Clean the Ice Storage Bin NOTE: It is normal for ice to stick together in the ice bin. Ice may be dispensed or used more frequently which will break up the ice. It is recommended that the ice container be emptied and cleaned as needed. To clean the ice storage bin:

1. Empty the ice container. Use warm water to melt the ice if

necessary. NOTE: Do not use anything sharp to break up the ice in the bin or bucket. This can cause damage to the ice container and the dispenser mechanism.

2. Wash ice bin with a mild detergent, rinse well and dry

thoroughly. Do not use harsh or abrasive cleaners or solvents. A. Ice maker cover A10 Remember ■ Allow 24 hours to produce the first batch of ice. Allow 3 days to completely fill ice container. ■ Discard the first three batches of ice produced to avoid impurities that may be flushed out of the system. ■ The quality of your ice will be only as good as the quality of the water supplied to your ice maker. ■ Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained. ■ It is normal for the ice cubes to be attached at the corners. They will break apart easily. ■ For Style 1 ice maker, do not force the wire shutoff arm up or down. ■ Do not store anything on top of the ice maker or in the ice storage bin/bucket. Water Filtration System Depending on your model, there may be a water filter indicator or water filter status lights on the control panel. Follow the instructions specific to your model. Water Filter Indicator (dispenser models) The water filter indicator, located on the control panel, will remind you when it is time to order and replace the water filter. A new water filter should display a reading of 99%. The reading in the display will decrease as the filter life is used. A replacement water filter should be ordered when “Order Filter” is displayed. When “Change Filter” is displayed, a new water filter should be installed. The disposable water filter should be replaced every 6 months OR earlier if the flow of water to the water dispenser or ice maker decreases noticeably. After changing the water filter, press and hold RESET for 2 seconds until the indicator display changes to 99%. See “Using the Controls.” Water Filter Status Lights (non-dispenser models) The water filter status lights will remind you when it is time to order and replace the water filter. When the Order Filter light is on, it is almost time to change the water filter. When the Replace Filter light is on, a new water filter should be installed. The disposable water filter should be replaced at least every 6 months OR earlier if the flow of water to the ice maker decreases noticeably. After replacing the water filter, press and hold RESET FILTER for 3 seconds. The Good light will turn on when the filter tracking feature is reset. See “Using the Controls.” Changing the Water Filter The water filter is located in the base grille below the freezer compartment door. It is not necessary to remove the base grille to remove the filter.

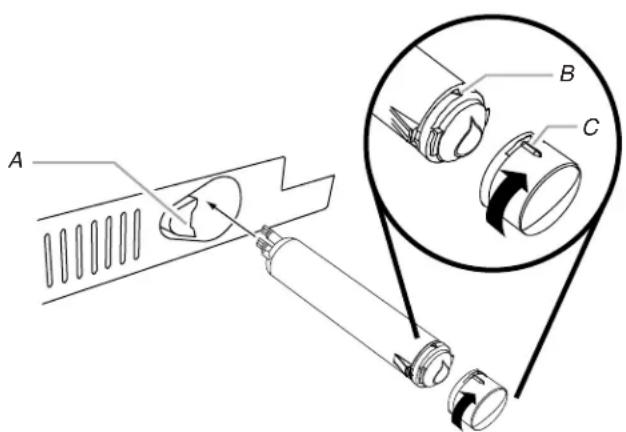

1. Remove the filter by pressing the eject button and pulling

straight out on the filter cap. NOTES: ■ Avoid twisting the cap when removing the filter because this could cause the cap to come off. If this occurs, replace the cap and pull the filter straight out. ■ There will be water in the filter. Some spilling may occur.

2. Remove the cap by turning it counterclockwise until it stops.

IMPORTANT: Do not discard the cap. It is part of your refrigerator. Keep the cap to use with the replacement filter.

3. Align the ridge on the cap with the arrow on the new filter and

turn the cap until it snaps into place.

4. Remove the covers from the O-rings. Be sure the O-rings are

still in place after the covers are removed.

5. Place the cap (removed in Step 2) on the new filter. Align the

ridge on the cap with the arrow on the filter. Turn the cap clockwise until it snaps into place. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. A. Eject buttonB. Filter capA. CoverB. O-ringsA. Eject buttonB. Arrow on filter C. Ridge on cap

C11 6. Push the new filter into the opening in the base grille. As the filter is inserted, the eject button will depress. The eject button will pop back out when the filter is fully engaged. 7. Pull gently on the cap to check that the filter is securely in place.8. Flush the water system. See “Water and Ice Dispensers.” Using the Ice Maker Without a Water Filter You can operate the ice maker without a water filter. Your ice will not be filtered.

1. Remove the filter by pressing the eject button and pulling on

the cap. See “Changing the Water Filter” earlier in this section. 2. Remove the cap by turning it counterclockwise until it stops. IMPORTANT: Do not discard the cap. It is part of your refrigerator. Keep the cap to use with the replacement filter.

3. With the cap in a horizontal position, insert the cap into the

base grille until it stops.4. Turn the cap counterclockwise until the cap slips into the attachment slot. Then, turn the cap clockwise until it is in a horizontal position.NOTE: The cap will not be even with the base grille. REFRIGERATOR FEATURES Refrigerator Shelves The shelves in your refrigerator are adjustable to meet your individual storage needs.Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make finding the exact item you want easier. It will also reduce the amount of time the refrigerator door is open, and save energy. Shelves Style 1 To remove and replace a shelf/frame:1. Remove the shelf/frame by tilting it up at the front and lifting it out of the shelf supports. Pull shelf straight out.2. Replace the shelf/frame by guiding the rear shelf hooks into the shelf supports. Tilt the front of the shelf up until the rear shelf hooks drop into the shelf supports.3. Lower the front of the shelf and check to make sure that the shelf is securely in position. Style 2 To remove and replace a shelf/frame:

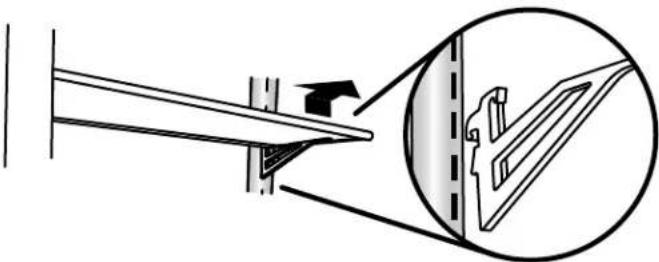

1. Remove the shelf by tilting it up at the front and lifting it out of

the shelf supports. Pull shelf straight out.2. Reposition the shelf supports in the desired location. Check that they are level and firmly inserted in the support rails.3. Place the back of the shelf in the shelf supports.

4. Lower the front of the shelf and make sure that it is in position.

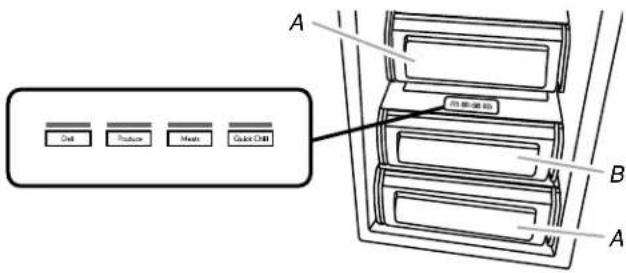

Temperature Controlled Deli Drawer The control for the deli drawer adjusts the temperature of the drawer. Cold air flows into the drawer through the air duct between the freezer and the refrigerator. Adjusting the control allows more or less cold air through the air duct. Adjust the Temperature There are three temperature settings: Deli, Produce, Meats (Cold to Coldest) and the Quick Chill setting. Select the appropriate setting for the food being stored.

1. Choose a setting based on the item to be stored in the drawer.

2. Push the button that corresponds to that setting.3. The indicator light for that setting will illuminate to let you know that the drawer is ready to be loaded. Quick Chill Setting (on some models) Each deli drawer has a Quick Chill setting. Selecting Quick Chill lowers the temperature of the deli drawer for a one-hour period. NOTE: The deli drawer temperature will be lower than the freezing point for liquids. Remove items that may freeze, before setting the drawer to Quick Chill. Style 1 Important information to know about glass shelves and covers: Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping. A. Deli drawerB. Crisper

B12 Style 2 Meat Storage Guide Store most meat in original wrapping as long as it is airtight and moisture-proof. Rewrap if necessary. See the following chart for storage times. When storing meat longer than the times given, freeze the meat.Fresh fish or shellfish ........................ use same day as purchasedChicken, ground beef, variety meat (liver, etc.)................ 1-2 daysCold cuts, steaks/roasts .................................................. 3-5 daysCured meats .................................................................. 7-10 daysLeftovers - Cover leftovers with plastic wrap, aluminum foil, or plastic containers with tight lids. Crisper and Deli Drawers The larger drawers are the crispers for your larger produce items.To remove and replace the top cover:

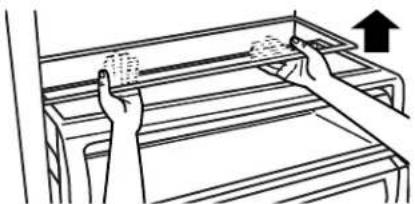

1. Remove food from the top cover. Pull drawer out about 4"

(10.16 cm). Reach under the glass shelf with both hands and lift gently upward until back of shelf is free. Tilt the shelf at an angle and remove the shelf from the refrigerator. Do not bump the glass.

2. Replace the cover by holding the glass shelf firmly with both

hands, tilt the shelf at an angle and position it above the support rails. Place shelf gently on support rails on side wall. To remove and replace the crisper and deli drawers:

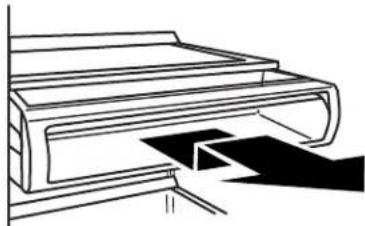

1. Slide the crisper drawer or deli drawer, straight out to the stop.

Lift the front of the drawer with one hand while supporting the bottom with the other hand. Slide the drawer out the rest of the way. 2. To replace the crisper drawer or deli drawer, pull out the drawer slides until they are fully extended and set the drawer on the slides. Be sure the small bracket on the side of the crisper drawer is behind the pin on the side.

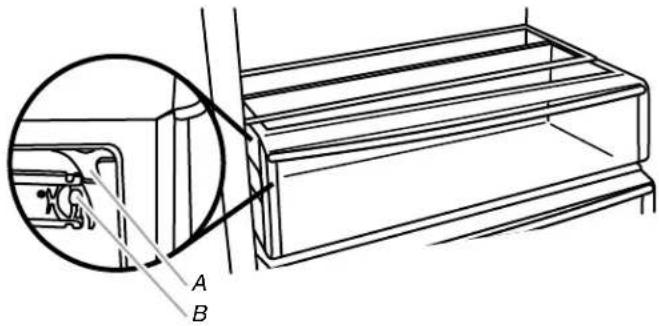

3. Push the drawer in toward the back until it is in closed

position. Reopen the crisper drawer or deli drawer to make sure it has been replaced properly. FREEZER FEATURES Freezer Shelf

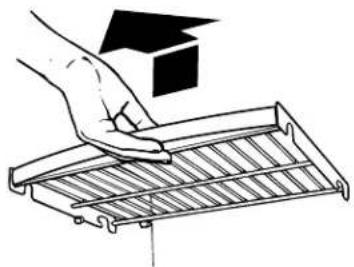

1. Remove the shelf by lifting it up and pulling it straight out.

2. Replace the shelf by putting it over the supports and lowering

it into place. Frozen Food Storage Guide Storage times will vary according to the quality and type of food, the type of packaging or wrap used (should be airtight and moisture-proof), and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.Put no more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs of food per cubic foot [907-1,350 g per 28 L] of freezer space). Leave enough space in the freezer for air to circulate around packages. Be sure to leave enough room for the door to close tightly.For more information on preparing food for freezing, check a freezer guide or reliable cookbook.A. CrisperB. Deli drawer

B13 Freezer Basket The freezer basket can be used to store bags of frozen fruits and vegetables that may slide off freezer shelves. Remove and Replace the Freezer Basket

1. Pull the basket forward out to the stop. 2. Lift the front of the basket and slide it out the rest of the way.

3. Replace the basket by positioning it on the side wall guide

rails. Lift the basket front slightly while pushing it past the guide rail stops and slide basket in the rest of the way. DOOR FEATURES Utility Compartment (on some models) The utility compartment can be placed in any position on the refrigerator door. Remove and Replace the Utility Bin

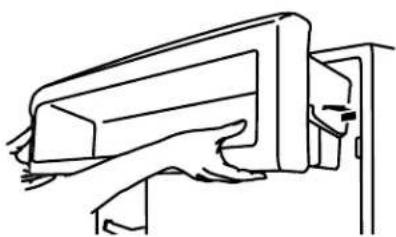

1. Remove utility compartment by grasping both ends and lifting compartment up and out.

2. Replace the bin by sliding it in above the desired support and

pushing it down until it stops. Door Bins Large door bins hold gallon containers and the smaller door bins hold 2-liter bottles. The door bins are adjustable and removable for easy cleaning and adjusting. Gallon Door Bin NOTE: The gallon door bin can only be placed on the lower support.1. Insert the attachment brackets into the adjustment slots on the door.2. Push down on the bin to secure tabs.

3. If necessary, adjust interior shelves to allow for milk jugs and

tall beverage containers stored in the gallon door bin. Door Bins

1. Remove the bin by lifting it up and pulling it out.

2. Replace the bin by sliding it in above the desired support and

pushing it down until it stops. REFRIGERATOR CARE Cleaning Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately. To Clean Your Refrigerator:

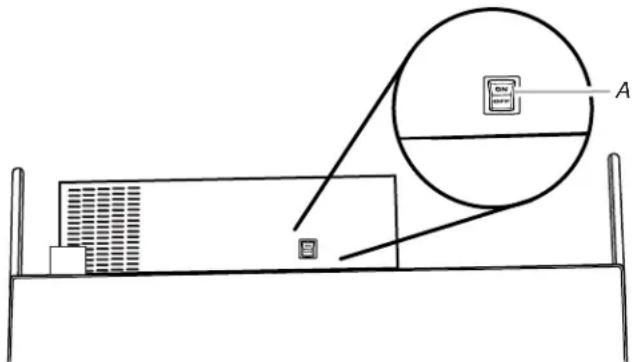

1. Remove the top grille. See “Power On/Off Switch.”2. Press power switch to OFF.

3. Remove all removable parts from inside, such as shelves,

4. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water. ■ Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools. These can scratch or damage materials. ■ To help remove odors, you can wash interior walls with a mixture of warm water and baking soda (2 tbs to 1 qt [26 g to 0.95 L] of water). WARNING Explosion HazardUse nonflammable cleaner.Failure to do so can result in death, explosion, or fire.14 5. Clean the exterior surfaces. Glass door panels: Wash glass door panels with a clean sponge or soft cloth and a mild detergent in warm water. NOTE: Do not hit the glass with pots, pans, furniture, toys, or other objects. Scratching, hitting, jarring or stressing the glass may weaken its structure, causing an increased likelihood of breakage at a later date. Stainless steel panels: Wash stainless steel with a clean sponge or soft cloth and a mild detergent in warm water. ■ To keep your stainless steel refrigerator looking like new and to remove minor scuffs or marks, it is suggested that you use the manufacturer’s approved Stainless Steel Cleaner and Polish. IMPORTANT: This cleaner is for Stainless Steel parts only! Do not allow the Stainless Steel Cleaner and Polish to come into contact with any plastic parts such as the trim pieces, dispenser covers or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth. To order the cleaner, see “Accessories.”6. Press the power switch to ON.7. Replace the top grille. See “Power On/Off Switch.” Changing the Light Bulbs NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size and shape. All lights require a 40-watt maximum appliance bulb. Replacement bulbs are available from your dealer or appliance store.1. Remove the top grille. See “Power On/Off Switch.”2. Press the power switch to OFF.3. Remove light shield when applicable as shown. NOTE: To clean a light shield, wash it with warm water and a liquid detergent. Rinse and dry the shield well.4. Remove light bulb and replace with one of the same size, shape and wattage.5. Replace light shield when applicable as shown.6. Press the power switch ON.7. Replace the top grille. See “Power On/Off Switch.” Refrigerator Control Panel Lights There are two or three light bulbs located in the top front of the refrigerator compartment behind a light shield. ■ Open the light shield. Grasp the light shield by the openings. Gently push back and pull down, as shown, to access the light bulbs. ■ Remove the light bulb and replace it with one of the same size, shape and wattage.■ Close the light shield by raising it up into place. NOTE: If needed, clean the light shield with a damp soft cloth. Freezer and Crisper Lights ■ Remove the light shield by grasping the sides and squeezing in toward the center. Once the side hooks of the shield are free from the freezer or crisper lining, pull down the shield. ■ Replace the light shield by squeezing the top and bottom toward the center and inserting the hooks into the slotted holes. Once the hooks are in place, snap the front tab into the slotted hole. Power Interruptions If the power will be out for 24 hours or less, keep the door or doors closed (depending on your model) to help food stay cold and frozen. If the power will be out for more than 24 hours, do one of the following:■ Remove all frozen food and store it in a frozen food locker.■ Place 2 lbs (907 g) of dry ice in the freezer for every cubic foot (28 L) of freezer space. This will keep the food frozen for 2 to 4 days. ■ If neither a food locker nor dry ice is available, consume or can perishable food at once.REMEMBER: A full freezer stays cold longer than a partially filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If you see that food contains ice crystals, it may be refrozen, although the quality and flavor may be affected. If the condition of the food is poor, dispose of it. WARNING Broken Glass Hazard Do not hit refrigerator glass doors. Protect glass surface and edges during installation or removal of doors. Failure to do so can result in serious eye injury or minor cuts. A. Light shield A15 Vacation Care Your refrigerator is equipped with either a Rest Mode or Sabbath Mode feature, which is designed for the traveler who wishes to turn off the lights and ice maker. By selecting this feature, the temperature set points remain unchanged, the ice maker will be disabled and the interior lights will turn off. For most efficient refrigerator operation, it is recommended to exit Rest Mode or Sabbath Mode when it is no longer required. If You Choose to Leave the Refrigerator On While You’re Away: 1. Use up any perishables and freeze other items.2. Press REST MODE or SABBATH MODE touch pad.3. If your refrigerator has an automatic ice maker, shut off water supply to the ice maker.4. Empty the ice bin.5. When you return from vacation, press REST MODE or SABBATH MODE to return to normal operation. If You Choose to Turn the Refrigerator Off Before You Leave:

1. Remove all food from the refrigerator.2. If your refrigerator has an automatic ice maker:

■ Turn off the water supply to the ice maker at least one day ahead of time.■ When the last load of ice drops, raise the wire shutoff arm to the OFF (up) position.

3. Depending on your model, turn the Thermostat Control

(or Refrigerator Control) to OFF. See “Using the Controls.”4. Clean refrigerator, wipe it, and dry well.

5. Tape rubber or wood blocks to the tops of both doors to prop

them open far enough for air to get in. This stops odor and mold from building up. TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Refrigerator Operation The refrigerator will not operate ■ Power cord unplugged? Plug into a grounded 3 prong outlet. ■ Is outlet working? Plug in a lamp to see if the outlet is working. ■ Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Are controls on? Make sure the refrigerator controls are on. See “Using the Controls.” ■ Is refrigerator defrosting? Your refrigerator will regularly run an automatic defrost cycle. Recheck in 30 minutes to see if it is operating. ■ New installation? Allow 24 hours following installation for the refrigerator to cool completely. NOTE: Adjusting the temperature controls to coldest setting will not cool either compartment more quickly. The motor seems to run too much Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open. The refrigerator is noisy Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with an explanation. ■ Buzzing - heard when the water valve opens to fill the ice maker■ Pulsating - fans/compressor adjusting to optimize performance ■ Rattling - flow of refrigerant, water line, or from items placed on top of the refrigerator ■ Sizzling/Gurgling - water dripping on the heater during defrost cycle ■ Popping - contraction/expansion of inside walls, especially during initial cool-down ■ Water running - may be heard when water melts during the defrost cycle and runs into the drain pan ■ Creaking/Cracking - occurs as ice is being ejected from the ice maker mold. There is no audible door open alarm Has the door been open less than 10 minutes? The door open alarm will only flash when the door has been open for 10 minutes. The audible alarm will sound the first time the door is left open for more than 10 minutes. Subsequent door open alarms will only flash. You must reset the audible alarm each time. See “Using the Control(s).” Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING16 The doors will not close completely ■ Door blocked open? Move food packages away from door. ■ Bin or shelf in the way? Push bin or shelf back in the correct position. The doors are difficult to open ■ Are the gaskets dirty or sticky? Clean gaskets with mild soap and warm water. The lights do not work ■ Is a light bulb loose in the socket or burned out? See “Changing the Light Bulbs.” ■ Is the refrigerator in Sabbath Mode or Rest Mode? See “Using the Controls.” ■ Has the door been open more than 10 minutes? See “Using the Controls.” Temperature and Moisture Temperature is too warm ■ New installation? Allow 24 hours following installation for the refrigerator to cool completely. ■ Door(s) opened often or left open? Allows warm air to enter refrigerator. Minimize door openings and keep doors fully closed. ■ Large load of food added? Allow several hours for refrigerator to return to normal temperature. ■ Controls set correctly for the surrounding conditions? Adjust the controls a setting colder. Check temperature in 24 hours. See “Using the Controls.” ■ Refrigerator not cooling? For models with digital controls, turn the refrigerator OFF and then ON to reset. If this does not correct the problem, call for service. ■ Air vents blocked? Remove any item from in front of the air vents. There is interior moisture buildup NOTE: Some moisture buildup is normal. ■ Humid room? Contributes to moisture buildup. ■ Door(s) opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep doors fully closed. Ice and Water The ice maker is not producing ice or not enough ice ■ Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open. ■ Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line. ■ Ice maker turned on? Make sure wire shutoff arm or switch (depending on model) is in the ON position. ■ New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production. ■ Large amount of ice recently removed? Allow 24 hours for ice maker to produce more ice. ■ Ice cube jammed in the ice maker ejector arm? Remove ice from the ejector arm with a plastic utensil. ■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements” in either the Installation Instruction booklet or the Use & Care Guide. The ice cubes are hollow or small NOTE: This is an indication of low water pressure. ■ Water shutoff valve not fully open? Turn the water shutoff valve fully open. ■ Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line. ■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. See “Water Supply Requirements.” ■ Questions remain regarding water pressure? Call a licensed, qualified plumber. Ice is sticking together in the ice storage bin ■ It is normal for frost to be on top of the ice storage bin due to normal opening and closing of the freezer. ■ It is normal for ice to stick together when it is not dispensed or used frequently. It is recommended that the ice storage bin be emptied and cleaned as needed. See “Ice Maker and Storage Bin.” Off-taste, odor or gray color in the ice ■ New plumbing connections? New plumbing connections can cause discolored or off-flavored ice. ■ Ice stored too long? Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice. ■ Odor transfer from food? Use airtight, moisture proof packaging to store food. ■ Are there minerals (such as sulfur) in the water? A water filter may need to be installed to remove the minerals. ■ Is there a water filter installed on the refrigerator? Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing. WARNING Explosion Hazard Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire.17 The ice dispenser will not operate properly ■ Freezer door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely.” ■ Ice bin installed correctly? Be sure the ice bin is firmly in position. ■ New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production. ■ Ice stuck in the delivery chute? Use a plastic utensil to clear the delivery chute. ■ Has the wrong ice been added to the bin? Use only cubes produced by the current ice maker. ■ Has the ice melted around the auger (metal spiral) in the ice bin? Empty the ice container. Use warm water to melt the ice if necessary. ■ Is the ice dispenser stalling while dispensing “crushed” ice? Change the ice button from “crushed” to “cubed.” If cubed ice dispenses correctly, depress the button for “crushed” ice and begin dispensing again. ■ Has the dispenser arm been held in too long? Ice will stop dispensing when the arm is held in too long. Wait 3 minutes for dispenser motor to reset before using again. The water dispenser will not operate properly ■ Freezer door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely.” ■ Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open. ■ Is the water pressure at least 30 psi (207 kPa)? The water pressure to the home determines the flow from the dispenser. See “Water Supply Requirements.” ■ Kink in the home water source line? Straighten the water source line. ■ New installation? Flush and fill the water system. ■ Water filter installed on the refrigerator? The filter may be clogged or incorrectly installed. ■ Is a reverse osmosis water filtration system connected to your cold water supply? See “Water Supply Requirements” in either the Installation Instructions or the Use & Care Guide. Water is leaking from the dispenser NOTE: One or two drops of water after dispensing is normal. ■ Glass not being held under the dispenser long enough? Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever. ■ New installation? Flush the water system. See “Prepare the Water System” or “Water and Ice Dispensers.” ■ Recently changed water filter? Flush the water system. See “Prepare the Water System” or “Water and Ice Dispensers.” The dispenser water is not cool enough NOTE: Water from the dispenser is chilled to only 50°F (10°C). ■ New installation? Allow 24 hours after installation for the water supply to cool completely. ■ Recently dispensed large amount of water? Allow 24 hours for water supply to cool completely. ■ Water not been recently dispensed? The first glass of water may not be cool. Discard the first glass of water. ■ Refrigerator connected to a cold water pipe? Make sure the refrigerator is connected to a cold water pipe. See “Water Supply Requirements.” Cut Hazard Use a sturdy glass when dispensing ice. Failure to do so can result in cuts. WARNING18

ASSISTANCE OR SERVICE

If You Need Service Please refer to the warranty page in this manual. If You Need Replacement Parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new Jenn-Air

appliance. To locate factory specified parts in your area, call us or your nearest designated service center. In the U.S.A. Call the Jenn-Air Customer eXperience Center toll free at 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.com. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■ Referrals to local Jenn-Air brand dealers. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). For Further Assistance If you need further assistance, you can write to Jenn-Air with any questions or concerns at: Jenn-Air Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Jenn-Air Canada Customer eXperience Centre toll free 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca. Our consultants provide assistance with: ■ Scheduling of service. Jenn-Air

appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. ■ Features and specifications on our full line of appliances. ■ Referrals to local Jenn-Air brand dealers. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. For Further Assistance If you need further assistance, you can write to Jenn-Air Canada with any questions or concerns at: Jenn-Air Brand Home Appliances Customer eXperience Centre 200 – 6750 Century Ave. Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence. ACCESSORIES To order accessories, call 1-800-442-9991 and ask for the appropriate part number listed below or contact your authorized Jenn-Air dealer. In Canada, call 1-800-807-6777. affresh

Stainless Steel Cleaner: In U.S.A., order Part #W10355016 In Canada, order Part #W10355016B affresh

Stainless Steel Wipes: In U.S.A., order Part #W10355049 In Canada, order Part #W10355049B affresh

Kitchen & Appliance Cleaner: In U.S.A., order Part #W10355010 In Canada, order Part #W10355010B Replacement Water Filter: In U.S.A., order Part #4396841 (T2RFWG2) In Canada, Order Part #4396841B (T2RFWG2)19

Base Grille Water Filtration System Model T2WG2L/T2RFWG2 Capacity 200 Gallons (757 Liters) Model T2WG2/T2RFWG2 Capacity 200 Gallons (757 Liters) This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53. Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.85 gpm (3.2 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters). ■ It is essential that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised.■ Use replacement filter T2RFWG2, part #4396841.Model T2WG2L: Style 1 – When the filter indicator reads 10%, order a new filter. When the indicator reads 0%, it is recommended that you replace the filter. Style 2 – When the filter indicator changes from green to yellow, order a new filter. When the indicator changes from yellow to red, it is recommended that you replace the filter. Style 3 – When the water filter status display changes from “GOOD” to “ORDER,” order a new filter. When the filter indicator reads “REPLACE,” it is recommended that you replace the filter.Style 4 – Press FILTER to check the status of your water filter. If the filter indicator light is yellow, order a new filter. If the filter indicator light is red, it is recommended that you replace the filter. Model T2WG2: Change the water filter cartridge every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter cartridge more often. ■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary.■ The product is for cold water use only. ■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.■ Refer to the “Warranty” section for the Manufacturer’s name, address and telephone number.■ Refer to the “Warranty” section for the Manufacturer’s limited warranty. Application Guidelines/Water Supply ParametersSystem tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class II*; and against NSF/ANSI Standard 53 for the reduction of Mercury, Benzene, Toxaphene, O-dichlorobenzene, and Carbofuran. Substance ReductionAesthetic EffectsNSF Reduction RequirementsAverageInfluentInfluent Challenge ConcentrationMaximumEffluentAverageEffluentMinimum %ReductionAverage % ReductionChlorine Taste/OdorParticulate Class II 50% reduction85% reduction2.0182 mg/L1333333 #/mL2.0 mg/L ± 10%At least 10,000 particles/mL0.06 mg/L6600 #/mL 0.0536 mg/L2325 #/mL97.0399.5197.3499.83ContaminantReductionNSF Reduction RequirementsAverageInfluentInfluent Challenge ConcentrationMaximumEffluentAverageEffluentMinimum %ReductionAverage % ReductionLead: @ pH 6.5***Lead: @ pH 8.5***0.010 mg/L0.010 mg/L0.1533 mg/L0.1400 mg/L0.15 mg/L ± 10%0.15 mg/L ± 10%0.0005 mg/L0.0007 mg/L0.0005 mg/L0.0006 mg/L99.6799.5099.6799.57Mercury: @ pH 6.5Mercury: @ pH 8.50.002 mg/L0.002 mg/L0.0058 mg/L0.0059 mg/L0.006 mg/L ± 10%0.006 mg/L ± 10%0.0002 mg/L0.0005 mg/L0.0002 mg/L0.0003 mg/L96.5491.5796.5494.92Benzene 0.005 mg/L 0.0154 mg/L 0.015 mg/L ± 10% 0.0012 mg/L 0.0006 mg/L 92.22 96.34O-Dichlorobenzene 0.6 mg/L 1.7571 mg/L 1.8 mg/L ± 10% 0.0250 mg/L 0.0066 mg/L 98.58 99.63 Toxaphene 0.003 mg/L 0.015 mg/L 0.015 mg/L ± 10% 0.001 mg/L 0.001 mg/L 93.33 93.33 Carbofuran 0.04 mg/L 0.0819 mg/L 0.08 mg/L ± 10% 0.0400 mg/L 0.0213 mg/L 51.13 74.00 Water Supply Water Pressure Water Temperature Service Flow Rate City or Well

Class II particle size: 1 um to <5 umTest requirement is at least 100,000 particles/mL of AC Fine Test Dust.Compliant for Lead reduction requirements under NSF/ANSI Standard 53 as tested by Pace Analytical Services, Inc.® NSF is a registered trademark of NSF International.21 Base Grille Water Filtration System Model T1WG2L/T2RFWG2 Capacity 200 Gallons (757 Liters) Model T1WG2/T2RFWG2 Capacity 200 Gallons (757 Liters) This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53. Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters). ■ It is essential that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised. ■ Use replacement filter T2RFWG2, part #4396841. Model T1WG2L: Style 1 – When the filter indicator reads 10%, order a new filter. When the indicator reads 0%, it is recommended that you replace the filter. Style 2 – When the filter indicator changes from green to yellow, order a new filter. When the indicator changes from yellow to red, it is recommended that you replace the filter. Style 3 – When the water filter status display changes from “GOOD” to “ORDER,” order a new filter. When the filter indicator reads “REPLACE,” it is recommended that you replace the filter. Style 4 – Press FILTER to check the status of your water filter. If the filter indicator light is yellow, order a new filter. If the filter indicator light is red, it is recommended that you replace the filter. Model T1WG2: Change the water filter cartridge every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter cartridge more often. ■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary. ■ The product is for cold water use only. ■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. ■ Refer to the “Warranty” section for the Manufacturer’s name, address and telephone number. ■ Refer to the “Warranty” section for the Manufacturer’s limited warranty. Application Guidelines/Water Supply Parameters System tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of Chlorine Taste and Odor, Particulate Class II*; and against NSF/ANSI Standard 53 for the reduction of Mercury, Benzene, Toxaphene, O-dichlorobenzene, and Carbofuran. Substance ReductionAesthetic EffectsNSF Reduction RequirementsAverageInfluentInfluent Challenge ConcentrationMaximumEffluentAverageEffluentMinimum %ReductionAverage % ReductionChlorine Taste/OdorParticulate Class II 50% reduction85% reduction2.0182 mg/L1333333 #/mL2.0 mg/L ± 10%At least 10,000 particles/mL0.06 mg/L6600 #/mL**0.0536 mg/L2325 #/mL97.0399.5197.3499.83ContaminantReductionNSF Reduction RequirementsAverageInfluentInfluent Challenge ConcentrationMaximumEffluentAverageEffluentMinimum %ReductionAverage % ReductionLead: @ pH 6.5***Lead: @ pH 8.5***0.010 mg/L0.010 mg/L0.1533 mg/L0.1400 mg/L0.15 mg/L ± 10%0.15 mg/L ± 10%0.0005 mg/L0.0007 mg/L0.0005 mg/L0.0006 mg/L99.6799.5099.6799.57Mercury: @ pH 6.5Mercury: @ pH 8.50.002 mg/L0.002 mg/L0.0058 mg/L0.0059 mg/L0.006 mg/L ± 10%0.006 mg/L ± 10%0.0002 mg/L0.0005 mg/L0.0002 mg/L0.0003 mg/L96.5491.5796.5494.92Benzene 0.005 mg/L 0.0154 mg/L 0.015 mg/L ± 10% 0.0012 mg/L 0.0006 mg/L 92.22 96.34O-Dichlorobenzene 0.6 mg/L 1.7571 mg/L 1.8 mg/L ± 10% 0.0250 mg/L 0.0066 mg/L 98.58 99.63 Toxaphene 0.003 mg/L 0.015 mg/L 0.015 mg/L ± 10% 0.001 mg/L 0.001 mg/L 93.33 93.33 Carbofuran 0.04 mg/L 0.0819 mg/L 0.08 mg/L ± 10% 0.0400 mg/L 0.0213 mg/L 51.13 74.00 Water Supply Water Pressure Water Temperature Service Flow Rate City or Well

0.5 gpm (1.9 Lpm) @ 60 psi

Class II particle size: 1 um to <5 umTest requirement is at least 100,000 particles/mL of AC Fine Test Dust.Compliant for Lead reduction requirements under NSF/ANSI Standard 53 as tested by Pace Analytical Services, Inc.® NSF is a registered trademark of NSF International.22 4/14 JENN-AIR

REFRIGERATION LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center:■ Name, address and telephone number■ Model number and serial number■ A clear, detailed description of the problem■ Proof of purchase including dealer or retailer name and address IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions

can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit https:/ /jennair.custhelp.com.

2. All warranty service is provided exclusively by our authorized Jenn-Air Service Providers

. In the U.S. and Canada, direct all requests for warranty service to: Jenn-Air Customer eXperience Center 1-800-JENNAIR (1-800-536-6247) If outside the 50 United States or Canada, contact your authorized Jenn-Air dealer to determine whether another warranty applies. https://jennair.custhelp.com

For two years from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Jenn-Air”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.

THIRD THROUGH SIXTH YEAR LIMITED WARRANTY

(SEALED REFRIGERATION SYSTEM ONLY) In the third through sixth year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand will pay for factory specified replacement parts and repair labor for the following components to correct non-cosmetic defects in materials or workmanship in the sealed refrigeration system (includes compressor, evaporator, condenser, dryer and connecting tubing) that existed when this major appliance was purchased.

SEVENTH THROUGH TWELFTH YEAR LIMITED WARRANTY

(SEALED REFRIGERATION SYSTEM ONLY - LABOR NOT INCLUDED) In the seventh through twelfth year from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand will pay for factory specified replacement parts for the following components to correct defects in materials or workmanship in the sealed refrigeration system (includes compressor, evaporator, condenser, dryer and connecting tubing) that existed when this major appliance was purchased. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Jenn-Air designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential or multiple-family use, or use

inconsistent with published user, operator or installation instructions.

2. In-home Instruction on how to use your product

3. Service to correct improper product maintenance or installation,

installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water filters,

preservation solutions, etc.).

5. Damage from accident, misuse, abuse, fire, floods, acts of God

or use with products not approved by Jenn-Air.

6. Repairs to parts or systems to correct product damage or

defects caused by unauthorized service, alteration or modification of the appliance.

7. Cosmetic damage including scratches, dents, chips, and other

damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to Jenn-Air within 30 days.

8. Discoloration, rust or oxidation of surfaces resulting from caustic

or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

9. Food or medicine loss due to product failure.

10. Pick-up or delivery. This product is intended for in-home repair.

11. Travel or transportation expenses for service in remote locations

where an authorized Jenn-Air servicer is not available.

12. Removal or reinstallation of inaccessible appliances or built-in

fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.

13. Service or parts for appliances with original model/serial

numbers removed, altered or not easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.23 Notes24
